3One data IMC102B-F User manual

- 1 -
IMC102B-F
Industrial Ethernet Media Converter
User manual
3onedata Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial
park, Nanshan District, Shenzhen, 518108 China
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.3onedata.com
【Summarize】
IMC102B-F is a type of industrial Ethernet media converter
with 2-port 10/100Base-T(X) Ethernet RJ45 and 1-port
100Base-FX fiber (SC/FC/ST optional). It complies with FCC
and CE standards as well as DIN-rail installation and wide
operating temperature -40~167°F (-40~75°C). This device is
ideal for some industrial environments and provides reliable
and quick solutions for your Ethernet device.
【Packing list】
The Ethernet media converter is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
1. Industrial Ethernet media converter ×1
2. User manual ×1
3. DIN-Rail mounting kit ×1
4. Warranty card ×1
【Feature】
Support IEEE802.3/802.3u/802.3x, store and forward
Support 2-port 10/100Base-T(X) and 1-port
100Base-FX
10/100M, full and half duplex, auto MDI/MDI-X
negotiation
Support -40~167°F (-40~75°C) working temperature
Support 100~240VAC power input
Industrial grade, IP40 protection, metal shell
DIN Rail installation
【Panel layout】
1. Ground screw
2. Power input terminal block
3. DIP switch
4. DIN-Rail mounting kit
5. Power indicator
6. Ethernet port link/act indicator
7. 10/100Base-T(X) RJ45 port
8. 100Base-FX (SC/FC/ST) fiber port
Vertical / bottom view Rear view
Front view Side view
【Power supply input】
The converter top panel provides 3-pin power supply input
terminal block, support AC input. Voltage input range is
100~240VAC (terminal block defined as, 1: L/+, 2: FG, 3:
N/-).
Important notice:
1. Power ON operation: insert power cable’s terminal block
into device’s power port, and then connect power supply
plug to a power source.
2. Power OFF operation: unpin power plug, and then
disconnect the terminal block, please note operation
sequence.

- 2 -
【Dimension】
Unit (mm)
【DIP Switch】
Top panel provides 4-pin DIP switch to configure the device
(ON to enable effective). 1 is used to configure frame flow
control of RJ45 port and the optic fiber port support back
press flow control. 2 is force RJ45 to 10M. 3 and 4 is
reserved.
【Communication connector】
10/100Base-T(X) Ethernet port
The pinout define of RJ45 port display as below, connect by
UTP or STP. The connection distance is no more than 100m.
100Mbps is used 120Ω of UTP 5, 10Mbps is used 120Ω of
UTP 3, 4, 5.
RJ 45 port support automatic MDI/MDI-X operation. Can
connect the PC, Server, Converter and HUB .Pin 1,2,3,6
Corresponding connections in MDI. 1→3, 2→6, 3→1, 6→2
are used as cross wiring in the MDI-X port of Converter and
HUB. 10Base-T/100Base-TX are used in MDI/MDI-X, the
define of Pin in the table as below.
NO.
MDI signal
MDI-X signal
1
TX+
RX+
2
TX-
RX-
3
RX+
TX+
6
RX-
TX-
4, 5, 7, 8
—
—
Note：, “TX±”transmit data±, “RX±”receive data±, “—”not use.
10/100Base-T(X) MDI (straight-through cable)
10/100Base-T(X) MDI-X (Cross over cable)
MDI/MDI-X auto connection makes converter easy to use for
customers without considering the type of network cable.
100Base-FX SC/ST/FC port
100Base-FX port support full-duplex SC/ST/FC Multi mode
or Single mode. The fiber port TX (transmit) connect remote
RX (receive).
Suppose: If you make your own cable, we suggest labeling
the two sides of the same line with the same letter (A-to-A
and B-to-B, shown as above, or A1-to-A2 and B1-to-B2).
【LED Indicator】
LED indictor light on the front panel of product, the function
of each LED is described in the table as below.
LED system statue
LED
State
Description
PWR
ON
The device is powered on and is
working properly.
OFF
The device is powered off.
Link/ACT
(1~3)
ON
The Ethernet port is connected
properly.
Blinking
The Ethernet port is connected
and data is being transmitted.
OFF
The Ethernet port is not
connected properly.
【Installation】
Before installation, ensure that the working environment
meet the installation requirement, including the power needs
and abundant space. Whether it is close to the connection
equipment and other equipments are prepared or not.
1. Avoid in the sunshine, keep away from the heat
fountainhead or the area where in intense EMI.
2. Check the cables and plugs that installation
requirements.
3. Check whether the cables be seemly or not (less than
100m) according to reasonable scheme.
4. Power: support 100~240VAC power supply;
5. Environment: working temperature: -40～75℃
Storage Temperature: -40～85℃
Relative humidity 5%～95%

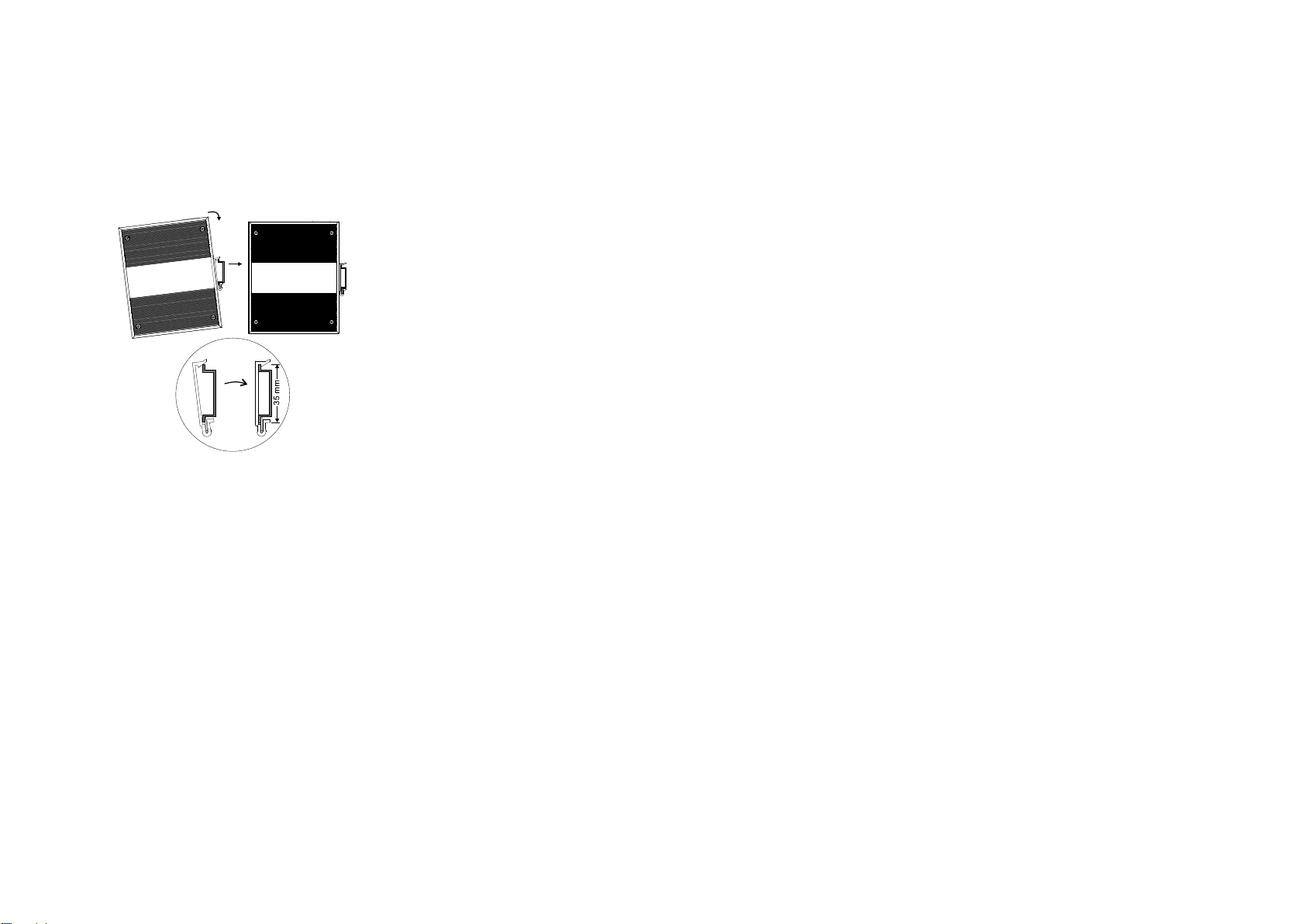

DIN Rail Installation
In order to use in industrial environments expediently, the
product adopt 35mm DIN-Rail installation, the installation
steps as below:
1 8

- 3 -
1. Check the DIN-Rail attachment
2. Check DIN Rail whether be firm and the position is
suitability or not.
3. Insert the top of the DIN-Rail into the slot just below the
stiff metal spring.
4. The DIN-Rail attachment unit will snap into place as
shown below.
Wiring Requirements
Cable laying need to meet the following requirements,
1. It is needed to check whether the type, quantity and
specification of cable match the requirement before
cable laying;
2. It is needed to check the cable is damaged or not, factory
records and quality assurance booklet before cable
laying;
3. The required cable specification, quantity, direction and
laying position need to match construction requirements,
and cable length depends on actual position;
4. All the cable cannot have break-down and terminal in the
middle;
5. Cables should be straight in the hallways and turning;
6. Cable should be straight in the groove, and cannot
beyond the groove in case of holding back the inlet and
outlet holes. Cables should be banded and fixed when
they are out of the groove;
7. User cable should be separated from the power lines.
Cables, power lines and grounding lines cannot be
overlapped and mixed when they are in the same groove
road. When cable is too long, it cannot hold down other
cable, but structure in the middle of alignment rack;
8. Pigtail cannot be tied and swerved as less as possible.
Swerving radius cannot be too small (small swerving
causes terrible loss of link). Its banding should be
moderate, not too tight, and should be separated from
other cables;
9. It should have corresponding simple signal at both sides
of the cable for maintaining.
【Specification】
Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
Flow control: IEEE802.3x flow control, back press flow
control
Exchange Attribute
100M forward speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 1.6Gbps
MAC address table: 2K
Memory: 1Mbit
Interface
RJ45 port: 10/100Base-T(X) auto speed control, Half/full
duplex and MDI/MDI-X auto detect
Fiber port: 100Base-FX, SC/ST/FC connector
Transfer Distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode: 1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED Indicator
Interface indicator: Link (1~3)
Power supply indicator: PWR
DIP Switches
NO.1: Flow Control NO.2: Force RJ45 to 10M
Power Supply
Input Voltage: 100~240VAC
Type of input: 3 bits7.62mm terminal block
Consumption
No-load consumption: 1.6W@220VAC
Full-load consumption: 2.0W@220VAC
Working environment
Working temperature: -40~167°F (-40～75°C)
Storage temperature: -40~185°F (-40～85°C)
Relative Humidity: 5%~95 %( non-condensing)
Mechanical Structure
Shell: IP40, high strength iron shell.
Installation: DIN-Rail
Dimension (W×H×D): 35mm ×110 mm×95mm
Weight: 340g
Industry Standards
EMI: FCC Part 15, CISPR (EN55022) classA
EMS: IEC 61000-4-2 (ESD), Level 3
IEC 61000-4-4 (EFT), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty: 5 years
