1. 100M Ethernet fiber port
2. 100M Ethernet fiber port indicator (FX-ACT)
3. 10M/100M Ethernet copper port TP1
4. 10M/100M Ethernet copper port indicator
(TP1-ADD)
5. Power supply indicator (POWER)
6. 10M/100M Ethernet copper port TP2
7. 10M/100M Ethernet copper port indicator
(TP2-ADD)
8. 5VDC Terminal block for power input
9. Wall Mounting lug
10. 220VAC/DC power input outlet and switch
11. Terminal block of -48VDC power supply input
12. Reserved

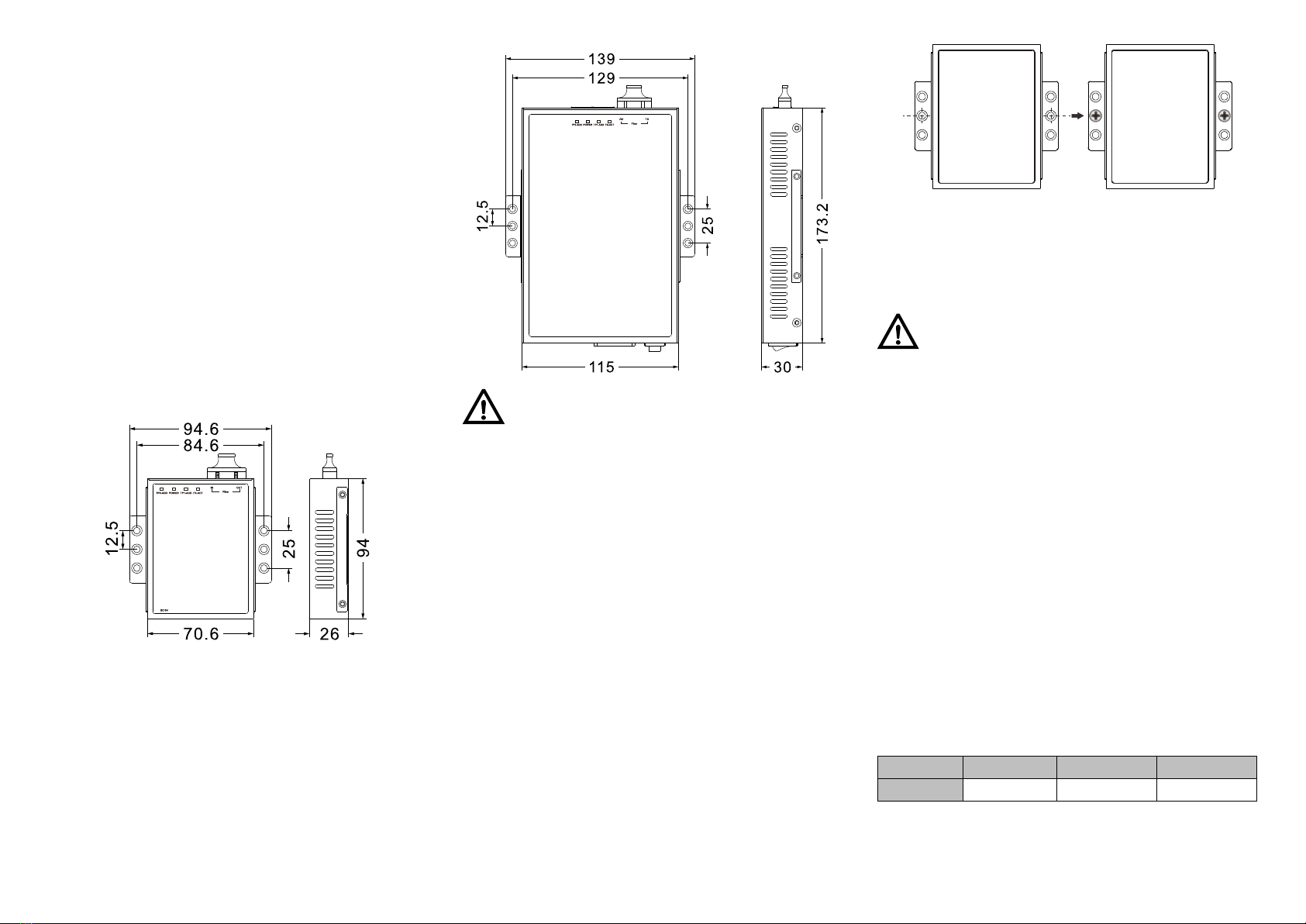

【Mounting Dimension】
Unit: mm
Model I
Model II Model III
Note Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【Wall-mounted Device Mounting】
Step 1 Place the device on the wall as reference or
reference installation dimension; mark 2 bolt
positions on the wall.
Step 2 Hang the device on the labeled wall; align the bolt
to the labeled position, then screw the bolt to
enhance stability, installation ends.
【Wall-mounted Device Disassembling】
Step 1 Device power off.
Step 2 Hold the equipment steady and unscrew the screw
on the wall
Step 3 Take out the device, disassembling ends.
Note before powering on:
Power ON operation: First insert the power supply
terminal block into the device power supply interface,
and then plug the power supply plug contact and power
on.
Power OFF operation: First, remove the power plug,
and then remove the wiring section of terminal block.
Please pay attention to the above operation sequence.
【Power Supply Connection】
5VDC power supply
Model I provides 1 DC round head for power supply input and
support 5VDC power supply.
220VAC/DC power supply
Model II provides 1 AC outlet with switch for power supply
input and support 220VAC/DC power supply.
-48VDC power supply
Model III provides 3 5.08mm pitch terminal block for power
input, supports -48DC power supply. The pin definition as
follows:
PIN 1 2 3
Definition GND -48VDC+ -48VDC-
【Checking LED Indicator】
The device provides LED indicators to monitor the device
working status with a comprehensive simplified
