3One data 3012 Series User manual

MODEL3012 Series
Gigabit Ethernet Media Converter
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin
High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
[phone]
Fax:
[phone]
【
Packet List
】
Please check whether the package and accessories are intact
while using the media converter for the first time.
1
Media Converter
2
Quick Installation Guide
3
Wall Mounting lug x 2
4
Warranty card
5
5VDC power adapter or 220VAC power line (not for
-48VDC)
6
Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【
Product Overview
】
This series are Gigabit Ethernet Media Converters. For
convenience, the products of this series adopt the following
number on the left in this guide, please affirm the number of
your product.
Model I MODEL3012-5VDC (1 Gigabit copper port + 1
Gigabit fiber port, external 5VDC power supply)
Model II MODEL3012-220VAC (1 Gigabit copper port + 1
Gigabit fiber port, built-in 220VAC/DC power
supply)
Model III MODEL3012-48VDC (1 Gigabit copper port + 1
Gigabit fiber port, built-in -48VDC power supply)
【
Panel Design
】
Rear view, Top view and Front view (external power
supply)
Model I
Rear view, Top view and Front view (built-in power
supply)
Model II

Model III
1. Gigabit Ethernet fiber port
2. Power supply indicator PWR
3. Gigabit Ethernet fiber port indicator (FX / FX ACT)
4. Ethernet copper port 100M speed indicator (100M)
5. 10M/100M/Gigabit Ethernet copper port indicator
(TP-TX / TP Link)
6. Ethernet copper port duplex indicator (DUP)
7. Ethernet copper port Gigabit speed indicator
(1000M)
8. 10M/100M/Gigabit Ethernet copper port
9. 5VDC Terminal block for power input
10. Wall Mounting lug
11. 220VAC/DC power input outlet and switch
12. Terminal block of -48VDC power supply input
13. Reserved
【

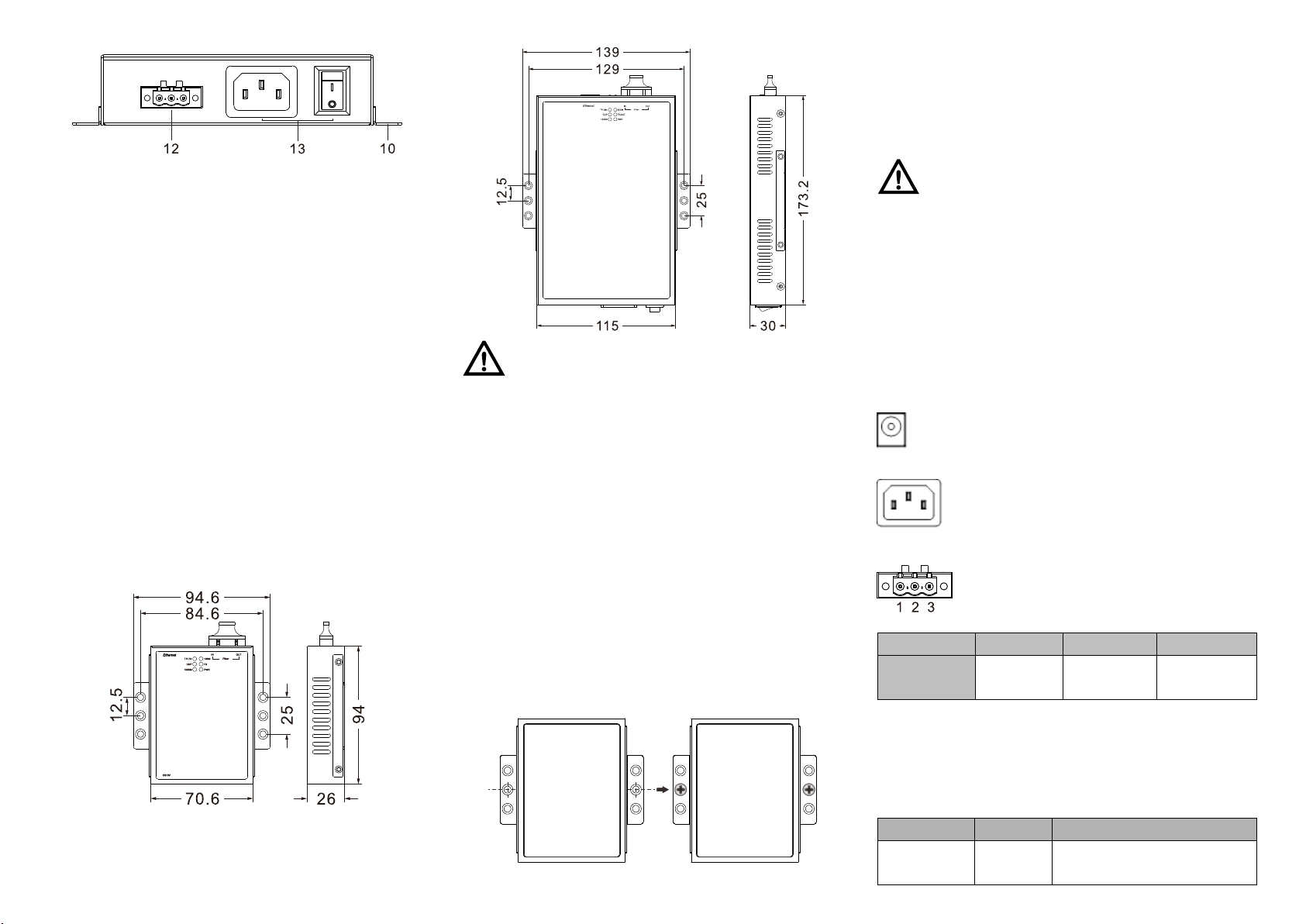

Mounting Dimension
】
Unit: mm
Model I
Model II Model III
Note Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【
Wall-mounted Device Mounting
】
Step 1 Place the device on the wall as reference or
reference installation dimension; mark 2 bolt
positions on the wall.
Step 2 Hang the device on the labeled wall; align the bolt
to the labeled position, then screw the bolt to
enhance stability, installation ends.
【
Wall-mounted Device Disassembling
】
Step 1 Device power off.
Step 2 Hold the equipment steady and unscrew the screw
on the wall
Step 3 Take out the device, disassembling ends.
Note before powering on:
Power ON operation: First insert the power supply
terminal block into the device power supply interface,
and then plug the power supply plug contact and power
on.
Power OFF operation: First, remove the power plug,
and then remove the wiring section of terminal block.
Please pay attention to the above operation sequence.
【
Power Supply Connection
】
5VDC power supply
Model I provides 1 DC round head for power supply
input and support 5VDC power supply.
220VAC/DC power supply
Model II provides 1 AC outlet with switch for
power supply input and support 220VAC/DC
power supply.
-48VDC power supply
Model III provides 3 5.08mm pitch terminal
block for power input, supports -48DC power
supply. The pin definition as follows:
PIN
1
2
3
PIN
definition
FG -48VDC+ -48VDC-
【
Checking LED Indicator
】
The device provides LED indicators to monitor the device
working status with a comprehensive simplified
troubleshooting; the function of each LED is described in the
table as below:
LED
Indicate
Description
PWR ON
PWR is connected and
running normally

LED
Indicate
Description
OFF
PWR is disconnected and
running abnormally
FX / FX ACT
ON
Fiber port has established
valid network connection
OFF
Fiber port hasn’t established
valid network connection
100M/
1000M
ON The
copper port is in 100M
/1000M speed mode
OFF
The copper port is in 10M
speed mode
TP-TX /
TP Link
ON
Copper port has established
an active network connection.
Blinking
Copper port is in a network
activity state.
OFF
Copper port has not
established an active network
connection.
DUP
Blinking
The copper port is in full
duplex mode
OFF
The copper port is in half
duplex mode
【
Specification
】
Panel
Gigabit fiber port 1000Base-
X, optional SC/ST/FC
fiber port
1000 Base-T(X) 10/100/1000 Base-
T(X)
self-
adapting RJ45 port, half/full
duplex self-
adaption support
MDI/MDI-X self-adaption
Indicator
Power supply indicator, fiber port
indicator, copper
port/speed/duplex indicator
Power supply
Model I
External power supply: 5VDC,
DC round head
Model II Built-
in power supply:
220VAC/DC, AC outlet with
switch
Model III Built-in power supply: -
48VDC
3-
pin 5.08mm pitch terminal
blocks
Power consumption
Full-load
≤4W
Working environment
Working temperature
-10
～
60
℃
Storage temperature
-20
～
70
℃
Working humidity
5%
～
95% (no condensation)
