Dear Customer,
Congratulations and welcome to A. O. Smith family.
We thank you for the trust you have shown in choosing the A. O. Smith water purifier.
Puritee is one of the most advanced RO water purifier available in the market today.
It is specially designed keeping in mind today’s water quality and your needs.
Millions of customers all over the world trust A. O. Smith Products for their quality
and workmanship.
Our customer-centric approach manifests itself in many other ways too. If you need any
information or assistance with your water purifier, just call us from any phone,
anywhere in the country to our Toll Free Customer Care No. 1800-103-2468.
Please go through this simple and easy to read instruction and installation manual to
get the best out of your A. O. Smith Puritee RO water purifier.
We once again thank you for choosing A. O. Smith.
Yours Sincerely,
Team A. O. Smith

Contents
Key Features of your Puritee RO water purifier......................................................... 01
Pre-instruction Literature.......................................................................................... 02
General Instructions ................................................................................................. 03
Introduction ............................................................................................................. 04
Product Overview..................................................................................................... 06
Function of indicators .............................................................................................. 07
Water flow and Electrical diagram ........................................................................... 09
Safety Precautions.................................................................................................... 10
Installation instructions............................................................................................ 13
How to use............................................................................................................... 15
Cleaning Water tank ................................................................................................ 16
Draining Drip tray .................................................................................................... 17
How to maintain your product................................................................................. 18
Troubleshooting....................................................................................................... 19
Technical Specifications............................................................................................ 21
FAQs......................................................................................................................... 23
Warranty Terms and Conditions............................................................................... 25
Warranty Card.......................................................................................................... 29
Service and Maintenance ......................................................................................... 30
Product Health Check Visit ....................................................................................... 31
Some of Our Products .............................................................................................. 32
Product Health Check Visit Coupons ........................................................................ 33
Disclaimer ................................................................................................................ 35
What’s in the box?
User Guide Mounting Accessories Tube & ConnectorsWater Purifier

Key Features of your Puritee RO water purifier
AESTHETICS
ColourMatch SystemTM to suit your kitchen décor.
TWIN ADVANCE ALERT TECHNOLOGY
For change of Sediment + Carbon and RO membrane.
TANK OVERFLOW PROTECTION
Prevents water overflow from the tank.
ADVANCED PREFILTER & SEDIMENT FILTER
For effective removal of suspended solids and sediment from water and to
ensure better life of RO membrane.
ADVANCED UNIQUE SSM TECHNOLOGY (SIDE STREAM MEMBRANE)
Suitable for water with low and high (upto 2000 ppm) TDS. Wastes less water
and improves pure water recovery.
CONVENIENCE
Provision for both wall mounting and table top.
LARGE STORAGE CAPACITY
Pure water storage capacity of 9 litres.
PURITY THROUGH 5 STAGE PURIFICATION
5S TECHNOLOGY: Pre-filter + Sediment filter + Pre Carbon filter + Side
Stream RO + Post Carbon filter. In A. O. Smith Puritee 100% water passes
through the RO membrane.
01

On Receipt
It is our policy to promote safe delivery of all orders. This product shipment has been
thoroughly checked, packed and quality certified before leaving our plant.
Visible Loss or Damage
If any of the goods called for on the bill of lading or express receipt are damaged or the
quantity is short, do not accept them until the freight or express agent makes an
appropriate notation on your freight bill or receipt.
Concealed Loss or Damage
When a shipment has been delivered to you in apparent good condition, but upon
opening the crate or container, loss or damage has taken place while in transit, inform
the carrier’s agent/A. O. Smith representative immediately.
About this Manual
This manual is a guide to good practice for operating and periodic maintenance of the
A. O. Smith Puritee RO water purifier.
This does not contain the full servicing procedures necessary for continued successful
operation of this equipment. The services of a qualified A. O. Smith service personnel
must be employed periodically on the same.
Do not operate before reading manual supplied with this product.
Please follow instructions in this manual to ensure personal safety and proper operation
of this product. The manufacturer assumes no liability for installation or servicing
performed by any unauthorised personnel. Always install, operate, inspect and maintain
this product in accordance with all applicable standards. Please store this user manual
carefully for any future reference.
Pre-instruction Literature
02

Safety
Your safety and the safety of your loved ones is paramount. There are several safety
related messages in this manual, which have been provided during various stages such
as the installation, operation and maintenance of your Puritee RO water purifier. These
messages point out potential hazards and also educate on how to reduce any potential
risks. Please always read and follow all safety messages as provided in this manual.
General Instructions
These instructions have been written as a guide for the proper installation and operation
of your Puritee RO water purifier. A. O. Smith will not accept any liability where these
instructions have not been followed. However, for your safety and to avoid damage
caused by improper installation, it is recommended that water purifier must be installed
by a A. O. Smith Company Service technician only.
Before proceeding with the installation instructions:
1. Inspect the Puritee RO water purifier and its component parts for possible damage.
DO NOT install or attempt to repair any damaged component parts. If you detect
any damage in your Puritee RO water purifier please contact the company through
call centre, details of which are mentioned in this manual and on the product.
2. Verify that the voltage being supplied corresponds to that which is mentioned in the
Puritee RO water purifier manual.
IMPORTANT
03
This is the safety alert symbol. This symbol alerts you to potential
hazards that can hurt you and others. All safety messages will follow
the safety alert symbol and either the word “DANGER” or “WARNING”.
Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury or property damage.
DANGER
CAUTION
WARNING

Puritee RO water purifier uses one of the latest technology system that is used in water
purification process. Puritee RO water purifier works under the principle of RO (Reverse
Osmosis) technology which is found to be one of the most effective process in the
world. In this process water under pressure is passed through a semi-permeable
membrane. Purified water is collected for drinking in a storage tank and impurities in the
water are flushed to the drain.
Puritee RO water purifier has 5 stages of purification system, wherein the water is passed
through the various stages & progressively filtered to get purified water which is stored
in the inbuilt storage tank.
 Stage 1 – Pre-PP (Poly propylene) filter
The Pre-PP filter is used to remove physical contaminants such as dirt, dust, soil
particles, turbidity present in the water. This improves the life of the Advanced PP
filter.
 Stage 2 – Advanced PP (Poly propylene) filter
The Advanced PP filter is used to remove fine and coarse physical contaminants
present in the water. This improves life of the CB filter and ensures efficient working
of RO membrane.
Why water purification is important?
Water purification, today is essential due to the presence of vivid and harmful
contaminants present in the water supply. Rapid urbanisation and speedy industrial
growth have led to significant pollutants and contaminants being found in the water
supply. This is a list of some of the harmful contaminants found today in the water
supply which if consumed in excess can be detrimental to human health.
• TDS (Total Dissolved Solids)
• VOC (Volatile Organic Compounds)
• Heavy metals like Iron, Mercury, Arsenic, Copper, Lead etc., Pesticides,
Imbalanced pH.
• Micro organisms such as pathogenic bacteria, virus, protozoa and cysts
Puritee RO water purifier removes excessive TDS (Total Dissolved Solids) like Calcium,
Magnesium, Sodium, Bicarbonates, Chlorides and Sulphates in water by 90%. This
restores the natural taste of water and removes bacteria and viruses. Puritee RO water
purifier also reduces heavy metals like Arsenic, Fluoride and Lead. It balances the pH
value and it also removes bacteria and viruses. By this, it ensures you safe and great
tasting water.
Introduction
How does Puritee RO water purifier work?
04
 Stage 3 – Pre-CB (Carbon Block) filter
The CB filter uses carbon block with high adsorption capacity which reduces harmful
chemicals including pesticides, volatile organic compounds, residual chlorine etc.
from water. It also adsorbs bad taste and odour causing organic compounds from
water.
Stage 4 – RO (Reverse Osmosis) membrane
RO membrane contains semi-permeable membrane wherein the water is passed
through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and
heavy metals like Mercury, Arsenic, Copper, Lead etc. It also removes micro
organisms like bacteria, virus, protozoa and cysts.
Stage 5 – PAC (Post Activated Carbon) filter
After the RO membrane water is passed through post activated carbon which acts as
polisher and enhances the taste of water.

Figure 1
Note: The Pre-PP filter and the Ball Valve comes along with the product as standard accessories.
Pre-PP
Filter
Ball valve
05
 Stage 3 – Pre-CB (Carbon Block) filter
The CB filter uses carbon block with high adsorption capacity which reduces harmful
chemicals including pesticides, volatile organic compounds, residual chlorine etc.
from water. It also adsorbs bad taste and odour causing organic compounds from
water.
Stage 4 – RO (Reverse Osmosis) membrane
RO membrane contains semi-permeable membrane wherein the water is passed
through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and
heavy metals like Mercury, Arsenic, Copper, Lead etc. It also removes micro
organisms like bacteria, virus, protozoa and cysts.
Stage 5 – PAC (Post Activated Carbon) filter
After the RO membrane water is passed through post activated carbon which acts as
polisher and enhances the taste of water.

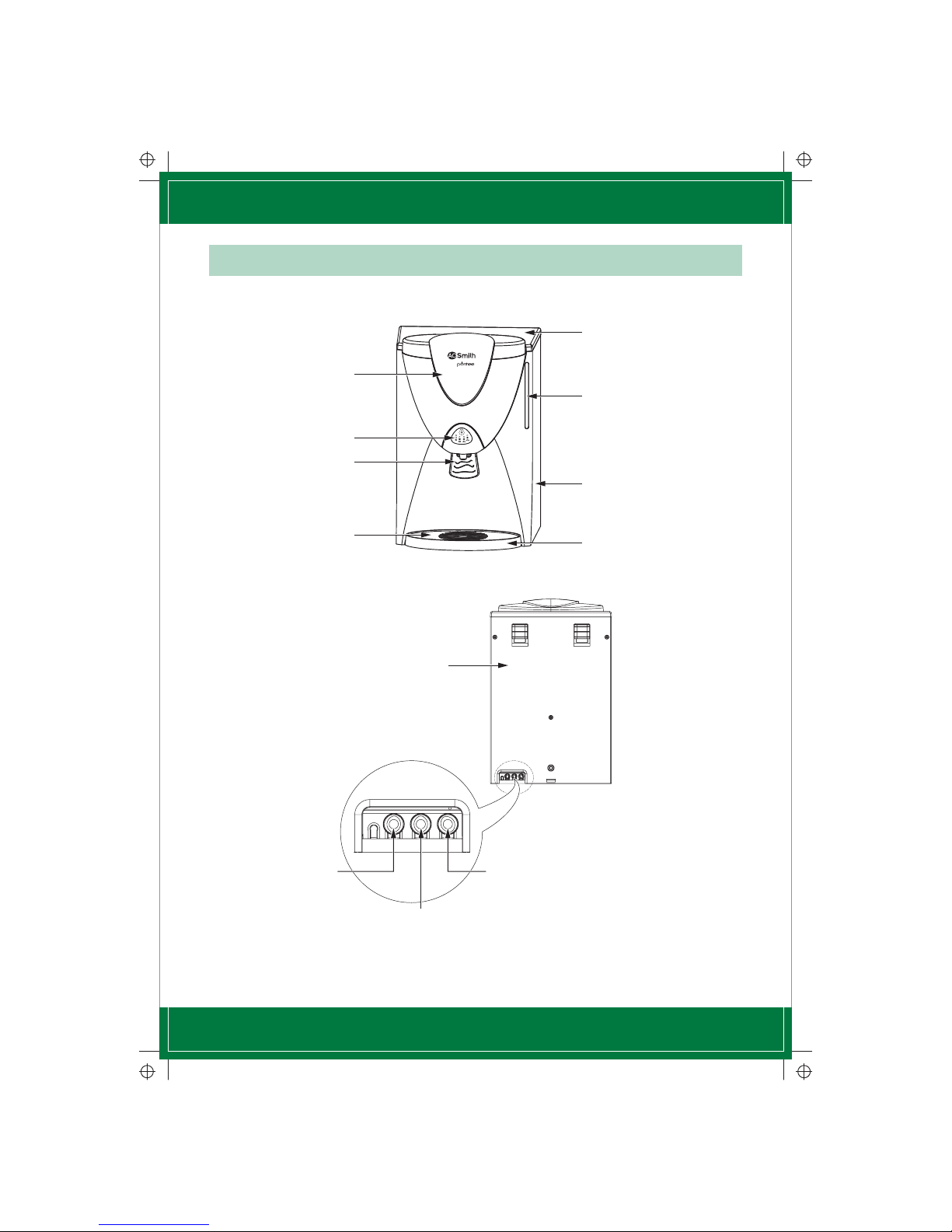

Product Overview
Figure 2
06
Drip Tray Cover
Faucet
Water Level Indicator
Display Panel
Indicators
Changeable Panel
Top Cover
Main Body
Removable
Drip Tray
Overflow
water
O I R
Feed water
inlet
Reject
water
Rear Cover

Function of indicators
Figure 3
Tank full indicator
This indicates that the water purifier tank is full.
• When there is an overflow the indicator starts to blink with continuous beep till it is
fixed.
Note: Call A. O. Smith Customer care centre, if you notice continuous blinking of Tank full indicator.
This button is used to Switch ON & OFF the water purifier.
• When there is a leak in the water purifier, the power button starts to blink with
continuous beep till it is fixed.
• When the water pressure is lower than required water pressure limits, the power
button starts to blink continuously with the beep sound for 10 seconds till the water
pressure becomes normal.
Note: Call A. O. Smith Customer care centre, if you notice continuous blinking of Power light.
Power Button
07

Auto flush indicator
This indicates flushing is in progress. Everytime the water purifier is switched ON the
auto flushing cleans the RO membrane. It enhances the life of RO membrane.
Note: Call A. O. Smith Customer care centre, if you notice continuous blinking of Auto flush
indicator.
RO change indicator
This indicates that the RO membrane and/or PAC filter needs to be replaced.
• RO change indicator glows when 10% life is remaining, indicating that it is time to
replace RO membrane and/or PAC filter.
• When RO membrane and/or PAC life reaches its end, this indicator will start to blink
continuously. The unit will not function until RO membrane and/or PAC filter is
replaced.
• When the system is switched ON every time, the buzzer beeps for 10 times and the
unit will not function until RO membrane and/or PAC filter is replaced.
Note: Call A. O. Smith Customer care centre, to replace the RO membrane and/or PAC filter.
Sediment & Carbon (SC) change indicator
This indicates that the Sediment filter and/or Carbon Block filter needs to be replaced.
• SC change indicator glows when 10% life is remaining, indicating that it is time to
change Sediment filter and/or Carbon Block filter.
• When Sediment filter and/or Carbon Block filter life reaches its end, this indicator will
start to blink continuously and the unit will not function until Sediment filter and/or
Carbon Block filter is replaced.
• When the system is switched ON every time, the buzzer beeps for 10 times and the
unit will not function until Sediment filter and/or Carbon Block filter is replaced.
Note: Call A. O. Smith Customer care centre, to replace the Sediment filter and/or Carbon Block filter.
08

Figure 4
Low
Pressure
Switch
Pump Flow
Restrictor
RO
PP filter
CB filter
Tap
water
Pre-PP
filter
Ball
Valve
Inlet water
3-way joint
Flush
Solenoid
valve
Inlet
Solenoid
valve
Waste
water
Faucet
Overflow
water Level 1
Sensor
Level 2
Sensor
Storage
Tank
PAC
filter
Check
valve
Pure
water
Figure 5
Low Pressure
Switch
Pump
SMPS
Inlet
SV
Flush
SV
Display
PCB
Water
Leakage
PCB
Upper
Level
Sensor
Lower
Level
Sensor
Reset
PCB
150V - 300V
50 Hz
1- фAC supply
P
N
Driver Board
24V DC
GND
09
Water flow and Electrical diagram

Safety Precautions
Electrical safety related matters
10
Do not pull out nor touch power plug with
wet hands to avoid electrical shock.
(Figure 8)
Figure 6
Power plug must be used with a grounded
230V outlet. (Figure 6)
230V
Figure 7
Do not move the product when product is
running. (Figure 7)
Figure 8
DANGER
Even though the product is designed keeping highest safety standards in mind there are
certain Do’s & Don’ts which needs to be followed while using this product.
Installation
Figure 9 Figure 10
Do not place heating equipment, electric
heater, etc. near the product. (Figure 9)
Do not install the product on an unstable
or moving place. (Figure 10)
CAUTION

11

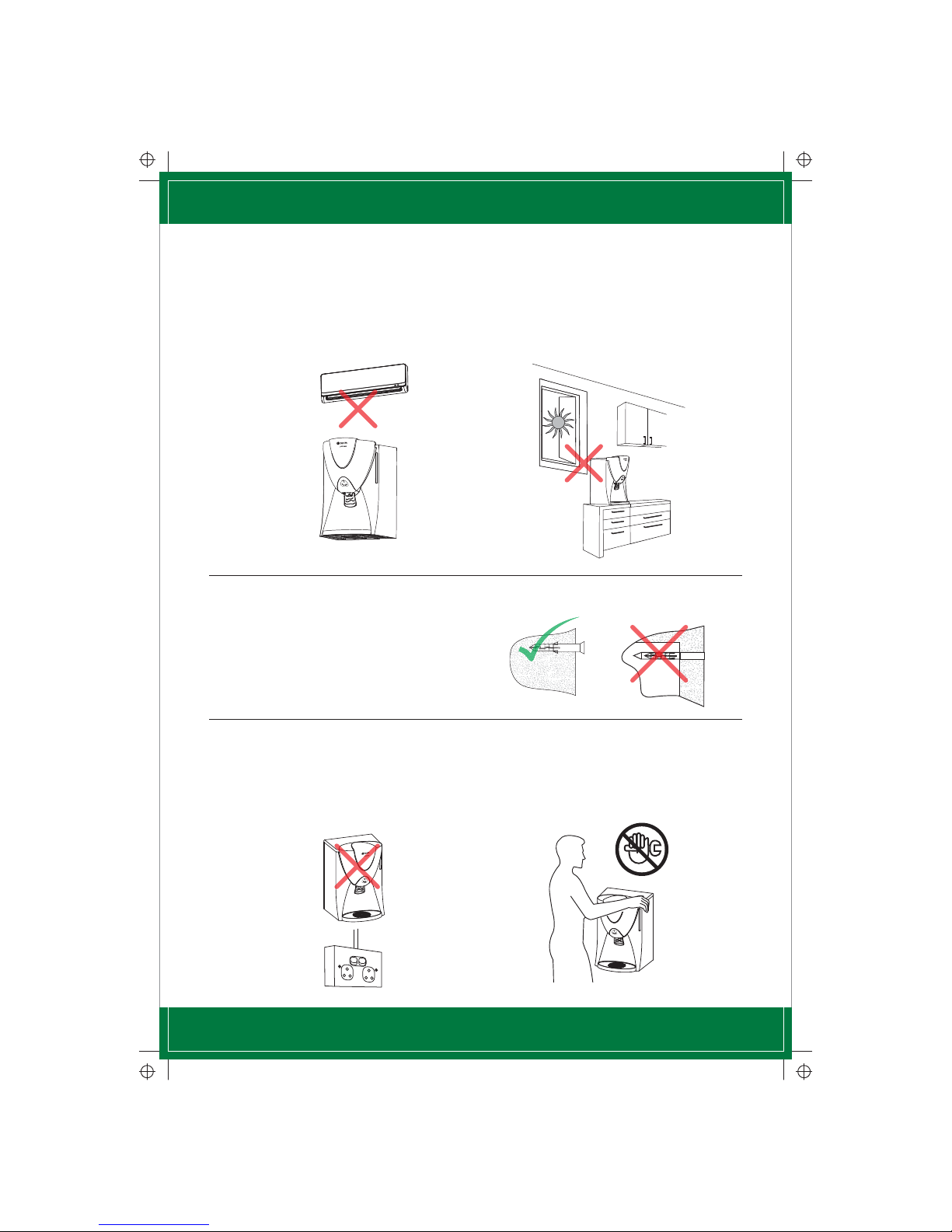

Figure 14
Do not install the product above any
electric socket. (Figure 14)
Figure 12
Install the product away from direct
sunlight. (Figure 12)
Do not try to open the product for cleaning
the filters or for any part replacements.
This is done only by qualified A. O. Smith
Company Service technician. (Figure 15)
Figure 13
Do not install the product on any false
wall. (Figure 13)
Figure 15
Solid
Concrete
Wall False
Wall
Figure 11
Do not install the product close to an Air
Conditioner. (Figure 11)
Air Conditioner

12
Figure 18

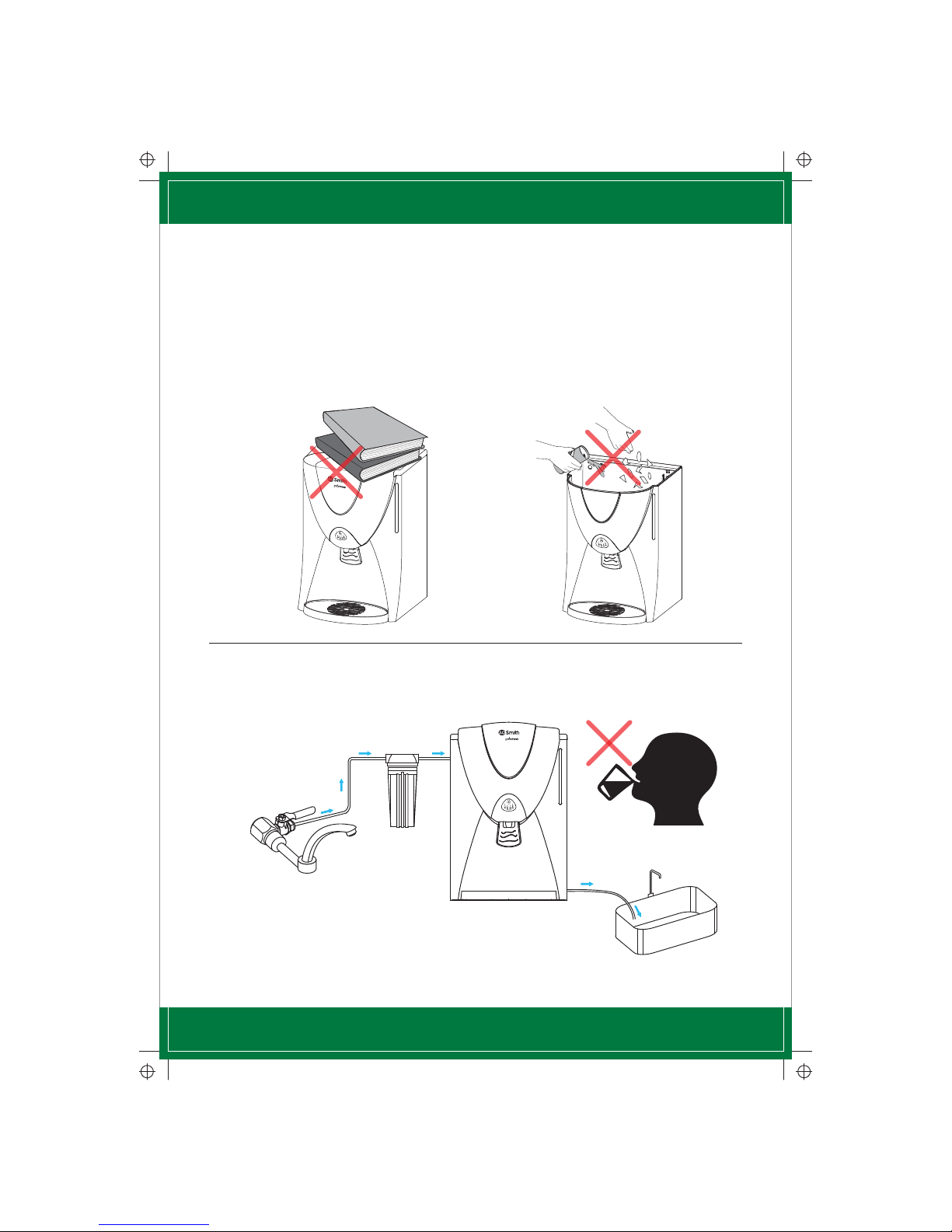

Do not drink the water from the reject water tube. Reject water should not be consumed
in any form. (Figure 18)
Waste
water
When it is used
Figure 16 Figure 17
Do not put heavy objects on the product.
(Figure 16)
Do not put foreign objects or hand inside
the purifier. (Caution is needed, especially
for children) (Figure 17)

13
Installation instructions
Figure 19A Figure 19B
Figure 20
Puritee RO water purifier can either be wall mounted (Figure 19A) or can be used as
table top purifier. (Figure 19B)
Install the product only by qualified
A. O. Smith Company Service technician.
(Figure 20)
Figure 21
Heater
Do not connect hot water to the product.
(Figure 21)
Note:
It is recommended not to switch off the
water purifier and/or turn off the water
supply to the product when it is not been
used for more than 24 hrs. The purifier
has an in-built cleaning mechanism which
cleans the RO membrane every 24 hrs. by
flushing it. This feature protects the RO
membrane and ensures longer life.
Puritee RO water purifier must be installed
close to inlet water connection (not more
than 2 metres). Avoid sharp bend to the
pipes. (Figure 22)
Figure 22

Figure 25 Figure 26
When it is used
If there is any strange noise, burning
smell, or smoke, switch off power, remove
the plug immediately and call the
Customer care centre. (Figure 25)
Replace filters regularly according to the
replacement indications. This is done only
by A. O. Smith company service technician.
(Figure 26)
DANGER
PP Filter
CB Filter
PAC Filter
RO Filter
14
Figure 24

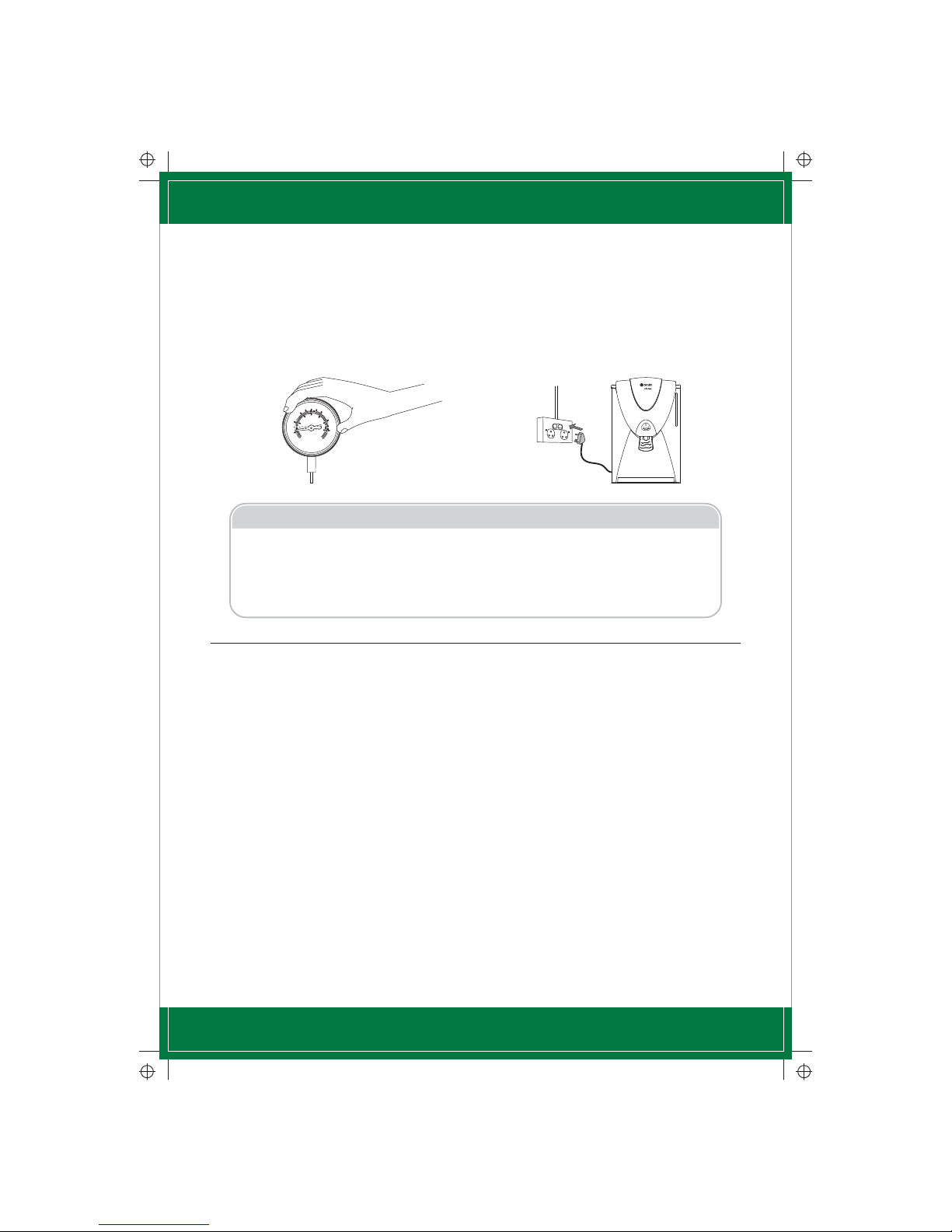

Connect the product to the power supply
only with the plug that is provided with
the purifier. (Figure 24)
• Check system input pressure, should be in the range of 7 psi to 30 psi.
• In case it is more than 30 psi, use of pressure reducing valve is recommended.
• In case it is less than 7 psi, use of pressure booster pump is recommended.
• Ensure you buy them from A. O. Smith Company Service technician.
NOTE
Figure 23
Check the pressure of the inlet water
before installing the product. (Figure 23)
0.24
5
15
20
25
30
35
10
6
8
Mpa
psi
0.6
0.1
0.13
0.17
0.2

15
Figure 28

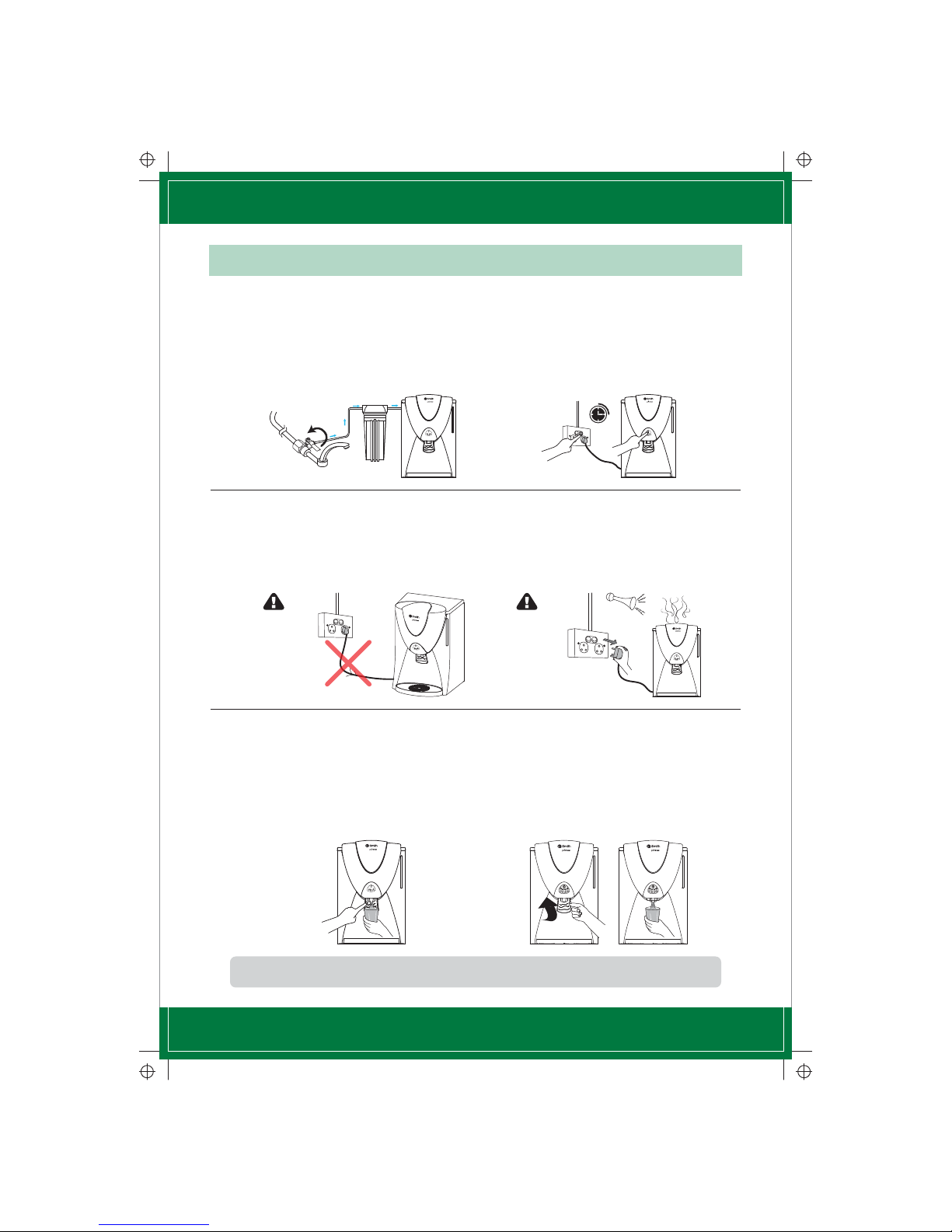

4. If there is any strange noise, burning
smell, or smoke, switch off power,
remove the plug immediately and call
the Customer care centre. (Figure 28)
DANGER
Figure 27
3. Do not use the purifier if the power
cord is damaged. Call the Customer
care centre. (Figure 27)
DANGER
How to use
Figure 25 Figure 26
1. Turn ON the water connection
through the Ball Valve. (Figure 25)
2. Switch ON the Power supply and press
the Power Button of the purifier. Wait
for few minutes to completely fill water
inside the storage tank. (Figure 26)
ON
Figure 30
6. To dispense water continuously.
Lift up the faucet lever for continuous
water flow.
Pull down the faucet lever for the
continuous water flowing function to
disable/stop. (Figure 30)
Figure 29
5. To dispense water push and hold
the faucet lever to dispense the water
from the storage tank. (Figure 29)
Note: Make sure that you discard the first cycle of Pure water, before you start using for consumption.

16

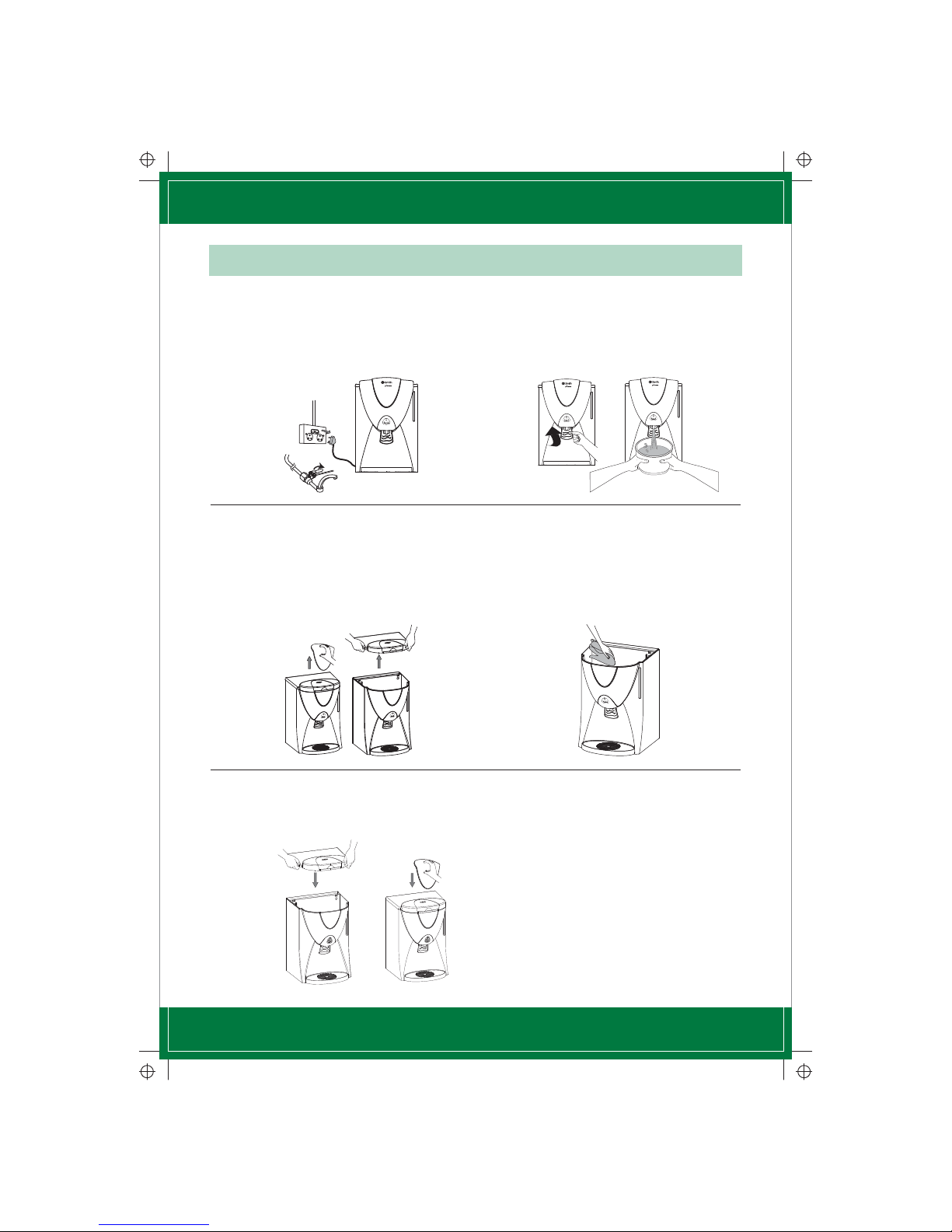

Cleaning water tank
Figure 31 Figure 32
1. Turn OFF the Ball Valve and disconnect
the power cord. (Figure 31)
3. Remove the Changeable colour panel
and Top cover of the product.
(Figure 33)
2. Completely drain the water inside the
storage tank by lifting up the faucet
lever. (Figure 32)
Figure 34Figure 33
4. Wipe the surface of the tank with
clean soft cloth. Do not use any
chemical or detergent. If chemical or
detergent is not washed completely,
this may be harmful. (Figure 34)
OFF
Figure 35
5. Close the Top cover and Changeable
colour panel. (Figure 35)
6. Connect the power cord. (Refer Figure
24 on page 14).
7. Turn ON the Ball valve. (Refer Figure
25 on page 15).
8. Switch ON the purifier. (Refer Figure
26 on page 15).
