A.O. Smith Pure&Sure 329843-000_R0 User manual

Size: A5 [148.5 mm (W) x 210 mm (H)]
Part No.: 329843-000_R0
Date: 20-11-2014
SUPERIOR TECHNOLOGY FOR ADVANCED PROTECTION.
TM
USER GUIDE
www.aosmithindia.com
EXPERT COMPANY SERVICE
Toll Free No.: 1800-103-2468 or
SMS: [phone] or
Email: [email protected]
Monday to Friday: 9 am to 8 pm.
Saturday & Sunday: 9 am to 6 pm.
# For calls registered at A. O. Smith call centre before 4 pm only.
For more details please call our Toll Free No. 1800-103-2468
or log on to www.aosmithindia.com.

Dear Customer,
Congratulations and welcome to A. O. Smith family.
We thank you for the trust you have shown in choosing the A. O. Smith water purifier.
Puritee+™is one of the most advanced RO water purifier available in the market today.
It is specially designed keeping in mind today’s water quality and your needs.
Millions of customers all over the world trust A. O. Smith Products for their quality
and workmanship.
Our customer-centric approach manifests itself in many other ways too. If you need any
information or assistance with your water purifier, just call us from any phone,
anywhere in the country to our Toll Free Customer Care No. 1800-103-2468.
Please go through this simple and easy to read instruction and installation manual to
get the best out of your A. O. Smith Puritee+™water purifier.
We once again thank you for choosing A. O. Smith.
Yours Sincerely,
Team A. O. Smith

Contents

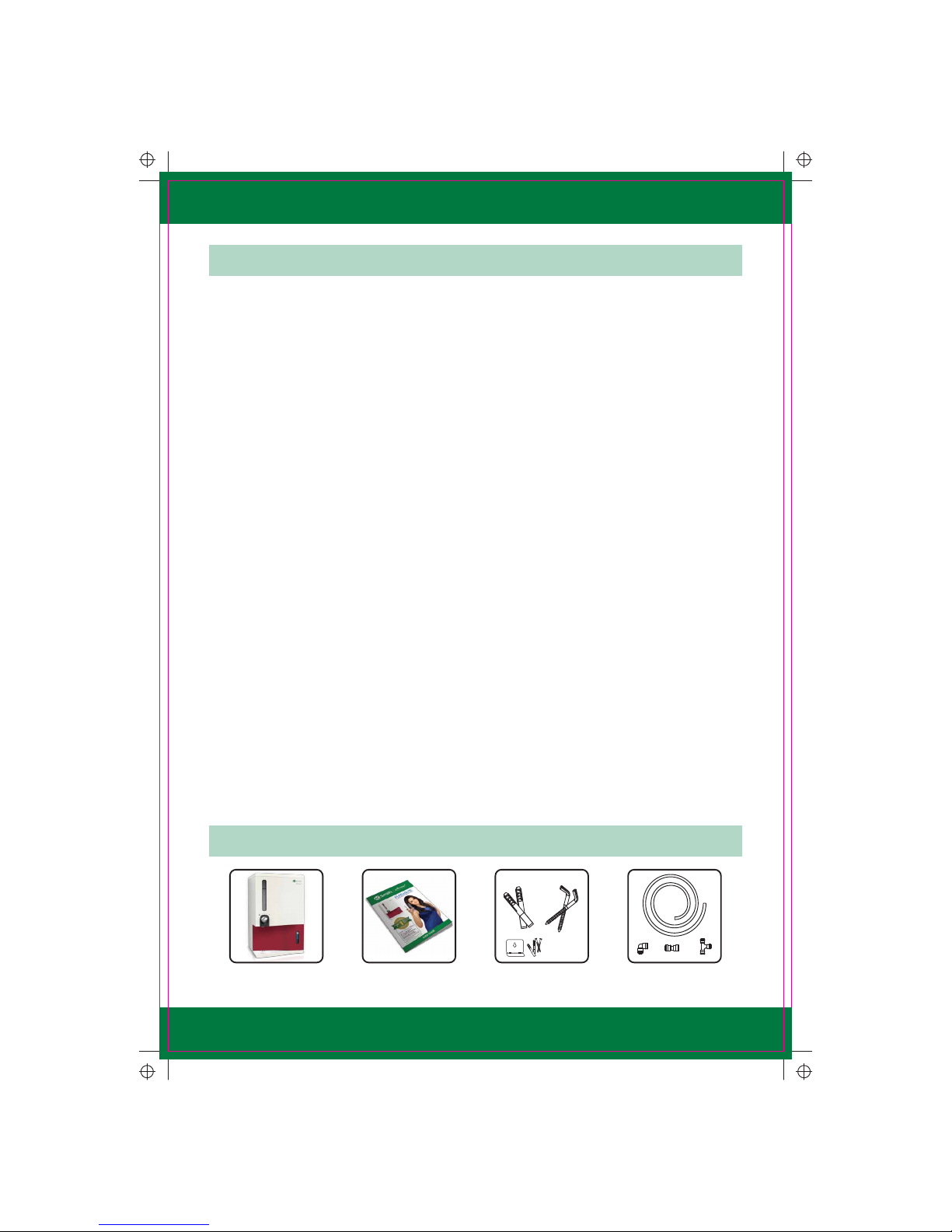

What’s in the box?
User Guide Mounting Accessories Tube & ConnectorsWater Purifier
Key features of your Puritee+™RO water purifier ................................................... 01
Pre-instruction literature .......................................................................................... 02
General instructions ................................................................................................. 03
Introduction ............................................................................................................. 04

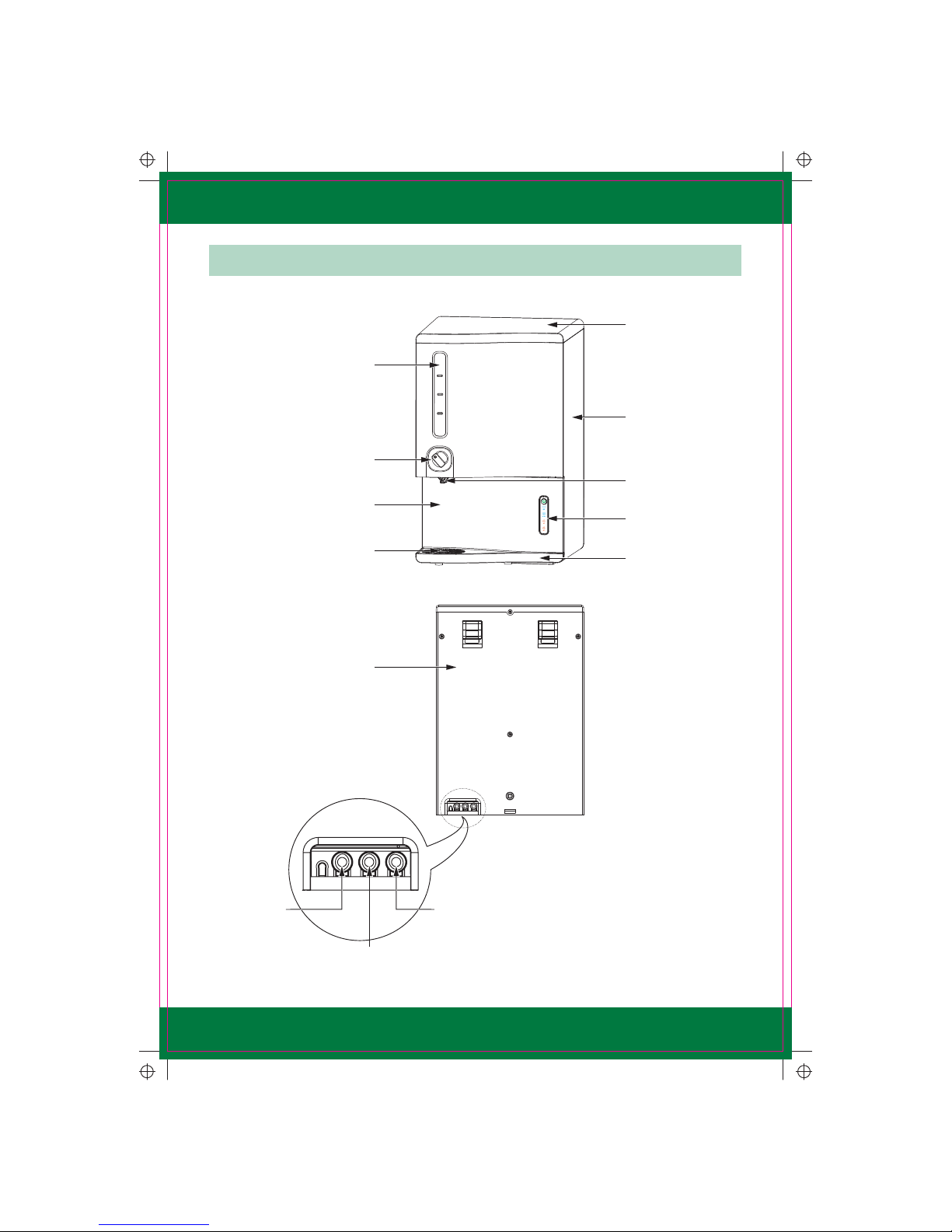

Product overview ..................................................................................................... 06
Function of indicators .............................................................................................. 07
Water flow ............................................................................................................... 09
Electrical diagram..................................................................................................... 09
Safety precautions.................................................................................................... 10
Installation instructions............................................................................................ 13
How to use............................................................................................................... 15

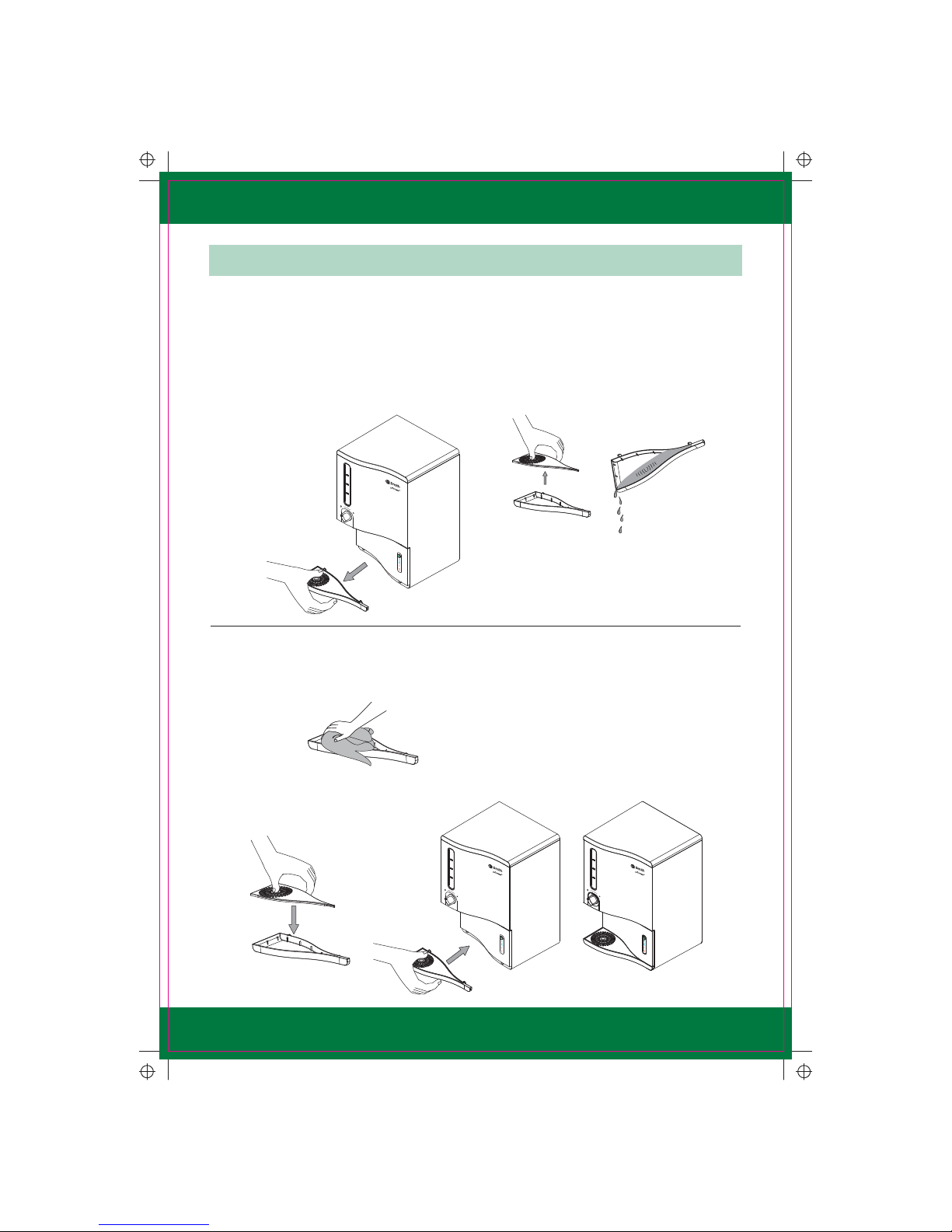

Draining drip tray..................................................................................................... 16
How to maintain your product................................................................................. 17
Replacing changeable panel..................................................................................... 19
Troubleshooting....................................................................................................... 20
Technical specifications ............................................................................................ 22
FAQs......................................................................................................................... 24
Warranty terms and conditions................................................................................ 26
Warranty card .......................................................................................................... 30
Service and maintenance ......................................................................................... 31
Product health check visit ........................................................................................ 32
Some of our products .............................................................................................. 33
Product health check visit coupons .......................................................................... 34
Disclaimer ................................................................................................................ 36

Key Features of your Puritee+™ RO water purifier
PURITY THROUGH 7 STAGE PURIFICATION
7S TECHNOLOGY: Pre-filter + Sediment filter + Pre Carbon filter + RO Membrane +
MIN-TECH (Mineraliser Technology) + Silver Activated Post Carbon + SCMT (Silver
Charged Membrane Technology). In A. O. Smith
Puritee+™ 100% of the water passes
through the RO membrane and Double Purified by SCMT.
01
ADVANCE UNIQUE PATENTED SSM TECHNOLOGY (SIDE STREAM RO MEMBRANE)
Suitable for water with low and high (upto 2000 ppm) TDS. Wastes less water and
improves pure water recovery.
MIN-TECH (MINERALISER TECHNOLOGY)
Balances the pH of the water & adds essential minerals back to pure water.
TWIN ADVANCE ALERT TECHNOLOGY
For Sediment + Pre Carbon and RO membrane + other filters change.
CONVENIENCE
Provision for both wall mounting & table top.
ADVANCED PRE-FILTER & SEDIMENT FILTER
For effective removal of suspended solids and sediment from water and to ensure
better life of RO membrane.
DIGITAL
Digital display for simple and intelligent display of information.
RO + SCMT (SILVER CHARGED MEMBRANE TECHNOLOGY)
Double purification system which ensures absolute purity of water.
AESTHETICS
ColourMatch System®to suit your kitchen décor.
LARGE STORAGE CAPACITY
Pure water storage capacity of 9 litres.

02
On Receipt
It is our policy to promote safe delivery of all orders. This product shipment has been
thoroughly checked, packed and quality certified before leaving our plant.
Visible Loss or Damage
If any of the goods called for on the bill of lading or express receipt are damaged or the
quantity is short, do not accept them until the freight or express delivery agent makes an
appropriate notation on your freight bill or receipt.
Concealed Loss or Damage
When a shipment has been delivered to you in apparent good condition, but upon
opening the crate or container, loss or damage has taken place while in transit, inform
the carrier’s agent / A. O. Smith representative immediately.
About this Manual
This manual is a guide to good practice for operating and periodic maintenance of the
A. O. Smith Puritee+™ water purifier.
This does not contain the full servicing procedures necessary for continued successful
operation of this equipment. The services of a qualified A. O. Smith service personnel
must be employed periodically for the same.
Do not operate before reading manual supplied with this product.
Please follow instructions in the manual to ensure personal safety and proper operation
of this product. A. O. Smith assumes no liability for installation or servicing performed by
any unauthorised personnel. Always install, operate, inspect and maintain this product in
accordance with all applicable standards. Please store this user manual carefully for any
future reference.
Pre-instruction Literature

Safety
Your safety and the safety of your loved ones is paramount to us. There are several safety
related messages in this manual, which have been provided during various stages such as
the installation, operation and maintenance of your Puritee+™water purifier. These
messages point out potential hazards and also educate on how to reduce any potential
risks. Please always read and follow all safety messages as provided in this manual.
General Instructions
These instructions have been written as a guide for the proper installation and operation
of your Puritee+™water purifier. A. O. Smith will not accept any liability where these
instructions have not been followed. However, for your safety and to avoid damage
caused by improper installation, it is recommended that water purifier must be installed
by A. O. Smith Company Service technician only.
Before proceeding with the installation instructions:
1. Inspect the Puritee+™water purifier and its component parts for possible damage.
DO NOT install or attempt to repair any damaged component parts. If you detect any
damage in your Puritee+™water purifier please contact the company through
Customer care centre, details of which are mentioned in this manual and on the
product.
2. Verify that the voltage being supplied corresponds to that which is mentioned in the
Puritee+™water purifier manual.
IMPORTANT
03
This is the safety alert symbol. This symbol alerts you to potential
hazards that can hurt you and others. All safety messages will follow
the safety alert symbol and either the word “DANGER” or “WARNING”.
Indicates an imminently hazardous situation which, if not avoided,
may result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury or property damage.
DANGER
CAUTION
WARNING

 Stage 3 – Pre Carbon filter
The Pre Carbon filter uses carbon block with high adsorbtion capacity which reduces
harmful chemicals including pesticides, volatile organic compounds, residual chlorine
etc, from water. It also adsorbs bad taste and odour causing organic compounds
from water.
Stage 4 – RO (Reverse Osmosis) membrane
RO membrane contains semi-permeable membrane wherein the water is passed
through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and
heavy metals like Mercury, Arsenic, Copper, Lead etc. It also removes microorganisms
like bacteria, virus, protozoa and cysts.
Stage 5 – MIN-TECH (Mineraliser Technology)
The MIN-TECH contains Calcium and Magnesium minerals which helps to improve
the taste and quality of water. It adds the required essential minerals back to water
and balances the pH of water.
Stage 6 – Silver Activated Post Carbon
Water is passed through Silver Activated Post Carbon filter which acts as polisher and
enhances the taste of water.
Stage 7 – SCMT filter (Silver Charged Membrane Technology)
In the final stage water is passed through SCMT filter which ensures double
purification of water making it Pure & Sure for drinking.
Puritee+™ water purifier uses one of the latest technologies used in water purification
process. Puritee+™ water purifier works under the principle of RO (Reverse Osmosis)
technology which is found to be one of the most effective process. In this process water
under pressure is passed through a semi-permeable membrane. Purified water is
collected for drinking in a storage tank and impurities in the water are flushed to the
drain.
Puritee+™water purifier has 7 stages of purification system, wherein the water is
passed through the various stages and progressively filtered to get purified water which
is stored in the inbuilt storage tank.
 Stage 1 – Pre-filter
The Pre-filter is used to remove physical contaminants such as dirt, dust, soil
particles, turbidity present in the water. This improves the life of the Sediment filter.
 Stage 2 – Sediment filter
The Sediment filter is used to remove fine and coarse physical contaminants present
in the water. This improves life of the Pre Carbon filter and ensures efficient working
of RO membrane.
Why water purification is important?
Water purification, today is essential due to the presence of vivid and harmful
contaminants present in the water supply. Rapid urbanisation and speedy industrial
growth have led to significant pollutants and contaminants being found in the water
supply. This is a list of some of the harmful contaminants found today in the water
supply which if consumed in excess can be detrimental to human health.
• TDS (Total Dissolved Solids).
• VOC (Volatile Organic Compounds).
• Heavy metals like Iron, Mercury, Arsenic, Copper, Lead etc, Pesticides,
Imbalanced pH.
• Microorganisms such as pathogenic bacteria, virus, protozoa and cysts.
Puritee+™water purifier removes excessive TDS (Total Dissolved Solids) like Calcium,
Magnesium, Sodium, Bicarbonates, Chlorides and Sulphates in water by 90%. This
restores the natural taste of water. Puritee+™water purifier also reduces heavy metals
like Arsenic, Fluoride and Lead. It balances the pH value and it also removes bacteria and
viruses. By this, it ensures you safe and great tasting water.
Introduction
How does Puritee+™water purifier work?
04

05
 Stage 3 – Pre Carbon filter
The Pre Carbon filter uses carbon block with high adsorbtion capacity which reduces
harmful chemicals including pesticides, volatile organic compounds, residual chlorine
etc, from water. It also adsorbs bad taste and odour causing organic compounds
from water.
Stage 4 – RO (Reverse Osmosis) membrane
RO membrane contains semi-permeable membrane wherein the water is passed
through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and
heavy metals like Mercury, Arsenic, Copper, Lead etc. It also removes microorganisms
like bacteria, virus, protozoa and cysts.
Stage 5 – MIN-TECH (Mineraliser Technology)
The MIN-TECH contains Calcium and Magnesium minerals which helps to improve
the taste and quality of water. It adds the required essential minerals back to water
and balances the pH of water.
Stage 6 – Silver Activated Post Carbon
Water is passed through Silver Activated Post Carbon filter which acts as polisher and
enhances the taste of water.
Stage 7 – SCMT filter (Silver Charged Membrane Technology)
In the final stage water is passed through SCMT filter which ensures double
purification of water making it Pure & Sure for drinking.

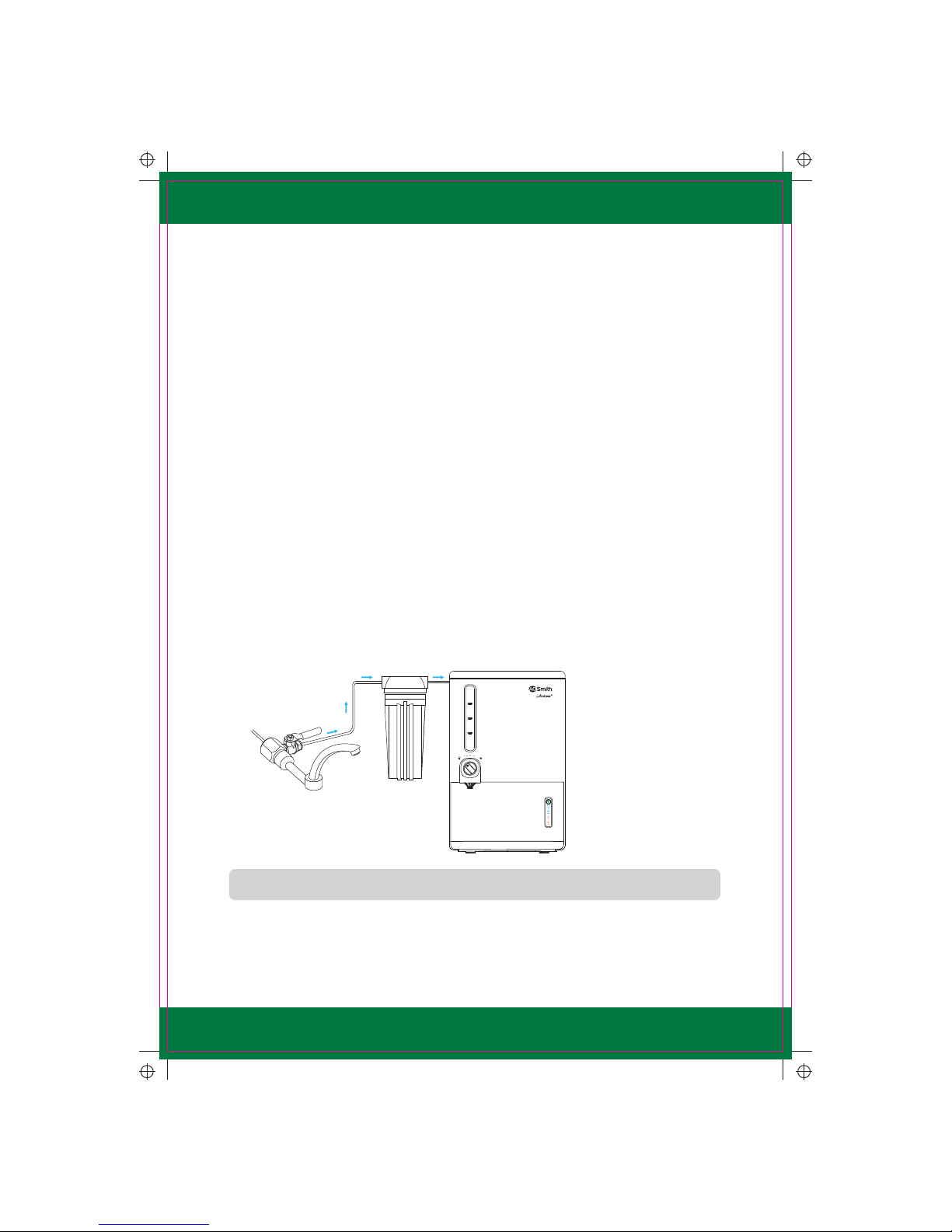

Figure 1
Note: The Pre-filter and the Ball Valve comes along with the product as standard accessories.
Pre-filter
Ball valve

Product Overview
Figure 2
06
Overflow
water
Feed water
inlet
Reject
water
O I R
Rear Cover
Removable
Drip Tray
Display Panel
Indicators
Water Dispensing
Nozzle
Top Cover
Main Body
Water Level Indicator
Faucet Knob
Changeable
Panel
Drip Tray
Cover

Function of Indicators
Figure 3
Tank full indicator
This indicates that the water purifier tank is full.
• When there is an overflow the indicator starts to blink with continuous beep till it is
fixed.
Note: Call A. O. Smith Customer care centre, if you notice continuous blinking of Tank full indicator.
This button is used to switch ON/OFF the water purifier.
• When there is a leak in the water purifier, the power button starts to blink with
continuous beep till it is fixed.
• When the water pressure is lower than required water pressure limits, the power
button starts to blink continuously with the beep sound for 10 seconds till the water
pressure becomes normal.
Note: Call A. O. Smith Customer care centre, if you notice continuous blinking of Power light.
Power Button
07

This indicates flushing is in progress. Every time the water purification process is
activated the auto flushing mechanism cleans the RO membrane. It enhances the life of
RO membrane.
Note: Call A. O. Smith Customer care centre, if you notice continuous blinking of Auto flush indicator.
Auto flush indicator
This indicates that the MIN-TECH, Silver Activated Post Carbon, SCMT filter and/or
RO membrane needs to be replaced.
• RO change indicator glows when 10% life is remaining, indicating that it is time to
replace MIN-TECH, Silver Activated Post Carbon, SCMT filter and/or RO membrane.
• When MIN-TECH, Silver Activated Post Carbon, SCMT filter and/or RO membrane life
reaches its end, this indicator will start to blink continuously. The unit will not
function until MIN-TECH, Silver Activated Post Carbon, SCMT filter and/or RO
membrane are replaced.
• RO change indicator keeps blinking continuously with the buzzer beeping for
10 times every time the system is switched ON. The unit will not function until
MIN-TECH, Silver Activated Post Carbon, SCMT filter and/or RO membrane are
replaced.
RO change indicator
08
Note: Call A. O. Smith Customer care centre, to replace the MIN-TECH, Silver Activated Post
Carbon, SCMT filter and/or RO membrane.
Note: Call A. O. Smith Customer care centre, to replace the Sediment filter and/or Pre Carbon filter.
SCPA change indicator
This indicates that the Sediment filter and/or Pre Carbon filter needs to be replaced.
• SCPA change indicator glows when 10% life is remaining, indicating that it is time to
change Sediment filter and/or Pre Carbon filter.
• When Sediment filter and/or Pre Carbon filter life reaches its end, this indicator will
start to blink continuously and the unit will not function until Sediment filter and/or
Pre Carbon filter are replaced.
• SCPA change indicator keeps blinking continuously with the buzzer beeping for
10 times every time the system is switched ON. The unit will not function until
Sediment filter and/or Pre Carbon filter are replaced.

09
Figure 4
Water flow
Faucet
Overflow
water Level 1
Sensor
Level 2
Sensor
Storage
Tank
MIN-TECHSilver
Activated
Post Carbon
SCMT
Low
Pressure
Switch
Pump
Pure
water
Flow
Restrictor
RO
Sediment
filter Pre Carbon
Tap
water Pre-filter
Ball
Valve
Inlet water
3-way joint
Flush
Solenoid
valve
Inlet
Solenoid
valve
Waste
Water
Check
Valve
Figure 5
Electrical diagram
Low Pressure
Switch
Pump
Flush
SV
Inlet SV
Water
Leakage
PCB
Lower
Level
Sensor
Upper
Level
Sensor Reset
PCB
Driver Board
SMPS
150V - 300V
50 Hz
1- φAC supply
P
N24V DC
GND

Safety Precautions
Electrical safety
Figure 6
Power plug must be used with a
grounded 230V outlet. (Figure 6)
230V
CAUTION
Figure 7
Do not pull out or touch power plug with
wet hands to avoid electrical shock.
(Figure 8)
Even though the product is designed keeping highest safety standards in mind, there are
certain Do’s and Dont’s which needs to be followed while using this product.
Do not move the product when product is
running. (Figure 7)
Figure 8
DANGER
10
Installation
Figure 9 Figure 10
Do not place heating equipment, electric
heater, etc. near the product. (Figure 9)
Do not install the product on an unstable
or moving place. (Figure 10)
CAUTION

11
Air Conditioner
Figure 14
Do not install the product above any
electric socket. (Figure 14)
Figure 12
Install the product away from direct
sunlight. (Figure 12)
Do not try to open the product for cleaning
the filters or for any part replacements.
This is done only by qualified A. O. Smith
Company Service technician. (Figure 15)
Figure 13
Do not install the product on any false
wall. (Figure 13)
Figure 15
CAUTION
Solid
Concrete
Wall False
Wall
Figure 11
Do not install the product close to an Air
Conditioner. (Figure 11)
WARNING

CAUTION
Waste
water
Reject water
tube
Figure 18
Do not drink the water from the reject water tube. Reject water should not be consumed
in any form. (Figure 18)
When it is used
Figure 16 Figure 17
Do not put heavy objects on the product.
(Figure 16)
Do not put foreign objects or hand inside
the purifier. (Caution is needed, especially
for children). (Figure 17)
12

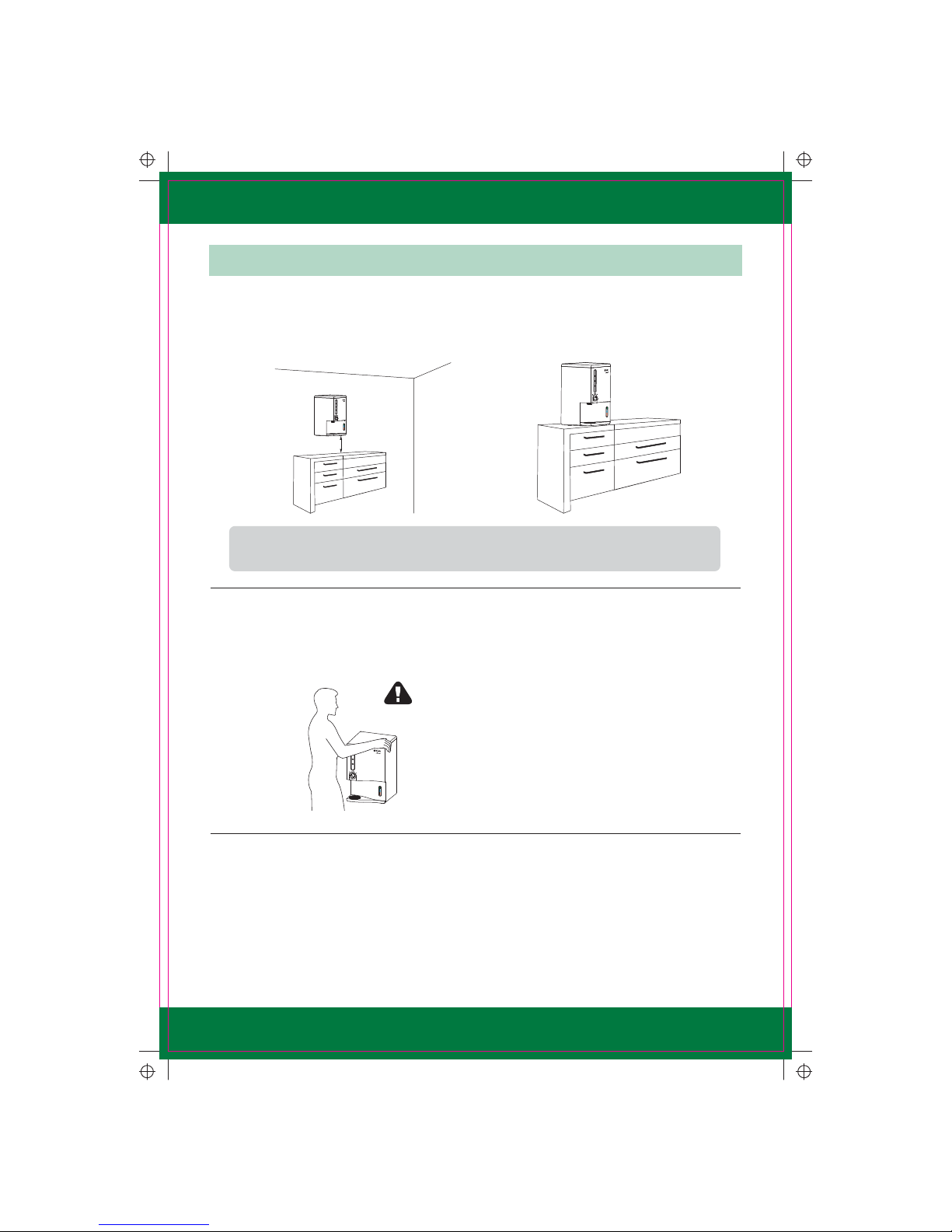

Installation Instructions
Figure 19A Figure 19B
Puritee+™water purifier can either be wall mounted (Figure 19A) or can be used as
table top purifier. (Figure 19B)
13
Figure 20
Install the product only by qualified
A. O. Smith Company Service technician.
(Figure 20)
2 Ft
Note: If the water purifier is wall mounted, make sure that the water purifier is installed not
more than 2 feet above the counter top.
CAUTION

(not more than 1.5
meter) and drain.
14
Note: It is recommended not to switch off the water purifier and/or turn off the water supply to
the product when it is not been used for more than 24 hrs. The purifier has an in-built
cleaning mechanism which cleans the RO membrane every 24 hrs by flushing it. This
feature protects the RO membrane and ensures longer life.
Figure 24
Connect the product to the power supply
only with the plug that is provided with
the purifier. (Figure 24)
Note:
• Check system input pressure, should be in the range of 7 psi to 30 psi.
• In case it is more than 30 psi, use of pressure reducing valve is recommended.
• In case it is less than 7 psi, use of pressure booster pump is recommended.
• Ensure you buy them from A. O. Smith Company Service technician.
Figure 23
Check the pressure of the inlet water
before installing the product. (Figure 23)
0.24
5
15
20
25
30
35
10
6
8
Mpa
psi
0.6
0.1
0.13
0.17
0.2
Make sure that the water purifier is
installed close to inlet water connection
(not more than 1 meter) and drain. The
overflow water tube should not be more
than 1.5 meters. Avoid sharp bend to the
pipes. (Figure 21)
Figure 21 Figure 22
Do not connect hot water to the product.
(Figure 22)
Heater
CAUTION
Overflow
water tube
Drain
Inlet
water tube

ON
CAUTION
15
Figure 28
4. If there is any strange noise, burning
smell, or smoke, switch off the power,
unplug the power cord immediately
and call the Customer care centre.
(Figure 28)
CAUTION
Figure 27
3. Do not use the purifier if the power
cord is damaged. Call the Customer
care centre. (Figure 27)

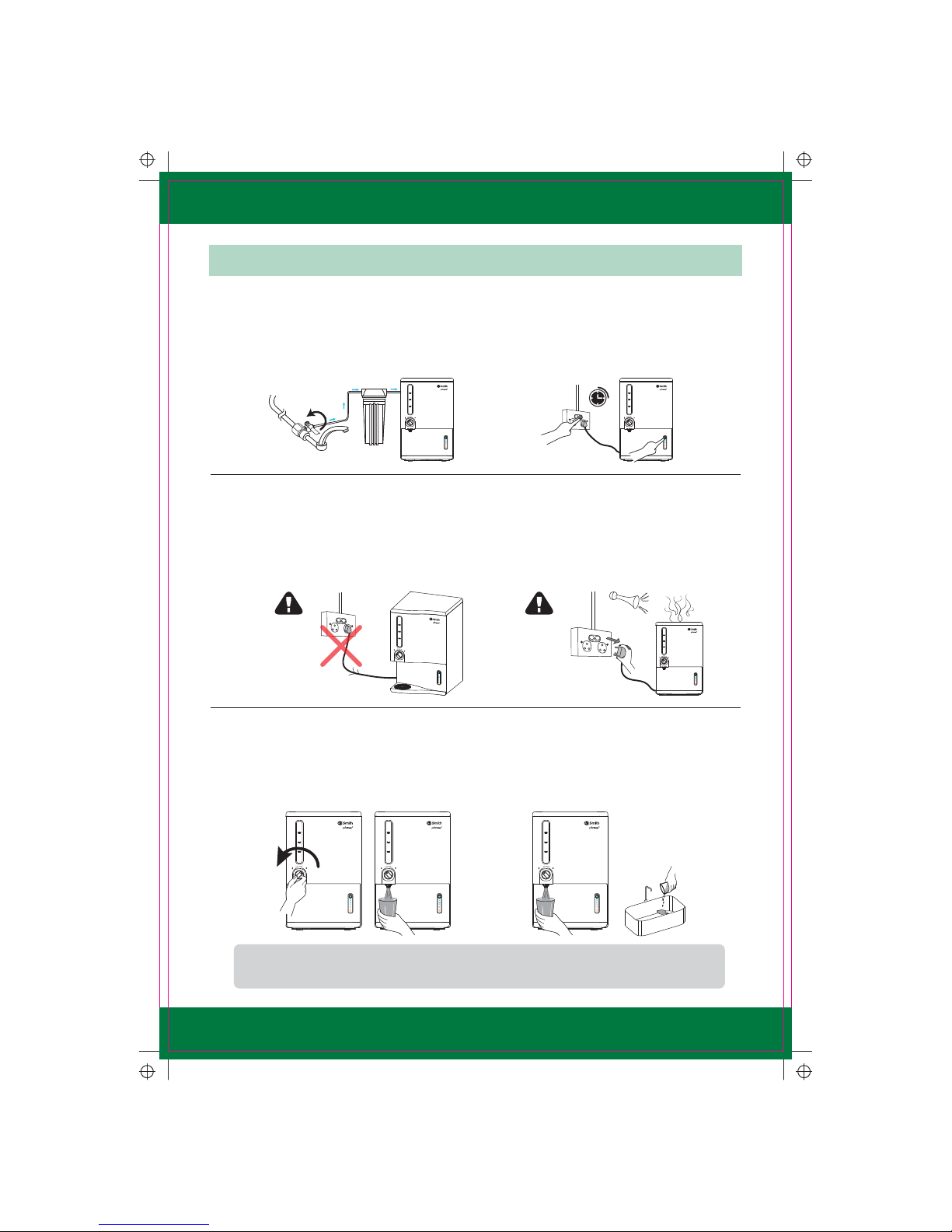

How to use
Figure 25 Figure 26
1. Turn ON the water connection
through the Ball Valve. (Figure 25)
2. Switch ON the Power supply and press
the Power Button of the purifier.
(Figure 26)
Figure 29 Figure 30
5. To dispense water from the storage
tank, turn the Faucet Knob in
anti-clockwise direction.
(Figure 29)
6. Discard the first cycle of pure water,
before you start using for
consumption.
(Figure 30)
Note: Make sure to discard the water in the storage tank if you have not used the purifier for
more than 2 days.

16
Draining Drip Tray
Figure 31 Figure 32
1. Remove the Drip Tray assembly by
pulling forward. (Figure 31)
We have provided removable Drip Tray with the product. In case there is slippage of
water, it gets collected in Drip Tray.
Figure 33
Figure 34
3. Clean the surface of water tray with
soft cloth. (Figure 33)
2. Remove Drip Tray cover by pulling
upward and then drain completely.
(Figure 32)
4. Re-attach the Drip Tray assembly into
the purifier. (Figure 34)

17
RO
How to maintain your Puritee+™
Figure 35
Do not splash water directly nor clean
with benzene, pesticides, thinner, alcohol,
etc., but use a soft, dry cloth to clean the
purifier. (Figure 35)
Figure 37
Replace filters regularly according to the
replacement indications. This is done only
by A. O. Smith Company Service
technician. (Figure 37)
Figure 38
Use A. O. Smith genuine accessories only,
for the optimal performance of the
purifier. (Figure 38)
Figure 36
Do not splash water or any chemicals to
the filtration system while cleaning.
(Figure 36)
Benzene
CAUTION
Benzene
RO
