A.O. Smith AO-WH-FILTER User manual

AO-WH-FILTER
CENTRAL WATER FILTER
FILTRO DE AGUA CENTRAL
A. O. Smith Corporation P.O. Box 1597 | Johnson City, TN 37605-1597 | 877.333.7108 Owner’s Manual / El manual del proprietario

NEED HELP? GIVE US A CALL 877.333.7108
AO-WH-FILTER
CENTRAL WATER FILTER
TABLE OF CONTENTS
Box Contents ............................................................................................................1
System Configurations.............................................................................................2
Precautions and Maintenance.................................................................................3
Installation Guide.....................................................................................................4
Performance Data Sheet..........................................................................................5
Warranty...................................................................................................................6
Spanish/Español........................................................................................................7
A. O. Smith has obsessively engineered this filtration system for you. It is
designed to reduce over 97% of chlorine taste and odor for healthy water
throughout your entire home.
Keep this owner’s manual to reference installation, troubleshooting
and filter replacement information.
If you need help or have a question, we’ve got you covered.
Give us a call at 877.333.7108.

NEED HELP? GIVE US A CALL 877.333.7108
Water Filtration
CENTRAL FILTER
BOX CONTENTS 1
Tools recommended for most basic
installation:
• Crimping tool
• Channel locks
• Thread seal tape
• PVC pipe cutter
We recommend the use of a
Whole House Filter* with this
system, available for purchase
at Lowes and Lowes.com.
CENTRAL WATER FILTER TANK
Please read entire manual to ensure all parts listed are present before installation.
If any part is missing or damaged let us know by calling 877.333.7108.
Do not attempt to install the filter.
3/4"SHUT-OFF VALVE (1)
3/4"X 3"SCHEDULE
80 NIPPLE (1)
HOSE ADAPTER (1)

NEED HELP? GIVE US A CALL 877.333.7108
Water Filtration
DESCALER
Water Filtration
CENTRAL FILTER
CENTRAL
WATER FILTER
INSTALLATION GUIDE
2

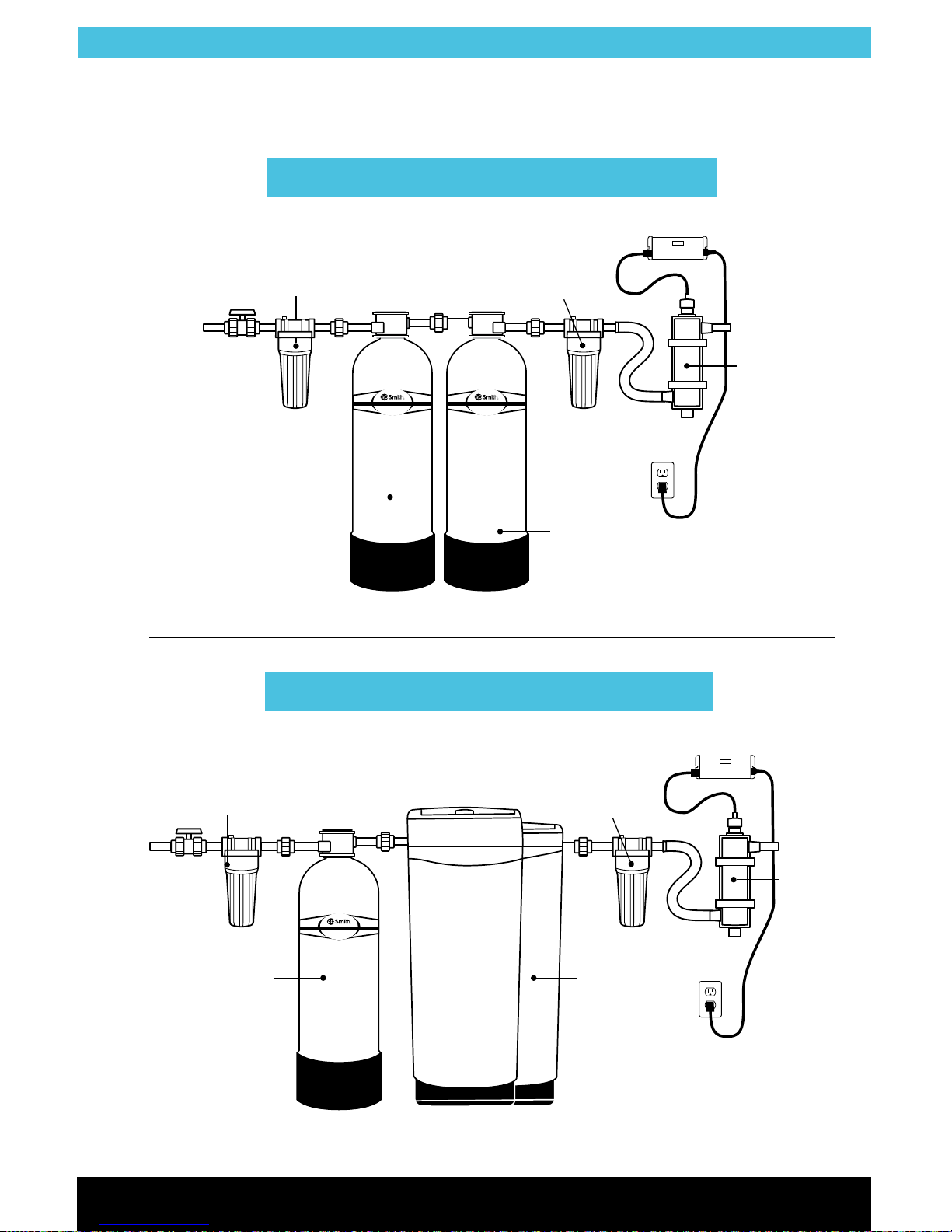

2SYSTEM CONFIGURATIONS
Water Filtration
CENTRAL FILTER
If you have added components to your Central Water Filter,
note the correct sequencing below.
*Due to the varieties of home design, not all installation configurations can be addressed in this guide.
WITH A WHOLE HOUSE DESCALER
CENTRAL
WATER FILTER
WATER
SOFTENER*
POST-FILTER*
(Optional)
WITH A WATER SOFTENER
DESCALER*
(Recommended)
POST-FILTER*
(Optional)
UV*
(Optional)
WHOLE HOUSE SEDIMENT FILTER*
(Recommended)
WHOLE HOUSE SEDIMENT FILTER*
(Recommended)
UV*
(Optional)

NEED HELP? GIVE US A CALL 877.333.7108
3
PRECAUTIONS AND MAINTENANCE
Precautions
• Do not install this filter where the
line pressure may exceed 100 psi. The
operating pressure range for this filter
is between 20psi – 100psi.
• Install on cold water lines only
(40° – 90°F). Protect unit
from freezing.
• Unit must be installed in an area
where the main water line enters your
home, before connecting to the water
heater. DO NOT install after a water
heater or on the hot water line.
• Do not install the unit on its side. It
must be installed upright to maximize
contact with media bed.
• It is recommended your system be
installed inside and out of direct
sunlight. If this is not possible and
the system is outdoors or in a
sunny area, the unit must be
protected from both direct sunlight
and freezing temperatures.
• Installation of the filter must comply
with existing state and local plumbing
codes. A. O. Smith is not liable for
consequential or incidental damages
due to improper installation.
• Improper sequence of equipment will
affect performance, and could possibly
damage your system.
AO-WH-FILTER
Rated service flow 7 gpm (26.5 Liters)
Max capacity 600,000 gallons (2,271,247 Liters)
Min working pressure 20 psi (137.9 kPa)
Max working pressure 100 psi (689.5 kPa)
Min operating temperature 40° F (4.44° C)
Max operating temperature 90° F (32.22° C)
Read all precautions and installation
instructions carefully and completely
before installing
The exterior of your filtration system
can be cleaned with warm, soapy water.
Rinse well with fresh, clean water. Never
use chemical cleaning products on the
system’s exterior surface as they may
damage the housing.
A sediment pre-filter for your system
is recommended. Sediment levels vary
from one location to another. If the flow
rate has noticably decreased, a pre-filter
to remove the sediment is usually the
root cause. If you have a pre-filter, once
the flow rate has noticeably decreased
it is time to replace the filter. Allowing
sediment to collect continuously can
cause clogging and restrict the flow of
water into your home. We recommend
replacing your sediment pre-filter
cartridge every 2-3 months.

NEED HELP? GIVE US A CALL 877.333.7108
INSTALLATION GUIDE
INSTALLATION GUIDE
4
1 Using supplied adapter, connect a garden hose to the inlet port so
the water will flow into the system and out of the outlet port.
2 Slowly turn faucet on and allow discolored water to flow from
outlet into a suitable drainage area. The first few gallons will
appear black and cloudy due to carbon fines.
3After an initial 15-minute flushing, begin a period of “surge flushing”
by turning water supply on for 30 seconds and then off for 30 seconds,
repeating cycle for 15 minutes or until initial surge of water is completely
clear and free from discoloration and cloudiness.
4 Disconnect the system from the garden hose and position
it for final installation.
IMPORTANT Keep the unit in an upright
position at all times.
Remove red shipping caps
from the inlet and outlet
ports on the main housing.
1
Pre-condition the unit by surge flushing. It’s imperative that this system is flushed
properly prior to final installation. The granular carbon medium used in the bottom
tank contains 1-2% by volume of carbon fines that must be flushed out prior to use.
Surge flushing is the best method for purging these carbon fines from the media bed.
2
IMPORTANT
The inlet piping assembly must be firmly braced and supported.
Do not over-tighten fittings, as this may cause leakage and broken fittings. Do NOT use
pipe dope. The use of pipe dope voids the warranty. You may use NSF-certified pipe
primer, glue and plumber’s tape. Leave 2 or 3 threads exposed and do not exceed seven
layers of plumber’s tape. More than seven layers will cause the nipple to crack and leak.
Turn off the main water
source prior to installation.
3
Pick an appropriate installation
location. Unit must be installed
in an area where the main water
line enters your home, before
connecting to the water heater. DO
NOT install after the water heater or
on the hot water line. Components
and installation will vary.
4Once installation is complete, slowly
turn water on and inspect for leaks.
5
Once the unit is installed and checked
for leaks, turn on the faucet closest
to the installed unit and allow water
to run for 5-10 minutes for the final
flushing period.
6

NEED HELP? GIVE US A CALL 877.333.7108
For use with municipally treated water only. Do not use with water that is
microbiologically unsafe or of unknown water quality without adequate
disinfection before or after the system.
INSTALLATION GUIDE
PERFORMANCE DATA SHEET 5
CARE AND MAINTENANCE
Performance Data Sheet for the A. O. Smith Whole House Water Filter
Models Replacement Max operating pressure Rated capacity Operating temp. range Rated flow
AO-WH-FILTER AO-WH-FILTER 100 psi (689.5 kPa) 600,000 gallons
(2,271,247 liters) 40-90° F 4.44-32.2° C 7 gpm (26.5 lpm)
Manufactured by: A. O. Smith Corporation 11270 West Park Place | Milwaukee, WI 53224 | 877.333.7108
Testing was performed under standard laboratory conditions, actual performance may vary*. Filter usage must comply with all state and local laws.
Filter is only to be used with cold water. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. Not
all contaminants listed may be present in your water. Filter does not remove all contaminants that may be present in tap water. See owner’s manual
for general installation conditions and needs as well as manufacturer’s limited warranty. Do not use with water that is microbiologically unsafe or of
unknown water quality without adequate disinfection before or after the system.
DATA SUMMARY TABLE
Sample
Point
Accumulated
Volume (gal)
Dynamic Pressure (psi) Chlorine, Free Available
(mg/L)
Flow Rate (gpm)
Effluent 1 Influent Influent Effluent 1 Effluent 1
Startup 150 61 2.2 ND(0.05) ND (0.05) 7.1
10% 60,000 61 2.2 ND(0.05) ND (0.05) 7.0
20% 120,000 60 1.9 ND(0.05) ND (0.05) 7.0
30% 180,000 60 2.2 ND(0.05) ND (0.05) 7.0
40% 240,000 60 2.1 ND(0.05) ND (0.05) 7.0
50% 300,000 60 2.1 0.05 0.05 7.0
60% 360,000 61 2.1 ND(0.05) ND (0.05) 7.1
70% 420,000 60 2.2 0.09 0.09 7.1
80% 480,000 61 1.9 ND(0.05) ND (0.05) 7.1
90% 540,000 61 2.0 ND(0.05) ND (0.05) 6.9
100% 600,000 61 2.0 0.18 0.18 7.1
System independently tested to NSF/ANSI 42 Standard for the
reduction of Chlorine Taste and Odor.

6
What is covered:
This Warranty covers defects in materials
or workmanship in manufacturing of
your A. O. Smith Whole House Central
Filter except as provided below.
For how long:
This warranty runs for 72 months from
the date of purchase by a consumer
(“Warranty Period”).
What is not covered:
The limited warranty stated herein is in
lieu of any and all warranties, express
or implied, whether written or oral,
including but not limited the implied
warranties of fitness for a particular
purpose or the implied warranty of
merchantability.
This warranty does not cover filter
cartridges and any systems that were
not installed in compliance with the
instructions or that have been abused
or operated incorrectly. It also does not
cover the following:
• Incidental or consequential damages
caused by a failure of the product.
• Clogging, as replacement of the
pre-filter cartridge is the purchaser’s
responsibility.
• Damage from use of non-potable
water supplies.
• Labor costs to install or replace the
system or filters.
• Damage caused by fire, flood or
acts of God.
• This warranty is voided if the product is
used with parts that are not genuine A.
O. Smith parts. This includes, but is not
limited to: replacement filters, faucets,
and diverter valves.
What A. O. Smith will do:
We will replace the defective part of
the covered product, or if necessary, the
product and send it to you.
How to get service:
To receive service under this Warranty,
you must contact A. O. Smith
at 1-877-333-7108 or go to
AOSmithAtLowes.com/contactus
within the warranty period to describe
the problem to a customer service
representative who will verify that the
product is under warranty and determine
whether a part or the system will be
replaced and whether you must send
back the defective part at our cost. If you
are to send back the part or system, we
will send you a return shipping label. You
will be required to provide a proof of
purchase (unless you purchased direct
from us or have sent us a Warranty Card).
We will send you the replacement part or
system at no cost to you.
How state law applies:
This warranty gives you specific rights
and you may have other rights which
vary from state to state.
Some states do not allow the exclusion
or limitation of implied warranties or
incidential or consequential damages,
so the above limitation or exclusion may
not apply to you.
Warranty card:
Warranty registration is not required
for coverage under the A. O. Smith
Limited Warranty. If you purchased from
a retailer or dealer, please complete
the online warranty registration form
at www.AOSmithatLowes.com/register.
Once registered online, we will have a
record of your purchase and you will
not be required to produce a proof of
purchase for a warranty claim.
LIMITED WARRANTY
6
YEAR

7
AO-WH-FILTER
FILTRO DE AGUA CENTRAL
TABLA DE CONTENIDO
Contenido de la caja ................................................................................................8
Configuraciones del sistema....................................................................................9
Precauciones y mantenimiento .............................................................................10
Guía de instalación.................................................................................................11
Hoja de datos de rendimiento ..............................................................................12
Garantía..................................................................................................................13
A. O. Smith diseñó este sistema de filtración minuciosamente para usted. Está
diseñado para reducir más del 97% del sabor y el olor del cloro para obtener agua
saludable en toda su casa.
Conserve este manual del propietario como referencia para la instalación,
resolución de problemas e información de cambio del filtro.
Si necesita ayuda o tiene alguna consulta, nosotros nos encargamos.
Llámanos al 877.333.7108.
¿NECESITAS AYUDA? LLAMANOS 877.333.7108
