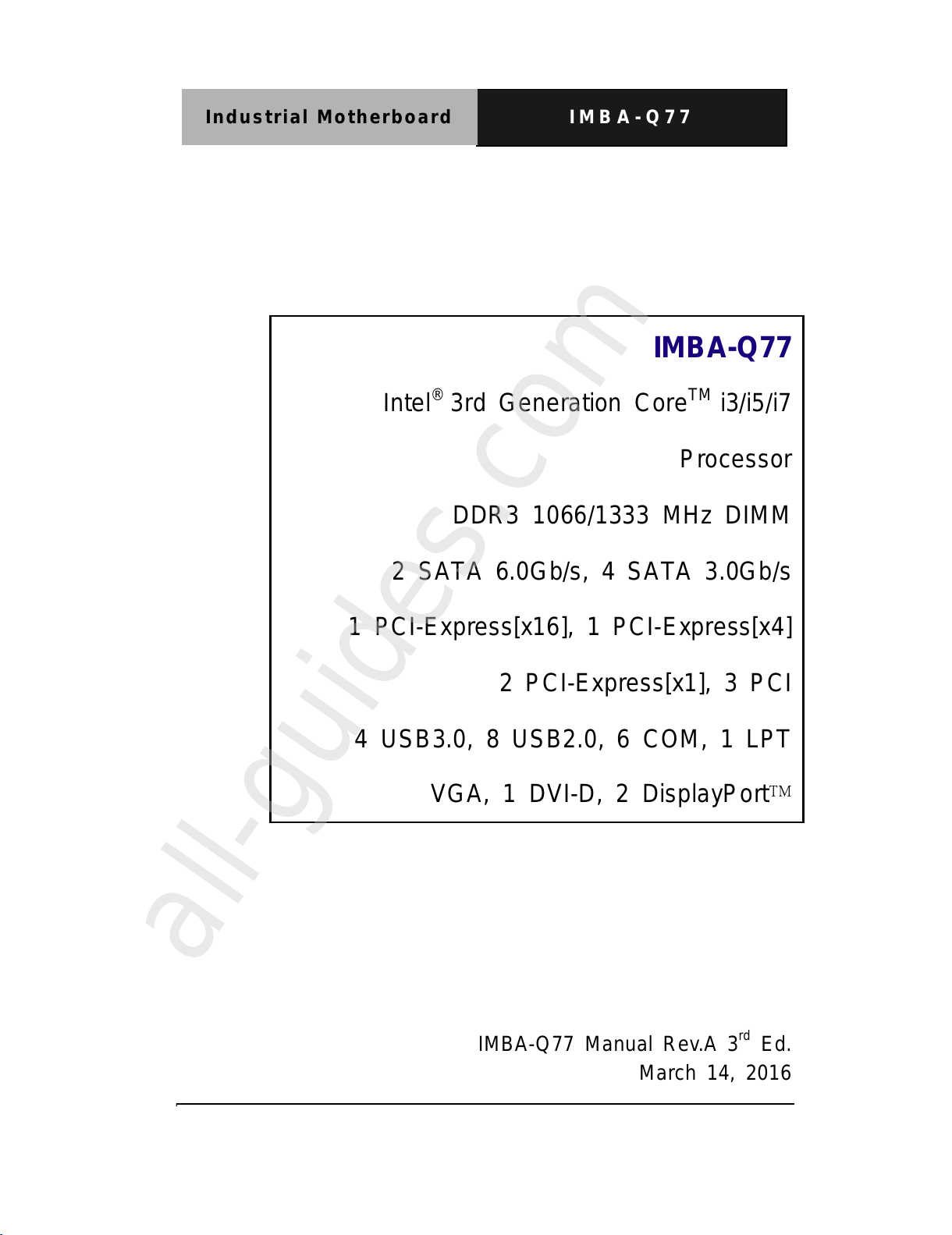

Aaeon IMBA-Q77 User manual

Industrial Motherboard IMBA-Q77
IMBA-Q77
Intel® 3rd Generation CoreTM i3/i5/i7
Processor
DDR3 1066/1333 MHz DIMM
2 SATA 6.0Gb/s, 4 SATA 3.0Gb/s
1 PCI-Express[x16], 1 PCI-Express[x4]
2 PCI-Express[x1], 3 PCI
4 USB3.0, 8 USB2.0, 6 COM, 1 LPT
VGA, 1 DVI-D, 2 DisplayPort™
IMBA-Q77 Manual Rev.A 3rd Ed.
March 14, 2016
All manuals and user guides at all-guides.com
all-guides.com

Industrial Motherboard IMBA - Q77

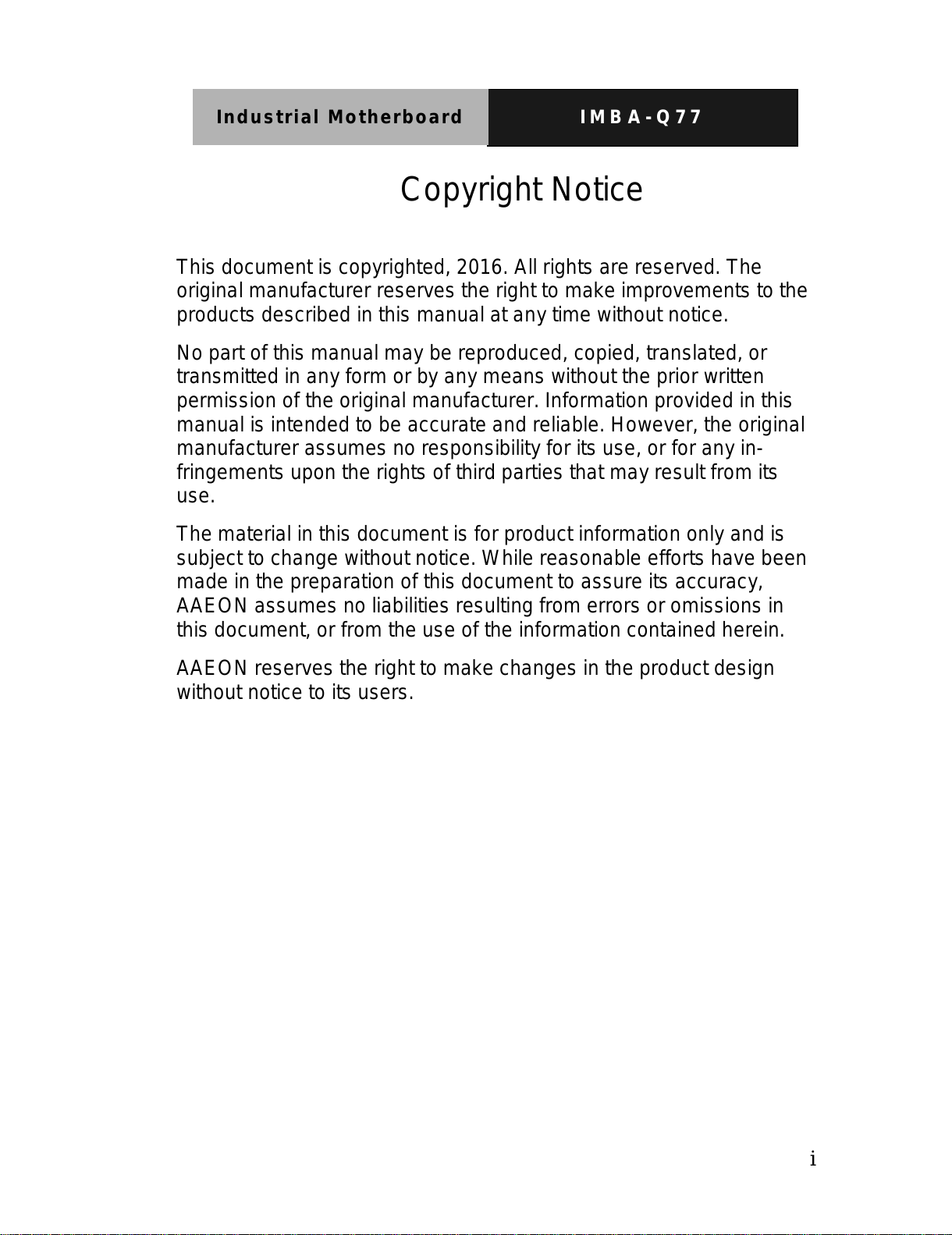

Copyright Notice
This document is copyrighted, 2016. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
i
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Award is a trademark of Award Software International, Inc.
CompactFlash™ is a trademark of the Compact Flash
Association.
Intel®is a trademark of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
SoundBlaster is a trademark of Creative Labs, Inc.
All other product names or trademarks are properties of their
respective owners.
ii
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77

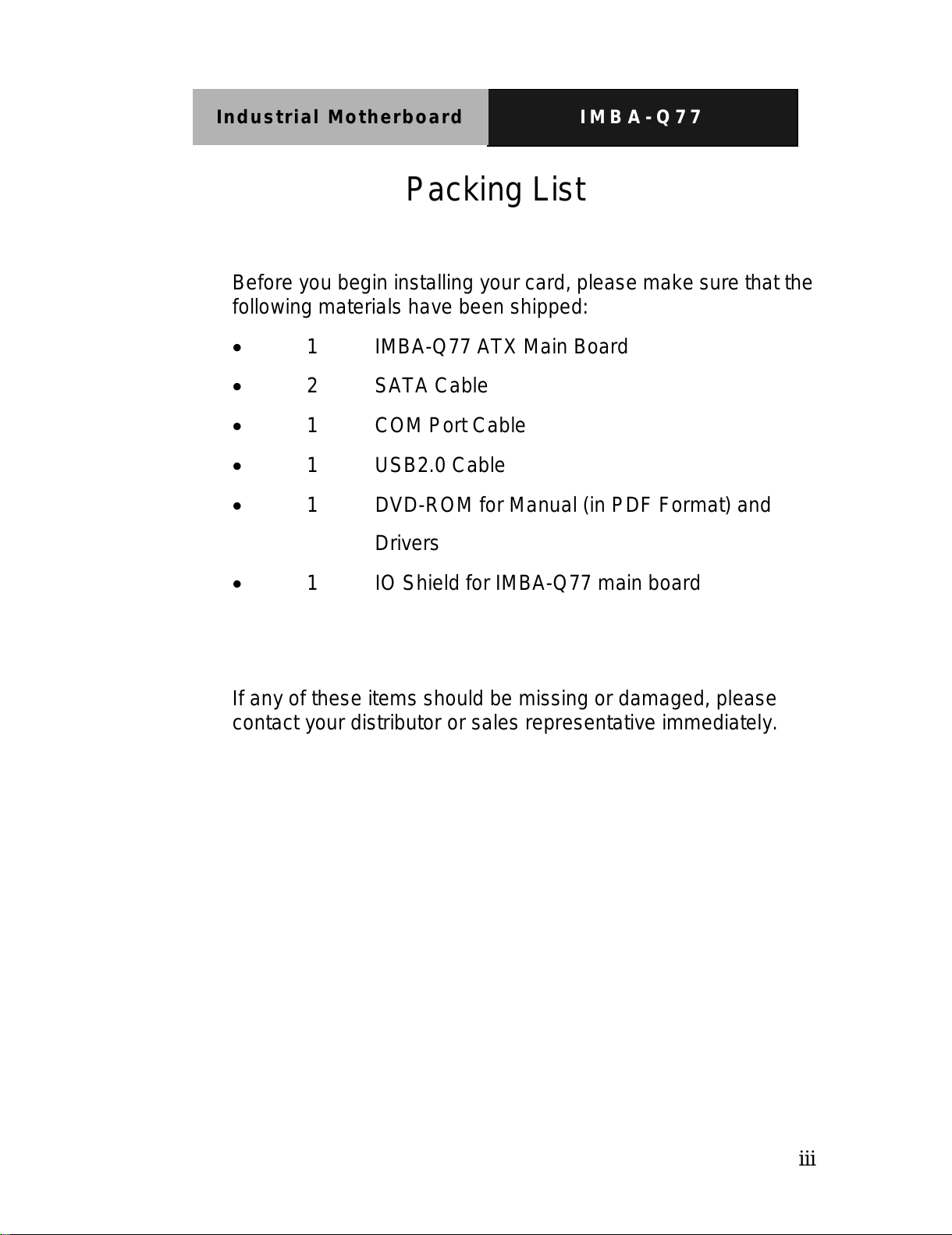

Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
•1 IMBA-Q77 ATX Main Board
•2 SATA Cable
•1 COM Port Cable
•1 USB2.0 Cable
•1 DVD-ROM for Manual (in PDF Format) and
Drivers
•1 IO Shield for IMBA-Q77 main board
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.
iii
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77

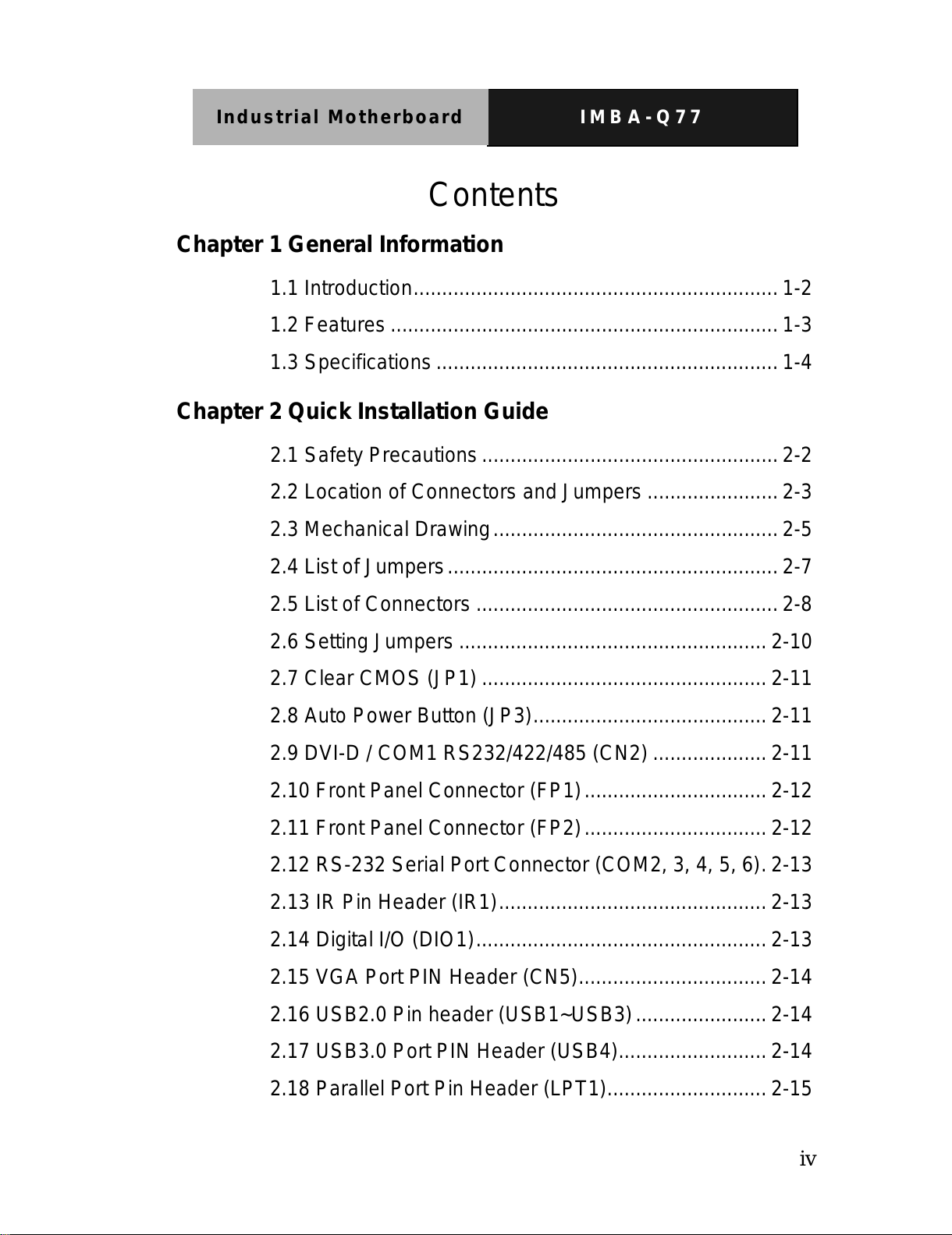

Contents
Chapter 1 General Information
1.1 Introduction................................................................ 1-2
1.2 Features .................................................................... 1-3
1.3 Specifications............................................................ 1-4
Chapter 2 Quick Installation Guide

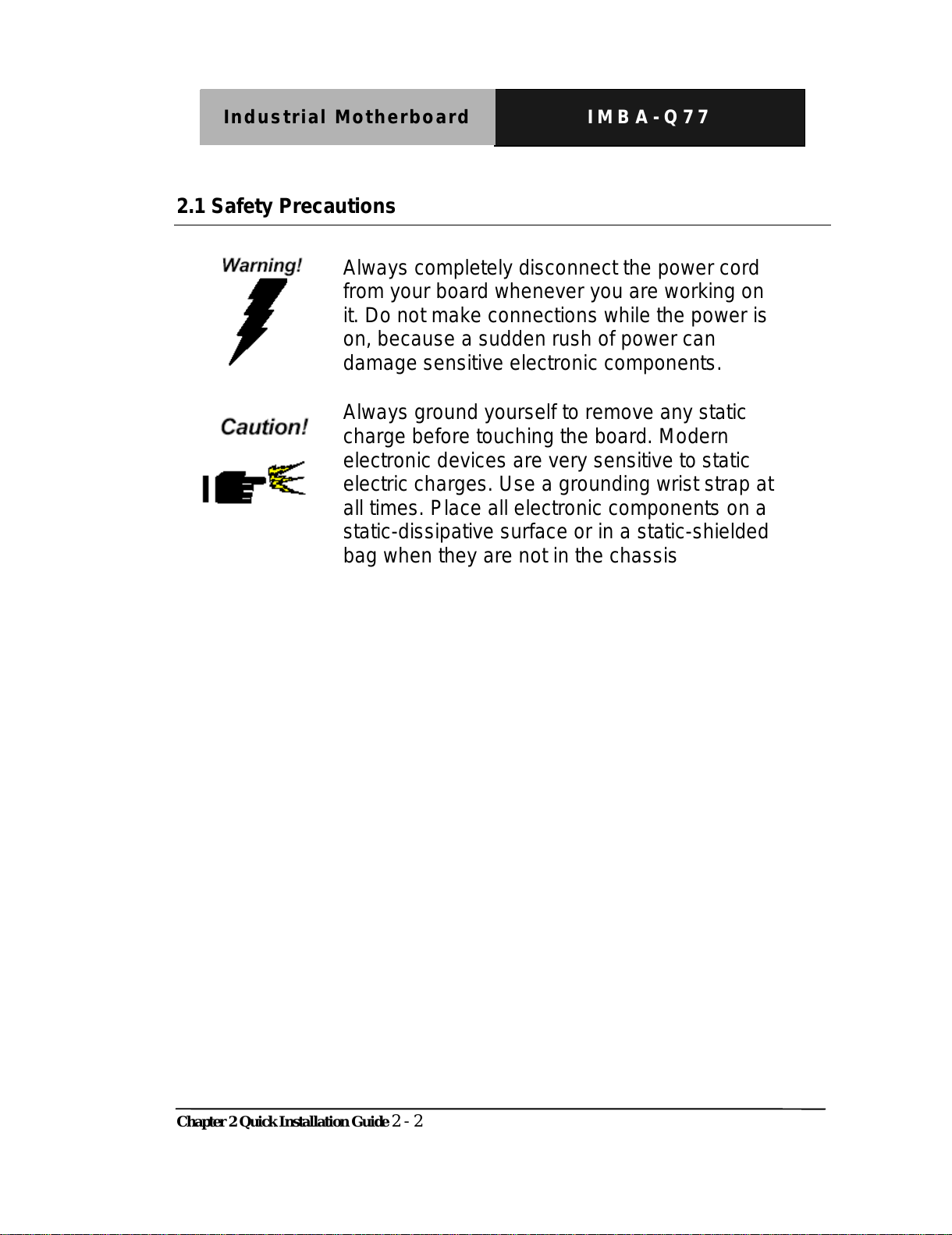

2.1 Safety Precautions.................................................... 2-2

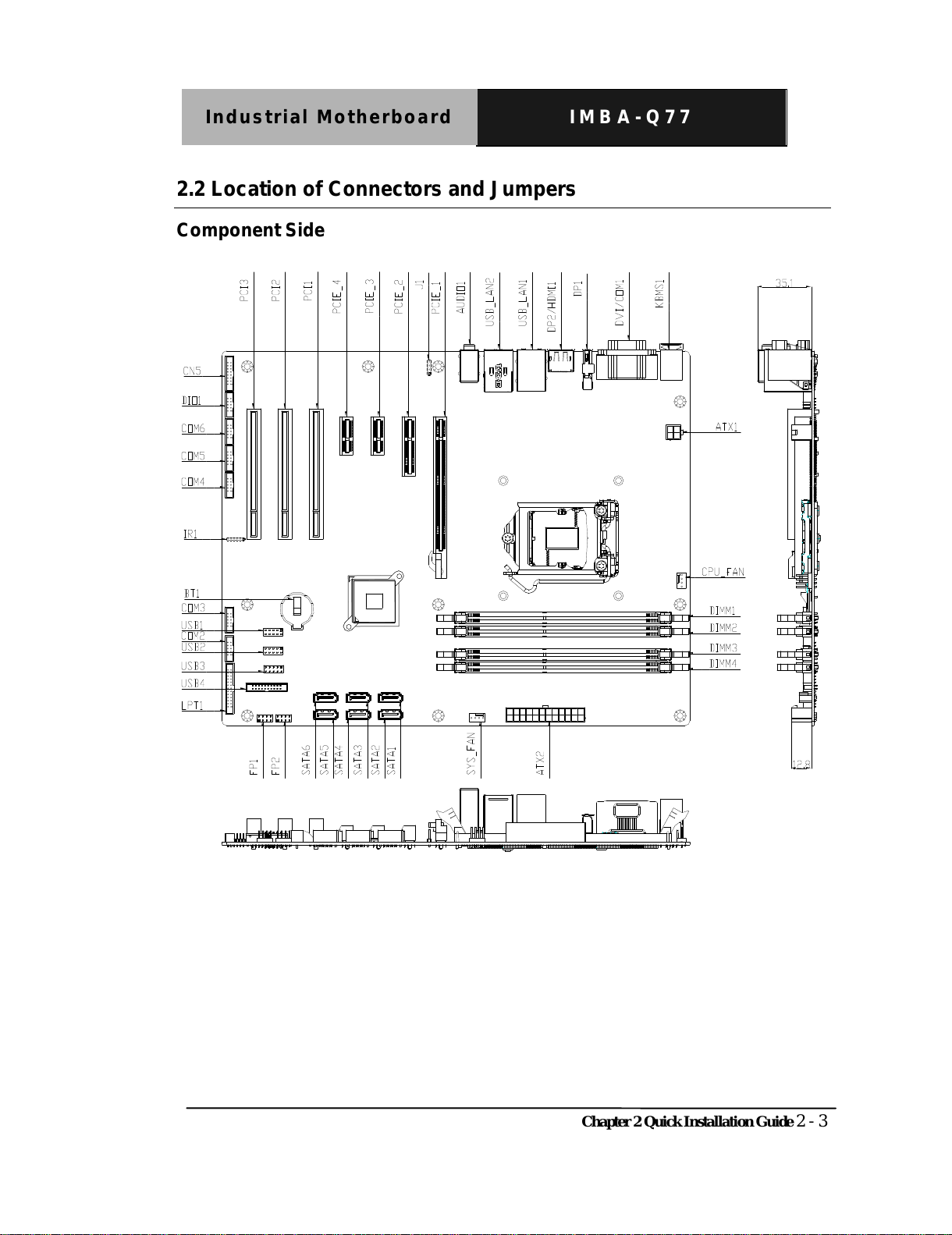

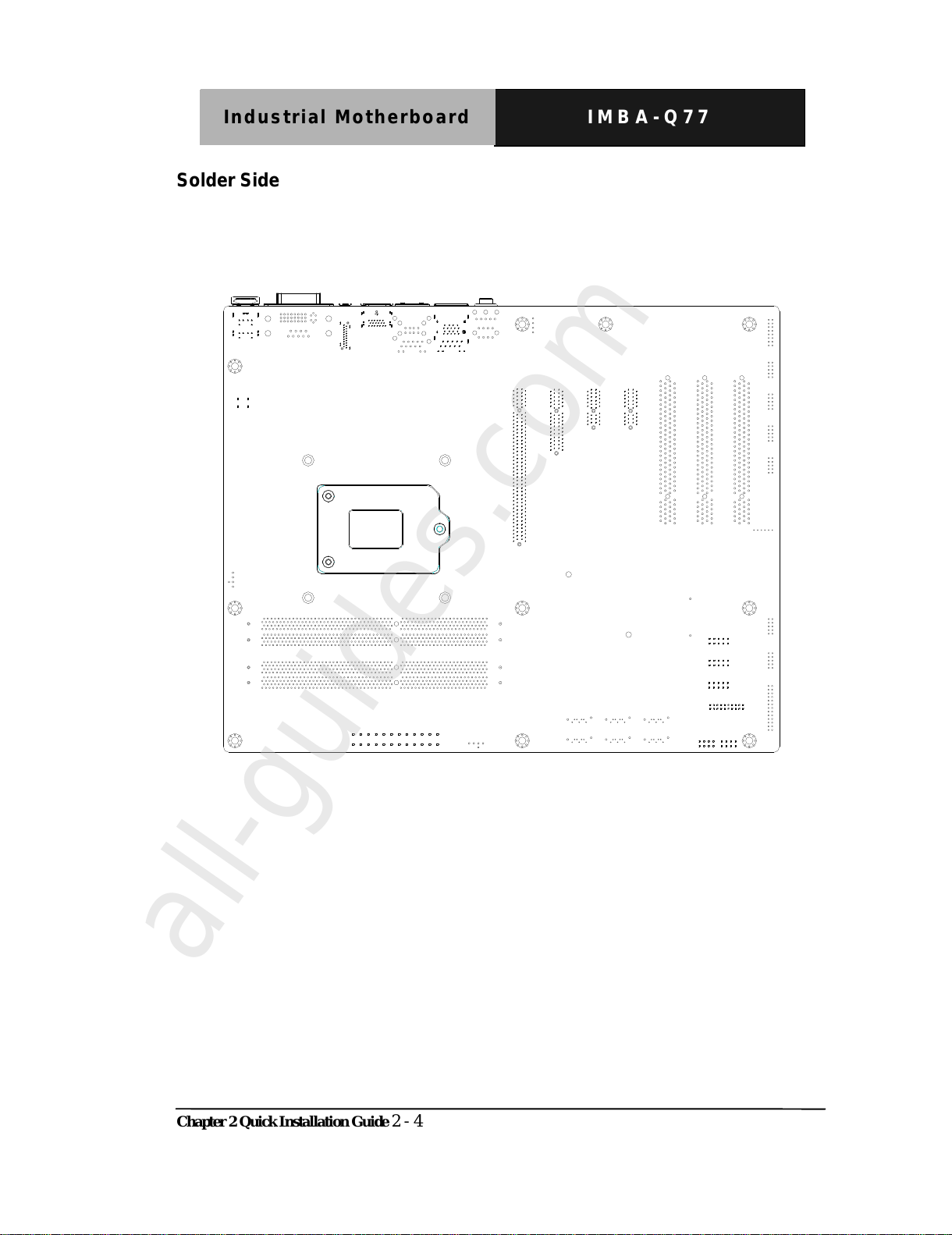

2.2 Location of Connectors and Jumpers ....................... 2-3

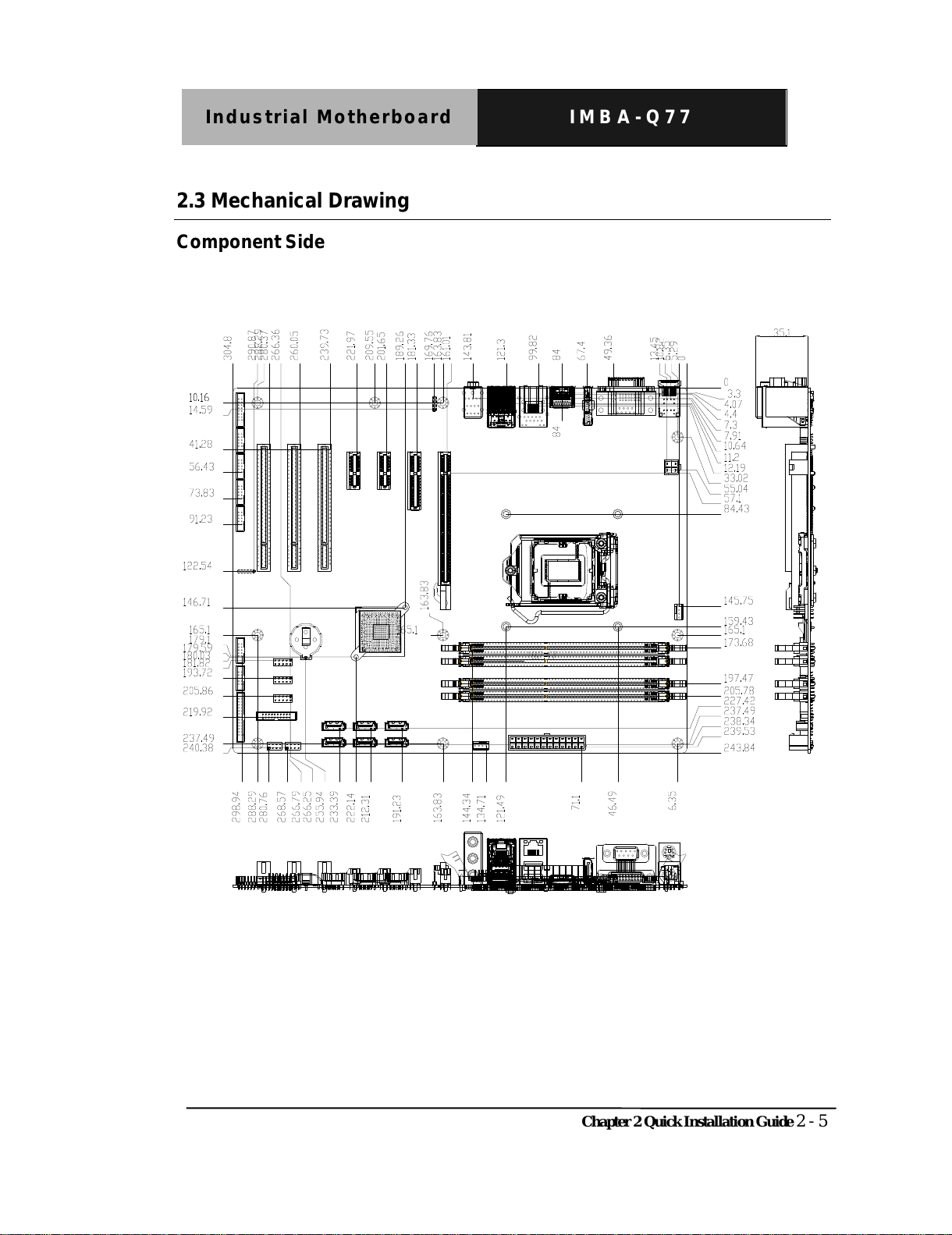

2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-7

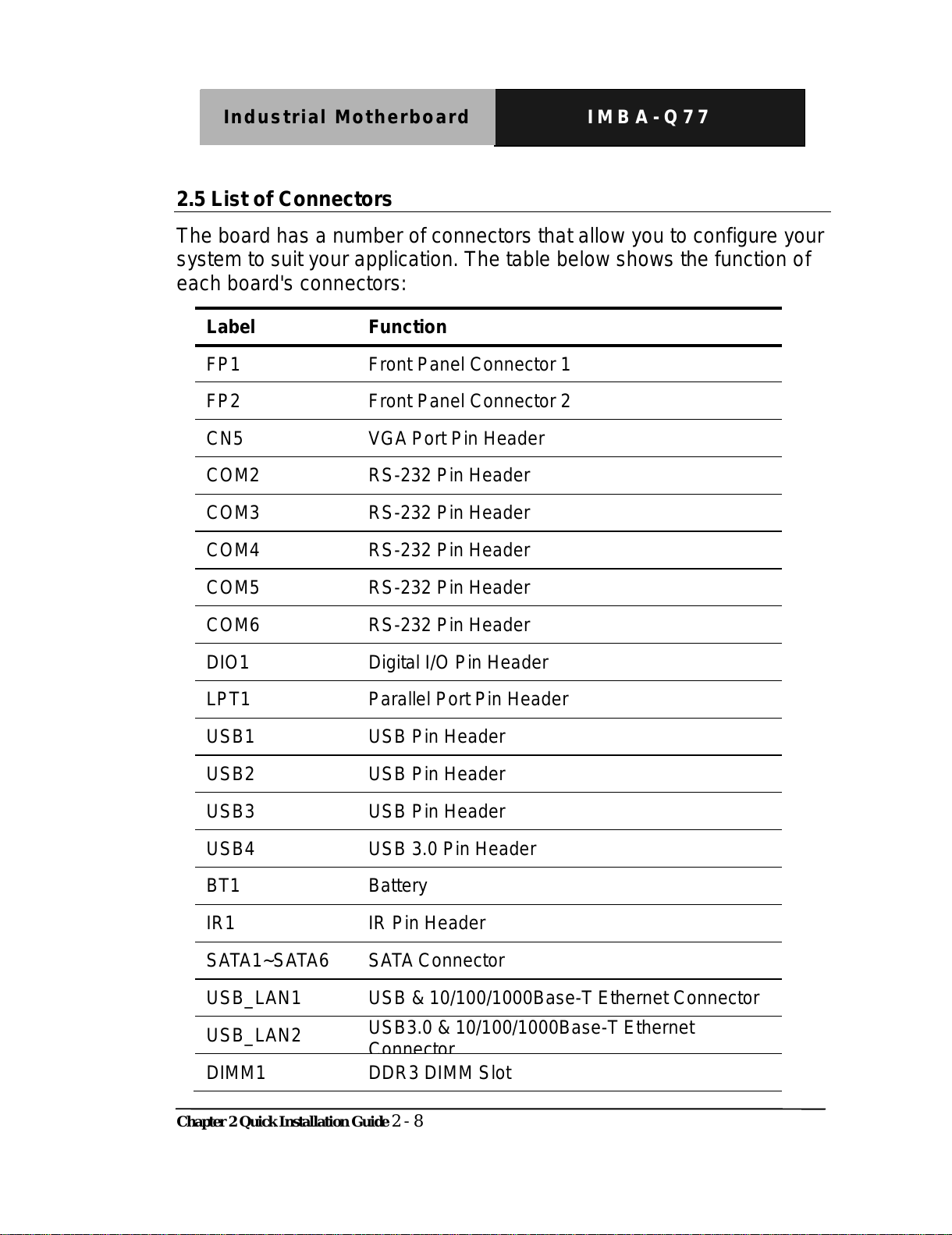

2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers ...................................................... 2-10
2.7 Clear CMOS (JP1) .................................................. 2-11
2.8 Auto Power Button (JP3)......................................... 2-11
2.9 DVI-D / COM1 RS232/422/485 (CN2) .................... 2-11
2.10 Front Panel Connector (FP1)................................ 2-12
2.11 Front Panel Connector (FP2)................................ 2-12
2.12 RS-232 Serial Port Connector (COM2, 3, 4, 5, 6). 2-13
2.13 IR Pin Header (IR1)............................................... 2-13
2.14 Digital I/O (DIO1)................................................... 2-13
2.15 VGA Port PIN Header (CN5)................................. 2-14
2.16 USB2.0 Pin header (USB1~USB3)....................... 2-14
2.17 USB3.0 Port PIN Header (USB4).......................... 2-14
2.18 Parallel Port Pin Header (LPT1)............................ 2-15
iv
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization. .................................. 3-2
3.2 AMI BIOS Setup........................................................3-3
Chapter 4 Driver Installation
4.1 Installation ................................................................. 4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 W83627DHG Watchdog Timer Initial Program......A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1stMB Memory Address Map.................................B-4
B.3 IRQ Mapping Chart................................................B-5
B.4 DMA Channel Assignments .................................B-8
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2
Appendix D RAID & AHCI Settings
D.1 Setting RAID......................................................... D-2
D.2 Setting AHCI....................................................... D-11
Appendix E Digital Input & Output
E.1 DIO Programming..................................................E-2
E.2 Digital I/O Register.................................................E-3
E.3 Digital I/O Sample Program...................................E-4
v
All manuals and user guides at all-guides.com
all-guides.com

Industrial Motherboard IMBA-Q77
Chapter 1 General Information 1- 1
General
Chapter
1
Information
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA-Q77
Chapter 1 General Information 1- 2

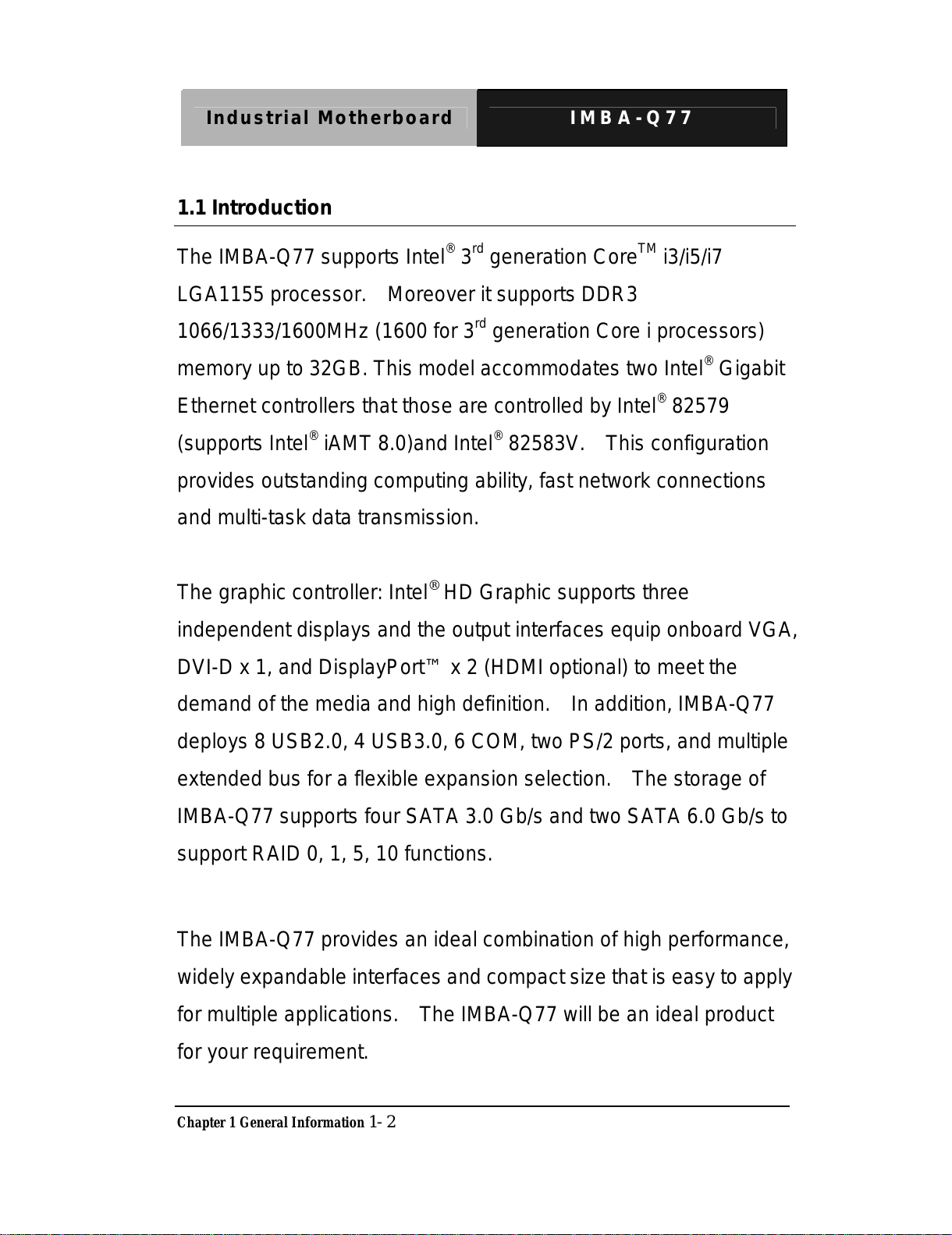

1.1 Introduction
The IMBA-Q77 supports Intel®3rd generation CoreTM i3/i5/i7
LGA1155 processor. Moreover it supports DDR3
1066/1333/1600MHz (1600 for 3rd generation Core i processors)
memory up to 32GB. This model accommodates two Intel®Gigabit
Ethernet controllers that those are controlled by Intel®82579
(supports Intel®iAMT 8.0)and Intel®82583V. This configuration
provides outstanding computing ability, fast network connections
and multi-task data transmission.
The graphic controller: Intel®HD Graphic supports three
independent displays and the output interfaces equip onboard VGA,
DVI-D x 1, and DisplayPort™ x 2 (HDMI optional) to meet the
demand of the media and high definition. In addition, IMBA-Q77
deploys 8 USB2.0, 4 USB3.0, 6 COM, two PS/2 ports, and multiple
extended bus for a flexible expansion selection. The storage of
IMBA-Q77 supports four SATA 3.0 Gb/s and two SATA 6.0 Gb/s to
support RAID 0, 1, 5, 10 functions.
The IMBA-Q77 provides an ideal combination of high performance,
widely expandable interfaces and compact size that is easy to apply
for multiple applications. The IMBA-Q77 will be an ideal product
for your requirement.
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA-Q77
Chapter 1 General Information 1- 3
1.2 Features
Intel®3rd Generation Core™ i7/ i5/ i3 LGA 1155 Processor
Intel®Q77
Dual-Channel DDR3 1066/1333/1600 DIMM (1600 for 3rd
Generation Core™ i Processors) x 4, Up to 32 GB
10/100/1000Base-TX x 2 (LAN1 Supports Intel®iAMT 8.0)
Three Independent Displays For 3rd Generation Core™ i
Processors With VGA, DisplayPort™, DVI-D
SATA 3.0Gb/s x 4, SATA 6.0Gb/s x 2, Support RAID
0,1,5,10
USB2.0 x 8, USB3.0 x 4 , COM x 6, LPT x 1, IrDATx/Rx
Header x 1
PCI-Express[x16] x 1, PCI-Express[x4] x 1, PCI-Express[x1]
x 2, PCI x 3
TPM 1.2 (Optional)
All manuals and user guides at all-guides.com

Industrial Motherboard IMBA-Q77
Chapter 1 General Information 1- 4
1.3 Specifications

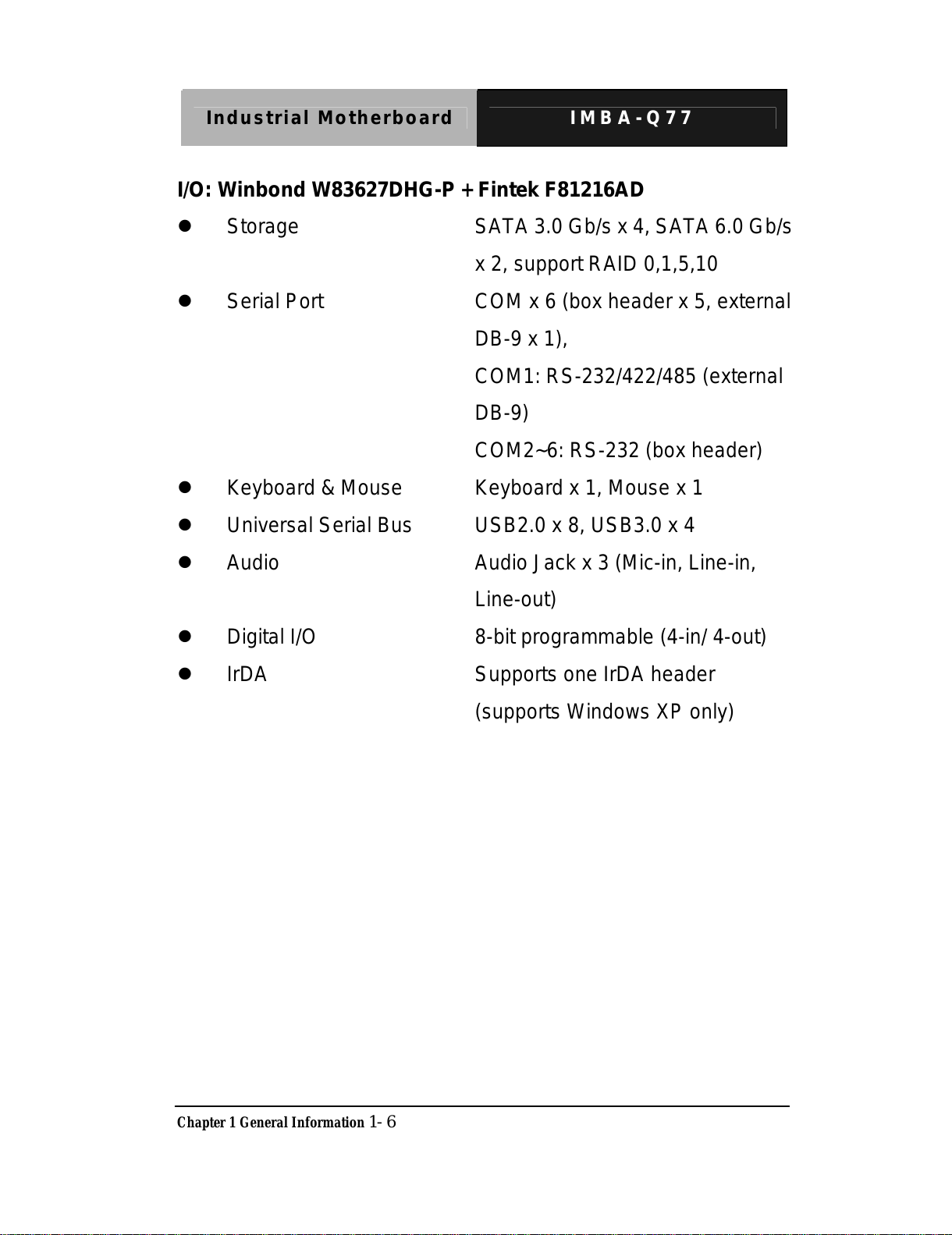

System
Form Factor ATX
Processor Intel®3rd generation Core™ i3/i5/i7
LGA 1155 Processor
System Memory Dual Channel DDR3
1066/1333/1600MHz DIMM (1600
for 3rd Generation Core™ i
Processors) x 4, up to 32 GB,
Unbuffered memory
Chipset Intel®Q77
Ethernet Gigabit Ethernet, RJ-45 x 2
LAN1: Intel®82579 (supports
Intel® iAMT 8.0);
LAN2: Intel®82583V
BIOS AMI SPI Flash ROM-128Mb ROM
Watchdog Timer System reset: 1~255 steps by
software programming

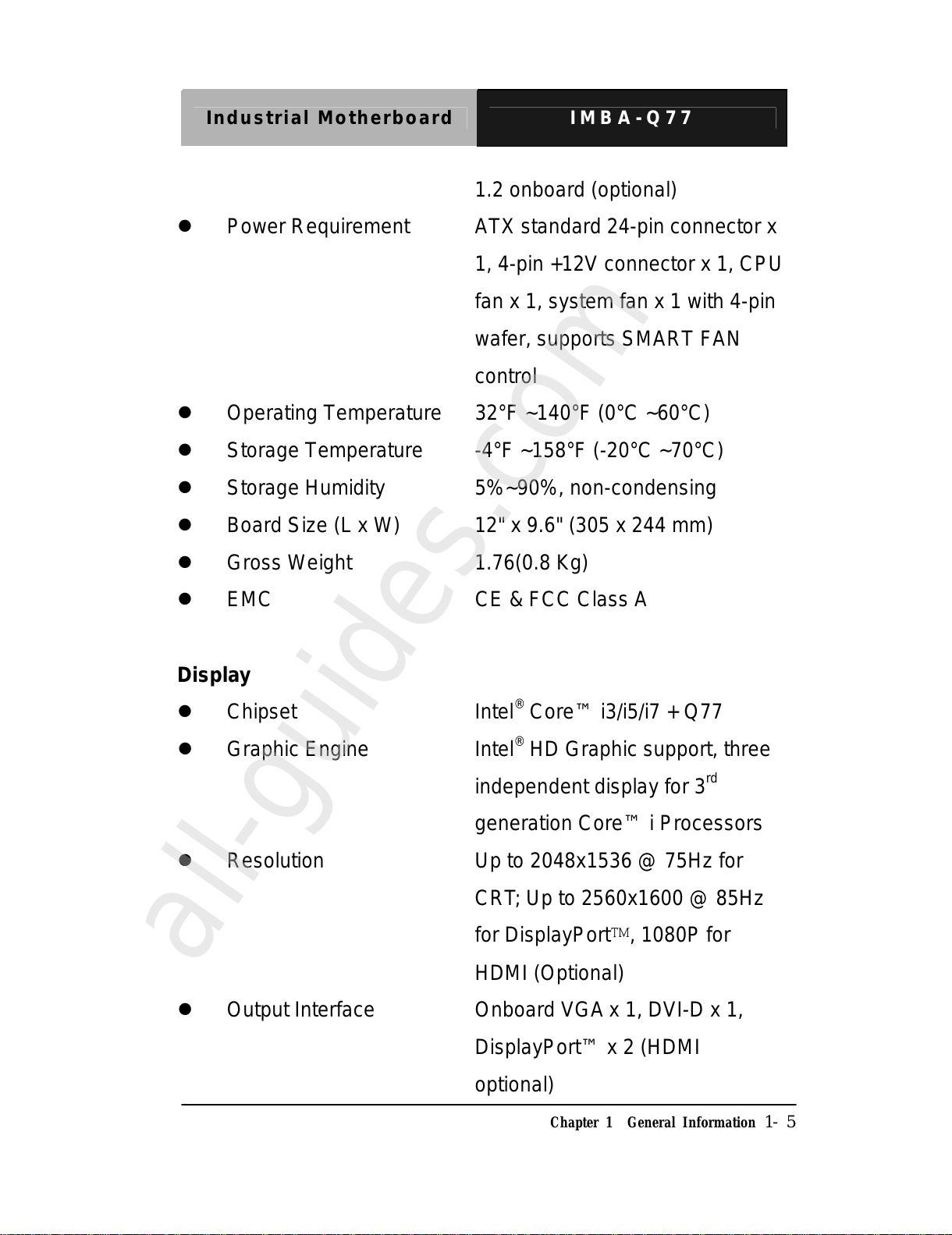

H/W Status Monitoring System temperature, voltage and
cooling fan status
Battery Lithium battery
Expansion Interface PCI-Express[x16] x 1,
PCI-Express[x4 x 1,
PCI-Express[x1] x 2, PCI x 3, TPM
All manuals and user guides at all-guides.com
