Aaeon HSB-910I User manual

Half-size SBC HSB-910I
HSB-910I
Intel®Celeron®M Processor
ISA Expansion Half-size SBC
Two 200-pin DDRII 400 SODIMM
2 SATA I/ 1 IDE/ 1 FDD/ 1 CompactFlash
5 USB 2.0/ 4 COM/ 1 IrDA
HSB-910 Manual Rev.A 1st Ed.
January 2009

Half-size SBC HSB-910I
i
Copyright Notice
This document is copyrighted, 2009. All rights are reserved. The
original manufacturer reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated,
or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable.
However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third
parties that may result from its use.
The material in this document is for product information only
and is subject to change without notice. While reasonable
efforts have been made in the preparation of this document to
assure its accuracy, AAEON assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein.
AAEON reserves the right to make changes in the product
design without notice to its users.

Half-size SBC HSB-910I
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Award is a trademark of Award Software International, Inc.
CompactFlash™ is a trademark of the Compact Flash
Association.
Intel®, and Celeron®M are trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
SoundBlaster is a trademark of Creative Labs, Inc.
All other product names or trademarks are properties of their
respective owners.

Half-size SBC HSB-910I
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 HSB-910I CPU Card
• 1 Floppy Cable
• 1 ATA100 Cable
• 1 USB Cable
• 1 Keyboard & Mouse Cable
• 1 ATX Cable
• 1 Serial + Parallel Cable
• 1 Serial Cable
• 2 SATA Cable
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Half-size SBC HSB-910I
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers..........................................................2-6
2.5 List of Connectors .....................................................2-7
2.6 Setting Jumpers ........................................................2-9
2.7 Clear CMOS (JP1) ....................................................2-10
2.8 CF Voltage Selection (JP2).......................................2-10
2.9 LVDS Voltage Selection (JP4)..................................2-10
2.10 Front Panel Connector (FP1)..................................2-10
2.11 Front Panel Connector (FP2)..................................2-10
2.12 Battery Connector (BT1).........................................2-11
2.13 RS-232 Serial Prot Connector (COM1, COM3, COM4)
.........................................................................................2-11
2.14 RS-232/422/485 Serial Port Connector (COM2).....2-11
2.15 IrDA Connector (IR1)...............................................2-11
2.16 LPT Port Connector (LPT1) ....................................2-12
2.17 USB Connector (USB2~3) ......................................2-12

Half-size SBC HSB-910I
v
2.18 Digital I/O (CN1)......................................................2-12
2.19 LAN LED Connector (CN2, CN5)............................2-13
2.20 Internal Keyboard Connector (CN3)........................2-13
2.21 PS/2 Keyboard/ Mouse Connector (CN4)...............2-13
2.22 Fan Connector (CN6)..............................................2-13
2.23 LVDS Channel Connector (CN7)............................2-14
2.24 AC97 Connector (CN8)...........................................2-14
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE8712 Watchdog Timer Initial Program..............A-5
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments .................................B-4
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

Half-size SBC HSB-910I
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Half-size SBC HSB-910I
Chapter 1 General Information 1- 2
1.1 Introduction
The HSB-910I utilizes the Intel®910GMLE and ICH6M chipset,
supporting Intel®Celeron®M 90nm processors with a FSB of
400MHz up to 1.8GHz. Offering two 200-pin DDR II SODIMM
sockets, the HSB-910I supports two 200-pin DDRII 400 SODIMM
system memory up to 2GB.
This model offers a multitude of I/O including four COM ports and
five USB2.0 ports. To meet today’s increasing storage demands it
also supports two SATA I, one IDE, one Type II CompactFlash™
and one standard Floppy Disk Drive sockets. The flexible
expansion and storage makes the HSB-910I a great solution for
your vital applications.
In addition to the comprehensive COM and USB offering the
HSB-910I can also be configured with two or one (optional) Gigabit
Ethernet ports to meet the needs of high bandwidth connectivity.
Supporting CRT & LCD simultaneously along with the optional high
definition audio board, the HSB-965P is an ideal solution for
demanding multimedia based applications.

Half-size SBC HSB-910I
Chapter 1 General Information 1- 3
1.2 Features
Intel®Celeron®M 90nm Processor Up to 1.8GHz
Intel®910GMLE + Intel®ICH6M
200-pin DDRII 400 SODIMM x 2, Up to 2GB
Gigabit Ethernet x 2 or x 1 (Optional)
Integrated Intel®Enhance Graphics Core, VGA Support
AC97 Codec Audio Daughter Board Optional
Ultra ATA100 x 1, SATA I x 2, CompactFlash™ Type II x 1
USB2.0 x 5, RS-232/422/485 x 1, RS-232 x 3,
Parallel x 1, IrDA x 1, Digital I/O
ISA Expansion
+12V Only Operation, AT

Half-size SBC HSB-910I
Chapter 1 General Information 1- 4
1.3 Specifications
System
CPU Intel® Celeron®M 90nm Processor
up to 1.8GHz, FSB 400MHz (BGA/
Socket co-lay)
System Memory Two DDRII SODIMM, support
DDRII 400 up to 2GB
Chipset Intel® 910GMLE + Intel®ICH6M
Ethernet LAN1/ 2: Intel®82574L
Gigabit Ethernet, RJ-45 x 2 or 1
(optional)
BIOS Award Plug & Play LPC BIOS –
8Mb ROM
Watchdog Timer 1~255 steps, can be set with
software on Super I/O
RTC Internal RTC
Expansion Interface ISA Interface
Battery Lithium battery
Power Requirement AT, +12V
Board Size 7.3”(L) x 4.8” (W)
(185mm x 121mm)
Gross Weight 0.71lb (0.3kg)
Operating Temperature 32oF~140oF(0oC~60oC)
Power Consumption 18W, onboard Celeron M 600MHz

Half-size SBC HSB-910I
Chapter 1 General Information 1- 5
(Typical)
EMC CE/FCCClassA
Display
VGA Chipset Enhanced Integrated Graphics
Memory Shared memory up to 256M
Resolutions Up to 2048 x 1536 @ 32bpp for
CRT; 1920 x 1200 @ 18bpp for
LCD
I/O
Storage SATA I x 2, IDE x 1,
CompactFlash Type II x 1,
Standard Floppy Disk Drive x 1
IrDA One IrDA Tx/Rx header
Audio AC97 Codec Audio Daughter
Board Optional
Parallel Port Supports SPP/EPP/ECP mode
USB USB2.0 x 5,
5x2 pin-header x 2
Type A x 1
Serial Port COM port x 4 (Internal pin header
x 4);
COM1, COM3, COM4: RS-232
COM2: RS-232/422/485
PS/2 Port Keyboard x 1, Mouse x 1
Digital I/O Supports 8-bit (Programmable)

Half-size SBC HSB-910I
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007910I10 Printed in Taiwan January 2009

Half-size SBC HSB-910I
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Half-size SBC HSB-910I
Chapter2QuickInstallationGuide2 - 3
2.2 Location of Connectors and Jumpers
Component Side
Solder Side

Half-size SBC HSB-910I
Chapter 2 Quick Installation Guide 2 - 4

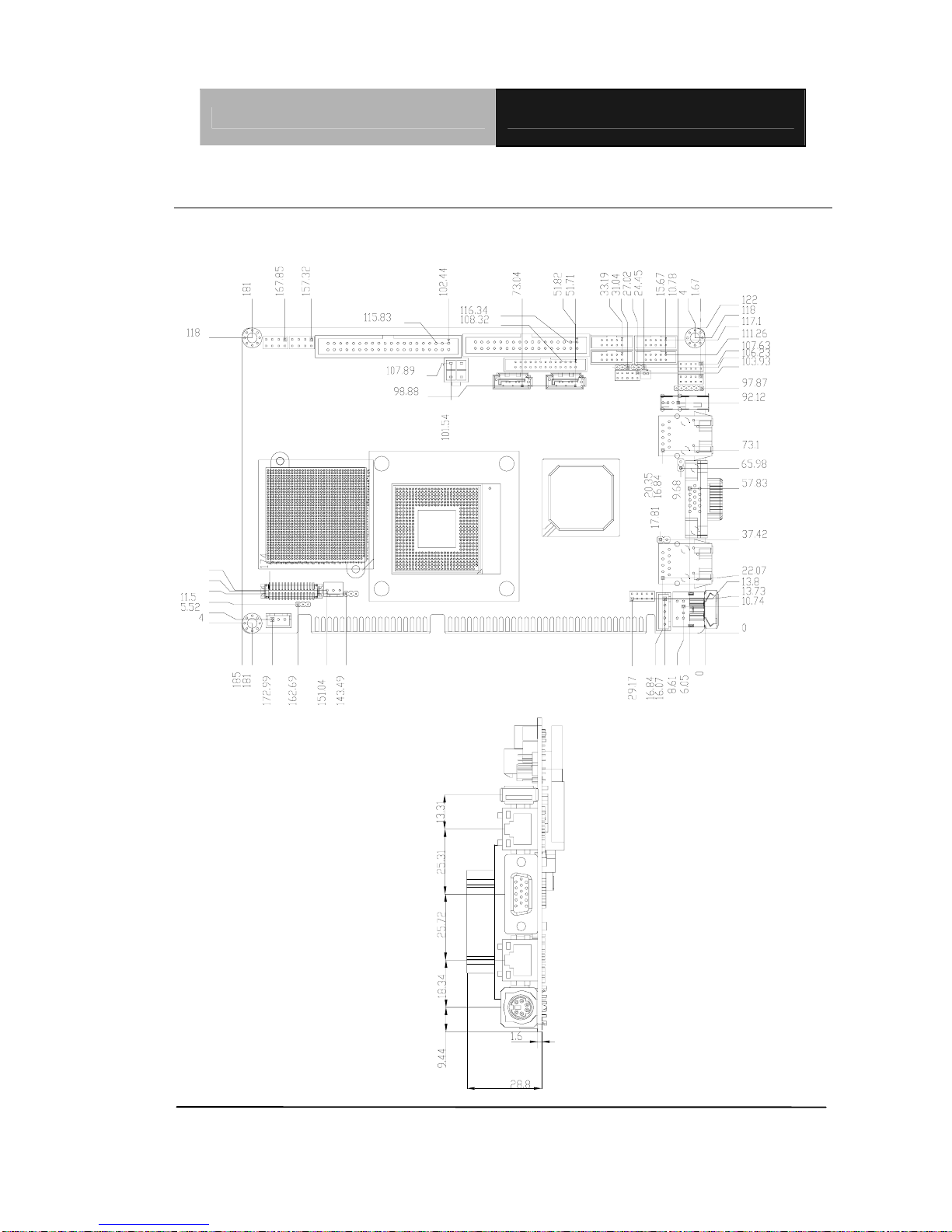

2.3 Mechanical Drawing
Component Side

Half-size SBC HSB-910I
Chapter2QuickInstallationGuide2 - 5
Solder Side

Half-size SBC HSB-910I
Chapter 2 Quick Installation Guide 2 - 6
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP1 Clear CMOS
JP2 CF Voltage Selection
JP3 Auto power button
JP4 LCD Voltage Selection

Half-size SBC HSB-910I
Chapter2QuickInstallationGuide2 - 7
2.5 List of Connectors
The board has a number of connectors that allow you to configure your
system to suit your application. The table below shows the function of
each board's connectors:
Connectors
Label Function
FP1 Front Panel Connector 1
FP2 Front Panel Connector 2
BT1 Battery Connector
ATX1 4-pin ATX Power +12V Connector
VGA1 VGA Display Connector
FDD1 Floppy Connector
IDE1 EIDE Connector
SATA1~2 Serial ATA Connector
CFD1 Compact Flash Slot
COM1 RS-232 Serial Port Connector
COM2 RS-232/422/485 Serial Port Connector
COM3 RS-232 Serial Port Connector
COM4 RS-232 Serial Port Connector
IR1 IrDA Connector
LPT1 LPT Port Connector
USB1 USB Connector
USB2~3 USB*2 Pin Header
LAN1 100/1000Base-TX Ethernet Connector
LAN2 100/1000Base-TX Ethernet Connector

Half-size SBC HSB-910I
Chapter 2 Quick Installation Guide 2 - 8
DIMM1、2 DDRII Memory Slot
CN1 Digital I/O
CN2 LAN1 Active LED Connector
CN3 PS/2 Keyboard/Mouse Connector
CN4 Internal Keyboard Connector
CN5 LAN2 Active LED Connector
CN6 3-pin Fan Connector
CN7 LVDS Channel Connector
CN8 AC97 Connector

Half-size SBC HSB-910I
Chapter2QuickInstallationGuide2 - 9
2.6 Setting Jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect them. To “close” a
jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have
three pins, labeled 1, 2 and 3. In this case you would connect either
pins 1 and 2 or 2 and 3.
123
Open Closed Closed 2-3
A pair of needle-nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any change.
Generally, you simply need a standard cable to make most
connections.
Table of contents
Other Aaeon Motherboard manuals

Aaeon
Aaeon FSB-868G User manual

Aaeon
Aaeon ECM-5716 Series User manual

Aaeon
Aaeon XTX-915 User manual

Aaeon
Aaeon PCM-6892 Rev.B User manual

Aaeon
Aaeon 9LIF5 User manual

Aaeon
Aaeon GENE-9455 Rev.B User manual

Aaeon
Aaeon MAX-Q370C User manual

Aaeon
Aaeon SBC-676 User manual

Aaeon
Aaeon EMB-QM87A User manual

Aaeon
Aaeon SBC-780 User manual

Aaeon
Aaeon HSB-965P User manual

Aaeon
Aaeon ATX-Q670A User manual

Aaeon
Aaeon TKS-G21-CV05 User manual

Aaeon
Aaeon EPIC-9457 User manual

Aaeon
Aaeon EMB-9459T User manual

Aaeon
Aaeon GENE-6315 User manual

Aaeon
Aaeon GENE-A55E User manual

Aaeon
Aaeon IMBA-880 User manual

Aaeon
Aaeon MIX-Q370D2 User manual

Aaeon
Aaeon IMBM-H110A User manual
