Aaeon EMB-830 User manual

Embedded ATX Board EMB-830
EMB-830
Embedded ATX
Socket 478-based Intel®Pentium®4/
Celeron®Processors
With LCD, Ethernet, Audio,
CompactFlash & Mini PCI
EMB-830 Manual Rev.A 3rd Ed.
October 2006

Embedded ATX Board EMB-830
i
Copyright Notice
This document is copyrighted, 2006. All rights are reserved. The
original manufacturer reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated,
or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable.
However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third
parties that may result from its use.
The material in this document is for product information only
and is subject to change without notice. While reasonable
efforts have been made in the preparation of this document to
assure its accuracy, AAEON assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein.
AAEON reserves the right to make changes in the product
design without notice to its users.

Embedded ATX Board EMB-830
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 Intel®, Pentium®4, and Celeron®are trademarks of Intel®
Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.

Embedded ATX Board EMB-830
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 EMB-830 Embedded ATX Board
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format), BIOS, and
drivers
• 1 Jumper cap
• 1 Audio Cable
• 1 USB Cable
• 1 TV-out Cable
• 2 40-pin IDE Cables
• 1 44-pin IDE Cable
• 2 COM port Cables
• 1 FDD Cable
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Embedded ATX Board EMB-830
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers..........................................................2-5
2.5 List of Connectors .....................................................2-6
2.6 Setting Jumpers ........................................................2-8
2.7 Clear CMOS (JP1) ....................................................2-9
2.8 COM2 RS-232/422/485 Selection (JP2 &JP4) .........2-9
2.9 COM1 Ring/+5V/+12V Selection (JP3).....................2-9
2.10 COM2 Ring/+5V/+12V Selection (JP5)...................2-10
2.11COM3 Ring/+5V/+12V Selection (JP6)....................2-10
2.12 COM4 Ring/+5V/+12V Selection (JP7)...................2-10
2.13 Audio Out Selection (JP8).......................................2-10
2.14 LCD Voltage Selection (JP9) ..................................2-10
2.15 EIDE Connector (CN1)............................................2-11
2.16 CD-In Connector (CN2)...........................................2-12
2.17 Audio 5.1 Channel/ SPDIF Connector (CN3)..........2-12

Embedded ATX Board EMB-830
v
2.18 USB5 & USB6 connector (CN4)..............................2-13
2.19 PCI Extension Connector (CN5).............................2-13
2.20 IrDA Connector (CN6).............................................2-13
2.21 Fan Connector (CN7, CN8 and CN23) ...................2-14
2.22 Internal Keyboard Connector (CN9)........................2-14
2.23 Internal Mouse Connector (CN10)..........................2-14
2.24 COM3 RS-232 Serial Port Connector (CN11) ........2-14
2.25 COM4 RS-232 Serial Port Connector (CN12) ........2-15
2.26 Digital I/O-2 Connector (CN13)...............................2-15
2.27 Digital I/O-1 Connector (CN22)...............................2-16
2.28 Option PME Connector (CN14)...............................2-17
2.29 External Power-on Function Connector (CN15) .....2-17
2.30 ATX Power-12V Connector (CN16)........................2-17
2.31 TV-out Connector (CN17) .......................................2-18
2.32 Channel 1 LVDS Connector (CN18).......................2-18
2.33 Channel 2 LVDS Connector (CN19).......................2-18
2.34 Front Panel Connector (CN26) ...............................2-19
2.35 ATX Power Connector (CN27)................................2-19
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation ...............................................................4-3

Embedded ATX Board EMB-830
vi
Appendix A Programming the WatchDog Timer
A.1 Watchdog timer of EMB-830..................................A-2
A.2 Configuring Sequence Description........................A-2
A.3 ITE8712 Watchdog timer initial program ...............A-5

Embedded ATX Board EMB-830
Chapter 1 General Information 1-1
General
Chapter
1
Information

Embedded ATX Board EMB-830
Chapter 1 General Information 1-2
1.1 Introduction
EMB-830 is the world’s first Pentium 4 industrial board in
embedded ATX form factor. It features a PGA 478 socket that
can accommodate Pentium 4 supporting FSB up to
400/533MHz.
Best performance for multimedia solution
AAEON’s EMB-830 also supports DDR DRAM up to 2.0Gbyte,
4X AGP, and 6 channels audio output. It can provide the strong
multimedia functions. Therefore EMB-830 can be broadly
implemented in several markets, such as Point of sale, point of
information (Kiosk), and gaming markets.
Slim form factor
If you are looking for a slim board for space-constrained
applications, EMB-830 is the one. EMB-830 is a low-profile
design, meanwhile it supports 6 USB2.0, mini PCI slots.
EMB-830 promises you the greatest expansion possibilities
with the most cost-effective expansion standards. With
numerous off-the-shelf Mini PCI modules, you get easy access
to solutions ranging from IEEE 1394, Modem, Storage, Sound
Card, SCSI card, Audio/Video capture card, Wireless LAN
module, to Bluetooth module. Especially for customers whose
application is various or changing, EMB-830 reserves more
than enough flexibility for future expansion.
EMB-830 provides 10/100Base-TX Fast Ethernet port as
standard. Talking about the display signal transmission,
EMB-830 integrated dual channel LVDS interface onboard,
which allows long distance display signal transmission.

Embedded ATX Board EMB-830
Chapter 1 General Information 1-3
1.2 Features
• Embedded ATX form factor
• ATX family backwards-compatible rear I/O panel
• Supports Intel®Pentium®4/ Celeron®processors
• AC97 3D surround 5.1 channel audio
• 24/48-bit dual channel LVDS TFT LCD
• Supports Type II CompactFlash
• Supports Type III Mini PCI and PCI Slots
• Supports 6 USB 2.0 / 4 COM/ TV-out Ports

Embedded ATX Board EMB-830
Chapter 1 General Information 1-4
1.3 Specifications
System
 CPU: Support Socket 478-based
Intel®Pentium®4 (400 or 533
MHz FSB data rate)/ Celeron®
Processors, up to 2.8GHz
 Memory: 184-pin DDR RAM slot x 2,
support up to 2.0G (PC-200/
266/ 333 MHz operation)
 Chipset: Intel®845 GV+82801DB (ICH4)
 BIOS: Award 4 MB FLASH BIOS
 Audio: Realtek ALC655 to support 5.1
channel audio output (with
headphone amplifier)
 Solid Storage Disk: One Type II CompactFlash slot
 Watchdog timer: ITE IT8712, generates a
time-out system reset
 Ethernet: One 10/100 Base-TX Fast
Ethernet (Intel 82562ET)
 Expansion Interface: PCI slot x 1; Type III Mini PCI
socket x 1
 H/W status monitoring: supports power supply
voltages, fan speed, and
temperature monitoring

Embedded ATX Board EMB-830
Chapter 1 General Information 1-5
 Power supply voltage: ATX, ATX 12V
 Operating temperature:32°F to 140°F (0°C to 60°C)
 Board size: 9.6" (L) x 9.6" (W) (243.8 mm x
243.8 mm)
 Gross Weight: 0.88 Lb (0.4 Kg)
Display
 Chipset Built in Intel 845GV + Chrontel
7017
 Memory size: Up to 8MB
 Resolution: CRT：Up to 1280 x 1024 @
32bpp colors;
LCD：Up to 1280 x 1024 @
24bpp colors
 LCD Interface: Dual channels 48-bit LVDS
 Dual Display: Supports CRT/LCD
simultaneous display, supports
screen image rotation
 LCD Interface: Up to 24/48-bit dual channel
LVDS TFT
 TV-out: Supports NTSC and PAL
I/O
 MIO: EIDE x 2 (Ultra DMA100 x 1,
UDMA 33 x 1), Floppy Disk
Drive x 1, Keyboard & Mouse x 1,

Embedded ATX Board EMB-830
Chapter 1 General Information 1-6
RS-232/422/485 x 1, RS-232 x 3,
Parallel x 1
 IR interface: One IrDA Tx/Rx header
 Audio: MIC-in, Line-in, Line-out,
speaker-out, 5.1 output
 USB: Two 5x2 pin headers + Type-A
connectors, support up to 6 USB
ports
 Digit I/O: Up to 8 in or 8 out

Embedded ATX Board EMB-830
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derived from Chapter 2 o
f
user manual. For other chapters and further installation
instructions, please refer to the user manual CD-ROM tha
t
came with the product.
Part No. 2007830012 Printed in Taiwan Oct.2006

Embedded ATX Board EMB-830
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on it.
Do not make connections while the power is on,
because a sudden rush of power can damage
sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Embedded ATX Board EMB-830
Chapter2 QuickInstallationGuide2-3

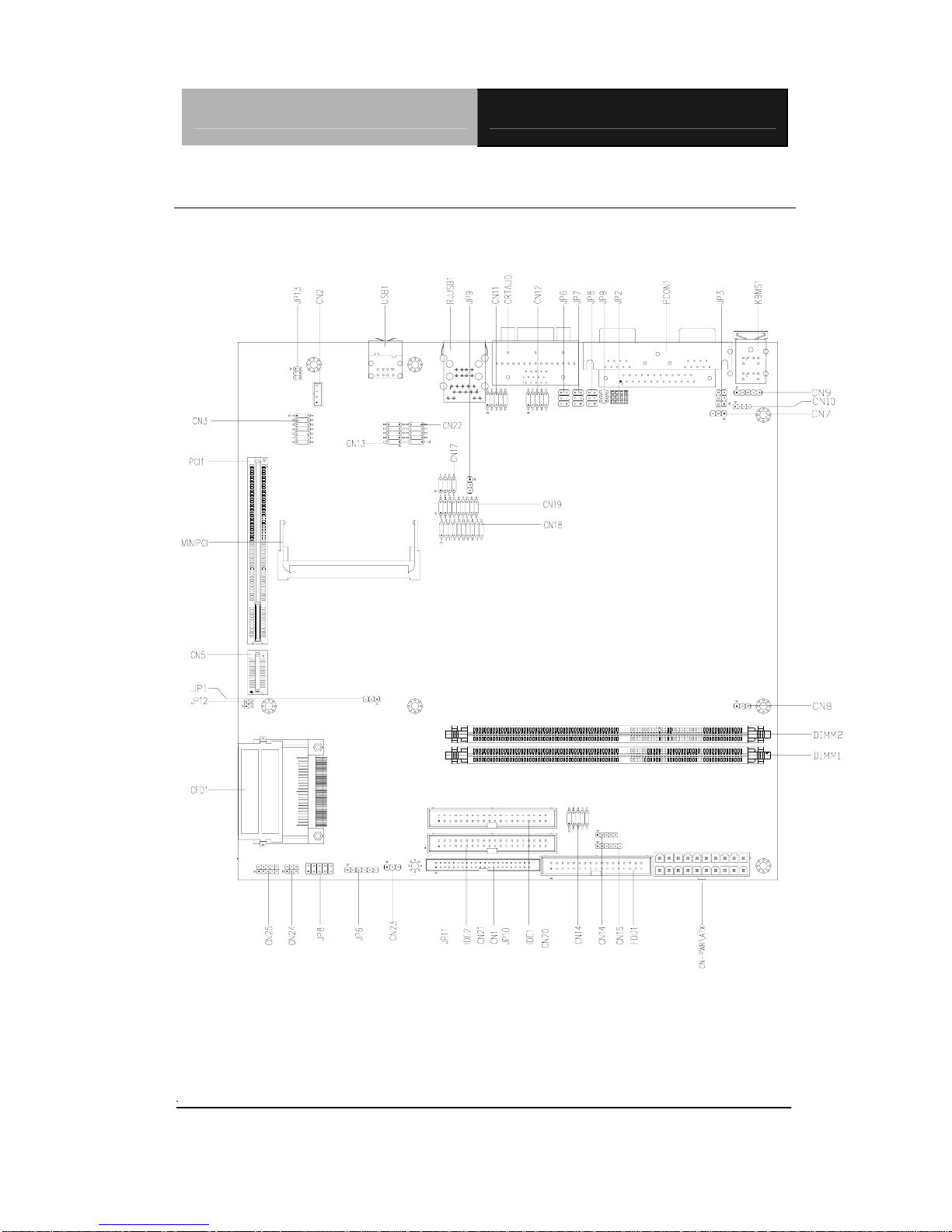

2.2 Location of Connectors and Jumpers
Component side

Embedded ATX Board EMB-830
Chapter 2 Quick Installation Guide 2-4
2.3 Mechanical Drawing
Component side (Note: The height of cooling system depends on
customer’s cooling device.)

Embedded ATX Board EMB-830
Chapter2 QuickInstallationGuide2-5
2.4 List of Jumpers
The board has a number of jumpers that allow you to
configure your system to suit your application.
The table below shows the function of each of the board's
jumpers:
Jumpers
Label Function
JP1 Clear CMOS
JP2 COM2 RS-232/422/485 Selection
JP3 COM1 Ring/+5V/+12V Selection
JP4 COM2 RS-232/422/485 Selection
JP5 COM2 Ring/+5V/+12V Selection
JP6 COM3 Ring/+5V/+12V Selection
JP7 COM4 Ring/+5V/+12V Selection
JP8 Audio Out Selection
JP9 LCD Voltage Selection

Embedded ATX Board EMB-830
Chapter 2 Quick Installation Guide 2-6
2.5 List of Connectors
The board has a number of connectors that allow you to
configure your system to suit your application.
The table below shows the function of each of the board's
connectors:
Connectors
Label Function
CN1 Secondary EIDE Connector
CN2 CD-IN Connector
CN3 Audio 5.1 Channel /SPDIF Connector
CN4 USB5 & USB6 Connector
CN5 PCI Extension Connector
CN6 IrDA Connector
CN7 Fan Connector
CN8 Fan Connector
CN9 Internal Keyboard Connector
CN10 Internal Mouse Connector
CN11 COM3 RS-232 Serial Port Connector
CN12 COM4 RS-232 Serial Port Connector
CN13 Digital I/O-2 Connector
CN14 Option PME Connector
CN15 External Power-on Function Connector
CN16 ATX Power_12V Connector
CN17 TV_Out Connector
CN18 Channel1 LVDS Connector

Embedded ATX Board EMB-830
Chapter2 QuickInstallationGuide2-7
CN19 Channel2 LVDS Connector
CN22 Digital I/O-1 Connector
CN23 Fan Connector
CN24 NC
CN25 NC
CN26 Front Panel Connector
CN27 ATX Power Connector
FDD1 Floppy Connector
IDE1 Primary EIDE Connector
IDE2 Secondary EIDE Connector
CRTAUD VGA Display Connector / Audio Connector
PCON1 COM1 RS-232 & COM2 RS-232/422/485 Serial Port &
LPT Port Connector
USB1 USB3 & USB4 Connector
RJUSB1 USB1 & USB2 Connector/ 10/100 Base-TX Ethernet
Connecto
r
MPCI1 Mini PCI Slot
PCI1 PCI Slot
CFD1 CompactFlash Slot
DIMM1 DIMM Slot
DIMM2 DIMM Slot
KBMS1 PS2 Keyboard/Mouse Connector
