Aaeon PICO-BT01 User manual

Last Updated: January 18, 2018
PICO-BT01
Pico-ITX Board
User’s Manual 6th Ed

Preface II
Pico-ITX Board PICO-BT01
Copyright Notice
This document is copyrighted, 2018. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

Preface III
Pico-ITX Board PICO-BT01
Acknowledgement
All other products’ name or trademarks are properties of their respective owners.
Microsoft Windows®is a registered trademark of Microsoft Corp.
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines
Corporation.
All other product names or trademarks are properties of their respective owners.

Preface IV
Pico-ITX Board PICO-BT01
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
PICO-BT01
1
Product DVD with drivers
1
Heat Spreader
1
COM + Line-out Cable
1
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

Preface V
Pico-ITX Board PICO-BT01
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver installation
instructions (if any), to facilitate users in setting up their product.
Users may refer to the AAEON.com for the latest version of this document.

Preface VI
Pico-ITX Board PICO-BT01
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the device.
3. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
4. Always completely disconnect the power before working on the system’s
hardware.
5. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
6. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray detergents.
9. Make sure the device is installed near a power outlet and is easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent falls
12. Do not cover the openings on the device to ensure optimal heat dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is running
15. Never pour any liquid into the openings. This could cause fire or electric shock.
16. As most electronic components are sensitive to static electrical charge, be sure to
ground yourself to prevent static charge when installing the internal components.
Use a grounding wrist strap and contain all electronic components in any
static-shielded containers.

Preface VII
Pico-ITX Board PICO-BT01
17. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WHERE
THE STORAGE TEMPERATURE IS BELOW -20° C (-4°F) OR ABOVE 60°C (140°F)
TO PREVENT DAMAGE.

Preface VIII
Pico-ITX Board PICO-BT01
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received including interference that may cause
undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.

Preface IX
Pico-ITX Board PICO-BT01
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
×
○
○
○
○
○
外部信号
连接器及线材
×
○
○
○
○
○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此产品所标示之环保使用期限，系指在一般正常使用状况下。

Preface X
Pico-ITX Board PICO-BT01
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
AAEON Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCB & Other
Components
X
O
O
O
O
○
Wires &
Connectors
for External
Connections
X
O
O
O
O
O
O：The quantity of poisonous or hazardous substances or elements found in each of the
component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least one of the
component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this product is applicable under normal
usage only

Preface XI
Pico-ITX Board PICO-BT01
Table of Contents
Chapter 1 - Product Specifications.......................................................................................... 1
1.1 Specifications............................................................................................................ 2
Chapter 2 –Hardware Information ....................................................................................... 4

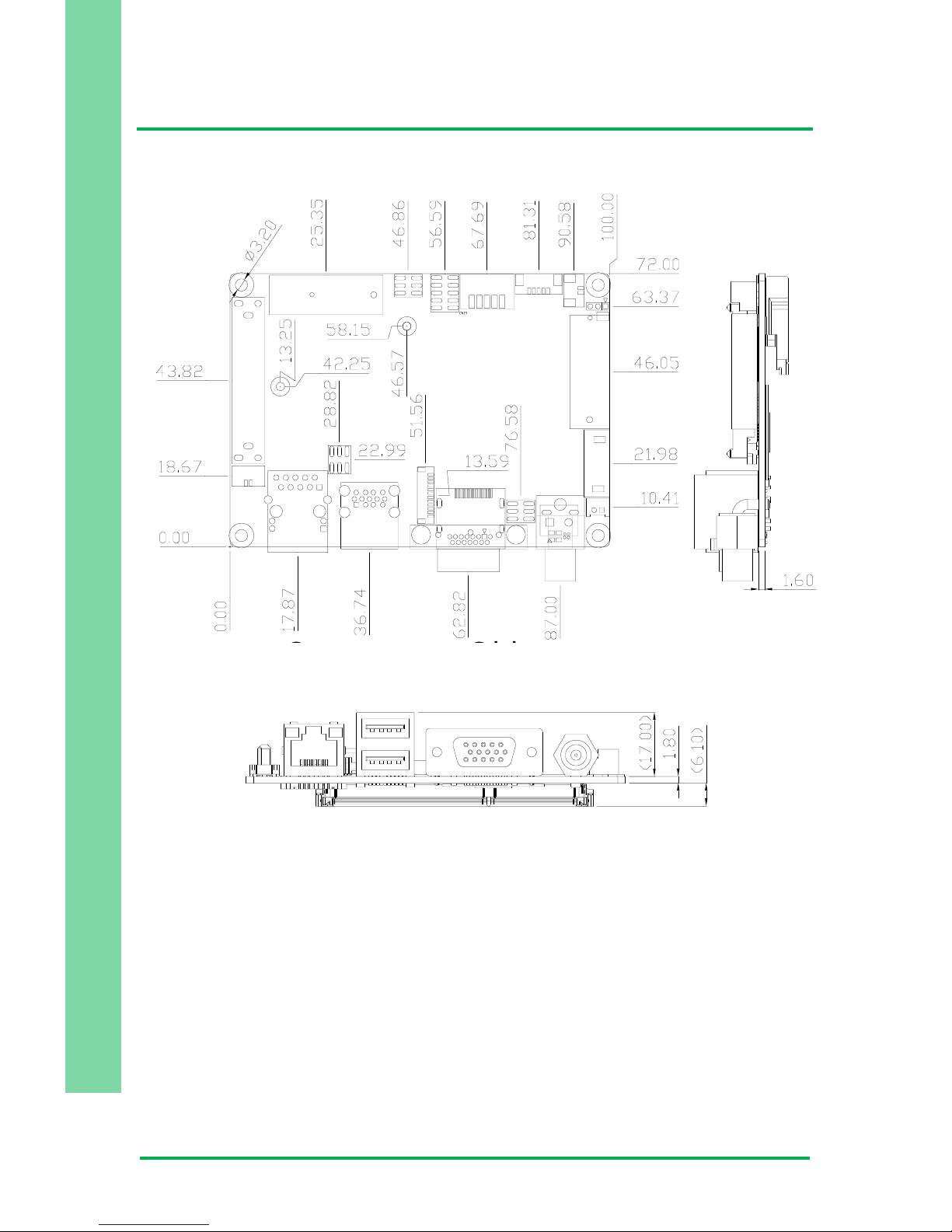

2.1 Dimensions ............................................................................................................... 5
2.2 Jumpers and Connectors......................................................................................10
2.3 List of Jumpers ........................................................................................................12
2.3.1 Clear CMOS Jumper (JP1 1,3,5)................................................................13
2.3.2 Auto Power Button Enable/Disable Selection (JP1 2,4,6).................13
2.3.3 LVDS Port Operating Voltage Selection (JP3).....................................13
2.3.4 LVDS Port Backlight Inverter Voltage Selection (JP4 1,3,5)..............13
2.4 List of Connectors...................................................................................................14
2.4.1 Battery (CN1)................................................................................................15
2.4.2 DDR3L SO-DIMM Slot (CN2).................................................................15
2.4.3 VGA Port (CN3).........................................................................................15
2.4.4 DP Port (CN4) ...........................................................................................16
2.4.5 LVDS Port Inverter / Backlight Connector (CN5)...............................17
2.4.6 LAN (RJ-45) Port (CN7)...........................................................................18
2.4.7 Digital IO Port (CN8)................................................................................19
2.4.8 MiniCard Slot (Full Size)/Default mSATA (feature select by BOM)
(CN9) 19
2.4.9 USB Ports 0 and 1 (CN10).......................................................................22
2.4.10 USB 2.0 Port 2 (CN11) .............................................................................23
2.4.11 +5V Output for SATA HDD (CN14)......................................................24
2.4.12 SATA Port (CN15).....................................................................................24
2.4.13 LPC Port (CN18).......................................................................................25
2.4.14 Front Panel (CN19) ..................................................................................26
2.4.15 External +12V Input (CN20)...................................................................26

Preface XII
Pico-ITX Board PICO-BT01
2.4.16 Buzzer Connector (CN21)......................................................................27
2.4.17 BIO Connector (CN22)...........................................................................27
2.4.18 COM Port 1/2 & Line Out Connector (CN23) ...................................29
2.4.19 MiniCard Slot (Half-Mini Card) (CN24)................................................31
2.4.20 LVDS Port (CN25)...............................................................................34
Chapter 3 - AMI BIOS Setup ................................................................................................ 36
3.1 System Test and Initialization ..............................................................................37
3.2 AMI BIOS Setup .....................................................................................................38
3.3 Setup Submenu: Main..........................................................................................39
3.4 Setup Submenu: Advanced.................................................................................40
3.4.1 Advanced: ACPI Settings...........................................................................41
3.4.2 Advanced: F81801 Super IO Configuration........................................43
3.4.2.1 Super IO Configuration: Serial Port 1 Configuration ............44
3.4.2.2 Super IO Configuration: Serial Port 2 Configuration...........45
3.4.3 Advanced: Hardware Monitor ..............................................................47
3.4.4 Advanced: CPU Configuration .............................................................48
3.4.4.1 CPU Configuration: Socket 0 CPU Information.....................49
3.4.5 Advanced: SATA Configuration ............................................................50
3.4.6 Advanced: Dynamic Digital IO Configuration...................................52
3.4.7 Advanced: USB Configuration..............................................................53
3.5 Setup submenu: Chipset......................................................................................55
3.5.1 Chipset: North Bridge...............................................................................56
3.5.2 Chipset: South Bridge.............................................................................58
3.5.2.1 South Bridge: Azalia HD Audio.................................................59
3.5.2.2 South Bridge: USB Configuration.............................................60
3.5.2.3 South Bridge: PCI Express Configuration................................61
3.6 Setup submenu: Security .....................................................................................62
3.7 Setup submenu: Boot...........................................................................................64

Preface XIII
Pico-ITX Board PICO-BT01
3.8 Setup submenu: Save & Exit ...............................................................................65
Chapter 4 –Drivers Installation............................................................................................ 66
4.1 Product CD/DVD ...................................................................................................67
Appendix A - Watchdog Timer Programming................................................................... 69
A.1 Watchdog Timer Registers ..................................................................................70
A.2 Watchdog Sample Program.................................................................................71
Appendix B - I/O Information .............................................................................................. 74
B.1 I/O Address Map ...................................................................................................75
B.2 Memory Address Map .........................................................................................76
B.3 IRQ Mapping Chart...............................................................................................77
Appendix C –Electrical Specifications for I/O Ports.......................................................... 89
C.1 Electrical Specifications for I/O Ports.................................................................90
Appendix D –Mating Connectors........................................................................................91
D.1 List of Mating Connectors and Cables..............................................................92

Pico-ITX Board PICO-BT01
Chapter 1
Chapter 1 - Product Specifications

Chapter 1 –Product Specifications 2
Pico-ITX Board PICO-BT01
1.1 Specifications
System
Form Factor
Pico-ITX
Processor
Intel®Atom™ Processor E3825 / E3845
Intel®Celeron®Processor J1900 / N2930 /
N2807 up to 2.0 GHz
System Memory
204-pin DDR3L 1066/1333 MHz SODIMM, up
to 8 GB
Chipset
Integrated
I/O Chipset
Fintek F81801U-I
Ethernet
Intel®I211 x1
BIOS
AMI BIOS 8 MB ROM
Wake On LAN
Yes
Watchdog Timer
1~255 steps by software program
H/W Status Monitoring
System temperature, voltage status
Expansion Interface
mSATA / Mini Card (Full-size) x 1 (Default is
mSATA; Mini Card (Full-size) is available on
request.)
Mini Card (Half-size) x 1
Battery
Lithium Battery
Power Requirement
DC 12 V, AT/ATX (Default)
Board Size
100 x 72 mm (3.94 x 2.76")
Gross Weight
200 g (0.44 lb)

Chapter 1 –Product Specifications 3
Pico-ITX Board PICO-BT01
Operating Temperature
0 ~ 60°C (32 ~ 140°F )
-40 ~ 85°C(-40 ~185°F) WiTAS 2 (E3825,
E3845)
Storage Temperature
-40 ~ 80°C (-40 ~176°F)
Operation Humidity
0 ~ 90% relative humidity, non-condensing
Display
Chipset
Intel® HD Graphics for Intel Atom® Processor
Z3700 Series
Resolution
LVDS - Up to 1440 x 900 (18/24-bit) @ 60 Hz
(select with BIOS or jumper);
CRT - Up to 2048 x 1152 @ 60 Hz
DP- Up to 2560 x 1400 @ 60Hz
LCD Interface
18/24-bit LVDS with PWM function
I/O
Storage
SATA 3.0 Gb/s
USB
USB 3.0 x 1
USB 2.0 x 2
Serial Port
RS-232 x 1
RS-232/422/485 x 1
DI/O
4-bit programmable (2-in/ 2-out)
Audio
HD audio codec (Realtek ALC892)

Pico-ITX Board PICO-BT01
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 –Hardware Information 5
Pico-ITX Board PICO-BT01
2.1 Dimensions
Component Side
Component Side
Component Side

Chapter 2 –Hardware Information 6
Pico-ITX Board PICO-BT01
Solder Side
Solder Side

Chapter 2 –Hardware Information 7
Pico-ITX Board PICO-BT01
Heat Spreader
