AstroPure 2000 Air Cleaner
IOM
AstroPure
Installation
and Operation
Manual

23
AstroPure 2000 Air Cleaner Installation and Operation Manual
What’s Inside
4Purpose of this Manual
6Safety
7Quick Start Guide
(Potentiometer Control)
8Quick Start Guide
(LCD / PLC Control)
9General infromation
12 Storage, transport and assembly
13 Commissioning, Operation,
Cleaning and Disposal
19 Emergency
20 Drawings and diagrams
21 Spare parts
21 Certicates and Protocols
22 Appendix Potentiometer Control
Manufacturer
AAF International
European Headquarters
Odenwaldstrasse 4
D-64646 Heppenheim
Tel: [phone]
Email: [email protected]
For any assistance, please
visit us at www.aafeurope.com
to nd your local AAF ofce/dealer

45
Purpose of this Manual
Delivery documents
Before you operate the AstroPure air purier for the rst time or if you are entrusted with
other work on the AstroPure air purier, you must read the operating manual.
The operating instructions help you to use the AstroPure air purier as intended, properly,
effectively and safely. Therefore, read the following chapters carefully and carefully. If
necessary, always look up facts that are decisive for you.
The operating instructions inform and warn you of residual risks against which a risk
reduction through design and protective measures is not or not fully effective.
Target groups
Key User: Keep these instructions and other applicable documents available at the
place of use of the system, also for later use.
User: encourage you to read and observe these instructions and the applicable
documents, especially the safety and warning notices. Observe additional system-related
provisions and regulations.
Qualied maintenance personnel: Read, observe and follow these instructions and
other applicable documents, especially the safety and warning notices.
Personnel qualication: A qualied person is understood to mean a person who has
successfully completed vocational training. He/She must assess the work that has been
assigned and be able to independently recognize and avoid possible dangers based on
her professional training and work experience.
Personnel for the maintenance and repair of ventilation devices and air lters must
be trained and instructed (for example according to VDI 6022-4).
The AstroPure air purier is shipped with an
• installation, operation and maintenance manual,
• AAF HEPA lter test report.
For maintenance instructions the following documents from other supplier are supplied
and must also be read and observed:
• Fan: type „E“ or „Z“
• LCD / PLC panel (optional)
• UV-C-Stage (optional)
Orientation in these operating instructions
These operating instructions contain the following general information symbols that guide
you, the reader, through the operating instructions and give you important information.
DANGER:
Imminent danger that leads to
severe physical injury or death
WARNING:
Possibly dangerous situation that
could lead to severe physical
injury or death
Intended Use:
AstroPure air puriers are designed exclusively to free normal room air from suspended
particles and to return the puried air to the room.
AstroPure air puriers are intended as devices for installation exclusively in commercial
and non-commercial interiors.
ATTENTION:
Potentially dangerous situation
that could lead to minor physical
injuries.
NOTE:
Situation that can lead to
possible property damage to the
AstroPure air purier.
Foreseeable misuse:
AstroPure air puriers must not be used for any other purpose. The following foreseeable
misuse is not permitted:
• Extraction from an explosive atmosphere
• Use as a dust extraction system
• Use as a smoke extraction system
• The operation of the AstroPure air purier with blocked air inlets and outlets
• Independent remodeling or repair work
• Operating the AstroPure air purier without instruction or training
Any other use case requires written approval from AAF International.

67
1. Safety Operation may only be carried out after a instruction and training.
Maintenance and repair may only be carried out by qualied personnel.
Observe the principles for the safe operation of electrical devices.
For maintenance and repair work, the accompanying documents for the supplier
components must be observed.
Hazard potential emanating from the AstroPure Air Cleaner.
Electric shock:
Electrical supply line can possibly be defective.
Under no circumstances use devices with a damaged electrical connection cable.
• Check the power cords before use.
• Damaged cables must be replaced immediately.
• Electric cables must never be exposed to water, heat or sharp objects.
• Do not move the device by pulling the power cord.
• Avoid running equipment and vehicles over power lines, or provide adequate protection
for them.
• The device should be in the off mode to connect or disconnect the main power supply.
• Internal cabling (fan, control panel, UV-C stage) can be defective.
• Do not continue to operate devices with an internal error and, if possible, disconnect
them from the power supply.
• Carry out maintenance and repair work only when the power supply is disconnected and
the AstroPure air purier is switched off.
Crushing Hazard:
Due to its own weight, there is a risk of crushing when transporting and moving the
AstroPure air purier.
This can result in bruising of the extremities.
The AstroPure air purier must be moved with an appropriate method to avoid accidental
injury or damage of any kind.
Preferred method is to use approved lifting gear and secured against unintentional lowering
of the load:
1. protect the forklift forks before lifting
2. lift up slighty the AstroPure unit using the forklift and remove it from the wooden pallet
3. put down the AstroPure unit using the forklift
2. Quick Start Guide (Potentiometer Control)
Quick start guide
• Observe the safety instructions for safe operation
• Ensure a safe stand on smooth, level, stable ground/oor
• Lock the castor wheels
• ON / OFF switch in OFF
• Set the speed controller to the “OFF” position
• Plug in the power plug
• ON / OFF switch ON
• Check serial number for fan type on the Type Plate on the back of the uni
Serial No. : E11-2020-12345 => “E”-type
Serial No. : Z11-2020-12345 => “Z”-type
• Rotate speed setting to desired air volume ow according to the table below
DANGER: ELECTRIC
SHOCK
DANGER: CRUSHING
HAZARD
There is a risk of crushing when
opening the maintenance door.
This can result in bruising of the
extremities. Have device
maintenance and repair carried
out by qualied personnel only.
DANGER: CRUSHING
HAZARD
The device can tip over if lifted
(excessively). This can result in
bruising of the extremities.
Do not tilt the device.Set up the
device outside the area of
movement of people.
DANGER: CRUSHING
HAZARD
Optional: The AstroPure air
purier is equipped with an
additional UV-C stage. UV-C
radiation bears the risk to cause
severe damages to the eye and
skin. The UV-C stage is not
accessible during normal
operation.
DANGER: ROTATING
DEVICE
Fast rotating parts of the fan
The high-speed impeller of the
fan can injure body parts on
contact. Have device aintenance
and repair carried out by qualied
personnel only.
Speed Control
Set Point
Fan Type
E
Fan Type
Z
0 0 0
1 0 0
2300 50
3600 250
4950 500
51250 750
61600 1050
71900 1350
82200 1650
92400 2000
10 2400 2300
Yellow warning lights light up:
Filters must be changed by qualied personnel
- Note the date of rst use
- Note down the operating time
- Observe and document change intervals for lters
Have the lter change and maintenance carried out by qualied personnel only
In the event of danger or malfunction:
Pull out the mains plug and have the device serviced by qualied personnel
Observe the protective
instructions on the device.
Secure the open maintenance
door against unintentional
closing.
EAR PROTECTIONS
Have device maintenance and
repair carried out by qualied
personnel only. Sufcient hearing
protection must be worn during
maintenance and repair work
when the fan is running.
DANGER: NOISE
The unencapsulated fan can
generate sound emissions>
70dB (A) (with the aintenance
door open). Damage or loss of
hearing can result.
Step 1 Step 2 Step 3

89
4. General Information
The AstroPure air puriers are designed to remove particles from normal dry room air,
which is returned to the room after cleaning.
The installation conditions are:
• Installation indoors in a dry environment
• Moving and purication of dry indoor air
• Operating temperature range: 0 ° C to 40 ° C
• Air humidity rH. <90%, no condensable humidity
• Not approved for use in an explosive atmosphere
• Filter change as described in the maintenance instructions
• Carry out cleaning, maintenance and repair as specied in the maintenance instructions
and in accordance with VDI6022
Type label
The Type label of the AstroPure air purier shows the following characteristics (example
below):
Image 1 : AstroPure type label
3. Quick Start Guide (LCD / PLC Control)
Quick start guide
• Observe the safety instructions for safe operation
• Ensure a safe stand on smooth, level, stable ground
• Lock the castor wheels
• Plug in the power plug
• Switch the ON/OFF switch at the back side of the unit to ON-position
• Press the standby button to turn on the fan
• To unlock the screen, enter the password “116”
• Adjust volume ow rate to desired level by tapping on + (increase) or – (decrease)
Information “Service” on display:
Filters must be changed by qualied personnel
• Note the date of rst use
• Note down the operating time
• Observe and document change intervals for lters
Have the lter change and maintenance carried out by qualied personnel only.
In the event of danger or malfunction:
Pull out the mains plug and have the device serviced by qualied personnel

10 11
Technical characteristics
The installation and use conditions are:
• AAF pre-lter Technical Data Sheet
• AAF HEPA lter Technical Data Sheet
• AAF Filter change out recommendations
• AAF lter storage recommendations
Technical details of fan and UV-C stage are relevant only to service / repair personnel.
For the most current versions visit us at www.aafeurope.com
Accompanying guidelines and documents
Parameter Unit AstroPure - 2000
Nominal ow rate m3/h 2000
Dimensions (WxLxH) mm 770x720x1628*
Device weight kg 150*
Min. ambient temperature °C 0
Max. ambient temperature °C 40
Allowed rel. humidity level %0-90
* depending on execution
Connection details and power consumption
Connection details 1PH 230V 50 / 60Hz
Fan kW 0,5
UV-C stage W25
Sound pressure level (SPL) at a distance of 1 m Db(A) 24-55
SFP kW/m³/s 0,513 (Fan type "E")
0,452 (Fan type "Z")
IP-class IP20
Maximum recommended pressure drop:
Pre lter
RedPleat Pa 250
RedPleat VF Pa 250
HEPA lter:
AstroCel III Pa 450
MEGACel I Pa 450
Table 1 : Technical parameter of AstroPure 2000 Air Cleaner

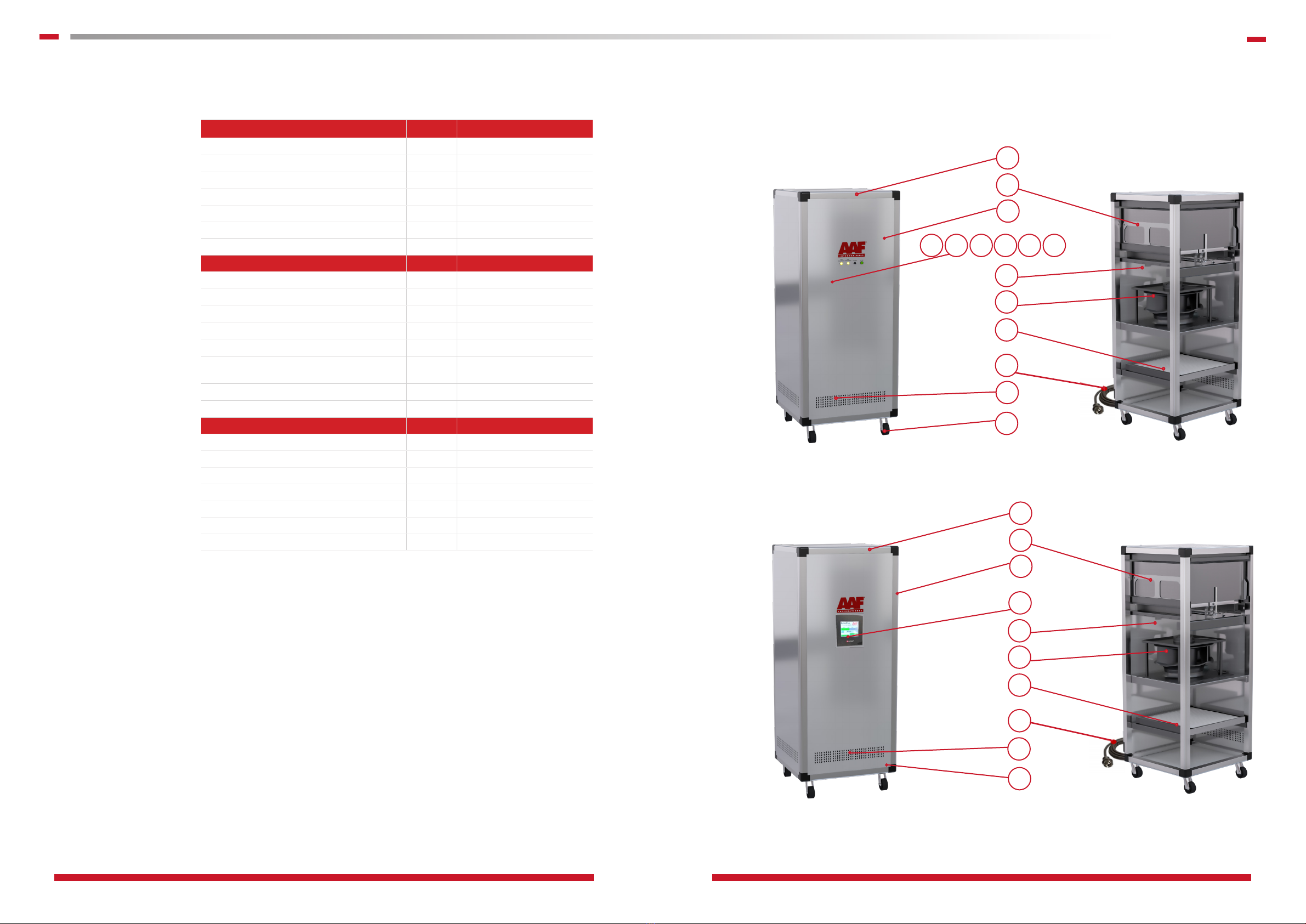

Components
Image 2 AstroPure with Potentiometer Control
Image 3 AstroPure with LCD / PLC Control
5
8
¹
10 11 12 13 14 16
4
7
³
6
²
9
5
8
¹
¹6
4
³
7
6
9
²

12 13
• The AstroPure air purier (1) has the following main components:
• Swivel castors with locking device (2)
• Power plug (3) / LCD/PLC: Power plug with On/OFF switch at the back of the unit
• Air inlet (4)
• Air outlet (5)
• Fan (6)
• Pre-lter (7)
• HEPA lter (8)
• OptionalUV-C stage (9)
• Control panel (10)
• The control unit consists of the following individual parts:
• ON / OFF switch (11)
• Operating status light device ON (12)
• Volume ow controller (13)
• Status display pre-lter (14)
• Status display HEPA lter (15)
• LCD panel (16)
Decommissioning in the event of maintenance
The device must be switched off and disconnected from the power supply for
maintenance and repair.
5. Storage, transport and assembly
Storage
The storage conditions for the AstroPure air puriers are:
• Storage in a dry, protected environment, if possible in the original packaging.
• Storage temperature range: -30 ° C to 40 ° C
Air humidity rH. <90%, no condensable humidity.
Unpacking
Remove the securing straps, stretch wrap, and card board packing material from the
AstroPure 2000 Air Cleaner. Disposal of the packaging material must obey the local
waste disposing regulations.
Castor rolls
Castor rolls are fastened on the bottom with bolts (M10, M13 wrench).
Transport
Only move heavy loads with suitable means of transport.
Installation of Air Inlet and Air Outlet ductwork (optional)
Installation of Air Inlet and Air Outlet ductwork needs to be carried out by qualied
personnel only.
Installation area
The installation surface must be smooth and level and have sufcient load-bearing
capacity.
Filter and consumables
The AstroPure air puriers are equipped with the following lter stages:
• Pre-lter
• HEPA lter
• Optional: UV-C stage
DANGER: CRUSHING
HAZARD
Avoid hard knocks and jerky
loads. Risk of lter damage.
Secure the load against
unintentional rolling away.
12
WEAR SAFETY SHOES

14 15
Control panel Potentiometer Control
6. Commissioning, Operation, Cleaning and Disposal
Image 5 AstroPure Control Panel
1. Potentiometer Control 2. LCD / PLC Control
The control unit consists of the following individual parts:
Potentiometer Control:
• ON/OFF switch (11)
• Operating status light device ON (12)
• Volume ow controller (13)
• Status display pre-lter (14)
• Status display HEPA lter (15)
LCD / PLC
• ON/OFF switch at the back of
the unit (3)
• Touch sensitive display (16)
• Indicators signalling the need for
lter servicing
Filters:
The following lter options are installed:
Type Style Code
Pre-lter (7) RedPleat ISO Coarse 70%
RedPleat ISO ePM10 70%
RedPleat CF ISO Coarse 65%
HEPA lter (8) MEGACel I H14
ASTROCEL III H14
Initial start-up
The AstroPure air puriers are delivered ready for use.
Perform the following work steps for initial commissioning:
• Remove packaging and dispose of properly in accordance with local waste regulations.
• The AstroPure air puriers are equipped with four swivel castors for easy
manoeuvrability.
14
• Make sure that all four swivel castors have good contact with the installation surface
and, if necessary, enable this by repositioning the device.
• Make sure that the maintenance door of the device is properly closed.
• Make sure that the air inlet and outlet openings are freely accessible and not obstructed
or occupied.
• Fix the locking devices of the castors.
General
In case of any abnormal noises, sounds, and vibrations or in case of no operational sounds (no
fan sound), turn the AstroPure Air Cleaner off, disconnect it from the power supply and have
the equipment inspected by trained personnel.
Maintenance work must be carried out by qualied personnel only according to the
instructions by AAF as well as the personnel for the maintenance and repair of
ventilation devices and air lters must be trained and instructed (e.g. according to VDI
6022-4). Personal protective equipment (gloves, respirator, eye protection) must be
worn during maintenance work inside the device and when changing the air lter.
Operation (Potentiometer Control)
• Make sure the ON / OFF switch is in the OFF position.
• Set the volume ow controller / speed controller to a middle position.
• Plug in the power plug.
• Set the ON / OFF switch to ON.
Set the desired volume ow.
• Keep a sufcient distance from the outow openings.
• The volume ow can be regulated continuously between minimum (25% maximum
volume ow) and maximum volume ow.
• Set the desired volume ow.
• Set the desired volume ow by turning the rotary knob according to set points given in
the table “Quick Start Guide (Potentiometer Control)” (page 7).
CRUSHING HAZARD:
WEAR SAFETY SHOES

16 17
AstroPure 2000 LCD
To access the user menu (to unlock the display), the user can press the ‘AstroPur’ logo or,
alternatively, press the lock symbol for 2 seconds.
The user menu password is “116”.
Main User Menu
Press the AstroPure logo for 3 seconds.
The language settings can be modied and system information can be viewed
(software version, hardware ID).
After 60 seconds of inactivity, the main screen will automatically ‘lock’, viz. no
changes can be made to any settings, e.g., main standby switch on/off, airow set
point, lamp on/off, etc.
To modify any setting, the screen needs to be unlocked again.
After 60 seconds of inactivity, the main screen will automatically ‘lock’, viz. no
changes can be made to any settings, e.g., main standby switch on/off, airow set
point, lamp on/off, etc.
To modify any setting, the screen needs to be unlocked again.
Operation (LCD / PLC Control)
• Plug in the power plug
• Set the ON/OFF switch at the back side of the unit to ON.
Set the desired volume ow.
• Press the standby button to turn on the fan
• To unlock the screen, enter the password “116”
• Volume ow adjustment:
• Method (1)
• Press the ow rate bar to set the initial value. The exact desired speed of the fan
can be set here.
• Press the plus and minus button. The respective speed increment is set in the
conguration menu.
• Method (2)
• Press an area on the ow rate bar. With this option, the speed of the fan is set to
one of the 4 parameter values at a time (25% steps).
• Information on display:
Service: lters must be changed by qualied personnel
Conguration menu, language and system information
Press the AAF-logo eld for 5 seconds to enter the conguration menus.
Enter the password “-1101“.
The controller‘s parameters can be changed here.
Resetting of operating hours
In the conguration menu, these values can be reset by pressing the corresponding button for
5 seconds.
Appropriate ow rate
To achieve best air cleaning results, the air cleaners ow rate must be adjusted to the individual
situation of the designated room.
Following calculation steps provide a basic guide line:
• The volume of the designated room in cubic meters (m³) is calculated by multiplying the room’s
length * width * height in meters: V = L * W * H
• The desired number of room air exchanges per hour (ACH) has to be selected (units: 1 /h). This
number is sometimes also referred to as air exchange rate.
When this value is not preset, the following ACH values represent the currently applied
recommendations:
• Good ventilation: ACH = 4 1/h
• Excellent ventilation: ACH = 6 1/h
• Purging of rooms: ACH = 10 1/h
16
AstroPure 2000 Main menu
-> after 5 s ->

18 19
The necessary air ow rate is then determined by multiplying the room’s volume V with the
desired air exchanges per hour.
• Necessary ow rate = V * ACH
Example:
• A room has the dimensions of (L * W * H) = 5 m * 8 m * 3 m
• The volume is calculated to 5 m * 8 m * 3 m = 120 m³.
• The desired air exchange rate is ACH = 4 1/h
• The air cleaner has to deliver 4 1/h * 120 m³ = 480 m³/h.
The table below serves for guidance.
Cleaning of the external surface
Always disconnect the AstoPure Air Cleaner from the power connection when cleaning it.
The surface of the device can be cleaned with common mild soap based household
cleaning detergents only.
Disposal
Spent lters should be packed in sealed plastic bags individually and disposed off in
accordance with local waste regulations.
Decommissioned electric and electronic equipment must be returned to approved collecti-
on points in accordance to the local waste regulations.
Inspection and maintenance per component
The device components and lters must be checked for function and wear at regular
intervals and serviced, at least after the periods specied below or earlier if necessar
18
Parameter Symbol Unit Example 1 Example 2 Example 3 Example 4
Length Lm10 10 10 10
Width Wm10 10 10 10
Height H m 22.5 2.5 2.5
Volume Vm3200 250 250 250
Air exchanges per hour ACH 1/h 4 4 6 8
Required air volume ow m3/h 800 1.000 1.500 2.000
Inspection Intervals
Pre lter: months 3
HEPA lter: months 3
UV-C Stage months 3
Maintenance door months 6
Moving parts months 6
Fan section months 6
Entire unit months Prior to each use and very 12 months
Replacement Intervals
Pre lter: months 3
Red Pleat months 6
RedPleat CF months 6
HEPA Filter
AstroCel III months 12
MEGAcel I months 12
UV-C Stage hours 9.000
7. Emergency:
If possible, disconnect the AstroPure air purier from the power
supply by pulling the plug. If it is not possible to pull out the mains
plug safely, the power supply must be interrupted by disconnecting it
from the building circuit (safety switch)
Fire ghting
In the event of a re, ght it with extinguishing agents approved for electrical
appliances. Dangerous substances escape in the event of re.
In the event of a re, do not breathe the fumes and smoke that may be produced.
After ensuring that the extinguishing is complete, ensure that the rooms are
adequately ventilated.
DANGER:
Electric shock
