AAF AstroPure 2000 User manual

AstroPure 2000 Air Cleaner
IOM
AstroPure
Installation
and Operation
Manual

23
AstroPure 2000 Air Cleaner Installation and Operation Manual
What’s Inside
4Purpose of this Manual
6Safety
7Quick Start Guide
(Potentiometer Control)
8Quick Start Guide
(LCD / PLC Control)
9General infromation
12 Storage, transport and assembly
13 Commissioning and maintenance
16 Emergency
16 Drawings and diagrams
17 Spare parts
17 Certicates and Protocols
19 Appendix Potentiometer Control
Manufacturer
AAF International
European Headquarters
Odenwaldstrasse 4
D-64646 Heppenheim
Tel: [phone]
Email: [email protected]
For any assistance, please
visit us at www.aafeurope.com

45
Purpose of this Manual
Delivery documents
Before you operate the AstroPure air purier for the rst time or if you are entrusted with
other work on the AstroPure air purier, you must read the operating manual.
The operating instructions help you to use the AstroPure air purier as intended, properly,
effectively and safely. Therefore, read the following chapters carefully and carefully. If
necessary, always look up facts that are decisive for you.
The operating instructions inform and warn you of residual risks against which a risk
reduction through design and protective measures is not or not fully effective..
Target groups
Operator: Keep these instructions and other applicable documents available at the place
of use of the system, also for later use.
Employees: encourage you to read and observe these instructions and the applicable
documents, especially the safety and warning notices. Observe additional system-related
provisions and regulations.
Qualied and maintenance personnel: Read, observe and follow these instructions
and other applicable documents, especially the safety and warning notices.
For maintenance instructions please contact AAF.
Personnel qualication: A qualied person is understood to mean a person who has
successfully completed vocational training. She must assess the work that has been
assigned and be able to independently recognize and avoid possible dangers based on
her professional training and work experience.
Personnel for the maintenance and repair of ventilation devices and air lters must
The AstroPure air purier is shipped with an
• installation, operation and maintenance manual
• AAF HEPA lter test report.
For maintenance instructions please contact AAF.
Orientation in these operating instructions
These operating instructions contain the following general information symbols that guide
you, the reader, through the operating instructions and give you important information.
DANGER:
Imminent danger that leads
to severe physical injury or
WARNING:
Possibly dangerous situation
that could lead to severe
physical injury or death
Intended Use:
AstroPure air puriers are designed exclusively to free normal room air from suspended
particles and to return the puried air to the room.
AstroPure air puriers are intended as devices for installation exclusively in commercial
and non-commercial interiors.
ATTENTION:
Potentially dangerous
situation that could lead to
minor physical injuries.
NOTE:
Situation that can lead to
possible property damage to
the AstroPure air purier.
Foreseeable misuse:
AstroPure air puriers must not be used for any other purpose. The following foreseeable
misuse is
not permitted:
• Extraction from an explosive atmosphere
• Use as a dust extraction system
• Use as a smoke extraction system
• The operation of the AstroPure air purier with blocked air inlets and outlets
• Independent remodeling or repair work
• Operating the AstroPure air purier without instruction.
Any other use case requires written approval from AAF International.

67
1. Safety Operation, maintenance and repair may only be carried out after instruction by qualied
personnel.
Observe the principles for the safe operation of electrical devices.
For maintenance and repair work, the accompanying documents for the supplier
components must be observed.
Hazard potential emanating from the AHU
Electric shock:
Electrical supply line can possibly be defective.
Electric shock and / or damage to the device can result.
Under no circumstances use devices with a damaged electrical connection cable.
Check the power cords before use. Damaged cables can cause electric shock and / or
damage to the electrical parts of the AstroPure air purier.
Damaged cables must be replaced immediately.
Electric cables must never be exposed to water, heat or sharp objects.
To reduce the risk of electric shock, do not expose this device to water or rain, do not
touch electrical parts with wet hands, or when standing on a wet surface.
Do not move the device by pulling the power cord.
Avoid running equipment and vehicles over power lines, or provide adequate protection
for them. The device should be in the off mode to connect or disconnect the main power
supply. Internal cabling (fan, control panel, UV-C stage) can be defective.
Electric shock and / or damage to the device can result. Do not continue to operate
devices with an internal error and, if possible, disconnect them from the power supply.
Carry out maintenance and repair work only when the power supply is disconnected and
the AstroPure air purier is switched off.
The unencapsulated fan can generate sound emissions> 70dB (A) (with the maintenance
door open). Damage or loss of hearing can result. Have device maintenance and repair
carried out by qualied personnel only.Sufcient hearing protection must be worn during
maintenance and repair work when the fan is running.
Crushing hazard:
Due to its own weight, there is a risk of crushing when transporting and moving the
AstroPure air purier.
This can result in bruising of the extremities:
2. Quick Start Guide (Potentiometer Control)
Quick start guide
• Observe the safety instructions for safe operation
• Ensure a safe stand on smooth, level, stable ground
• Lock the castor wheels
• ON / OFF switch in OFF
• Set the speed controller to the “0” position
• Plug in the power plug
• ON / OFF switch ON
• Rotate speed setting to desired air volume ow
• Position 0: no volume ow (not recommended)
• Position 5: medium volume ow (standard ow rate)
• Position 8: nominal ow rate 2.000 m³/h (recommended)
• Position 10: maximum volume ow for purging activities only
DANGER: ELECTRIC
SHOCK
The AstroPure air purier must be erected with approved lifting gear and secured against
unintentional lowering of the load.
There is a risk of crushing when opening the maintenance door.This can result in bruising of
the extremities. Have device maintenance and repair carried out by qualied personnel only.
DANGER: CRUSHING
HAZARD
1. protect the forklift forks before lifting
2. lift up slighty the AstroPure unit using the forklift and remove it from the
wooden pallet
3. put down the AstroPure unit using the forklift
Observe the protective instructions on the device.
Secure the open maintenance door against unintentional closing.
Potentiometer Airow
[m3/h]
1 0
4500
61030
81550
10 2030
Yellow warning lights light up:
Filters must be changed by qualied personnel
- Note the date of rst use
- Note down the operating time
- Observe and document change intervals for lters
Have the lter change and maintenance carried out by qualied personnel only
In the event of danger or malfunction:
Pull out the mains plug and have the device serviced by qualied personnel
Manufacturer:
AAF Lufttechnik GmbH
Odenwaldstrasse 4
D-64646 Heppenheim
Telefon: [phone]
Email: [email protected]
For any assistance, please visit us at www.aafeurope.com to nd your local
AAF ofce/dealer.
Observe the protective
instructions on the device
EAR PROTECTIONS
DANGER: NOISE
Step 1 Step 2 Step 3

89
4. General Information
The AstroPure air puriers are designed to remove particles from normal dry room air,
which is returned to the room after cleaning.
The installation conditions are:
• Installation indoors in a dry environment
• Moving and purication of dry indoor air
• Operating temperature range: 0 ° C to 40 ° C
• Air humidity rH. <90%, no condensable humidity
• Not approved for use in an explosive atmosphere
• Filter change as described in the maintenance instructions and specied in accordance
with VDI6022
• Carry out cleaning, maintenance and repair as specied in the maintenance instructions
and in accordance with VDI6022
AstroPure Air Puriers are not classied as "Intrinsically Safe" (IS) and should not be used
in hazardous environments classied as: Class I Division 1, Class I Division 2, Class I Zone
0, Class I Zone 1, Class I Zone 2 , Class II Department 1, Class II Department 2, Class III
Department 1, Class III Department 2 Reference to: https: // www.oshagov / laws-regs /
regulations / standard number / 1926/1926449
Type label
The Type label of the AstroPure air purier shows the following characteristics:
Image 1 : AstroPure type label
3. Quick Start Guide (LCD / PLC Control)
Quick start guide
• Observe the safety instructions for safe operation
• Ensure a safe stand on smooth, level, stable ground
• Lock the castor wheels
• Plug in the power plug
• Switch the ON/OFF switch at the back side of the unit to ON-position
• Press the standby button to turn on the fan
• Adjust volume ow rate to desired level by tapping on + (increase) or (decrease)
Warning message on display:
Filters must be changed by qualied personnel
• Note the date of rst use
• Note down the operating time
• Observe and document change intervals for lters
Have the lter change and maintenance carried out by qualied personnel only.
In the event of danger or malfunction:
Pull out the mains plug and have the device serviced by qualied personnel
Manufacturer:
AAF Lufttechnik GmbH
Odenwaldstrasse 4
D-64646 Heppenheim
Telefon: [phone]
Email: [email protected]
For any assistance, please visit us at www.aafeurope.com to nd your local
AAF ofce/dealer.

10 11
Technical characteristics
The installation and use conditions are:
• AAF pre-lter Technical Data Sheet
• AAF HEPA lter Technical Data Sheet
• AAF Filter change out recommendations
• AAF lter storage recommendations
For the most current versions visit us at www.aafeurope.com
Accompanying guidelines and documents
Parameter Unit AstroPure - 2000
Nominal ow rate m3/h 2000
Minimum volume ow m3/h 500
Dimensions (WxLxH) mm 770x720x1628*
Device weight kg 150*
Min. ambient temperature °C 0
Max. ambient temperature °C 40
Allowed rel. humidity level %0-90
* depending on execution
Connection details and power consumption
Connection details 1PH 230V 50 / 60Hz
Fan kW 0,5
UV-C stage W25
Sound pressure level (SPL) at a distance of 1 m Db(A) 35-52
Maximum recommended pressure drop:
Pre lter
RedPleat Pa 250
RedPleat VF Pa 250
HEPA lter:
AstroCel III Pa 450
MEGACel I Pa 450
Table 1 : AstroPure type label
Components

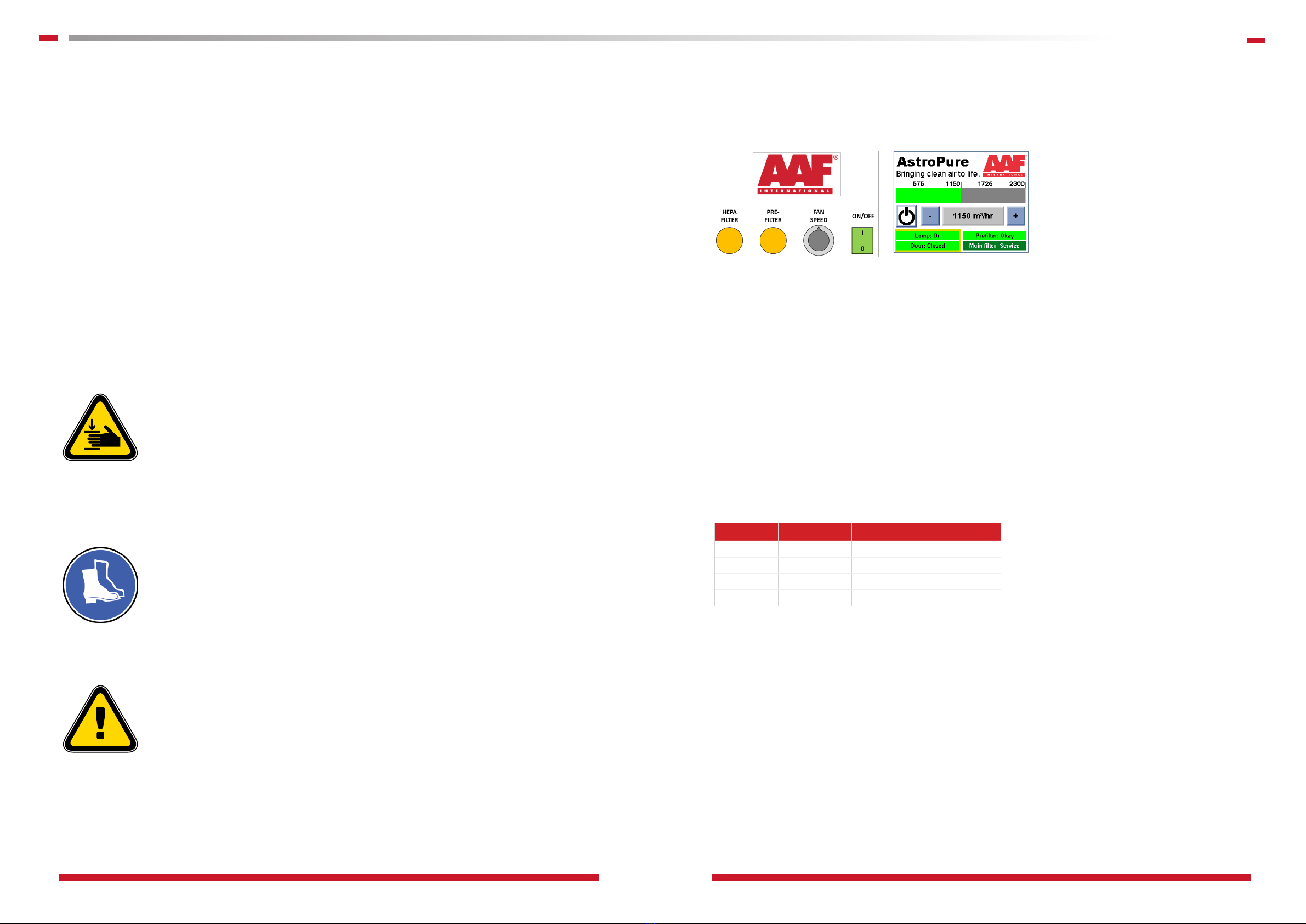

Image 2 AstroPure with Potentiometer Control
Image 3 AstroPure with LCD / PLC Control
5
8
1
10 11 12 13 14 16
3
4
7
6
9
5
8
1
16
2
3
4
7
6
9

12 13
• The AstroPure air purier (1) has the following main components:
• Swivel castors with locking device (2)
• Power plug (3) / LCD/PLC: Power plug with On/OFF switch at the back of the unit
• Air inlet (4)
• Air outlet (5)
• Fan (6)
• Pre-lter (7)
• HEPA lter (8)
• OptionalUV-C stage (9)
• Control panel (10)
• The control unit consists of the following individual parts:
• ON / OFF switch (11)
• Operating status light device ON (12)
• Volume ow controller (13)
• Status display pre-lter (14)
• Status display HEPA lter (15)
• LCD panel (16)
Decommissioning in the event of maintenance
The device must be switched off and disconnected from the power supply for
maintenance and repair.
5. Storage, transport and assembly:
Storage
The storage conditions for the AstroPure air puriers are:
Storage in a dry, protected environment, if possible in the original packaging.
Storage temperature range: -30 ° C to 40 ° C
Air humidity rH. <90%, no condensable humidity.
Transport
Only move heavy loads with suitable means of transport.
Installation of Air Inlet and Air Outlet ductwork
Installation of Air Inlet and Air Outlet ductwork needs to be carried out by qualied
personnel only.
Installation area
The installation surface must be smooth and level and have sufcient load-bearing
capacity.
Filter
The AstroPure air puriers are equipped with the following lter stages:
• Pre-lter
• HEPA lter
• Optional: UV-C stage
Components
6. Commissioning and maintenance:
Image 4 AstroPure Control Panel
1. Potentiometer Control 2. LCD / PLC Control
The control unit consists of the following individual parts:
Potentiometer Control:
• ON/OFF switch (11)
• Operating status light device ON (12)
• Volume ow controller (13)
• Status display pre-lter (14)
• Status display HEPA lter (15)
LCD / PLC
• ON/OFF switch at the back of
the unit (3)
• Touch sensitive display (16)
Filters:
The following lter options are installed:
Type Style Code
Pre-lter (7) RedPleat RP-4470-05920592045-CS00Z
RedPleat CF RPCF-0465-05920592045-CS0Z
HEPA lter (8) MEGACel I MEGA I.eFRM.H14.610x610x292
ASTROCEL III ASTROCEL III AP A39A05C9S2R0
Initial start-up
The AstroPure air puriers are delivered ready for use.
Perform the following work steps for initial commissioning:
• Remove packaging and dispose of properly in accordance with local waste regulations.
• The AstroPure air puriers are equipped with four swivel castors for easy
manoeuvrability.
DANGER: CRUSHING
HAZARD
PPE: wear safety shoes.
Avoid hard knocks and jerky
loads. Risk of lter damage.
Secure the load against
unintentional rolling away.
12
• Make sure that all four swivel castors have good contact with the installation surface
and, if necessary, enable this by repositioning the device.
• Make sure that the maintenance door of the device is properly closed.
• Make sure that the air inlet and outlet openings are freely accessible and not obstructed
or occupied.
• Fix the locking devices of the castors.

14 15
CRUSHING HAZARD:
WEAR SAFETY SHOES
Operation (Potentiometer Control)
• Make sure the ON / OFF switch is in the OFF position.
• Set the volume ow controller / speed controller to a middle position.
• Plug in the power plug.
• Set the ON / OFF switch to ON.
Set the desired volume ow.
• Keep a sufcient distance from the outow openings.
• The volume ow can be regulated continuously between minimum (25% maximum
volume ow) and maximum volume ow.
• Set the desired volume ow.
• The volume ow can be regulated continuously between minimum (25% maximum
volume ow) and maximum volume ow.
General
The AstroPure Air Cleaner is designed for silent, smooth and unobtrusive operation.
In case of any abnormal noises, sounds, and vibrations or in case of no operational
sounds (no fan sound), turn the AstroPure Air Cleaner off, disconnect it from the power
supply and have the equipment inspected by trained personnel.
Maintenance work must be carried out by qualied personnel only according to the
instructions by AAF.
Attention: If a whistling noise can be heard near the maintenance door, the maintenance
door is usually not completely sealed. This can be remedied by gentle retightening the door
locks (5 mm Allen key).
Visual inspection
The lters must be checked visually at regular intervals for tightness and impermissible
contamination (every 3 months).
Filter change
Filters can be removed by qualied personnel. The use of suitable personal protective
equipment is mandatory.
Filter Test Protocol
Each HEPA lter is tested individually and a hard copy of the test results is supplied with
the lter element. The hard copy is attached with sticky tape to the lter element and must
be removed when installing the lter element into the AstroPure Air Cleaner.
Operation (LCD / PLC Control)
• Plug in the power plug
• Set the ON/OFF switch at the back side of the unit to ON.
• Press the standby button to turn on the fan
• Volume ow adjustment:
• Method (1)
• Press the displayed value. The exact desired speed of the fan can be set here
• Press the plus and minus button. The respective speed increment is set in the
conguration menu.
• Method (2)
• Press an area on the ow rate bar. With this option, the speed of the fan is set to
one of the 4 parameter values at a time (25% steps).
• WARNING message on display:
Filters must be changed by qualied personnel.
Inspection and maintenance per component
The device components and lters must be checked for function and wear at regular
intervals and serviced, at least after the periods specied below or earlier if necessary.
Inspection Intervals
Pre-lter months 3
HEPA lter months 3
UV-C stage months 3
Maintenance door months 6
Moving parts months 6
Fan section months 6
Entire unit months 12 Prior to each use and every 12 months
Replacement intervalls
Pre lter
RedPleat months 12
RedPleat CF months 12
HEPA lter:
ASTROCel III months 24
MEGACel I months 24
UV-C stage hours 9.000 9.000
Repair measures
Have device maintenance and repair carried out by qualied personnel only.
It is essential to observe the accompanying documents for the subcomponents.
Detergents, disinfectants
Always disconnect the AstoPure Air Cleaner from the power connection when
cleaning it.
The surface of the device can be cleaned with common mild soap based household
cleaning detergents only.
Decommissioning, dismantling and disposal.
Safety-related rules that must be observed during decommissioning, dismantling
and disposal:
The AstroPure air purier can only be opened after it has been completely disconnected from
the mains by pulling the plug.
The lters can only be removed using complete personal protective equipment
Dismantling of the AstroPure air purier only when using complete personal protective
equipment
Disposal of the lters only in appropriate packaging and in accordance with the regulations of
the local disposal points
DANGER:
Electric shock
WARNING:
UV-C radiation
UV-C-stage change
UV-C radiation can cause severe damages to the eye and skin.
Servicing and maintenance must only be carried out by trained
personnel using suited personal protective equipment.
Table 2. Inspecton and
Replacement Intervals
14

16 17
DANGER:
Electric shock
7. Emergency:
If possible, disconnect the AstroPure air purier from the power
supply by pulling the plug
If it is not possible to pull out the mains plug safely, the power supply
must be interrupted by disconnecting it from the building circuit
(safety switch).
Fire ghting
In the event of a re, ght it with extinguishing agents approved for electrical
appliances
Dangerous substances escape in the event of re
In the event of a re, do not breathe the fumes and smoke that may be produced.
After ensuring that the extinguishing is complete, ensure that the rooms are
adequately ventilated.
subcomponents.
8. Drawings and diagrams:
The overall dimensions the installation dimensions of the AstroPure
2000 Air Cleaner are:
Image 5 AstroPure 2000 Dimensions
Wiring diagram
The wiring diagram for the AstroPure Air Cleaner can be found in the appendix.
Type Style code WxHxL (mm)
Pre-lter (7) RedPleat RP-4470-05920592045-CS00Z 592 x 592 x 45
RedPleat CF RPCF-0465-05920592045-CS0Z 592 x 592 x 45
HEPA lter (8) MEGACel I MEGA I.eFRM.H14.610x610x292 610 x 610 x 292
ASTROCEL III ASTROCEL III AP A39A05C9S2R0 610 x 610 x 292
9. Spare parts:
The following lter options are to be used when replacing lters:
10. Certicates and Protocols:
The unit complies to European directives and standards with European Directives and bears
the CE marking. The unit is checked for tightness of the installed lters and a leak test
certicate is issued. The absolute lter has an individual test certicate.
Manufacturer’s Declaration of Conformity
The AAF AstroPure Air Cleaners are manufactured in compliance with applicable international
regulations and standards by:
AAF Lufttechnik GmbH
Odenwaldstrasse 4
D-64646 Heppenheim
Germany
Telefon: [phone]
Email: [email protected]
A risk assessment and compliance evaluation procedure has bend conducted referenced on
the following certication procedures according to the assessment as in:
Machine directive 2006/42/EC,
Directive on eco design EC 2009/125.
Following standards and guidelines were used for the assessment of the equipment’s
compliance:
2006/42/EC Machine Directive
2014/30/EC Electromagnetic Compatibility (EMC) Directive
2014/35/EC Low Voltage Directive (LVD)
2009/125/EC ERP Energy conservation
1253/2014EC ERP implementation, 2018
EN ISO 12100 General principles for design - Risk assessment and re reduction
EN ISO 13857 Safety of machinery - Safety distances to prevent hazard zones being
reached by upper and lower limbs
DIN EN 60335-1 Safety of electrical devices for household use and similar purposes -
Part 1: General requirements
VDI 6022-2018 Hygiene requirements for ventilation and air-conditioning systems and
units - Design and construction and materials
The AAF AstroPure Air Cleaner are in full compliance with the above mentioned directives,
standards and guidelines. A technical documentation of the risk and the compliance
assessment is available on request from the manufacturer.
16
PAT Ruiter
Director Filtration technology
Heppenheim, November 2020

18 19
Potentiometer Control
LCD Control
Appendix
18

13. AAF Sales Ofces
Dinair Finland
Dinair Clean Air, Oy
Koivuvaarankuja 2,
01640 Vantaa
Phone: [phone]
E-mail: cleanair@dinair.
France
AAF S.A.
9, Avenue de Paris
94300 Vincennes
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Germany & Austria
AAF-Lufttechnik GmbH
Odenwaldstrasse 4
64646 Heppenheim
Phone: [phone]
E-mail: [email protected]
Dinair Latvia
Dinair Filton SIA
Rupnicu Street 4
Olaine, Latvia, LV-2114
Phone: [phone]
Dinair Denmark
AAF/Dinair APS
Vallensbækvej 63.1
2625 Vallensbæk
Phone: [phone]
E-mail: [email protected]
Great Britain and Ireland
Air Filters Ltd (AAF International)
Bassington Lane, Cramlington
Northumberland NE23 8AF
Phone: [phone]
Fax: [phone]
E-mail: air[email protected]
Greece
AAF-Environmental Control Epe
1 Ifaistou & Kikladon
15354 Glika Nera
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Italy
AAF S.r.l.
Via Friuli, 28/30
21047, Saronno (VA)
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Dinair Norway
Dinair AS
Prof Birkelands vei 36
1081 Oslo
Phone: [phone]
Fax: [phone]
Slovakia & Eastern Europe
AAF International s.r.o.
Bratislavska 517
91105, Trencin, Slovakia
Phone: [phone]
www.aantl.com
Spain & Portugal
AAF S.A.
Vidrieros, 10
28830 San Fernando de Henares
Madrid, Spain
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Dinair Sweden
Dinair AB
Hamngatan 5
SE-592 30 Vadstena
Phone: [phone]
Fax: [phone]
The Netherlands
AAF Verkoop Nederland
Boerdijk 29A
7844 TB Veenoord
Phone: [phone]
E-mail: [email protected]
AAF International B.V. has a policy of continuous
product research and improvement and reserves
the right to change design and specications
without notice.
©2019 AAF International and
its afliated companies.
IM_102_EN_122020
AAF International
European Headquarters
Odenwaldstrasse 4, 64646 Heppenheim
Tel: [phone]
aantl.com
