A&D UA-705 User manual

ADVANCED MANUAL INFLATE
BLOOD PRESSURE MONITOR
Model UA-705
Instruction Manual
ENGLISH, FRANÇAIS, ESPAÑOL
1WMPD4003390

Important Information
Please read this important information before using your monitor.
qPlease remember that only a medical practitioner is qualied to
interpret your blood pressure measurements. Use of this device
should not replace regular medical examinations.
qHave your physician review your procedure for using this device.
He or she will want to verify blood pressure measurements before
prescribing or adjusting medications.
qConsult your physician if you have any doubt about your readings.
Should a mechanical problem occur, contact A&D Medical.
qMake sure to use the correct cuff size when measuring your blood
pressure.
qDo not attempt to service, calibrate, or repair this monitor.
qBecause your UA-705 monitor contains delicate, high-precision
parts, avoid exposing it to extremes in temperature or humidity or
to direct sunlight, shock and dust. A&D Medical guarantees the
accuracy of this monitor only when it is stored and used within the
temperature and humidity ranges noted on page E-18.
qClean the monitor and cuff with a dry, soft cloth or a cloth dampened
with water and a mild detergent. Never use alcohol, benzene,
thinner or other harsh chemicals to clean monitor or cuff.
qRemove and replace batteries if monitor is not used for more than
six months. Alkaline batteries recommended.
Precautions
The UA-705 is designed to be used at home, by those who are
eighteen (18) years and older, to monitor blood pressure (systolic and
diastolic) and pulse rate. It is not designed for ambulatory use.

Table of Contents
What Display Symbols Mean E-2
Monitor Components E-3
How UA-705 Works E-4
Before You Start E-4
Selecting the Correct Cuff Size E-5
Taking Your Blood Pressure E-6 - E-8
What is an Irregular Heartbeat E-9
About Cuff Ination Meter E-9
About Average Reading E-10
About Pressure Rating Indicator™E-10
About Memory E-11
About Blood Pressure E-12 - E-16
Troubleshooting E-17
Specications E-18
Limited Warranty E-19
French Instructions F-1
Spanish Instructions S-1

E-2

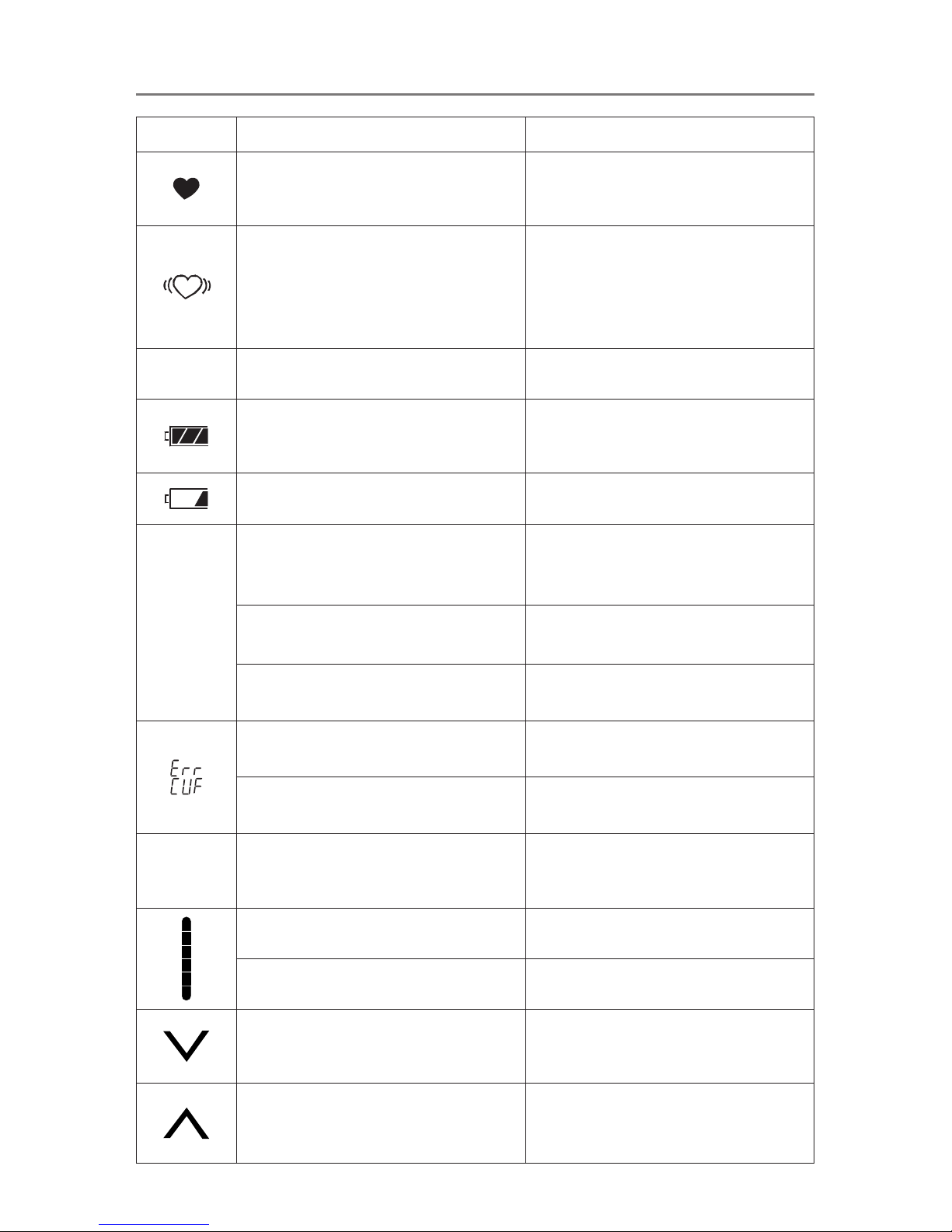

What display symbols mean
Symbols Condition/Cause Recommended Action
The symbol shown while
measurement is in progress. It
blinks while detecting the pulse.
Measurement is in progress,
remain as still as possible.
Irregular Heartbeat symbol
(I.H.B.) body movement may
have occurred. Refer to page
E-9 for more information on
irregular heartbeats.
Take measurement again and
consult with your physician.
MPrevious measurement stored
in MEMORY. ––––––––––––
FULL BATTERY – The
battery power indicator during
measurement.
––––––––––––
LOW BATTERY – The battery
is low when it blinks.
Replace all batteries with new
ones, when the indicator blinks.
■Err
Unstable blood pressure
due to movement during the
measurement.
Try the measurement again.
Remain very still during the
measurement.
The systolic and diastolic values
are within 10 mmHg of each other.
Fasten the cuff correctly, and
try the measurement again.
The pressure value did not
increase during ination.
Check for air leaks along the
tube and around the air socket.
The cuff is not fastened
correctly.
Refasten the cuff and retake
measurement.
There is an air leak in the cuff
or monitor.
Make sure tube is properly
connected to cuff and monitor.
■Err
Pulse Display
Error
The pulse is not detected
correctly.
Try the measurement again.
Remain very still during the
measurement.
Cuff Ination Meter Measurement is in progress,
remain as still as possible.
Pressure Rating Indicator™ Refer to the section “About
Pressure as still as possible.
Appears on display prior to and
during measurement. Blinks if
there is air in cuff at power up.
Press exhaust button to
release air.
Cuff needs to be inated for
proper measurement.
Inate cuff 30 to 40 mmHg
above your normal systolic
pressure.

E-3
Monitor Components
Arm Cuff
Proper Fit Range
Index Mark Air Hose
Display
Start button
Air Socket
Air Connector Plug
Exhaust
Rubber Bulb
Battery Cover
AA battery
Battery compartment

E-4
How UA-705 Works
LifeSource®blood pressure monitors are easy to use, accurate
and digitally display full measurement readouts. Our technology is
based on the “oscillometric method” – a noninvasive blood pressure
determination. The term “oscillation” refers to any measure of vibrations
caused by the arterial pulse. Our monitor examines the pulsatile
pressure generated by the arterial wall as it expands and contracts
against the cuff with each heartbeat.
The cuff is inated until the artery is fully blocked. The ination speed
is maximized and the pressure level is optimized by the device. The
monitor takes measurements while the cuff is both inating and
deating. This results in a faster measurement providing greater
comfort to the user.
Before You Start
You must install 1 type AA (1.5 volt) battery and attach the cuff to the
monitor before using it (alkaline batteries recommended). To install
battery (or replace it if the “Low Battery” symbol appears on display),
proceed as follows:
1. Remove battery cover by gently
pushing down on handle and pulling
cover off monitor.
2. Place the battery in compartment with
positive (+) and negative (–) terminals
matching those indicated in the
compartment. Be sure battery makes
contact with compartment terminals.
3. Replace cover by sliding it into the
compartment and gently pressing into place.
NOTE: Rechargeable batteries will not work with this monitor
Step 1
Step 3
Step 2

E-5
Selecting the Correct Cuff Size
Using the correct cuff size is important for an accurate reading. A cuff
that is too large will produce a reading that is lower than the correct
blood pressure; a cuff that is too small will produce a reading that is
higher than the correct blood pressure. With your arm hanging at the
side of your body, measure the circumference of your upper arm at the
midpoint between the shoulder and elbow.
Arm size Recommended
Cuff size
Replacement
cuff model #
9.4” - 14.2” (24-36cm) Medium Cuff UA-280
14.2” - 17.7” (36-45cm) Large Cuff UA-281
NOTE: The LifeSource small cuff is not compatible with the UA-705 monitor.
Cuff Size Indicator On The Cuff
Our cuff has an indicator which tells you whether you are using the
correct cuff size or not. Place the cuff on your arm (see Page E-6 to
learn how to put the cuff on correctly) and if the Index Mark ppoints
within the Proper Fit Range, you are using the correct cuff size. If the
Index points outside of the Proper Fit Range, contact A&D Medical at
1-888-726-9966 (in Canada, call Auto Control Medical at 1-800-461-
0991) for more information on where to obtain a cuff replacement.
NOTE: If the cuff size indicator falls on a borderline between two size categories, pick either one
and make sure to use the same cuff size for each measurement.
USE SMALL CUFF USE LARGE CUFFPROPER FIT RANGE
INDEX
I
ND EX
Ea

E-6
Taking Your Blood Pressure
Tips for Blood Pressure Monitoring:
qRelax for about 5 minutes before measurement.
qDo not smoke or ingest caffeine at least 30 minutes prior to
measurement.
qRemove constricting clothing and place cuff on bare arm.
qUnless your physician recommends otherwise, use left arm to
measure pressure.
qDo not talk during measurement.
qDo not cross legs and keep you feet at on oor during
measurement
Now you are ready. Follow these simple steps:
1. Sit comfortably with your left arm resting
on a at surface so that the center of your
upper arm is at the same height as your
heart.
2. Lay left arm on the table, palm up and
thread cuff end through metal loop,
smooth side against arm. Then position
the tube off-center toward the inner side
of arm in line with the little nger.
3. Pull the end of the cuff to tighten it,
fold back the extra material, and fasten
securely. The cuff should be snug but not
too tight. You should be able to insert two
ngers between the cuff and your arm.
IMPORTANT: Measure pressure at the
same time each day.
4. Conrm that the index ppoints within the
proper t range.
Cuff
Tube
Index and Proper Fit range

E-7
Taking Your Blood Pressure
5. Press the START button. Your average blood pressure reading
will appear with the number of measurements stored in memory (i.e.
A25 = total of 25 measurements stored in memory) and a ashing
symbol, indicating that monitor is ready for measurement.
NOTE: If the symbol is displayed, the cuff
has some air trapped in it. Press the exhaust
valve button until the symbol is displayed.
You may have to press on the cuff while
holding the exhaust valve to release all the
air in the cuff.
6. When the symbol is displayed, begin cuff ination by squeezing
the inator bulb repeatedly. It may take a few seconds for the
symbol to appear.
7. Stop squeezing the inator bulb when symbol disappears or until
cuff pressure reaches about 30 mmHg to 40 mmHg above expected
systolic pressure. If inating to a level above your expected systolic
pressure, we recommend using the chart shown below to determine
your ination level.
Usual Systolic Inate to
Up to 130 160
131-170 200
171-210 240
211-250 280

E-8
Taking Your Blood Pressure
8. When the correct pressurization has been reached, the automatic
exhaust mechanism will gradually reduce the pressure in the cuff.
Sit quietly during measurement. The symbol will blink with your
pulse beat.
NOTE: Exhaust rate cannot be adjusted during measurement. If you wish to stop ination at any
time, press the exhaust valve to release the pressure in the cuff.
9. After you see the measurement results displayed on the screen, press
the exhaust valve to release the excess air from the cuff. If you move
your arm before pressing the exhaust valve, the result on the screen will
be deleted. The monitor shuts off automatically in about 30 seconds.
You can also press the START button to shut off the monitor.
10. Remove cuff and make a note of your blood pressure and pulse
rate on the chart in the back of the manual, indicating date and
time of measurement. Additional logbook charts can be
downloaded and printed for free at www.LifeSourceOnline.com
or www.autocontrol.com.
We advise that you record the date and time after each measurement
because an accurate blood pressure history relies not on single or
sporadic readings but on a pattern over time.
NOTE: Allow at least 5 minutes between measurements on the same person.

E-9
What is an Irregular Heartbeat
The UA-705 Blood Pressure Monitor provides a blood pressure and
pulse rate measurement even when an irregular heartbeat occurs. The
Irregular Heartbeat symbol will appear in the display window in
the event an Irregular Heartbeat has occurred during measurement.
An irregular heartbeat is dened as a heartbeat that varies by 25%
from the average of all heartbeat intervals during the blood pressure
measurement. It is important that you relax, remain still and refrain from
talking during measurements.
NOTE: We recommend contacting your physician if you see this symbol frequently.
About Cuff Ination Meter
The Cuff Ination Meter is located on the left side of the display screen
to tell you when the blood pressure monitor is inating and deating
the cuff. The Cuff Ination Meter moves up during ination and moves
down during deation.
Ination in Progress Ination Complete Deation/Measurement
in Progress

E-10
About Average Reading
The UA-705 provides an average blood pressure
reading based on the total measurements stored
in memory. When taking a measurement, the
average blood pressure reading will appear and
the number of measurements stored in memory
will ash several times before the cuff begins
to inate. The average blood pressure reading
will also appear briey when you recall the
measurements stored in memory.
About Pressure Rating indicator™
The Pressure Rating Indicator™is a feature which
provides a snapshot of your blood pressure
classication based on your measurements.
This will let you quickly know what your blood
pressure readings mean. Each segment of
the bar indicator corresponds to the Seventh
Report of the Joint National Committee (JNC7)
on Prevention, Evaluation and Treatment of
High Blood Pressure from the National Heart,
Lung and Blood Institute - May 2003. For
a more detailed look at this blood pressure
classication, please refer to “Assessing High
Blood Pressure” on page E-13.
: The indicator displays a segment, based on the current
measurement, corresponding to the JNC7 Classication.
NOTE: Due to other risk factors (e.g. diabetes, obesity, smoking, etc.) in addition to your blood
pressure measurement, the Pressure Rating Indicator is approximate. Please consult with your
physician for interpretation and diagnosis of your blood pressure measurements.
NOTE: Residents outside of the United States (e.g.. Canada and Mexico) should refer to the WHO
Classication Table on page E-13 for assessment of their blood pressure measurement.
Average
Number of Measurements
Stored in Memory

E-11
About Memory

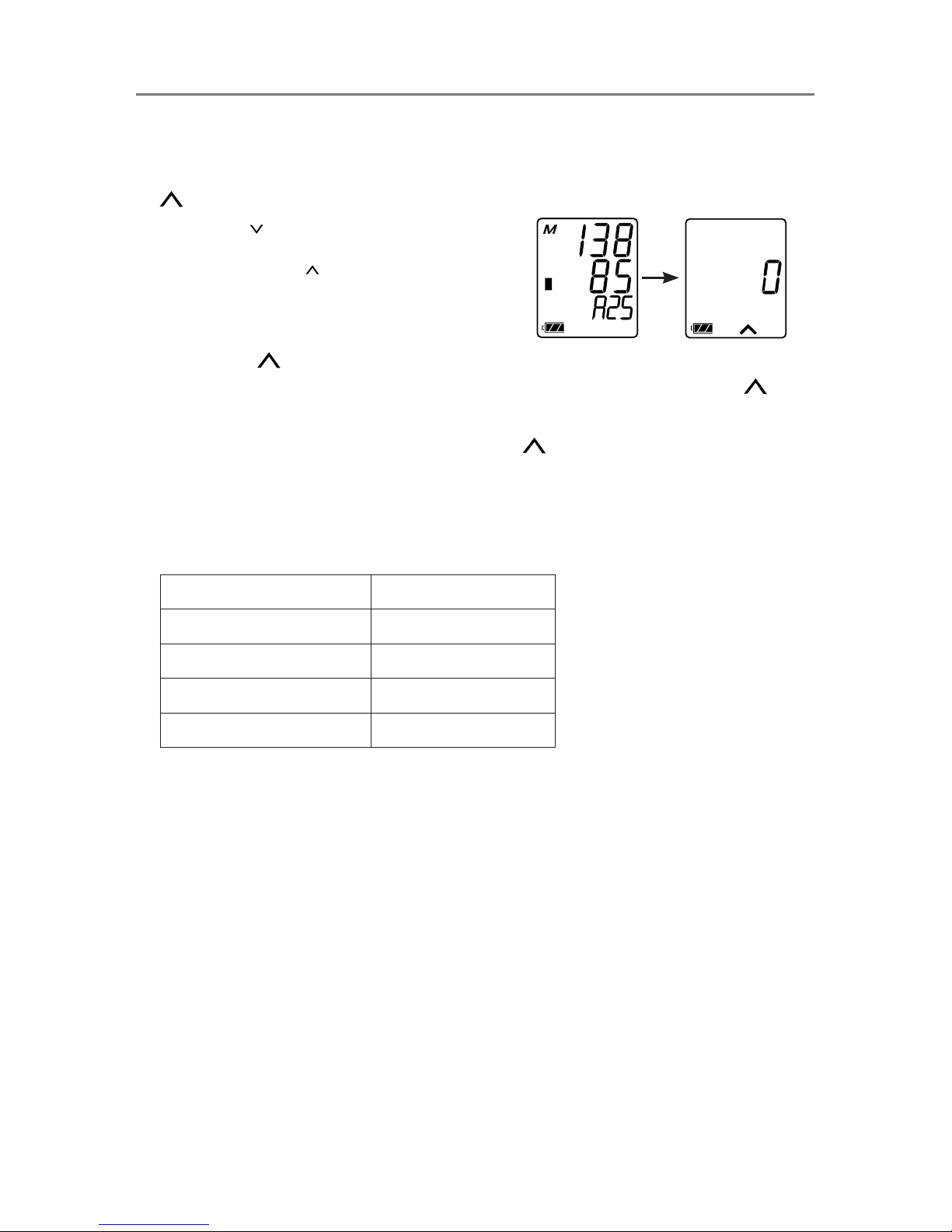

The UA-705 automatically stores up to 30 blood pressure and pulse
measurements in its memory. Measurements stored in memory are
assigned an index number in the order of the newest to the oldest. The
oldest reading displays as “n01”.
To retrieve readings, follow these simple steps:
1. When the display screen is blank, press and hold
the START button. While holding down the START
button, you will see the average reading displayed
rst. You will then see the memory index number
(e.g. n04) of the most recent reading followed by
the measurement. Release the START button
when you see the memory index number.
2. The display will shut off automatically a few seconds
after all of the readings are displayed. To turn off
the monitor at any time, press the START button.
To clear the measurement history from memory,
remove the battery from the unit and then place the
battery back into the battery holder.
NOTE: If there are no measurements stored in memory, you will see two 0s displayed vertically
followed by a blinking “A00”.
NOTE: Stored measurements will be lost if batteries become low or are removed.

E-12
About Blood Pressure
What is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the
arteries. Systolic pressure occurs when the heart contracts; diastolic
pressure occurs when the heart expands. Blood pressure is measured
in millimeters of mercury (mmHg).
What Affects Blood Pressure?
Blood pressure is affected by many factors: age, weight, time of
day, activity level, climate, altitude and season. Certain activities can
signicantly alter one’s blood pressure. Walking can raise systolic
pressure by 12 mmHg and diastolic pressure by 5.5 mmHg. Sleeping
can decrease systolic blood pressure by as much as 10 mmHg. Taking
your blood pressure repeatedly without waiting an interval of 5 minutes
between readings, or without raising your arm to allow blood to ow
back to the heart, can also affect it.
In addition to these factors, beverages containing caffeine or alcohol,
certain medications, emotional stress and even tight-tting clothes can
make a difference in the readings.
What Causes Variations In Blood Pressure?
An individual’s blood pressure varies greatly from day to day and
season to season. For hypersensitive individuals, these variations are
even more pronounced. Normally, blood pressure rises during work or
play and falls to its lowest levels during sleep.

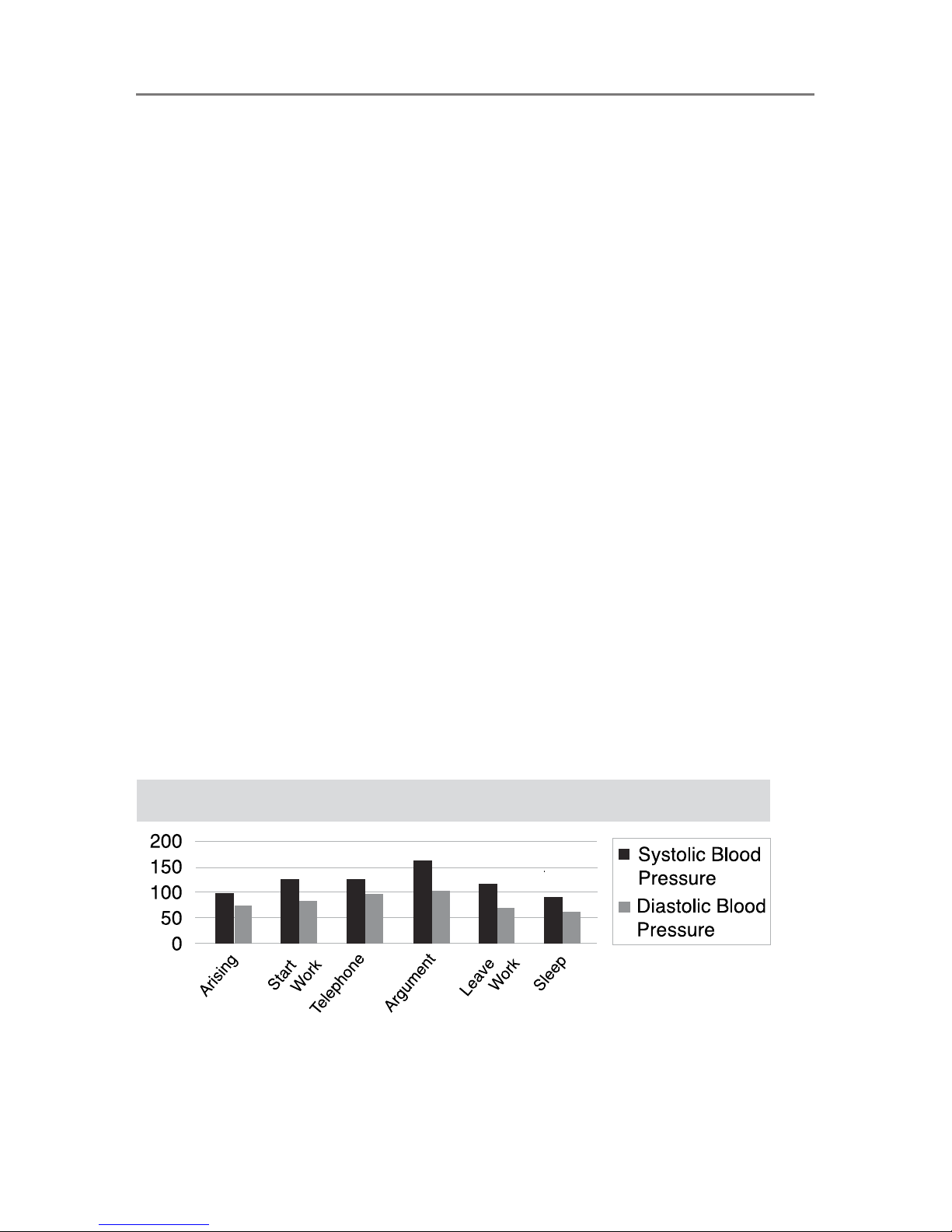

Fluctuation within a day (case: 35 year old male)

E-13
About Blood Pressure
Assessing High Blood Pressure for Adults
The following standards for assessing high blood pressure (without
regard to age or gender) have been established as a guideline. Please
note that other risk factors (e.g. diabetes, obesity, smoking, etc.) need
to be taken into consideration and may affect these gures. Consult
with your physician for an accurate assessment.
JNC7 Classication Table – for Adults within the U.S.
BP Classication Systolic (mmHg) Diastolic (mmHg)
Normal less than 120 and less than 80
Prehypertension 120-139 or 80-89
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension greater than or
equal to 160 or greater than or equal to 100
SOURCE: The Seventh Report of the Joint National Committee on Prevention, Evaluation and
Treatment of High Blood Pressure for Adults. National Heart, Lung and Blood Institute - May 2003.
WHO Classication Table – for Adults outside of the U.S.
(e.g. Canada, Mexico)
BP Classication Systolic (mmHg) Diastolic (mmHg)
Optimal less than 120 and less than 80
Normal less than 130 or less than 85
High-Normal 130-139 or 85-89
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension 160-179 or 100-109
Stage 3 Hypertension greater than or
equal to 180 or greater than or equal to 110
SOURCE: Standards to assess high blood pressure, without regard to age or gender, have been
established by the World Health Organization (WHO).

E-14
About Blood Pressure
What Is Hypertension?
Hypertension (high blood pressure) is the diagnosis given when
readings consistently rise above normal. It is well known that
hypertension can lead to stroke, heart attack or other illness if left
untreated. Referred to as a “silent killer” because it does not always
produce symptoms that alert you to the problem, hypertension is
treatable when diagnosed early.
Can Hypertension Be Controlled?
In many individuals, hypertension can be controlled by altering lifestyle
and minimizing stress, and by appropriate medication prescribed
and monitored by your doctor. The American Heart Association
recommends the following lifestyle suggestions to prevent or control
hypertension:
qDon’t smoke.
qReduce salt and fat intake.
qMaintain proper weight.
qExercise routinely.
qHave regular physical checkups
qMonitor your blood pressure at periodic intervals.
Why Measure Blood Pressure at Home?
It is now well known that, for many individuals, blood pressure readings
taken in a doctor’s ofce or hospital setting might be elevated as a
result of apprehension and anxiety. This response is commonly called
“white coat hypertension.” In any case, self-measurement at home
supplements your doctor’s readings and provides a more accurate,
complete blood pressure history. In addition, clinical studies have
shown that the detection and treatment of hypertension is improved
when patients both consult their physicians and monitor their own blood
pressure at home.

E-15
About Blood Pressure
Answers to Why Your Readings Are Different Between
Home and at the Doctor’s Ofce
Why are my readings different between home and at a doctor’s
ofce?
Your blood pressure readings taken in a doctor’s ofce or hospital
setting may be elevated as a result of apprehension and anxiety. This
response is known as white coat hypertension.
When I bring my monitor to a doctor’s ofce, why do I get a
different measurement from my monitor to that taken by a doctor
or nurse?
The healthcare professional may be using a different sized cuff. The
size of the bladder inside the cuff is critical for the accuracy of the
measurement. This may give you a different reading. A cuff too large
will produce a reading that is lower than the correct blood pressure;
a cuff that is too small will produce a reading that is higher than the
correct blood pressure. There may also be other factors that can cause
the difference in measurements.
Keys to Successful Monitoring:
Blood pressure uctuates throughout the day. We recommend that you
are consistent in your daily measurement routine:
qMeasure at the same time every day.
qSit in the same chair/position.
qDo not cross legs and keep your feet at on the oor.
qRelax for 5 minutes before measurement.
qUse the correct cuff size to get an accurate reading.
qSit still during measurement – no talking, eating or sudden
movements.
qRecord your measurement in a logbook.

E-16
About Blood Pressure
Establishing Baseline Measurements
The most important method to get an accurate blood pressure
measurement is consistency. To get the most benet out of your
monitor, it is important to establish a “baseline measurement.” This
helps build a foundation of measurements that you can use to compare
against future readings. To build this baseline measurement, devote
two weeks for consistent blood pressure monitoring. This involves
doing everything the same way when you measure (e.g. measuring
during the same time of day, in the same location, sitting in the same
chair, using the same cuff, etc.). Once you establish your baseline
measurement, you can start evaluating if your measurement has been
affected based on things lifestyle changes or medication treatment.
How Do I Record My Blood Pressure?
Blood pressure readings are typically recorded with the systolic
pressure written rst, followed by a slash mark and the diastolic
pressure. For example, 120 mmHg systolic and 80 mmHg diastolic
measurements are written as 120/80. Pulse is simply written with the
letter “P” followed by the pulse rate—P 72, for example. Please see the
back of the manual for the blood pressure tracking record.
Customer Support Tools Online
Additional tools are available on www.LifeSourceOnline.com (in
Canada - www.autocontrol.com) to help you get the most out of your
blood pressure monitoring. These include:
qLarge Print Instruction Manuals
qAnimated Operating Instructions for select models
qAdditional Logbook Sheets

E-17
Troubleshooting
Problem Probable cause Corrective action
Nothing
appears
in the
display, after
pressing
the START
button.
Battery is drained. Replace battery with new
one. Alkaline battery
recommended.
Battery terminals are not
in the correct position.
Reinstall the battery with
negative and positive
terminals matching those
indicated in the battery
compartment.
The cuff
does not
deate
properly
Battery voltage is too
low. Low battery symbol
blinks. [If the battery is
drained completely, the
mark does not appear.]
Replace battery with new
ones. Alkaline battery
recommended.
The unit
does not
measure.
Readings are
too high or
too low.
The cuff is not fastened
properly.
Fasten the cuff correctly.
You moved your arm
or body during the
measurement.
Make sure you remain
very still and quiet during
the measurement.
The cuff position is not
correct.
Sit comfortably and still.
Make sure the cuff is at the
same level as your heart.
You are using the wrong
size cuff.
See Pg. E-5 "Selecting
the Correct Cuff.”
Taking too many readings
on the same arm in a
short period of time.
Relax ve minutes before
each measurement.
The value
is different
from that
measured
at a clinic
or doctor’s
ofce.
The healthcare
professional may be
using a different sized
cuff.
See Pg. E-15 "Answers to
Why Your Readings Are
Different Between Home
and the Doctor’s Ofce.”
Your measurements may
be elevated by white
coat hypertension
See Pg. E-14 "Why
Measure Blood Pressure
at Home.”
NOTE: If the actions described above do not solve the problem, call 1-888-726-9966
(In Canada - 1-800-461-0991). Do not attempt to repair the device yourself.

E-18
Specications
Model UA-705
Type Oscillometric
Display Digital character height; Pressure
(15.0 mm)/pulse (10.0 mm) display
simultaneously
Memory 30 readings
Measurement range Pressure: 20 mmHg to 280 mmHg
Pulse: 40 pulses to 200 pulses/minute
Accuracy Pressure: ±3 mmHg
Pulse: ±5%
Pressurization Manually by inator bulb
Depressurization Constant-air release-valve system
Deation Hand-held push button
Power source 1 type “AA” (1.5 volt) battery
(included)
Battery life Approximately 2,000 measurements
Operating environment 50ºF to 104ºF (10ºC to 40ºC)
Less than 85% relative humidity
Storage environment 4ºF to 140ºF (-10ºC to 60ºC)
Less than 95% relative humidity
Dimensions Width: 3.2” (81 mm)
Depth: 4.2” (105mm)
Height: 2.2” (54 mm)
Weight 4.3 oz. (120 g) without battery
Blood pressure measurements determined by the UA-705 are equivalent to those obtained by a
trained observer using the cuff/stethoscope auscultation method within the limits prescribed by the
American National Standards Institute for electronic or automated sphygmomanometers.
