A&D UA-782 User manual

Digital Blood Pressure Monitor
Model UA-782
Instruction Manual
1WMPD4001900

1
Contents
Dear Customers.................................................................... 2
Preliminary Remarks ............................................................. 2
Precautions........................................................................... 2
Parts Identification................................................................ 3
Symbols................................................................................ 4
Operation Mode.................................................................... 5
1. Normal Measurement With Storing Data ..................... 5
2. Recalling Data ............................................................ 5
3. Clearing Data ............................................................. 5
4. Measurement With The Desired Systolic Pressure ......... 5
Using the Monitor ................................................................. 6
Installing / Changing The Batteries .................................. 6
Installing The Cuff Holder ................................................ 6
Connecting The Air Hose ................................................. 7
Connecting The AC Adapter ............................................. 7
Selecting The Correct Cuff ............................................... 7
Attaching The Arm Cuff ................................................... 7
How To Take Proper Measurements ................................... 8
Measurement................................................................... 8
After Measurement .......................................................... 8
Measurements ...................................................................... 9
Normal Measurement....................................................... 9
Measurement With The Desired Systolic Pressure ........... 10
Notes For Proper Measurement ...................................... 10
About Memory.................................................................... 11
Recalling Data................................................................ 11
Clearing Data................................................................. 11
What Is An Irregular Heartbeat ............................................ 12
Pressure Bar Indicator ......................................................... 12
WHO Classification Indicator ............................................... 12
About Blood Pressure.......................................................... 13
What Is Blood Pressure? ................................................. 13
What Is Hypertension And How Is It Controlled? ............. 13
Why Measure Blood Pressure At Home? .......................... 13
WHO Blood Pressure Classification ................................. 13
Blood Pressure Variations............................................... 13
Troubleshooting ................................................................. 14
Maintenance ....................................................................... 15
Technical Data.................................................................... 15

2
Dear Customers
Congratulations on purchasing a state-of-the-art A&D blood pressure
monitor, one of the most advanced monitors available today. Designed
for ease of use and accuracy, this monitor will facilitate your daily blood
pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time.
Preliminary Remarks
This device conforms to the European Directive 93/42 EEC for Medical
Products. This is made evident by the mark of conformity.
(0366: The reference number to the involved notified body)
The device is designed for use on adults only, not newborns or infants.
Environment for use
The device is for use indoors.
Precautions
Precision components are used in the construction of this device.
Extremes in temperature, humidity, direct sunlight, shock or dust should
be avoided.
Clean the device with a soft, dry cloth. Never use thinner, alcohol,
benzine, or wet cloth.
Avoid tightly folding the cuff or storing the hose tightly twisted for long
periods, as such treatment may shorten the life of the components.
The device and cuff are not water resistant. Prevent rain, sweat and
water from soiling the device and cuff.
Measurements may be distorted if the device is used close to televisions,
microwave ovens, cellular telephones, X-ray or other devices with strong
electrical fields.
Used equipment, parts and batteries are not treated as ordinary
household waste, and must be disposed of according to the applicable
local regulations.

3
Parts Identification
Part of Display
MEMORY
Battery Indicator
Heart Mark I.H.B. Indicator
(Irregular heartbeat indicator)
Diastolic Pressure
Pulse Rate
Systolic Pressure
Pressure Bar Indicator
and
WHO Classification Indicator
1.5V Batteries
(R6P, LR6 or AA)
Battery Compartment
Battery Cover
Display START button
Air Socket
Air Connector Plug
Arm Cuff
Air Hose
DC Jack
MEMORY button

4
Symbols
Symbols Function / Meaning Recommended Action
Standby and Turn the device on.
Battery installation guide
Direct current
SN Serial number
Type BF: Device, cuff and tubing are
designed to provide special protection
against electrical shocks.
The indicator that appears while
measurement is in progress. It blinks
when the pulse is detected.
Measurement is in
progress. Remain as still
as possible.
Irregular Heartbeat indicator. (I.H.B.)
The indicator that appears when an
irregular heartbeat or any excessive
body movement is detected during
the measurement.
Previous measurements stored in
MEMORY.
Full
Battery The battery power indicator during
measurement.
Low
Battery The battery is low when it blinks. Replace all batteries with
new ones, when the
indicator blinks.
Unstable blood pressure due to
movement during the measurement. Try the measurement
again. Remain very still
during the measurement.
The systolic and diastolic values are
within 10 mmHg of each other.
The pressure value did not increase
during inflation.
The cuff is not fastened correctly.
PUL. DISPLAY ERROR
The pulse is not detected correctly.
Fasten the cuff correctly,
and try the measurement
again.
SYS. Systolic blood pressure in mmHg
DIA. Diastolic blood pressure in mmHg
PUL./min. Pulse per minute
EC directive medical device label
WEEE label

5
Operation Mode
1. Normal Measurement With Storing Data ( Refer to page 9)
Press the START button. Blood pressure is measured and data is
stored within the device. The device can store the last ninety sets of data
in memory automatically.

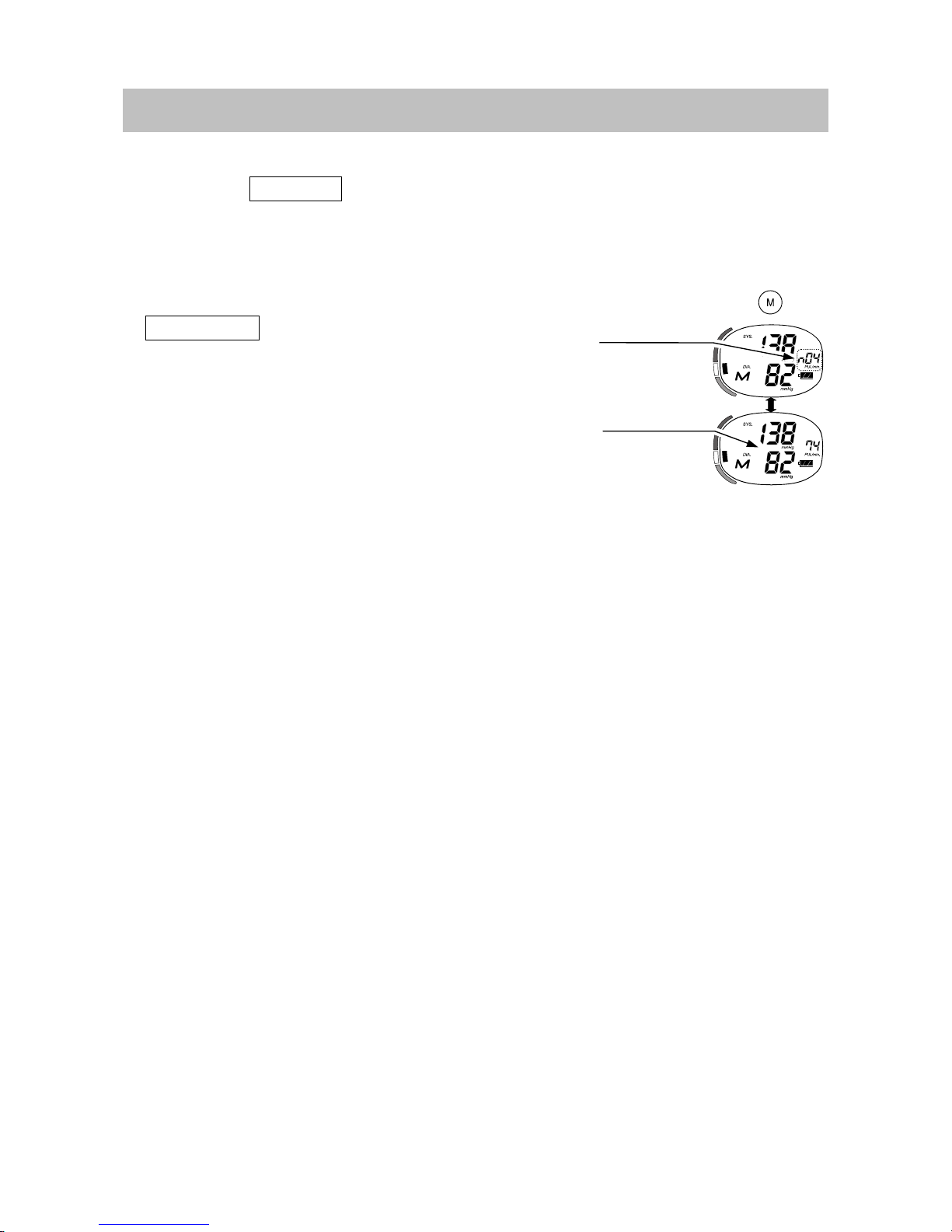

2. Recalling Data ( Refer to page 11)
When nothing is displayed, press the
MEMORY button to appear the data
number.
The data number of the most recent
measurement and the data are displayed.
Stored data are automatically displayed
in order from the last data.
3. Clearing Data ( Refer to page 11)
Remove batteries to clear all data.
Re-install them again.
4. Measurement With The Desired Systolic Pressure
Refer to page 10 for the measurement with the desired systolic pressure.
Data number
Press
Stored Data

6
Using the Monitor

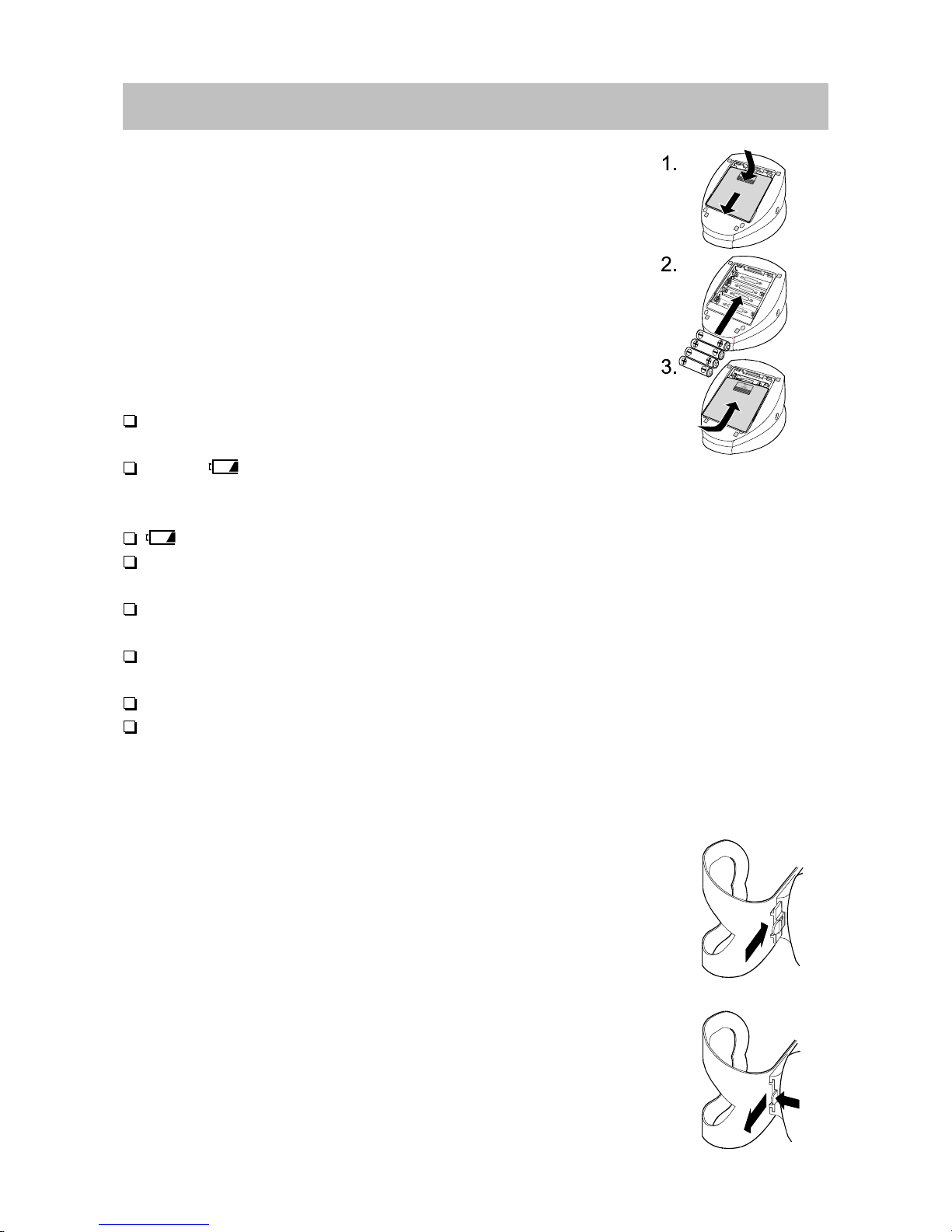

Installing / Changing The Batteries
1. Remove the battery cover.
2. Remove the used batteries and insert new batteries
into the battery compartment as shown, taking care
that the polarities (+) and (-) are correct.
3. Replace the battery cover.
Use only R6P, LR6 or AA batteries.
CAUTION
Insert the batteries as shown in the battery
compartment. If not, the device will not work.
When (LOW BATTERY mark) blinks on the display, replace all batteries
with new ones. Do not mix old and new batteries. It may shorten the battery
life, or cause the device to malfunction.
(LOW BATTERY mark) does not appear when the batteries are drained.
Battery life varies with the ambient temperature and may be shorter at low
temperatures.
Use the specified batteries only. The batteries provided with the device are
for testing monitor performance and may have a limited life.
Remove the batteries if the device is not to be used for a long time.
The batteries may leak and cause a malfunction.
The stored data are cleared when the batteries are removed.
When the AC adapter is used for measurement, memories are cleared
after pulling out the AC adapter.
Installing The Cuff Holder
This monitor comes equipped with a removable cuff holder for your convenience.
When not in use, simply slip your cuff into the holder for storage.
To install the cuff holder:
1. Align the cuff holder with the rear of the blood
pressure monitor.
2. Slide the cuff holder into the rear of the blood
pressure monitor until it snaps securely into place.
To remove the cuff holder:
1. Push the tab on the cuff holder away from the
blood pressure monitor.
2. Slide the cuff holder away from the blood
pressure monitor as shown.

7
Using the Monitor
Connecting The Air Hose
Insert the air connector plug into
the air socket firmly.
Connecting The AC Adapter
Insert the AC adapter plug into the DC jack.
Then, insert the AC adapter into an electrical
outlet.
The AC adapter, the model TB-233, is sold
separately.
Note: When the AC adapter is pulled out, the memories are cleared.
Selecting The Correct Cuff
Using the correct cuff size is important for an accurate reading. If the cuff is
not the proper size, the reading may yield an incorrect blood pressure value.
The arm size is printed on each cuff.
If your arm size is over 32 cm, the Large cuff is proper.
Arm Size Recommended Cuff Size Order No.
22 cm to 43 cm Large cuff UA-CUFUBKLA-EC
17 cm to 32 cm Medium cuff UA-CUFUBKAU-EC
－Small cuff －
Arm size: The circumference at the biceps.
Note: Model UA-782 is NOT designed for using a small cuff.
Attaching The Arm Cuff
1. Wrap the cuff around the upper arm,
about 2-3 cm above the elbow, as shown.
Place the cuff directly against the skin, as
clothing may cause a faint pulse, and
result in a measurement error.
2. Constriction of the upper arm, caused by
rolling up a shirtsleeve, may prevent
accurate readings.
Rolled up shirtsleeve
2 -3 cm
Constriction of the Upper Arm
A
ir Hose
Cuff
AC adapter Plug
DC Jack
A
ir Connector Plug
A
ir Hose
A
ir Socket

8
Using the Monitor
How To Take Proper Measurements
For the most accurate blood pressure
measurement:
Sit comfortably at as table.
Rest your arm on the table.
Relax before measurement.
Place the center of the cuff at the same height as your heart.
Remain still and keep quiet during measurement.
Do not measure right after physical exercise or a bath. Rest before taking
the measurement.
Try to measure your blood pressure at the same time every day.
Measurement
During measurement, it is normal for the cuff to feel very tight. (Do not be
alarmed)
After Measurement
After measurement, press the START button to turn off the power.
Remove the cuff and record your data.
Note: The device has an automatic power shut-off function, which turns the
power off approximately one minute after measurement.

9
Measurements
Model UA-782 is designed to detect the pulse and to inflate the cuff to a
systolic pressure level automatically.
If your systolic pressure is expected to exceed 230 mmHg, read
"Measurement With The Desired Systolic Pressure" on the next page.
Normal Measurement
1. Place the cuff on the arm (preferably the left arm).
Sit quietly during measurement.
2. Press the START button.
The average blood pressures and last data
number are displayed briefly.
Then the display changes, as indicated in
the figure at the right, as the measurement
begins. The cuff starts to inflate. It is
normal for the cuff to feel very tight.
A pressure bar indicator is displayed, as in
the figure at the right, during inflation.
Note: If you wish to stop inflation at any time,
press the START button again.
3. When inflation is complete, deflation starts
automatically and the (heart mark)
blinks, indicating that the measurement is
in progress. Once the pulse is detected,
the mark blinks with each pulse beat.
Note: If an appropriate pressure is not
obtained, the device starts to inflate
again automatically.
4. When the measurement is complete, the
systolic and diastolic pressure readings and
pulse rate are displayed. The cuff exhausts
the remaining air and deflates completely.
5. Press the START button again to turn
off the power.
Note: Model UA-782 is provided with an automatic power shut-off
function. Take a rest between measurements on the same person.
Data number
A
veraged data
Pressurizing
At heart level
Starts inflation
Measurement
in progress
Exhausts remaining
air automatically
START button
Pulse rate
Systolic pressure
Diastolic pressure
WHO classification

10
Measurements
Measurement With The Desired Systolic Pressure
If your systolic pressure is expected to exceed 230 mmHg,
use this procedure.
1. Place the cuff on the arm
(preferably the left arm).
2. Press and hold the START button until
a number about 30 to 40 mmHg higher
than your expected systolic pressure
appears.
3. Release the START button to start
measurement, when the desired number
is reached. Then continue to measure
your blood pressure as described on the
previous page.
Notes For Proper Measurement
Sit down in a comfortable position. Place the arm to be used for the
measurement on a table or other support so that the center of the cuff
will be at the same height as your heart.
Relax before taking a measurement. If you are excited or depressed by
emotional stress, the measurement will reflect this stress as a higher (or
lower) than normal blood pressure reading and the pulse reading will
usually be faster than normal.
An individual's blood pressure varies constantly, depending on what you
are doing and what you have eaten. What you drink can have a very
strong and rapid effect on your blood pressure.
This device bases its measurements on the heartbeat. If you have a very
weak or irregular heartbeat, the device may have difficulty determining
your blood pressure.
Should the device detect a condition that is abnormal, it will stop the
measurement and display an error symbol. Refer to page 4 for the
description of the symbols.
This device is intended for use by adults only. Consult with your
physician before using this device on a child. A child should not use this
device unattended.
A
t heart level
Inflation in progress
Refer to the previous page for
measurement
Release the button when
stopping inflation and
starting measurement.
Press and hold
Last data numbe
r
Press and hold

11
About Memory
The device automatically stores up to ninety blood pressure and pulse
measurements in memory. Data stored in memory are assigned a data
number in the order of the newest to the oldest. The oldest data displays
as "n01". The M symbol in the lower left corner of the display indicates
that you are viewing previous data stored in memory.
Recalling Data
1. When nothing is displayed, press the MEMORY
button.
The data number of the most recent measurement
and the data are displayed.
2. If you want to see the previous data, press the
MEMORY button until getting the data you want.
3. The display will shut off automatically one minute after
you press the MEMORY button.
Note: If press the START button when recalling data,
the display shuts off.
Clearing Data
To clear all data stored in memory:
Press and hold the MEMORY button until the
“M”(memory) mark blinks three times.
Remove the batteries and press the START or
the MEMORY button.
Re-install them again.
If there is no stored data in the memory, "--" will appear.
Press
Press and hold

12
What Is An Irregular Heartbeat
Model UA-782 provides a blood pressure and pulse rate measurement
even when an irregular heartbeat occurs. An irregular heartbeat is
defined as a heartbeat that varies by 25% from the average of all
heartbeats during the blood pressure measurement. It is important that
you be relaxed, remain still and do not talk during measurements.
Note: We recommend contacting your physician if you see this
indicator frequently.
Pressure Bar Indicator
The indicator monitors the progress of pressure during measurement.
WHO Classification Indicator
Each six segments of the bar indicator
correspond to the WHO blood pressure
classification described on the next page.
The indicator displays a segment, based
on the current data, corresponding to the
WHO classification.
:
WHO Classification Indicator
Severe hypertension
Moderate hypertension
Mild hypertension
High normal
Normal
Optimal
Example:
Moderate hypertension
Mild hypertension
Hi
g
h normal
Pressurizing Releasing air
Inflation in progress Inflation complete
Measurement in progress

13
About Blood Pressure
What Is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the
arteries. Systolic pressure occurs when the heart contracts. Diastolic
pressure occurs when the heart expands. Blood pressure is measured in
millimeters of mercury (mmHg). One's natural blood pressure is
represented by the fundamental pressure, which is measured first thing
in the morning while one is still at rest and before eating.
What Is Hypertension And How Is It Controlled?
Hypertension, an abnormally high arterial blood pressure, if left
unattended, can cause many health problems including stroke and heart
attack. Hypertension can be controlled by altering lifestyle, avoiding
stress, and with medication under a doctor’s supervision.
To prevent hypertension or keep it under control:
Do not smoke Exercise regularly
Reduce salt and fat intake Have regular physical checkups
Maintain proper weight
Why Measure Blood Pressure At Home?
Blood pressure measured at a clinic or doctor's office may cause
apprehension and can produce an elevated reading, 25 to 30 mmHg higher
than that measured at home. Home measurement reduces the effects of
outside influences on blood pressure readings, supplements the doctor's
readings and provides a more accurate, complete blood pressure history.
WHO Blood Pressure Classification
Standards to assess high blood
pressure, without regard to age,
have been established by the
World Health Organization
(WHO), as shown in the chart.
Blood Pressure Variations
An individual’s blood pressure
varies greatly on a daily and
seasonal basis. It may vary by
30 to 50 mmHg due to various
conditions during the day. In hypertensive individuals’ variations are
even more pronounced. Normally, the blood pressure rises while at work
or play and falls to its lowest levels during sleep. So, do not be overly
concerned by the results of one measurement.
Take measurements at the same time every day using the procedure

14
described in this manual to get to know your
normal blood pressure.
Regular readings give a more comprehensive
blood pressure history. Be sure to note date
and time when recording your blood pressure.
Consult your doctor to interpret your blood
pressure data.
Troubleshooting
Problem Possible Reason Recommended Action
Batteries are drained. Replace all batteries with new
ones.
Nothing appears
on the display,
even when the
power is turned
on. Battery terminals are not
in the correct position.
Reinstall the batteries with
negative and positive terminals
matching those indicated on the
battery compartment.
The cuff does
not inflate.
Battery voltage is too low.
(LOW BATTERY mark)
blinks. [ If the batteries
are drained completely,
the mark does not
appear.]
Replace all batteries with new
ones.
The cuff is not fastened
properly. Fasten the cuff correctly.
You moved your arm or
body during the
measurement.
Make sure you remain very still
and quiet during the
measurement.
The cuff position is not
correct. Sit comfortably and still.
Raise your hand so that the cuff
is at the same level as your heart.
The device does
not measure.
Readings are
too high or too
low.
If you have a very weak or
irregular heat beat, the device
may have difficulty in determining
your blood pressure.
The value is different
from that measured at a
clinic or doctor’s office. Refer to “Why Measure Blood
Pressure At Home"
Other Remove the batteries.
Place them back properly and
try the measurement again.
Note: If the actions described above do not solve the problem, contact the
dealer. Do not attempt to open or repair this product, as any attempt to
do so will make your warranty invalid.

15
Maintenance
Do not open the device. It uses delicate electrical components and an
intricate air unit that could be damaged. If you cannot fix the problem
using the troubleshooting instructions, request service from your dealer
or from the A&D service group. The A&D service group will provide
technical information, spare parts and units to authorized dealers.
The device was designed and manufactured for a long service life.
However it is generally recommended to have the device inspected every
2 years, to ensure proper functioning and accuracy. Please contact
either your authorized dealer or A&D for maintenance.
Technical Data
Type UA-782
Measurement method Oscillometric measurement
Measurement range Pressure: 20 - 280 mmHg
Pulse: 40 - 180 beats / minute
Measurement accuracy Pressure: ±3 mmHg or 2%, whichever is greater
Pulse: ±5%
Power supply 4 x 1.5V batteries (R6P, LR6 or AA)
or AC adapter (TB-233) (Not included)
Classification Type BF
Clinical test According to ANSI / AAMI SP-10 1987
EMC IEC 60601-1-2: 2001
Memory Last 90 measurements
Operating condition +10°C to +40°C / 30%RH to 85 %RH
Storage condition -10°C to +60°C / 30%RH to 95 %RH
Dimensions Approx. 116 [W] x 88.5 [H] x 146.5 [D] mm
Weight Approx. 320 g, excluding the batteries
Accessory AC adapter The adapter is to connect the blood pressure
monitor to a power source at home.
TB-233 Please contact your local A&D dealer for
purchasing.
Note: Specifications are subject to change without prior notice.

MEMO

1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN
Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119
A&D INSTRUMENTS LTD.
<Authorized Representative Established in the European Community>
Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom
Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485
A&D MERCURY PTY. LTD.
32 Dew Street, Thebarton, South Australia 5031 AUSTRALIA
Telephone: [61] (8) 8301-8100 Fax: [61] (8) 8352-7409
