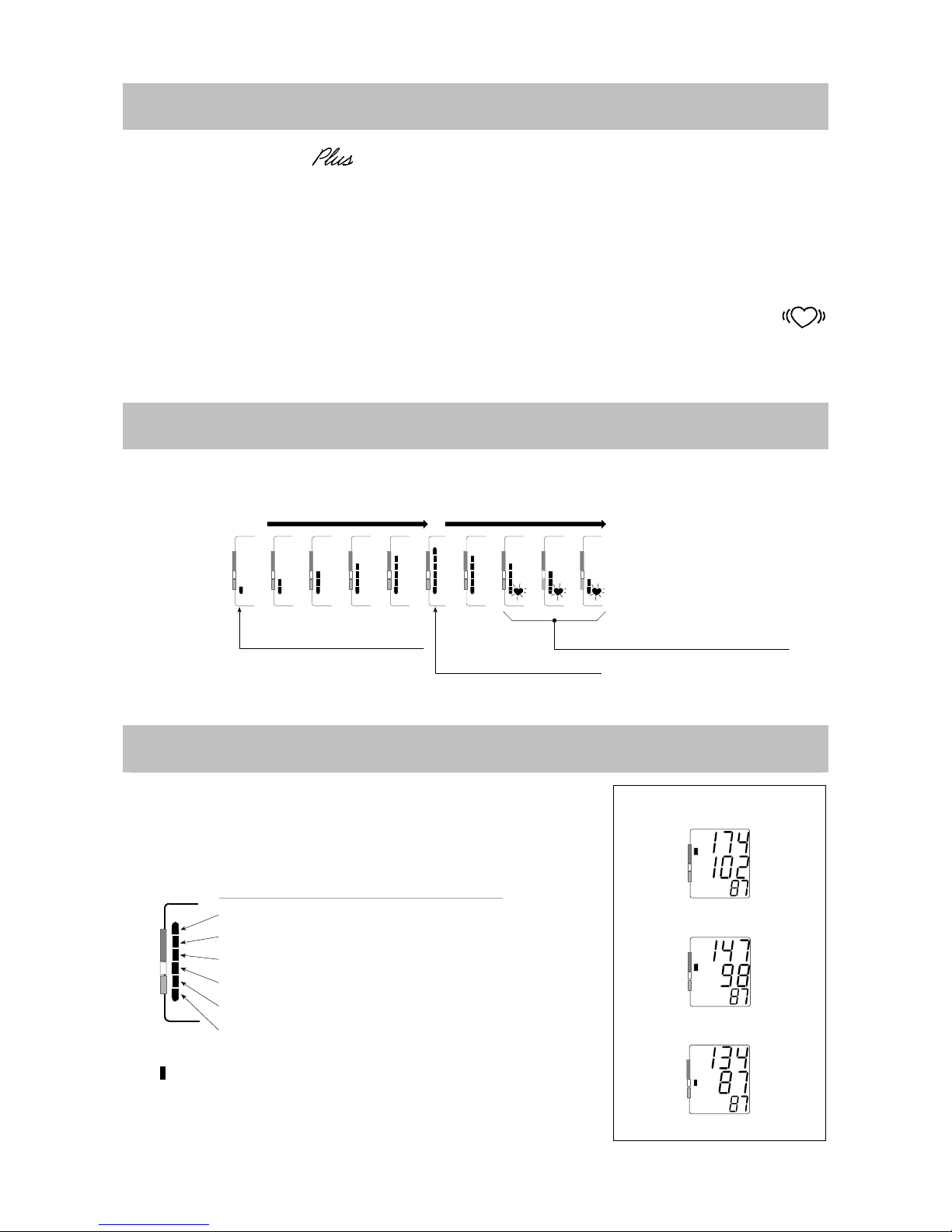

What Is An Irregular Heartbeat ............................................ 10
Pressure Bar Indicator ......................................................... 10
WHO Classification Indicator ............................................... 10
About Blood Pressure.......................................................... 11
What Is Blood Pressure? ................................................. 11
What Is Hypertension And How Is It Controlled? ............. 11
Why Measure Blood Pressure At Home? .......................... 11

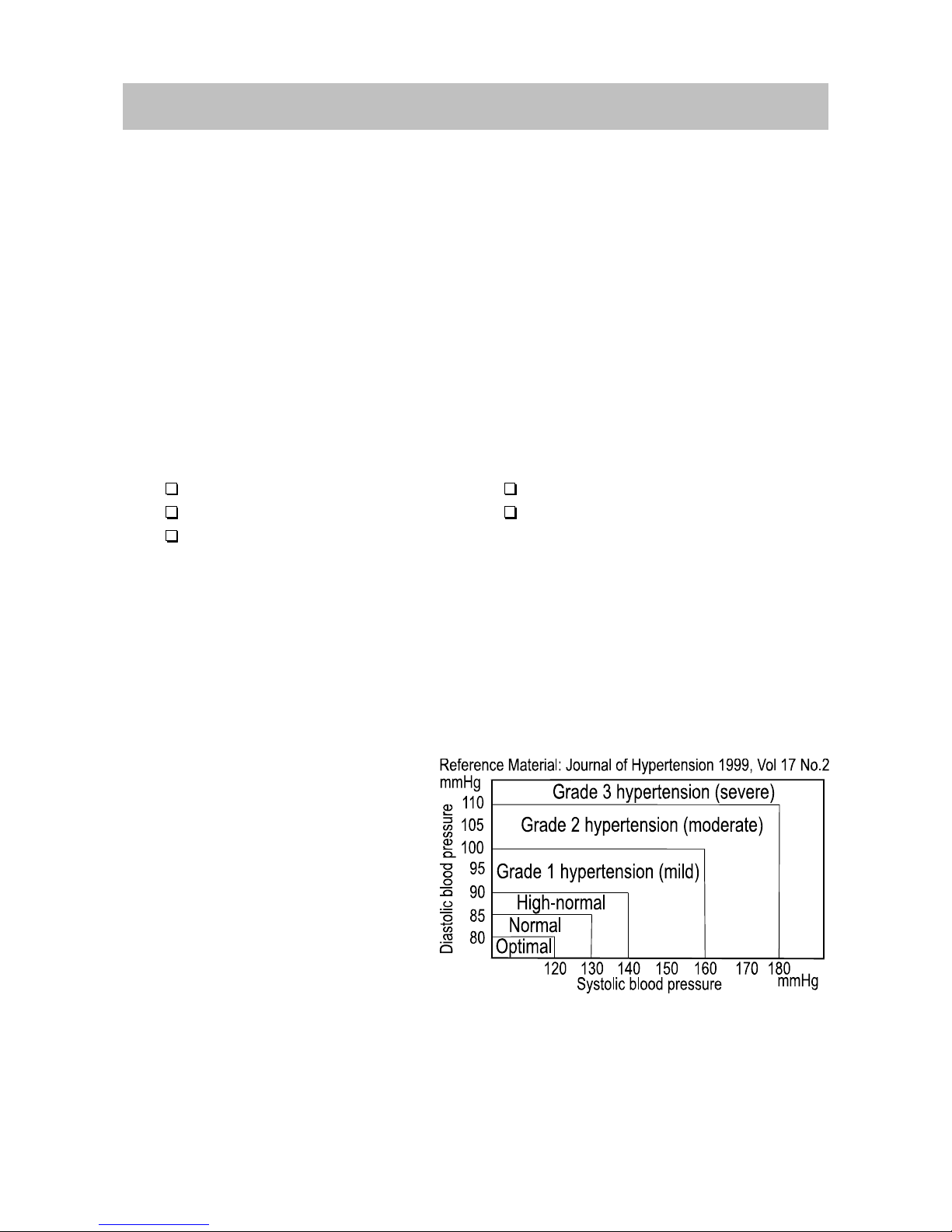

WHO Blood Pressure Classification ................................. 11
Blood Pressure Variations............................................... 11
Troubleshooting ................................................................. 12
Maintenance ....................................................................... 13
Technical Data.................................................................... 13

English 2
Dear Customers
Congratulations on purchasing a state-of-the-art A&D blood pressure
monitor, one of the most advanced monitors available today. Designed
for ease of use and accuracy, this monitor will facilitate your daily blood
pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time.
Preliminary Remarks
This device conforms to the European Directive 93/42 EEC for Medical
Products. This is made evident by the mark of conformity.
(0366: The reference number to the involved notified body)
The device is designed for use on adults only, not newborns or infants.
Environment for use
The device is for use indoors.
Precautions
Precision components are used in the construction of this device.
Extremes in temperature, humidity, direct sunlight, shock or dust should
be avoided.
Clean the device with a soft, dry cloth. Never use thinner, alcohol,
benzine, or wet cloth.
Avoid tightly folding the cuff or storing the hose tightly twisted for long
periods, as such treatment may shorten the life of the components.
The device and cuff are not water resistant. Prevent rain, sweat and
water from soiling the device and cuff.
Measurements may be distorted if the device is used close to televisions,
microwave ovens, cellular telephones, X-ray or other devices with strong
electrical fields.
Used equipment, parts and batteries are not treated as ordinary
household waste, and must be disposed of according to the applicable
local regulations.

English 3
Parts Identification
Battery Cover
1.5V Batteries
(R6P, LR6 or AA)
Battery Compartment
Display
Air Connector Plug
Air Socket
Arm Cuff
DC Jack
START button
(Orange illumination)
Air Hose
Part of Display
Pressure Bar Indicator
and
WHO Classification Indicator
MEMORY Systolic Pressure
Diastolic Pressure
Pulse Rate
Battery Indicator
I.H.B. Indicator (Irregular heartbeat indicator) Heart Mark
Proper Fit Range
Index Mark

English 4

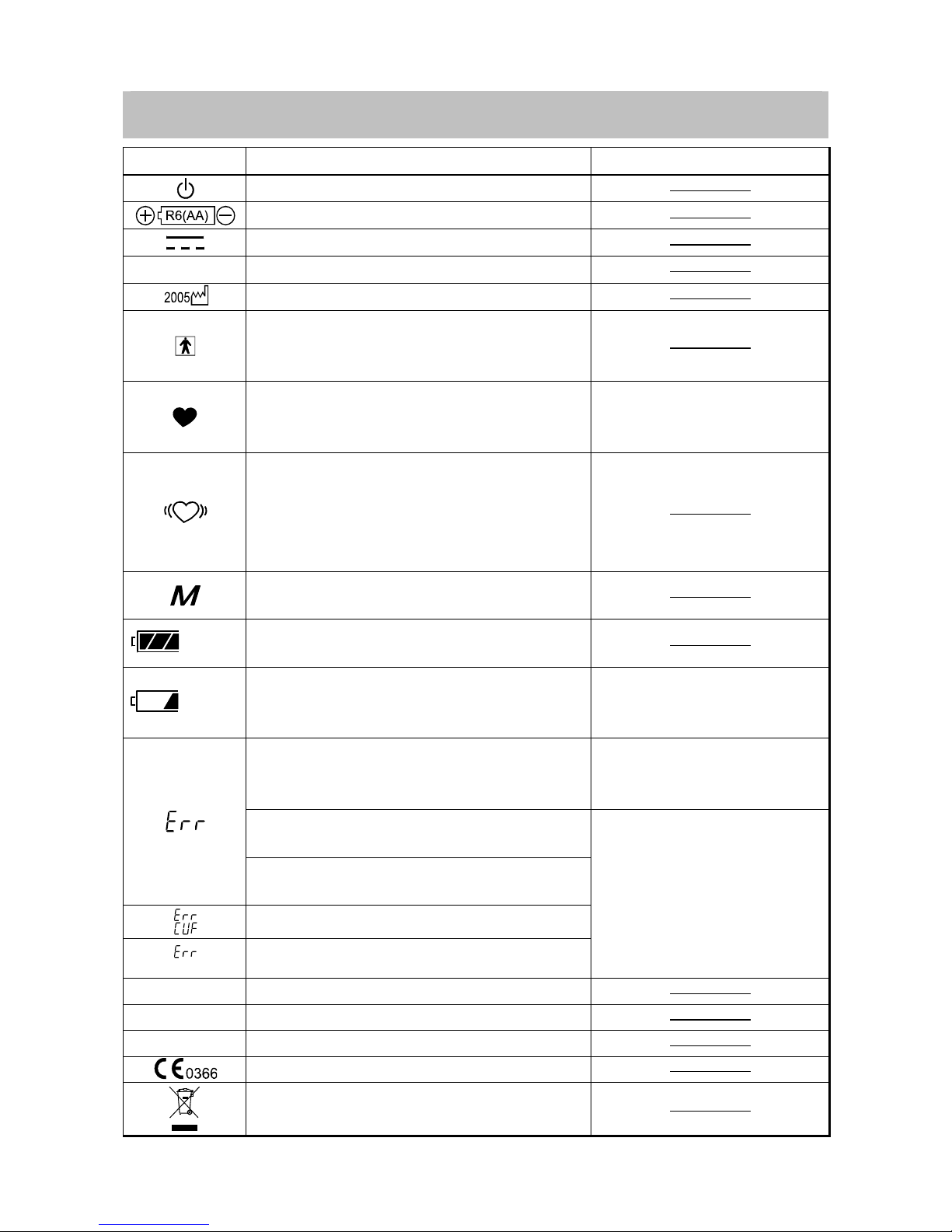

Symbols
Symbols Function / Meaning Recommended Action
Standby and Turn the device on.
Battery installation guide
Direct current
SN Serial number
Date of manufacture
Type BF: Device, cuff and tubing are
designed to provide special protection
against electrical shocks.
The indicator that appears while
measurement is in progress. It blinks
when the pulse is detected.
Measurement is in
progress. Remain as still
as possible.
Irregular Heartbeat indicator. (I.H.B.)
The indicator that appears when an
irregular heartbeat or any excessive
body movement is detected during
the measurement.
Previous measurements stored in
MEMORY.
Full Battery The battery power indicator during
measurement.
Low Battery The battery is low when it blinks.
Replace all batteries with
new ones, when the
indicator blinks.
Unstable blood pressure due to
movement during the measurement.
Try the measurement
again. Remain very still
during the measurement.
The systolic and diastolic values are
within 10 mmHg of each other.
The pressure value did not increase
during inflation.
The cuff is not fastened correctly.
PUL. DISPLAY ERROR
The pulse is not detected correctly.
Fasten the cuff correctly,
and try the measurement
again.
SYS Systolic blood pressure in mmHg
DIA Diastolic blood pressure in mmHg.
PUL./min Pulse per minute
EC directive medical device label
WEEE label

English 5
Operation Mode
1. Normal Measurement With Storing Data ( Refer to page 8)
Press the START button. Blood pressure is measured and data is stored
within the device. The device can store the last thirty sets of data in
memory automatically.
2. Recalling The Data
Press and hold the START button to recall the
data. The stored data are automatically displayed
in order from the last data.
The device can store the last thirty sets of data
in memory automatically.
3. Clearing The Data
Remove the batteries to clear all data. Re-install them
again.
4. Measurement With The Desired Systolic Pressure
Refer to page 9 for the measurement with a desired systolic pressure.
Press and hold
Data number
Stored Data
Alternation

English 6
Using the Monitor
Installing / Changing The Batteries
1. Slide the battery cover up to open it.
2. Remove the used batteries and insert
new batteries into the battery
compartment as shown, taking care that
the polarities (+) and (-) are correct.
3. Slide the battery cover down to close it.
Use only R6P, LR6 or AA batteries.
CAUTION
Insert the batteries as shown in the battery compartment. If not, the device will not work.
When (LOW BATTERY mark) blinks on the display, replace all batteries with
new ones. Do not mix old and new batteries. It may shorten the battery life, or
cause the device to malfunction.
(LOW BATTERY mark) does not appear when the batteries are drained.
Battery life varies with the ambient temperature and may be shorter at low
temperatures.
Use the specified batteries only. The batteries provided with the device are for
testing monitor performance and may have a limited life.
Remove the batteries if the device is not to be used for a long time.
The batteries may leak and cause a malfunction.
The stored data are cleared when the batteries are removed.
Connecting The Air Hose
Insert the air connector plug into
the air socket firmly.
Selecting The Correct Cuff
Using the correct cuff size is important for an accurate reading. If the cuff is not
the proper size, the reading may yield an incorrect blood pressure value.
The arm size is printed on each cuff.
The index and proper fit range, on the cuff, tell you if you are attaching the
correct cuff. (Refer to "Attaching The Arm Cuff" on the next page)
If the index points outside of the range, contact your local dealer to purchase a
replacement cuff.
Arm Size Recommended Cuff Size Order No.
32 cm to 45 cm Large cuff UA-CUFDBKLA-EC
22 cm to 32 cm Medium cuff UA-CUFDBKAU-EC
－Small cuff －
Arm size: The circumference at the biceps.
Note: This UA-767 30 monitor is NOT designed for using a small cuff.
A
ir Connector Plug
A
ir Socket
A
ir Hose
Step 1
Step 3
Step 2

English 7
Using the Monitor
Attaching The Arm Cuff
1. Wrap the cuff around the upper arm,
about 2 - 3 cm above the elbow, as
shown. Place the cuff directly against
the skin, as clothing may cause a faint
pulse and result in a measurement
error.
2. Constriction of the upper arm, caused
by rolling up a shirtsleeve, may prevent
accurate readings.
3. Confirm that the index points within
the proper fit range.
How To Take Proper Measurements
For the most accurate blood pressure
measurement:
Sit comfortably at a table.
Rest your arm on the table.
Relax for about five to ten minutes
before measurement.
Place the center of the cuff at the same height as your heart.
Remain still and keep quiet during measurement.
Do not measure right after physical exercise or a bath. Rest for twenty or
thirty minutes before taking the measurement.
Try to measure your blood pressure at the same time every day.
Measurement
During measurement, it is normal for the cuff to feel very tight. (Do not be
alarmed)
After Measurement
After measurement, press the START button to turn off the power.
Remove the cuff and record your data.
Note: The device has an automatic power shut-off function, which turns the
power off approximately one minute after measurement.
Allow at least ten minutes between measurements on the same person.
Rolled up shirtsleeve
2 -3 cm
Constriction of the Upper Arm
A
ir Hose
Cuff
Inde
x
and Proper fit range

English 8
Measurements
Model UA-767 30 is designed to detect the pulse and to inflate the
cuff to a systolic pressure level automatically.
If your systolic pressure is expected to exceed 230 mmHg, read
"Measurement With The Desired Systolic Pressure" on the next page.

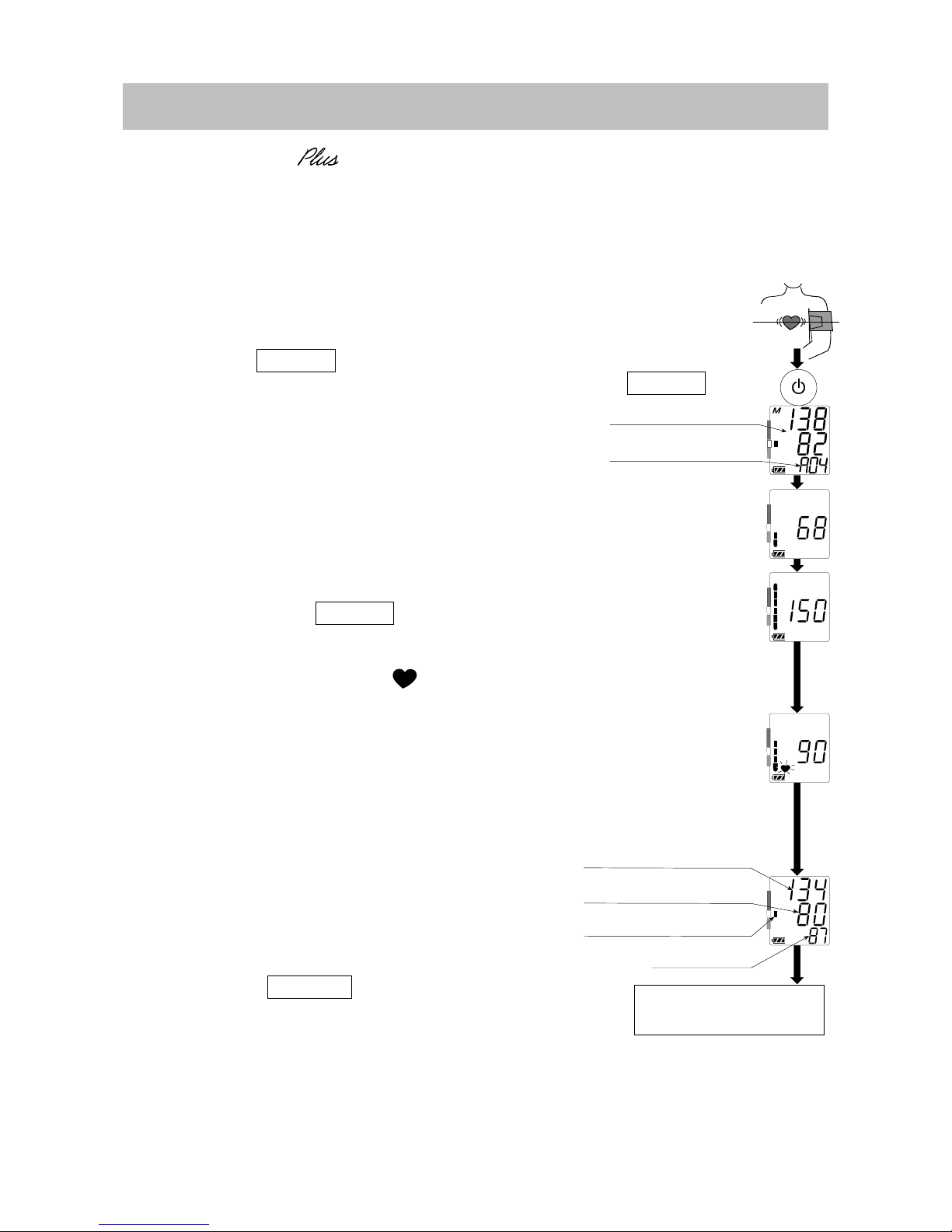

Normal Measurement
1. Place the cuff on the arm (preferably the left arm).
Sit quietly during measurement.
2. Press the START button.
The average blood pressures and last data
number are displayed briefly. Then the
display changes, as indicated in the figure
at the right, as the measurement begins.
The cuff starts to inflate. It is normal for the
cuff to feel very tight. A pressure bar
indicator is displayed, as in the figure at
the right, during inflation.
Note: If you wish to stop inflation at any time,
press the START button again.
3. When inflation is complete, deflation starts
automatically and the (heart mark)
blinks, indicating that the measurement is
in progress. Once the pulse is detected,
the mark blinks with each pulse beat.
Note: If an appropriate pressure is not
obtained, the device starts to inflate
again automatically.
4. When the measurement is complete, the
systolic and diastolic pressure readings and
pulse rate are displayed. The cuff exhausts
the remaining air and deflates completely.
5. Press the START button again to turn
off the power.
Note: The device has an automatic power shut-off function, which turns the
power off approximately one minute after measurement. Allow at
least ten minutes between measurements on the same person
At heart level
Starts inflation
Pressurizing
Measurement
in progress
Systolic pressure
Diastolic pressure
WHO classification
Pulse rate
Exhausts remaining
air automatically
START button
A
veraged data
Data number

English 9
Measurements
Measurement With The Desired Systolic Pressure
If your systolic pressure is expected to exceed 230 mmHg, use this
procedure.
1. Place the cuff on the arm (preferably the left arm).
2. Press and hold the START button.
Release the button when the average
of all the data in memory is displayed.
Press and hold the START button
again until a number about 30 to 40
mmHg higher than your expected
systolic pressure appears.
3. Release the START button to start
measurement, when the desired
number is reached. Then continue to
measure your blood pressure as
described on the previous page.
Notes For Proper Measurement
Sit down in a comfortable position. Place the
arm to be used for the measurement on a
table or other support so that the center of the
cuff will be at the same height as your heart.
Relax for about five or ten minutes before taking a measurement. If you
are excited or depressed by emotional stress, the measurement will
reflect this stress as a higher (or lower) than normal blood pressure
reading and the pulse reading will usually be faster than normal.
An individual's blood pressure varies constantly, depending on what you
are doing and what you have eaten. What you drink can have a very
strong and rapid effect on your blood pressure.
This device bases its measurements on the heartbeat. If you have a very
weak or irregular heartbeat, the device may have difficulty determining
your blood pressure.
Should the device detect a condition that is abnormal, it will stop the
measurement and display an error symbol. Refer to page 4 for the
description of the symbols.
This blood pressure monitor is intended for use by adults only. Consult
with your physician before using this device on a child. A child should not
use this device unattended.
Refer to the previous page
for measurement
Press and hold the button
At heart level
Release the button
at the desired
systolic pressure
Press and hold the button
Release the button
when the average
is displayed.
Starts inflation

English 10
Example:
Moderate hypertension
Mild hypertension
High normal
What Is An Irregular Heartbeat
Model UA-767 30 blood pressure monitor provides a blood
pressure and pulse rate measurement even when an irregular heartbeat
occurs. An irregular heartbeat is defined as a heartbeat that varies by
25% from the average of all heartbeats during the blood pressure
measurement. It is important that you be relaxed, remain still and do not
talk during measurements.
Note: We recommend contacting your physician if you see this
indicator frequently.
Pressure Bar Indicator
The indicator monitors the progress of pressure during measurement.
WHO Classification Indicator
Each segment of the bar indicator
correspond to the WHO blood pressure
classification described on the next page.
Inflation complete
Pressurizing
Inflation in progress Measurement in progress
Releasing air
WHO Classification Indicator
Severe hypertension
Moderate hypertension
Mild hypertension
High normal
Normal
Optimal
The indicator displays a segment, based
on the current data, corresponding to the
WHO classification.
:

English 11
About Blood Pressure
What Is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the arteries.
Systolic pressure occurs when the heart contracts. Diastolic pressure occurs
when the heart expands. Blood pressure is measured in millimeters of
mercury (mmHg). One's natural blood pressure is represented by the
fundamental pressure, which is measured first thing in the morning while one
is still at rest and before eating.
What Is Hypertension And How Is It Controlled?
Hypertension, an abnormally high arterial blood pressure, if left unattended,
can cause many health problems including stroke and heart attack.
Hypertension can be controlled by altering lifestyle, avoiding stress, and with
medication under a doctor’s supervision.
To prevent hypertension or keep it under control:
Do not smoke Exercise regularly
Reduce salt and fat intake Have regular physical checkups
Maintain proper weight
Why Measure Blood Pressure At Home?
Blood pressure measured at a clinic or doctor's office may cause
apprehension and can produce an elevated reading, 25 to 30 mmHg higher
than that measured at home. Home measurement reduces the effects of
outside influences on blood pressure readings, supplements the doctor's
readings and provides a more accurate, complete blood pressure history.
WHO Blood Pressure Classification
Standards to assess high
blood pressure, without
regard to age, have been
established by the World
Health Organization (WHO),
as shown in the chart.
Blood Pressure Variations
An individual’s blood pressure
varies greatly on a daily and
seasonal basis. It may vary by
30 to 50 mmHg due to various conditions during the day. In hypertensive
individuals, variations are even more pronounced. Normally, the blood
pressure rises while at work or play and falls to its lowest levels during sleep.
So, do not be overly concerned by the results of one measurement.
Take measurements at the same time every day using the procedure

English 12
described in this manual to get to know
your normal blood pressure. Regular
readings give a more comprehensive blood
pressure history. Be sure to note date and
time when recording your blood pressure.
Consult your doctor to interpret your blood
pressure data.
Troubleshooting
Problem Possible Reason Recommended Action
Batteries are drained. Replace all batteries with new
ones.
Nothing
appears on the
display, even
when the power
is turned on.
Battery terminals are not
in the correct position.
Reinstall the batteries with
negative and positive terminals
matching those indicated on the
battery compartment.
The cuff does
not inflate.
Battery voltage is too low.
(LOW BATTERY mark)
blinks.
[ If the batteries are
drained completely, the
mark does not appear.]
Replace all batteries with new
ones.
The cuff is not fastened
properly. Fasten the cuff correctly.
You moved your arm or
body during the
measurement.
Make sure you remain very still
and quiet during the
measurement.
The cuff position is not
correct.
Sit comfortably and still.
Raise your hand so that the cuff
is at the same level as your heart.
The unit does
not measure.
Readings are
too high or too
low.
If you have a very weak or
irregular heat beat, the device
may have difficulty in determining
your blood pressure.
The value is different
from that measured at a
clinic or doctor’s office.
Refer to “Why measure blood
pressure at home”.
Other
Remove the batteries. Place
them back properly and try the
measurement again.
Note: If the actions described above do not solve the problem, contact the
dealer. Do not attempt to open or repair this product, as any attempt to
do so will make your warranty invalid.

English 13
Maintenance
Do not open the device. It uses delicate electrical components and an
intricate air unit that could be damaged. If you cannot fix the problem
using the troubleshooting instructions, request service from your dealer
or from the A&D service group. The A&D service group will provide
technical information, spare parts and units to authorized dealers.
The device was designed and manufactured for a long service life.
However it is generally recommended to have the monitor inspected
every 2 years, to ensure proper functioning and accuracy. Please contact
either your authorized dealer or A&D for maintenance.
Technical Data
Type UA-767 30
Measurement method Oscillometric measurement
Measurement range Pressure: 20 - 280 mmHg
Pulse: 40 - 200 beats / minute
Measurement accuracy Pressure: ±3 mmHg or 2%, whichever is greater
Pulse: ±5%
Power supply 4 x 1.5V batteries (R6P, LR6 or AA)
Classification Type BF
Clinical test According to ANSI / AAMI SP-10 1987
EMC IEC 60601-1-2: 2001
Memory Last 30 measurements
Operating condition +10°C to +40°C / 30%RH to 85 %RH
Storage condition -10°C to +60°C / 30%RH to 85 %RH
Dimensions Approx. 147 [W] x 64 [H] x 110 [D] mm
Weight Approx. 300 g, excluding the batteries
Note: Specifications are subject to change without prior notice.

English 14
MEMO
