PREMIUM WIRELESS
BLOOD PRESSURE MONITOR
UPPER ARM
UA-1200CNBLE
Instruction Manual

GREETINGS
This A&D blood pressure monitor is one of the most
advanced monitors available and is designed for ease of
use and accuracy. This device will facilitate your daily blood
pressure regimen.
We recommend that you read through this manual carefully
before using the device for the rst time.
The Bluetooth®word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by A&D is under license. Other trademarks and
trade names are those of their respective owners.
INTENDED USE
UA-1200CNBLE UltraConnect wireless blood pressure
monitor is designed for adult at home or clinic use. It
measures systolic, diastolic, and pulse rate. It uses the
oscillometric method to determine blood pressure. If the user
has a massive body movement or irregular heartbeats, a
heart symbol will be shown on the app display. The device
has Bluetooth®low energy wireless (BLE) communication
capability with Smart devices. It ts arm size from 22 to 42
cm.

PRELIMINARY REMARKS
• This device complies with part 15 of the FCC rules and
contains the FCC ID VPYLBZY.
• This device is designed for use on adults only, and is not
intended for infants.
• This device is designed for use in the home healthcare
environment to measure blood pressure and pulse rate of
people for diagnosis.
PRECAUTIONS
• Precision components are used in the construction of this
device. Extremes in temperature, humidity, direct sunlight,
shock or dust should be avoided.
• Clean the device and cu󰀨 with a dry, soft cloth or a cloth
dampened with water and a neutral detergent. Never use
alcohol, benzene, thinner or other harsh chemicals to clean
the device or cu󰀨.
• The device and cu󰀨 are not water resistant. Prevent rain,
sweat and water from soiling the device and cu󰀨.
• Measurements may be distorted if the device is used close
to televisions, microwave ovens, X-ray or other devices with
strong electrical elds.
• When using the device, conrm that it is clean.
• Used equipment, parts and batteries are not treated as
ordinary household waste, and must be disposed of according
to the applicable local regulations.
• Do not modify the device. It may cause accidents or
damage to the device.

PRECAUTIONS
• To measure blood pressure, the arm must be squeezed by
the cu󰀨 hard enough to temporarily stop blood ow through
the artery. This may cause pain, numbness or a temporary
red mark to the arm. This condition will appear especially
when measurement is repeated successively. Any pain,
numbness, or red marks will disappear with time.
• If you feel strong pain during the measurement, please
remove the cu󰀨.
• Measuring blood pressure too frequently may cause harm
due to blood ow interference.
• Do not apply the cu󰀨 on a arm in which another medical
device is attached. The equipment may not function properly.
• People who have a severe circulatory decit in the arm
must consult a doctor before using the device, to avoid
medical problems.
• Do not self-diagnose the measurement results and
start treatment by yourself. Always consult your doctor for
evaluation of the results and treatment.
• Do not apply the cu󰀨 on a arm with an unhealed wound.
• Do not apply the cu󰀨 on a arm receiving an intravenous
drip or blood transfusion. It may cause injury.
• Do not use the device where ammable gases, such as
anesthetic gases, are present. It may cause an explosion.
• Do not use the device in highly concentrated oxygen
environments, such as a high-pressure oxygen chamber or an
oxygen tent. It may cause a re or explosion.

PRECAUTIONS
• This device complies with Part 15 of FCC rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operations.
• When the AC adapter is used, make sure that it can be
readily removed from the electrical outlet when necessary.
• Sometimes, the temperature of the cu󰀨 will be about 50°C.
If you feel hot, please remove the cu󰀨.
• Please do not simultaneous use HF surgical equipment.
• Clinical testing has not conducted on pregnant women.
• If you have had a mastectomy, please consult a doctor
before using the device.
• Do not let children use the device by themselves and do
not leave the device within the reach of children.
• There are small parts that my cause a chocking hazard if
swallowed by mistake by infants.
• Do not touch the batteries and the patient at the same
time. That may result in electrical shock.
• Wireless communication devices, such as home
networking devices, mobile phones, cordless phones and
their base stations, walkie-talkies can a󰀨ect this blood
pressure monitor. Therefore, a minimum distance of
3.3 meters/10.8 feet should be kept from such devices.

TABLE OF CONTENTS
Parts Identication E-7
Contents E-7
Symbols E-8
Using the Monitor E-11
Measurement E-17
What is an Irregular Heartbeat E-21
Pressure Bar Indicator E-22
Settings E-23
Troubleshooting E-25
Maintenance E-26
Technical Data E-27
Contact Information E-29
Warranty E-30

E-7

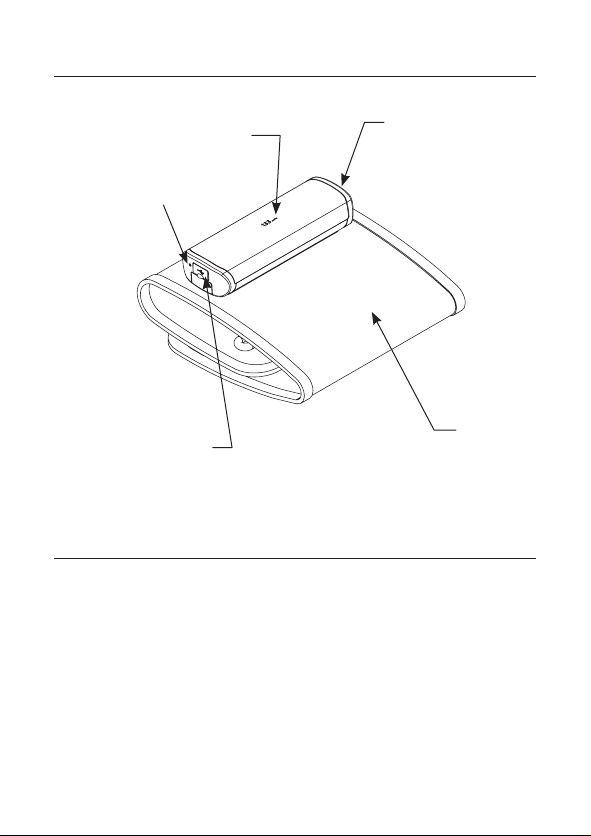

PARTS IDENTIFICATION
CONTENTS
• UA-1200CNBLE UltraConnect Blood Pressure Monitor
• 1 Instruction Manual
• 1 Quick Start Guide
• 1 Charging Cable
Start Switch
Reset Switch
USB Connector
OLED
Cu󰀨

E-8

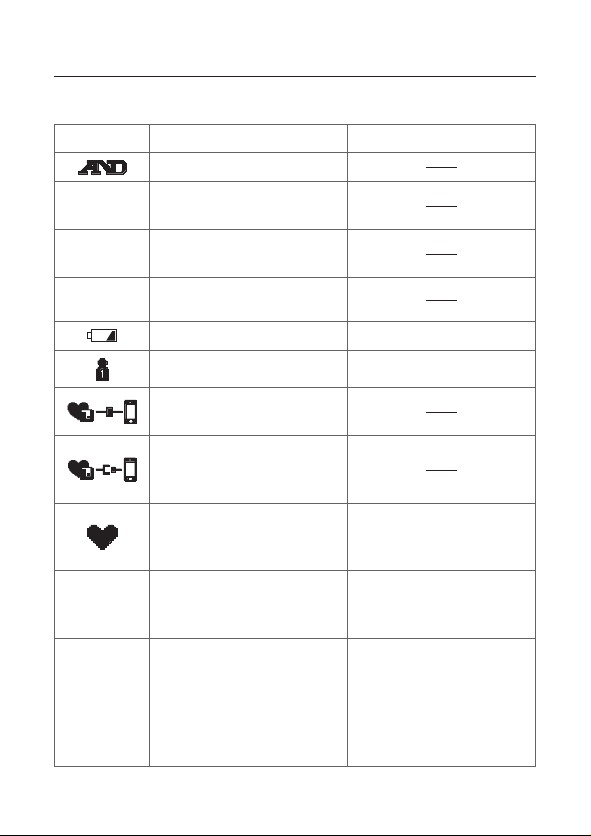

SYMBOLS
Symbols that appear on the display
Symbols Function/Meaning Recommended Action
A&D logo
SYS
mmHg
Systolic blood pressure
in mmHg
DIA
mmHg
Diastolic blood pressure
in mmHg
PUL
/min Pulse per minute
The battery power is low Charge the device
User Select mode Select the user
Application is connected
with the device
Application has
disconnected from
the device.
Appears while
measurement is in
progress.
Measurement is in
progress. Remain as
still as possible.
PUL
E
/min
The pulse is not detected
correctly.
Apply the cu󰀨 correctly,
and take another
measurement.
Err 1
Unstable blood pressure
due to movement during
measurement. The systolic
and diastolic values
are within 10 mmHg
of each other.
Take another
measurement.
Remain still during
measurement.

E-9
Symbols Function/Meaning Recommended Action
Err 3
The pressure value
did not increase during
ination. The cu󰀨 is not
applied correctly.
Apply the cu󰀨 correctly,
and take another
measurement.
Err 9
Blood pressure monitor
internal error.
Press the reset button.
After reset, clock data
will disappear. If the
error still appears,
contact A&D Medical.
Data is transferring
Airplane mode Measurements can be
taken but device will not
transmit data wirelessly.
Appears when a body
or arm movement is
detected.
The reading may yield
an incorrect value. Take
another measurement.
Remain still during
measurement.
Appears during
measurement when the
cu󰀨 is attached loosely.
The reading may yield
an incorrect value.
Apply the cu󰀨 correctly,
and take another
measurement.
Firmware is updating
SYMBOLS

E-10

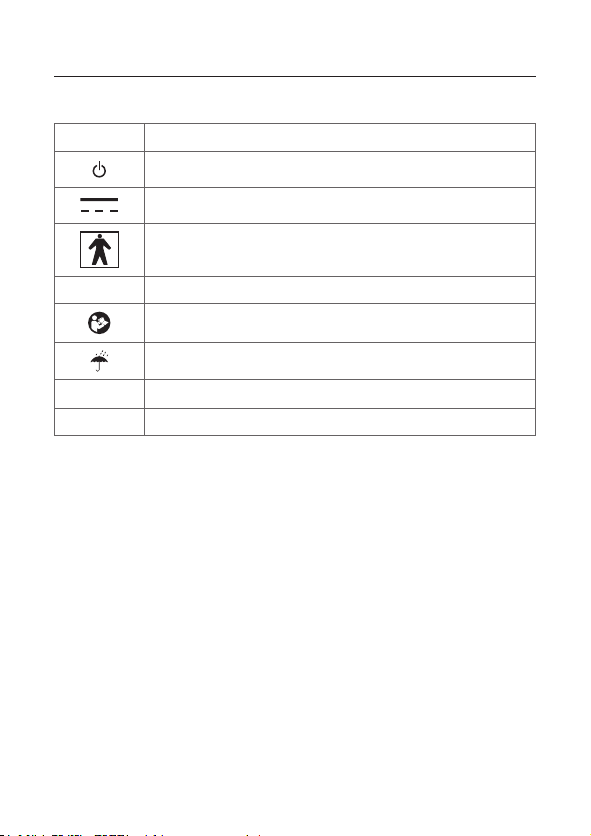

Symbols printed on the device case and cu󰀨
Symbols Function/Meaning
Stand by and turn the device on.
Direct current
Type BF: Device and cu󰀨 are designed to provide
special protection against electrical shocks.
SN Serial number
Refer to instruction manual/booklet
Keep dry
BT Bluetooth®address
IP Ingress Protection symbol
SYMBOLS

E-11
USING THE MONITOR
The UA-1200CNBLE UltraConnect Wireless Blood Pressure
Monitor features 4 measurement modes.
1. In-App Mode Measurement:
User can take measurements and view their trends in the
A&D Heart Track app.
2. O󰀪ine Mode Measurement:
Measurement can also be completed without the A&D
Heart Track app. Data will be stored on the monitor and
transferred to the app on next connection.
3. Multiuser Mode Measurement:
Up to 6 users (5 accounts and 1 visitor) can use and store
data on the app. Each user must have a mobile device
paired with the monitor.
4. Visitor Mode Measurement (O󰀪ine):
Select “0 Visitor” to take a measurement in visitor mode
from the monitor only. Data is not stored in visitor mode.

E-12
USING THE MONITOR
Charging the Device
Battery may be partially charged but be sure to charge the
device completely upon rst use after purchase.
1. Remove the USB connector cover.
2. Connect the charging cable.
3. During charging, the red LED will illuminate.
4. When charging is complete, the red LED will turn o󰀨.
5. Once charging is complete, remove the charging cable.
CAUTION!
• The battery life varies with the ambient temperature and may
be shorter at low temperatures.
• Please use the specied charging cable shipped with the device.
• Blood pressure measurement cannot be done during charging.
• When disconnecting the AC adapter from the electrical outlet,
grasp and pull the AC adapter body out of the outlet.
• When disconnecting the charging cable from the blood pressure
monitor, grasp and pull the charging cable out of the outlet.
• Do not connect to equipment other than those specied.
• Do not change the battery.
• If the battery can no longer be charged, please contact the dealer.
• Overcharging the battery may reduce its lifetime.
• Lithium battery replacement by inadequately trained personnel
could result in a hazard such as a re or explosion.

E-13
USING THE MONITOR
Wireless Function
In the unlikely event that this monitor causes radio wave
interference to a different wireless station, change the
location where this monitor is used or stop use immediately.
Be sure to use in a location where visibility between the two
devices that you want to connect is good. The connection
distance is reduced by the structure of buildings or other
obstructions. In particular, connection may be impossible
when devices are used on either side of reinforced concrete.
Do not use the Bluetooth®connection in the range of a
wireless LAN or other wireless devices, near devices that
emit radio waves such as microwaves, in locations where
there are many obstructions, or in other locations where
signal strength is weak. Doing so may result in frequent loss
of connection, very slow communication speeds and errors.
Using close to an IEEE802.11g/b/n wireless LAN device
may cause mutual interference to occur, which may result
in reduced communication speeds or which may prevent
connection. In this case, switch off the power supply to
the device that is not being used, or use the monitor in a
different location.
If the monitor does not connect normally when used near
a wireless station or broadcast station, use the monitor in
a different location.
A&D Medical cannot accept liability for any damages
incurred due to impaired operation or data loss, etc. that
occur through the use of this product.
This product is not guaranteed to connect to all Bluetooth®
compatible devices.

E-14
USING THE MONITOR
Bluetooth®Transmission
This product is equipped with a Bluetooth® 4.1 wireless
function and can connect to the following Bluetooth®devices.
Apple iOS v.8.0 -v.11.0
Selected iOS devices only
Android OS 4.4.4 - 8.0
Bluetooth®device.
Selected Android phones only.
To connect with your mobile device – download and install
the “A&D Heart Track” app onto your mobile device. Follow
the pairing instructions in the quick start guide. Please
ensure Airplane Mode is turned OFF. Check page E-24
Monitor Pairing
1. Ensure the Bluetooth®function of the mobile device is ON.
2. Open the A&D Heart Track.
3. Click on the menu icon in upper left.
4. From the menu, select “Add Bluetooth Devices.”
5. Tap the “+” icon and choose “Blood Pressure Monitor.”
6. Select the UA-1200CNBLE monitor and follow the on
screen instructions.

E-15
USING THE MONITOR
Multiuser Pairing
The monitor can be registered for up to 6 users. Follow the
above instructions to pair the mobile device for each user.
New users can be added anytime. The user who has the
lowest frequency of measurement times will be cleared once
the device has reached the 6 user max.
Note: If new user uses the same mobile device, then re-pairing is not required as
this has been complete.
CAUTION!
The communication distance between this monitor and the
receiver device is about 33 feet (10m). This distance can be
reduced by the conditions in the surrounding environment,
so be sure to check that the distance is short enough for a
connection to be made after measurement is complete.

E-16
USING THE MONITOR

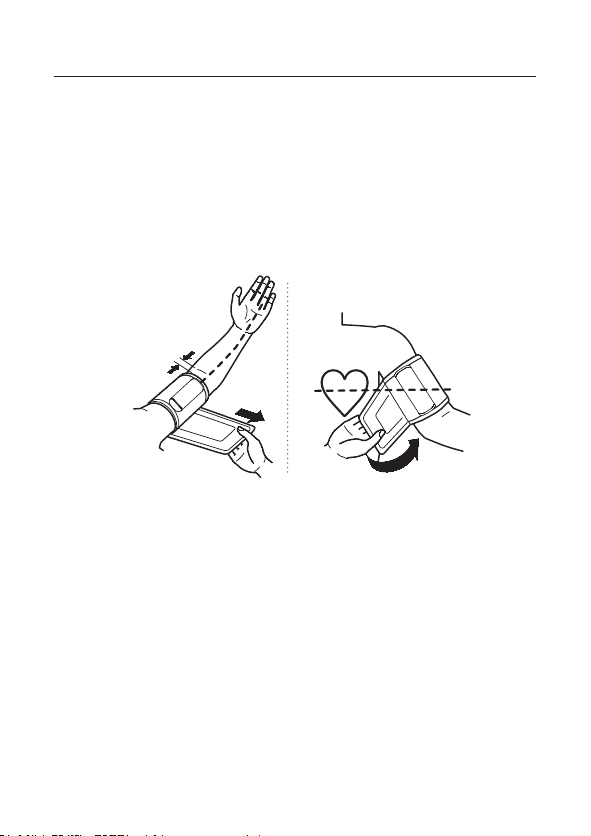

Applying the Arm Cu󰀨
Wrap the cu󰀨 around the upper arm, about 0.5”(1-2cm)
above the inside of the elbow, as shown. Sit comfortably to
ensure proper t/orientation on the arm.
Note: White tab should be closest to the palm.
0.5”
(1-2 cm)

E-17
MEASUREMENT
In-App Mode Measurement
1. Ensure the Bluetooth®function of the mobile device is ON.
2. Open the A&D Heart Track.
3. Tap the “+” or “+ Measure” button on the home screen.
4. Follow the on screen instructions.
5. The cu󰀨 starts to inate. It is normal for the cu󰀨 to
feel tight. The app displays the pressure value once
ination starts.
6. When the measurement is complete, the app and the
monitor will display results (Systolic, diastolic and pulse rate
will scroll on the monitor).
Note: Press the start button again to turn the monitor o󰀨. The monitor is also
provided with an automatic power shut-o󰀨 function. Allow at least one minute
between measurements on the same person.

E-18
MEASUREMENT

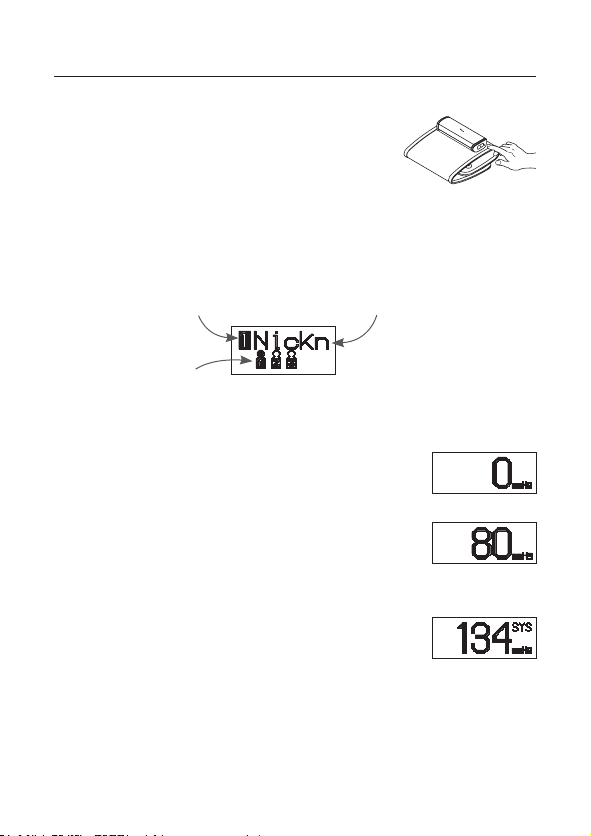

O󰀪ine Mode Measurement
1. Press the Start button on the monitor.
After the A&D logo appears for 1 second,
the User Select screen will display.
2. Press the Start button again to select a user or switch
between username from User Select screen.
Username can be changed in the app under Settings. When this
is not set, the rst name will display as the username.
3. Measurement starts automatically after 3 seconds.
4. Zero(0) is displayed blinking briey.
Then the display changes, as
measurement begins.
5. The cu󰀨 starts to inate. It is normal
for the cu󰀨 to feel tight. The monitor
displays the pressure value once
ination starts.
6. When the measurement is complete,
the monitor will display results similar
to the icon on the right. (Systolic,
diastolic and pulse rate will scroll.)
Note: Press the start button again to turn the monitor o󰀨. The monitor is also
provided with an automatic power shut-o󰀨 function. Allow at least one minute
between measurements on the same person.
Monitor Display
User number
Selected user
Username

E-19
MEASUREMENT
Multiuser Mode Measurement
1. Up to 6 people can use and store readings on the app.
Each user must have a mobile device paired with the
monitor. (See pg. E-15 for pairing instructions.)
2. If you are taking the reading without the app, press the
Start button on the monitor to switch between usernames.
Select the desired user before each reading. Data will
transfer to the app on your next connection.
Note: Usernames will be displayed in order of greater usage frequency.
Visitor Mode Measurement
1. Press the Start button on the monitor.
2. Press the Start button again to switch between
usernames and select “0 Visitor”.
3. Measurement starts automatically after 3 seconds.
4. When the measurement is complete, the monitor will
display results similar to the icon on the right. (Systolic,
diastolic and pulse rate will scroll.)
Visitor Mode is only available through the monitor. Data is
not stored in visitor mode.

E-20
Tips for a Good Measurement
• Sit comfortably on a chair with your feet on the oor and
your back straight. Do not cross your legs.
• Place your arm on a table with your palm facing upward
and the cu󰀨 at the same level as your heart.
• Relax for about ve to ten minutes before measurement.
• Remain still and keep quiet during measurement.
• Do not smoke, exercise, or consume
anything for at least 30 minutes
beforehand.
• This device bases its measurements on the heartbeat. If
you have a very weak or irregular heartbeat, the device
may have di󰀩culty determining your blood pressure.
• Should the device detect a condition that is abnormal, it
will stop the measurement and display an error symbol.
Refer to the section “Symbols” for the description of the
symbols.
• Try to measure your blood pressure at the same time
every day.
• The automatic blood pressure monitor’s performance may
be a󰀨ected by excessive temperature or humidity,
or altitude.
