Aastra VentureIP 480i How to use

Release Notes
Release 1.4.1
SIP IP PHONE
480i, 480i CT, 9112i, 9133i
41-001024-00
Rev 09

Aastra Telecom will not accept liability for any damages and/or long distance charges, which result from
unauthorized and/or unlawful use. While every effort has been made to ensure accuracy, Aastra Telecom will
not be liable for technical or editorial errors or omissions contained within this documentation. The
information contained in this documentation is subject to change without notice.
Copyright 2005-2006 Aastra Telecom. www.aastra.com
All Rights Reserved.

41-001024-00, Rev 09, Release 1.4.1 iii
Contents
Contents
About this Document ...................................................................................................... 1
General Information ........................................................................................................ 2
Release Content Information ...................................................................................... 2
Hardware Supported ................................................................................................... 2
Bootloader Requirements ........................................................................................... 2
Upgrade Notes ............................................................................................................ 3
New Features in 1.4.1 ...................................................................................................... 4
Description .................................................................................................................. 4
SIP Timers .................................................................................................................. 7
SIP Registration Renewal Timer ........................................................................... 7
SIP Registration Timeout Retry Timer .................................................................. 9
“SIP Registration Retry Timer” Web UI Parameter Name Change ..................... 10
Explicit Message Waiting Indicator (MWI) Subscription Period .......................... 11
Prefix Dialing ............................................................................................................. 13
How it works ....................................................................................................... 13
Configuring via the Configuration Files ............................................................... 14
Configuring via the Aastra Web UI .....................................................................15
Last Number Redial .................................................................................................. 15
XML Objects and Enhancements .............................................................................. 16
XML: AastraIPPhoneStatus object ..................................................................... 16
XML: AastraIPPhoneExecute Object .................................................................. 23
XML: Action URI ................................................................................................. 25
XML: Softkey URI ............................................................................................... 30
XML: HTTP Refresh Header .............................................................................. 33
Backup Proxy/Registrar Support ............................................................................... 34
How it Works ....................................................................................................... 34
Configuring via the Configuration Files ............................................................... 34
Auto-discovery Using mDNS ..................................................................................... 39

iv 41-001024-00, Rev 09, Release 1.4.1
Contents
IP Phone Features for Sylantro Servers ................................................................... 40
Last Call Return (lcr) Support ............................................................................. 40
How it works ....................................................................................................... 40
Support for additional “Alert Info” keywords for distinctive ringing...................... 41
Startup Enhancement ................................................................................................ 45
Single Call Restriction (480i CT only) ....................................................................... 46
Configuring via the Configuration Files ............................................................... 46
Configuring via the Aastra Web UI .....................................................................47
Addition of DisplayName1 & DisplayName2 (now also applies to 9112i/9133i) ........ 48
Configuring via the Configuration Files............................................................... 48
Configuring via the Aastra Web UI .....................................................................49
Issues Resolved in Release 1.4.1 ................................................................................. 50
Description ................................................................................................................ 50
Enhancements/Changes ........................................................................................... 51
Known Anomalies in 1.4.1 ............................................................................................ 52
Description ................................................................................................................ 52
Contacting Aastra Telecom Support............................................................................ 53

41-001024-00, Rev 09, Release 1.4.1 1
SIP IP Phone
Models 480i, 480i CT, 9112i, 9133i
Release Notes 1.4.1
About this Document
This document provides information specific to the SIP IP Phone release 1.4.1. It
includes the following information:
•General Information (release content, hardware supported, bootloader
requirements, and upgrade notes)
•New Features in 1.4.1
•Issues Resolved in Release 1.4.1
•Known Anomalies in 1.4.1
•Contacting Aastra Telecom Support

General Information
2 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
General Information
Release Content Information
This document provides release content information on the Aastra 480i, 480i CT,
9112i, and 9133i SIP IP phone firmware.
Hardware Supported
This release of firmware is compatible with the following Aastra IP portfolio
products:
• 480i
• 480i CT
•9112i
• 9133i
Bootloader Requirements
This release of firmware is compatible with the following Aastra IP portfolio
product bootloader versions:
• 480i - Bootloader 1.1.0.4 or above
• 480i CT - Bootloader 1.1.0.4 or above
• 9112i - Bootloader 1.1.0.10 or above
• 9133i - Bootloader 1.1.0.10 or above
Model Release Name Release Version Release Filename Release Date
480i Generic SIP 1.4.1 FC-000032-01-09 November 2006
480i CT Generic SIP 1.4.1 FC-000040-00-09 November 2006
9112i Generic SIP 1.4.1 FC-000058-01-09 November 2006
9133i Generic SIP 1.4.1 FC-000046-01-09 November 2006

General Information
41-001024-00, Rev 09, Release 1.4.1 3
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
Upgrade Notes
This section provides notes that customers should be aware of before upgrading to
IP phone firmware release 1.4.1. Aastra Telecom recommends that customers read
this section completely and thoroughly prior to the upgrade to avoid any known
issues with the upgrade process.
• The recommended base IP Phone firmware to upgrade to this new firmware
release is 1.2.2 or above.
• Users who previously adjusted the audio transmit and receive gains for the
Aastra IP Phones should reset the values to "0" and re-tune their phones again
with release 1.4.1 if necessary. This is required to avoid high transmit levels
heard by the far-end after upgrading to 1.4.1. To set audio transmit and
receive gains in the 1.4.1 configuration files, see the SIP IP Phone
Administrator Guide Release 1.4 or the SIP IP Phone Release Notes Version
1.3.1.
• Users upgrading from release 1.2.2 to 1.4.1 may experience post-upgrade
configuration issues IF they previously configured their phones solely using
the telephone user interface or Aastra Web user interface. Users may need to
reconfigure their settings again after the upgrade due to new file system
enhancements. This issue does not affect customers who configure their
phones using a TFTP/FTP/HTTP server.
• Users who wish to downgrade from release 1.4.1 to 1.2 must downgrade to
release 1.2.2 prior to downgrading to release 1.2, in order to restore file
system structure. Failure to downgrade to version 1.2.2 first may result in
configuration parameters being ignored.

New Features in 1.4.1
4 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
New Features in 1.4.1
Description
This section describes the features new to the IP phones in release 1.4.1. The
features apply to all IP Phone models (480i, 480i CT, 9112i, and 9133i), unless
specifically stated that only a particular IP phone model supports the feature.
The following table lists the new features in release 1.4.1. The paragraphs
following this table describe each feature in detail.
Feature Description Page
All Models
SIP Timers The following are SIP timers that were added or changed
on the IP phones:
SIP Registration Renewal Timer - A new parameter called sip
registration renewal timer has been added that allows an
administrator to control when the phone renews SIP
registrations. Configurable via configuration files and Aastra
Web UI.

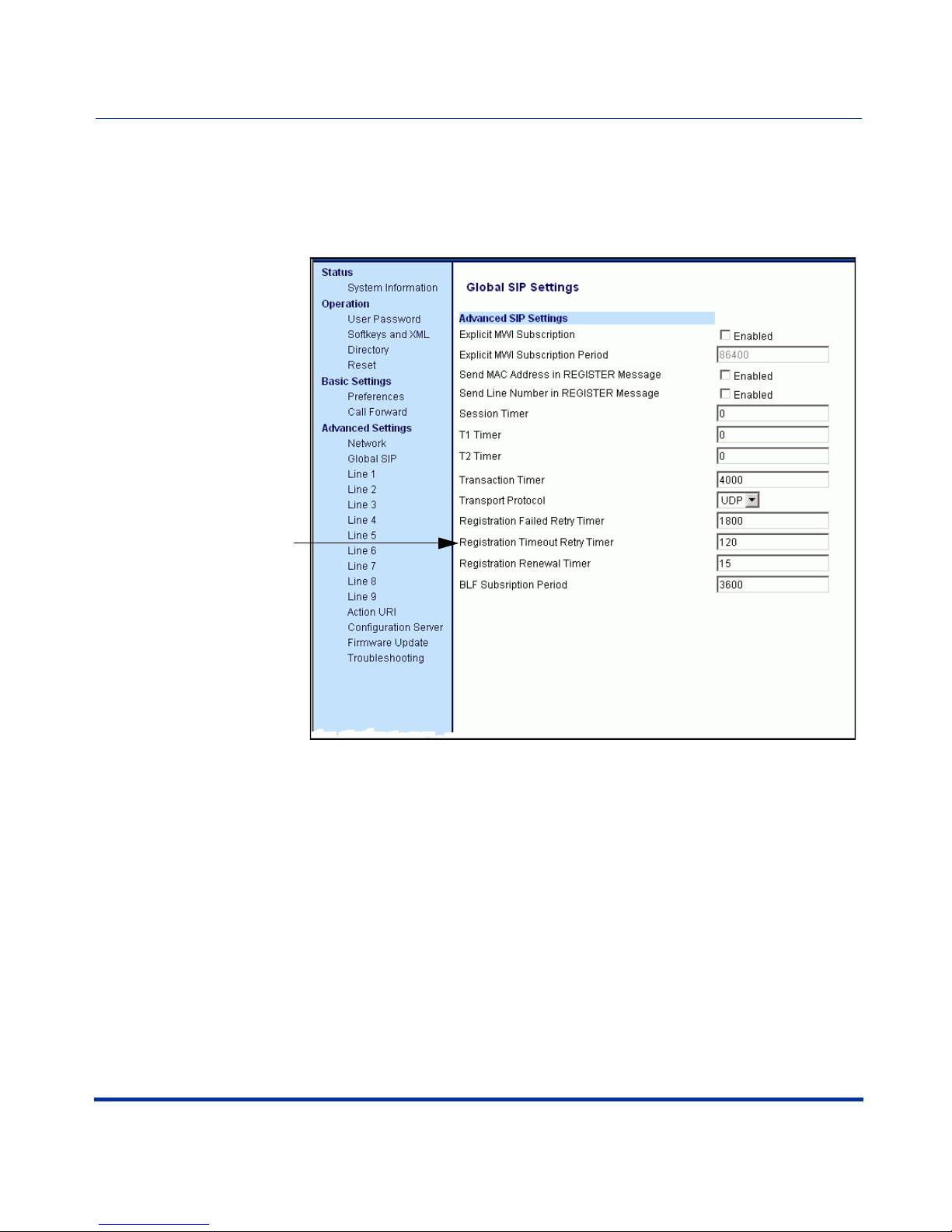

SIP Registration Timeout Retry Timer - An administrator can
now set the time, in seconds, that the phone waits until it
attempts to register the phone after a REGISTER message
times outs. This new parameter is called sip registration
timeout retry timer. Configurable via configuration files and
Aastra Web UI.
“SIP Registration Retry Timer” Web UI Parameter Name
Change - In the Aastra Web UI only, the “registration retry
timer” parameter name has changed to registration failed
retry timer.
Explicit Message Waiting Indicator (MWI) Subscription Period
- An administration can now set the length of time, in
seconds, of an explicit MWI subscription. This value allows
the phone to re-subscribe the explicit MWI subscription
before the timeout value is reached.
page 7
page 9
page 10
page 11

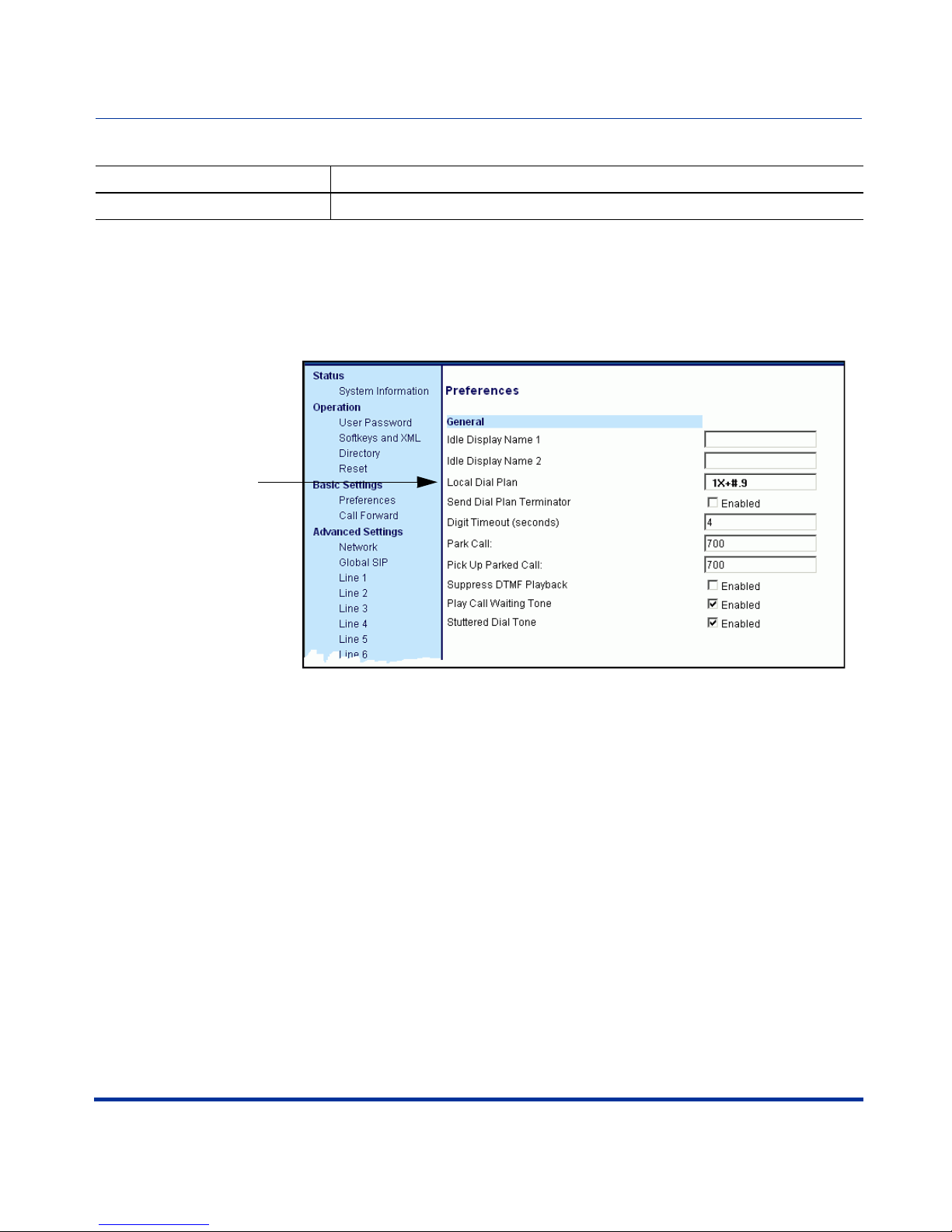

Prefix Dialing An administrator can now enter a digit(s) at the end of the
Local Dial Plan parameter string, which allows the IP phone
to automatically add the digit as a prefix to a dialed number.
page 13

New Features in 1.4.1
41-001024-00, Rev 09, Release 1.4.1 5
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
Last Number Redial A user can now press the REDIAL key to dial the last number
dialed. They can also press the REDIAL button once, scroll
the list of numbers, then press the REDIAL button again to
dial the number that displays on the screen.
page 15
XML Objects and
Enhancements
The following are new XML objects on the IP phone:
•XML: AastraIPPhoneStatus object - The IP phones now
display a status message on a single designated line on
the phone’s idle screen when XML information is pushed
from the servers.
The 480i/480i CT phones display messages on the
second line (where “No Service” would display). The
9112i/9133i phones display messages on the first line
(overriding the DisplayName). Long messages that are
wider then the phone screen get truncated.
•XML: AastraIPPhoneExecute Object - This object
provides the ability to execute commands on the phone
using XML. Specific commands you can use with this
object are Reset and NoOp.
The following are XML enhancements on the IP phone:
•XML: Action URI - This feature provides administrators
the ability to specify a URI for the phone to GET when
certain events occur.
•XML: Softkey URI - This feature allows the user to specify
variables in the XML softkey URIs that are bound when
the key is pressed.
•XML: HTTP Refresh Header - All current XML screen
objects now have the ability to be refreshed by adding a
Refresh and URL setting to the HTTP headers.
page 16
page 23
page 25
page 30
page 33
Backup Proxy/Registrar
Support
The IP phones now support the use of a backup SIP proxy/
registrar. You can configure this feature on a global or per-line
basis via the configuration files or the Aastra Web UI.
page 34
Auto-discovery Using
mDNS
Release 1.4.1 introduces a process that allows the phones to
auto-discover a TFTP server using mDNS, and subsequently
be automatically configured by a TFTP server.
page 39
Feature Description Page

New Features in 1.4.1
6 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
IP Phone Features for
Sylantro Servers
The following are new features added to the IP phones
for Sylantro servers:
Last Call Return (lcr) Support - A new feature has been
added to the IP phones that allow a user or administrator to
configure a "last call return" function on a softkey or
programmable key. This feature is for Sylantro servers only.
You can configure the “lcr” softkey feature via the
configuration files and the Aastra Web UI.
Support for additional “Alert Info” keywords for distinctive
ringing - The IP phones now allow you to configure new
distinctive ringing priority alert parameters for Sylantro
servers. These “info” parameters allow you to configure
specific priority alert tones for each parameter that may
appear as key words in the “Alert-Info” header of a Sylantro
server. The new keywords are alert-acd, alert-community-1,
alert-community-2, alert-community-3, and
alert-community-4. You can configure these new
parameters via the configuration files or the Aastra Web UI.
page 40
page 41
Startup Enhancement Upon phone startup, the maximum time the phone spends
attempting to contact the configuration server (TFTP, FTP or
HTTP) has been reduced.
page 45
480i CT Only
Single Call Restriction (480i
CT only)
A new feature has been implemented on the 480i CT that
allows an administrator to enable or disable a single call
restriction between the 480i CT and a call server.
page 46
9112i/9133i Only
Addition of DisplayName1 &
DisplayName2 (now also
applies to 9112i/9133i)
The 9112i and 9133i IP phones now support the parameters,
displayName1 and displayName2. Configurable via the
configuration files and the Aastra Web UI.
page 48
Feature Description Page

New Features in 1.4.1
41-001024-00, Rev 09, Release 1.4.1 7
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
SIP Timers
The following paragraphs describe SIP timers that have been added or changed in
Release 1.4.1.
SIP Registration Renewal Timer
A new parameter has been added to the IP phones that enables an administrator to
control when registration renewals occur. The new parameter sip registration
renewal timer specifies the length of time, in seconds, before the expiration of an
existing registration, that the registration is renewed. For example, if the value is
set to 20, then 20 seconds before the registration is due to expire, a new
REGISTER message is sent to the registrar to renew the registration.
The parameter may be set via the configuration files and the Aastra Web UI.
Configuring via the Configuration Files
You use the following parameter in the configuration files to control when the
phone renews SIP registration:
Parameter –
sip registration renewal timer
Registration Renewal Timer
(in Web UI)
Aastra Web UI Advanced Settings->Global SIP->
Advanced SIP Settings
Configuration Files aastra.cfg, <mac>.cfg
Description The length of time, in seconds, that the phone renews registrations.
Format Integer
Default Value 15
Range 0 to 214748364
The value set for this parameter should be between 0 and the value set
for the registration period.
Example sip registration renewal timer: 10

New Features in 1.4.1
8 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
Configuring via the Aastra Web UI
You can set the Registration Renewal Timer in the Aastra Web UI at
Advanced Settings->Global SIP->Advanced SIP Settings.
Registration Renewal
Timer

New Features in 1.4.1
41-001024-00, Rev 09, Release 1.4.1 9
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
SIP Registration Timeout Retry Timer
An administrator can now set the length of time, in seconds, that the phone waits
until it re-attempts to register after a REGISTER message times out. This
parameter is called, sip registration timeout retry timer, and is configurable via
the configuration files and the Aastra Web UI.
Configuring via the Configuration Files
You use the following parameter in the configuration files to configure the
registration timeout retry timer.
Parameter –
sip registration timeout retry
timer
Registration Timeout Retry
Timer
(in Web UI)
Aastra Web UI Advanced Settings->Global SIP->
Advanced SIP Settings
Configuration Files aastra.cfg, <mac>.cfg
Description Specifies the length of time, in seconds, that the phone waits until it
re-attempts to register after a REGISTER message times out.
Note: If this parameter is set lower than 30 seconds, the phone uses a
minimum timer of 30 seconds.
Format Integer
Default Value 120
Range 30 to 214748364
Example sip registration timeout retry timer: 150

New Features in 1.4.1
10 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
Configuring via the Aastra Web UI
You can set “Registration Timeout Retry Timer” in the Aastra Web UI at
Advanced Settings->Global SIP->Advanced SIP Settings.
“SIP Registration Retry Timer” Web UI Parameter Name Change
In the Aastra Web UI only, the registration retry timer parameter name has
been changed to “registration failed retry timer”. The functionality of this
parameter has not changed. The default value is still 1800 seconds.
Registration Timeout
Retry Timer

New Features in 1.4.1
41-001024-00, Rev 09, Release 1.4.1 11
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
Explicit Message Waiting Indicator (MWI) Subscription Period
The IP phones support a new feature for MWI that allows the administrator to set
a requested duration, in seconds, before an explicit MWI subscription times out.
The phone re-subscribes to MWI before the subscription period ends.
The new parameter you can configure is “sip explicit mwi subscription period”.
You can configure this parameter using the configuration files or the Aastra Web
UI.
Configuring via the Configuration Files
You configure the explicit MWI timeout using the following parameter in the
configuration files.
Parameter –
sip explicit mwi subscription
period
Explicit MWI Timeout
(in Web UI)
Aastra Web UI Advanced Settings->Global SIP->
Advanced SIP Settings
Configuration Files aastra.cfg, <mac>.cfg
Description The requested duration, in seconds, before the MWI subscription times
out. The phone re-subscribes to MWI before the subscription period
ends.
Format Integer
Default Value 86400
Range 30 - 214748364
Example sip explicit mwi timeout: 30

New Features in 1.4.1
12 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
Configuring via the Aastra Web UI
You configure “Explicit MWI Subscription Period” in the Aastra Web UI at
Advanced Settings->Global SIP->Advanced SIP Settings.
Explicit MWI Subscription
Period

New Features in 1.4.1
41-001024-00, Rev 09, Release 1.4.1 13
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
Prefix Dialing
The IP phones now support a prefix dialing feature for outgoing calls.
How it works
You can manually dial a number or dial a number from a list. The phone
automatically maps the pre-configured prepended digit in the configuration, to the
outgoing number. When a match is found, the prepended digits are added to the
beginning of the dial string and the call is dialed.
You can enable this feature by adding a prepend digit(s) to the end of the Local
Dial Plan parameter string in the configuration files or the Aastra Web UI at
Basic Settings->Preferences->General.
For example, if you add a prepend map of “[2-9]XXXXXXXXX,91”, the IP
phone adds the digits “91” to any 10-digit number beginning with any digit from 2
to 9 that is dialed out. Other examples of prepend mappings are:
•1X+#,9 (Prepends 9 to any digit string beginning with “1” and terminated
with “#”.)
•6XXX,579 (Prepends “579” to any 4-digit string starting with “6”.)
•
[4-6]XXXXXX,78 (Prepends “78” to any 7-digit string starting with “4”, “5”, or “6”.)
Note: The prepend digits are also added if the dialing times-out on a
partial match.
Note: You can configure a local dial plan via the configuration files or
the Aastra Web UI.

New Features in 1.4.1
14 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
Example
If you enter the following dial string for a local dial plan:
sip dial plan: 1+#,9
where “9” is the prepended digit, and you dial the following number:
15551212
the IP phone automatically adds the “9” digit to the beginning of the dialed
number before the number is forwarded as 915551212.
Configuring via the Configuration Files
You use the following parameter to configure local dial plan with a prepended
digit(s).
Parameter –
sip dial plan
Local Dial Plan
(in Web UI)
Aastra Web UI Basic Settings->Preferences
Configuration Files aastra.cfg, <mac>.cfg
Description A dial plan describes the number and pattern of digits that a user dials to
reach a particular telephone number. The SIP local dial plan is as follows:
Symbol Description
0, 1, 2, 3, 4, 5, 6, 7, 8, 9 Digit symbol
X Match any digit symbol (wildcard)
*, #, . Other keypad symbol
| Expression inclusive OR
+ 0 or more of the preceding digit symbol
or [] expression
[] Symbol inclusive OR
- Used only with [], represent a range of
acceptable symbols; For example, [2-8]
“,” (open/close quotes) In the configuration files, enter the sip dial
plan value using quotes.
Note: You can configure prefix dialing by adding a prepend digit to the
dial string. For example, if you add a prepend map of
“[2-9]XXXXXXXXX,91”, the IP phone adds the digits “91” to any 10-digit
number beginning with any digit from 2 to 9 that is dialed out. Other
examples of prepend mappings are:
•1X+#,9 (
•6XXX,579 (Prepends “579” to any 4-digit string starting with “6”.)
•[4-6]XXXXXX,78 (Prepends “78” to any 7-digit string starting with “4”,
“5”, or “6”.
Format Alphanumeric characters
Default Value X+#|XX+*

New Features in 1.4.1
41-001024-00, Rev 09, Release 1.4.1 15
SIP IP Phone Models 480i, 480i CT, 9112i, 9133i Release Notes
Configuring via the Aastra Web UI
You configure a local dial plan string in the Aastra Web UI at
Basic Settings->Preferences. The following illustration shows a Local Dial Plan
dial string in the Aastra Web UI using a prepended digit.
Last Number Redial
The IP phones now have an enhanced redial user interface that allows a user
to quickly redial the last number that was dialed out from the phone. You can:
• Press the REDIAL button twice to redial the last number dialed.
• Press the REDIAL button once, scroll the list of numbers, then press the
REDIAL button again to dial the number that displays on the screen.
This feature is static and is not configurable.
Range Up to 127 alphanumeric characters
Example sip dial plan: "1X+#,9”
Local Dial Plan

New Features in 1.4.1
16 41-001024-00, Rev 09, Release 1.4.1
IP Phone Release Notes 1.4.1
XML Objects and Enhancements
The following paragraphs describe the XML enhancements in release 1.4.1.
XML: AastraIPPhoneStatus object
A new XML AastraIPPhoneStatus object has been implemented on the IP
phones. This object provides the ability to display a status message on a single
designated line on the phone’s idle screen when XML information is pushed from
the servers.
The 480i/480i CT phones display messages on the second line in the phone
window. (where “No Service” would display if there was no service. If there is no
service on the phone, the “No Service” message overrides the XML object
message). The 9112i/9133i phones display messages on the first line (overriding
the DisplayName). Long messages that are wider then the phone screen get
truncated.
If the phone receives multiple messages, the first message received displays first
and the remaining messages scroll consecutively one at a time. Messages remain
displayed until they are removed (by the server) or the phone reboots. The
AastraIPPhoneStatus object feature is always enabled.
AastraIPPhoneStatus Structure
The AastraIPPhoneStatus object describes the structure of the XML document
that is used to send status messages to the phone. The basic structure of the
AastraIPPhoneStatus object is:
<AastraIPPhoneStatus>
<Session>My session ID</Session>
<Message index="Msg index">Message</Message>
<! -- Additional status messages may be added under new Message tags-->
<AastraIPPhoneStatus/>
Note: You can set the amount of time, in seconds, that a message displays
to the phone before scrolling to the next message. For more information
about this feature, see “Scroll Delay Option” on page 21.
