Aastra OMM SIP - DECT 2.1 Instruction Manual

OpenMobility
SIP-DECT Solution
Installation & Administration
Compendium

i
Compendium: OM SIP – DECT Solution Welcome to Aastra
Welcome to Aastra
Thank you for choosing this Aastra product. Our product meets the strictest
requirements with regard to quality and design.
The following compendium will assist you in installing and configuring your
SIP – DECT solution and provide answers to all your most important questions.
If you should require further technical support or information about other
Aastra products, please contact the person responsible for your system or get in
touch with your local dealer.
You can also find information about this device and other products on our website
at http://www.aastra.de or http://www.aastra.com.
Contents
Aastra OMM SIP – DECT 2.1 Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About this Compendium. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Related Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Scope of Delivery and Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Small OMM SIP System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Configure RFPs using the OM Configurator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Set up RFPs and Basic Telephony . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Large OMM SIP System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Install OMM on PC Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Set up RFPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Set up WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Subscribe DECT Handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
OM IMA Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Activate the OM IMA Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Further Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
OM Locating Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install the OML Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Adding Site / Location Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Start the OM Locating Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Configure the OMM Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Configure the OML Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Configure the Users’ Portable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

1
Aastra OMM SIP – DECT 2.1 Solution Compendium: OM SIP – DECT Solution
Aastra OMM SIP – DECT 2.1 Solution
The Aastra OMM SIP – DECT 2.1 solution provides a professional DECT system that
extends an existing SIP communications system (PABX). The OMM SIP – DECT 2.1
solution comprises up to 2,048 DECT base stations (RFP, “Radio Fixed Parts”) that
form a DECT radio system. The RFPs and the SIP communications system are inter-
connected via an Ethernet/IP network that is used to transport the SIP/VoIP data
streams as well as management data.
Within the DECT radio system, a single instance exists that controls all RFPs and
manages communication streams: the OMM (OpenMobility Manager). For smaller
DECT systems (1-256 RFPs), the OMM can be hosted on an RFP. A larger DECT
system (256-2,048 RFPs) requires to host the OMM on a Linux-based PC server
system.
About this Compendium
This compendium focuses system planers and system administrators who install,
configure, and administer the Aastra OMM SIP – DECT 2.1 solution.
The necessary steps to set up the OMM SIP – DECT 2.1 solution differ substantially
with the number of included RFPs as well as the number of added services. For this
reason, this compendium offers separate parts:
■The first part concentrates on basics steps to set up a small system with an
RFP-hosted OMM.
■The second part illustrates how to set up a large system that also taps the full
potential of additional features.
■The third part describes how to configure additional services: Locating and
Messaging.
>Example
OM System Manual:
Licensing Mode
The respective configuration steps are listed in short. Links to further and detailed
information in the step-relevant documentation part (see next section) are quoted
in the right column: Manual, Guide: Chapter.
Related Documentation
The OMM SIP – DECT 2.1 solution is described in a variety of documents:
■SIP – DECT: OM System Manual
Installation, Administration, and Maintenance
This manual is hereinafter denoted “OM System Manual”.
■SIP – DECT: Aastra 610d, 620d, 630d Messaging & Alerting Applications
User Guide
This user guide is hereinafter denoted “Aastra 600d IMA”.
■SIP – DECT: OM Integrated Messaging & Alerting Application
Installation, Administration & User Guide
This guide is hereinafter denoted “OM IMA Application”.
■SIP – DECT: OM Locating Application
Installation, Administration & User Guide
This guide is hereinafter denoted “OML Application”.
■SIP – DECT: OM Handset Sharing & Provisioning Installation & Administration
User Guide
This guide is hereinafter denoted “OM Provisioning”.

2
Compendium: OM SIP – DECT Solution Scope of Delivery and Licenses
Abbreviations
The following OMM SIP 2.1 specific abbreviations are used in this compendium:
Scope of Delivery and Licenses
The OMM SIP 2.1 product delivery varies with your purchase. You typically receive
the following components:
>OM System Manual:
Licensing Model
■License:
– PARK number printed on the CD-ROM (“Built-in license” for up to 2 “L-RFP”) or
– XML license file (“Activated built-in license” for up to 20 “L-RFP”) or
– XML license file (“Standard license” for up to 2048 RFPs)
>OM System Manual:
About the Radio Fixed Parts
■RFP devices – DECT radio parts that provide DECT telephony and services:
– RFP 32 IP / RFP L32 IP: DECT RFP as indoor model
– RFP 34 IP / RFP L34 IP: DECT RFP as outdoor model
– RFP 42 WLAN / RFP L42 WLAN: DECT RFP + WLAN Access Point (indoor)
>OM System Manual:
About the Portable Parts

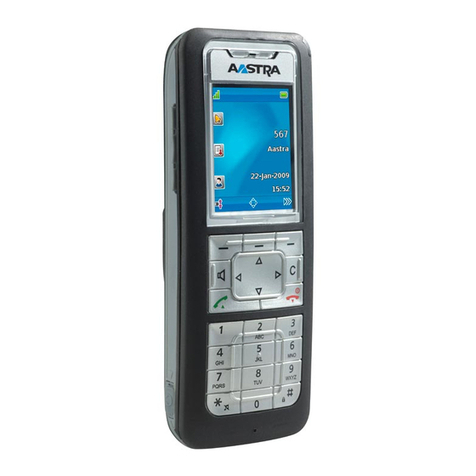

■DECT handsets Aastra 610d/620d/630d
■OMM SIP 2.1 installation medium (“CD-ROM”) containing
– Manuals in PDF format
– RFP firmware file (“omm_ffsip.tftp”)
– Aastra 610d/620d/630d firmware file (“aafon6xxd.dnld”)
– PC OMM installation file (“omm_ffsip_install.bin”)
– OpenMobility Configurator (Java tool, “OM_Configurator.jar”)
– OM Configurator (Java tool, “OM_Configurator.jar”)
– OM Management Portal (OMP Java tool, “OMP.jar”)
– OM Locating application (TomCat archive, “OML.war”)
Note
You can test all features for a limited period of 72 hours by operating the OMM in
demonstration mode. After this, you need to apply a license.
DECT Digital Enhanced Cordless Telecommunication
GAP Generic Access Profile
OM IMA OM Integrated Messaging & Alerting service
OML OM Locating application
OMM OpenMobility Manager
OMP OM Management Portal
PABX Private Branch Exchange (i. e. communications system)
PP Portable Part, handset
RFP Radio Fixed Part, base station
SIP Session Initiation Protocol
VoIP Voice over IP

4
Compendium: OM SIP – DECT Solution Small OMM SIP System
Small OMM SIP System
This chapter describes how to set up an OMM SIP 2.1 system with a smaller
number of RFPs (1-256). This includes configuring an RFP-based OMM, a static IP
configuration using the OM Configurator Java tool, and setting up basic DECT
telephony service.
Prerequisites >OM System Manual:
Licensing Model
You need the RFP devices as well as a number of DECT handsets – preferably
Aastra 610d/620d/630d. For more than two RFPs, you should have received a
license file and the OMM SIP 2.1 installation medium.
You also need a TFTP server in your LAN to host the firmware files. The TFTP server
is not part of the OMM SIP – DECT 2.1 solution, hence you need to set up your own.
Your company LAN should allow connections from the mounted RFPs to your SIP
PABX.
Configure RFPs using the OM Configurator
>OM System Manual:
Static Local Configuration of
an RFP
The OMM SIP 2.1 installation medium includes the “OM_Configurator.jar” Java
tool. To run this tool, you need a PC with the Sun/Oracle Java runtime environment
installed. You configure the RFPs with the following basic steps.
1. Upload the RFP firmware file “omm_ffsip.tftp” to your TFTP server. Verify the
TFTP function, e.g. enter “tftp -i 192.168.1.1 get /omm_ffsip.tftp” on the
Windows command line.
2. Connect the RFPs to power and LAN. On your PC, double click the
“OM_Configurator.jar” to start the OpenMobility Configurator Java tool.
3. Click the Scan button to find connected RFPs. Select one of the entries in the
RFP configuration list. Activate the Login option and enter User and
Password (“omm” / “omm” by factory default).
4. Click the List configuration button. Change the configuration to match your
LAN, PABX and TFTP server configuration. Change the Use local configuration
option to “yes” and configure IP address, Net mask, TFTP server address, and
TFTP file name.
5. One of the RFPs needs to operate as OMM (“Open Mobility Manager”). Enter
the IP address of the RFP you selected as OMM in the OMM IP address setting.
Do not select an RFP 42 WLAN as OMM, otherwise you cannot activate the
WLAN function for this device.
>OM System Manual:
OMM Standby
6. Optional: if you operate two or more RFPs, configure a second RFP as standby
OMM. Click the Add parameter button, select the 2nd OMM IP address entry,
click the Add button and configure the 2nd OMM IP address.
7. Click the Send config. button.
>OM System Manual:
RFP LED Status
The RFP restarts. During startup, the RFP loads the “omm_ffsip.tftp” firmware file
from your TFTP server. Watch the LEDs to verify the startup procedure.
Please note: If the RFP was operated within another OMM SIP 2.1 system
previously, the user/password combination for the
OM Configurator is changed accordingly. If you do not know
the login secret, you need to contact the Aastra support for
an unlock token to regain access.

5
Small OMM SIP System Compendium: OM SIP – DECT Solution
Set up RFPs and Basic Telephony
>OM System Manual:
Initial Setup
The RFP that operates as OMM offers two configuration methods: the OMM Web
service that you can access with a web browser and the OMP Java tool. Use the
OMM Web service for initial setup that includes the following basic steps.
1. Start a browser and navigate to the IP address of the OMM. Log in using the
“omm/omm” default credentials. Accept the displayed license text. Change the
password for the “Full access” and the “Root/SSH” accounts. Import the license
file. Navigate to the System: System settings page. Change the DECT:
Regulatory domain setting.
>OM System Manual:
Licensing
2. For the built-in license, configure the PARK code printed on the installation
medium on the System: System settings page. If you have received a license
file, import the file on the Licenses page.
>OM System Manual:
“Radio fixed parts” Menu
3. Navigate to the Radio fixed parts page. Click the Scan button. Click the Stop
button to view the list that should include the RFP running the OMM. Click on
the Configure icon and activate the DECT settings option. Accept the default
DECT cluster (“1”) by clicking OK. Repeat this step to configure all RFPs.
>OM System Manual:
“SIP” Menu;
“Portable parts” Menu
4. Navigate to the System: SIP page. Change the Proxy server and Registrar
server settings to match your PABX. On the Portable parts page, create new
portable parts with Name, Number, DECT authentication code, and SIP
authentication settings.
Click on the Start button under Wildcard subscription. Start the subscription
procedure on the DECT handset using the configured authentication code.
>OM System Manual:
Enhanced Feature Overview
Tip: Even with a smaller OMM SIP 2.1 system, you can use more
features, such as DECT XQ or SNMP. You may read on with the
next chapter “Large OMM SIP System” or read the OM System
Manual.

6
Compendium: OM SIP – DECT Solution Large OMM SIP System
Large OMM SIP System
This chapter describes how to set up an OMM SIP 2.1 system with a very large
number of RFPs (up to 2,048). This includes configuring 2 PC-based OMMs, a
dynamic IP configuration of RFPs via DHCP, and a multi DECT cluster system
deployed to several disparate buildings.
Prerequisites
You need two PC server systems, a larger number of RFP devices as well as a
number of DECT handsets – preferably Aastra 610d/620d/630d. You should have
received a license file and the OMM SIP 2.1 installation medium.
>OM System Manual:
802.1Q Support
Your company LAN should allow connections from the mounted RFPs to your SIP
PABX, preferably a switched network with a separate VLAN for SIP/VoIP.
Install OMM on PC Host
>OM System Manual:
Installing OMM in Host
Mode
Install the OMM software on two dedicated i386 32-bit PC systems running
Red Hat Enterprise Linux 5.4. While it is possible to operate the OMM software on
various PC systems, only the recommended hardware/software configuration is
supported by Aastra.
Tip: A brief explanation on how to set up ”Red Hat Enterprise
Linux Server 5.4“ can also be found in the “OM Locating
Application” guide in the “Installing Red Hat Enterprise Linux
Server 5.4” chapter. In difference to this explanation, do not
install the additional web server to prevent blocking port 80
that is required by the OMM software.
Please note: Choosing the right hardware, setting up and managing
multiple Linux server systems, and integrating Linux servers
in your company LAN/VLAN environment is beyond the
scope of this compendium. You should at least read the “Red
Hat Enterprise Linux 5 - Installation Guide” that is available
on the Internet under http://docs.redhat.com/docs/ URL.
>OM System Manual:
OMM Standby
One Linux server runs the primary OMM while the second Linux server takes over
the OMM function in case of failure. On both Linux servers, install the OMM
software with the following basic steps.
1. Copy the necessary “omm_ffsip_install.bin” file to the Linux server, either via
the OMM SIP 2.1 product installation medium or via download.
2. Open the System menu and select the Administration: Security and Firewall
command. Disable the firewall function.
3. Open the Applications menu and select the Accessories: Terminal command.
Enter the “su” command to elevate your system access rights.
>OM System Manual:
Installing the OMM Software
4. Enter “sh omm_ffsip_install.bin” to extract the installation files and to start the
installation automatically.
>OM System Manual:
Configuring the Start
Parameters
5. Enter “nano /etc/sysconfig/omm_ffsip” to adapt the OMM configuration file.
Remove the hash character and change the “OMM_RESILIENCY=” setting to
the IP addresses of the primary and secondary OMM instances. Start the OMM
with “/etc/init.d/omm_ffsip start” or reboot the PC.
>OM System Manual:
Initial Setup
6. Start a browser and navigate to the IP address of the OMM. Log in using the
“omm/omm” default credentials. Accept the displayed license text. Change the
password for the “Full access” and the “Root/SSH” accounts. Import the license
file. Navigate to the System: System settings page. Change the DECT:
Regulatory domain setting.

7
Large OMM SIP System Compendium: OM SIP – DECT Solution
Set up RFPs
>OM System Manual:
DHCP Client
For a larger number of RFPs, a DHCP service that automatically configures RFPs is
critical. The DHCP service sends the IP configuration, where to download the
firmware file “omm_ffsip.tftp” via TFTP and the IP addresses of the OMMs to the
starting RFPs. The TFTP and DHCP services are not part of the OMM SIP – DECT 2.1
solution, hence you need to set up your own.
Tip: The “OM System Manual” provides an example in the “Setting
up DHCP / TFTP” chapter.
Your DHCP server configuration should include at least:
■an IP address range large enough to give all RFPs a separate IP address
■a rule to separate DHCP queries by vendor ID “OpenMob”
■DHCP answers containing IP, net mask, gateway, TFTP server IP, and boot file
name
■option 224 with “OpenMobility” otherwise DHCP answers are ignored by RFPs
■option 43 with vendor option 10 (OMM IP) and vendor option 19 (2nd OMM IP)
>OM System Manual:
Creating and Changing RFPs
After setting up the DHCP and TFTP service, connect at least all RFPs referenced in
the license file to power and LAN. Navigate to the Radio Fixed Parts page of the
OMM Web service. Verify the RFPs Connected status.
>OM System Manual:
RFP LED Status
Tip: For a first test, click on the configuration icon of a connected
RFP. Activate the DECT settings option. Accept the default
DECT cluster number “1”. Confirm with OK to activate the
RFP. Watch the RFP’s LEDs for a status indication.
>OM System Manual:
RFP Synchronization
The DECT cluster number groups RFPs that can be synchronized over-the-air. With
synchronization, seamless handover of DECT handsets is possible. Use a different
DECT cluster number for RFPs that are deployed e.g. to a different building where
the distance does not allow over-the-air synchronization. Also configure one RFP
per DECT cluster as the Preferred synchronization source, preferably an RFP that
is located in the middle of the radio domain.
>OM System Manual:
RFP Export File Format
For a larger RFP deployment, you should prepare a list of RFPs, their names
together with their MAC addresses. Also, a map or building plan that indicate the
RFP mounting positions may be helpful. The list of RFPs in CSV format can be
imported on the Radio Fixed Parts page of the OMM Web service. Exporting this
list is only supported in the OMP Java tool.
>OM System Manual:
RFP Configuration Files
Alternatively, you can use a de-centralized configuration method that utilizes con-
figuration files directly queried by the RFPs during startup. This method primarily
targets a PABX system that manages RFPs directly, but it is e.g. possible to use this
method with script generated configuration files as well.
>OM System Manual:
“Paging areas” Menu
For a large OMM SIP 2.1 system, consider to define paging areas to limit the sign-
aling required to locate a specific DECT handset in the network when a call is
received.
Set up WLAN
>OM System Manual:
Creating and Changing
WLAN Profiles
Your OMM SIP 2.1 system may include a number of RFP 42 WLAN devices that offer
also WLAN connectivity. To set up the WLAN function proceed as follows:
1. Navigate to the System: System settings page of the OMM Web service.
Under WLAN settings configure the Regulatory domain.
2. On the WLAN page, create at least one WLAN profile.
3. On the Radio fixed parts page, assign the WLAN profile to the desired RFPs.

8
Compendium: OM SIP – DECT Solution Large OMM SIP System
Subscribe DECT Handsets
>OM System Manual:
Creating and Changing PPs
To use the DECT telephony service, you need to subscribe a number of DECT
handsets to the OMM SIP 2.1 system. Also, a number of user accounts needs to be
created in order to login to the SIP accounts provided by the PABX system. Note,
that you need to set the IP of the PABX system on the System: SIP page of the
OMM Web service (Proxy server and Registrar server setting).
Different subscription methods exist as well as two different models to link DECT
handset subscriptions to SIP user accounts:
>OM System Manual:
Subscribing PPs
■Static subscription with wildcards: On the Portable parts page of the OMM
Web service, create a new portable part with Name, Number, DECT
authentication code, and SIP authentication settings.
Click on the Start button under Wildcard subscription. Start the subscription
procedure on the DECT handset using the authentication code within
2 minutes. This will create a static subscription, i. e. a DECT handset that is
statically linked to number and SIP account.
■Static subscription with IPEI: when creating the portable parts entry, also enter
the IPEI number of the DECT handset.
Click on the Start button under Subscription with configured IPEIs. Start the
subscription procedure on the DECT handset using the authentication code
within 24 hours. This will also create a static subscription.
>OM Handset Sharing &
Provisioning
■Dynamic subscription: Start the OMP Java tool and navigate to the Portable
parts: Users page. Create a new user entry with Name, Number, and SIP
settings. Navigate to the System: System settings page. Enable the Auto-
create on subscription option and enter a DECT authentication code.
On the Portable parts: Overview page, enable the Subscription mode. Start
the subscription procedure on the DECT handset using the authentication
code. This will create a new DECT device entry, i. e. a DECT handset that can be
dynamically linked to number and SIP account by means of a login/logout
procedure.
>OM Handset Sharing &
Provisioning: External User
Data Provisioning
■Dynamic subscription with External User Data Provisioning: while you need to
manually subscribe the DECT handsets, the process of creating new user
accounts can be automated by integrating external user data.
>OM System Manual:
Importing PP Configuration
Files
You can also enrol DECT handsets semi-automatically by importing a configu-
ration file via OMM Web service or OMP Java tool.
>OM System Manual:
Download Over Air
The firmware for the Aastra 610d/620d/630d DECT handsets can be deployed
automatically and over-the-air. On the System: System settings page of the OMM
Web service, enable the Downloading new firmware to portable parts option
for this.
Note
With an RFP-based OMM, you need to configure a download URL for the
Aastra 6x0d firmware file (“aafon6xxd.dnld”). With a PC-based OMM, this firmware
file is installed by the installation file on the PC’s file system.
>OM System Manual:
Enhanced Feature Overview;
OM Management Portal
(OMP)
Tip: With a large OMM SIP 2.1 system, you will typically use more
features, such as DECT XQ or SNMP. Also, the monitoring
capabilities of the OMP Java tool help you to manage the
radio network, e.g. the Sync. view or Statistics functions
available below the Monitoring: Radio fixed parts menu.

9
OM IMA Application Compendium: OM SIP – DECT Solution
OM IMA Application
>OM IMA Application:
Integrated Messaging &
Alerting Application
This chapter describes how to configure the OpenMobility Integrated
Messaging & Alerting Application service (in short “OM IMA” service). The
OM IMA service supports the delivery of messages to or from DECT portable parts.
This includes:
>OM IMA Application:
OM IMA Service Features
■delivery of text messages to or from DECT handsets;
■delivery of special messages for vcards, jobs, and paging;
■handling of message confirmations;
■automatic generation of messages;
■alarm scenarios that define reactions on alarm triggers;
■escalating unanswered / unconfirmed alarm scenarios.
With these features, the OM IMA service forms a professional and comprehensive
DECT messaging solution. The OM IMA service also provides an networked API
(“Application Programming Interface”) that can be used to control messaging
functions from an external messaging server. For example, the OM Locating appli-
cation utilizes the API to send or receive messages.
Prerequisites >OM IMA Application:
Notes on Licences
To activate the OM IMA service, you need the appropriate licenses. The application
can also be started with the automatically applied demo license, which is valid for
72 hours.
To configure the OM IMA service, you need a TFTP, FTP, or HTTP server that pro-
vides a configuration file that is downloaded by the OMM. This server is not part of
the OMM SIP – DECT 2.1 solution.
Activate the OM IMA Service
>OM IMA Application:
Activating the OM IMA
Service
Activate the OM IMA service with the following steps:
1. Start a web browser and navigate to the OMM address.
2. Log in ( User name and Password are “omm” / “omm” by factory default) and
browse to the System: System settings page.
3. Below the OM Integrated Messaging & Alerting service heading, activate
the Active option.
>OM IMA Application:
Configuration File Reference
4. Activating the OM IMA service without any configuration file is sufficient for
basic text messages and for the OM Locating application. To configure
extended functions, you need to provide a configuration file. Enter the URL of
the configuration file in the URL input field.
Further Information
Most features of the OM IMA service require that you create and deploy an XML-
based configuration file. For some features, you need additional services in your
LAN such as a POP3 e-mail server to provide an e-mail account that can be polled
in order to send messages to DECT handsets.
>OM IMA Application:
OMM Console Login
To debug your custom configuration, and to start or stop the OM IMA service the
OMM provides a console application.
Tip: The messaging API accepts XML (“OMI”) that is transported
via TCP on two ports: either encrypted or unencrypted. If
required, contact Aastra support for the XML specification.

10
Compendium: OM SIP – DECT Solution OM Locating Application
OM Locating Application
>OML Application:
OpenMobility Locating
Application
This chapter describes how to install and configure the Web-based OpenMobility
Locating application (in short: “OM Locating application”). The OM Locating appli-
cation is designed to manage SOS / ManDown calls (events), to locate the handset
which triggered such a call, and to track the handset user’s movements. The appli-
cation is eqipped with messaging and alerting functions. These functions utilize
the “OM Integrated Messaging & Alerting (OM IMA)” service, see also OM IMA
Application on page 9.
Prerequisites >OML Application:
Notes on Licences
To use the OM Locating application, you need the appropriate licenses. The appli-
cation can also be started with the automatically applied demo license, which is
valid for 72 hours.
To operate the OM Locating application, you need the following components:
>OML Application:
Technical Data; Configuring
the Workstation Computers
■OM Locating server to record all locating information provided by the
OpenMobility Manager (OMM) and present them to the OM Locating clients.
■OM Locating clients (up to 10) provided with a Web browser to manage the
locating information.
>OML Application: OMM
Configuration Prerequisites
Additionally, you should configure the OMM settings for messaging, locating and
event handling to ensure that the OM Locating application features work.
Install the OML Application
To install and run the OM Locating application on the OM Locating server, you
need to setup a Sun/Oracle Java 1.6 runtime environment and the Apache
Tomcat 5 server on a PC running “Red Hat Enterprise Linux Server 5.4”.
>OML Application:
Installing Red Hat Enterprise
Linux Server 5.4
1. Install the “Red Hat Enterprise Linux Server 5.4” operating system on the
dedicated OM Locating server. During installation of the operating system, you
can also install the required “tomcat5” packages.
>OML Application:
Installing the OM Locating
Application
2. Install the Sun/Oracle Java 6 Runtime Environment. You can download it from
the Web address “http://java.com”. Ensure to download the Linux version
(RPM) of the “Java SE Runtime Environment (JRE)” (Version 1.6 entitled as
“Version 6”) package. If you have not installed the Tomcat software within
installation of the Red Hat operating system, you can make it up now.
3. Install the OM Locating application’s servlet. Copy the “OML.war” file from the
OM Locating installation media to the “webapps” folder below the Apache
Tomcat working directory.
Adding Site / Location Pictures
>OML Application:
Adding Site / Location
Pictures
The OM Locating application’s user interface provides graphic views of the RFPs
where a portable part is located. You can save pictures of the RFP installation sites
to the “webapps/OML/images/locations/” directory of the Tomcat server running
the OM Locating application. These pictures can e.g. base on the plant layout.
Start the OM Locating Application
1. On an OM Locating client call up a web browser and enter the OML address:
http://localhost:8080/OML/
(when the browser runs on the PC which also runs the OML), or
http://192.168.1.1:8080/OML resp. http://dns-name-of-pc:8080/OML
(when browser and OML run on different PCs in the LAN).

11
OM Locating Application Compendium: OM SIP – DECT Solution
2. Enter the OML User name and Password. Initial login data is: admin (default
user) and OpenMob (default password).
Note
Cookies must be enabled in the used web browser. Otherwise the OML login can
not be completed.
Configure the OMM Connection
>OML Application:
Configuring the OMM
Connection
1. Switch to the Administration: OMM Configuration menu (after initial login
this menu is displayed automatically).
>OM System Manual:
Account Types
2. Enter the User name and the Password for the OMM “Full access” accout type
(“omm” / “omm” by factory default). In the Address field, enter the OMM IP
address or OMM DNS name.
Configure the OML Users
>OML Application:
Managing Users
1. Switch to the Administration: Users menu.
2. Create the OML accounts for new users or edit/change existing OML user
accounts.
Note
Two different user groups can be assigned to the OML users: users for operators,
administrators for users who are allowed to administer the OML configuration
and the OML users (operators).
Configure the Users’ Portable Parts
>OML Application:
Configuring the Portable
Parts
1. Start the OMP. To do so, browse the OpenMobility installation media for a file
named “OMP.jar”. Right click the file and select the Open with Sun Java 6
Runtime menu item from the context menu.
2. Enter the User name and the Password for the OMM “Full access” accout type.
In the Address field, enter the OMM IP address or OMM DNS name.
3. Call up the Portable Parts: Overview page to enable the OM Locating features
for the appropriate portable parts.
4. Select the desired portable part in the Overview table. In the portable part’s
details view switch to the Locating tab. Enable the Tracking, Locatable, and
Locating permission options.
5. Repeat the previous step for all portable parts that should be monitored with
the OM Locating application.
>OM System Manual:
Importing PP Configuration
Files; PP Configuration File
(OMM Database)
Notes
■A large number of portable parts can be imported by predefined PP
configuration files. The import can be executed via the OMM Web service in
the Portable parts menu.
>Aastra 600d IMA■Aastra provides the Aastra 610d, Aastra 620d, Aastra 630d handsets for use
with the OM Location application. These handsets support all application
features.
>OML Application:
Notes on GAP / Aastra 142d
Handsets
■Aastra 142d and GAP handsets can also be used, but offer a limited feature set.

Copyright 2011 www.aastra.com
All rights reserved
As of 07.03.2011 • Subject to changes
