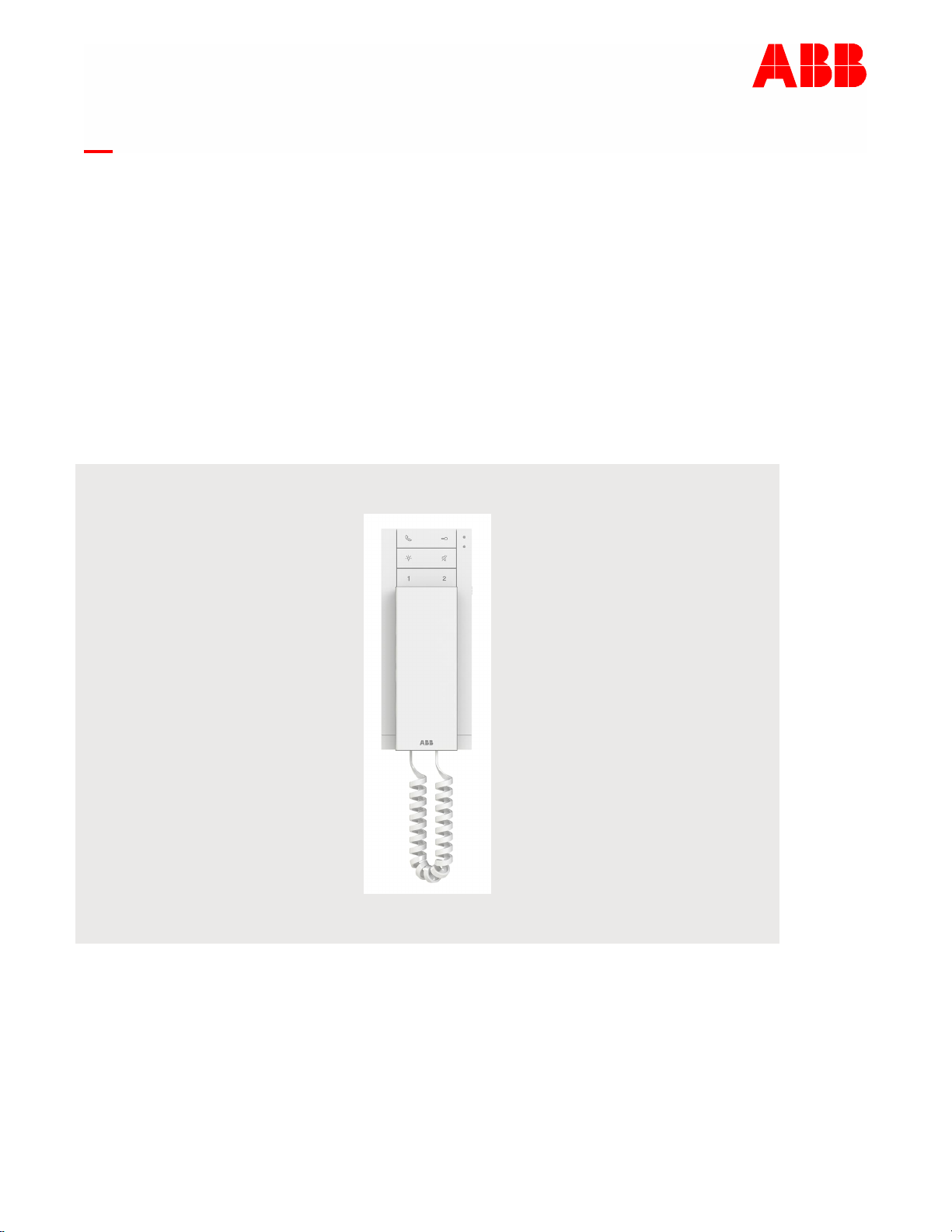

ABB H82001-W User manual

2TMD042200D0001 │31.08.2022
Product manual
ABB-Welcome IP
H82001-W Audio IP

Table of contents
Product manual
2TMD042200D0001
│
2
Table of c ontents
1Notes on the instruction manual............................................................................................................4
2Safety..................................................................................................................................................4
3Intended use........................................................................................................................................4
4Environment.........................................................................................................................................5
4.1 ABB devices..............................................................................................................................5
5Product description...............................................................................................................................6
5.1 Device type ...............................................................................................................................6
5.2 Control elements........................................................................................................................7
5.3 Terminal description.................................................................................................................10
6Technical data....................................................................................................................................11
7Mounting/Installation...........................................................................................................................12
7.1 Requirement for the electrician.................................................................................................12
7.2 Product dimensions .................................................................................................................13
7.3 Installation height.....................................................................................................................13
7.4 Surface-mounted installation....................................................................................................14
8Commissioning...................................................................................................................................15
8.1 Setting on "Smart Access Point"...............................................................................................15
8.1.1 Adding Audio IP via "Smart Access Point".............................................................................. 15
8.1.2 Adding Audio IP via App....................................................................................................... 17
8.1.3 Importing a building structure via App.................................................................................... 19
8.1.4 Accessing the setting screen................................................................................................. 22
8.1.5 Basic information.................................................................................................................. 23
8.1.6 Call button setting................................................................................................................. 24
8.1.7 Unlock button setting............................................................................................................ 26
8.1.8 Light button setting............................................................................................................... 28
8.1.9 Programmed button setting................................................................................................... 29
8.1.10 Guard unit setting................................................................................................................. 33
8.1.11 Physical address & IP address setting................................................................................... 34
8.1.12 Logical address setting......................................................................................................... 38
8.1.13 Ringtone setting................................................................................................................... 39
8.1.14 Renaming the device............................................................................................................ 40
8.1.15 Local Firmware update......................................................................................................... 42
8.1.16 Online firmware update......................................................................................................... 45
8.1.17 Multiple devices setting......................................................................................................... 46
8.2 Setting on local device.............................................................................................................48
8.2.1 Ring volume setting.............................................................................................................. 48
8.2.2 Ringtone setting................................................................................................................... 49
8.2.3 Talking volume setting.......................................................................................................... 51
8.2.4 Auto unlock setting............................................................................................................... 52
8.2.5 Resetting the device............................................................................................................. 53
9Operation...........................................................................................................................................54
9.1.1 Incoming call........................................................................................................................ 54

Table of contents
Product manual
2TMD042200D0001
│
3
9.1.2 Intercom............................................................................................................................... 55
9.1.3 Unlock ................................................................................................................................. 56
9.1.4 Turn on a light...................................................................................................................... 57
9.1.5 SOS..................................................................................................................................... 58
10 Cyber security....................................................................................................................................59
10.1 Disclaimer ...............................................................................................................................59
10.2 Performance and service .........................................................................................................60
10.3 Deployment guideline...............................................................................................................60
10.4 Upgrading................................................................................................................................61
10.5 Malware prevention solution.....................................................................................................61
11 Notice................................................................................................................................................62

Notes on the instruction manual
Product manual
2TMD042200D0001
│
4
1Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place. If you pass the device on, also pass on this manual
along with it. ABB accepts no liability for any failure to observe the instructions in this manual.
2Safety
Warning
Electric voltage!
Dangerous currents flow through the body when coming into direct or indirect
contact with live components.
This can result in electric shock, burns or even death.
– Disconnect the mains power supply prior to installation and/or disassembly!
– Permit work on the 100-240 V supply system to be performed only by
specialist staff!
3Intended use
This device is a part of the ABB-Welcome IP system and operates exclusively with components
from this system. The device must only be installed in dry indoor rooms.

Environment
Product manual
2TMD042200D0001
│
5
4Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with household
waste.
– The device contains valuable raw materials that can be recycled. Therefore,
dispose of the device at the appropriate collecting facility.
4.1 ABB devices
All packaging materials and devices from ABB bear the markings and test seals for proper
disposal. Always dispose of the packing materials and electric devices and their components via
an authorized collection facility or disposal company.
ABB products meet the legal requirements, in particular the laws governing electronic and
electrical devices and the REACH ordinance.
(EU-Directive 2012/19/EU WEEE and 2011/65/EU RoHS)
(EU-REACH ordinance and law for the implementation of the ordinance (EG) No.1907/2006)

Product description
Product manual
2TMD042200D0001
│
6
5Product description
5.1 Device type
Article
number Order number Product name Colour Size (DxHxW)
Unit: mm
H82001-W 2TMA130011W0001 Audio IP, induction loop White 81 x 198 x 43

Product description
Product manual
2TMD042200D0001
│
7

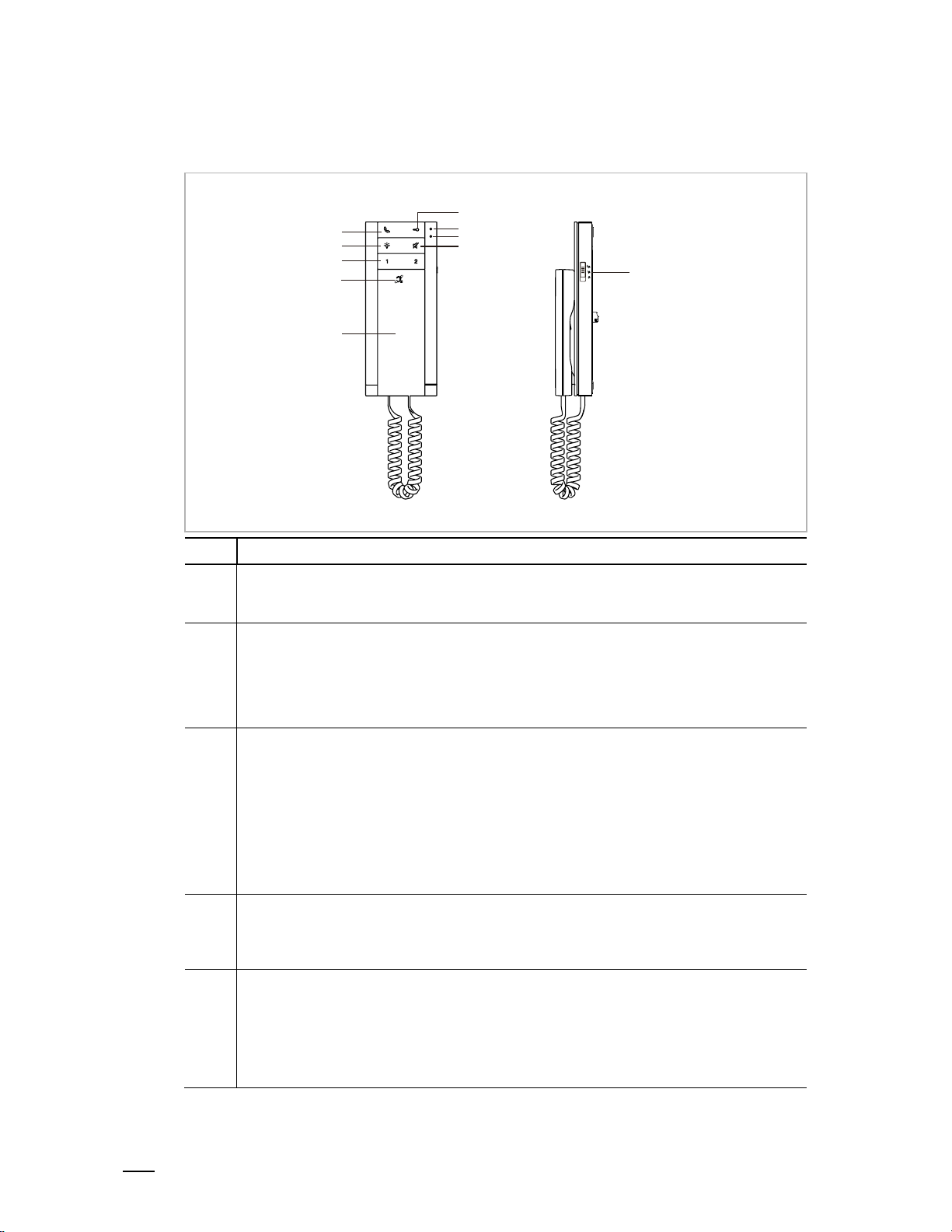

5.2 Control elements
No. Description
1Handset
■During a call request, pick up the handset within 30 seconds to accept the call.
■During communication, hang up the handset to terminate the call.
2
Induction Loop symbol
The device is equipped with a hearing loop for coupling the audio signal into hearing aids.
■In order to be able to use such hearing loops, the hearing aid must have a so-called
telephone coil (short: "T-coil") that records the magnetic alternating field of the hearing
loop.
■The distance to the device should be a maximum of 80 cm for optimal reception.
3
Programmable button
The button can be programmed on the "Smart Access Point" for the functions below:
■Intercom to same unit (default)
■Intercom to another unit
■Call guard unit
■Open door with Outdoor station
■Open door with IP actuator
■Turn on the designated light
■SOS function
4
Light button
■In standby status, press the button to turn on the designated light.
■In standby status, hold the button for 5 seconds to set the ringtone type.
■During communication, hold the button for 5 seconds to set the call volume.
5
Call button
■Pick up the handset in standby mode and press the button tocommunicate with other
indoor stations within the same apartment (default setting). In doing so, all existing indoor
stations within the apartment will be called simultaneously. In this case, the group call is
stopped as soon as one of the indoor stations accepts the call.
The button can be programmed on the "Smart Access Point" to Intercomto another unit or call
guard unit.
1
2
3
4
56
7
8
910

Product description
Product manual
2TMD042200D0001
│
8
No. Description
6
Unlock button
■*In standby status, press the button to release the default lock of the default outdoor
station. (A default outdoor station should be set on the "Smart Access Point" before use).
■In standby status, hold the button for 10 seconds to enable the "Automatic unlock" function.
The LED (red) illuminates to indicate that the "Automatic unlock" function is enabled. The
same operation will disable the "Automatic unlock" function and the LED (red) will turn off.
* The "Automatic unlock" function means the door will be unlocked automatically during a call
request. This function will be disabled automatically after 10 hours.
7LED (red)
8LED (blue)
9
Mute button
■In standby status, press the button to mute the ringtone.
■In standby status, hold the button for 3 seconds to mute the ringtone for all the indoor
stations in the same apartment.
■During a call request, press the button to mute the ringtone.
■During communication, press the button to mute the microphone.
10 Volume button
Adjust the three-level selector (maximum/medium/low) to set the ringtone volume.
1
2
3
4
56
7
8
910

Product description
Product manual
2TMD042200D0001
│
9
LED Overview
Icon Description
Red LED always on
Blue LED always on
Red LED flashes slowly
Blue LED flashes slowly
Red LED flashes fast
Blue LED flashes fast
LED status
LED status Description
"Auto-unlock" function is enabled.
Mute the speaker or the microphone.
& Unsigned status or enters the setting mode.
During an incoming call.
Operation failed.
Operation success.
& IP address conflicts or network connection is not working properly.
/ Two LEDs flash alternative, update the firmware.

Product description
Product manual
2TMD042200D0001
│
10

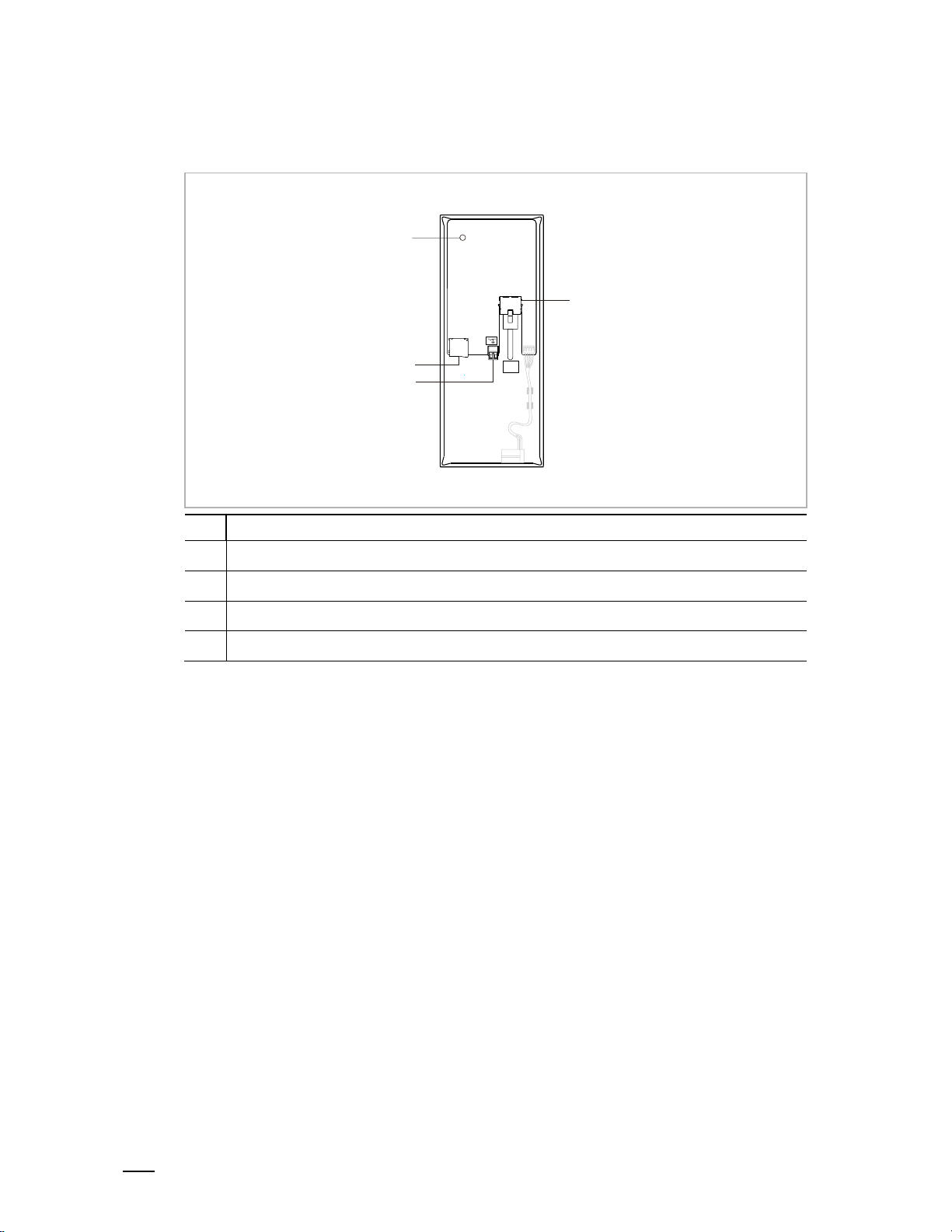

5.3 Terminal description
No. Description
1A potential-free contact, such as a doorbell
2Micro SD card slot (only for factory use)
3LAN (PoE), PoE is the only power supply for this device
4Reset button
1
2
3
4
