ABB solar inverters
Programming for HECO compliance
TRIO-20.0/27.6-TL-OUTD-X-US-480

2 TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance
1. Introduction
This instruction provides the method to reprogram the ABB TRIO-20.0/27.6-TL-OUTD-X-US-480 to the Hawaii Electric Company,
Inc. (HECO) ultra-fast trip transient over-voltage requirements (TrOV-2) and frequency voltage ride through (FVRT) mitigation
requirements as described in the document “Appendix IIA Full Ride Through Settings for O’ahu, Maui, Hawai’i” dated January,
2015. Details of these requirements are available on the HECO website at: http://www.hawaiianelectric.com/vcmcontent/
StaticFiles/pdf/TrOVandFVRT_Public_Feb2015.pdf.
Every operation performed on the TRIO-20.0/27.6-TL-OUTD-X-US-480 shown in this instruction must be
performed following existing regulations and safety instructions and carried out in compliance with the
instructions provided in the product manual located at http://www.abb.com/solarinverters/.
2. Parameter setting via inverter’s display

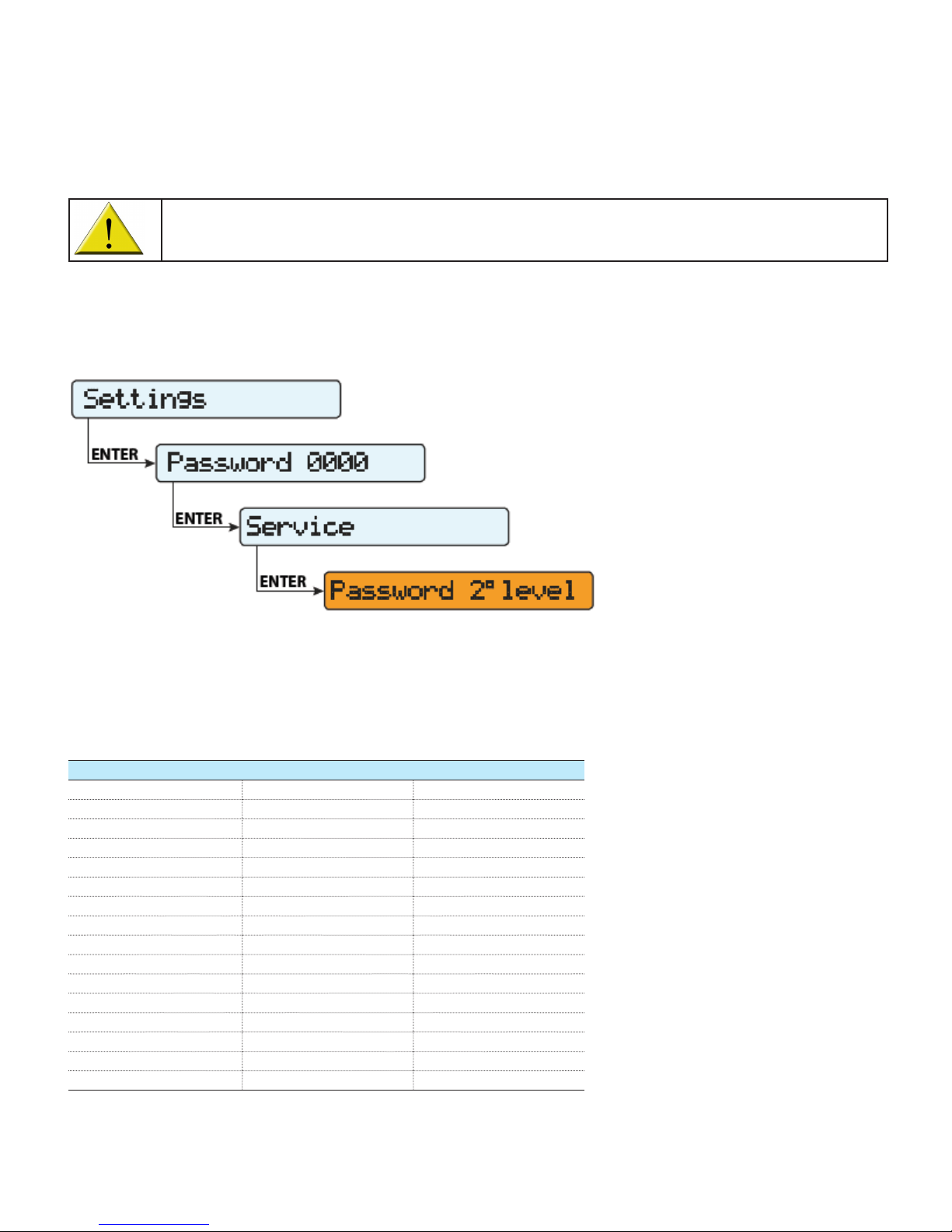

HECO requirement settings can be set via the TRIO’s LCD display using the service menu (accessible using the buttons on the
inverter’s LCD panel) as shown in Figure 1 below. Note: to obtain the second level password, call ABB solar inverter post-sales
technical support at 1-877-261-1374, 6 a.m. - 6 p.m. MST.
After entering the second level password, the list of inverter grid parameters can be accessed using the UP and DOWN buttons.
Once the parameter indicated in the center column (Inverter parameter) of Table 1 below is highlighted, press ENTER. Then, use
the UP/DOWN buttons to increase or decrease the parameter’s value. Select the new setting value shown in the right column.
Once all settings have been changed, press ENTER to confirm.
HECO parameter Inverter parameter Setting value
OVR2 Set U>> 332.5V
UVR2 Set U<< 138.5V
OFR2 Set F>> 64Hz
UFR2 Set F<< 56Hz
OVR1 Set U> 304.7V
UVR1 Set U< 243.V
OFR1 Set F> 63Hz
UFR1 Set F< 57Hz
OVR2 Set time U>> 160ms (default value)
UVR2 Set time U<< 160ms (default value)
OFR2 Set time F>> 160ms (default value)
UFR2 Set time F<< 160ms (default value)
UVR1 Set time U< 20s
OVR1 Set time U> 920ms
OFR1 Set time F> 20s
UFR1 Set time F< 20s
Figure 1 - Service menu
Table 1 - inverter grid parameters and associated HECO settings

TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance 3
3. Parameter setting via software tool Aurora Manager Lite
Aurora Manager Lite is a free ABB software which communicates with the ABB TRIO inverter by reading the inverter data, settings
and sending commands. Contact ABB solar inverter post-sales technical support at 1-877-261-1374 to obtain the software and
any required password.
To use the Aurora Manager Lite software, it is necessary to connect a laptop PC to the inverter. The computer must communicate
through an RS485 line using an RS485-to-USB adapter. ABB recommends the ABB Aurora Adapter in order to avoid compatibility
issues; however, equivalent devices may be used. For details connecting the ABB Aurora Adapter to the inverter, refer to Appendix
A: How to connect the laptop PC to the inverter on page 6 of this instruction.
For the procedure to access the Aurora Manager Lite software, refer to Appendix B: How to launch Aurora Manager LITE on page
7 of this instruction.
When multiple TRIO inverters are daisy chained, it is possible to change the parameters on all inverters connected in the chain at
one time. Once the laptop PC is connected to the daisy chain, Aurora Manager Lite will scan for all inverters and list each by model
and serial number on the left side of the screen. Verify that each inverter in the daisy chain is identified in the list. Refresh the list if
necessary. All inverters in the daisy chain must be set to communicate through Aurora Protocol. If set to Modbus, each inverter will
need to be changed to Aurora Protocol or individually updated to HECO parameters.
Once the laptop PC is connected to the inverter, click on the Setup tab as shown in Figure 2 below.
Figure 2 - Click on the Setup tab

4 TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance
Next, click on the AC side tab, then the Grid protection tab, as shown in Figure 3 below. Voltage and Frequency grid parameters
are all now accessible.
To set the HECO parameters outlined in Table 1 on page 2 of this instruction, the boxes in the New columns must be changed as
shown in Figure 4 below:
Figure 3 - Click on the AC side tab, then the Grid protection tab
Figure 4 - Change information in the New columns

TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance 5
Rather than changing the settings for each individual TRIO inverter in a daisy chain configuration, select Apply setup changes to
ALL connected units at the top of the screen, as shown in Figure 5 below.
Figure 5 - Apply setup changes changes to ALL connected units

6 TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance
Appendix A: How to connect the laptop PC to the inverter
To use the Aurora Manager LITE software, connect the laptop PC to the inverter on the RS485 PC/SERV port of the
communication board using an USB-RS485 Adapter (the ABB PVI-USB-RS232_485 Converter is recommended). The following
steps must be performed:
−Switch OFF the inverter using the DC disconnect
−Remove the wiring box cover by unscrewing the six (6) lateral screws
−Remove the mylar cover on the communication board
−Connect the RS485 cables on the PC/SERV port (see top blue rectangle box in Figure 6 above) using an RJ45 plug, or the
terminal block (see bottom blue rectangle box in Figure 6 above) by wiring the GND COM, PC +T/R and PC –T/R as shown in
Figure 7 below.
Figure 7 - Connect the RS485 cable wires as shown
Figure 6 - Communication board showing RS485 PC/SERV port above and terminal block below

7 TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance
Appendix B: How to launch Aurora Manager LITE
Aurora Manager LITE software is available at no cost from ABB and allows the installer or customer to monitor the plant, as well
as change inverter settings.
To launch this software, once the inverter is connected to a laptop PC as described in Appendix A, access the COM settings as
shown in Figure 8 below:
To determine which COM port to use, once the inverter is connected to the laptop PC through the adapter, this can be determined
by opening the computer’s Control Panel and clicking on the Device Manager tab and then on the Ports (COM & LPT) tab, as
shown in Figure 9 below.
Figure 8 - Launch Aurora Manager LITE software
Figure 9 - Access the laptop PC Control Panel (Device Manager) to determine which COM port to use

TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance 8
This action will provide a list of active COM ports, which should include the RS485/USB adapter and list its associated COM port
number (typically the associated COM is the one with the highest number). Baud rate remains 19200. See Figure 10 below.
By clicking on Apply and then OK, the COM settings are confirmed.
At this point on the main screen, it is possible to scan for inverters connected to the laptop PC, as shown in Figure 11 below.
Once the inverter(s) are found, select an inverter, and additional TAB selections will appear, as shown in Figure 12.
Figure 10 - List of active COM ports
Figure 11 - Scan for inverters connected to the laptop PC
Figure 12 - Additional TAB selections will appear

9 TRIO 20.0/27.6-TL-OUTD-US-480 | Programming for HECO compliance
From the Configuration drop-down menu, click on Set-up area access, as shown in Figure 13 below.
The following menu will appear, as shown in Figure 14 below.
Fill in all fields, and finish by inserting the PASSWORD obtained from ABB solar inverter post-sales technical support and then
clicking OK to confirm. New features will be available in the software. Press the REFRESH button and click on any inverter icon in
the list, and new TABs will then appear, as shown in Figure 15 below. These new tabs are available for all inverters listed and are to
be used to change the iinverter parameters as discussed in section 3 - Parameter setting via software tool Aurora Manager Lite on
page 3 of this instruction.
Figure 13 - Access the Setup area access
Figure 14 - Setup menu
Figure 15 - Software features available

EN BCM.00362.0AP_REV AA 24 JuLY 2015
