ABB ESP630 A2 User manual

ESP630 from ABB
Ethernet Service Platform
Product Manual
ESP630
A
B
B E
SP630
A
B
B E
SP630

Product Manual ESP630
Copyright and Confidentiality: Copyright in this document vests in ABB Ltd. This document contains
confidential information which is the property of ABB. It must be held in
confidence by the recipient and may not be used for any purposes except
those specifically authorised by contract or otherwise in writing by ABB.
This document may not be copied in whole or in part, or any of its contents
disclosed by the recipient to any third party, without the prior written
agreement of ABB.
Disclaimer: ABB has taken reasonable care in compiling this document, however ABB
accepts no liability whatsoever for any error or omission in the information
contained herein and gives no other warranty or undertaking as to its
accuracy.
ABB reserves the right to amend this document at any time without prior
notice.
Document number: 1KHW002104/Ed01a
ABB Switzerland Ltd
Power Systems
Bruggerstrasse 72
CH-5400 Baden
Switzerland
© ABB Switzerland Ltd, February 2009
The right to modifications or deviations due to technical progress is reserved.

ESP630 Product Manual
1KHW02104 /Ed01a page 3 of 29 ABB
CONVENTIONS
The following conventions were adopted along this manual, in order to better understanding:
Hyperlink – indicates an address on Internet or an e-mail address.
Command or button - when a command, button or software’s menu is referred; this indication will
be always in italic.
# Commands and terminal screen messages are showed as texts without any form, preceded
by # (sharp).
The notes better explain some of details showed in the text.
This form indicates that the text has great importance and there are damages risks. The
text must be read carefully. It can avoid great difficulty.
It indicates an existing electric shock risk, if the procedures are not correctly applied.
It indicates a laser radiation presence. It can cause damages for the skin or the vision if
the instructions were not applied and if the direct exposure to the skin and to the eyes was
not avoided.
It indicates equipment or parts sensibility to EMI (static electricity). It should not be
manipulated without care, such as grounding bracelet or another static electricity
protection device.
It indicates non-ionized radiation and emission.

ESP630 Product Manual
1KHW002104 / Ed01a page 4 of 29 ABB

ESP630 Product Manual
1KHW02104 /Ed01a page 5 of 29 ABB
TABLE OF CONTENTS
1Introduction ........................................................................................6
1.1 Overview ......................................................................................................................................... 6
1.2 Front Panel Description................................................................................................................... 7
1.2.1 System Status LEDs........................................................................................................................ 8
1.2.2 Port LEDs........................................................................................................................................ 8
1.2.3 Console and Alarm Ports................................................................................................................. 9
1.2.4 Slave/Master and Stack/Uplink Buttons......................................................................................... 11
1.3 Rear Panel Description.................................................................................................................. 11
1.3.1 ESP630 A2 Rear Panel................................................................................................................. 11
1.3.2 ESP630 A3 Rear Panel................................................................................................................. 12
2Switch Installation............................................................................13
2.1 Package Contents ......................................................................................................................... 13
2.2 Installation Guidelines.................................................................................................................... 13
2.3 Installing the Switch without a Rack............................................................................................... 13
2.4 Installing the Switch in a Rack....................................................................................................... 14
2.5 Powering the Switch...................................................................................................................... 14
2.6 Installing/Removing a A2/A3 version Hot-Swap Power Unit .......................................................... 15
3Making Connections ........................................................................16
3.1 Connecting Devices through RJ-45 Ports...................................................................................... 16
3.2 Connecting a SFP Module............................................................................................................. 16

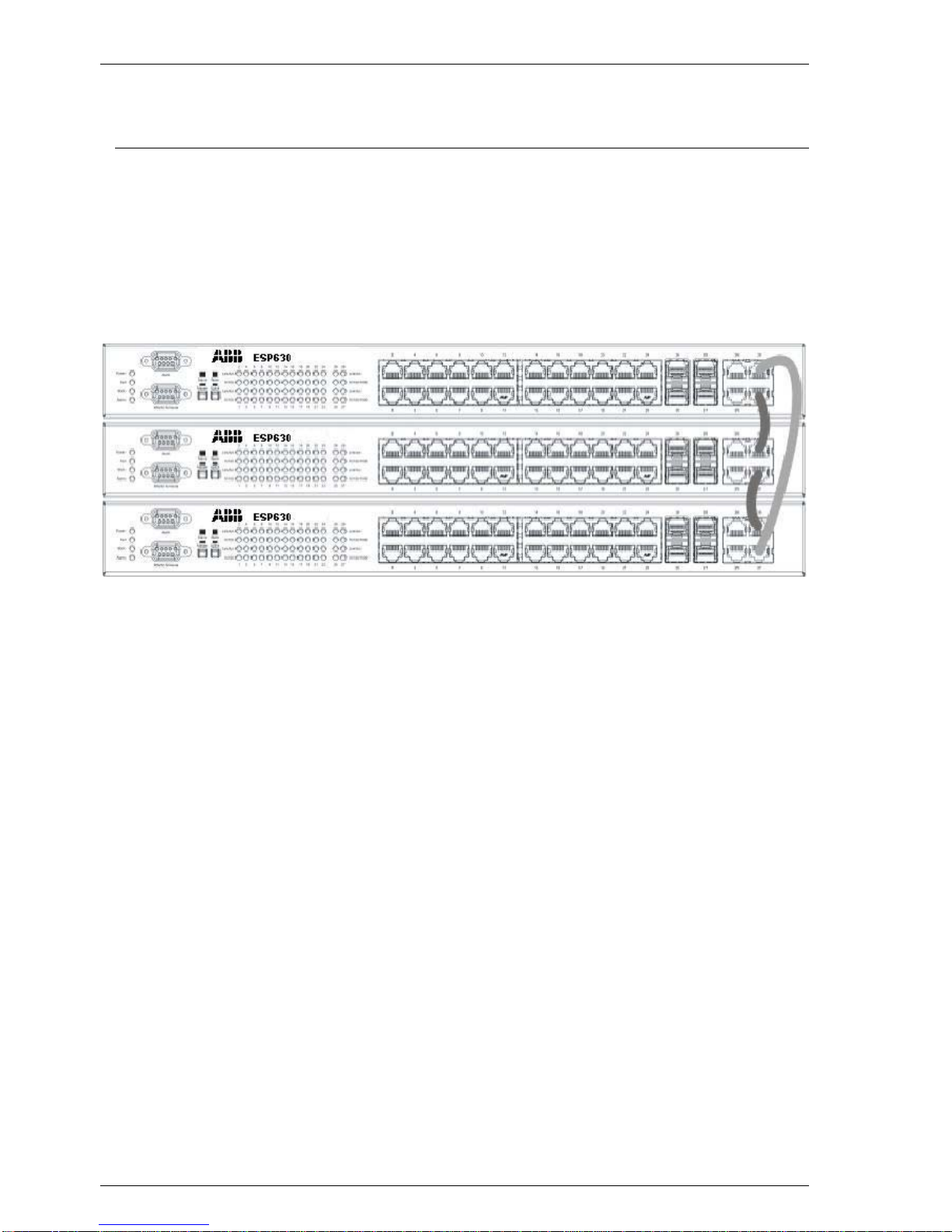

3.3. Connecting the Switch in a Stack Configuration ............................................................................ 18
4Appendix A. Technical Specifications............................................19
A.1 Physical and Environmental.......................................................................................................... 19
5Appendix B. SFP Modules...............................................................20
B.1 Unidirectional modules ................................................................................................................. 20
B.2 Bidirectional modules.................................................................................................................... 22
B.3 CWDM modules............................................................................................................................ 24
6References and Abbreviations........................................................28
6.1 References.................................................................................................................................... 28

ESP630 Product Manual
1KHW02104 /Ed01a page 6 of 29 ABB
1Introduction
1.1 Overview
The ESP630 3x24Ax is a member of the ABB switch ESP630 family. The ESP630 is a family of Metro Ethernet
Switches with L2 and L3 wire-speed commutation capability, MPLS features, which allow its utilization as a Label
Edge Router, and many QoS L2-L7 facilities, ensuring bandwidth control and priority management.
The ESP630 3x24Ax is a stackable and manageable switch. Its stacking ports allow the connection of
up to eight switches in a stack configuration. It can also be used in a standalone mode. The switch can be
managed through FOXView, Telnet/SSH, Web or SNMP.
The A2 Switch versions are equipped with 24 10BASE-T/100BASE-TX and 4 GBE combo ports
(10/100/1000Base-T or SFP). The A3 Switch version is equipped with 24 100BASE-FX and 4 GBE
combo ports (10/100/1000Base-T or SFP). They are unshielded twisted pair (UTP) cable ports and Auto
MDI/MDI-X, allowing the use of either straight or crossover twisted-pair cables. It means the switch can
be used to connect to other switches, hubs, routers, PCs and much other networking equipment.

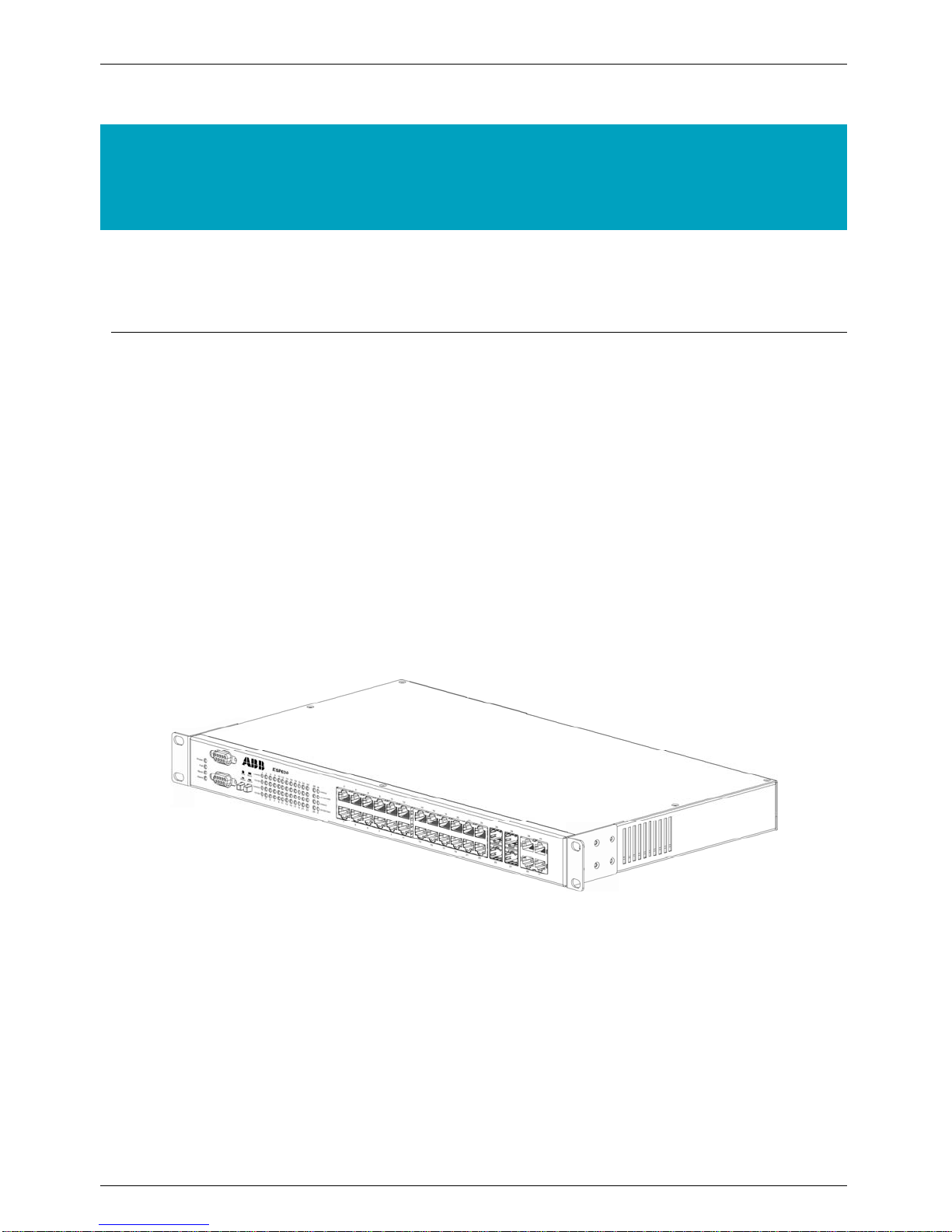

Fig. 1-1. Overview of the ESP630 A2

ESP630 Product Manual
1KHW002104 / Ed01a page 7 of 29 ABB
Fig. 1-2. Overview of the ESP630 A3
1.2 Front Panel Description
The front panel of the ESP630 A2 contains 24 10BASE-T/100BASE-TX ports, 4 10/100/1000Base-T /SFP
combo ports, RS-232 console port, an alarm port and two buttons for changing stacking options.
Fig. 1-3. ESP630 A2 Front Panel
The front panel of the ESP630 A3 contains 24 100BASE-FX SFP ports, 4 10/100/1000Base-T /SFP
combo ports, RS-232 console port, an alarm port and two buttons for changing stacking options.
Fig. 1-4. ESP630 A3 Front Panel

ESP630 Product Manual
1KHW002104 / Ed01a page 8 of 29 ABB

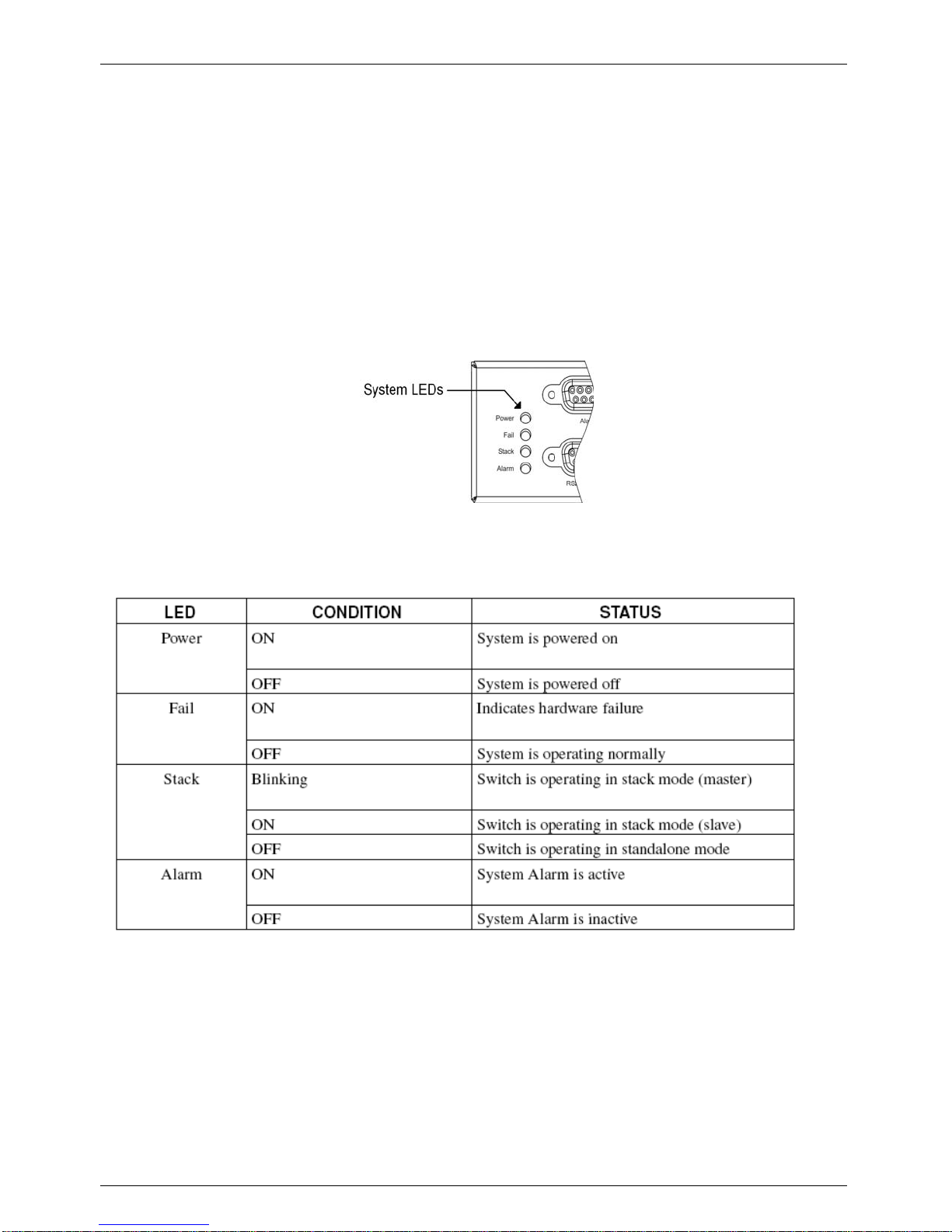

1.2.1 System Status LEDs
The System Status LEDs on the front panel can be used to monitor system activity. Following Figure
shows where the LEDs are located and the table below indicates the system status according to each LEDs
condition.
Fig. 1-5. Systems LEDS Location
Table 1-1. System LEDS
1.2.2 Port LEDs
Port LEDs indicate data activity and speed on each port. Their location is shown on next Figure and
their status on the table below.

ESP630 Product Manual
1KHW002104 / Ed01a page 9 of 29 ABB
Fig. 1-6. Ports LEDS Location
Table 1-2. Ports LEDS
1.2.3 Console and Alarm Ports
The switch contains two DB9 connectors on its front panel. The upper connector is the Alarm port
and the lower is the Console port. The pin-out of both console and alarm ports are shown in the
next figure.

ESP630 Product Manual
1KHW002104 / Ed01a page 10 of 29 ABB
Fig. 1-7. Console and Alarms Ports Pins Order
The Alarm port contains 3 alarm inputs and 1 alarm output. The inputs accept voltage differences from
8V to 60V (indicating alarm on) or less than 8V (indicating alarm off).
The Alarm output works as follows. In an alarm situation or when the device is powered off, pin 4 (common)
is short-circuited with pin 9 (NC). When alarm is off, the pin 4 turns to a short circuit with pin 5 (NO), while pin 9
keeps isolated.
Alarm pin assignments are provided on the following table:
Table 1-3. Alarm Ports Pins Assignments
Next table shows the Console Port pin assignments:
