Abilica Stream TM 7 User manual

Stream TM 7
Art.nr. 300 511
Model: Mosco M200B

2
INNHOLD / INNEHÅLL / CONTENTS / SISÄLLYS
3 Deletegning / Sprängskiss / Parts drawing / Osakuvaus
4 Deleliste / Dellista / Parts List / Osaluettelo
6 Montering / Assembly / Asennus
10 Program-info / Ohjelmakaavio
11
Viktig informasjon
13 Betjening av computeren
14 Justering av løpebåndet
15 Rengjøring og vedlikehold
16 Reklamasjonsvillkår
17 Kontaktinformasjon (Norge og Danmark)
18
Viktig information
20 Betjäning av datorn
21 Justering av löpmattan
22 Rengöring och underhåll
23 Reklamationsvillkor
24 Kontaktinformation
25 Important information
27 Operating the console
28 Belt adjustment
29 Cleaning and maintainance
30 Warranty regulations
31 Conatct information
32
Tärkeitä tietoja
33 Tietokoneen huolto
36 Kunnossapito
37
Valitusehdot
38 Yhteystiedot

3

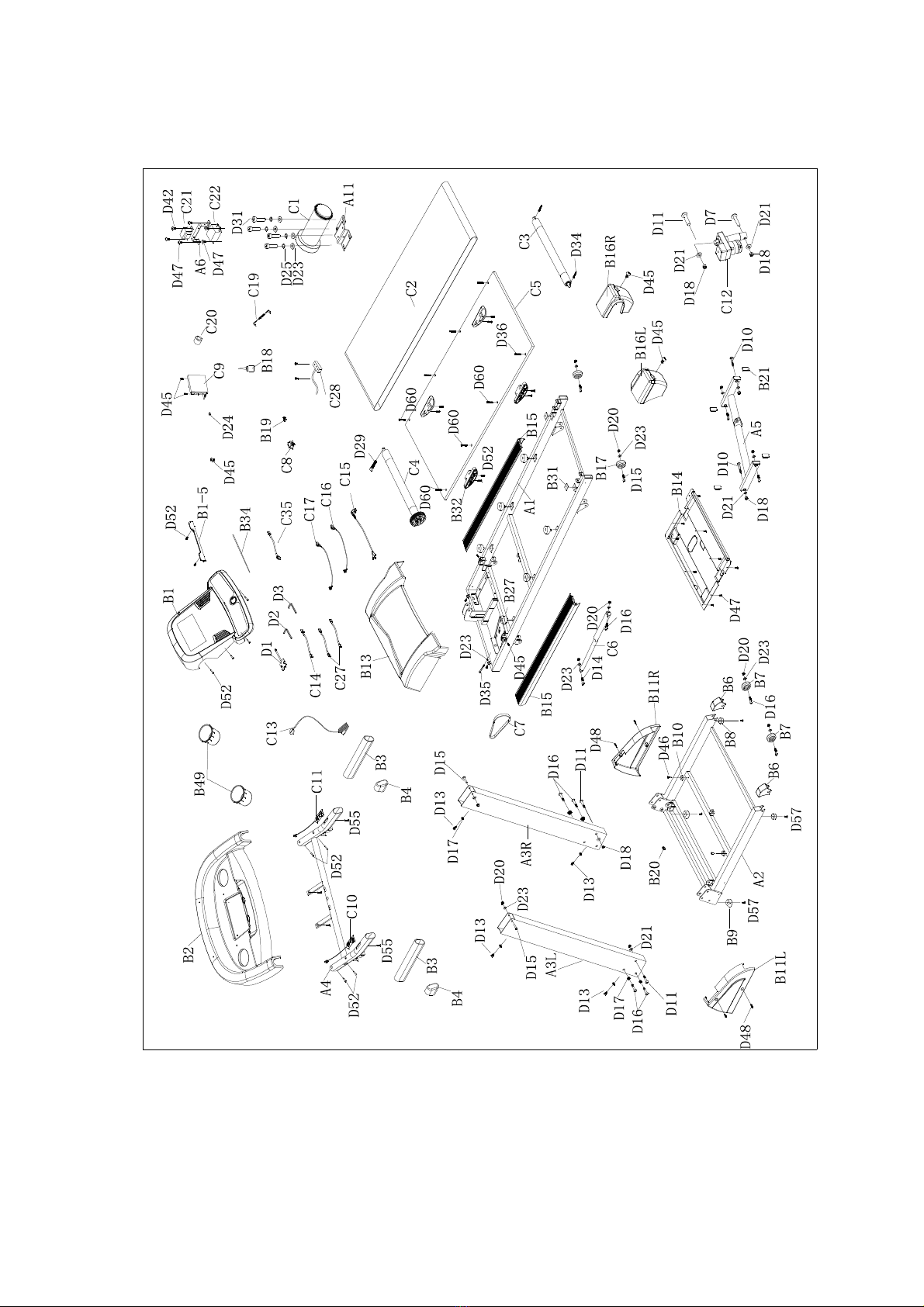

DELETEGNING / SPRÄNGSKISS / EXPLODED VIEW DRAWING
C
3
5
D
2
3

4
DELELISTE / DELLISTA / PARTS LIST
A. Welding parts
No. Description Qty No. Description Qty
A1 Base frame 1 A5 Incline frame 1
A2 Main frame 1 A6 Filter supporting frame 1
A3L Left upright 1 A11 Motor bracket 1
A3R Right upright 1
A4 Handrail bracket 1
B. Plastic parts
No. Description Qty No. Description Qty
B1 Console set 1 B13 Motor upper cover 1
B1-1 Overlay 1 B14 Motor back cover 1
B1-2 Membrane Key 1 B15 Side rail 2
B1-3 Console panel 1 B16L Left end cap 1
B1-5 I-Pad holder 1 B16R Right end cap 1
B2 Console cover 1 B17 Adjust wheel 2
B3 Protecting foam 2 B18 Silicon oil 1
B4 Handrail plug 2 B19 Power line deduction 1
B6 Transport wheel cap 2 B20 Round plug 1
B7 Transport wheel 2 B21 Inner plug 4
B8 Flat foot pad 2 B27 New cushion 6
B9 U-shaped foot pad 2 B31 Rubber pad 2
B10 Limit cushion 2 B32 Cushion 4
B11L Left side cover 1 B34 EVA pad(I-Pad holder) 1
B11R Right side cover 1 B49 Bottle holder 2
C. Electric and drive parts
No. Description Qty No. Description Qty
C1 DC motor 1 C13 Safety key 1
C2 Running belt 1 C14 Single cord (red) 300 1
C3 Rear roller 1 C15 Power line 1
C4 Front roller 1 C16 Console upper wire 1
C5 Running board 1 C17 Console lower wire 1
C6 Cylinder 1 C20 Magnetic ring 1
C7 Motor belt 1 C21 Inductor 1
C8 Power Switch 1 C22 Filter 1
C9 Controller 1 C27 Single cord (black) 300 2
C10 Handle pulse left keyboard 1 C28 Photoelectric Sensor 1
C11 Handle pulse right keyboard 1 C35 Single cord(CE) 1
C12 Incline motor 1
D. Hardware parts
No. Description Qty No. Description Qty
D1 Screw driver 13-15-17 1 D25 Spring washer M8 4
D2 Allen wrench T6 1 D29 Hex round head bolt M6*45 1
D3 Allen wrench T5 1 D31 Hex round head bolt M8*60 4

5
D7 Round hex bolt M10*60 1 D34 Hex round head bolt M8*20 2
D10 Round hex bolt M10*45 4 D35 Hex round head bolt M8*80 1
D11 Round hex bolt M10*50 3 D36 Cross head bolt M6*25 2
D13 Round hex bolt M8*15 4 D42 Cross head bolt M4*10 2
D14 Round hex bolt M8*30 1 D45 Cross head bolt M5*15 9
D15 Round hex bolt M8*40 4 D46 Cross head bolt M5*20 2
D16 Round hex bolt M8*45 7 D47 Cross self-tapping bolt ST4.2*16 13
D17 Inner washer M8 8 D48 Cross self-tapping bolt ST4.2*19 4
D18 Nylon nut M10 8 D52 Cross self-tapping bolt ST4.2*16 23
D20 Nylon nut M8 8 D55 Cross self-tapping bolt ST4.2*45 2
D21 Flat washer M10 8 D57 Cross self-tapping bolt ST4.2*25 4
D23 Flat washer M8 13 D60 Cross head bolt M6*20 6
D24 Spring washer M5 1

6

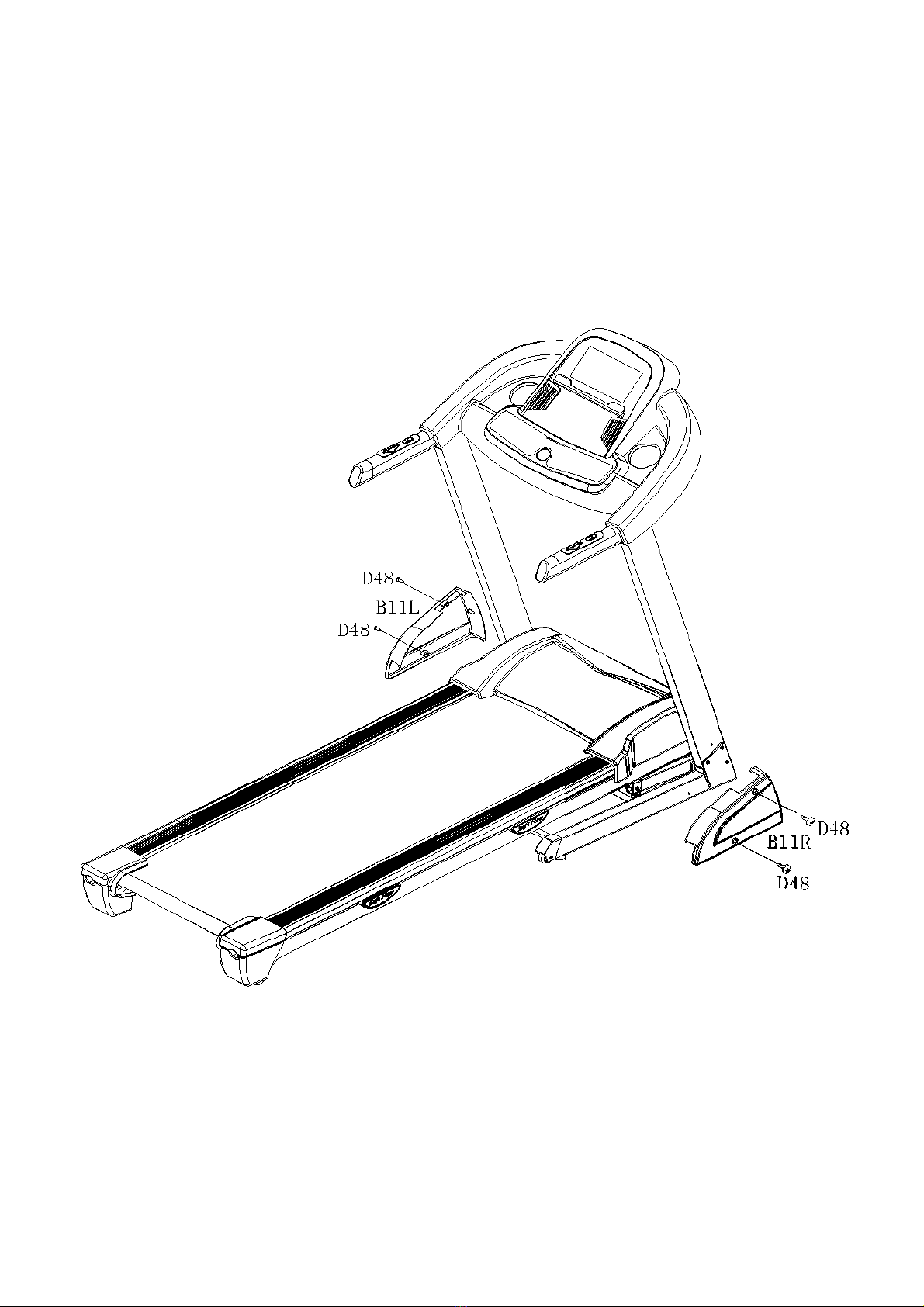

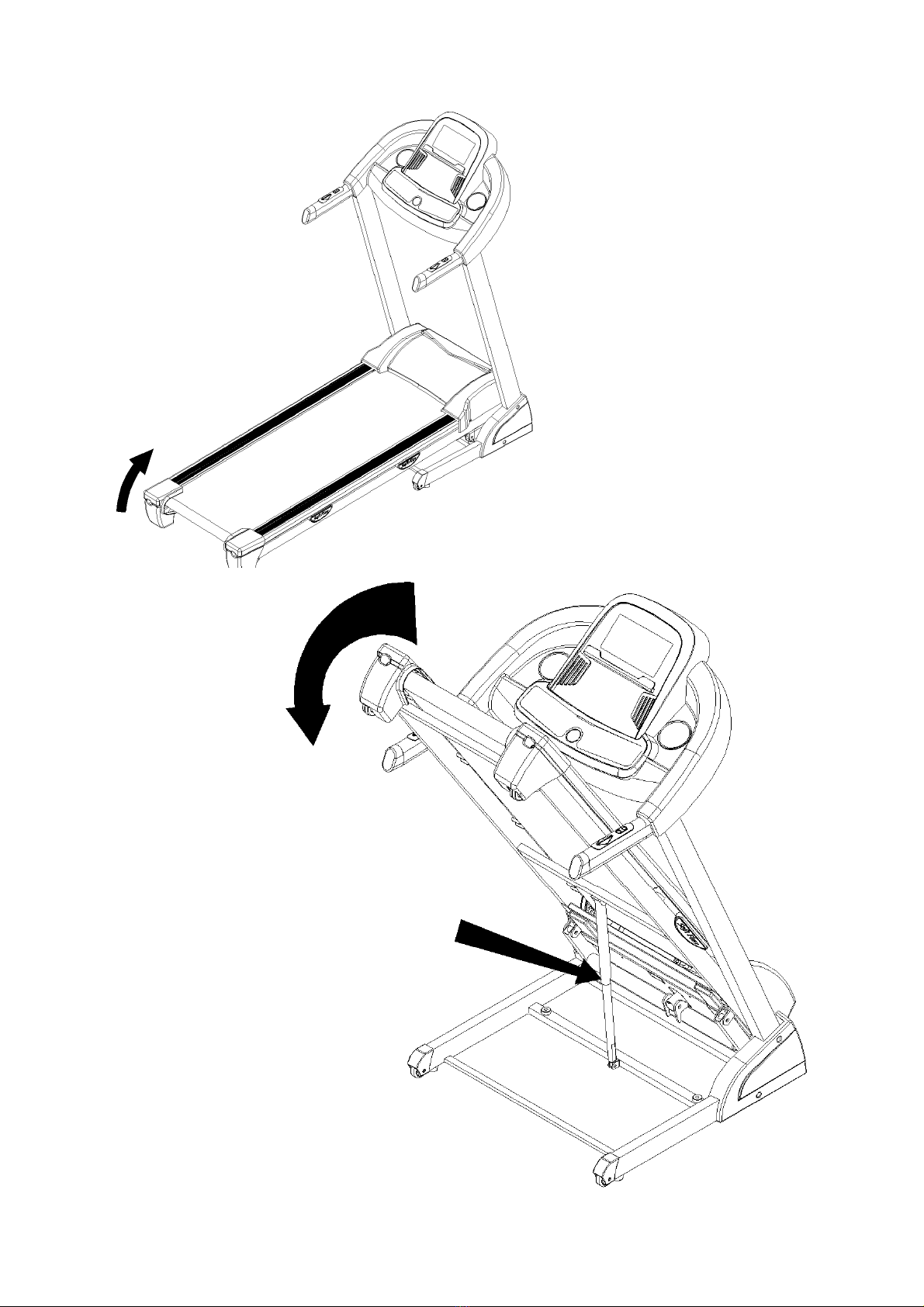

MONTERING / ASSEMBLY
Step 1
Step 2

7
Step 3

8
Step 4

9

10
PROGRAM
PROGRAM
SET TIME/10=EVERY GRADE TIME
1 2 3 4 5 6 7 8 9 10
P1 SPEED 5 5 8 7 7 6 6 6 6 5
INCLINE 0 3 3 3 4 4 4 1 1 0
P2 SPEED 5 5 6 6 7 7 7 8 8 6
INCLINE 2 2 2 3 3 3 3 4 4 2
P3 SPEED 4 6 8 10 9 10 8 4 5 4
INCLINE 3 5 4 4 3 4 4 3 4 2
P4 SPEED 5 5 7 8 9 8 7 6 5 5
INCLINE 0 3 3 2 2 5 5 3 3 2
P5 SPEED 5 8 8 8 10 9 9 7 7 6
INCLINE 3 5 3 4 2 3 4 2 3 2
P6 SPEED 4 8 7 6 10 9 7 5 5 4
INCLINE 3 4 5 6 3 5 5 6 4 3
P7 SPEED 4 11 11 9 9 8 7 5 4 4
INCLINE 0 3 3 3 4 4 4 1 1 0
P8 SPEED 4 6 6 6 7 8 10 10 8 4
INCLINE 1 1 4 4 4 5 5 4 3 2
P9 SPEED 4 6 7 7 8 7 8 5 5 4
INCLINE 3 5 3 4 2 3 4 2 3 2
P10 SPEED 4 7 9 7 10 8 7 4 6 5
INCLINE 1 5 6 8 12 9 10 9 5 3
P11 SPEED 4 7 8 9 10 11 12 7 5 4
INCLINE 3 5 6 8 6 5 8 7 5 2
P12 SPEED 4 5 7 8 10 8 11 8 7 5
INCLINE 5 7 5 8 6 5 9 10 6 2
