Acnodes KC802 User manual

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U rackmount Combo Cat6 KVM switch
User Manual
KC802/1602/3202: 1U rackmount Combo Cat6 KVM switch
8/16/32-port RJ45 with 2 user console

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U Rackmount Combo Cat6 KVM switch
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the
contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that
results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
¦ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
¦ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
¦ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing dam
age to other equipment or injury to persons nearby.
¦ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
¦ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
¦ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
¦ Observe all precautions and warnings attached to the equipment.
¦ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being dam
aged by transient over-voltage.
¦ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
¦ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and invali
date its warranty.
¦ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
¦ Any product, on which the serial number has been defaced, modified or removed.
¦ Damage, deterioration or malfunction resulting from:
? Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
? Repair or attempted repair by anyone not authorized by us.
? Any damage of the product due to shipment.
? Removal or installation of the product.
? Causes external to the product, such as electric power fluctuation or failure.
? Use of supplies or parts not meeting our specifications.
? Normal wear and tear.
? Any other causes which does not relate to a product defect.
¦ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
¦ Re-position or relocate the receiving antenna.
¦ Increase the separation between the equipment and receiver.
¦ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U rackmount Combo Cat6 KVM switch
Contents
< Part 1 > Combo Cat6 2-console KVM
KC802 KC1602 KC3202
1.1 Package contents
1.2 KVM port & Cat6 dongle connection
1.3 Remote & Local console connection
1.4 KVM Cascade
1.5 Specifications
P.1
P.2 - 3
P.4 - 5
P.6
P.7
< Part 2 > Usage
2.1 KVM Button
2.2 Password
2.3 KVM OSD
2.4 KVM Hotkey & Remote Console Hotkey
2.5 DC power 12V, 24V, 48V Input
P.8
P.9
P.10
P.11
P.12

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U Rackmount Combo Cat6 KVM switch
Before Installation
¦It is very important to mount the equipment in a suitable cabinet or on a stable surface.
¦Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediatel y.
Installation for standalone KVM
Screw A: 2 pcs Screw B: 8 pcs
M3.2 x 4.5 mm M4 x 10 mm

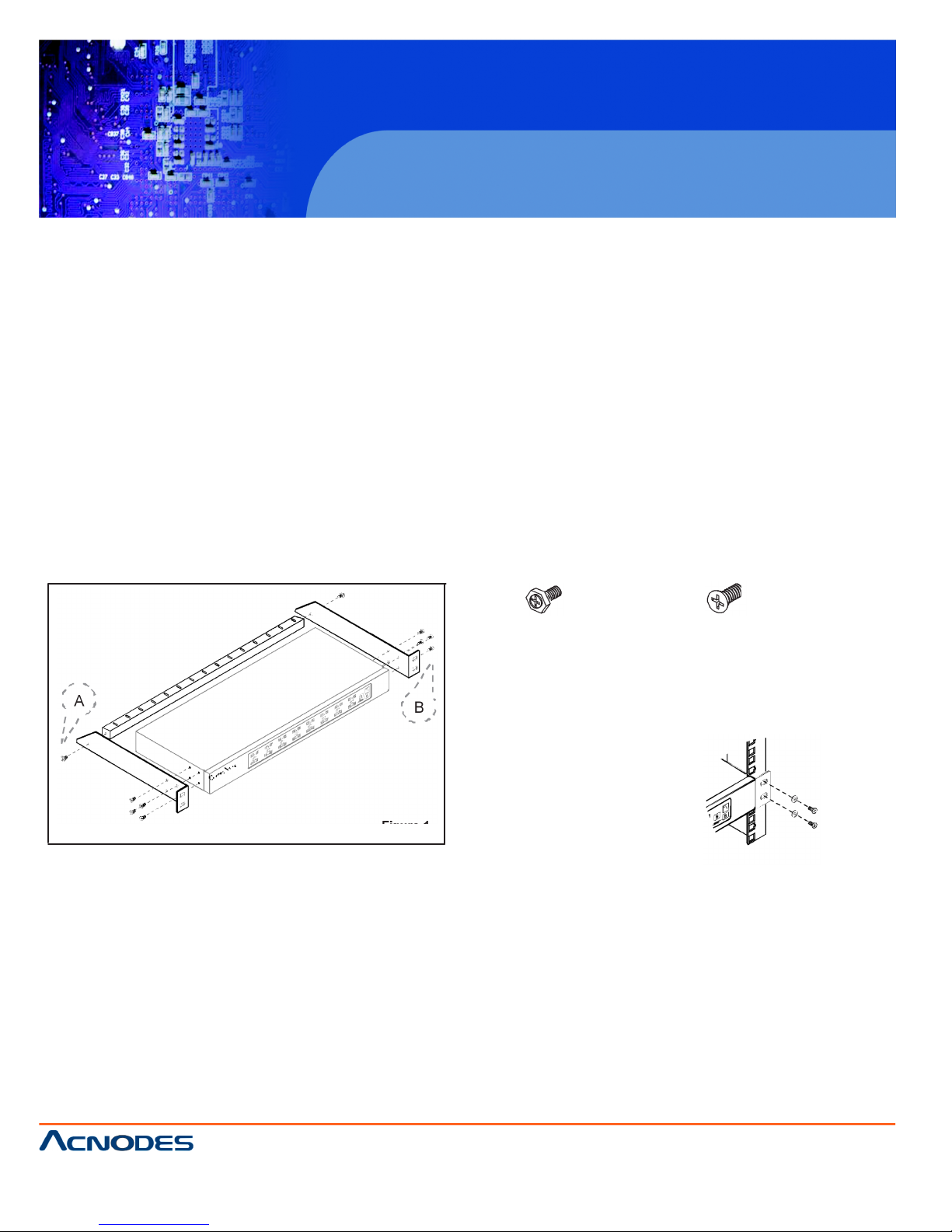

¦Install each bracket using screws
AB provided shown in Figure 1.
¦Fix the KVM into the rack
Figure 1.

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U rackmount Combo Cat6 KVM switch
Part 1. Combo Cat6 2-console KVM
< 1.1 > Package Content Combo Cat6 2-console KVM
KC802 / KC1602 / KC3202

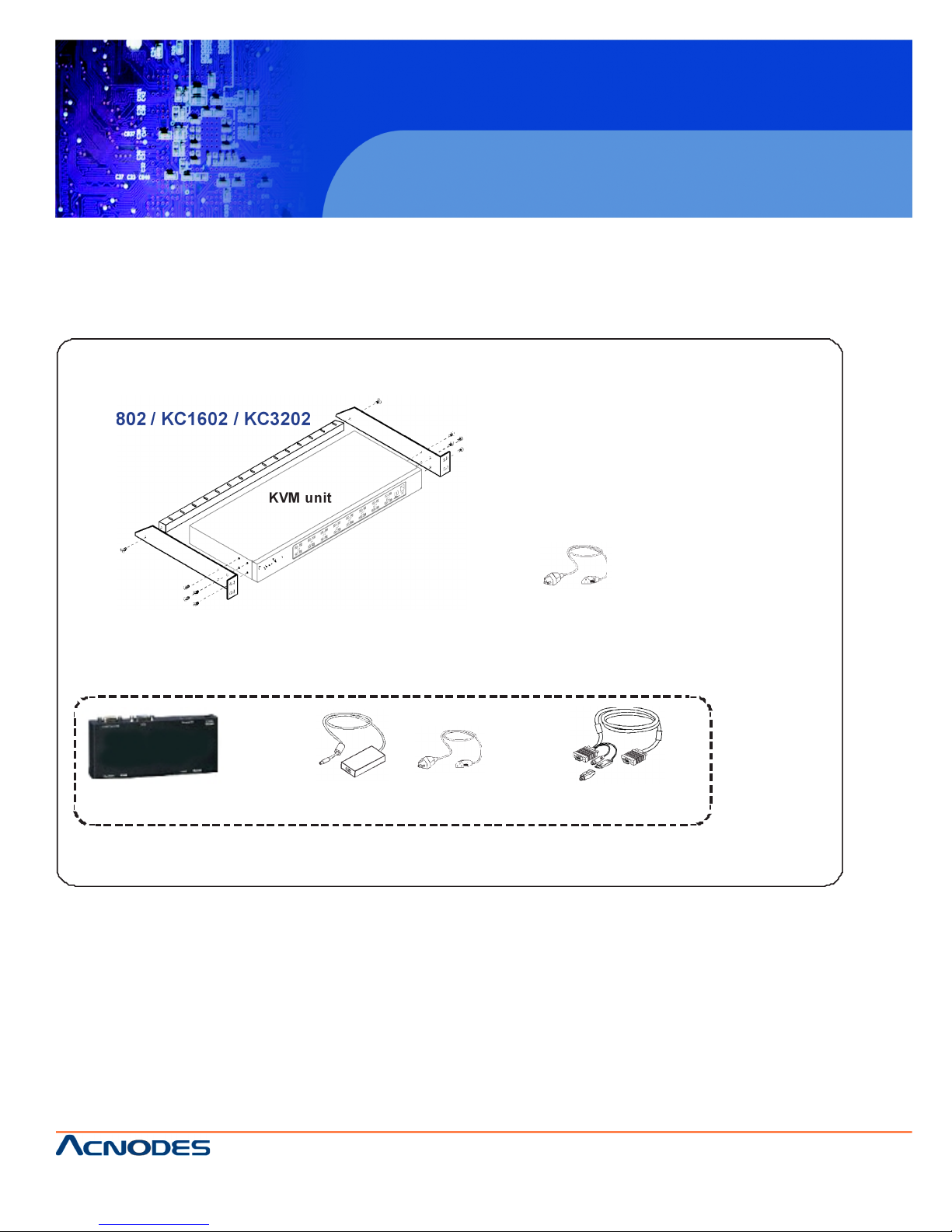

KVM unit
• Combo KVM unit x 1
• Mounting set w/ bracket & screws x 1
• Power cord ( for KVM ) x 1
+ + X 1 set
Receiver box
for remote console
Receiver’s power adapter
w/ power cord
CE-6 KVM cable
for receiver box

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U Rackmount Combo Cat6 KVM switch
Combo Cat6 2-console KVM

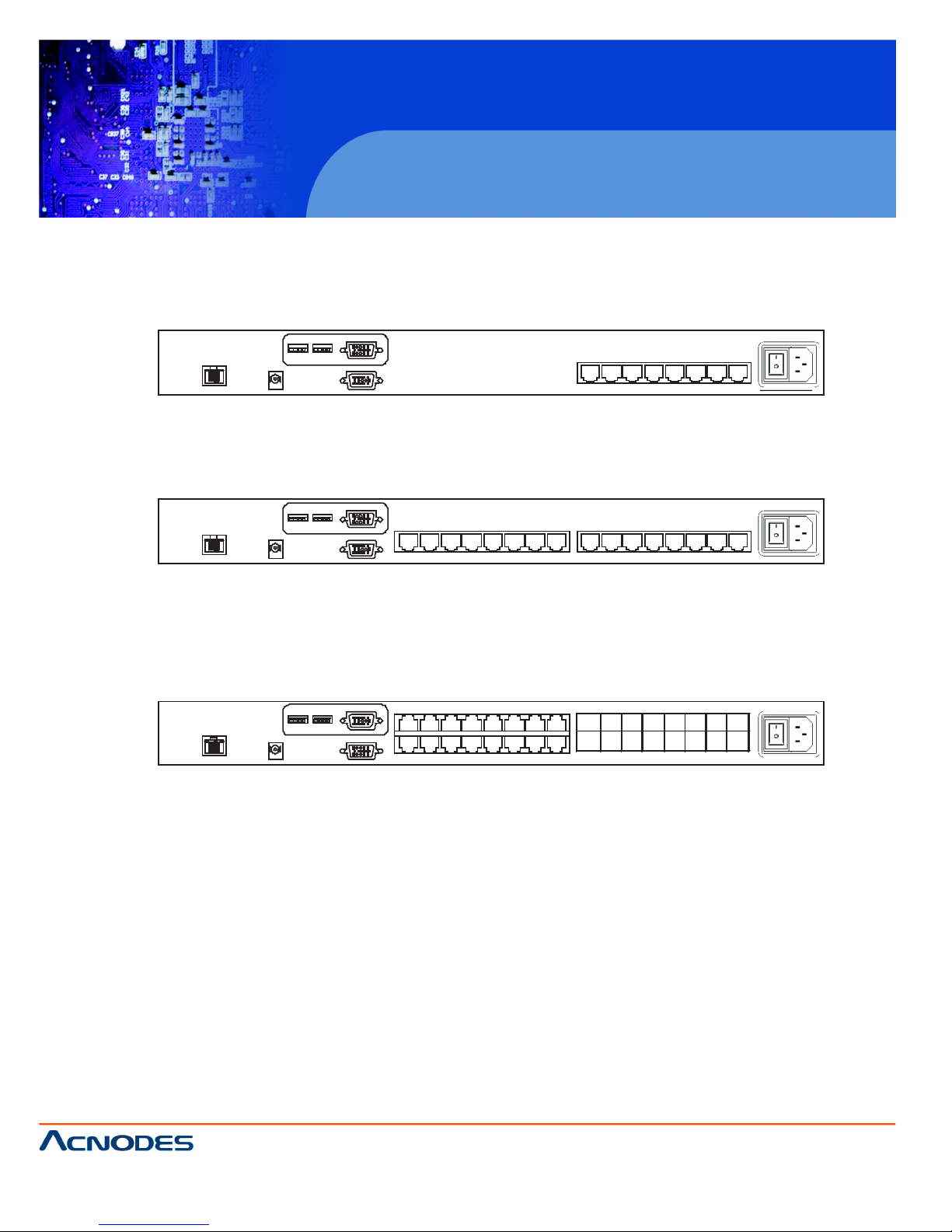

KC802
Local
Console
Local console x 1
Remote console x 1
Remote Cascade
8 7 6 5 4 3 2 1
KC1602
Local
Console
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Remote Cascade
KC3202
Local
Console
32 31 30 29 28 27 26 25 16 15 14 13 12 11 10 9
Remote
24 23
Casc ade
22 21 20 19 18 17 8 7 6 5 4 3 2 1

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U rackmount Combo Cat6 KVM switch

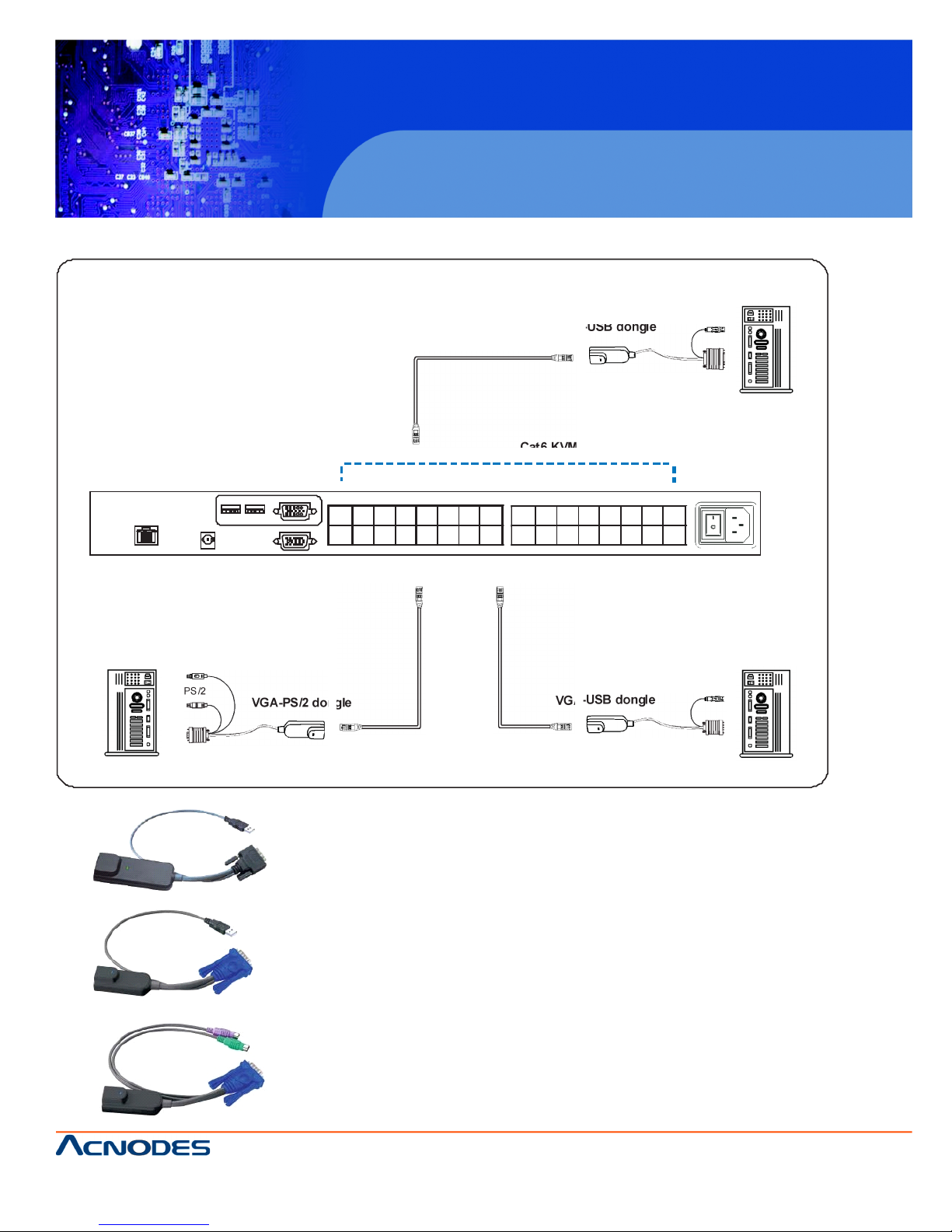

< 1.2 > KVM port & Cat6 dongle connection Combo Cat6 2 -console KVM
USB Servers
CAT 5 / 6 cable
max. 40 meters
DVI-USB dongle US B
DVI -D
Cat6 KVM port
32 31 30 2 9 28 27 26 25 16 15 14 13 12 11 10 9
24 23 22 2 1 20 19 18 17 8 7 6 5 4 3 2 1
PS/2 Servers USB Servers
PS /2
V GA
VGA-PS/2 dongle
CAT 5 / 6 cable
max. 40 meters
VGA-USB dongle
USB
V G A
DVI-USB dongle
¦To connect DVI -D connector to the com pute r’s video card
¦To connect USB connector to the compute r’s USB port
VGA-USB dongle
¦To connect DB -15 connector to the compute r ’s video card
¦To connect USB connector to the compute r’s USB port
VGA-PS/2 dongle
¦To connect DB -15 connector to the compute r ’s video card
¦To connect PS/2 keyboard connector to the compute r’s keyboard port
¦To connect PS/2 mouse connector to the compute r ’s mouse port

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U Rackmount Combo Cat6 KVM switch
< 1.3 > Remote & Local console connection Combo Cat6 2-console KVM
Local
USB
console
32 31 3 0 29 28 27 26 25 16 15 14 13 12 11 10 9
24 23 22 21 20 19 18 17 8 7 6 5 4 3 2 1
Remote
Cat6
Console
CAT 5 / 6 cable
max. 150m
Receiver
Remote
USB console

How to use a receiver to connect a remote console Combo Cat6 2-console KVM
Receiver Local
Computer Monitor Remote I/O
Front
Rear
USB
K/B Mouse Local Remote
Power
Button
to
PC
Button
to
KVM switch
The receiver provides a hotkey function for remote console. Please refer to P.23
Monitor
32 31 30 29 2 8 27 26 25 16 15 14 1 3 12 11 1 0 9
Remote
Console
24 23 22 21 20 19 18 1 7 8 7 6 5 4 3 2 1
Local computer
( Optional setup )
CE-6
Combo
KVM cable
VGA
cable
Cat6 cable
up to 150m
12V DC Power
Adapter
Front
Rear

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
Cascade

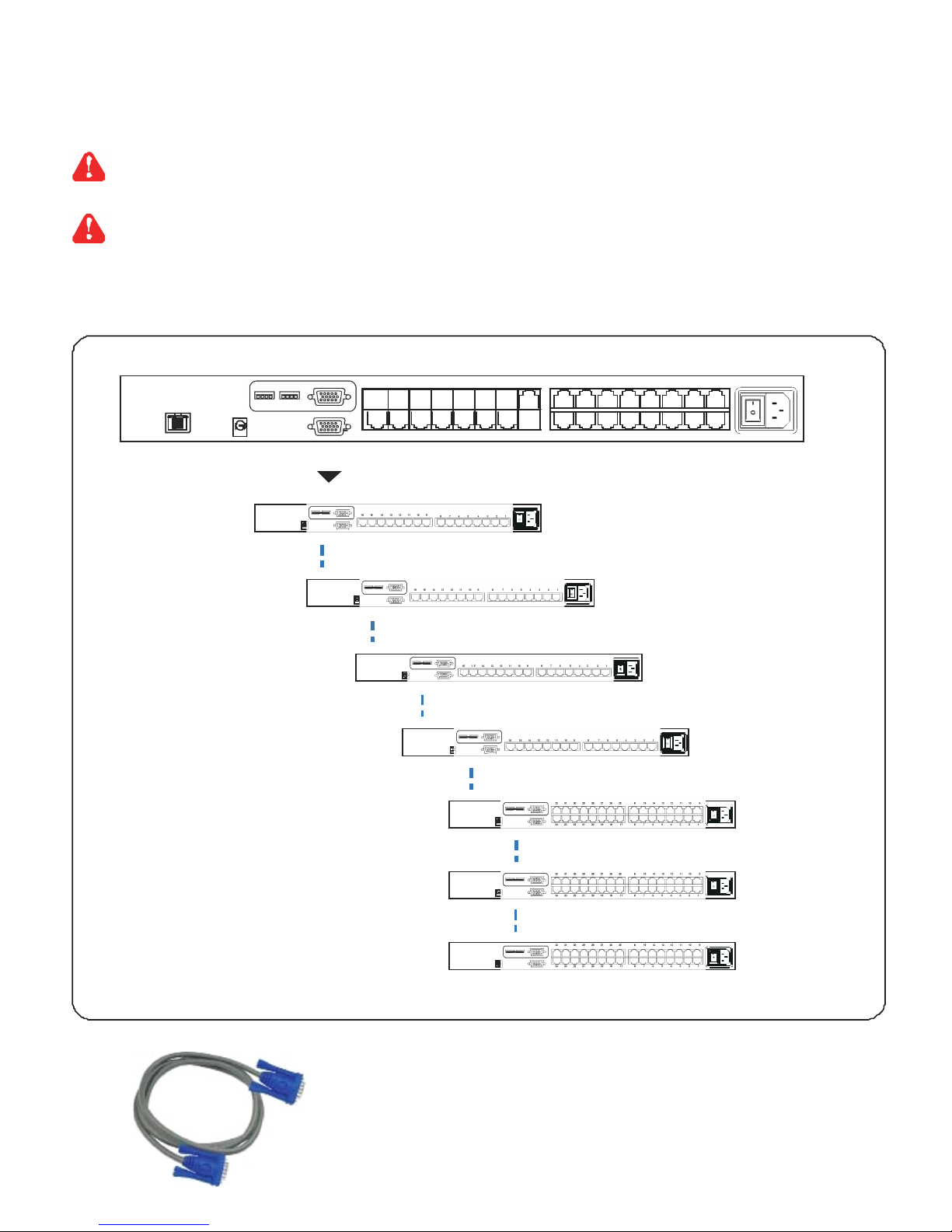

< 1.4 > KVM Cascade
¦Cascade up to 8 levels, 256 servers
¦Cascading multiple KVM with CBC -6 cascade cable.
Combo Cat6 2-console KVM
Cascaded KVMs from level 2 to 8 must be the models of KC801 / KC1601 / KC3201.
When multiple combo Cat6 KVMs cascade togethe r, the master KVM at level 1 will take all control of
other slave KVM switches (e.g. level 2 to 8).
Master KVM
16 15 14 13 12 11 10 9
8 7 6 5 4 3 2 1
Slave KVM
level 2
To console VGA port
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
KC1601
Slave KVM
level 3
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 KC1601
Slave KVM
level 4
16 1 5 14 13 12 11 10 9 8 7 6 5 4 3 2 1 KC 1601
Slave KVM
level 5
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 KC 1601
Slave KVM 32 31 30 29 28 27 26 25 16 15 14 13 12 11 10 9 KC 3201
level 6 24 23 22 21 20 19 18 17 8 7 6 5 4 3 2 1
Slave KVM 32 31 30 29 28 27 26 25 16 15 14 13 12 11 10 9 KC 3201
level 7 24 23 22 21 20 19 18 17 8 7 6 5 4 3 2 1
Slave KVM 32 31 30 29 28 27 26 25 16 15 14 13 12 11 10 9 KC 3201
level 8 24 23 22 21 20 19 18 17 8 7 6 5 4 3 2 1
¦6ft Combo KVM cascade cable

< 1.5 > Specifications Combo Cat6 2-console KVM
KC802 KC1602 KC3202
¯KVM Port
Number of ports: 8, 16 or 32
Connector: RJ-45
Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via
Cat6 / Cat5 cable
¯Local Console
Graphic connector: 1 x DB-15 VGA
Resolution: Up to 1600 x 1200
Input device: 2 x USB type A for keyboard & m ouse
¯Remote Console
Connector: 1 x DB 15-pin, VGA
Resolution: Up to 1600 x 1200 (500 feet), Up to 1024 x 768 (1000 feet)
Input device: 2 x USB type A for keyboard & m ouse
Remote I/O: RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
Compensation: Auto adjust for cable length
¯Expansion: Up to 256 servers by 8-level cascade
¯Compatibility
Multi-platform: Mix PCs, SUNs, IBMs, HPs, DELLs Server
Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
¯Power
Input: 100 or 240V AC at 50 or 60 Hz via IEC type cord OR
AC / DC power adapter 12V@3.3A (optional)
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 48 Watt, Standby 5 Watt
¯Regulatory Approval: FCC, CE
¯Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
¯Product Information
Dimension (W x D x H): 443 x 180 x 43.6 mm / 17.4 x 7.1 x 1.72 inch
Net weight: 3 kg / 6.5 lb
¯Packing Information
Dimension (W x D x H): 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross weight: 5 kg / 11 lb

Part 2. Usage Combo Cat6 KVM Usage
2.1 KVM Button
Power ON
¦Turn off all servers and KVM switches
¦Make sure all cables / connectors are properly connected
¦Recommend Power ON sequence is monito r, KVM switch finally computer
Front Panel - Port LED Indications
8 ports
Bank no. PC port LEDs Channel
button
Bank
button
16 ports
32 ports
Bank no. 7-Segment BANK LED indication
PC port LEDs Online :Blue LED on indicating a PC is connecting to the port
Active :Green LED on indicating a selected channel
Channel button Press to select channel from 01 to 32
Bank button Select the bank from 1 to 8

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U rackmount Combo Cat6 KVM switch
2.2 Password Combo Cat6 KVM Usage
The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on
number pad)
¦Enable password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P
3. In SUPERVISOR level, enter “00000000” eight zeros in user name & password field
(Do not use “0” on number pad)
4. In USER level, press Space bar +Enter in user name & password field
Remark: Automatic logout after 10 minutes of inactivity
¦Set your own user na me & password
1. Login the KVM in SUPERVISOR level by pressing “00000000 ” eight zeros in user name & password
field
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Set password in SUPE RVISOR & USER level
a. In the left-top row “S” (SUPE RVISOR), press Enter to set your own user name & password
b. In the row 1 to 8 (USER), press Enter to set your own user name & password
6. Press Enter to save the setting or pr ess Esc to cancel the editing without any change
Remark: a. Blank has underscore, while S PACE doesn’t have
b. Press any alphanumeric key to move to next input item. S PACE is treated as a valid
character
¦Change your password
1. Login the KVM in SUPE RVISOR level by pressing your own user name & password
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Change password in SUPE RVISOR & USER level
a. In the left-top row “S” (SUPE RVISOR), press Enter to change your user nam e & password
b. In the row 1 to 8 (USER), press Enter to change your user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore, while S PACE doesn’t have
b. Press any alphanumeric key to move to next input item. S PACE is treated as a valid
character
¦Disable your password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing t he KVM hotkey Scroll Lock + Scroll Lock + P
3. You don’t need user name & pass word to access the KVM OSD menu
¦Forget your password
Please contact your supplier for further support
Remark:
¦ You must press the KVM hotkey within 2 seconds
¦ A beep sound will be heard for successful entering KVM hotkey

2.3 KVM OSD

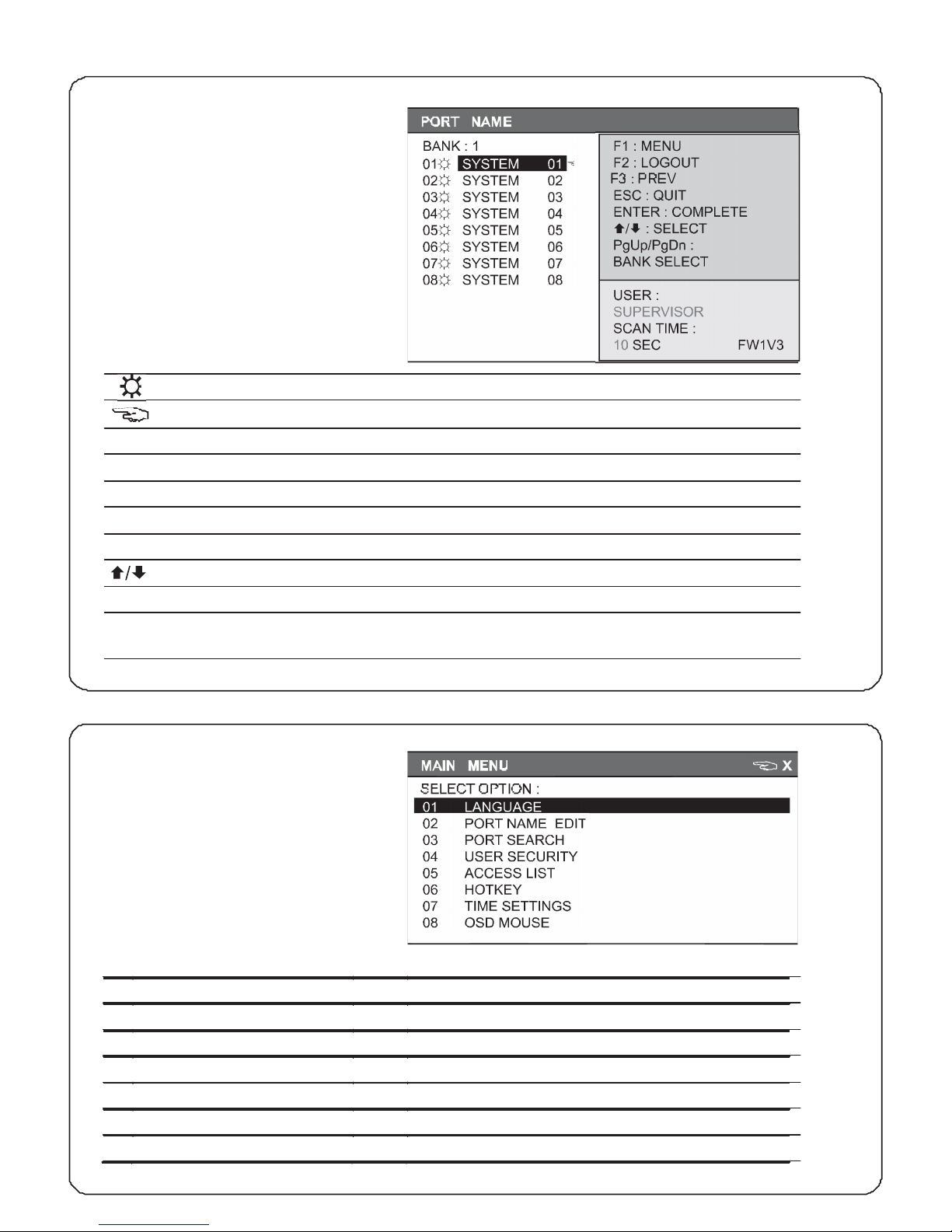

OSD Menu
Combo Cat6 KVM Usage
OSD operation
next to the system nam e The PC is powered on
next to the system name The PC is selected
F1 Access F1 MAIN MENU
F2 Logout the OSD menu
F3 Previous menu
Esc Cancel / Quit
Enter Complete / Switch to selected port
Switch to previous or next port
PgUp/PgDn Switch to previous bank or next bank
Display port 01 ~ 08 / 09 ~ 16 / 17 ~ 24 / 25 ~ 32
1 / 2 / 3 / 4 Remark: Display port 17 ~ 32 for 32 port model only
F1 Main Menu
01
LANGUAGE
OSD language change
02
PORT NAME EDIT
Define port name
03
PORT SEARCH
Quick searching by port name
04
USER SECURITY
Change password
05
ACCESS LIST
Define user access authority
06
HOTKEY
Change hotkey
07
TIME SETTINGS
Modify scan display time interval
08
OSD MOUSE
Modify OSD mouse speed

Scroll Lock +Scroll Lock +
Space Bar
Calling OSD menu
Right-button mouse +Esc
Calling OSD menu
+
Port no.
Switch to specific port
Turn the buzzer ON and OFF
* Default the buzzer is ON
Logout the KVM if password security is
ON. Show up the status windows
2.4 KVM Hotkey & Remote Console Hotkey Combo Cat6 KVM Usage
Local Console Hotkey Function
Scroll Lock
+
Scroll Lock
+
Switch to previous port
Scroll Lock
+
Scroll Lock
+
Switch to next port
Scroll Lock
+
Scroll Lock
+
PgUp / PgDn
Switch to previous bank or next bank
Scroll Lock +Scroll Lock + Bank no.
Scroll Lock +Scroll Lock +B
Scroll Lock +Scroll Lock +P
Advance hotkeys (for Supervisor login only)
Scroll Lock +Scroll Lock +S
Scroll Lock +Scroll Lock +R
Activate auto-scan mode for connected
servers
*Press any key to exit the auto-scan
mode
Reset all the KVM settings to factory
default
*Except User Security settings
Scroll Lock
+
Scroll Lock
+
U
Disable and enable password security
*Default security is ON
To enable / disable the screen saving
Scroll Lock
+
Scroll Lock
+
L
function and 10 minutes auto-logout
*Default the screen saving is OFF
Remarks:
¦Example of “Scroll Lock +Scroll Lock + Bank no. + Port no.”
-Bank No. : 1 to 8
-Port No. : 01 to 32
-e.g. Bank 1 Port 4 : Scroll Lock +Scroll Lock +1+0+4
-e.g. Bank 2 Port 16 : Scroll Lock +Scroll Lock +2+1+6
¦You must press the hotkey within 2 seconds
¦A beep sound will be heard for successful entering
¦The numeric keypad is not supported, while in OSD screen, the arrow keys, PgUp, PgDn, and Enter keys
are supports
Remote Console Hotkey Function
Scroll Lock +Scroll Lock +CToggle switch between remote & local port
Scroll Lock +Scroll Lock +QTurn the buzzer ON & OFF
*Default the buzzer is ON
Scroll Lock +Scroll Lock +SActivate auto-scan mode for remote & local port
*The scan time interval is 5 seconds
Scroll Lock +Scroll Lock +AAuto-adjust the video signal

14628 Central Ave,
Chino, CA 91710
tel:[phone], fax:[phone]
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KC802/1602/3202
1U Rackmount Combo Cat6 KVM switch
2.5 DC Power 12V, 24V, 48V Input Combo Cat6 KVM Usage
Model
12V
24V
48V
Input rating
Input voltage:
12-Volt
24-Volt
48-Volt
Input range:
9 ~ 18V
18 ~ 36V
36 ~ 75V
Input current
- No load
50 mA
50 mA
50 mA
- Full load
4950 mA
2450 mA
1220 mA
Output rating
Output voltage:
12-Volt
12-Volt
12-Volt
Output current:
4.16A
4.16A
4.16A
Efficiency
84%
85%
85%
Remarks:
¦Package does not include power cord
