iArmor EDGE IA-N095 User manual

iArmor®
Customer Support: [email protected]
Rev. 20220401
1
IARMOR EDGE™
PART#: IA-N095
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

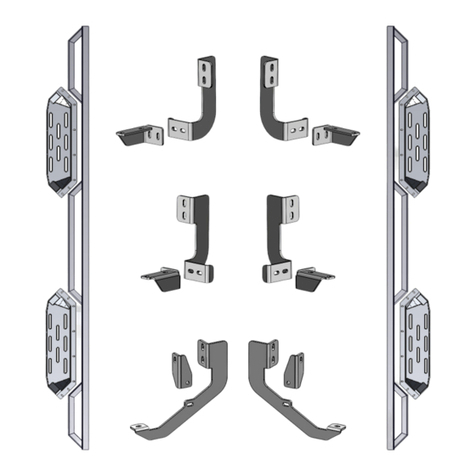

PART LIST
Passenger Front/Driver Center
Mounting Bracket (PFM/DCM)
Passenger Rear Mounting
Bracket (PRM)
Driver Rear Mounting
Bracket (DRM)
Driver Side
Step Pad
Passenger Side
Step Pad
Driver Rear Support
Bracket (DRS) Passenger Rear Support
Bracket (PRS)
DFM/PCM
PFM/DCM
Torque Value
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
Front
11.6”
Driver Front/Passenger Center
Mounting Bracket (DFM/PCM)
9.6”
11.6”
9.6”

iArmor®
Customer Support: [email protected]
Rev. 20220401
2
1# 2# 3# 4# 5#
Hardware Package A (For Brackets & Step Bars Installation)
Item QTY Description Item QTY Description
1# 12 M8 Hex Flange Nuts 6# 4 M6X1-20mm Square Head Bolts
2# 2 M8X1.25-25mm Hex Bolts 7# 40 M6X1-20mm T Bolts
3# 4 M8 Flat Washers 8# 44 M6 Large Flat Washers
4# 2 M8 Lock Washers 9# 44 M6 Nylon Lock Nuts
5# 2 M8 Hex Nuts
7#6# 8# 9#

iArmor®
Customer Support: [email protected]
Rev. 20220401
3
Install the Step Pads onto the step bars with (32) M6X1-20mm
T-Bolts, (32) M6 Large Flat Washers and (32) M6 Nylon Lock
Nuts.
IMPORTANT: Don’t hit the step pad with any metal hummer
within step pad installation, or the step pad will be damaged.
STEP 1
STEP 2
The instruction here is for your reference only. We strongly
recommend the professional installer for best result. We are
not responsible for any damage caused by the installation.
Start the installation from the driver side front of the vehicle,
(Fig 1). Attach (1) Driver Front Mounting Bracket (DFM/PCM),
to the (2) factory studs with (2) M8 Hex Flange Nuts, (Fig 2).
Do not fully tighten hardware at this time.
(Fig 1) Driver Side Front Mounting Location Pictured
Front
(8) M6X1-20 T-Bolts
(8) M6 Large Flat Washers
(8) M6 Nylon Lock Nuts
Note: Rotate 90° after inserting the T-Bolts into the
Channel!!!
(Fig 2) Driver Front Mounting Bracket Installation
DFM/PCM
(2) M8 Hex Flange Nuts
Front

iArmor®
Customer Support: [email protected]
Rev. 20220401
4
STEP 4
STEP 5
(Fig 3) Driver Center Mounting Bracket Installation
DRS
DRM
Front
(Fig 4) Driver Side Rear Brackets Assembly
(1) M8X1.25-25mm Hex Bolt
(2) M8 Flat Washers
(1) M8 Lock Washer
(1) M8 Hex Nut
STEP 3
Move to the Driver Side Center Mounting Location, repeat
STEP 2 to install the Driver Center Mounting Bracket (DCM/
PFM) to the (2) factory studs with (2) M8 Hex Flange Nuts, (Fig
3). Do not fully tighten hardware at this time.
STEP 6
Assemble (1) Driver Rear Mounting Bracket (DRM) and (1)
Driver Rear Support Bracket (DRS) with (1) M8X1.25-25mm
Hex Bolt, (1) M8 Lock Washer, (2) M8 Flat Washers and (1) M8
Hex Nut, (Fig 4). Repeat STEP 2 to install the driver side rear
mounting bracket. Do not fully tighten hardware at this time.
DCM/PFM
Front
(2) M8 Hex Flange Nuts
Once all (3) driver side mounting brackets are installed, attach
the Assembled Driver Side Step Bar onto the brackets with (4)
M6X1-20mm T-Bolts, (2) M6X1-20mm Square Head Bolts, (6)
M6 Large Flat Washers and (6) M6 Nylon Lock Nuts, (Fig 5).
Do not fully tighten hardware at this time.
Properly level and adjust the Step Bar and fully tighten all
hardware.
STEP 7
Move to the passenger side of the vehicle. Repeat Steps 2-6
to install passenger side step bar.
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use only
mild soap/non-abrasive products for cleaning.

iArmor®
Customer Support: [email protected]
Rev. 20220401
5
(Fig 5) Driver Side Step Bar Installed
Front
(1) M6X1-20mm Square Head Bolt
(1) M6 Large Flat Washer
(1) M6 Nylon Lock Nut
(1) M6X1-20mm Square Head Bolt
(1) M6 Large Flat Washer
(1) M6 Nylon Lock Nut
(4) M6X1-20mm T-Bolts
(4) M6 Large Flat Washers
(4) M6 Nylon Lock Nuts
Warning: Install the T-bolt on the step
bar and rotate it to 90 degrees!!!
