ACV 381230-33-1 User manual

9. Attach mounting brackets
to 2-DIN head unit
10. Connect all cables
Place 2-DIN head unit onto
dash board
Fix 2-DIN head unit using OEM
screws (bottom) and the philips
head screws on top
11. Connect hazard light switch
Place new facia plate on dash
board until it snaps in to
nish installation
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
a
Double-DIN Kit
Installation Manual
part-no.: 381230-33-1
colour: black
Only compatible with mechless units (max. depth 120 mm)

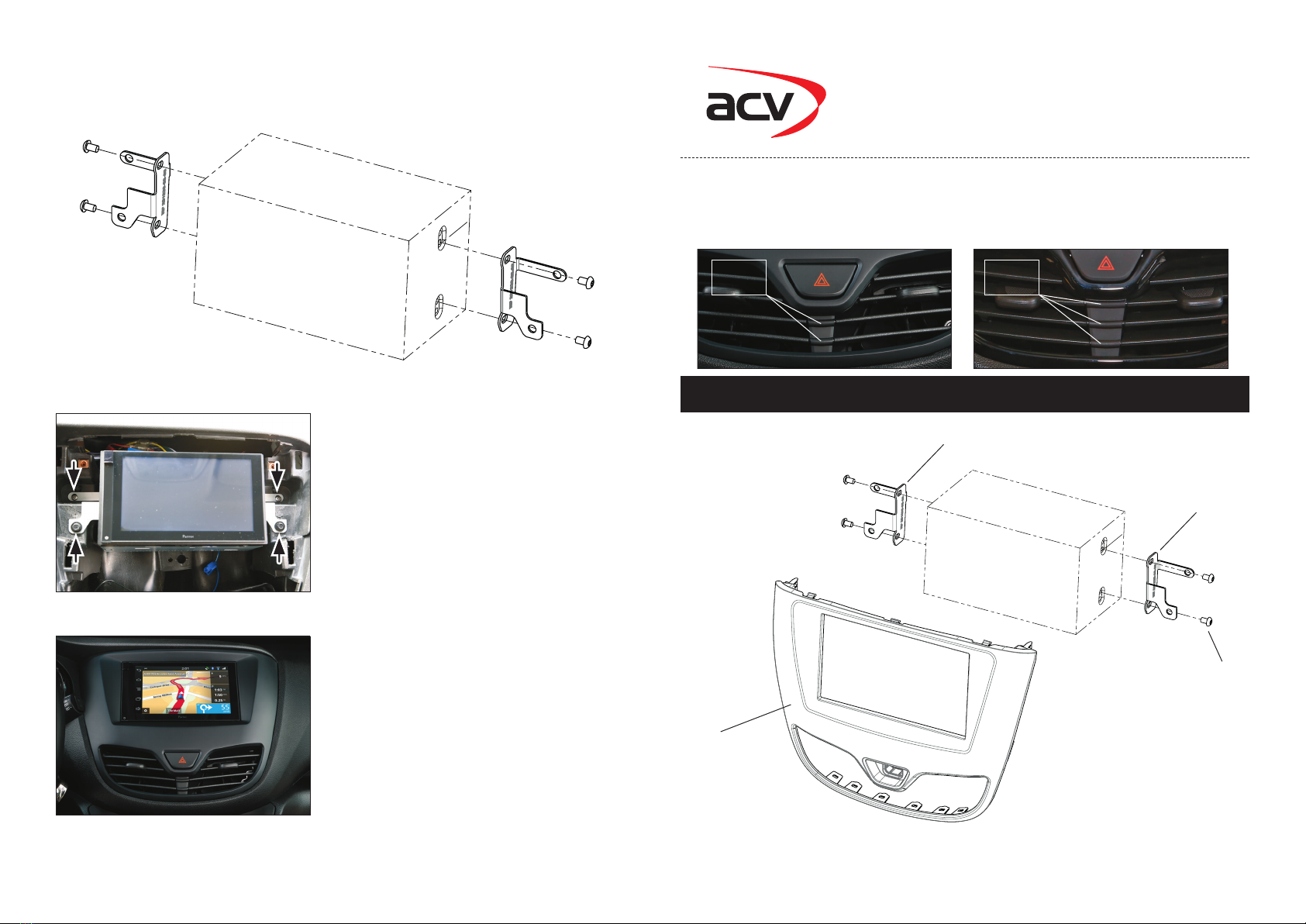

Kit Content
(1) Facia Plate
(2) Mounting bracket right
(3) Mounting bracket left
(4) at headed screw (4x)
3
2
4
1
Opel Karl 2017>
Only for models with 2 ns between the air vents
(please use part-no.: 381320-31-1 for models with 3 ns)
2 ns 3 ns x

1. Opel Karl OEM dash board
2. Unclip OEM panel
Unplug hazard light switch
and remove OEM panel
4. Remove 4 clamps from OEM panel
Place4 clamps onto new facia plate
3. Remove 2 screws of OEM head unit
(see arrows). Put the OEM screws
aside because they will be used later
Unplug all connectors
Remove OEM head unit
5. Unclip and remove
hazard light switch
from OEM panel
6. Unclip and remove air vents
from OEM panel
7. Place air vents onto
new 2-DIN facia plate
8 . Place hazard light switch
onto new 2-DIN facia plate
7 mm
