Wall Mount Panel Solutions

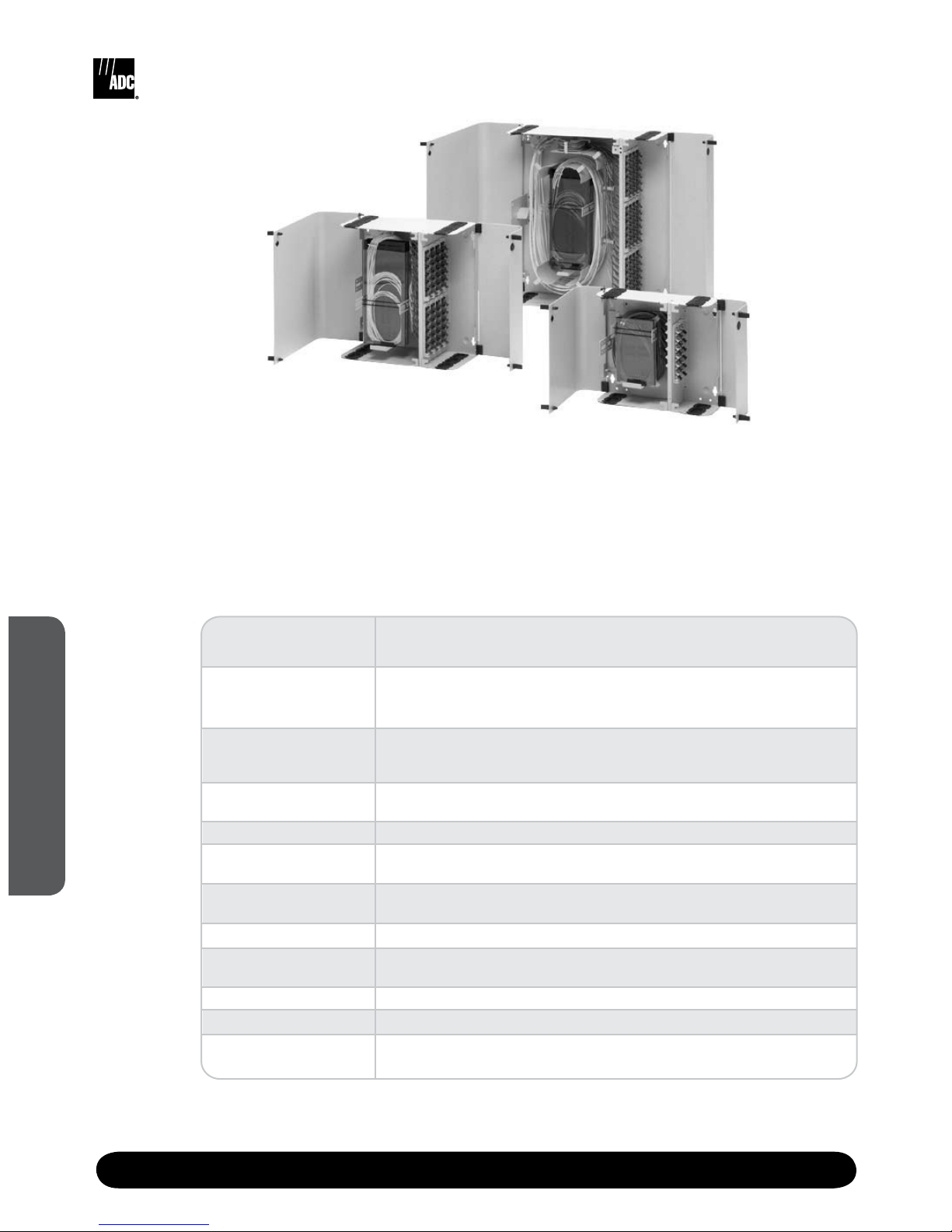

FL1000 Series Fiber Optic Wall Box
Introduction
ADC‘s FL1000 customer premises fiber termination products include a variety of one and two door wall
mount panels. These products are designed specifically to act as part of the fiber distribution system as
the demarcation point for the service provider at the customers location.
Recent improvements to labeling grommets, door latches and ribbon pigtail routing reinforce the value
these products bring to the physical layer of any network with higher quality and reliability, greater
operational efficiencies and network simplification.
Description One or two door wall box solution offering excellent fiber protection and
technician-friendly cable routing. Termination, termination/splice or splice-only
boxes available
Number of fibers,
future growth
potential
12, 24, 48, 72
Flexibility/
ability to grow
Modular growth design
Demarcation Yes
All-front-access Yes
Accommodates
in box splicing
Yes. Built-in
Accommodates
out of box splicing
Yes. IFC cable and assembly available
Recommended
Applications
Ideal for small to medium fiber counts within communication closets or
demarcation points
Customer premises
application
Ideal
Wall mount Yes
Optimum jumper
storage location
Slack storage built-in
VAM capabilites No
Product Overview

10/07 • 103743AE Fiber Optic Panels
69
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box

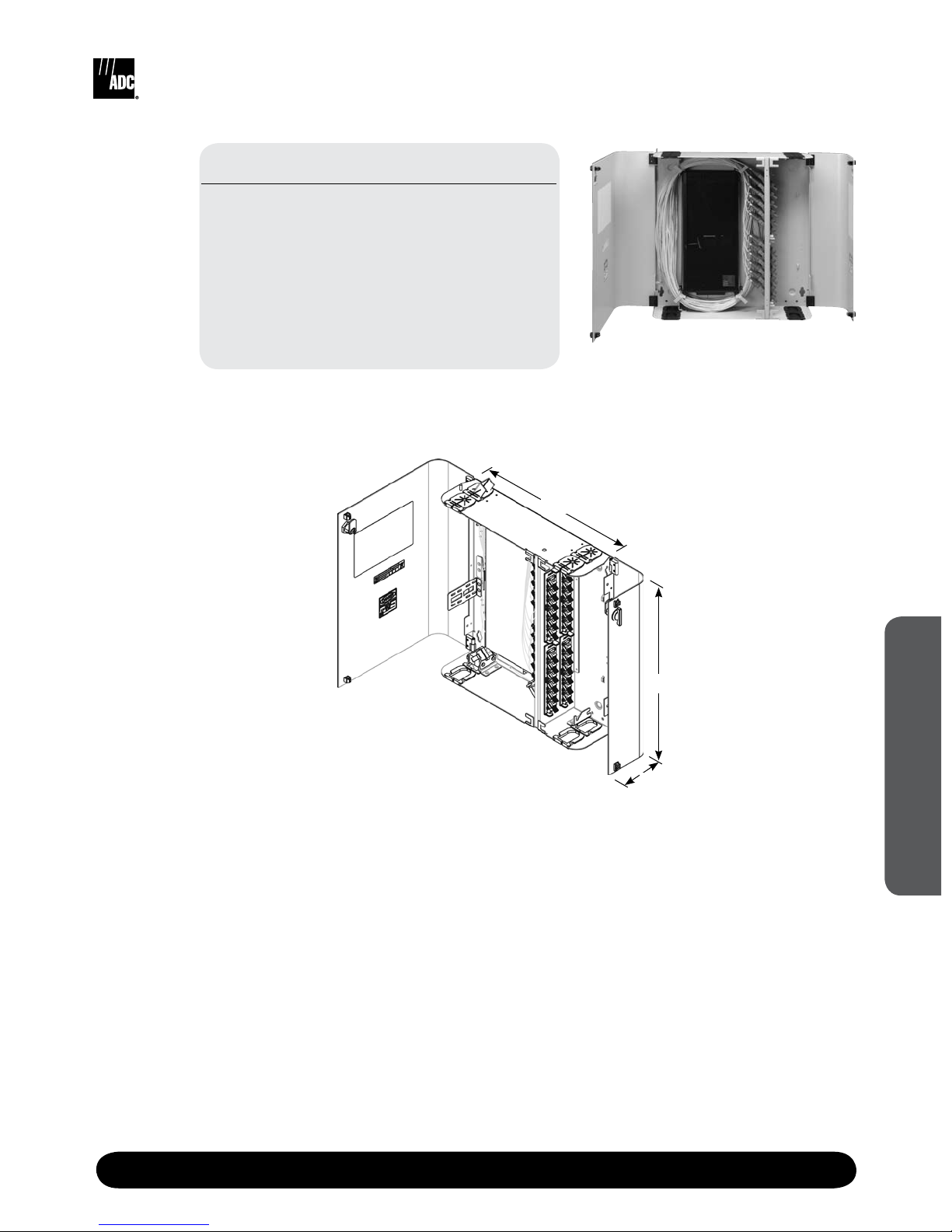

Wall Mount Boxes (One Door)
12-Position Termination/Splice Wall Box
24-Position Termination/Splice Wall Box
Features
• Numerous cable tie points within the boxes
• Ability to accept locks
• Acceptance of cable clamps at each corner
• Grounding screws, mounting screws and
dust caps are included with each panel. More
accessories are available on page 78
Wall Box
(One Door)
305 mm
(12")
330 mm
(13")
91 mm
(3.6")
259 mm
(10.2")
330 mm
(13")
356 mm
(14")
91 mm
(3.6")
381 mm
(15")
See ordering information on following page.

10/07 • 103743AE Fiber Optic Panels
70
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door)
How to order

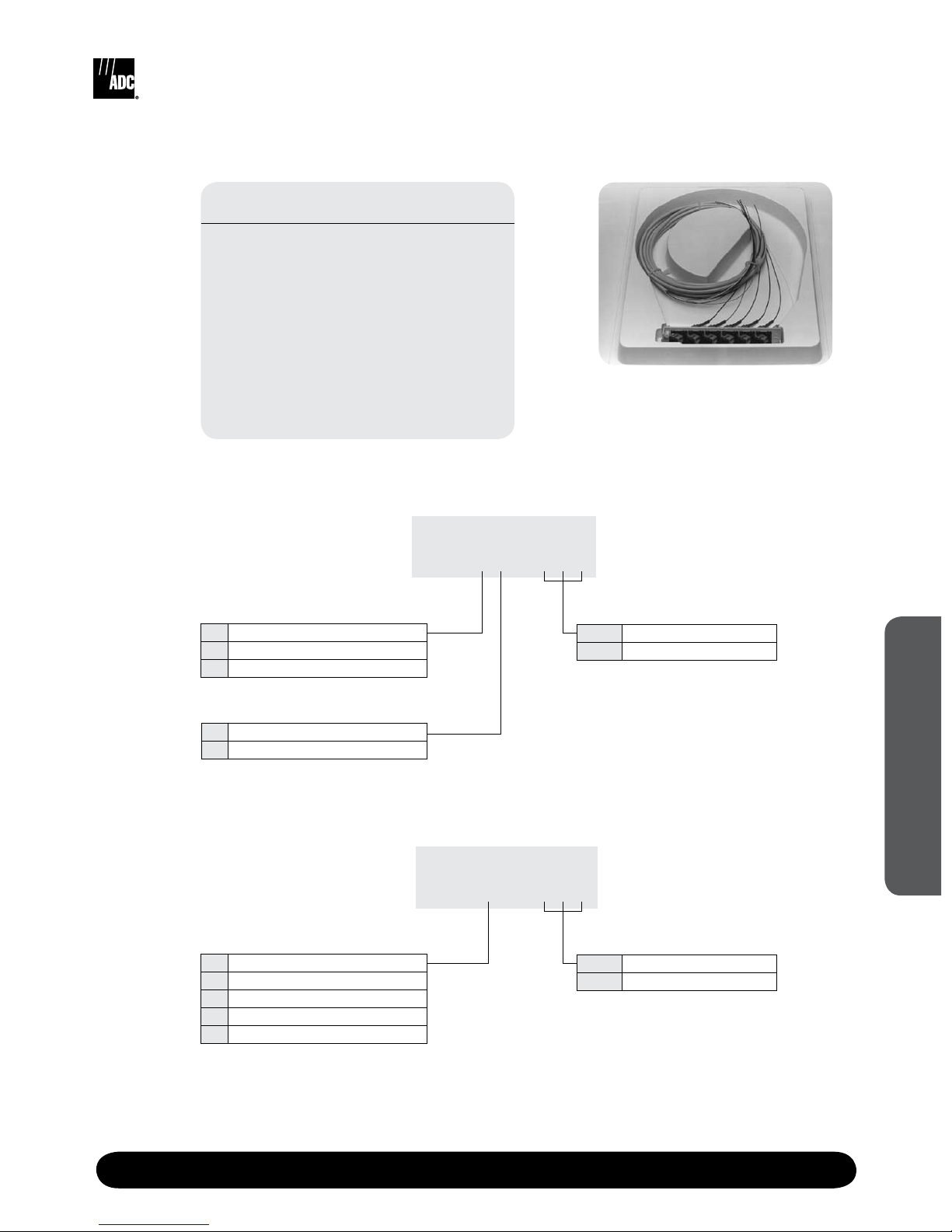

1. Select wall box type
2. Select 6pak adapters (with or without fiber)
3. Select 6pak adapter/connector type (choose placement in the wall box)
4. Select splice tray with chip
5. Select quantity of cable clamps (0–9)
6. Select quantity of compression fittings (0–9)
7. Select quantity of bonding grounding kits (0–9)
1 For a fully loaded 12-position wall box,
fill in spaces A & B with 6pak adapter/
connector type. Populate fields C & D
with ”N”.
2 For a fully loaded 24-position wall box,
fill in spaces A, B, C & D with 6pak
adapter/connector type.
3 LC connectors and adapters double the
capacity of the panel by terminating two
fibers at each adapter.
Catalog Number
FL1- __ __ __ __ __ __ N N __ - __ __ __ 0
* For FTTX wall box applications, please refer to the OmniReach™FTTX Solutions for Multi-Dwelling
Unit Applications Catalog #102761AE.
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
A B C D
Wall Box Type
A12-position termination/splice
B24-position termination/splice
C 48-position splice-only
6pak Adapter/
Connector Type1, 2
Multimode
N None/NA
9SC
6LC3
Singlemode
N None/NA
7SC ultra polish
JSC angled polish
2FC ultra polish
8LC ultra polish3
ZLC angled polish3
Accessories
(Enter the desired
quantity 0–9 above the
corresponding accessory.)
Cable clamp
Compression fittings
Bonding grounding kit
Splice Tray with Chip
1Bare fusion
2Heat shrink
(single fiber fusion)
3 Mechanical (mass fusion)
N None
6pak Adapters
3 Adapters with pigtails
4 Adapter-only
6Singlemode or multimode
62.5/125 µm 6-fiber stranded
softwall bundle (12-fiber
for LC)
9Singlemode or multimode
62.5/125 µm 12-fiber ribbon
I Multimode 50/125 µm
stranded softwall bundle

10/07 • 103743AE Fiber Optic Panels
71
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box

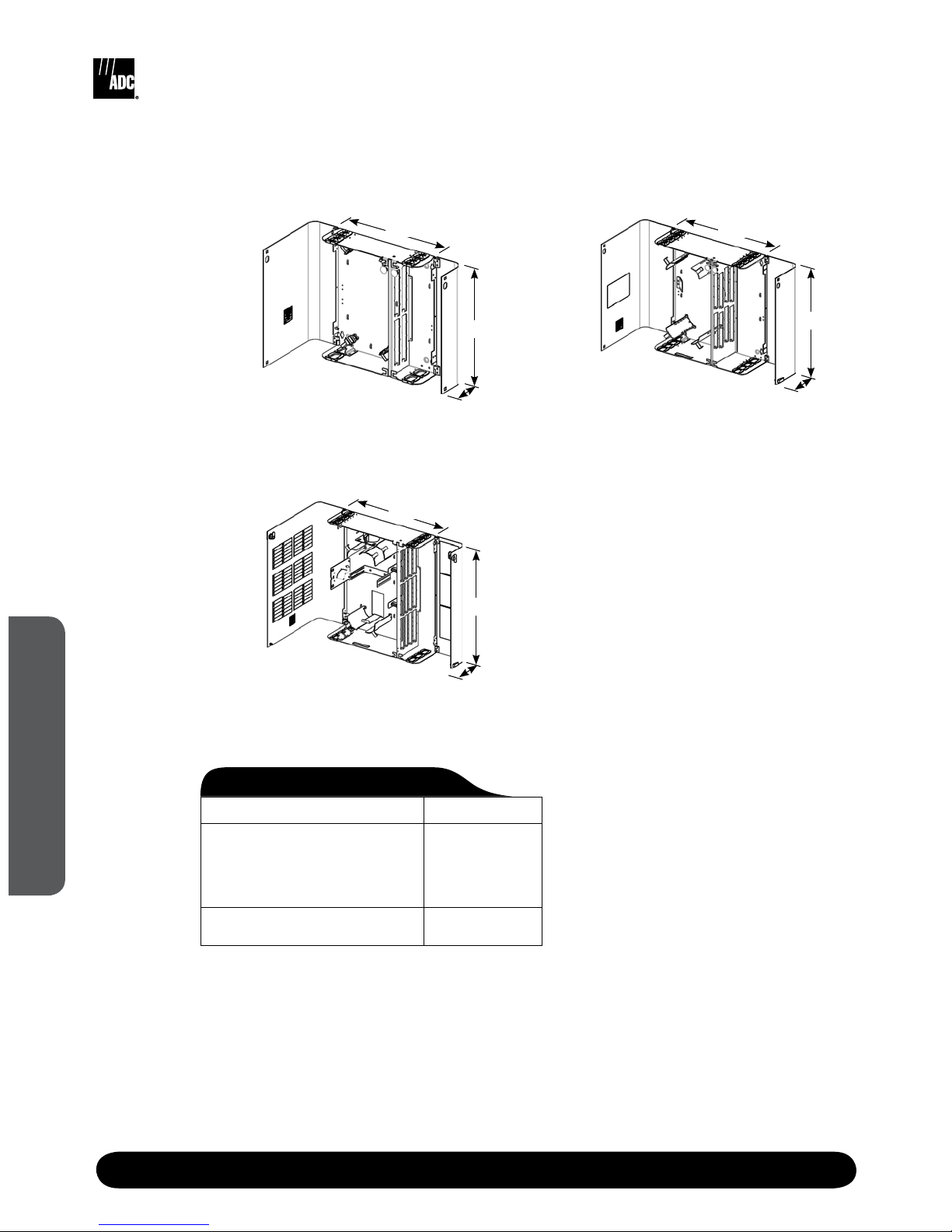

Wall Mount Boxes (Two Door)
24-Position Termination/Splice Wall Box
Features
• Uses 6pak adapters with angled retainers
• Multiple, configurable locking options that allow users
and service providers separate access for security
• Acceptance of strength member tie-off hardware
• Acceptance of cable clamps at each corner
• Grounding screws, mounting screws and dust caps are
included with each panel. Additional accessories
are available on page 78. Wall Box
(Two Door)
381 mm
(15")
97 mm
(3.8")
330 mm
(13")
See ordering information on following page.

10/07 • 103743AE Fiber Optic Panels
72
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (Two Door)
How to order:
1. Select wall box type
2. Select 6pak adapters (with or without fiber)
3. Select 6pak adapter/connector type (choose placement in the wall mount box)
4. Select splice tray with chip
5. Select quantity of cable clamps (0–9)
6. Select quantity of compression fittings (0–9)
7. Select quantity of bonding grounding kits (0–9)
8. Select quantity of strength member tie-off kits (each wall box accepts 2, maximum) (0–9)
9. Select lock type
FL1- __ __ __ __ __ __ __ __ - __ __ __ __ __
A B C D E
1 Use the guides on the next page for placement of 6paks. Place the desired connector or adapter type above the
corresponding location designation of A, B, C, D or E. The diagram on the following page illustrates the location of each
6pak within the bulkhead.
2 LC connectors and adapters double the capacity of the panel by terminating two fibers at each adapter.
Catalog Number
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
Wall Box Type
G12-position termination/splice
H24-position termination/splice
J48-position termination/splice
P 72-position termination/splice
6pak Adapter/
Connector Type1
Multimode
N None/NA
9SC
6LC2
Singlemode
N None/NA
7SC ultra polish
JSC angled polish
2FC ultra polish
8LC ultra polish2
ZLC angled polish2
Accessories
(Enter the desired
quantity 0–9 above the
corresponding accessory.)
Cable clamp
Compression fittings
Bonding grounding kit
Strength member tie-off
Splice Tray with Chip
1Bare fusion
2Heat shrink
(single fiber fusion)
3 Mechanical (mass fusion)
N None
Lock Type
N None
A (2) A keys
B(2) B keys
C (1) A key, (1) B key
6pak Adapters
3 Adapters with pigtails
4 Adapter-only
6Singlemode or multimode
62.5/125 µm 6-fiber stranded
softwall bundle installed
(12-fiber for LC)
9Singlemode or multimode
62.5/125 µm 12-fiber ribbon
I Multimode 50/125 µm
stranded softwall bundle

10/07 • 103743AE Fiber Optic Panels
73
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL 1000 Series Fiber Optic Wall Box
Wall Mount Boxes (Two Door)
Note: All configured wall boxes will have adapter packs loaded starting from the wall side.

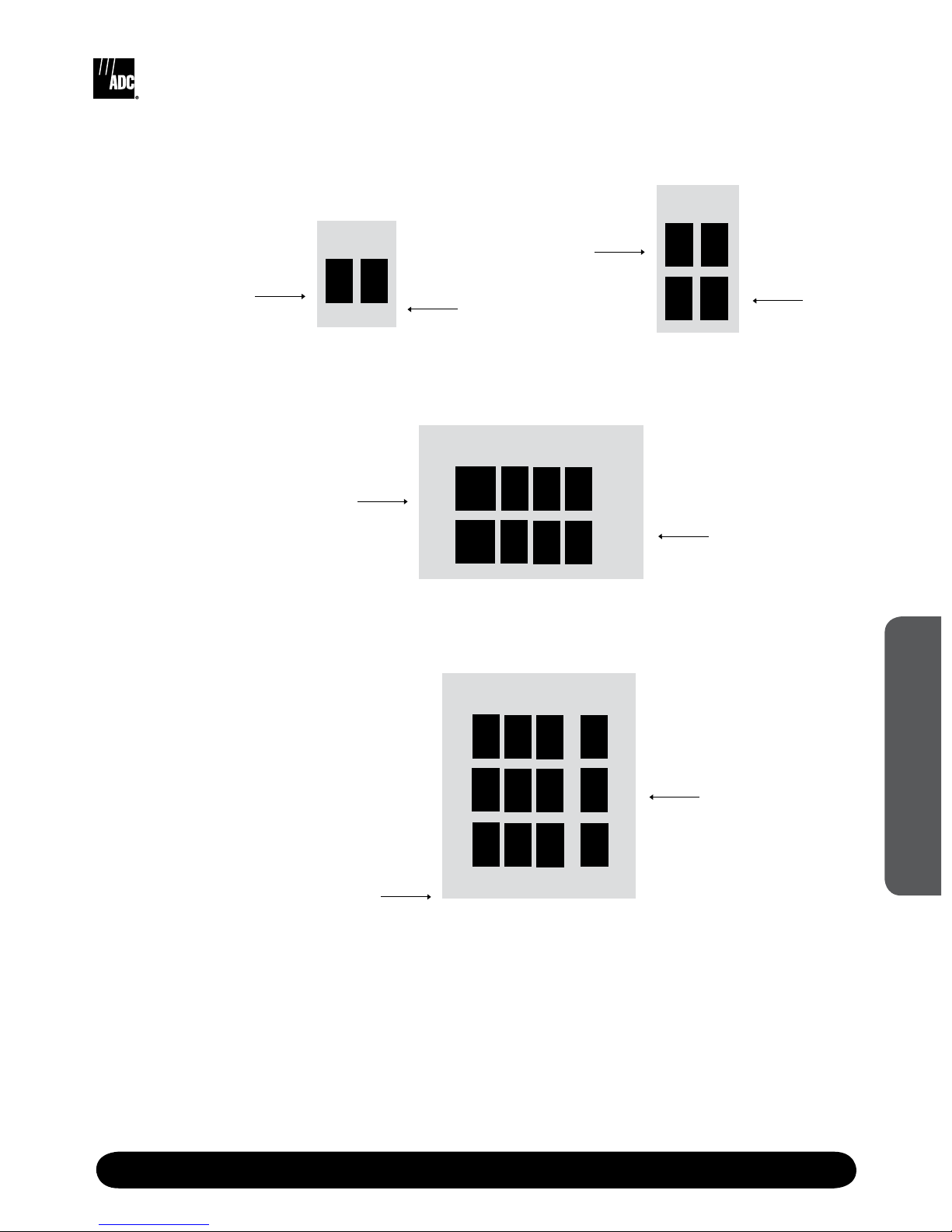

Placement of 6paks
BA
12-Position
Wall Mount
Type G Box Viewed
from Equipment Side
Wall Mount Side
(Rear of Box)
Door Side
Type G Box
(Viewed from Side of Box)
CA
24-Position
Wall Mount
Type H Box Viewed
from Equipment Side
Wall Mount Side
(Rear of Box)
Door Side
CB
Type H Box
(Viewed from Side of Box)
ED
48-Position
Wall Mount
Type J Box Viewed
from Equipment Side
Wall Mount Side
(Rear of Box)
Door Side
ED
C
C
A
B
Type J Box
(Viewed from Side of Box)
D
72-Position
Wall Mount
Type P Box Viewed
from Equipment Side
Wall Mount Side
(Rear of Box)
Door Side
D
D
D
B
C
DDC
A
A
B
Type P Box
(Viewed from Side of Box)

10/07 • 103743AE Fiber Optic Panels
74
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL 1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door or Two Door) with Multifiber Cable
How to order:
1. Select wall box type
2. Select near end/far end connector and adapter type
3. Select cable size
4. Select cable type (IFC or OSP)
5. Select entrance point
6. Select cable length
7. Select locking options
F L 1 - __ __ / __ __ ____ __ - __ __ __ __
A B
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
Catalog Number
Wall Box Type
A 12-position, 1 door wall box
B24-position, 1 door wall box
G 12-position, 2 door wall box
H24-position, 2 door wall box
J48-position, 2 door wall box
P72-position, 2 door wall box
Near End (A)/Far End (B)
Connector and Adapter Type
Multimode
9SC
6LC1
Singlemode
7SC ultra polish
JSC angled polish
2FC ultra polish
8LC ultra polish1
ZLC angled polish1
Cable Type
Multimode
NC IFC stranded
62.5/125 µm riser
Singlemode
NA IFC stranded riser
NS IFC ribbon riser
NR OSP armored ribbon
(24-fibers or more)
Cable Size
1 12
224
4 48
7 72
996 (48-position panel using
LC connectors)
A 144 (72-position panel using
LC connectors)
Entrance Point
1Bottom left
2Top left
Lock Type
N None
A (2) A keys
B(2) B keys
C (1) A key, (1) B key
Cable Length
008 8 m (25')
016 16 m (50')
023 23 m (75')
031 31 m (100')
039 39 m (125')
046 46 m (150')
061 61 m (200')
077 77 m (250')
092 92 m (300')
122 122 m (400')
153 153 m (500')
1
LC connectors and adapters double the capacity of
the panel by terminating two fibers at each adapter.

10/07 • 103743AE Fiber Optic Panels
75
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
All empty chassis’ use ADC FL1000 and FL2000 6pak adapters.
Please see pages 64–65 and 77–78 for ordering information.
One Door Wall Mount Chassis
Allows single door access.
12-Position Termination/Splice
One Door Wall Box
FL1-A
24-Position Termination/Splice
One Door Wall Box
FL1-B
FL 1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door or Two Door) Empty Chassis
381 mm
(15")
91 mm
(3.6")
330 mm
(13")
279 mm
(11")
86 mm
(3.4")
310 mm
(12.2")
Description
Empty termination/splice chassis
12-position
24-position
Empty splice-only chassis
48-position
Catalog Number
FL1-A
FL1-B
FL1-C
Ordering Information

10/07 • 103743AE Fiber Optic Panels
76
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door or Two Door) Empty Chassis
Description
Empty termination/splice chassis
12-position
24-position
48-position
72-position
Empty splice-only chassis
144-position
Catalog Number
FL1-G
FL1-H
FL1-J
FL1-P
FL1-Q
Ordering Information
Two Door Wall Mount Chassis
Allows separate customer and provider access.
24-Position Termination/Splice
Two Door Wall Box
FL1-H
48-Position Termination/Splice
Two Door Wall Box
FL1-J
72-Position Termination/Splice
Two Door Wall Box
FL1-P
546 mm
(21.5")
152 mm
(6")
483 mm
(19")
381 mm
(15")
99 mm
(3.9")
361 mm
(14.2")
452 mm
(17.8")
158 mm
(6.2")
437 mm
(17.2")

10/07 • 103743AE Fiber Optic Panels
77
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box
Wall Box Accessories
Features
• Can be purchased and installed as
growth necessitates
• Available with preterminated three- or
five-meter pigtails
• Pigtails consist of a single outer jacket
containing six color-coded 900 µm fibers
• One end of pigtail terminated with chosen
connector style and installed into the
6pak adapter
• Saves installation time
Stranded Multimode Pigtails and Adapters
6pak Adapter
(With SC Adapters and Pigtails)
Stranded Singlemode Pigtails and Adapters
6pak Adapter — Adapters and Pigtails
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
1 LC 6paks are loaded with 12-fiber pigtails.
Fiber Type
BMultimode 62.5/125 µm
CMultimode 50/125 µm
Catalog Number
FL2 - 6P __ __ C 6 __ __ __
Pigtail Length
03W 3 m pigtail
05R 5 m pigtail
Connector and Adapter Type
9SC
A FC
6LC1
Catalog Number
FL2 - 6P __ S C 6 __ __ __
Pigtail Length
03W 3 m pigtail
05R 5 m pigtail
Connector and Adapter Type
7SC ultra polish
JSC angled polish
2FC ultra polish
8LC ultra polish1
BLC angled polish1
1 LC 6paks are loaded with 12-fiber pigtails.

10/07 • 103743AE Fiber Optic Panels
78
www.adc.com • [phone] • 1-800-366-3891
Wall Mount Panel Solutions
FL1000 Series Fiber Optic Wall Box
Wall Box Accessories
6pak Adapter-Only
(Without Fiber)
Miscellaneous
Compression fitting
Compression fitting
with plate
Strength member tie-off kit
Cable clamp
Bonding grounding kit
Lock and key type A
Lock and key type B
Mini-splice tray
(used only in 12-position,
wall-mount box)
Bare fusion
Heat shrink
(single fiber fusion)
Mechanical (mass fusion)
Standard splice tray
Bare fusion
Heat shrink
(single fiber fusion)
Mechanical (mass fusion)
FL1-ACC001
FL1-ACC006
FL1-ACC003
FL1-ACC011
FL1-ACC004
IPA-K1
IPA-K2
FST-M-FT
FST-M-HS
FST-M-MT
FST-FT
FST-HS
FST-MT
Description
Multimode 6pak
adapter-only1
SC
FC
LC*
Singlemode 6pak
adapter-only1
SC ultra polish
SC angled polish
FC ultra polish
LC ultra polish*
LC angled polish*
Catalog Number
FL2-6PMMSC
FL2-6PMMFC
FL2-6PMMLC
FL2-6PSMSC
FL2-6PSMASC
FL2-6PSMFC
FL2-6PSMLC
FL2-6PSMALC
Ordering Information
*Includes 12 fibers
1 For 6paks with fiber, see the previous page.
