Spec Sheet
TrueNet®
RMG Series Rack Mount Fiber Enclosures
ADC introduces the RMG Series rack mount fiber enclosures as an integral part of the TrueNet®
product portfolio. ADC’s RMG Series fiber enclosure provides rugged and durable protection for
patching or splicing of fiber cables. Especially designed to be user friendly, the slide-out design
and removable front and rear panels provide convenient access points.
ADC’s RMG Series offers a cost effective and high-density rack mount fiber enclosure in one, two
and four rack unit sizes. Its modular design and flexible configurations make it very user friendly
and easy to install.
Features:
1 RU and 2 RU units contain sliding and removable front and rear access panels, providing•
convenient access points
Designed for 48.26 cm (19-inch) EIA rack or cabinet environment; optional brackets to•
accommodate 58.42 cm (23-inch) rack or cabinet mounting
Density: up to 72 terminations in 1 RU•
Low profile design with higher density for space limited applications•
User friendly design utilizing industry standard LSX/LGX modular adapter packs•
Side and rear cable entry points on back of panel supports a wide range of•
deployment applications
Applications and Benefits:
High-density makes suitable for telecommunications and equipment rooms•
Can be cabinet mounted for data center applications•

11/07•101417AETrueNet®RMG Series
TrueNet®
RMG Series Rack Mount Fiber Enclosures
2
www.adc.com • [phone] • 1-800-366-3891

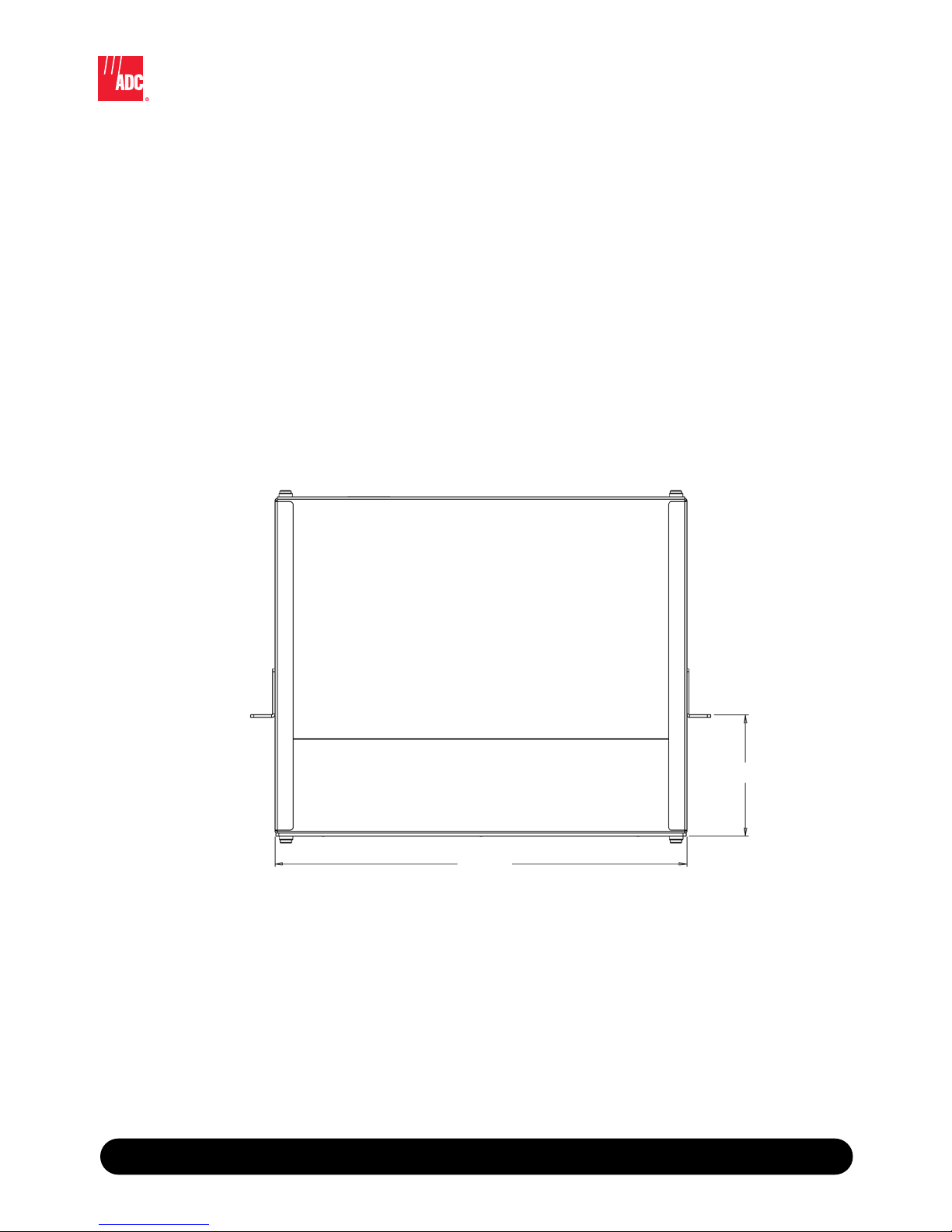

12.70 cm
(5.00")
42.77 cm
(16.84")
Specifications
Storage/operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Approximate weight (empty panel)
1 RU model: 5.44 Kg (12 lbs)
2 RU model: 5.90 Kg (13 lbs)
4 RU model: 6.80 Kg (15 lbs)
Configuration options and capacity
Termination only
1 RU maximum density1:72 terminations
2 RU maximum density1:144 terminations
4 RU maximum density1:288 terminations
Termination/splice
1 RU maximum density: 36 terminations
2 RU maximum density: 72 terminations
4 RU maximum density: 144 terminations
1Maximum density achieved using quad LC connectors.
1 RU, 2 RU and 4 RU

11/07•101417AETrueNet®RMG Series
TrueNet®
RMG Series Rack Mount Fiber Enclosures
3
www.adc.com • [phone] • 1-800-366-3891

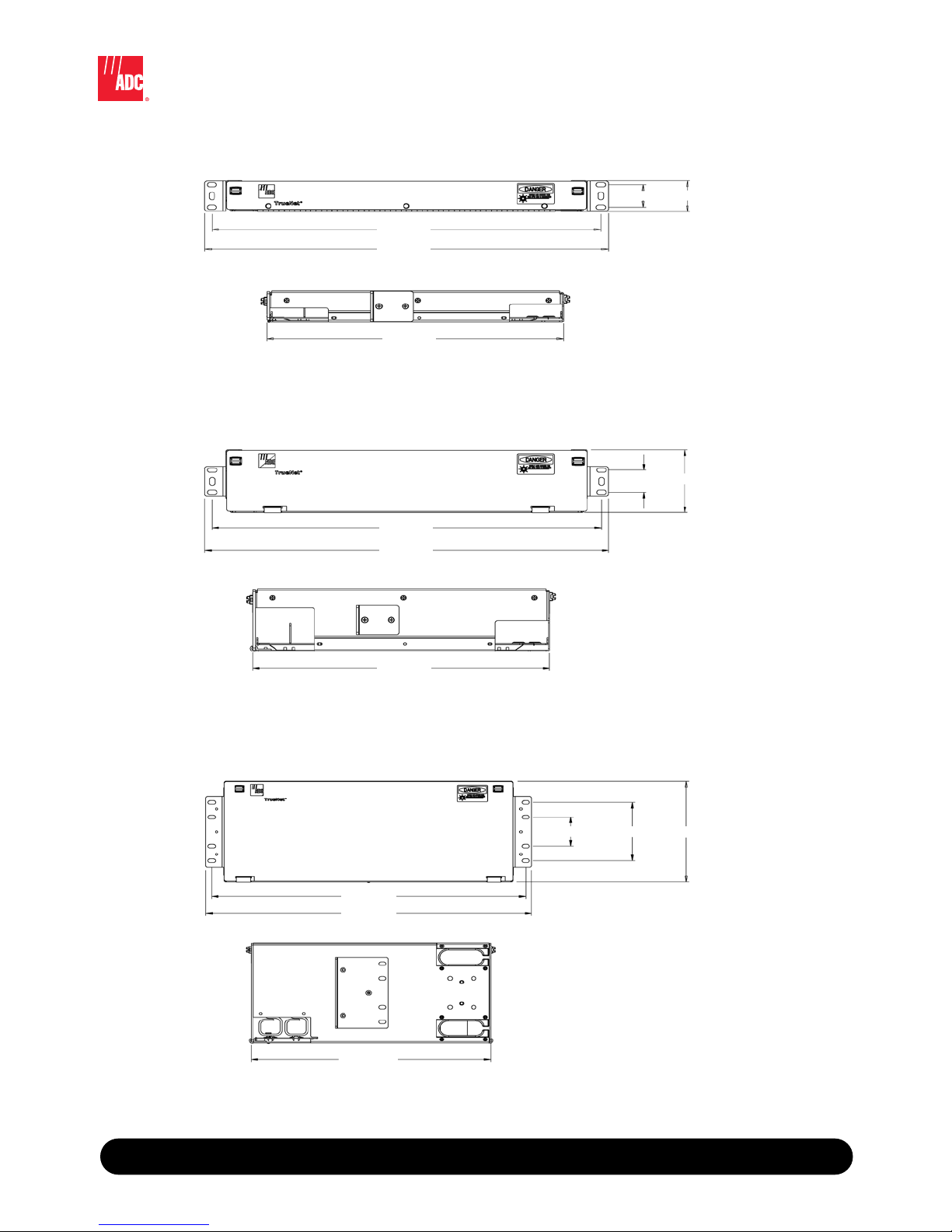

46.51 cm
(18.31")
48.26 cm
(19.00")
35.48 cm
(13.97")
3.17 cm (1.25") 4.37 cm (1.72")
46.51 cm
(18.31")
48.26 cm
(19.00")
35.48 cm
(13.97")
3.17 cm (1.25") 8.81 cm (3.47")
46.51 cm
(18.31")
48.26 cm
(19.00")
35.48 cm
(13.97")
5.08 cm (2.00") 17.53 cm (6.90")10.16 cm (4.00")
1 RU Model
2 RU Model
4 RU Model

11/07•101417AETrueNet®RMG Series
TrueNet®
RMG Series Rack Mount Fiber Enclosures
4
www.adc.com • [phone] • 1-800-366-3891
Description Panel Height Catalog Number
Rack or Cabinet Mount Panel, black
1 RU empty panel; accommodates 3 modular adapter packs;
black 4.45 cm (1.75") RMG-1000-000B
2 RU empty panel; accommodates 6 modular adapter packs;
black 8.89 cm (3.50") RMG-2000-000B
4 RU empty panel; accommodates 12 adapter packs;
also includes cable management bracket and cable clamp;
black
17.78 cm (7.00") RMG-4000-000B
Accessories
Cable Clamp Kit (for 1 RU and 2RU) RMG-ACC001
Blank Plates RMG-00ADP00
Splice Tray
Heat shrink fusion FST-DV-HS
Mechanical FST-DV-MT
Extender Brackets; 48.26 cm (19" - 23")
1 RU EB-17B
2 RU EB-35B
Ordering Information
RMG Empty Panels
The RMG empty panel with blank panels includes 48.26 cm (19-inch) EIA mounting brackets and
hardware, polycarbonate front door, cable ties, cable management rings and circuit identification cards.
The RMG empty panel allows for the user to mix and match any combination of modular adapter packs
or simply utilize a “grow as you go” approach to their network.
Features
• Mountingoptions:
– Shipped with standard 48.26 cm (19-inch) EIA rack or cabinet mounting hardware
– Optional brackets to accommodate 58.42 cm (23-inch) EIA rack or cabinet mounting
• Abilitytoquicklyandeasilyconfigure,utilizingthemodularadapterpack

11/07•101417AETrueNet®RMG Series
TrueNet®
RMG Series Rack Mount Fiber Enclosures
5
www.adc.com • [phone] • 1-800-366-3891
RMG Standard Adapter Packs
The RMG Series offers a variety of standard modular adapter packs to accommodate most applications.
They utilize the industry standard LSX/LGX footprint and are readily available.
Description Catalog Number
Multimode adapter only packs
LC quad adapters with phosphorus bronze sleeve, beige color
6 adapters or 24 fiber ports per adapter pack RMG-24ADPQ3
LC adapters with phosphorus bronze sleeve, beige color
6 adapters or 12 fiber ports per adapter pack RMG-12ADPQ1
SC duplex adapters with phosphorus bronze sleeve, beige color
6 adapters or 12 fiber ports per adapter pack RMG-12ADPC3
SC adapters with phosphorus bronze sleeve, beige color
6 adapters or 6 fiber ports per adapter pack RMG-06ADPC1
ST®adapters with phosphorus bronze sleeve
6 adapters or 6 fiber ports per adapter pack RMG-06ADPT1
10 Gigabit multimode adapter only packs1
LC quad adapters with zirconia sleeve, aqua color
6 adapters or 24 fiber ports per adapter pack RMG-24ADPQ4
LC adapters with zirconia sleeve, aqua color
6 adapters or 12 fiber ports per adapter pack RMG-12ADPQ2
SC duplex adapters with zirconia sleeve, aqua color
6 adapters or 12 fiber ports per adapter pack RMG-12ADPC4
SC adapters with zirconia sleeve, aqua color
6 adapters or 6 fiber ports per adapter pack RMG-06ADPC2
Singlemode adapter only packs
LC quad adapters, blue color
6 adapters or 24 fiber ports per adapter pack RMG-24ADPQ8
LC quad adapters, blue color
6 adapters or 12 fiber ports per adapter pack RMG-12ADPQ5
SC duplex adapters, blue color
6 adapters or 12 fiber ports per adapter pack RMG-12ADPC6
SC adapters, blue color
6 adapters or 6 fiber ports per adapter pack RMG-06ADPC5
ST®adapters
6 adapters or 6 fiber ports per adapter pack RMG-06ADPT2
Ordering Information
1ADC recommends the use of aqua colored adapters with laser-optimized multimode fiber for 10 Gigabit
applications for circuit identification.

11/07•101417AETrueNet®RMG Series
TrueNet®
RMG Series Rack Mount Fiber Enclosures
6
www.adc.com • [phone] • 1-800-366-3891
Catalog Number
RMG-__ ADP__ __ __ __
Pigtail Length
LEAVE
BLANK Adapters only
03 3 meter pigtails
Pigtail Type
LEAVE
BLANK Adapters only
BSinglemode stranded
E Multimode stranded
Fiber Size
LEAVE
BLANK Adapters only
BMultimode 62.5/125
C Multimode 50/125
DMultimode 50/125 laser
optimized to 300 m2
S Singlemode
Number of Adapters
06 6 simplex adapters
12 6 duplex adapters
24 6 quad adapters
Connector Style
Multimode Connectors
C1 SC
C2 SC (aqua) with zirconia sleeve
C3 SC duplex
C4 SC duplex (aqua) with zirconia sleeve
Q1 LC1
Q2 LC (aqua)1
Q3 Quad LC
Q4 Quad LC (aqua)
T1 ST®
Singlemode Connectors
C5 SC UPC
C6 SC duplex
Q5 LC1
Q8 LC quad
T2 ST®
Custom Modular Adapter Packs
ADC’s RMG modular adapter pack assemblies can be used in any of the RMG series fiber enclosures in
a variety of connector styles and with or without preterminated 3 m (9.84 ft) pigtails. Its modular design
is user friendly and easy to install. Use the following matrix to configure the correct catalog number for
the application. If the resulting catalog number is not on the standard list, the product is considered
custom and may have longer lead times.
1
LC adapters terminate two fibers at each adapter and should be considered duplex adapters in this ordering scheme
2
ADC recommends the use of aqua adapters with multimode Ultra fiber to visually identify 10 Gigabit circuits
Features
• CompletelyinterchangeablebetweenRMGpanelproducts
• Canbeorderedwithallstandardtypesofsimplexandduplexmultimodeand
singlemode adapters
• Availablewithpreterminated3m(9.84ft)pigtailstoreduceinstallationtimeandcost
• Oneendofpigtailterminatedtochosenconnectorstyleandinstalledintoadapterpack
plug-in adapters

11/07•101417AETrueNet®RMG Series
TrueNet®
RMG Series Rack Mount Fiber Enclosures
7
www.adc.com • [phone] • 1-800-366-3891
RMG Pre-configured Panels with Adapters only or with Pigtails
ADC’s RMG series fiber panels are available to be shipped with factory installed adapter modules
and/or preterminated pigtail assemblies which simplifies the ordering process and reduces installation
time and costs. These configurations are custom and build-to-order.
Catalog Number
RMG-__ __ __ - __ __ __
Panel Color
BBlack
Splice Deck Type
0None
2 Heat shrink fusion
3 Mechanical fusion
Loaded Adapter Paks
03 3 adapter packs, loaded
06 6 adapter packs, loaded
12 12 adapter packs, loaded
Panel Size
1 1 RU (1.75") 3 adapter packs
2 2 RU (3.50") 6 adapter packs
4 4 RU (7.00") 12 adapter packs
1
ADC recommends the use of aqua adapters with multimode Ultra fiber to visually identify 10 Gigabit circuits
Panel Size
A Adapters only
P Adapters and singlemode
stranded pigtails
B Adapters and stranded pigtails
50/125 multimode
D Adapters and stranded pigtails
50/125 multimode laser optimized
to 300 meters
E Adapters and stranded
62.5/125 multimode pigtails
Adapters/Pigtails
Multimode Connectors
C1 SC
C2 SC (aqua) wih zirconia sleeve
C3 SC duplex
C4 SC duplex (aqua) wih zirconia sleeve
Q1 LC
Q2 LC (aqua)
Q3 LC quad
Q4 LC quad (aqua)
T1 ST®
Singlemode Connectors
C5 SC
C6 SC duplex
Q5 LC
Q8 LC quad
T2 ST®

Spec Sheet
Website: www.adc.com
FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:[phone]
Fax:[phone]•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
101417AE 11/07 Revision © 2007 ADC Telecommunications, Inc. All Rights Reserved
RMG Maximum Capacity by Adapter Style and Chassis Height
Chassis Height
(in Rack Units)/
Application
Maximum
Number of Fiber
Terminations
in Chassis
Maximum
Number of
Adapter Packs
per Chassis
Number of Fiber
Terminations
per Adapter Pack Adapter Style
1 18 3 6 Simplex SC, ST
1 36 3 12 Duplex SC, standard LC,
1 72 3 24 Quad LC
2 36 6 6 Simplex SC, ST
2 72 6 12 Duplex SC, standard LC,
2 144 6 24 Quad LC
4 72 12 6 Simplex SC, ST
4 144 12 12 Duplex SC, standard LC,
4 288 12 24 Quad LC
Chassis Height
(in Rack Units)/
Application
Maximum
Number of Fiber
Terminations
in Chassis
Maximum
Number of
Adapter Packs
per Chassis
Number of Fiber
Terminations
per Adapter Pack Adapter Style
1 18 3 6 Simplex SC, ST
1 36 3 12 Duplex SC, standard LC,
1 48 2 24 Quad LC
2 36 6 6 Simplex SC, ST
2 72 6 12 Duplex SC, standard LC,
2 96 4 24 Quad LC
4 72 12 6 Simplex SC, ST
4 144 12 12 Duplex SC, standard LC,
4 144 12 24 Quad LC
Termination Only Application
Termination/Splice Application
