Thank you for choosing the UltraKlean
Pond Filter. At Aquascape, our goal is
to supply our customers with the best-
valued products in water gardening. We
hope you enjoy your purchase. Thank you
for choosing Aquascape. Your Paradise.
Our Passion.®
Table of Contents
Introduction …………………………………………… 2
Contents/Safety Information ………………………… 3
Specifications ………………………………………… 4
Installation ……………………………………………… 5
Troubleshooting……………………………………… 12
Replacement Parts ………………………………… 13
Warranty ……………………………………………… 14
ULTRAKLEAN
POND FILTER
The Aquascape UltraKlean Pond Filter with UV and integrated
electronic bulb-saver adjustment provides pond owners with
optimum water conditions and crystal-clear pond water.
The unique design utilizes small plastic UltraKlean BioBalls
instead of sponges, maximizing efficient mechanical and
biological filtration and minimizing maintenance on the filter. The
UltraKlean’s simple-to-use cleaning feature allows for the unit to
be backwashed in less than five minutes without opening the
canister or getting your hands dirty.
This instruction manual will guide both the installation of your
filter and the recommended maintenance procedures to ensure
long-term effectiveness.
☎ Contact Us
For more information about our company or products,
please visit our website at aquascapeinc.com or
call (US) [phone] (CAN) [phone].
facebook.com/AquascapeInc
youtube.com/aquascape4
twitter.com/AquascapeInc
flipboard.com/profile/AquascapeInc
Find us on:

3
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
No. Description

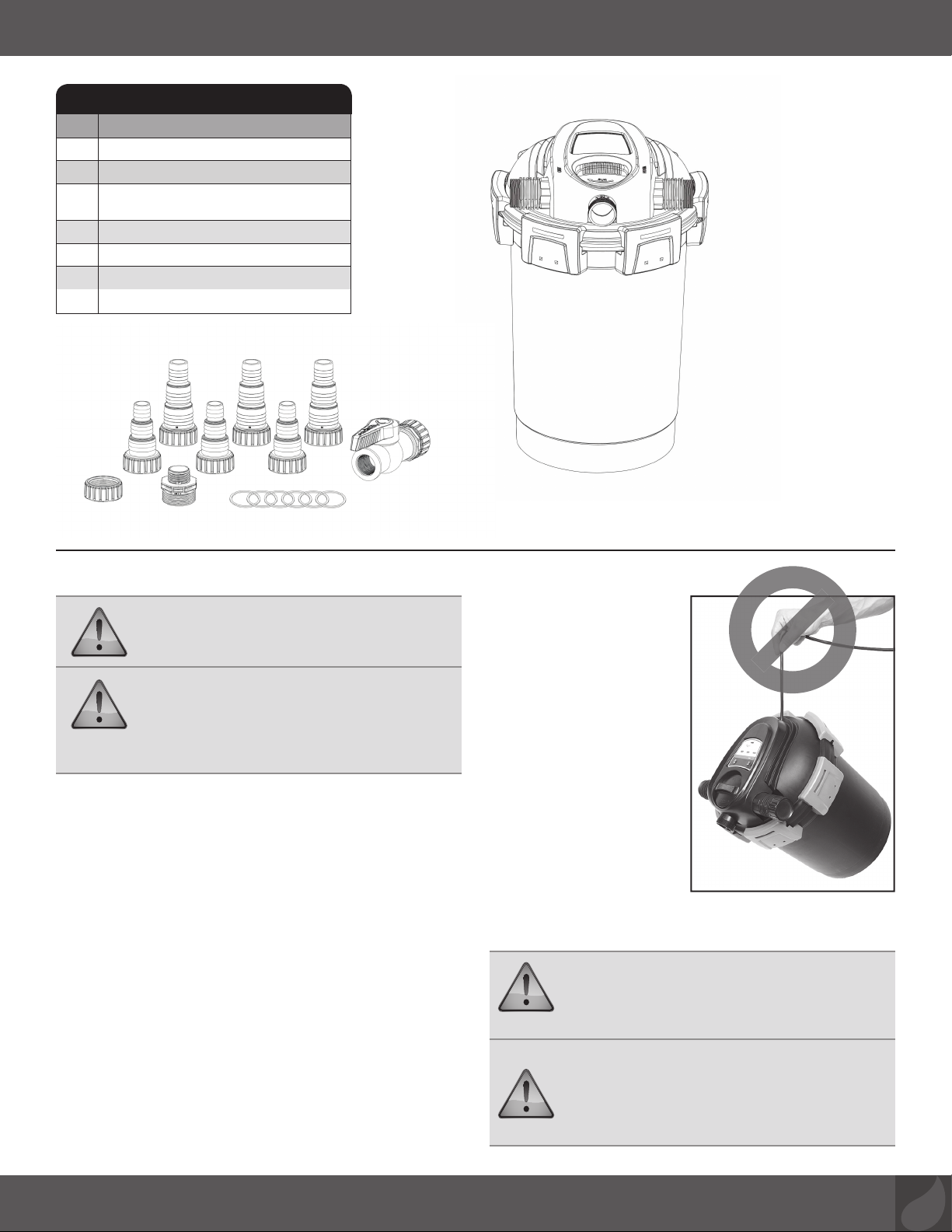

1. (1) UltraKlean Filter
2. (3) Multi-Hose Adapter (Aquascape)
3. (3) Multi-Hose Adapter (North American
Standard)
4 (6) Flat Rubber Gasket
5. (1) Backwash Cap
6. (1) Discharge Shutoff Valve
7. (1) Threaded Adapter
Contents
Safety Information
WARNING: Risk of electric shock –
This filter has not been approved for use
in swimming pool or marine areas.
WARNING: To provide continued protection against
risk of electric shock, connect to properly grounded,
ground fault circuit interrupter (GFCI) outlets only,
using the following guidelines:
(A) This filter is weatherproof, but it is not designed
to be submersed in the water.
(B) Have a qualified electrician install a properly
grounded receptacle outlet, acceptable for outdoor
use and protected from snow and rain. If possible
locate the outlet or filter so the 20 ft. filter cord will
reach the outlet without an extension cord.
(C) Inspect cord for damage prior to use.
(D) If an extension cord is required, make sure
it is rated for outdoor use.
(E) Any wiring of pumps should be performed by a
qualified electrician to maintain warranty, user safety,
and code compliance.
(F) To reduce risk of electrical shock, all wiring and
junction connections should be made per local
codes. Requirements may vary depending on
usage and location.
(G) The power cable
should be protected
at all times to
avoid being cut or
punctured.
(H) Never handle
power cords
with wet hands.
(I) Unplug filter at
receptacle outlet
when not in use.
(J) Do not remove cord
and strain relief. Do
not connect conduit
to filter.
(K) Do not use power
cable to lift the filter.
WARNING: UV SAFETY – A small LED indicator
on the control panel will glow when the filter is
completely assembled and the UV light is turned on.
CAUTION: Never override the internal UV safety
switch when the filter is disassembled as this
could activate the UV light. Direct exposure
to UV light can damage eyes and skin.








UltraKlean Pond Filter Specs
Model Number 2000 3500
Item Number #95053 #95054
Average Pond Size Recommendation 2,000 US gallons 3,500 US gallons
Maximum Flow Rate 2,700 GPH 5,200 GPH
Minimum Flow Rate 1,000 GPH 2,000 GPH
Recommended Pumps
AquaForce®Pumps: 1000, 1800 & 2700;
AquaJet®1300 & 2000;
Ultra Pump 1100, 1500, & 2000
AquaForce®Pumps:
2700, 3600 & 5200;
Ultra Pump 2000
UV Wattage 14 W 28 W
Power Cord Length 20 ft 20 ft
Discharge Hose Diameter 1", 1.25", 1.5" 1", 1.25", 1.5"
4☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
Electrical Specifications
• Input Voltage: 120V AC
• Input Frequency: 60 Hz
• For outdoor or indoor use
• Thermally protected
• This filter has been evaluated
for use with water only
1. READ AND FOLLOW ALL
INSTRUCTIONS.
2. WARNING - To reduce the risk of injury, do not permit
children to use this product unless they are closely
supervised at all times.
3. DANGER - Risk of Injury.
- Replace damaged cord immediately.
- Do not bury cord.
- Connect to a grounded, grounding type receptacle only.
4. SAVE THESE
INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should
always be followed, including the following:

5
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
FOR MORE
INFORMATION
Installation
• Use only in fully assembled state, and make sure that all
clips securing the filter top to the base are completely
snapped down into the closed position before turning on
the pump. See page 6 for more information.
• The UV lamp and quartz sleeve are fragile. Please inspect
for any signs of damage prior to installing, and check to
make sure quartz sleeve is threaded tightly.
WARNING: Do not touch UV lamp with bare
hands as the oil from skin may damage the bulb
performance. Make sure there is no moisture
inside the quartz sleeve or on the bulb prior to
operating. Inspect area around the ballast for any
water that may have collected and remove.
• The filter is weatherproof, but it is not designed
to be submerged into the pond. Submerging
the pond filter could cause electric shock
with AquaForce®Pond Pump
with AquaJet® Pond Pump with Ultra Water Pump
and will void the product warranty.
• If located in a cold freezing climate, remove
pond filter in winter months. Drain the filter
completely and store in a frost-free location.
• Do not filter hazardous materials or liquids such as oil,
saltwater, or organic solvents.
• Do not block or restrict the filter discharge.
See page 7 for more information.
• Products returned must be cleaned, sanitized, or
decontaminated as necessary prior to shipment. This
will ensure that employees will not be exposed to health
hazards in handling said material. All applicable laws and
regulations shall apply.
IMPORTANT: Aquascape, Inc. is not responsible
for losses, injury, or death resulting from a failure
to observe these safety precautions or misuse/
abuse of filters, pumps, and other equipment.
Typical Installation
IMPORTANT! It is recommended that the pump not
be positioned in the deepest area of the pond. This
will protect the fish by preventing the pond from
completely draining in the case of a leak in the plumbing or filter.
Bricks or stones can be used, if needed, to raise the pump up
from the bottom of the pond.

Filtered water
Pump
Bypass water
2-Way Flow
Control Valve (#88005)
6☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
Pump Recommendation

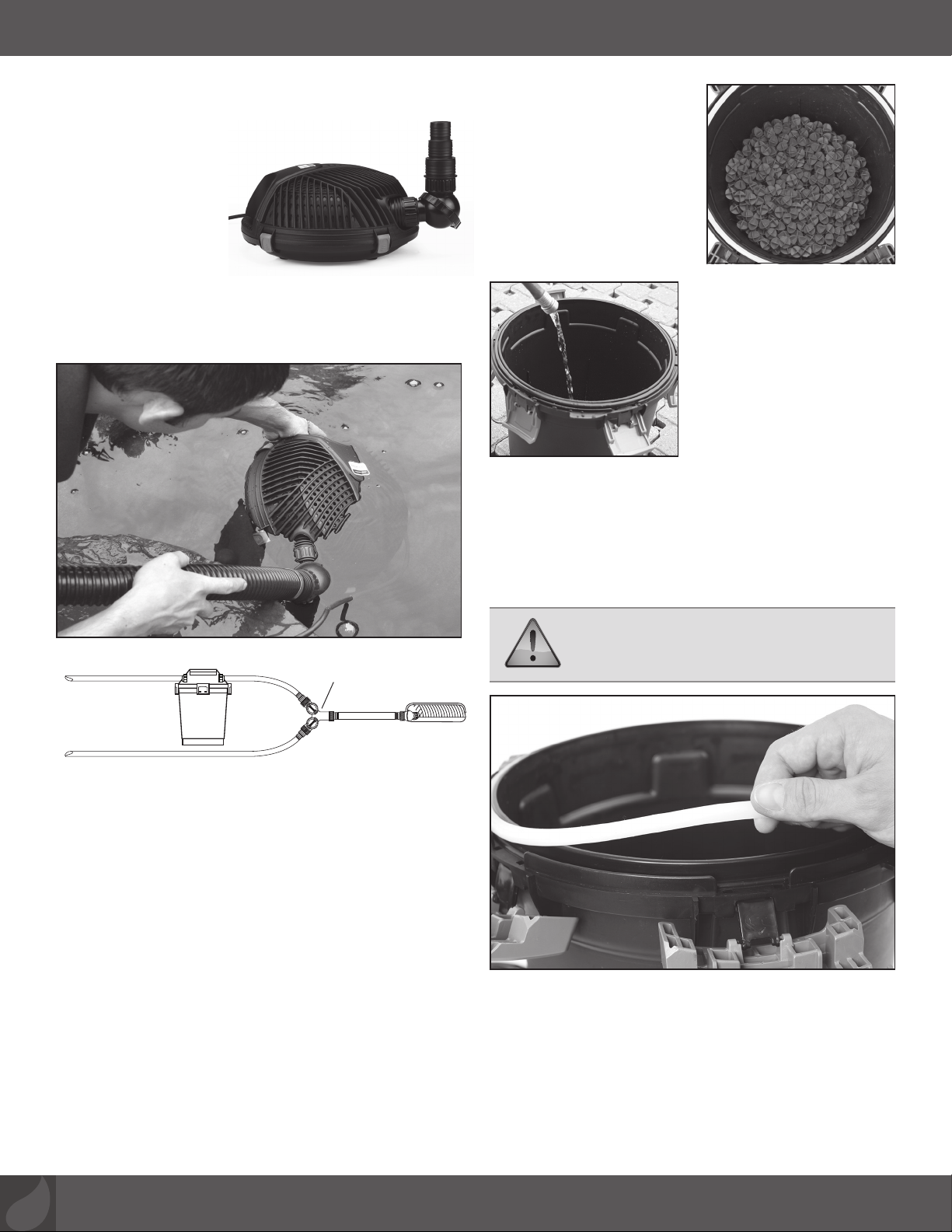

• The Aquascape
AquaForce®Pond
Pump is ideal for use
with the UltraKlean
Pond Filter. The
AquaForce®Pond
Pump pre-filter cage
allows for the pump
to be submerged
directly in the pond
and reduces filter
maintenance by preventing larger debris from reaching the
UltraKlean Pond Filter. Other in-pond pump makes and
models can also be used.
AquaForce®Pond Pump

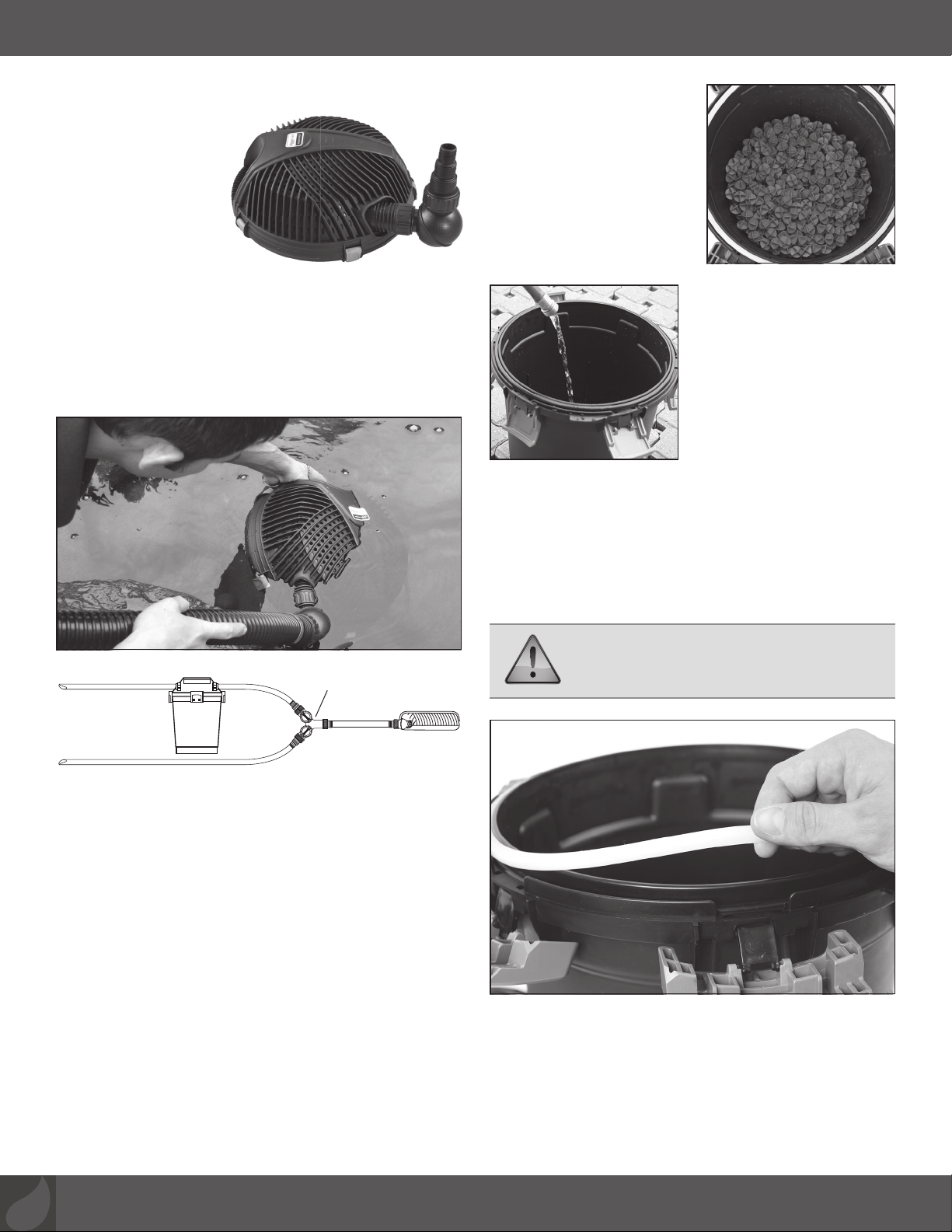

• Before lowering the lid and UV assembly into the canister,
inspect the O-ring in the top of the canister to be sure the
O-ring and recessed area the O-ring sits in is clean and
free of any debris which could cause a water leak. Silicone
oil can also be used, if needed, to help grease the O-ring.
IMPORTANT: Make sure the O-ring is fully
seated in the groove around the entire
canister before attaching the lid.
2 boxes for UltraKlean
3500).
• Fill the canister about
half way with water.
The water will allow the
UltraKlean BioBalls to
shift around the UV tube,
making installation of the
UltraKlean Pond Filter
lid quick and easy.
• The UltraKlean Pond Filter
includes UltraKlean BioBalls
that must be removed
from their bags prior to
use. Additional UltraKlean
BioBalls (#95055) can be
added to increase biological
filtration if desired (1 box
for UltraKlean 2000 and
• When pumping 100% of pond water through a pressurized
pond filter, you will experience a reduction in flow,
especially when using larger water pumps. The optional
2-Way Flow Control Valve (Item #88005) will allow you to
achieve the following:
1. Optimize contact time between UV lamp and water
flowing through the filter.
2. Minimizing flow loss when using large pumps.
• The UltraKlean Pond Filter is designed to be located
outside the pond. We recommend placing it in a location
that is easy to hide as well as accessible for maintenance.
The UltraKlean Pond Filter can be set on level ground or
buried up to 1” below the clips on the canister to help hide
the filter.

NOTE: The lid clips may require force in order for
the lower portion of the clip to lock securely to place.
7
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
• Do not use lid clips to lift the UltraKlean Pond Filter. This
could damage the clips. Instead lift the unit from under the
lip of the canister, gripping the canister lip in between any
of the clips.
• The UltraKlean Pond Filter includes
three plumbing ports:
• In – Pipe from pump
• Out – Pipe back to pond
• Wash – Connection to backwash
Filtered Water
OUT
Backwash
OUT
Pond Water
IN
• Carefully align the indented lid
clamping spots with the clips
on the canister, making sure
that the tab on the lid lines up
with the tab on the tank. This
will allow for easy removal of
the lid. Once aligned, close
all the lid clips tightly. This
will seal the UltraKlean Pond
Filter lid to the canister.
IMPORTANT: Do not use tools to attach the
fittings. Fittings should be hand-tightened
and installed with the flat rubber gaskets
(in each fitting) to achieve leak-free seals
• Locate and attach the included discharge shutoff valve
(with flat rubber gasket) and threaded adapter to the back-
wash plumbing port.

1½”
1¼”
1”
Hosetail ready for 1” tubing
1½”
1¼”
CUT
HERE
REMOVE
Hosetail ready for 1¼” tubing

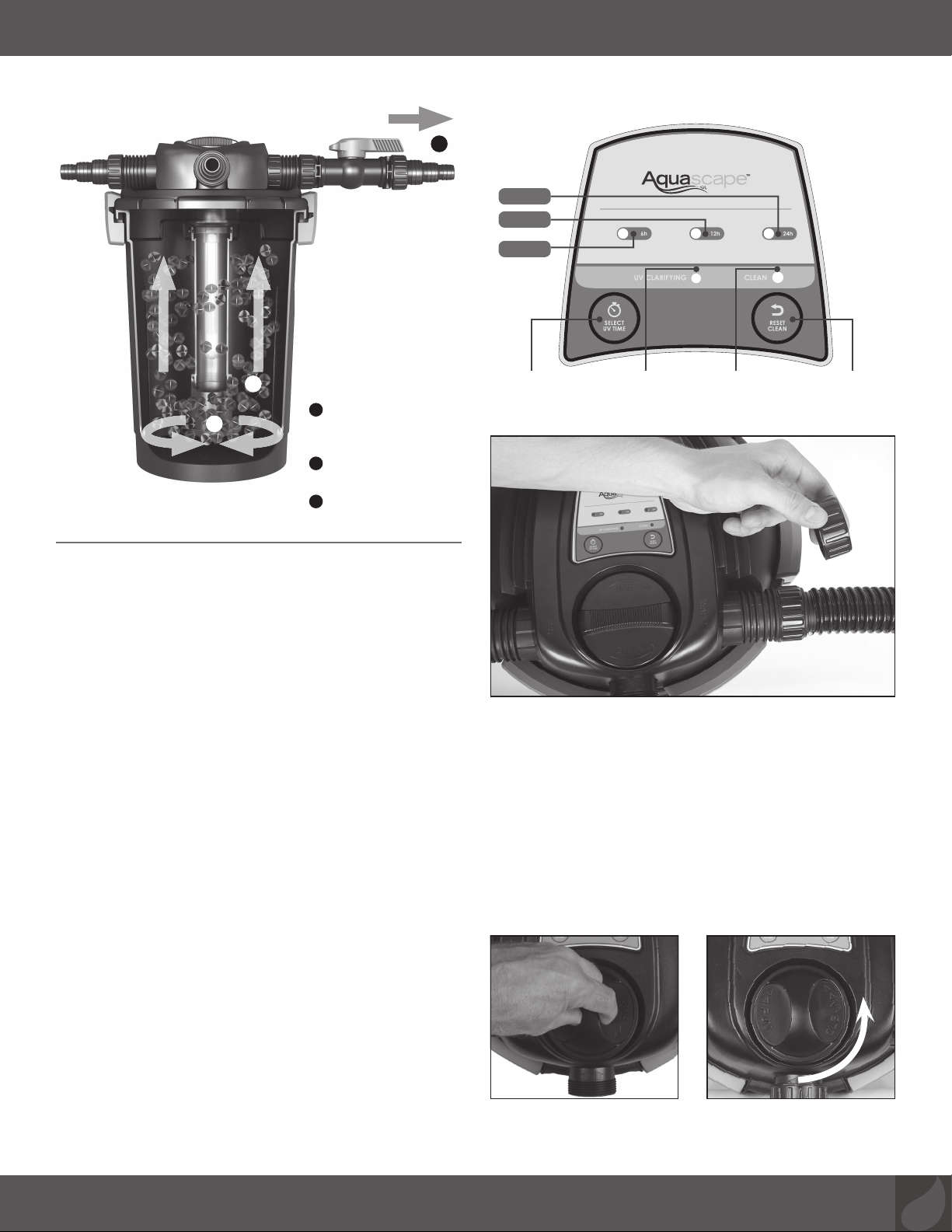

1Water inlet diffuser evenly
distributes debris
2UltraKlean BioBalls provides
efficient, non-clogging biological
and mechanical filtration
3Water passes around the UV light,
providing optimum contact time,
maximizing the efficiency of the UV
clarifier.
4Filtered water
1½”
CUT
HERE
REMOVE
Hosetail ready for 1½” tubing STAINLESS STEEL
HOSE CLAMP
1½”
Kink-Free
Tubing
Installation of stainless steel hose clamp
Water inlet diffuser evenly
3
Water passes around the UV light,
1
4
2
3
8☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
• Due to the wide variety of different tubing/pipe measuring
standards used throughout the pond industry, Aquascape
has included different-sized tapered fittings with your new
filter. We recommend selecting the fittings that best fit your
new or current tubing/pipe.
• Thread the selected multi-hose adapters hand-tight to
the in, out, and discharge shutoff valve with the included
flat rubber gaskets. Putting the fittings on the filter before
attaching the tubing/pipe will make it easier to make the
connection.
Note: We recommend using the largest diameter of tubing
possible in order to achieve maximum water flow (up to
1.5” inch diameter). If using a pipe diameter larger than
the smallest section of the multi-hose adapter, trim off the
smaller sections to avoid flow restriction (see below).
• Attach the tubing/pipe onto the fitting with a twisting
motion, pushing it into place.
Note: In some instances the tubing/pipe may be tight and
difficult to use with the fitting barbs. If this is the case, we
recommend heating the tubing with the use of a hair dryer
or simply dipping it for a few seconds in very hot water.
Lubrication can also be used; we recommend silicone
grease or olive oil.
• Attach a section of tubing to the multi-hose fitting
connected to the discharge shutoff valve. The
backwashed water can be discharged to an area of your
yard or garden. This nutrient-rich waste makes for an
excellent fertilizer.
• We recommend using a hose clamp (not included) to
secure tubing onto each fitting.
Note: If not using the discharge shutoff valve, attach
the included backwash cap to the wash port when not
performing a backwash.
• After completing the plumbing, plug the pump and the
UltraKlean Pond Filter into an outlet that is protected by
a ground fault circuit interrupter (GFCI). Once the pump
is running and water is circulating through the UltraKlean
Pond Filter, check for any fitting leaks where the external
connections are made. Since the filter is located outside
the pond, even a small leak must be corrected.
Operation and Maintenance
• The following diagrams illustrate the flow of water during
the “Filtration” setting and the flow of water during the
“Backwash” setting.
Water Flow
During Filtration
• We recommend using a hose clamp (not included) to
secure tubing onto the fitting.

3
1
2
9
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
Water Flow During Backwash
1Backwash swirl
diffuser churns the
UltraKlean BioBalls
2Debris is separated from
the UltraKlean BioBalls
3Debris discharges
during backwash
UltraKlean Pond Filter Biological Start-Up
• The biological filtration process is nature’s way of breaking
down fish waste and other pond debris into harmless by-
products. To be successful, allow anywhere from three to
six weeks for biological filtration to be fully functional. The
pump supplying water through the UltraKlean Pond Filter
should be operated 24 hours a day in order to maintain the
biological function of the filter.
Filter Cleaning
• The “CLEAN” indicator light will illuminate to remind you
to backwash the filter (approximately once every two
weeks). It takes only a few minutes to clean, and there is
no need to open your filter at this time. You can backwash
the filter more often if you notice the water flow from the
filter slow down. Press the “RESET” button once you have
completed the cleaning operation.
Backwashing the UltraKlean Pond Filter
• Unplug or shut off power to pump before beginning
backwash process.
• Fully open the discharge shutoff valve. If not using the
included discharge shutoff valve, remove the backwash
cap from the port on the lid of the filter.
• If using the included discharge shutoff valve, rotate the
backwash valve 90 degrees counter-clockwise to the
“CLEAN” or backwash position.
• If not using the discharge shutoff valve, attach the
appropriate multi-hose adapter to the backwash port.
Then, attach a section of tubing that can discharge the
water to your yard or garden before rotating the backwash
valve 90 degrees to the “CLEAN” position.
Note: The valve can be a little stiff to turn, if it hasn’t been moved
in a while. Do not use tools which might crack the handle.The valve
assembly can be removed from the lid for cleaning and lubrication
with silicone grease. We recommend doing this if the valve becomes
very stiff to turn.
“Clean” indicator
light reminds you
to backwash
“Select UV Time”
button to choose
operating time
“Reset Clean”
button after
backwash
UV light
“on” time
6 hr
12 hr
24 hr
“UV Clarifying light
indicates when the
UV Bulb is on/off

Backwashing the UltraKlean Pond Filter continued...
• Plug in or restore power to pump.
• Backwash approximately 1-3 minutes depending on how
dirty the filter is, or until the water begins to come out
clear.
• Unplug or turn off power to pump. If using the discharge
shutoff valve, fully close the valve. If using the backflush
cap, remove the multi-hose fitting and replace the
backflush cap
• Turn the valve 90 degrees clockwise to the “RUN”
position.
• Plug in or restore power to pump. Press the “RESET-
CLEAN” button once you have completed the cleaning
operation.
10 ☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
UV Operation
The UltraKlean Pond Filter with UV prevents/eliminates
single-celled algae commonly referred to as green water.
The UltraKlean Pond Filter includes a bulb saver timer
feature that extends the life of the UV bulb by allowing you
to set the operating time for the bulb based on the water
quality conditions in the pond.
• Setting the UV Timer – If the pond water has a planktonic
algae bloom (green water) then use the “Select UV Time”
button to set the UV timer to the 24-hour setting (always
on). In general the cleaner and clearer the pond water, the
less the UV light needs to be operated. Once the green
water is cleared you can reduce the UV timer to the 12-
hour setting (on for 12 hours/off for 12 hours) or the 6-hour
setting (on for 6 hours/off for 18 hours). If you notice the
green water beginning to reappear, you can increase the
UV light operation time until the green water clears.
• Bulb Life – For effective clarification, the UV bulb
should be replaced after 12 months of continuous use
when operated on the 24-hour setting. The bulb saver
feature can extend the life of the bulb up to 2 years
when operating on the 12-hour setting or 4 years when
operating on the 6-hour setting. Please note: even
though the UV bulb still emits light, it may have lost its
effectiveness at clarifying if the recommended operating
duration has been exceeded.
• Cleaning/Replacing the Quartz Sleeve – A dirty quartz
sleeve will reduce the effectiveness of the UV bulb. Debris
and mineral deposits can be cleaned using a mild acid
like white vinegar or a non-abrasive calcium, lime, or rust
remover with a soft bristled brush or sponge.

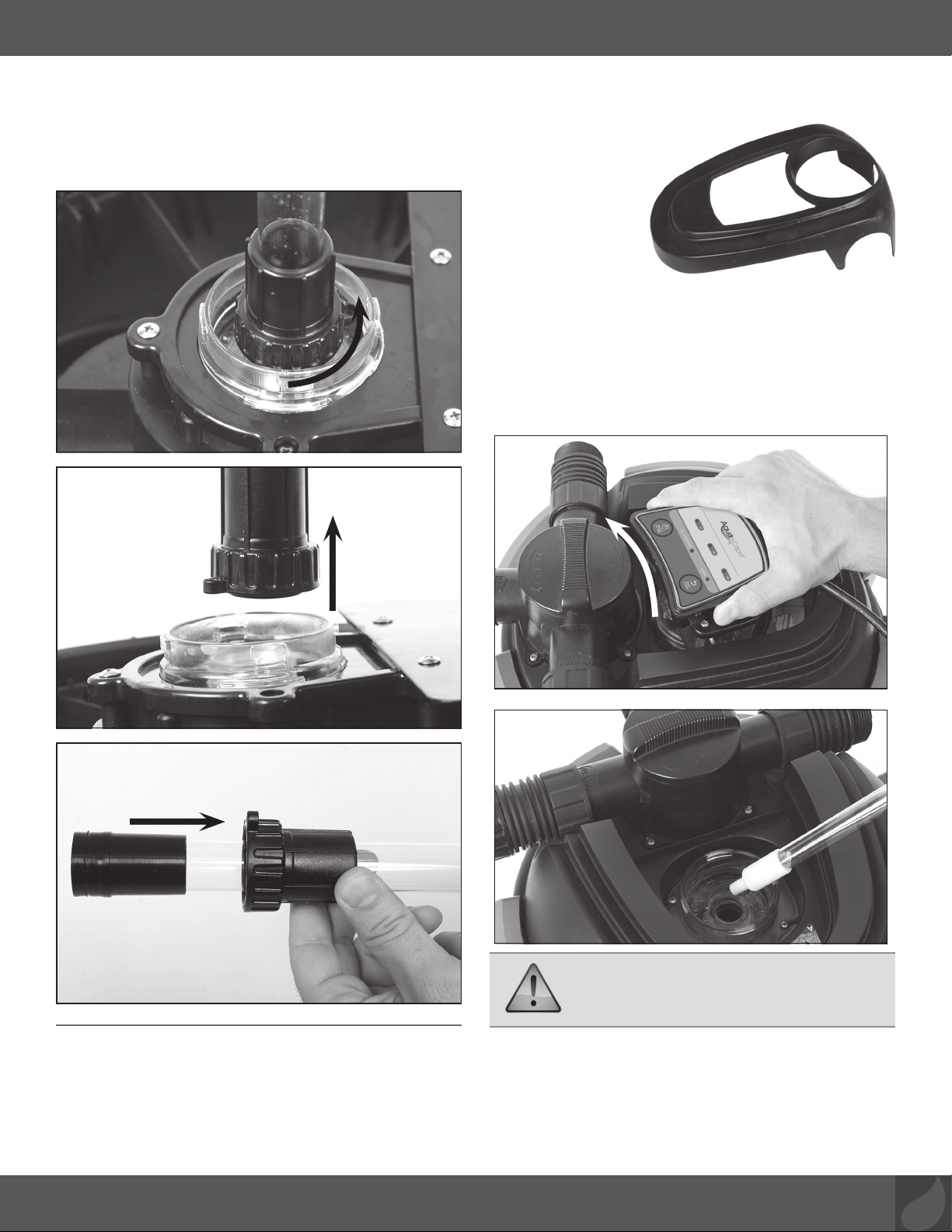

3. Remove the set screw holding the UV light tube in place
under the UV ballast. Please note: use a properly-sized
Phillips screw driver small enough to grip the set screw.
4. Twist counter-clockwise and lift to remove it and expose
the quartz sleeve.
2. Once the clips are released, use the lid and tank tabs to
gently lift the lid assembly free from the canister. The lid
may be difficult to lift due to the pressure inside the filter.
Loosening one of the plumbing fittings will reduce the
pressure, making it easier to remove the lid.
To access the
quartz sleeve:
1. Unplug both
the pump and
the UltraKlean
Pond Filter.

11
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
5. The quartz sleeve can now be accessed for cleaning
or replacement.
6. If replacing or removing the quartz sleeve, remove the
threaded plastic collar that locks the quartz sleeve over
the water-tight seal and remove the quartz sleeve.
NOTE: Do not touch UV bulb with bare hands,
as the oil from skin will reduce the bulb’s
performance and lifespan.
5. Carefully remove the Control Board with attached UV bulb
from the lid by pulling STRAIGHT UP, making sure not to
break the UV bulb.
Changing the UV Bulb
1. Always unplug both the pump and the
UltraKlean Pond
Filter before
releasing the lid
clips to service the
filter.
2. Remove the plastic
cover surrounding
control panel. The
panel should be
removed without tools.
3. Inspect area around the base of the control panel before
removing and drain any water that has collected around
this area from rainfall.
4. Rotate the electronic control board counter-clockwise
to disengage the control board from the lid.

12 ☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
6. Grip the base of the UV bulb and pull it free from the
four-pronged socket.
7. Replace UV bulb in reverse to the order it was removed.
• Use a clean lint free cloth to wipe off any dirt or smudges
on the bulb prior to reinstalling the control panel into the lid
of the filter. Also, make sure there is no standing water or
moisture inside the quartz sleeve or on the bulb prior
to reassembly.
• Winter Storage – If your pond is subject to freezing, the
UltraKlean Pond Filter should be shut down and stored
indoors or in a frost-free location. If you’ve buried the
canister body we recommend removing it from the ground
to avoid possible damage. When disconnecting the tubing
from the filter, the threaded fittings should be removed
without the need for any tools (be careful not to lose the
flat rubber washers).
Troubleshooting
Reduced Water Flow
• All pressure filters, even when new and clean, will reduce
water flow from pump by approximately 50%. It is
recommended to use the largest diameter tubing possible
(up to 1½ inch diameter) in order to achieve maximum
water flow rates.
• Make sure to trim off smaller sections of multi-hose
adapter to avoid flow restriction. See page 7 for more
information.
• The UltraKlean BioBalls could be clogged with debris and
require a backwash cleaning.
• Pump or plumbing may be clogged. It may be necessary
to clean the pump cage screen and impeller.
UV Light is Not On
• Cycle timer is not set to the 6-hour, 12-hour, or 24-hour
setting
• Power to the UltraKlean Pond Filter has been lost. Check
to be sure it’s plugged in and the ground fault breaker is
not activated.
• UV internal bulb connection may be loose. Disengage the
UltraKlean Pond Filter ballast, and check to make sure the
UV bulb’s four-pronged base is seated securely into the
receptacle inside the lid. See page 10 for more information.
Also, when replacing the quartz sleeve, be sure the collar
is snug as tightening the collar activates the safety switch
for the UV light.
• UV bulb could be beyond its life expectancy.
Replace UV light.

No. Item number/description No. Item number/description
1. 95030 14W High Output UV Bulb G2 1. 95031 28W High Output UV Bulb G2
2. 95078 Quartz Sleeve G2 (For 14W UV) 2. 95079 Quartz Sleeve G2 (For 28W UV)
3. 95056 Electronic Control Board & Ballast Kit G2 3. 95057 Electronic Control Board & Ballast Kit G2
4. 95081 Canister Body with Lid Clips 4. 95082 Canister Body with Lid Clips
5. 95055 Extra UltraKlean BioBalls (qty 250) 5. 95055 Extra UltraKlean BioBalls (qty 250)
6. 95080 Canister O-Ring Kit 6. 95080 Canister O-Ring Kit
7. 95083 Fitting Kit 7. 95083 Fitting Kit
8. 95102 Clip Kit (6 Clips and Axles) 8. 95102 Clip Kit (6 Clips and Axles)
9. 95103 Valve Kit 9. 95103 Valve Kit
10. 88040 Discharge Shutoff Kit 10 88040 Discharge Shutoff Kit
UltraKlean Pond Filter 2000 Replacement Parts UltraKlean Pond Filter 3500 Replacement Parts










13
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
Replacement Parts

14 ☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
3 Year Warranty
The UltraKlean Pond Filter is guaranteed for three years from date of purchase. Proof of purchase required. Warranty does not
cover damage resulting from negligent handling, misuse, or lack of reasonable maintenance or care.
Warranty is valid against defects due to material and the company’s workmanship only. The sole obligation shall be to replace
the defective unit with a suitable replacement unit. Units should be checked for proper operation prior to returning as defective.
Aquascape Inc. or its affiliates are not liable for loss or damage of any nature or kind, whether arising out of or from the use of the
product, defective or not defective. The warranty does not cover the UV lamp or quartz sleeve which may need to be replaced to
optimize performance. See our Maintenance section for instructions on care and installing replacement parts.
Warranty
For more information about our company or products, please visit our website at
aquascapeinc.com or call us at (US) [phone] (CAN) [phone]
©2017 Aquascape, Inc. • All Worldwide Rights Reserved
95084 • Rev 4/17

aquascapeinc.com
3
Y
E
A
R
W
A
R
R
A
N
T
Y
G
A
R
A
N
T
I
E
D
E
T
R
O
I
S
A
N
S
A
3
Débarrasse les bassins
des proliférations
d’algues d’eau verte
inesthétiques
Pour les modèles :
•2000 (article no 95053)
•3500 (article no 95054)
INSTRUCTIONS ET ENTRETIEN
ULTR AKLE AN
POND FILTER

16 ☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
Merci d’avoir choisi UltraKleanMD
Pond Filter. Chez Aquascape, notre
but est de fournir à nos clients des
produits de la plus haute qualité pour le
jardinage aquatique. Nous espérons que
vous aimerez votre achat et nous vous
remercions d’avoir choisi Aquascape.
Votre paradis. Notre passion.MD
Table des matières
Introduction ………………………………………… 16
Renseignements de sécurité ……………………… 17
Spécifications………………………………………… 18
Pose ………………………………………………… 19
Dépannage…………………………………………… 26
Pièces de rechange ………………………………… 27
Garantie ……………………………………………… 28
VISITEZ NOTRE
SITE WEB
EFFECTUEZ UNE
RECHERCHE
DANS NOTRE
CATALOGUE
Le système de filtration pour bassin Aquascape UltraKlean
avec rayons UV et un ajustement intégré permettant
d’économiser la lampe, assure aux propriétaires de bassin
de maintenir une eau cristalline, claire et en excellente
condition. Le design unique utilise des petites BioBalls
UltraKlean plutôt que des éponges, réduisant l’entretien
nécessaire et maximisant une filtration mécanique et
biologique. La fonction de nettoyage simple à utiliser
d’UltraKlean permet à l’appareil d’être rincé à contre-courant
en moins de cinq minutes sans avoir à ouvrir la boîte filtrante
ou à vous salir les mains.
Ce manuel d’instructions vous guidera à la fois pour la
pose de votre filtre et pour les procédures d’entretien
recommandées pour assurer une efficacité à long terme.
☎ Nous joindre
For more information about our company or products
please visit our website at aquascapeinc.com or
call (US) 1-866-877-6637 (CAN) 1-866-766-3426.
facebook.com/AquascapeInc
youtube.com/aquascape4
twitter.com/AquascapeInc
flipboard.com/profile/AquascapeInc
Rejoignez-nous sur :
ULTRAKLEAN
POND FILTER

17
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
Renseignements de sécurité
AVERTISSEMENT : Risque de chocs électriques -
Ce filtre n’a pas été approuvé pour l’utilisation
en piscine ou en zones marines.
AVERTISSEMENT : Pour s’assurer une protection
continue contre les risques de chocs électriques,
raccorder uniquement aux prises adéquates, au
disjoncteur de fuite de terre (GFCI), en suivant les
instructions suivantes :
(A) Ce filtre est insensible aux intempéries, mais n’est pas
conçu pour être immergé dans l’eau.
(B) Faites installer par un technicien qualifié une prise à la
terre adéquate qui convient pour l’utilisation extérieure
et protégée de la neige et de la pluie. Si possible, situer
la prise ou le filtre de façon à ce que le câble du filtre de
6 m (20 pi) atteigne la prise sans l’aide d’une rallonge.
(C) Avant utilisation, vérifier que le câble n’est
pas endommagé.
(D) Si une rallonge est nécessaire, assurez-vous qu’elle
convienne à un usage extérieur.
(E) Pour assurer la conformité au code, la sécurité des
utilisateurs et la validité de la garantie, tout câblage de
pompes doit être réalisé par un électricien qualifié.
(F) Pour réduire les risques de chocs électriques, tout
câblage et raccord de jonction devrait être réalisé
conformément à la réglementation locale en vigueur.
Les exigences peuvent varier en fonction de l’usage
et de l’emplacement.
(G) Le câble d’alimentation
devrait être protégé en
permanence afin d’éviter
les perforations, les
entailles, les frottements
et les abrasions.
(H) Ne jamais tenir un
cordon d’alimentation
avec des mains
mouillées.
(I) Débrancher le filtre de
la prise quand il n’est
pas utilisé.
(J) Ne pas enlever le cordon
et le serre-câble. Ne pas
raccorder la canalisation
au filtre.
(K) Ne pas utiliser le câble d’alimentation pour soulever le filtre.
AVERTISSEMENT: Sécurité UV - Un petit hublot de contrôle
sur le ballast situé à proximité du câble d’alimentation
devient rouge lorsque l’équipement est complètement
assemblé et que la lumière UV est allumée.
AVERTISSEMENT: Ne jamais outrepasser les interrupteurs
internes de sécurité UV lorsque l’équipement est
désassemblé, car cela pourrait activer la lumière
UV. Une exposition directe à la lumière UV peut
entraîner des dommages aux yeux et à la peau.
No. Description
1. (1) Filtre UltraKlean
2. (3) Raccords Réducteurs (Aquascape)
3. (3) Raccords Réducteurs (Norme
Nord-américaine)
4 (6) Joints Statiques Plats en Caoutchouc
5. (1) Bouchon de Lavage à Contre-courant
6. (1) Robinet d’arrêt de Refoulement
7. (1) Raccord fileté
Contenu








Spécifications clarificate ur UltraKlean
Numéro de modèle 2000 3500
Numéro d’article No95053 No 95054
Taille de bassin moyenne recommandée 7 571 litres 13 249 litres
Débit maximal 10 221 l/h 19 684 l/h
Débit minimal 3 785 l/h 7 570 l/h
Pompes recommandées
Pompes AquaForceMD : 1000, 1800 et 2700;
Pompes AquaJetMD : 1300 et 2000;
Pompes Ultra : 1100, 1500 et 2000
Pompes AquaForceMD :
2700, 3600 et 5200;
Pompes Ultra : 2000
Puissance de la lampe UV 14 W 28 W
Longueur câble d’alimentation 6,1 m 6,1 m
Diamètre du tuyau d’évacuation 2,5 cm, 3,2 cm, 3,8 cm 2,5 cm, 3,2 cm, 3,8 cm
18 ☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
• Tension d’entrée: 120 V CA
• Fréquence d’entrée: 60 Hz
• Pour utilisation extérieure ou intérieure.
• Protection thermique
• Ce appareil a été évalué pour une
utilisation avec de l’eau seulement.
Spécifications électriques
1. LIRE ET SUIVRE TOUTES
LES INSTRUCTIONS.
2. AVERTISSEMENT - Pour réduire le risque de blessures,
ne pas autoriser les enfants à utiliser cet accessoire,
à moins qu’ils ne soient en permanence sous étroite
supervision.
3. DANGER - Risque de blessure.
- Remplacer immédiatement tout cordon endommagé
- Ne pas enterrer le cordon.
- Brancher uniquement dans une prise de courant mise à
la terre.
4. CONSERVER CES
INSTRUCTIONS.
CONSIGNES DE SÉCURITÉ IMPORTANTES
Lors de la pose et de l’utilisation de cet accessoire électrique, des précautions de sécurité
de base doivent toujours être prises, notamment les suivantes :

19
aquascapeinc.com |
☎
CAN [phone] |
☎
US [phone]
POUR DAVANTAGE DE
RENSEIGNEMENTS
Pose
• Utiliser uniquement lorsque totalement assemblé,
et assurez-vous que toutes les pinces fixant la partie
supérieure à la partie inférieure sont bien fixées dans la
position fermée avant de mettre la pompe en marche.
Pour de plus amples informations, voir page 6.
• La lampe UV et la douille en quartz sont fragiles. Avant
installation, veuillez vérifier qu’il n’y a aucun signe de
dommages.
NOTE : Ne pas toucher la lampe UV à mains nues, la
graisse de la peau pouvant réduire la performance
de la lampe. Avant fonctionnement, vérifier qu’il
n’y a pas d’humidité à l’intérieur de la douille en quartz ou
sur la lampe. Inspectez la zone autour du ballast pour vérifier
qu’il n’y a pas d’eau dessus et éliminez-la au besoin.
• Le filtreur est insensible aux intempéries, mais n’est
pas conçu pour être plongé dans le bassin. Immerger
le filtreur pour bassin pourrait causer un choc
électrique et rendra nulle la garantie du produit.
avec la pompe pour
bassin AquaForceMD
avec la pompe AquaJet avec la pompe Ultra
• Si vous vivez dans un climat sujet au gel, enlever
l’équipement pendant l’hiver, le drainer et
l’entreposer dans un lieu à l’écart du gel.
• Ne pas filtrer de produits ou de matériaux dangereux, tels
que le pétrole, l’eau salée ou les solvants organiques.
• Ne pas bloquer ou restreindre le débit de l’équipement.
Pour de plus amples informations, voir page 7.
• Avant l’envoi, les produits retournés doivent
obligatoirement être nettoyés, désinfectés ou
décontaminés. Afin de veiller à ce que les employés ne
soient pas exposés à des risques pour la santé lors du
maniement dudit matériel. Toutes lois et tous règlements
en vigueur doivent s’appliquer.
IMPORTANT ! La compagnie Aquascape
n’est pas responsable en cas de pertes,
de blessures ou de mort résultant d’un
manque de respect de ces mesures de sécurité, d’un
mésusage ou d’une mauvaise utilisation d’un des
filtres, des pompes ou de tout autre équipement.
Installation standard
IMPORTANT! Il est recommandé de NE PAS placer
la pompe dans la partie la plus profonde de la pièce
d’eau. Ceci protègera les poissons en empêchant la
pièce d’eau de se vider complètement en cas de fuite dans la
plomberie ou dans le filtre. Au besoin, des briques ou des pierres
peuvent être utilisées pour relever la pompe et éviter de la faire
reposer sur le fond de la pièce d’eau.

Eau filtrée
Pompe
Eau dérivée
Régulateur de
débit à 2 voies
20 ☎
US [phone] |
☎
CAN [phone] |aquascapeinc.com
• Avant d’abaisser le couvercle et l’assemblage UV dans
la boîte, inspecter le joint torique dans le haut de la boîte
pour être sûr que le joint torique et la zone en retrait dans
laquelle il se trouve est propre et libre de tout débris qui
pourrait provoquer une fuite de l’eau. Une huile à base
de silicone peut également être utilisée si nécessaire pour
aider à graisser le joint torique.
IMPORTANT ! Assurez-vous que le joint torique
soit bien en place dans la rainure sur la totalité du
rebord de la boîte avant d’attacher le couvercle.
Pompes recommandées
• L’Aquascape et la
pompe pour étang
AquaForceMD sont
idéales pour être
utilisées avec le
filtreur pour étang
UltraKlean. La cagé
de pré-filtration de la
pompe pour étang
AquaForceMD permet
à la pompe d’être submergée directement en empêchant
les plus gros déchets d’atteindre la pompe de filtration
pour étang UltraKlean. D’autres modèles et marques de
pompes pour étangs peuvent également être utilisées.
Pompe de bassin AquaForce MD
• Si vous pompez la totalité de l’eau d’un bassin en la
faisant passer à travers un filtre de bassin sous pression,
vous constaterez une réduction du débit, spécialement
si de grosses pompes à eau sont utilisées. Le régulateur
de débit à 2 voies en option (vendu séparément) vous
permettra d’obtenir les résultats suivants :
1. Optimisation de la durée de contact entre le filtre et
l’eau coulant à travers le filtre.
2. Réduction au minimum des pertes de débit dues
à l’utilisation de grosses pompes.
• Le filtreur pour étangs UltraKlean est conçu pour être
placé à l’extérieur de l’étang. Nous recommandons un
endroit où il est facile de le dissimuler et facile d’y accéder
pour l’entretien. Le filtreur pour étangs UltraKlean peut être
placé au niveau du sol ou enfoui jusqu’à 2,5 cm du niveau
des pinces afin de mieux le dissimuler.
• Remplir la boîte jusqu`à
environ la moitié avec de
l’eau. L’eau permettra aux
BioBalls UltraKlean de se
déplacer autour du tube
UV, facilitant l’installation
du couvercle du filtreur
pour étangs UltraKlean.
• Le filtreur pour étangs
UltraKlean inclut des
BioBalls. Des BioBalls
UltraKlean peuvent être
ajoutées pour améliorer la
filtration biologique 1 boîte
pour UltraKlean 2000 et
2 boîtes pour UltraKlean
3500, référence n° 95055
