ADF Web HD67038-2-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 1 of 42
User Manual
Revision 2 003
English
RS232 / Ethernet - Converter
( Order Code: HD67038-2-A1 HD67038-2-B2 )
RS485/ Ethernet - Converter
( Order Code: HD67038-5-A1 HD67038-5-B2 )
RS422/ Ethernet - Converter
( Order Code: HD67038-4-A1 )
RS485 / RS232 / Ethernet - Converter
( Order Code: HD67038-25-A1 HD67038-25-B2 )
RS422 / RS232 / Ethernet - Converter
( Order Code: HD67038-24-A1 )
For Website information:
www adfweb com?Product=HD67038
For Price information:
www adfweb com?Price=HD67038
Benefits and Main Features:
Triple electrical isolation
Protocol independent, suitable for supervision software
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others products, see also the following links:
RS232 / RS485 - Converter
www adfweb com?Product=HD67118
USB / RS485 - Converter
www adfweb com?Product=HD67119
RS485 – Isolator – Repeater – Extender bus line
www adfweb com?Product=HD67149-A1
EtherNet/IP / Serial - Converter
www adfweb com?Product=HD67590
Do you have your customer protocol? Then go to:
www adfweb com?Product=HD67003
Do you need to choose a device? Do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 2 of 42
IN EX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 7
CHARACTERISTICS 15
CONFIGURATION 15
POWER SUPPLY 16
FUNCTION MODES 17
LEDS 18
ETHERNET 19
RS422 19
RS485 20
RS232 20
USE OF COMPOSITOR SW67038 21
NEW CONFIGURATION / OPEN CONFIGURATION 22
SOFTWARE OPTIONS 23
DEVICE SETTING 24
O P M ODALITY R EMOTE COM P ORT 25
O P M ODALITY T UNNEL P OINT TO P OINT 27
O P M ODALITY T UNNEL P OINT TO M ULTIPOINT (B ROADCAST ) 29
O P M ODALITY T UNNEL P OINT TO M ULTIPOINT (K EEP A LIVE ) 31
UPDATE VIA SERIAL 33
UPDATE VIA UDP 34
CHANGE BAUD AND PARITY ON THE FLY 36
ACTIVE SERIAL DRIVER 37
MECHANICAL DIMENSIONS 39
ORDERING INFORMATIONS 40
DISCLAIMER 41
OTHER REGULATIONS AND STANDARDS 41
WARRANTIES AND TECHNICAL SUPPORT 42
RETURN POLICY 42
UP ATE OCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision
ate Author
Chapter
escription
2 000 20/02/2014
Fl All New hardware version
2 001 28/07/2014
Fl All Revision
2 002 13/05/2015
Fl All Revision
2 003 12/05/2017
Ff All Revision
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRA EMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 3 of 42
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTEN E U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIE P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESI UAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 4 of 42

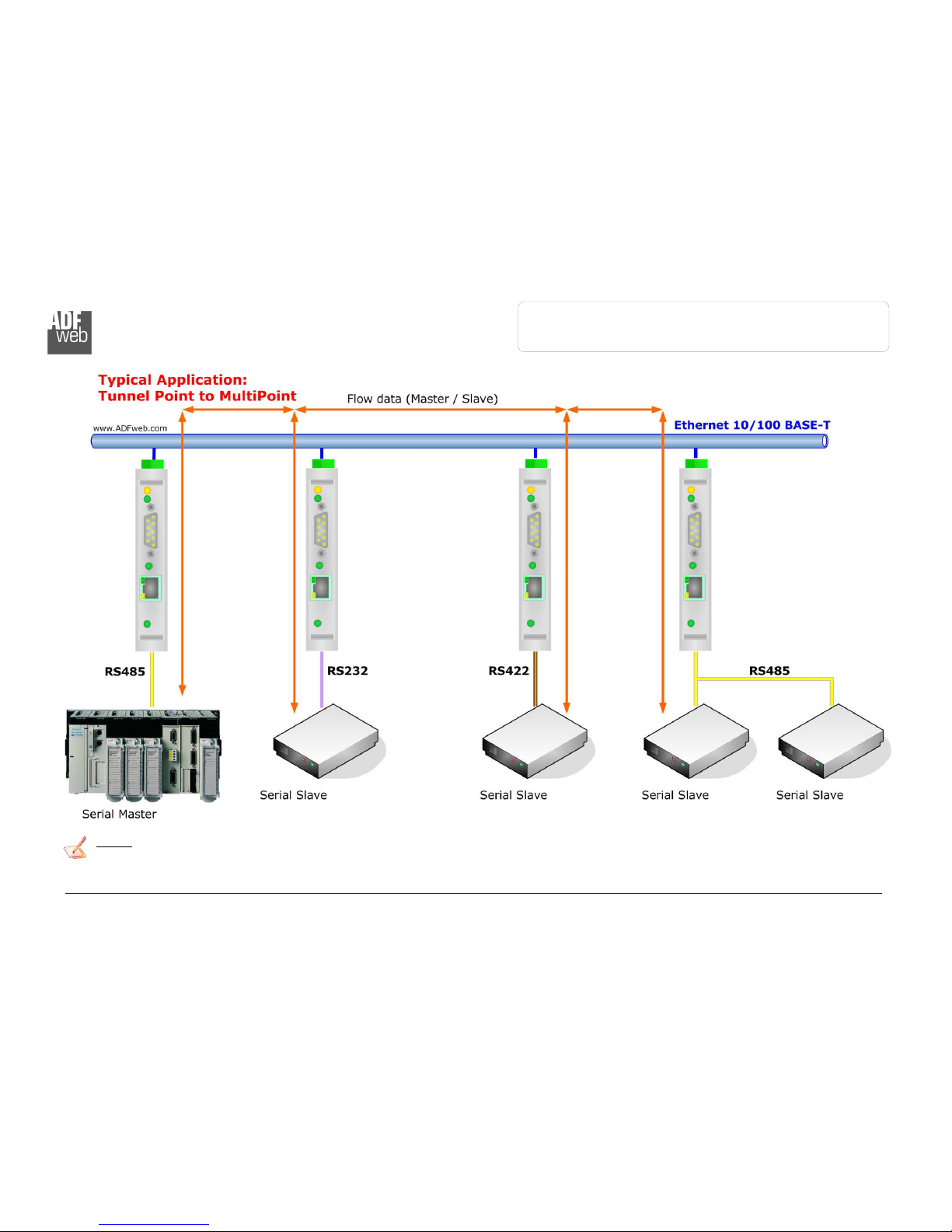

EXAMPLES OF CONNECTION:
Note:
This solution allows also an internet connection of the device; so the PC and one or more HD67038-xx-A1 / HD67038-xx-B2 can be
connected together through Internet

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 5 of 42
Note:
This solution allows also an internet connection of the device; so the PC and one or more HD67038-xx-A1 / HD67038-xx-B2 can be
connected together through Internet

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 6 of 42
Note:
This solution allows also an internet connection of the device; so the PC and one or more HD67038-xx-A1 / HD67038-xx-B2 can be
connected together through Internet

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 7 of 42

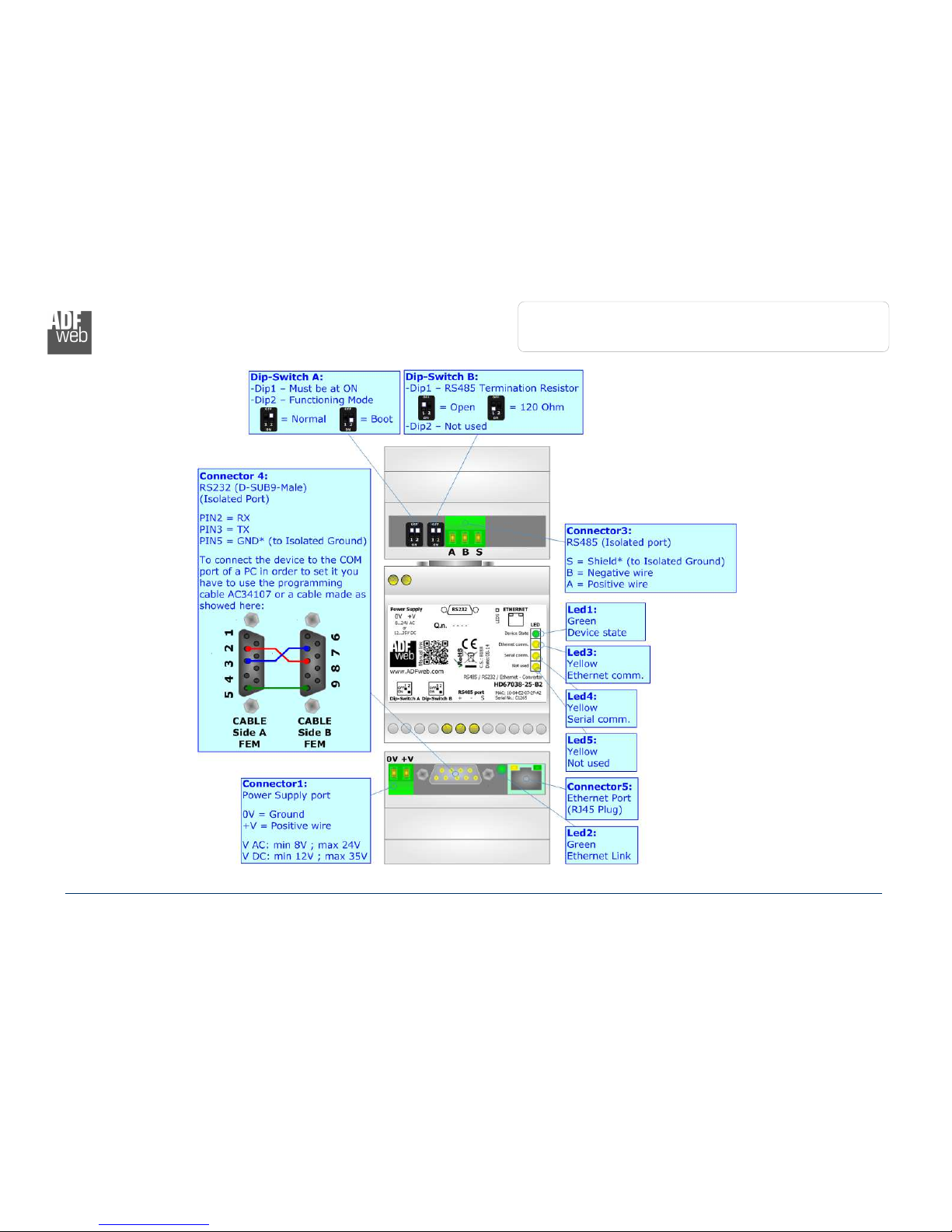

CONNECTION SCHEME:
Figure 1
a
: Connection scheme for HD6703
-
2
-
A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 8 of 42
Figure
1b
:
Connection scheme for HD6703
-
5
-
A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 9 of 42
Figure
1c
:
Connection s
cheme for HD6703
-
4
-
A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 10 of 42
Figure
1d
:
Connection scheme for HD6703
-
25
-
A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 11 of 42
Figure
1e
:
Connection scheme for HD6703
-
24
-
A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 12 of 42

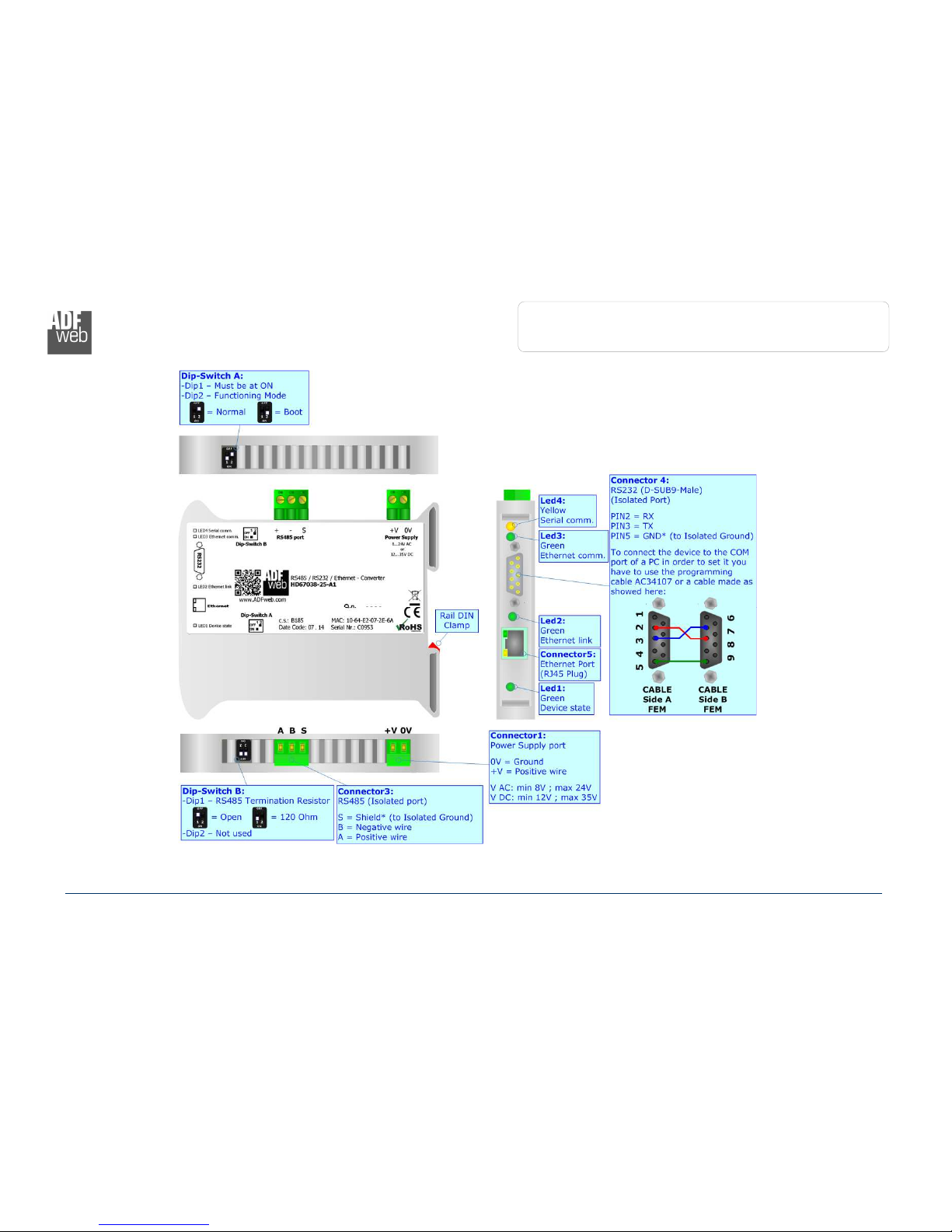

Figure
1f
:
Connection scheme for HD6703
-
2
-
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 13 of 42
Figure
1g
:
Connection scheme for HD6703
-
5
-
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 14 of 42
Figure
1h
:
Connection scheme for HD6703
-
2
5
-
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 15 of 42
CHARACTERISTICS:
The devices are Ethernet / Serial converter
They allows the following characteristics:
Triple isolation between RS232/RS485/RS422 - Power Supply, RS232/RS485/R422- Ethernet, Power Supply - Ethernet
Two-directional information between RS232/RS485/RS422 bus and Ethernet bus;
Mountable on 35mm Rail DIN;
Auto-sensing Ethernet 10/100;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need Compositor SW67038 software on your PC in order to perform the following:
Define the parameter of Ethernet line;
Define the parameter of Serial line;
Update the device
These devices can be used for doing the following configurations of connection:
Remote COM Port;
Tunnel Point to Point ( Ethernet bridge for a serial line);
Tunnel Point to Multipoint

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 16 of 42

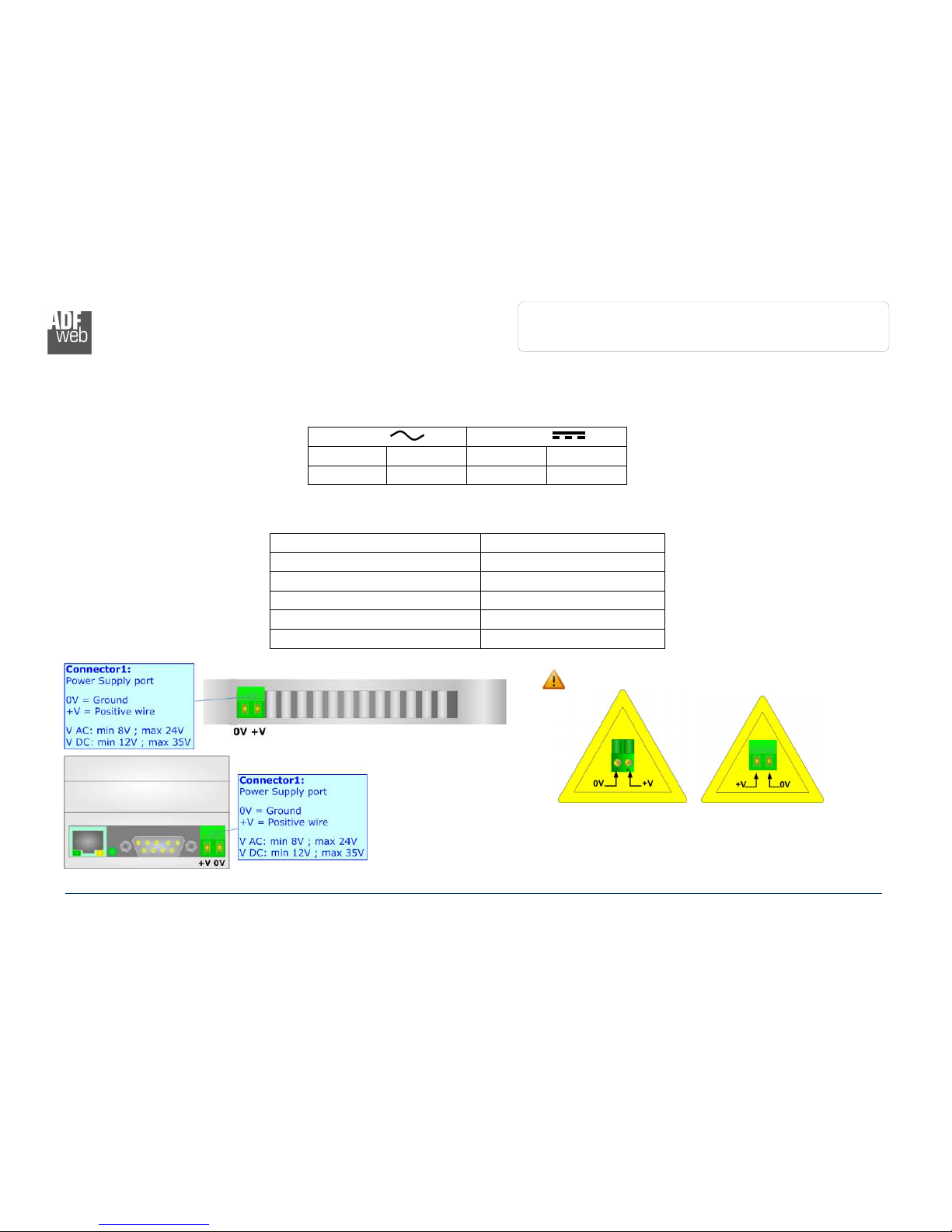

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
V C
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
evice Consumption [W/VA]
HD67038-2-A1 -B2 3 5
HD67038-5-A1 -B2 3 5
HD67038-4-A1 3 5
HD67038-25-A1 -B2 3 5
HD67038-24-A1 3 5
Caution: Not reverse the polarity power
HD67038-2-B2
HD67038-5-B2
HD67038-25-B2
HD67038-2-A1
HD67038-5-A1
HD67038-4-A1
HD67038-25-A1
HD67038-24-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 17 of 42
FUNCTION MO ES:
The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position for working even if the Ethernet cable isn’t inserted

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 18 of 42
LE S:
The device has got four (five for -B2 series) LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LE Normal Mode Boot Mode
1: Device state Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet link ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: Ethernet comm Blinks when are received Ethernet
data
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Serial comm Blinks when receive a Serial data Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (present only
on -B2 series) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 19 of 42
ETHERNET:
The Ethernet connection must be made using Connector5 of with at least a Category 5E cable The maximum length of the cable should not
exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the device to an
Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable
RS422:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure
The maximum length of the cable should be 1200m (4000 feet)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
RS485 / RS232 / Ethernet
Document code: MN67038_ENG Revision 2 003 Page 20 of 42

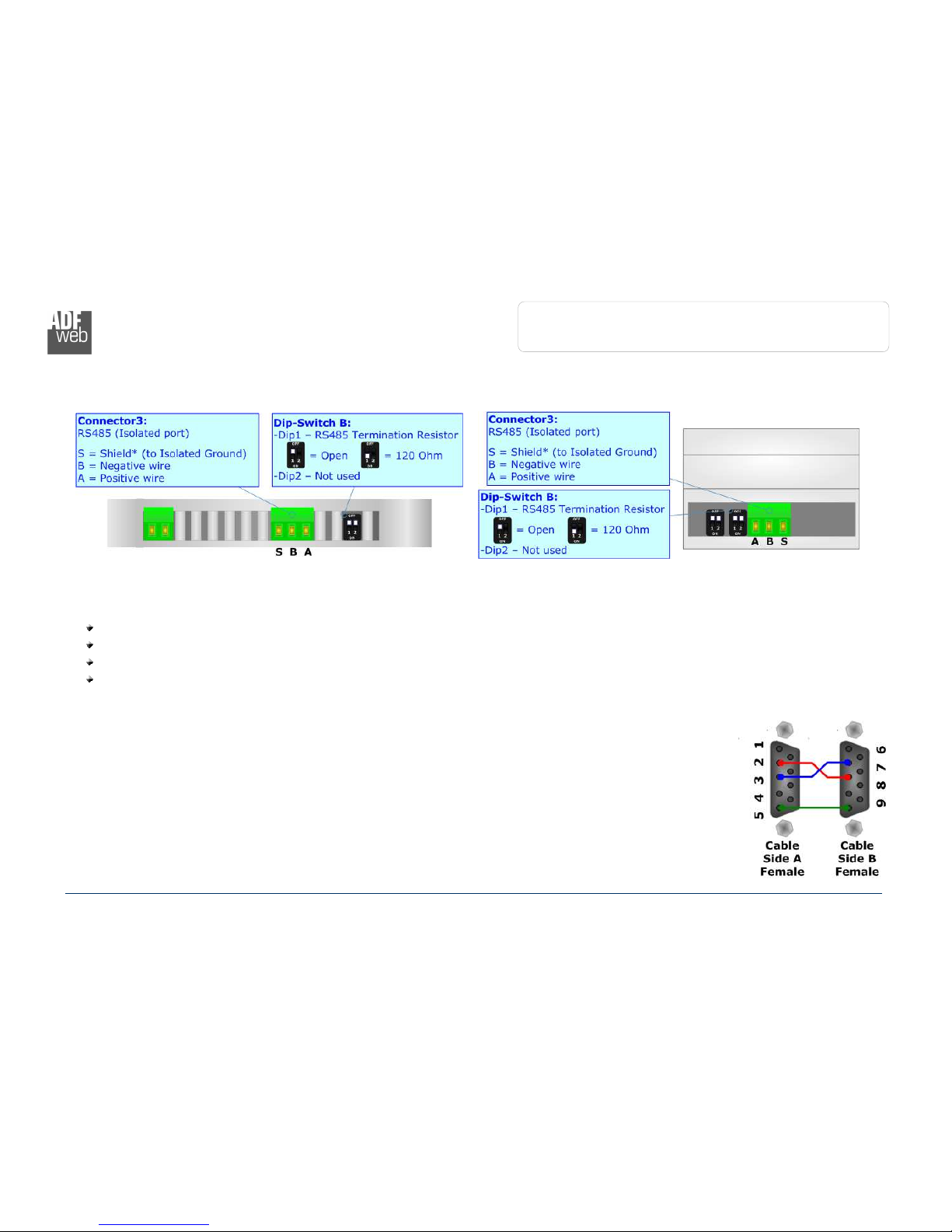

RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a
Null Modem cable (a serial cable where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters
The device is provided with a D-sub connector type DE-9 Male (also called DB-9) The cable must use a DE-9
Female connector
