ADF Web HD67056-B2-20 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 1 of 39
User Manual
Revision 1. 00
English
M-Bus Master/ BACnet Slave - Converter
(Order Codes: HD67056-B - 0, HD67056-B -40,
HD67056-B -80, HD67056-B -160,
HD67056-B - 50)
(Order Codes: HD67056-MSTP- 0, HD67056-MSTP-40,
HD67056- MSTP-80, HD67056-MSTP-160,
HD67056- MSTP- 50)
For Website information:
www.adfweb.com?Product=HD67056-B
For Price information:
www.adfweb.com?Price=HD67056-B - 0
www.adfweb.com?Price=HD67056-B -40
www.adfweb.com?Price=HD67056-B -80
www.adfweb.com?Price=HD67056-B -160
www.adfweb.com?Price=HD67056-B - 50
Benefits and Main Features:
Very easy to configure
Up to 50 standard M-Bus devices connected to the Converter
Power Supply 15… 1V AC or 18…35V DC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others M-Bus products see also the following link:
Converter - M-Bus /
www.adfweb.com?Product=HD670 1 (RS232)
www.adfweb.com?Product=HD670 (RS485)
Anal zer / Scanner /Sniffer M-Bus
www.adfweb.com?Product=HD67031
M-Bus – Repeater - Isolator
www.adfweb.com?Product=HD6703 M
Converter - M-Bus / Modbus Slave
www.adfweb.com?Product=HD670 9M- 3 (on RS232)
www.adfweb.com?Product=HD670 9M-485 (on RS485)
Gatewa M-Bus / Modbus TCP
www.adfweb.com?Product=HD67044
Gatewa M-Bus / CANopen
www.adfweb.com?Product=HD67051-B
Gatewa M-Bus / PROFIBUS
www.adfweb.com?Product=HD67053M
Gatewa M-Bus Concentrator
www.adfweb.com?Product=HD67054M
Gatewa M-Bus Slave / Modbus RTU master
www.adfweb.com?Product=HD67059M- 3
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page of 39
INDEX:
Page
INDEX
UPDATED DOCUMENTATION
REVISION LIST
WARNING
TRADEMARKS
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 10
BACNET/IP (HD67056-B -XXX SERIE) 11
BACNET MS/TP (HD67056-MSTP-XXX SERIE) 11
M-BUS 1
USE OF COMPOSITOR SW67056 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
M-BUS 19
BACNET EDE FILE 30
UPDATE DEVICE 3
SCAN & DECODE FUNCTION 34
MECHANICAL DIMENSIONS 35
ORDERING INFORMATIONS 36
ACCESSORIES 37
DISCLAIMER 38
OTHER REGULATIONS AND STANDARDS 38
WARRANTIES AND TECHNICAL SUPPORT 39
RETURN POLICY 39
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “Document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.110 14/10/ 013 Fl All Software changed (v1.10 )
1.1 0 7/0 / 014 Fl All Software changed (v1.104)
1.130 7/05/ 014 Fl All Software changed (v1. 00)
1. 00 15/06/ 017 Ff All New hardware version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 3 of 39
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 4 of 39
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 5 of 39
CONNECTION SCHEME:

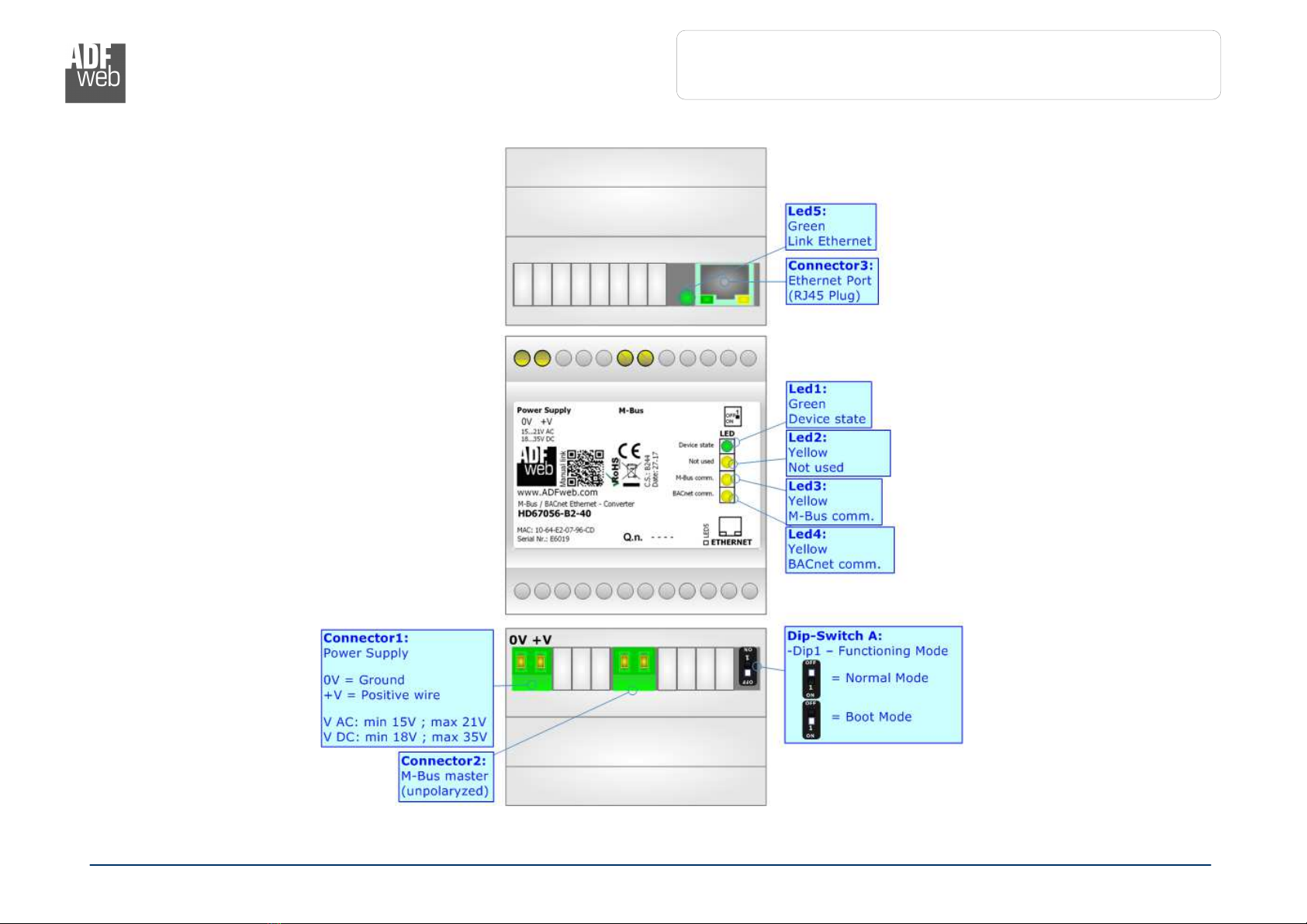

Figure 1a: Connection scheme for HD67056 B2 xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 6 of 39
Figure 1b: Connection scheme for HD67056 MSTP xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 7 of 39
CHARACTERISTICS:
The HD67056 is a M-Bus Master / BACnet Converter.
It allows the following characteristics:
Electrical isolation between Ethernet and M-Bus (for HD67056-B -xxx serie);
Electrical isolation between RS485 and M-Bus (for HD67056-MSTP-xxx serie);
Mountable on 35mm Rail DIN;
Power Supply 15… 1V AC or 18…35V DC;
Temperature range -40°C to 85°C.
At the Converter can be connected up to 50 standard M-Bus devices. This number depends of the code expressed by the xxx number:
HD67056-B - 0 and HD67056-MSTP- 0 support up to 0 M-Bus devices;
HD67056-B -40 and HD67056-MSTP-40 support up to 40 M-Bus devices;
HD67056-B -80 and HD67056-MSTP-80 support up to 80 M-Bus devices;
HD67056-B -160 and HD67056-MSTP-160 support up to 160 M-Bus devices;
HD67056-B - 50 and HD67056-MSTP- 50 support up to 50 M-Bus devices.
In the case of HD67056-xxx-160 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet
back-plate. To avoid obstructions to the airflow around the unit it is recommended to not cover the paths of air.
In the case of HD67056-xxx- 50 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet
back-plate. These units have a fan in the top of the enclosure. To avoid obstructions to the airflow around the unit it is recommended
to not cover the paths of air. Take care to not cover the fan. It is recommended to put the device into a ventilated cabinet.
CONFIGURATION:
You need Compositor SW67056 software on your PC in order to perform the following:
Define the parameter of BACnet line;
Define the parameter of M-Bus line;
Define which M-Bus variables are readable on BACnet ;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 8 of 39
POWER SUPPLY:
The devices can be powered at 15… 1V AC and 18…35V DC. The consumption depends to the code of the device. For more details see the
two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
15V 21V 18V 35V
Consumption at 4V DC:
Device No Load [W/VA] Full Load [W/VA]*
HD67056-B - 0, HD67056-MSTP- 0
3.5
4
HD67056-B -40, HD67056-MSTP-40 5
HD67056-B -80, HD67056-MSTP-80 8
HD67056-B -160, HD67056-MSTP-160 14
HD67056-B - 50, HD67056-MSTP- 50 30
* This value is with all the Slave M-Bus devices of the code ( 0, 40, 80, 160, 50) connected to the line
HD67056-B -xxx
HD67056-MSTP-xxx
Caution: Not reverse the polarit power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 9 of 39
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 10 of 39
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickl : Boot state
Blinks ver slowl (~0.5Hz): update in progress
: Not used OFF Blinks quickl : Boot state
Blinks ver slowl (~0.5Hz): update in progress
3: M-Bus comm. Blinks quickly when a reply to a M-
Bus request arrives
Blinks quickl : Boot state
Blinks ver slowl (~0.5Hz): update in progress
4: BACnet comm. Changes state when receive a
correct BACnet request
Blinks quickl : Boot state
Blinks ver slowl (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 11 of 39
BACNET/IP (HD67056-B2-XXX SERIE):
BACnet/IP connection must be made using Connector3 of HD67056-B with at least a Category 5E cable.
The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms
relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended
the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable.
BACNET MS/TP (HD67056-MSTP-XXX SERIE):
BACnet MS/TP connection must be made using Connector6 of HD67056-MSTP.
To terminate the RS485 line with a 1 0Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be
1 00m (4000 feet).

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 1 of 39
M-BUS:
The M-Bus is a unpolarized bus.
A two wire standard telephone cable (JYStY N* *0.8 mm) is used as the transmission medium for the M-Bus. The maximum distance
between a slave and the repeater is 350m; this length corresponds to a cable resistance of up 9Ω. This distance applies for the standard
configuration having Baud rates between 300 and 9600 Baud, and a maximum of 50 slaves. The maximum distance can be increased by
limiting the Baud rate and using fewer slaves, but the bus voltage in the space state must at no point in a segment fall below 1 V, because
of the remote powering of the slaves. In the standard configuration the total cable length should not exceed 1000m, in order to meet the
requirement of a maximum cable capacitance of 180nF. (Taken from M Bus specifics)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 13 of 39
USE OF COMPOSITOR SW67056:
To configure the Converter, use the available software that runs with Windows called SW67056. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MSWindows (XP, Vista, Seven, 8, 10; 3 /64bit).
When launching the SW67056, the window below appears (Fig. ).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67056

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 14 of 39
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “M-Bus Master / BACnet Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 15 of 39
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67056 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 16 of 39
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 17 of 39
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, BACnet and M-Bus.
By Pressing the “Set Communication” button from the main window for SW67056 (Fig. ) the window
“Set Communication” appears (Fig. 3).
The window is divided in three sections, one for selecting the type of BACnet (in relation to the device
used), one for the BACnet parameters and the other for the M-Bus parameters.
In the section “BACnet Type” is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
If selected “BACnet/IP” the means of the fields for “BACnet” are:
In the fields “IP ADDRESS” the IP address of BACnet/IP side of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of BACnet/IP side of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The default port used for
BACnet communication is 47808, but is possible to insert any value (except 10000 and 10001);
In the field "BACnet Device Name" the name of BACnet/IP side of the converter is defined;
In the field “Device Identifier” the ID of BACnet/IP side of the converter is defined;
If the field “BACnet description up to 32 chars” is checked, the description for the BACnet
Objects can be up to 3 chars long.
The means of the fields for M-Bus are:
In the field “Baudrate” the baudrate of the M-Bus line is defined;
In the field “Parit ” the parity of the M-Bus line is defined;
If the field “C clic Dela ” the delay (expressed in seconds) between two M-Bus scanning is
defined;
In the field “Node State value when slave device is not present” it is possible to insert the
value to assign to the “Node State” when the Gateway doesn’t find the interrogated M-Bus slave.
Figure 3a: “Set
Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 18 of 39
If selected “BACnet MS/TP”, the means of the fields for “BACnet” are:
In the field “Baudrate” the data rate of the BACnet line is defined;
In the field “Parit ” the parity of the line is defined;
In the field “BACnet Device Name” the name to give to the BACnet node is defined;
In the field “MAC Address” the MAC of BACnet node (from 0 to 54) is defined;
The field “Max Master” specifies the highest allowable address for master nodes. The value shall
be less than or equal to 1 7;
The field “Max Info Frames” specifies the maximum number of information frames the node may
send before it must pass the token;
In the field “Device Instance” the of the BACnet MS/TP side of the converter is defined;
In the field “Network” the BACnet MS/TP network number is defined;
If the field “BACnet description up to 32 chars” is checked, the description for the BACnet
Objects can be up to 3 chars long.
The means of the fields for the “Ethernet Update” section are:
In the fields “IP ADDRESS” the IP address of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net.
These information are used for programming the Converter.
Figure 3b: “Set
Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 19 of 39
M-BUS
By Pressing the “M-Bus” button from the main window for SW67056 (Fig. ) the window “M-Bus Network” appears (Fig. 4).
In the section “Nodes” it is possible to create the nodes of M-Bus line:
In the field “Description” it is possible to write a short description of the node.
S ECTION N ODES (M-B US NODES ):
In order to create a new node it is necessary to
select which address use, selecting “Primar ID”
or “Secondar ID”, to makes the requests and
then insert the “Primary Address” (from 1 to 50)
or the Secondary Address” (from 0 to 99999999)
of M-Bus device.
If the field “Node State” is checked, the Status
byte of the M-Bus node is mapped into a BACnet
Object.
If the field “Identification Number” is checked,
the Identification Number of the M-Bus node is
mapped into a BACnet Object;
In the field “Swap Identification Num.” it is
possible to select the swap mode of the
Identification Number. If swap isn’t necessary you
have to select “None”; otherwise see the section
“Swap Identification” (page 31) of this document
for select the swap mode.
If the field “Convert BCD in Integer
Identification Num.” is checked, the converter
converts the Identification Number that is normally
expressed in BCD in a Integer value.
If the field “Send SND_NKE” is checked, the
converter sends the “SND_NKE” frame to start the
communication.
Figure
4:
“M
Bus Network” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus Master / BACnet Slave
Document code: MN67056_ENG Revision 1. 00 Page 0 of 39
In the field “Send Reset App.” is checked, the converter sends the “Application Reset” command to the slave.
In the field “Variables List” it is possible to select which type of variables definition to use. If is selected “By Type” it is necessary to
fill all fields in the section Variables with the correct values; otherwise if “By Position” is selected, it is possible to insert the
progressive number of the variable ned (page 7 for more information).
In the field “Cut after” it is possible to select after how many frames stops data requests. It is used when the slave has got many
data frames and you don’t need to read all them.
After that, pressing the “ADD NODE” button, a new node appears in the left side of the window. In order to modify a created node it is
necessary to select the desired node, change the wrong items and then press the “MODIFY NODE” button.
