ADF Web HD67459 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 1 of 29
User Manual
Revision 1 000
English
PROFINET / NMEA 2000 –
Converter
(Order Code: HD67459)
for Website information:
www adfweb com?Product=HD67459
for Price information:
www adfweb com?Price=HD67459
Benefits and Main Features:
Very easy to configure
Isolation between two buses
Temperature range: -40°C / +105°C (-40°F / +221°F)
For other Gateways / Bridges:
CAN fro /to Modbus
See also the following links:
www adfweb com?product=HD67012 (Modbus RTU Slave)
www adfweb com?product=HD67514 (Modbus TCP Master)
www adfweb com?product=HD67515 (Modbus TCP Slave)
CANopen fro /to Modbus
See also the following links:
www adfweb com?product=HD67001 (Modbus RTU Master)
www adfweb com?product=HD67502 (Modbus RTU Slave)
www adfweb com?product=HD67504 (Modbus TCP Master)
www adfweb com?product=HD67505 (Modbus TCP Slave)
Do you have an your customer protocol?
See the following links:
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 2 of 29
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
LEDS 9
NMEA 2000 10
PROFINET 11
USB 11
USE OF COMPOSITOR SW67459 12
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 15
RECEIVE FRAMES 16
SEND FRAMES 17
UPDATE DEVICE 18
PLC CONFIGURATION 20
MECHANICAL DIMENSIONS 23
ORDER CODE 27
ACCESSORIES 27
DISCLAIMER 28
OTHER REGULATIONS AND STANDARDS 28
WARRANTIES AND TECHNICAL SUPPORT 29
RETURN POLICY 29
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision Date Author Chapter Description
1 000 04/09/2017 Ff All First release version
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 3 of 29
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 4 of 29

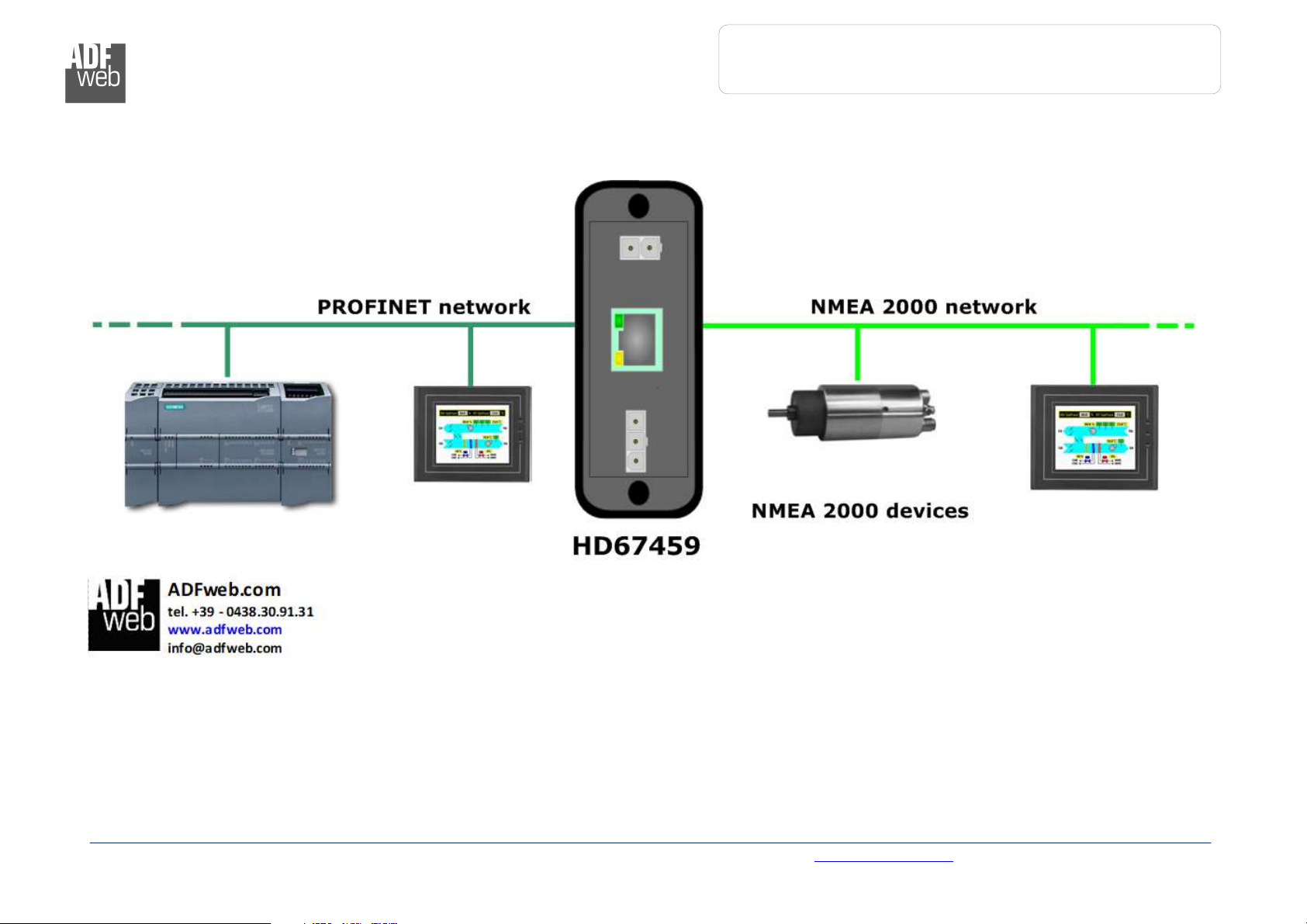

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 5 of 29
CONNECTION SCHEME:
Figure 1a: Connection scheme for HD67459-E4x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 6 of 29
Figure 1b: Connection scheme for HD67459-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 7 of 29
CHARACTERISTICS:
The “HD67459” series are rugged devices used to interface NMEA 2000 devices with a PROFINET Master
With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,
vertical, oblique)
It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1 5”
connectors If is resined, the enclosure, like the “AMP SuperSeal 1 5" connectors, is waterproof (IP63)
The device have these characteristics:
Triple 4kV isolation between Power Supply / Ethernet / CAN;
Varnished / Resined (optionally);
Wide power supply input range: 8…26V AC | 10…40V DC;
Mini-Fit® / AMP SuperSeal 1 5 connectors;
Metal enclosure with fixing lugs;
Possibility to use Metal hose clamps for fixing it without using lugs;
Microprocessor for data control;
Wide temperature range: -40°C / 105°C (-40°F / 221°F)
CONFIGURATION:
You need Compositor SW67459 software on your PC in order to perform the following:
Define the parameter of the NMEA 2000 bus;
Define the parameter of the PROFINET bus;
Define a list of PGNs in reception and transmission;
Update the Firmware and/or the Project

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 8 of 29

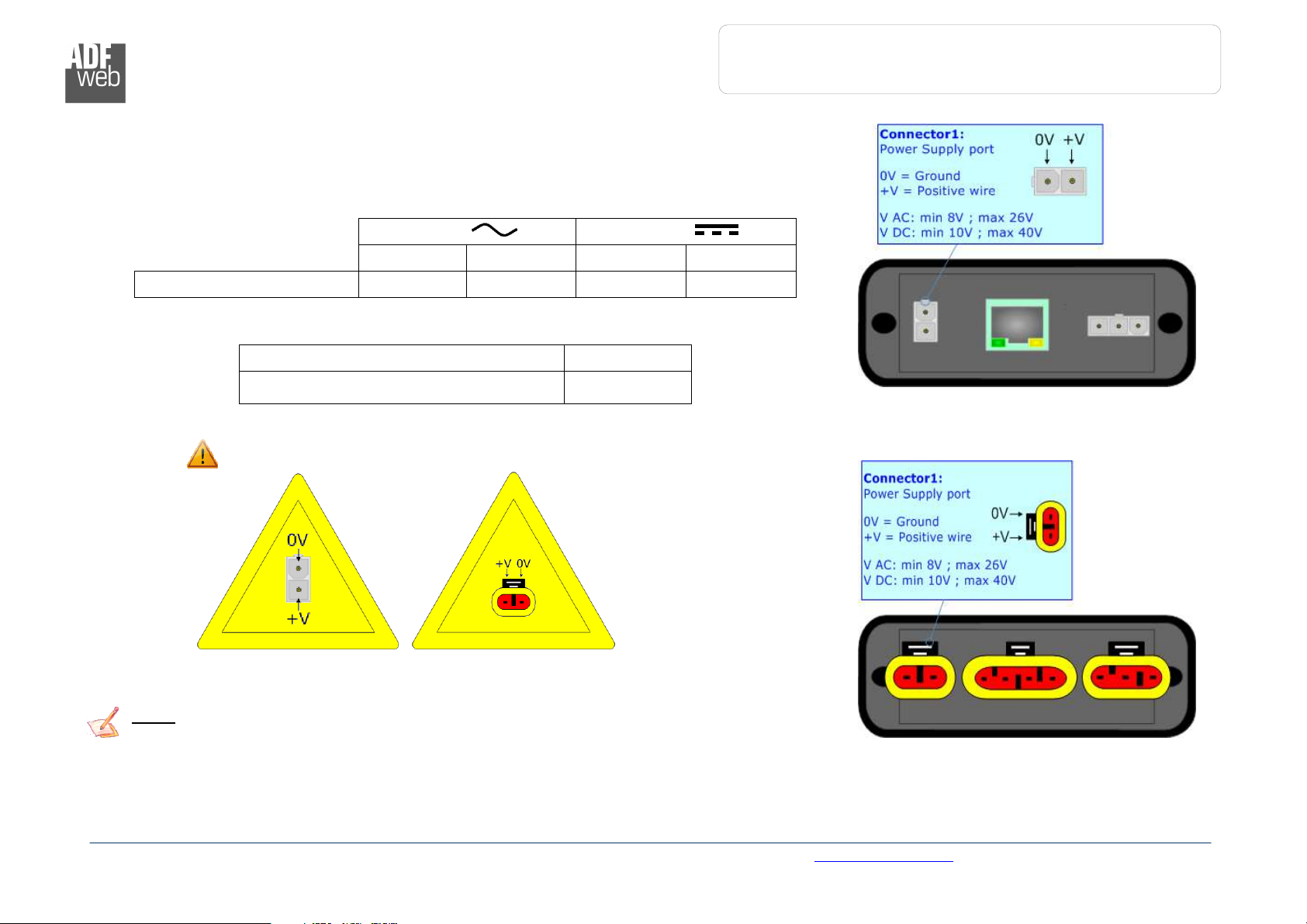

POWER SUPPLY:
The devices can be powered between a wide range of tensions For more details see the two
tables below
VAC
VDC
V in V ax V in V ax
HD67459-Exx-xx 8V 26V 10V 40V
Consumption at 24V DC:
Device W/VA
HD67459-Exx-xx 4
Note: It is possible to use also negative tensions In this case the polarity must be
inverted
Caution: Not reverse the polarity power
HD67459-E4x-xx
HD67459-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 9 of 29

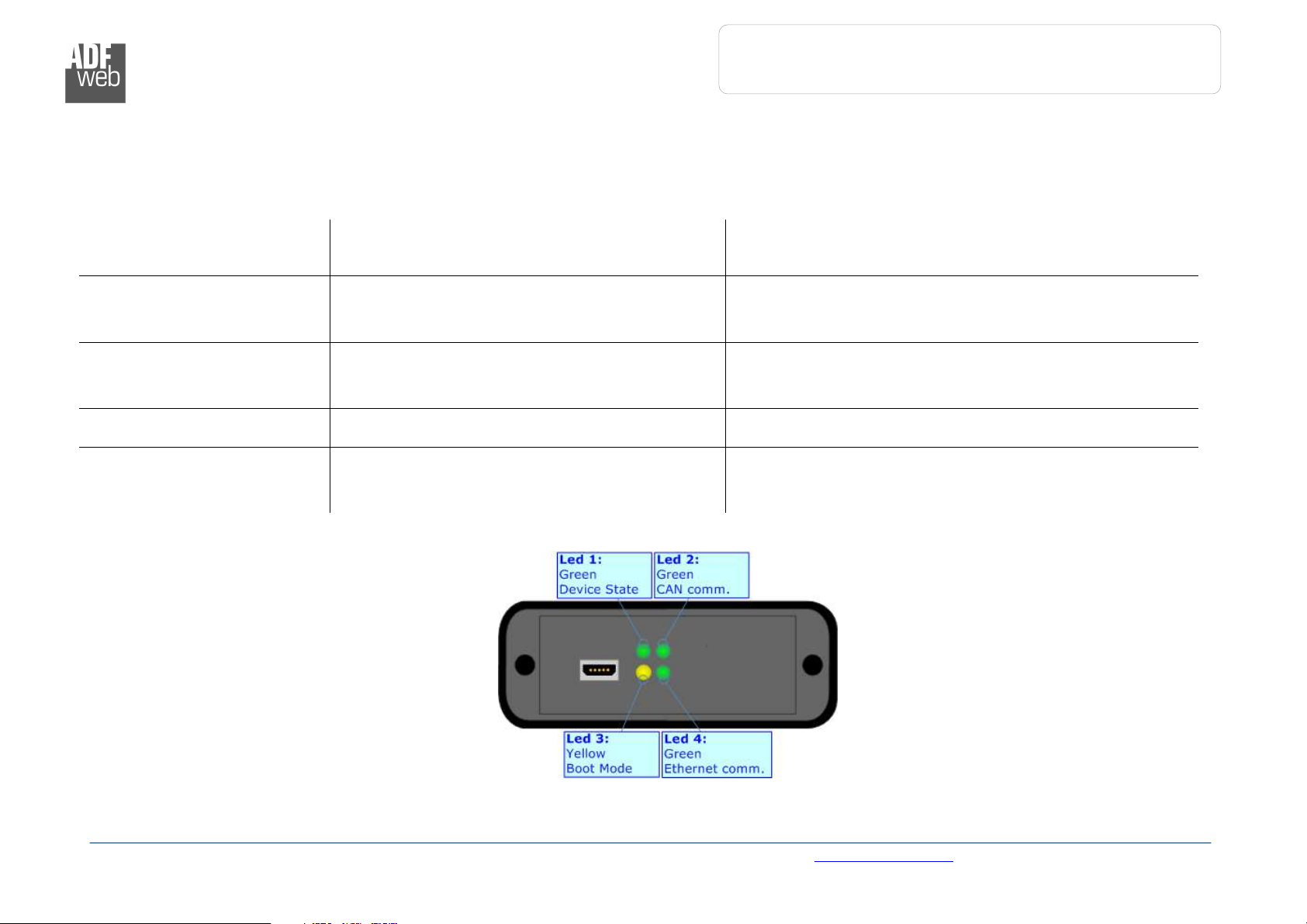

LEDS:
The device has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Nor al Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: CAN Communication
(green) Blinks when NMEA 2000 frames are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Boot Mode (yellow) OFF ON
4: Ethernet communication
(green)
Blinks when the PROFINET communication is
working
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 10 of 29
NMEA 2000:
The connection of the NMEA 2000 in the HD67459-E4x-xx device must be made with a 3way
MiniFit Female connector The pinout of Male MiniFit connector of the board is at right side of
the page
The connection of the NMEA 2000 in the HD67459-E7x-xx device must be made with a AMP
SuperSeal 1 5 Male connector The pinout of Female connector of the board is at right side of
the page
The termination of NMEA 2000 line, with a 120Ω resistor, in the HD67459-Exx-xx is made
internally of the device; when the order is performed If the device have the NMEA 2000
terminated the code is the follow: HD67459-Exx-Yx; otherwise is this other: HD67459-Exx-Nx
Cable characteristics:
DC para eter: Impedance 70 Ohm/m
AC para eters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [ ]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 11 of 29
PROFINET:
The connection of PROFINET in the HD67459 device must be made with at least a Category 5E cable The maximum length of the cable
should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the device
to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable
The connection of PROFINET in the HD67459-E4x-xx device must be made with RJ45 connector
The connection of the PROFINET in the HD67459-E7x-xx device must be made with a AMP
SuperSeal 1 5 Male connector The pinout of Female connector of the board is at right side of the
page
USB:
The USB port is used to start the converter in Boot Mode It is necessary to use a Micro USB type B cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 12 of 29
USE OF COMPOSITOR SW67459:
To configure the Converter, use the available software that runs with Windows called SW67459 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67459, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67459

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 13 of 29
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “PROFINET / NMEA 2000 - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 14 of 29
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Progra ”, the
SW67459 checks automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 15 of 29
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, PROFINET and NMEA
2000
By Pressing the “Set Co unication” button from the main window for SW67459 (Fig 2) the
window “Set Communication” appears (Fig 3)
The window is divided in two sections, one for the PROFINET and the other for the NMEA 2000
The means of the fields for “PROFINET” are:
In the field “IP ADDRESS” the IP address of the PROFINET side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of the PROFINET side of the converter is
defined;
In the field “GATEWAY” the default gateway of the network is defined This feature can be
enabled or disabled pressing the Check Box field This feature is used for going out of the net;
In the field “Port” the port used for PROFINET communication is defined The port has a fixed
value of 34964;
In the field "PROFINET Na e of Station" the name to the PROFINET side of the converter is
defined;
The means of the fields for the “NMEA 2000” section are:
In the field “Baud Rate” the baud rate of the NMEA 2000 is defined;
In the field “Ti e Out Data (s)” the timeout of the data is defined If this time is elapsed, the
value of the data of the NMEA 2000 frame become “0xFF” (if the “Cancel Data” field is checked
in the “Receive NMEA 2000” section);
If the field “Enable Peer to Peer” is checked, the gateway accepts all the ID that have the
PGN inserted in the “Receive Frames” section
Note:
The number of Input byte and Output byte of PROFINET is calculated automatically by the Compositor in relation of the NMEA 2000
frames defined
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 16 of 29
RECEIVE NMEA 2000:
By pressing the “Receive NMEA 2000” button from the main window for SW67459 (Fig 2) the window “Receive NMEA 2000 Frames”
appears (Fig 4) The NMEA 2000 frames inserted in this table will be mapped in the Output data of PROFINET These frames are received by
the gateway
The means of the fields of the table are:
In the field “PGN” the PGN of the NMEA 2000 message to receive is defined (in the NMEA 2000 protocol, the PGN is an identifier);
In the field “Source Address” the address of the device that sends the frame is defined
If the field “Transport Protocol” is checked, the frame can use transport protocol functions;
If the field “Fast Packet” is checked, the frame will use the Fast Packet functions;
In the field “Start Byte” the starting byte to save on Modbus side is defined;
In the field “Nu Bytes” the number of consecutive byte from the starting one is defined For example, if the Start Byte is ‘20’ and
Num Bytes is ‘10’, it is possible to read the byte from 20 to 30;
If the field “Cancel Data” is checked and the “Modbus Register” in the section “Set Communication” is different from ‘0’, the
converter, when the data is oldest of the time inserted in the “TimeOut Data”, sets “0xFF” in the Modbus registers reserved for the
PGN;
In the field “Mne onic” the description for the frame is defined
Figure 4: “Receive NMEA 2000 Frames” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 17 of 29
SEND NMEA 2000:
By pressing the “Send Fra es” button from the main window for SW67459 (Fig 2) the “Send NMEA 2000 frames” window appears (Fig 5)
The NMEA 2000 frames inserted in this table contains the Input data of PROFINET These frames are sent by the gateway
The data of the columns have the following meanings:
In the field “Priority” the priority of the NMEA 2000 message is defined It is a number among 0,1,2,3,4,5,6,7 The number “0” is the
highest priority and “7” is the lowest;
In the field “PGN” the PGN of NMEA 2000 message is defined (it is an identifier);
In the field “Source Address” the source address to use to send the frame is defined;
If the field “Fast Packet” is checked, the frame will use the Fast Packet functions;
In the field “Nu Bytes” the number of byte of the frame is defined;
If the field “Request” is checked, the NMEA 2000 message is sent when a NMEA 2000 request is received;
If the field “Data Change” is checked, the NMEA 2000 frame is sent when the data from MQTT change;
If the field “On Ti er” is checked, the NMEA 2000 message is sent cyclically with the delay defined in the field “Send Ti er”;
In the field “Mne onic” a brief description is defined

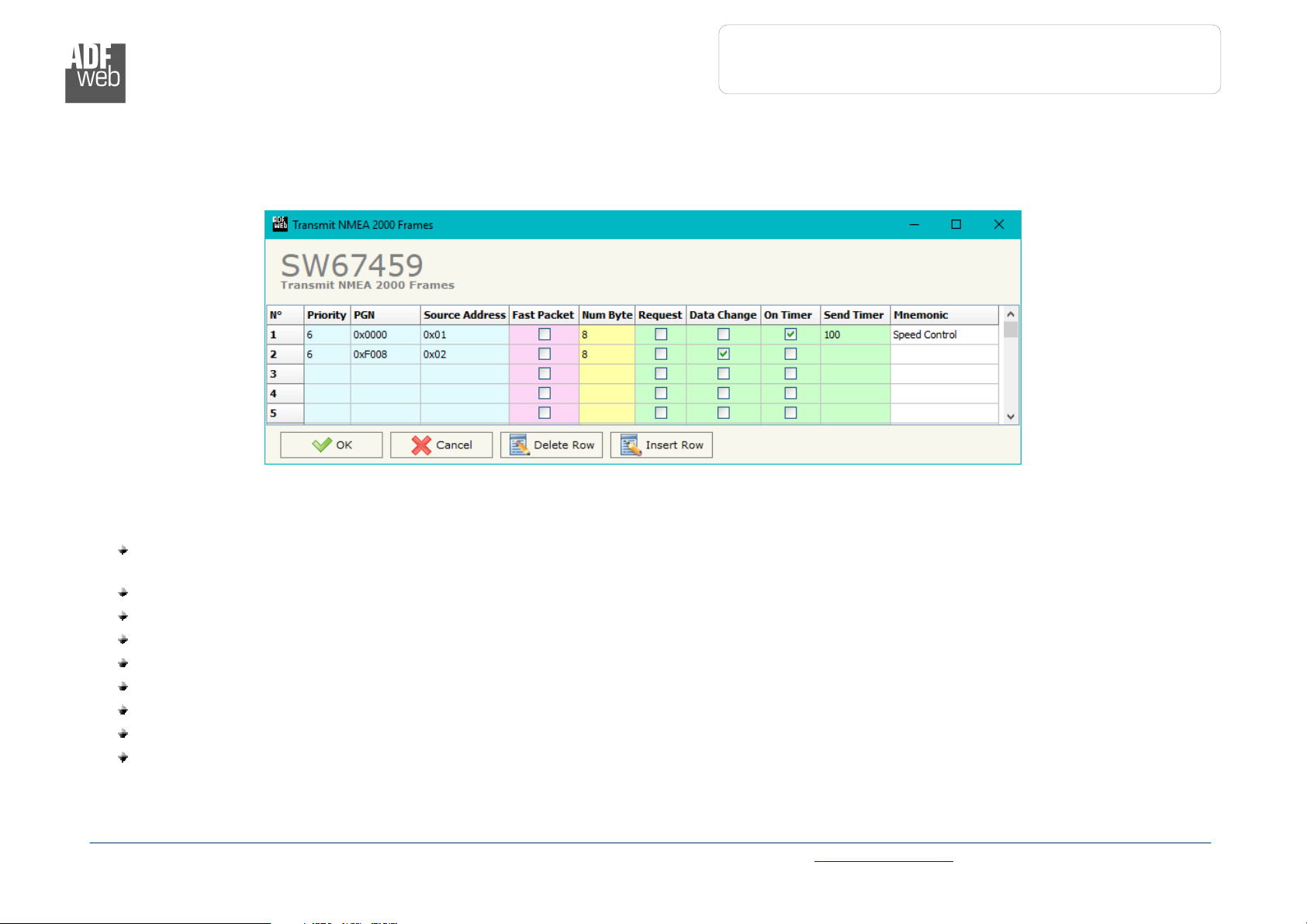

Figure 5
: “
Send NMEA 2000 Frames
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 18 of 29
UPDATE DEVICE:
By pressing the “Update Device” button it is possible to load the created Configuration into the
device; and also the Firmware, if is necessary
If you don’t know the actual IP address of the device you have to use this procedure:
Connect the USB cable;
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Turn ON the device;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update fir ware” button to start the upload
When all the operations are “OK”, the updating is done;
Remove the USB cable
If you know the actual IP address of the device you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update fir ware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode

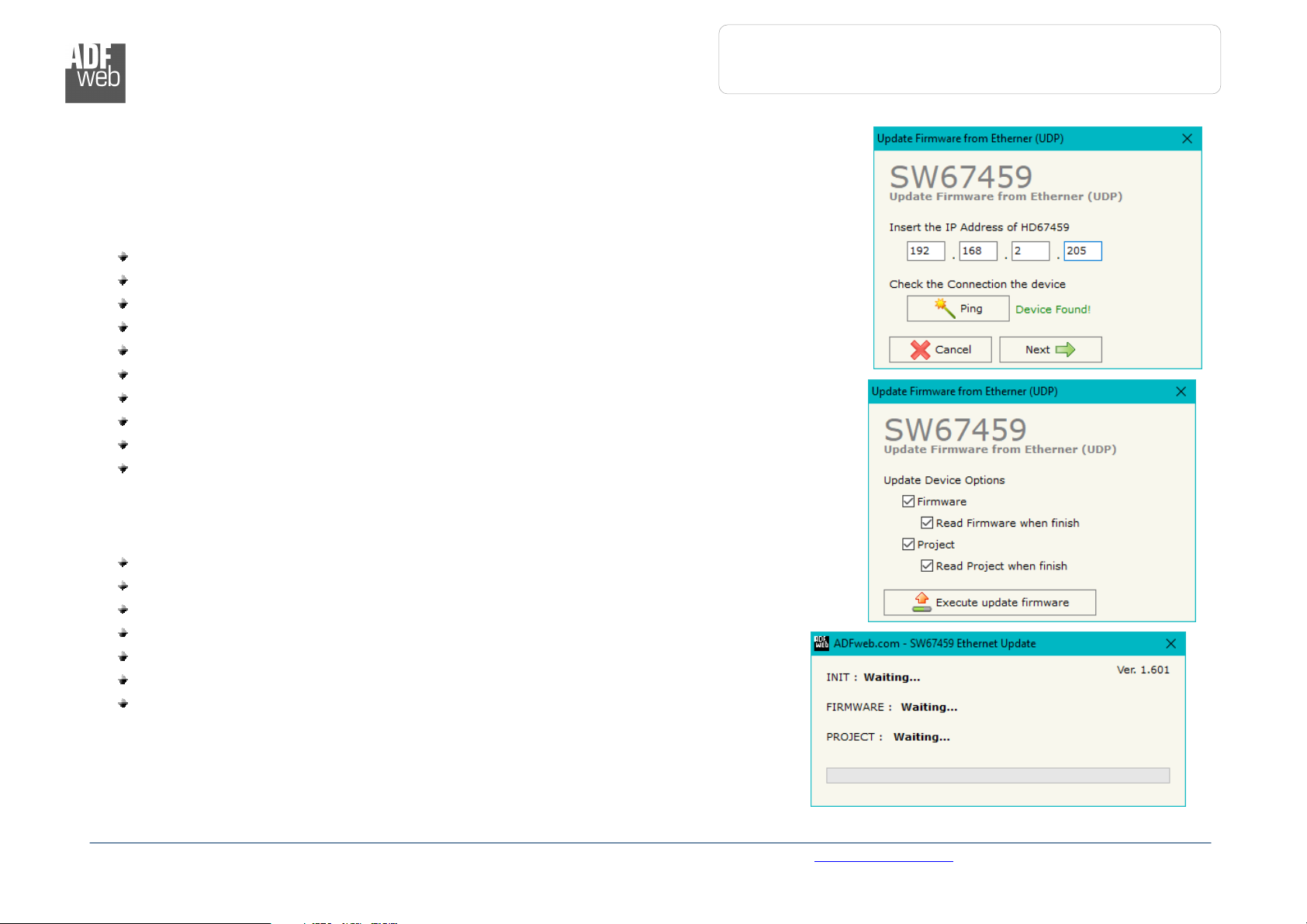

Figure 6: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 19 of 29
Note:
When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67459
Note:
When you receive the device, for the first time, you have to update also the Firmware in the HD67459 device
Warning:
If the Fig 7 appears when you try to do the Update before require assistance try
these points:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 10 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet For
do this you have to launch the "Command Prompt" and write the command "arp -d"
Pay attention that with Windows Vista, Seven, 8 or 10 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock
In the case of HD67459 you have to use the software “SW67459”: www adfweb com\download\filefold\SW67459 zip
Figure 7: “ rotection” error

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET / NMEA 2000
-
Converter
Document code: MN67459_ENG Revision 1 000 Page 20 of 29

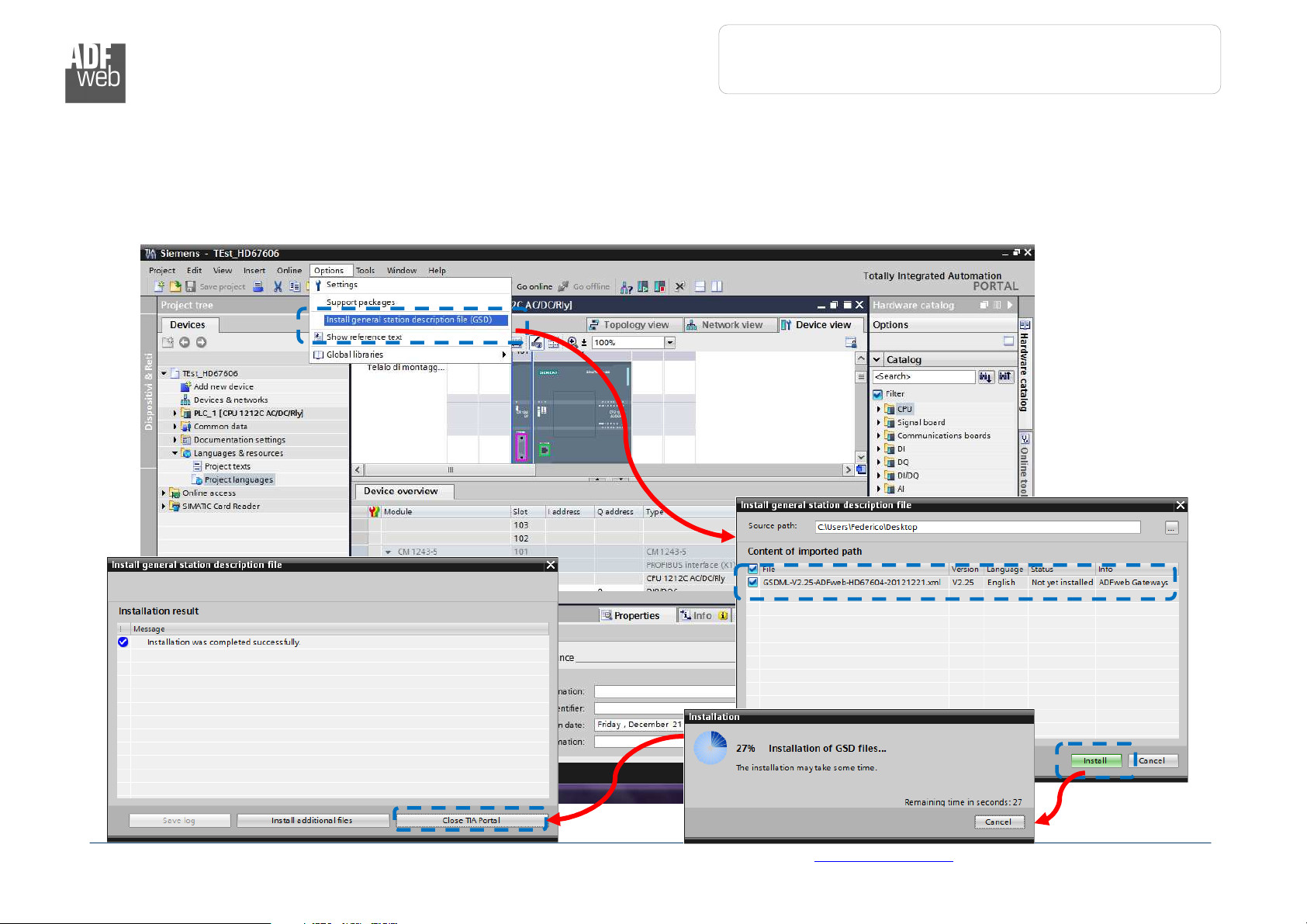

PLC CONFIGURATION:
The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the
TIA Portal V12-software by Siemens In the case of using a control system from another supplier, refer to attend to the associated
documentation
These are the steps to follow:
1) Install the
description file of
the module
