EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 5 of 30
CONNECTION SCHEME:

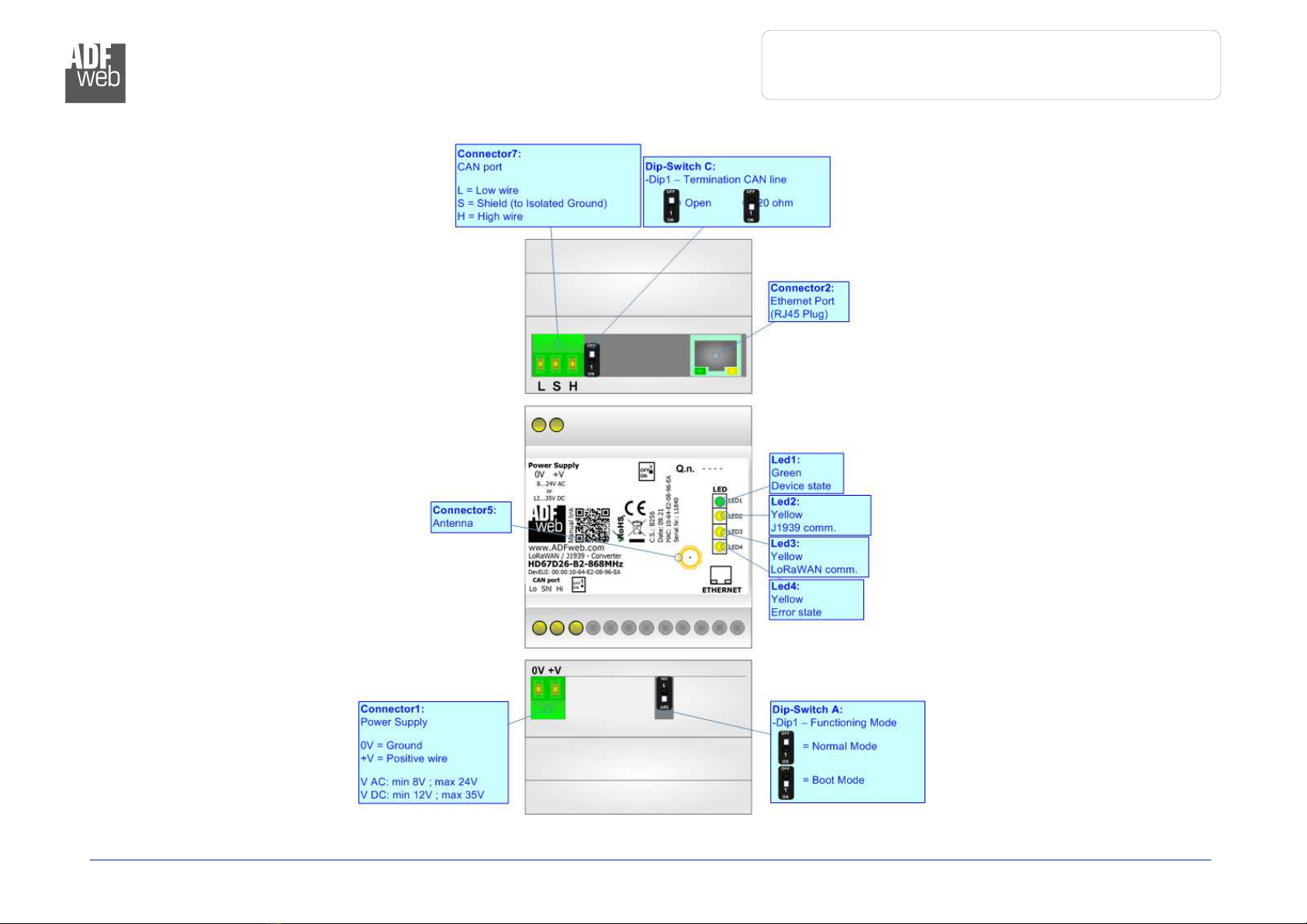

Figure 1: Connection scheme for HD67D26-B2- MHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 6 of 30
CHARACTERISTICS:
The HD67D26-B2 is a LoRaWAN / J1939 Converter.
It allows the following characteristics:
Electrical isolation between J1939 and ower Supply;
Two-directional information between LoRaWAN bus and J1939 bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 12…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67D26 software on your C in order to perform the following:
Define the parameter of LoRaWAN line;
Define the parameter of J1939 line;
Define the list of LoRaWAN messages in uplink and downlink to the LoRaWAN gateway;
Define the list of J1939 messages in transmission and reception;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 7 of 30
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D26-B2-xxxMHz 3.5
HD67D26-B2-xxxMHz
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 8 of 30
FUNCTION MODES:

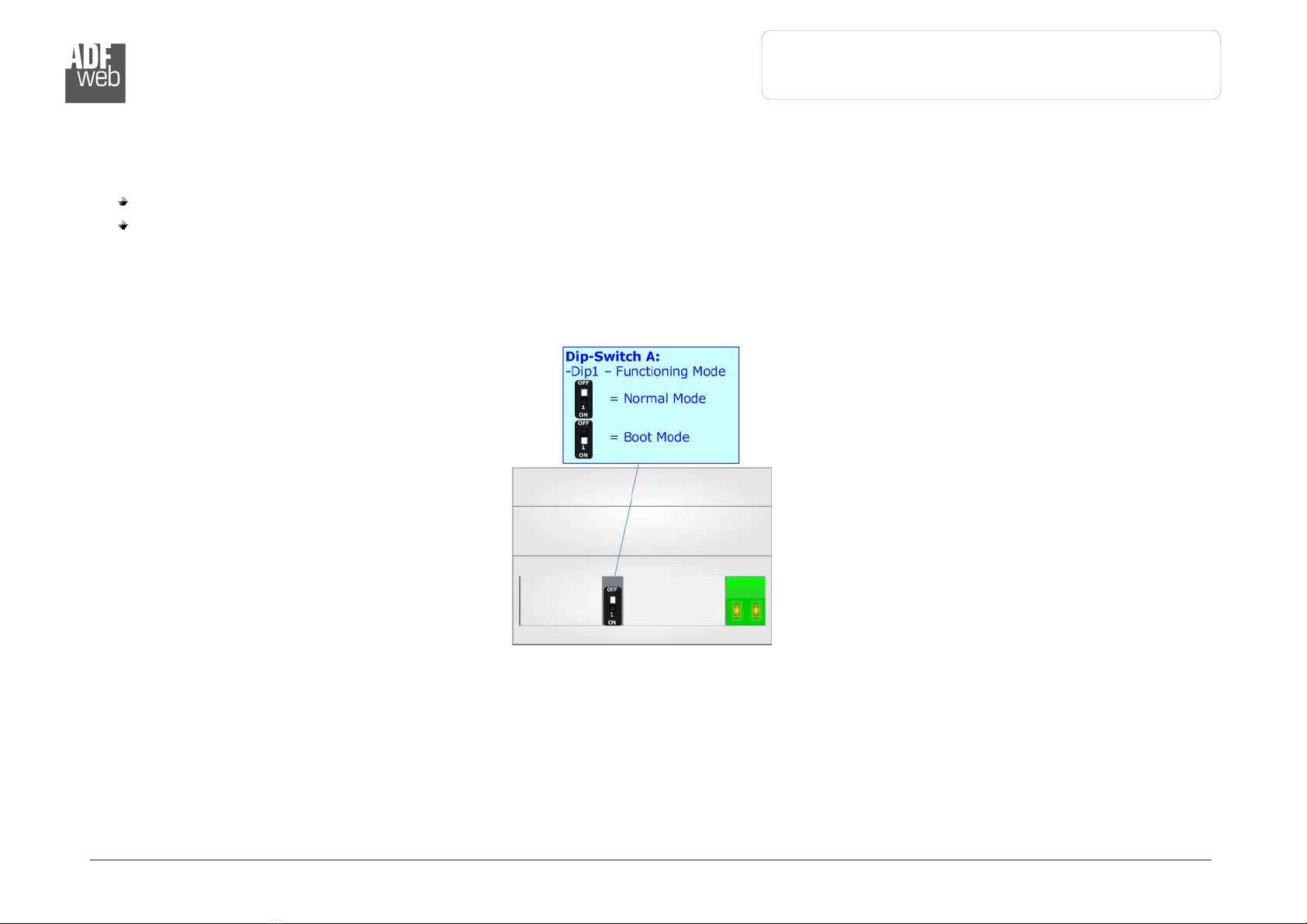

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 9 of 30
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: J1939 communication
(yellow) Blinks when a J1939 message is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 10 of 30
LORAWAN:
The LoRaWAN® specification is a Low ower, Wide Area (L WA) networking protocol designed to
wirelessly connect battery operated ‘things’ to the internet in regional, national or global
networks, and targets key Internet of Things (IoT) requirements such as bi-directional
communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways relay
messages between end-devices and a central network server.
The wireless communication takes advantage of the Long Range characteristics of the LoRa
physical layer, allowing a single-hop link between the end-device and one or many gateways. All
modes are capable of bi-directional communication, and there is support for multicast
addressing groups to make efficient use of spectrum during tasks such as Firmware Over-The-
Air (FOTA) upgrades or other mass distribution messages.
Converters from HD67D26 serie act as end-devices and they can communicate with one or more
LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 11 of 30
CAN:
For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ is at ON position.
Cable characteristics:
DC parameter: Impedance 70 Ohm/m
AC parameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [ ps] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 12 of 30
ETHERNET:
The Ethernet port is used for programming the device.

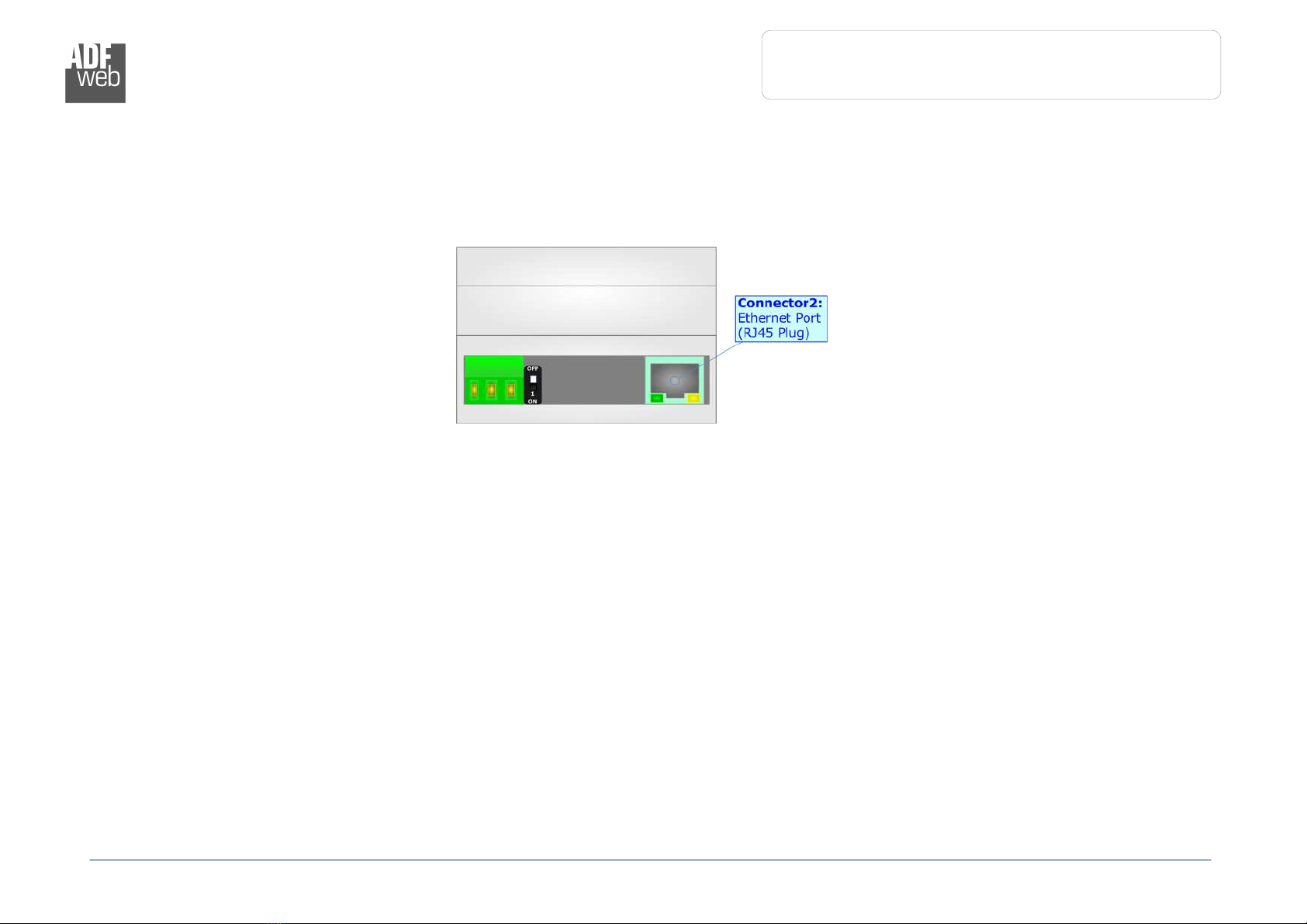

The Ethernet connection must be made using Connector2 of HD67D26-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 13 of 30
USE OF COMPOSITOR SW67D26:
To configure the Converter, use the available software that runs with Windows called SW67D26. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (X , Vista, Seven, 8, 10; 32/64bit).

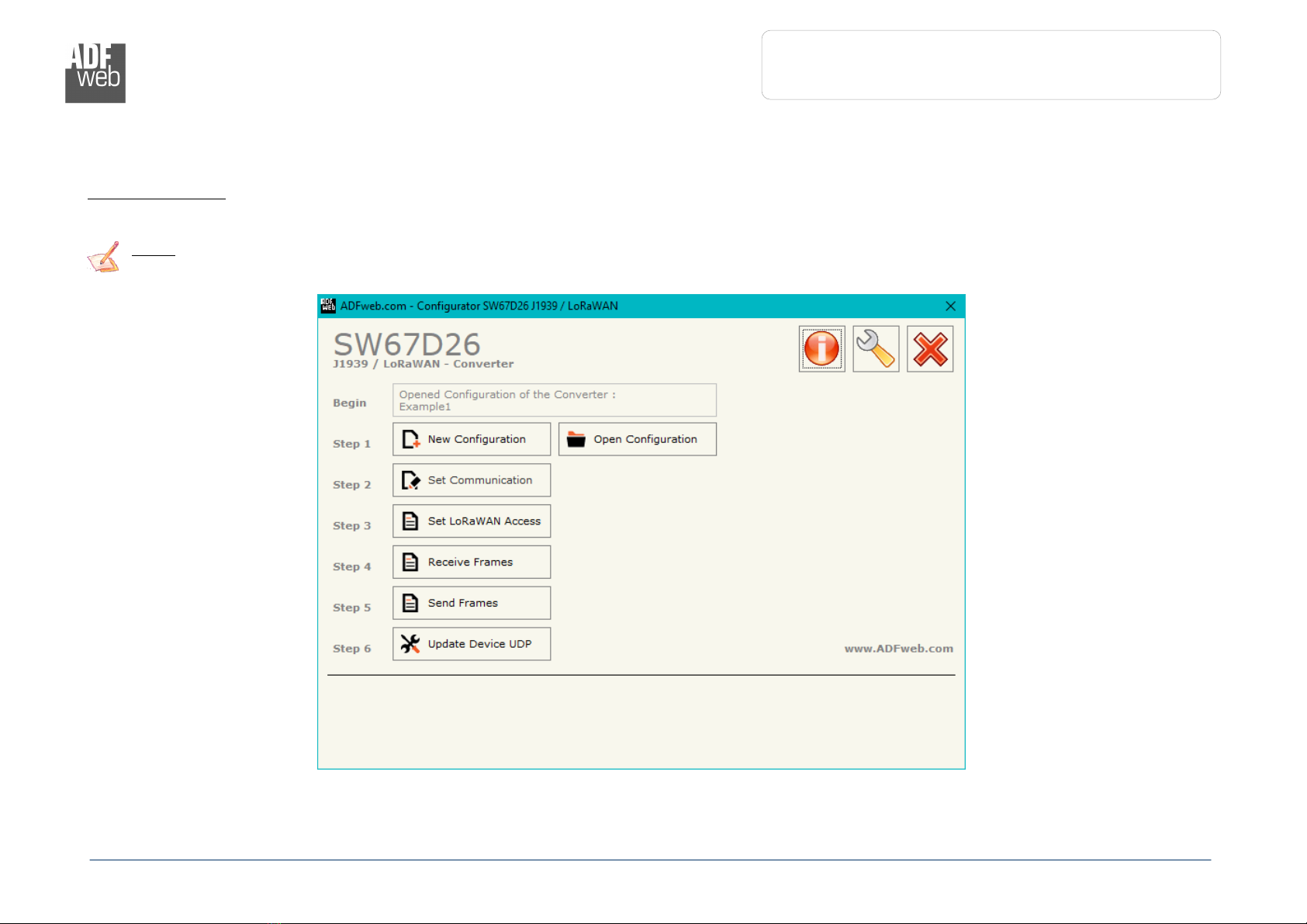

When launching the SW67D26, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67D
26

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 14 of 30
NEW CONFIGURATION / OPEN CONFIGURATION:

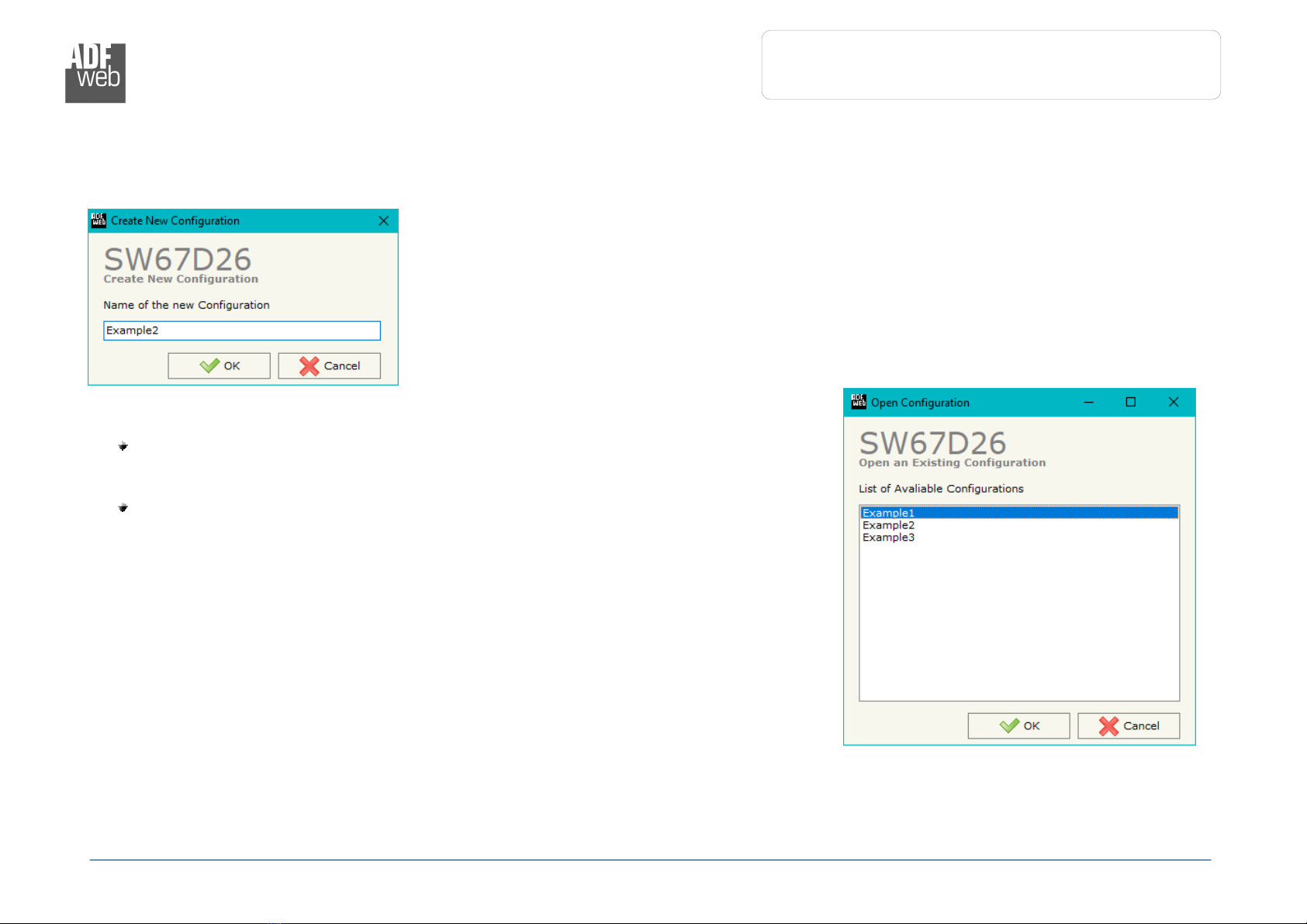

The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “LoRaWAN / J1939 - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 15 of 30
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67D26 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 16 of 30
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 17 of 30
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, LoRaWAN and J1939.

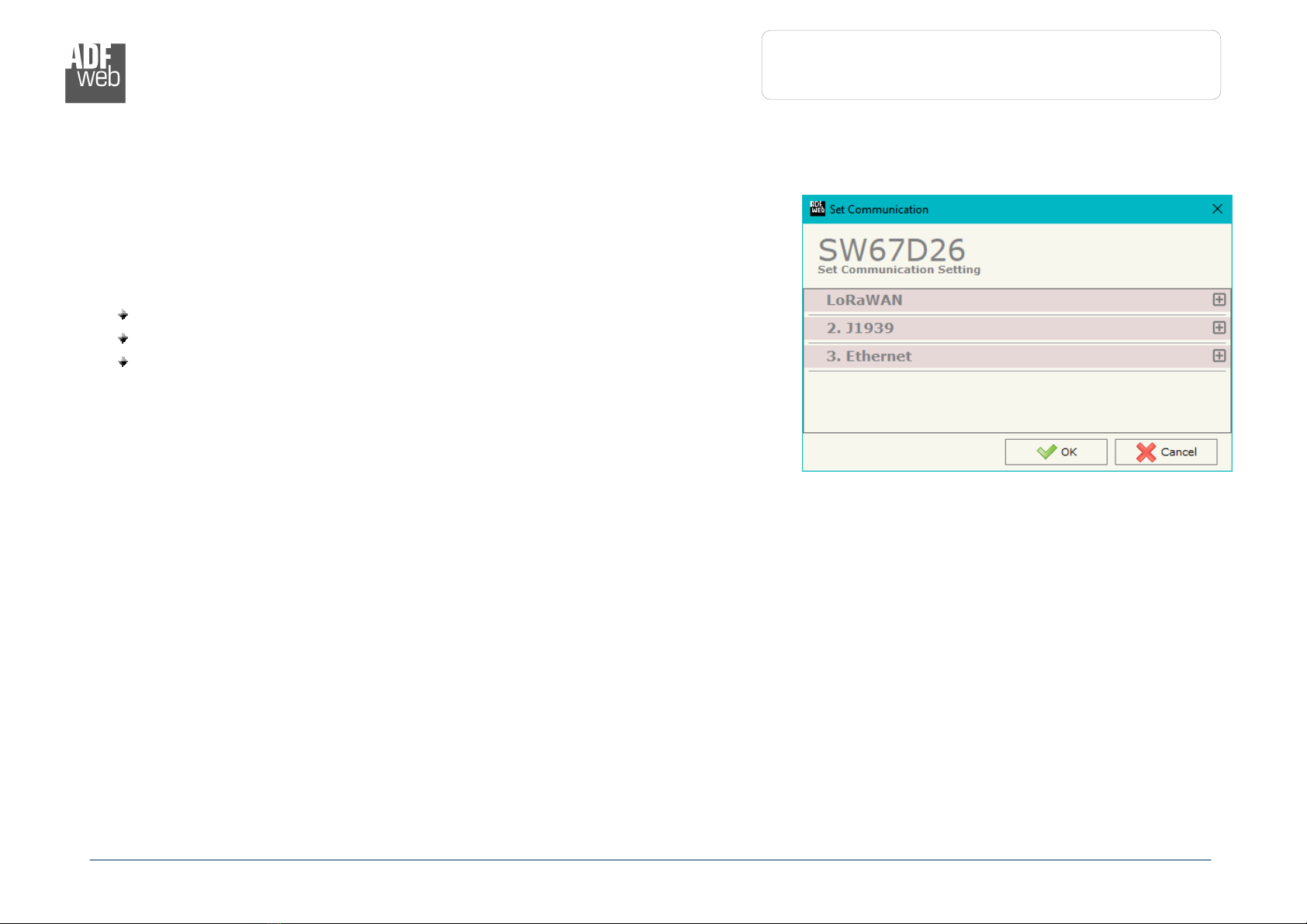

By ressing the “Set Communication” button from the main window for SW67D26 (Fig.
2) the window “Set Communication” appears (Fig. 3).
The window is divided in different sections in order to define the different parameters of
the converter:
LoRaWAN
J1939
Ethernet
Figure 3a: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 18 of 30

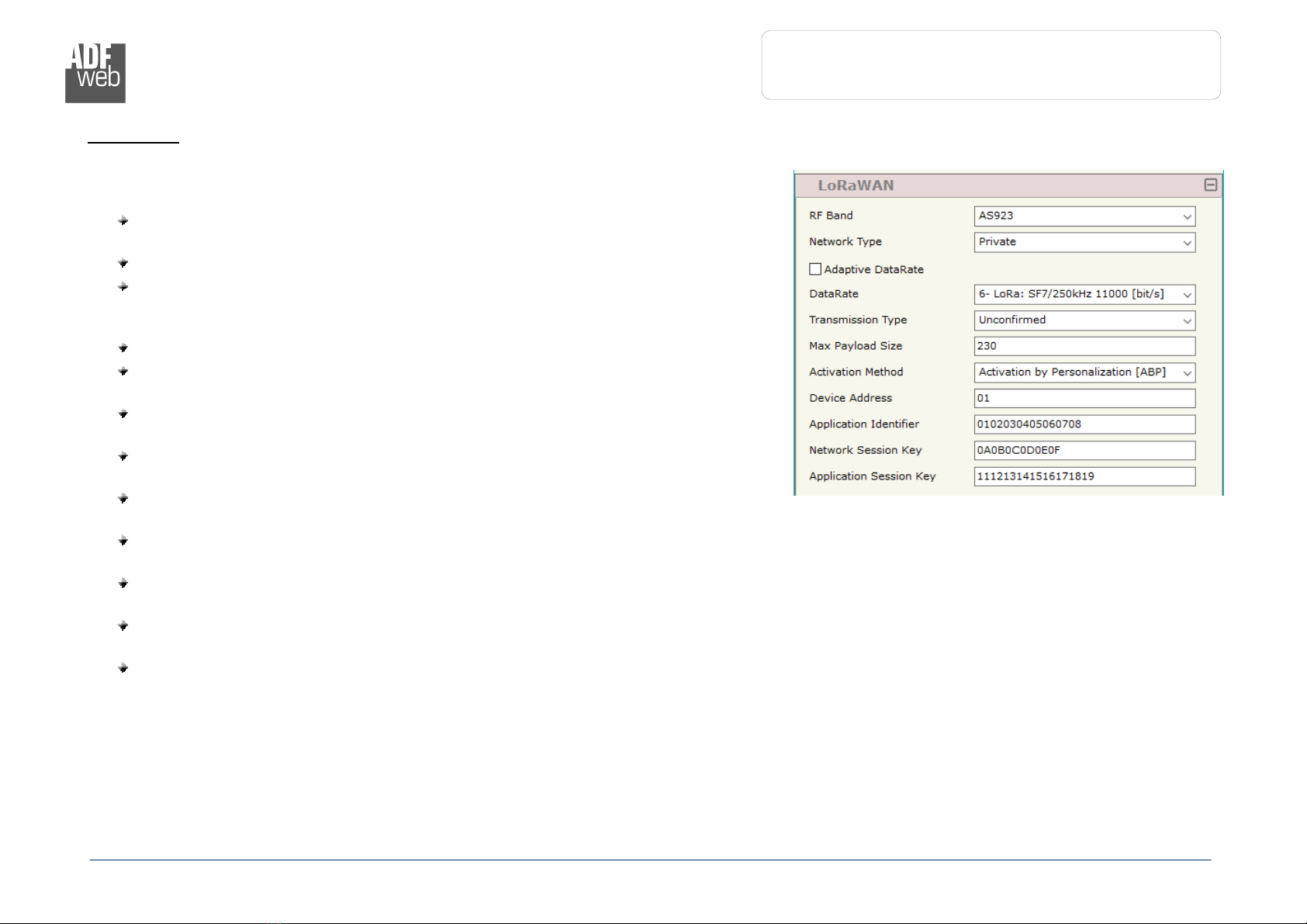

L O R A WAN:
This section is used to define the general parameters of EtherCAT. The means of the
fields are:
In the field “RF Band” the wireless band used for LoRaWAN communication is
defined;
In the field “Network Type” the type of LoRaWAN network is defined;
If the field “Adaptive Data Rate” is checked, the converter will enable the ADR
functionalities to select the best data rate to be used in relation to the
environmental conditions;
In the field “Data Rate” the data rate for LoRaWAN communication is defined;
In the field “Transmission Type” the type of LoRaWAN communication is
defined;
In the field “Max Payload Size” the maximum dimension of the LoRaWAN
messages is defined (fixed in relation to the data rate selected);
In the field “Activation Method” the method used to join into a LoRaWAN
network is defined;
In the field “Device Address” the device identifier (DevEUI) is defined (only for
AB method);
In the field “Application Identifier” the application identifier (AppEUI) is
defined (only for AB method);
In the field “Network Session Key” the key used for the communication with the LoRaWAN gateway (NwkSKey) is defined (only for
AB method);
In the field “Application Session Key” the key for encryption and decryption of the payload (AppSKey) is defined (only for AB
method);
If OTAA method is selected, in the field “Application Key” the secret key for the dynamic activation of the converter in the LoRAWAN
network is defined.
Figure 3b: “Set Communication  LoRaWAN”
window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 19 of 30
J1939:
This section is used to define the main parameters of J1939 line. The means of the
fields are:
In the field “Baudrate” the data rate of J1939 is defined;
In the field “TimeOut Data” a time is defined. When a J1939 message is not
received in this time, the data on LoRaWAN side are set to 0xFF;
If the field “Ena le Peer to Peer” is checked, the gateway will mask the Source
Address of the J1939 messages received.
In the field “ID Device J1939” the ID of J1939 side of the converter is defined.
ETHERNET:
This section is used to define the general parameters of Ethernet. The means of the
fields are:
In the fields “IP Address” the I address for Ethernet side of the converter is
defined;
In the fields “Su Net Mask” the SubNet Mask for Ethernet side of the converter
is defined;
In the fields “Gateway” the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the fields “DNS” the I address of the DNS server is defined
Figure 3c: “Set Communication  J1939” window
Figure 3d: “Set Communication  Ethernet”
window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN /
J1939
Document code: MN67D26_ENG Revision 1.000 age 20 of 30
F
igure 4a: “LoRa
WAN Access

LoRaWAN Uplink” window
LORAWAN ACCESS:
By ressing the “LoRaWAN Access” button from the main window for SW67D26 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig.
4). This section is used to define the LoRaWAN messages where the converter will place the data read from J1939 (Uplink) and the LoRaWAN
messages that the converter will take (Downlink) for writing the data to J1939.
L O R A WAN U PLINK
The means of the fields are:
If the field “Ena le” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where taking the data is defined;
In the field “Num. Byte” the number of consecutive bytes to take from the internal array starting from “Start Byte” is defined;
If the field “On Change” is checked, the LoRaWAN message is sent only when the data from J1939 change;
If the field “On CMD” is checked, the LoRaWAN message is sent when a J1939 message is received;
If the field “On Timer” is checked, the LoRaWAN message is sent cyclically with the delay defined in “Time (s)” field;
In the field “Mnemonic” a description of the message is defined.
