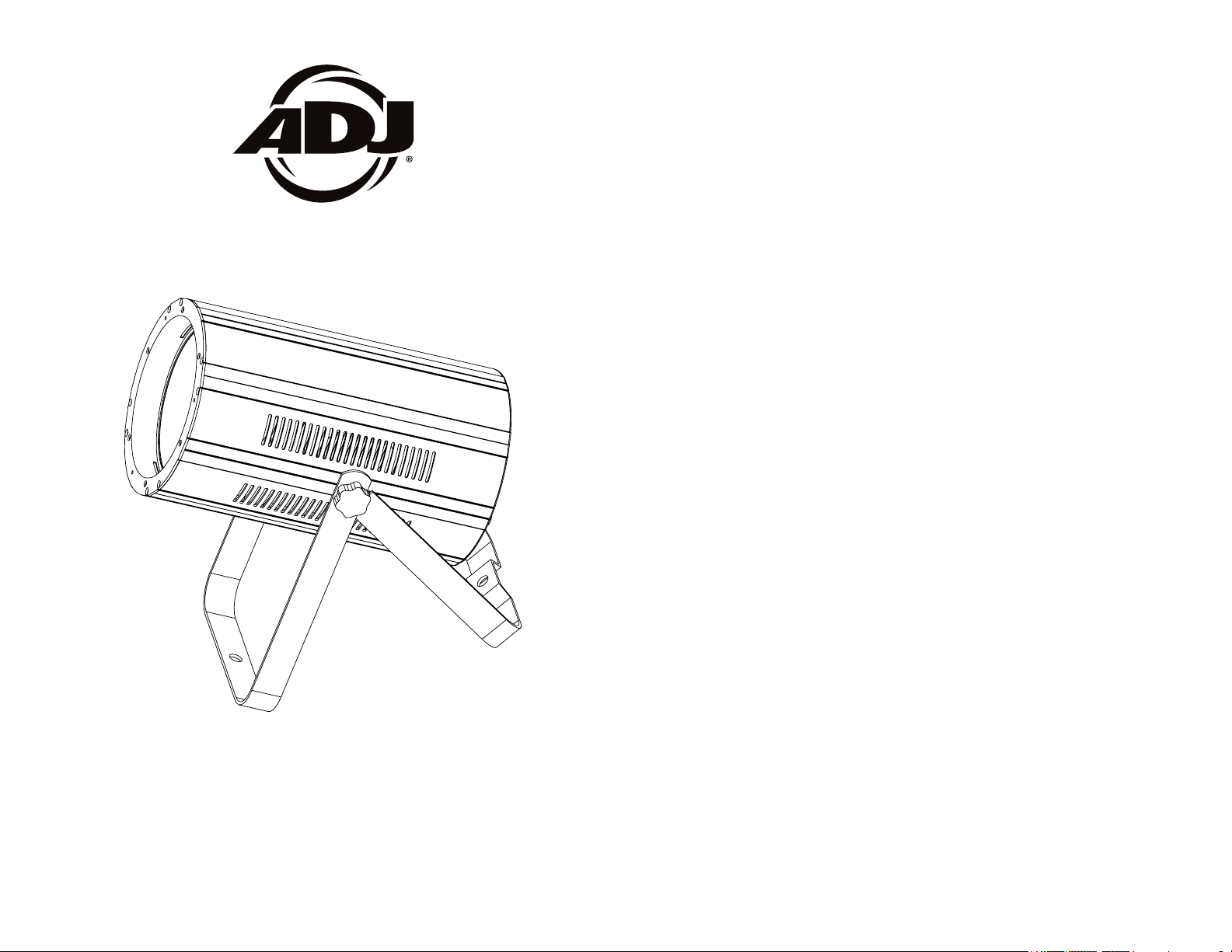

ADJ COB Cannon Wash Pearl User manual

User Instructions
11/15
COB CANNON WASH PEARL
©2015 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!

ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 3ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 2
• Five Operating Modes
• Electronic Dimming 0-100%
• 5 Selectable Dimming Curves
• 64 Color Macros
• Built in Microphone
• Opitional 40° & 50° Lenses Included
• DMX-512 protocol
• 3-Pin & 5-Pin DMX Connections
• 7 DMX Modes: 3 Channel Mode, 4 Channel Mode, 5 Channel
Mode, 6 Channel Mode, 7 Channel Mode, 9 Channel Mode, & 10
Channel Mode.
• ADJ RFC compatiable (Not Included)
• Power Cord Daisy Chain (See page 26)
COB Cannon Wash Pearl Warranty Registration
COB Cannon Wash Pearl Features
The COB Cannon Wash Pearl carries a 2 year limited warranty. Please
fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) number. The
R.A. number must be clearly written on the outside of the return pack-
age. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper included in the ship-
ping carton. If the unit is under warranty, you must provide a copy of
your proof of purchase invoice. You may obtain a R.A. number by con-
tacting our customer support team on our customer support number.
All packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
COB Cannon Wash Pearl Installation
COB Cannon Wash Pearl Introduction
Unpacking: Thank you for purchasing the COB Cannon Wash Pearl
by ADJ Products, LLC. Every COB Cannon Wash Pearl has been
thoroughly tested and has been shipped in perfect operating condi-
tion. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, care-
fully inspect your xture for any damage and be sure all accessories
necessary to operate the unit has arrived intact. In the case damage
has been found or parts are missing, please contact our toll free cus-
tomer support number for further instructions. Do not return this unit to
your dealer without rst contacting customer support.
Introduction: The ADJ COB Cannon Wash Pearl is a DMX intelligent,
high powered LED wash fixture. This wash has five operating modes:
Sound Active mode, Auto mode, RGBA Dimmer mode, Static Color
mode, and DMX control mode. This xture can be used in a stand
alone mode or connected in a Master/Slave conguration. To optimize
the performance of this product, please read these operating instruc-
tions carefully to familiarize yourself with the basic operations of this
unit. These instructions contain important safety information regarding
the use and maintenance of this unit. Please keep this manual with the
unit, for future reference.
Customer Support: ADJ Products, LLC provides a customer support
line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.

COB Cannon Wash Pearl Safety Precautions
Power Supply: The ADJ COB Cannon Wash Pearl contains a automatic
voltage switch, which will auto sense the voltage when it is plugged
into the power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal proto-
col used as a form of communication between intelligent fixtures and
controllers. A DMX controller sends DMX data instructions from the
controller to the fixture. DMX data is sent as serial data that travels
from fixture to fixture via the DATA “IN” and DATA “OUT” XLR termi-
nals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compli-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The
COB Cannon Wash Pearl can be controlled via DMX-512 protocol. The
COB Cannon Wash Pearl has 7 DMX modes, please see pages 9-10
for the dierent modes. The DMX address is set on the back panel of
the COB Cannon Wash Pearl. Your unit and your DMX controller require
a standard 3-pin or 5-pin XLR connector for data
input and data output (Figure 1). We recommend
Accu-Cable DMX cables. If you are making your
own cables, be sure to use standard 110-120 Ohm
shielded cable (This cable may be purchased at
almost all pro lighting stores). Your cables should
be made with a male and female XLR connector
on either end of the cable. Also remember that
DMX cable must be daisy chained and cannot be
split.
ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 4
COB Cannon Wash Pearl DMX Set Up
ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 5
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 26 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Figure 1

ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 7
COB Cannon Wash Pearl Operating Instructions
ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 6
System Menu: The display will lock after 30 seconds, press
the MODE button for 3 seconds to unlock.
LED Display On/Off:
To set the LED display to turn off after 10 seconds, press the MODE
button until “don” is displayed, press the UP button to display “doff”.
Now the display will disappear after 10s. Press any button to turn
the display on again. Be advised though that the display will turn off
automatically after 10 seconds.
To set the display press the MODE button until “dXX” is displayed.
Use the UP or DOWN buttons to select either:
“don” = LED display on at all times.
“doFF” = LED display shuts off after 10 seconds.
LED Display Inversion:
Follow these instructions to flip the display 180°so that the display
can be read upside down.
1. Plug the fixture in and press the MODE button until “dXX” is dis-
played. “XX” represents either “on” or “oFF”.
2. Press the SET UP button until “Stnd” is displayed.
3. Press the UP or DOWN buttons to reverse the display 180°.
Operating Modes:
The COB Cannon Wash Pearl has five operating modes:
• RGBA Dimmer Mode - Choose one of the four colors to remain
static or adjust the intensity of each color to make your desired
color.
• Sound-Active mode - The unit will react to sound, chasing through
the built in programs. There are 16 sound active modes.
• Auto Mode - There are 3 Auto Modes to choose from.
• Static Color Mode - There are 64 colors to choose from.
• DMX control mode - This function will allow you to control each
individual fixtures traits with a standard DMX 512 controller.
RGBA Dimmer Mode:
1. Plug the fixture in and press the MODE button until:
2. When “r.XXX” is displayed you are in Red dimming mode. Press
the UP and DOWN buttons to adjust intensity.
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
COB Cannon Wash Pearl DMX Set Up
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination. When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion

COB Cannon Wash Pearl Operating Instructions
3. When “G.XXX” is displayed you are in Green dimming mode.
Press the UP and DOWN buttons to adjust intensity.
4. When “b.XXX” is displayed you are in Blue dimming mode. Press
the UP and DOWN buttons to adjust intensity.
5. When “A.XXX” is displayed you are in Amber dimming mode.
Press the UP and DOWN buttons to adjust intensity.
6. After you have adjusted the RGBA colors to make your desired
color you can then activate strobing by pressing the SET UP but-
ton to enter the Flash (strobe) mode.
7. “FS.XX” will be displayed, this is Flash mode. The Flash can be
adjusted between “FS.00” (flash off) to “FS.15” (fastest flash).
Sound Active Mode:
In this mode the COB Cannon Wash Pearl will react to sound, and
chase through the different colors.
1. Plug the fixture in and press the MODE button until “SoXX” is dis-
played. “XX” represents the sound active mode (1-16) currently
displayed.
2. The fixture will now change via sound.
3. Press the SET UP button to adjust the sound sensitivity. “SJ-X”
should be displayed. Use the UP or DOWN buttons to adjust the
sensitivity. “SJ-1” is the lowest sensitivity, “SJ-8” is the highest.
Auto Run Mode:
There are 3 types of Auto Run Modes to choose from; Color Fade,
Color Change, and both modes running together. The running speed
is adjustable in all 3 modes.
1. Plug the fixture in and press the MODE button until either “AFXX”,
“AJXX”, or “A-JF” is displayed.
• AFXX = Color Fade mode, there are 16 Color Fade modes to
choose from. Use the UP or DOWN buttons to scroll through the
different Auto Fade modes.
• AJXX = Color Change mode, there are 16 Color Change modes to
choose from. Use the UP or DOWN buttons to scroll through the
different Auto Change modes.
• A-JF = Both Color Fade and Color Change modes running.
2. After you have chosen your desired running mode press the SET
UP button until “SP.XX” is displayed. When this is displayed you
can adjust the running speed of your desired program. Use the
ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 9ADJ Products, LLC - www.adj.com - COB Cannon Wash Pearl User Manual Page 8
COB Cannon Wash Pearl Operating Instructions
UP or DOWN button to adjust the speed between “SP.01” (slow-
est) and “SP.16” (fastest). Once you have set your desired running
speed, press the SET UP button to return to your desired Auto
Run Mode.
Static Color Mode:
1. Plug the fixture in and press the MODE button until “CLXX” is dis-
played.
2. There are 64 colors to choose from. Select your desired color by
pressing the UP and DOWN buttons. After you have selected your
desired color you can activate strobing by pressing the SET UP
button to enter the Flash (strobe) mode.
3. “FS.XX” will be displayed, this is Flash mode. The Flash can be
adjusted between “FS.00” (flash off) to “FS.15” (fastest flash).
DMX Mode:
Operating through a DMX controller gives the user the freedom to
create their own programs tailored to their own individual needs. This
function also allows you to use your fixtures as spot lights. The COB
Cannon Wash Pearl has 7 DMX modes: 3 channel mode, 4 channel
mode, 5 channel mode, 6 channel mode, 7 channel mode, 9 channel
mode, and a 10 channel mode. See page’s 14-22 for each mode’s
DMX traits.
1. This function will allow you to control each individual fixture’s
traits with a standard DMX 512 controller.
2. To run your fixture in DMX mode press the MODE button until
“d.XXX” is displayed. “XXX” represents the current displayed DMX
address. Use the UP or DOWN buttons to select your desired
DMX address, then press the SETUP button to select your DMX
Channel mode.
3. Use the UP or DOWN buttons to scroll through the DMX Channel
modes. The Channel modes are listed below:
• To run the 3 Channel Mode, press the MODE button until “Ch03”
is displayed. This is the 3 Channel DMX Mode.
• To run the 4 Channel Mode, press the MODE button until “Ch04”
is displayed. This is the 4 Channel DMX Mode.
• To run the 5 Channel Mode, press the MODE button until “Ch05”
is displayed. This is the 5 Channel DMX Mode.
• To run the 6 Channel Mode, press the MODE button until “Ch06”
