Focus Spot One General Information
ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 3
Unpacking: Thank you for purchasing the Focus Spot One by ADJ Products, LLC. Every Focus
Spot One has been thoroughly tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your xture for any damage and be sure all equipment necessary to
operate the unit has arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not return this unit
to your dealer without contacting customer support rst.
Introduction: The Focus Spot One is a DMX intelligent, moving head, mini LED wash. The Focus
Spot One can operate as a stand alone xture or in a Primary/Secondary set up. The Focus Spot
One has three operating modes; a sound active, show mode, DMX controlled. This xture is suitable
for theaters, studios, retail stores, and other similar locations. For best results use fog or special ef-
fects smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help
and to answer any questions should you encounter problems during your set up or initial operation.
You may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours
are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 4
To optimize the performance of this product, please read these operating instructions carefully to
familiarize yourself with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit, for
future reference.
Focus Spot One General Instructions
Focus Spot One Features
• DMX-512 Protocol Compatible
• 2 DMX Channel Modes: 15 Channels & 17 Channels
• 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Internal Microphone
• Digital Display for Address and Function Setting
• 4 Preprogrammed Shows
• UC IR and Airstream IR Compatiable (Not Included)
Focus Spot One Warranty Registration
The Focus Spot One carries a 2 year (730 days) limited warranty. Please ll out the enclosed warranty
card to validate your purchase and warranty.
You may also register your product online at www.adj.com. All returned service items, whether under
warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. If the
unit is under warranty you must provide a copy of your proof of purchase invoice. Please contact ADJ
Products, LLC customer support for an R.A. number.
Focus Spot One Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid touching the unit with bare hands
while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-
vance of this manual or any unauthorized modication to this unit.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 5
Focus Spot One Safety Precautions
For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break o the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when its cover is removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
• Do not attempt to operate this unit if has been damaged.
• This unit is intended for indoor use only, and use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the appliance.
• Cleaning - The xture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for cleaning details.
• Heat - This xture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when:
A. Objects have fallen on, or liquid has been spilled into, the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.

Focus Spot One Safety Precautions
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!
FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 399NM -
430NM.
WEAR PROPER EYE AND SKIN PROTECTION.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER PROTECTIVE
LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 6

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 7
Focus Spot One Mounting
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight
without any deformation. When installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, remov-
ing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, instal-
lation material being used, and periodic safety inspection of all installation material and unit. If you
lack these qualifications, do not attempt the installation yourself.
The installation should be checked by a skilled person once a year.
The Focus Spot One is fully operational in three different positions: hanging upside-down from a
ceiling or trussing, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture
is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install an
appropriately rated safety cable as a safety measure to prevent accidental damage and/or injury in
the event the clamp fails (see next page).

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 8
Focus Spot One Mounting
NOTICE: The suitable enviromental temperature for this lighting fixture is between -25˚ C to 45˚ C.
Do not place this lighting fixture in an enviroment where the temperatures fall outside of this range.
This will allow the fixture to run at its best and help prolong the fixture life.
Screw one clamp via an M12 screw and nut to the included bracket. Attach the bracket using the
omega locks to the bottom of the Focus Spot One. Attach and pull the safety-cable through one of
the safety holes located on the bottom base and over the trussing system or a safe fixation spot.
Insert the end in the carabine and tighten the safety screw.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 9
Focus Spot One CAD Drawing

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 10
Focus Spot One Base Layout
1. IR Receiver: To receive the IR signal.
2. LED:
DMX On DMX input present
Primary On Primary Mode
Secondry On Secondary Mode
Sound Flashing Sound activation
3. Button:
MENU To select the programming functions
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
4. Display: To show the various menus and the selected function.
5. DMX In/Out: 3-pin XLR connectors for DMX 512 operation.
6. Power In/Out: Connectors for power input/output.
7. Fuse (T6.3 Amp): Protects the unit from over-voltage or short circuit.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 11
Focus Spot One DMX Set Up
Power Supply: The ADJ Focus Spot One contains an automatic voltage switch, which will auto
sense the voltage when it is plugged into the power source. With this switch there is no need to
worry about the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufacturers as a form of communication between intelligent fixtures and controllers. A
DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as
serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals locat-
ed on all DMX fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to be
linked together and operate from a single controller, as long as all fixtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use
the shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the first
fixture controlled by the controller could be the last fixture in the chain. When a fixture is assigned
a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no
matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements: The Focus Spot One can be controlled via DMX-512 pro-
tocol. The Focus Spot One has 2 DMX channel modes; 15 channel mode & 17 channel mode. The
DMX address is set electronically using the controls on the front panel of the unit. Your unit and your

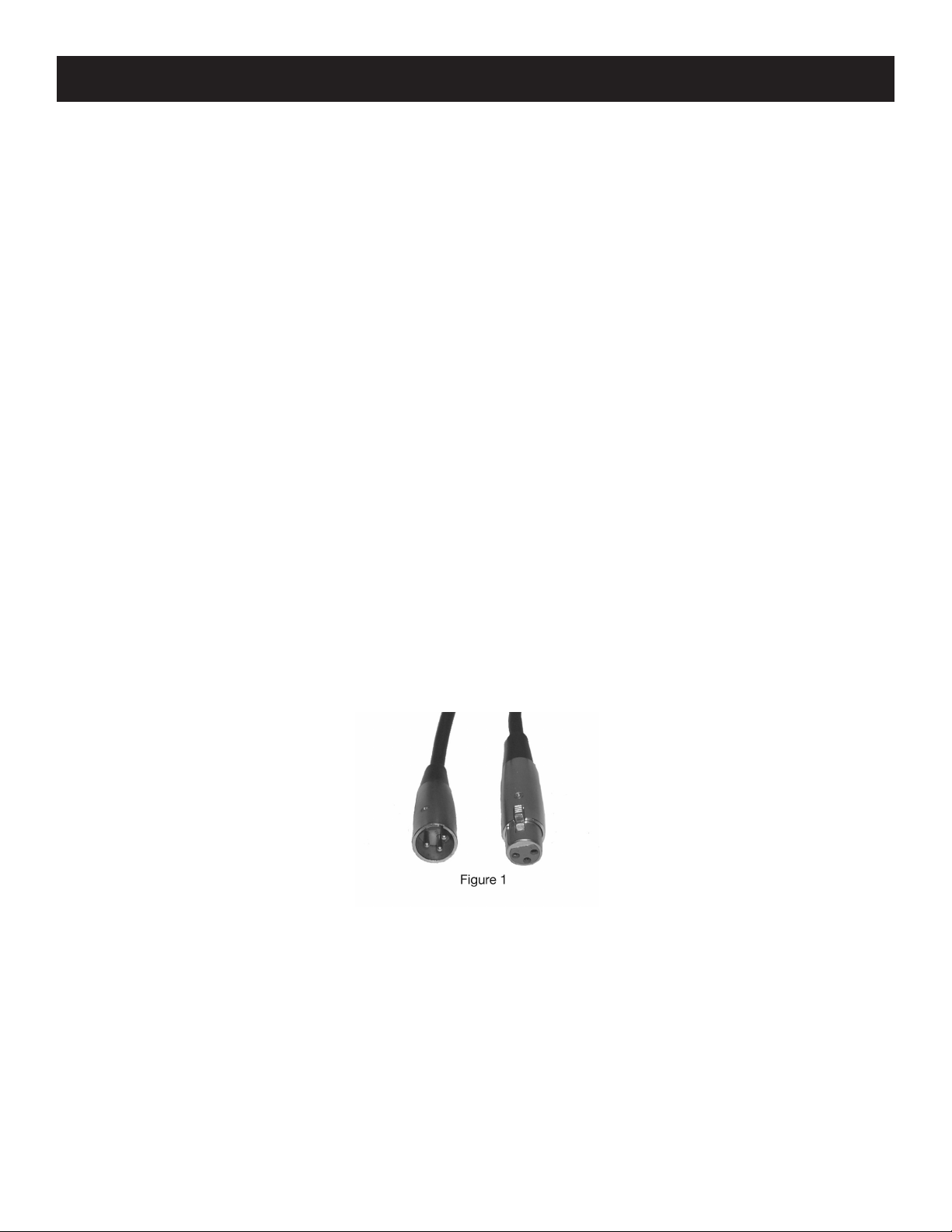

DMX controller require an approved DMX-512 110 Ohm Data cable for data input and data output
(Figure 1). We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to
use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all professional
sound and lighting stores).
Your cables should be made with a male and female XLR connector on either end of the cable. Also
remember that DMX cable must be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 12
Focus Spot One DMX Set Up
Notice: Be sure to follow figures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug
or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connects (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the possiblity of erratic behavior.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA trans-
mission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When insert-
ing standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are
readily available at most electric stores. The chart below details a proper cable conversion

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 13
Focus Spot One 15 Channel Mode

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 14
Focus Spot One 15 Channel Mode

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 15
Focus Spot One 15 Channel Mode

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 16
Focus Spot One 17 Channel Mode

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 17
Focus Spot One 17 Channel Mode

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 18
Focus Spot One 17 Channel Mode

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 19
Focus Spot One System Menu

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 20
Focus Spot One System Menu
Software Version
> 1.3
