Introduction 1
DLAP-4000
1 Introduction
1.1 Overview
ADLINK’s DLAP-4000 Series of embedded computing platforms,
incorporating Intel®Core™i7/i5/i3 processors, provides 2 internal
SATA trays, 1 M.2 2280 drive, 1 Mini PCIe slot and 1 PCIe x16
slot optimizing easy maintenance in industrial automation environ-
ments with the most compact size and optimized thermal design,
accommodating the largest graphic cards. The DLAP-4000 series
supports DDR4 memory for more powerful computing and the
Intel®HD Graphics 630 speeds graphics performance.
1.2 Features
X8th/9th Gen Intel® Core™ i7/i5/i3 FCLGA1151 processor
and H310 chipset
X2x DDR4 SODIMM socket, supporting up to 32GB DDR4
2666 SODIMM Module
X1x DisplayPort, 1x HDMI, 1x DVI-D supporting 2 indepen-
dent displays w/ H310
X6 External USB ports (4x USB 3.0, 2x USB 2.0)
X Built-in 8-bit GPIO, 1x RS-232/422/485 and 4x RS-232 ports
XOnboard SATA 6Gb/s port for 2.5” HDD/SSD installation,
and SATA 6Gb/s
XBuilt-in 100V AC to 240V AC, 300W/500W Flex ATX PSU

2Introduction
Leading EDGE COMPUTING
1.3 Packing List
Before unpacking, check the shipping carton for any damage. If
the shipping carton and/or contents are damaged, inform your
dealer immediately. Retain the shipping carton and packing mate-
rials for inspection. Obtain authorization from your dealer before
returning any product to ADLINK. Ensure that the following items
are included in the package.
XDLAP-4000 Embedded Computer
XAccessory Box
ZUS power cord
ZWall-mount brackets
ZScrew pack

Specifications 3
DLAP-4000
2 Specifications
DLAP-4000
System Core
Processor
XIntel® Core™ i7-9700E, 2.6GHz, 12M Cache, 65W TDP,
LGA1151, DDR4 2666MHz support (8C/8T)
XIntel® Core™ i5-9500E, 3.0GHz, 9M Cache, 65W TDP,
LGA1151, DDR4 2666MHz support (6C/6T)
XIntel® Core™ i3-9100E, 3.1GHz, 6M Cache, 65W TDP,
LGA1151, DDR4 2666MHz support (4C/4T)
XIntel® Core™ i7-9700TE, 1.8GHz, 12M Cache, 35W TDP,
LGA1151, DDR4 2666MHz support (8C/8T)
XIntel® Core™ i5-9500TE, 2.2GHz, 9M Cache, 35W TDP,
LGA1151, DDR4 2666MHz support (6C/6T)
XIntel® Core™ i3-9100TE, 2.2GHz, 6M Cache, 35W TDP,
LGA1151, DDR4 2666MHz support (4C/4T)
XIntel® Core™ i7-8700, 3.2GHz, 12M Cache, 65W TDP,
LGA1151, DDR4 2666MHz support (6C/12T)
XIntel® Core™ i5-8500, 3.0GHz, 9M Cache, 65W TDP,
LGA1151, DDR4 2666MHz support (6C/6T)
XIntel® Core™ i3-8100, 3.6GHz, 6M Cache, 65W TDP,
LGA1151, DDR4 2400MHz support (4C/4T)
XIntel® Core™ i7-8700T, 2.4GHz 12M Cache, 35W TDP,
LGA1151, DDR4 2666MHz support (6C/12T)
XIntel® Core™ i5-8500T, 2.1GHz, 9M Cache, 35W TDP,
LGA1151, DDR4 2666MHz support (6C/6T)
XIntel® Core™ i3-8100T, 3.1GHz, 6M Cache, 35W TDP,
LGA1151, DDR4 2400MHz support (4C/4T)
Chipset Intel® H310 Chipset
Memory Non-ECC DDR4 2666/2400MHz, 2x SO-DIMM, up to 32GB
(dependent on CPU) system memory
PEG Card
Support
NVIDIA®
Quadro®
P2200
NVIDIA®
Quadro®
RTX 4000
NVIDIA®
Quadro®
RTX 5000
NVIDIA®
Quadro®
RTX 6000
NVIDIA®
Quadro®
RTX 8000
Table 2-1: DLAP-4000 Specifications

4 Specifications
Leading EDGE COMPUTING
I/O Interface
Display
1x DVI-D connector (rear), resolution up to 1920 x 1200 @ 60 Hz
1x DP connector (rear), resolution up to 4096 x 2304 @ 60 Hz
1x HDMI connector (rear) resolution up to 4096 x 2160 @ 30 Hz
Additional display output from PEG cards
Ethernet 2x GbE (Realtek RTL8111G)
Serial Ports 1x RS-232/422/485, 4x RS-232
USB 4x USB 3.1 Gen1 ports, 2x USB 2.0 ports
DIO 1x 8-bit GPIO
Mini PCIe 1x Mini PCIe slot (USB 2.0 and PCIe x1)
M.2 1x M.2 M key (SATA 6Gb/s)
Expansion 1x PCIe x16 slot
Audio Mic-in, Line-out, Line-in
TPM 2.0 Optional
Storage
2.5" SATA 2x 2.5" SATA 6Gb/s internal drive bays
Mechanical
Dimensions 220 x 300 x 150 mm (W x D x H)
Power Supply
AC Input 100V to 240V AC
Output
Rating 300W 500W 500W 500W 500W
Environmental
Operating
Temperature 0°C to 50°C 0°C to 50°C 0°C to 40°C 0°C to 40°C 0°C to 40°C
Storage
Temperature -20°C to 60°C
Humidity 5% to 90%, non-condensing
Vibration Operating: 1Grms, 5-500Hz, 3 axes (with 2.5" SSD and PEG card)
Non-operating: 2Grms, 5-500Hz, 3 axes
Shock Operating: 20G, 11ms duration, half sine
Non-operating: 30G, 11ms duration, half sine
EMC EN55032/35, EN61000-6-2/-4, CE, FCC Part 15B Class B
Safety UL/cUL, CB
DLAP-4000
Table 2-1: DLAP-4000 Specifications

Specifications 5
DLAP-4000
2.1 DLAP-4000 Functional Block Diagram
Figure 2-1: DLAP-4000 Functional Block Diagram
TPM 2.0 (Optional)
SLB9665TT2.0
DP Conn.
(1.2)
DVI-D
BIOS (256Mb UEFI)
Intel®H310
Chipset
NCT6106D
WDT
H/W Monitor
Intel®Core™
i7/i5/i3 Processor
(formerly “Coffee Lake
Refresh”)
LGA 1151 Socket
SATA #0
LPC
Audio
DMI 3.0
Vercal SODIMM
DDR4 (non ECC)
Channel A
SPI
SPI Header
SATA Port 1
DDI1
RTL 8111 G RJ-45
MDIxPCIe x1
ALC892
(ALC888S)
RS-232/422/485
DB9 x1
RS232 Header x4
CPU Fan x1
Sys Fan x1
PCIe x16 slot
Vercal SODIMM
DDR4 (non ECC)
Channel B
PCIe x16
CH5711
Passive Level Shier
HDMI Conn.
(1.4b) ASM1442K Level Shier
TMDS
LVDS
HDA
HDA
Rear I/O Conn. x1
(Line-In, Line-Out, Mic-In)
Front Audio header x1
(Line-Out, Mic-In)
LPC Header
UART1
UART2~5
Fan
Fan
GPIO Header x1 8-bit GPIO
SATA Port 2
SATA #2 M.2
PCIe x1
Mini-PCIe
USB 2.0
USB 2.0
Header
USB 2.0
USB 3.0 Port
x2
USB 3.1 Gen2 (H310: USB 3.1 Gen1)
USB 2.0
RTL 8111 G RJ-45
MDIxGbE
USB 3.0 Port
x2
USB 3.1 Gen2 (H310: USB 3.1 Gen1)
USB 2.0
SPI
HDA
LPC
GPIO
PCIe #11
PCIe #12
PCIe #13
PCIe #14
PCIe #15
PCIe #5
USB 2.0 #10
USB 2.0 #7/#8
USB 2.0 #3/#4
USB 3.1 #3/#4
USB 2.0 #1/#2
USB 3.1 #1/#2

6 Specifications
Leading EDGE COMPUTING
2.2 Display Options
With computing and graphic performance enhancement from its
8th & 9th Generation Intel processors, the DLAP-4000 controller
can support or two independent displays, with configurations as
follows.
Table 2-2: Maximum Display Resolutions
Port Resolution
Display Option 1 DisplayPort1 4096x2304@60Hz
Display Option 2 HDMI 4096x2160@30Hz
Display Option 3 DVI-D 1920x1200@60Hz

Specifications 7
DLAP-4000
2.3 Mechanical Dimensions
All dimensions in millimeters (mm).

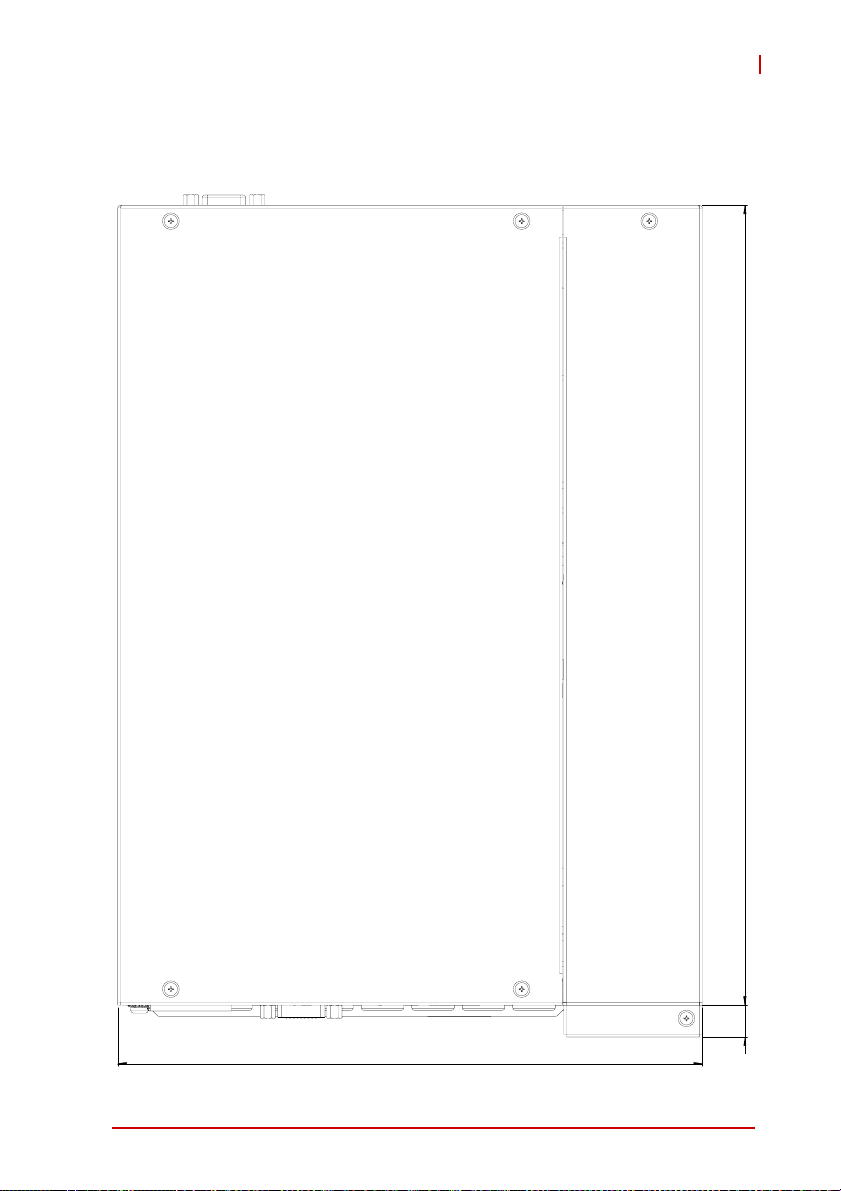

Figure 2-2: DLAP-4000 Top View
220
301
12

8 Specifications
Leading EDGE COMPUTING

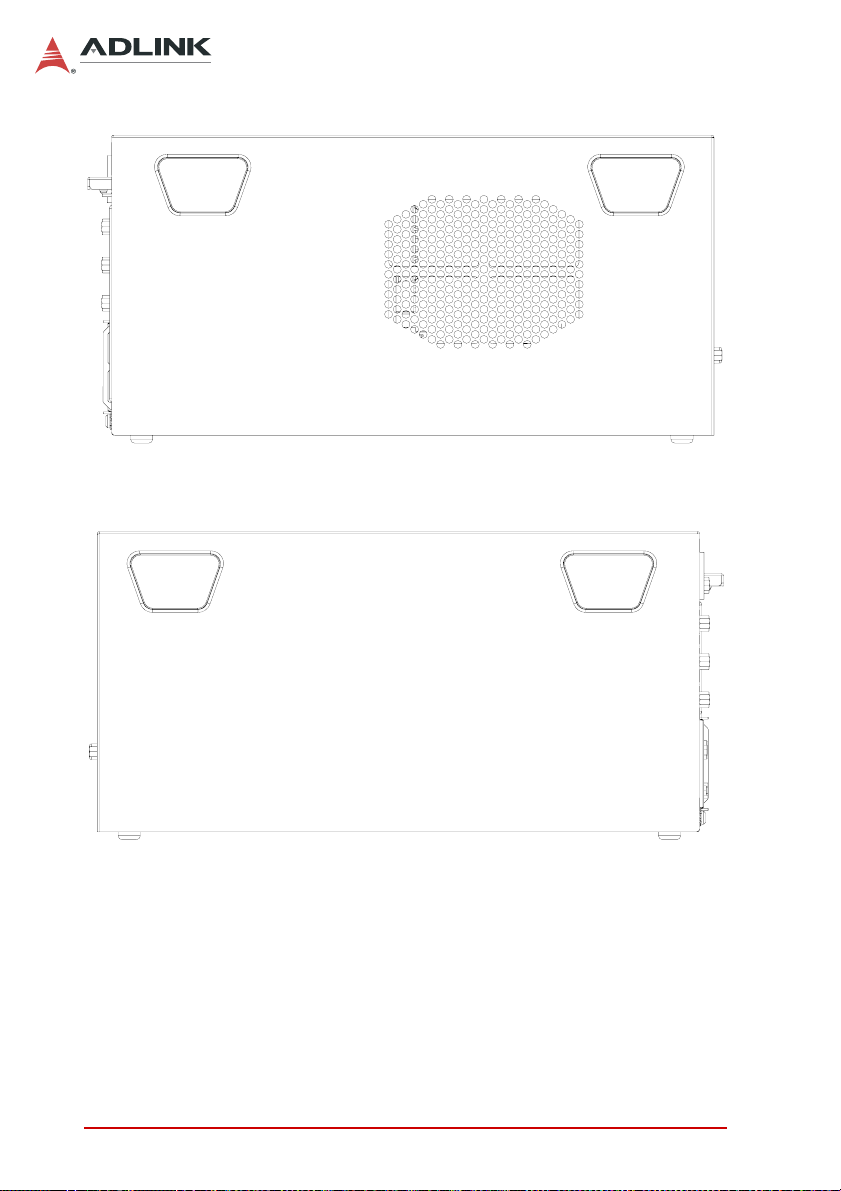

Figure 2-3: DLAP-4000 Right Side View
Figure 2-4: DLAP-4000 Left Side View

Specifications 9
DLAP-4000

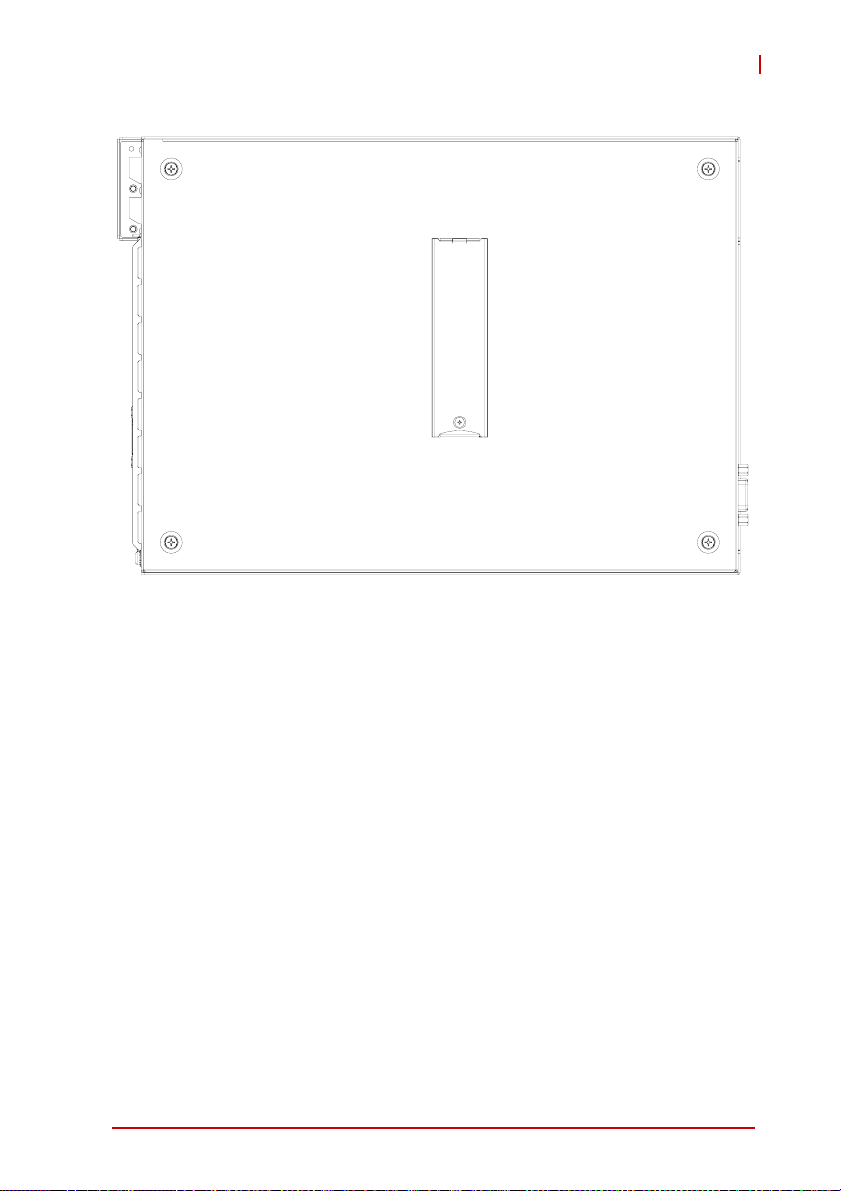

Figure 2-5: DLAP-4000 Bottom View

10 Specifications
Leading EDGE COMPUTING
Figure 2-6: DLAP-4000 Rear View
