Advaning FS SERIES User manual

FS SERIES
Free Standing Awning
Owner’s Manual
For your safety and the safety of others, please read all of the instructions and warnings
in this manual carefully before proceeding with assembly and usage.

The awning arms contain tensioned
cables. Always use caution, securely tie
the awnings arms to the awning when
performing installation, adjustments, or
repairs. Sudden movement of tension
arms can result in serious personal injury,
product and/or property damage.
CAUTION
1
In order to avoid
accidental injury or
product damage,
DO NOT remove
the safety restraints
from the awning’s
lateral arms until
instructed to do so.
Table of contents ....................................................... 1
Safety instructions and warnings.........................................1~2
Package contents and parts .............................................. 3
Tool requirements ...................................................... 4
Awning terminology and location .......................................... 4
Assembled dimensions .................................................. 5
Assembly
Foot/base and leg assembly ........................................ 6
Securing awning module ........................................... 7
Bracing the awning ............................................... 8
Operation
Ready the awning ................................................ 9
Operating and adjustments........................................ 10
Accessories .................................................... 11
Maintenance.......................................................... 12
Warranty and support ...............................................13~14
!
!
TABLE OF CONTENTS

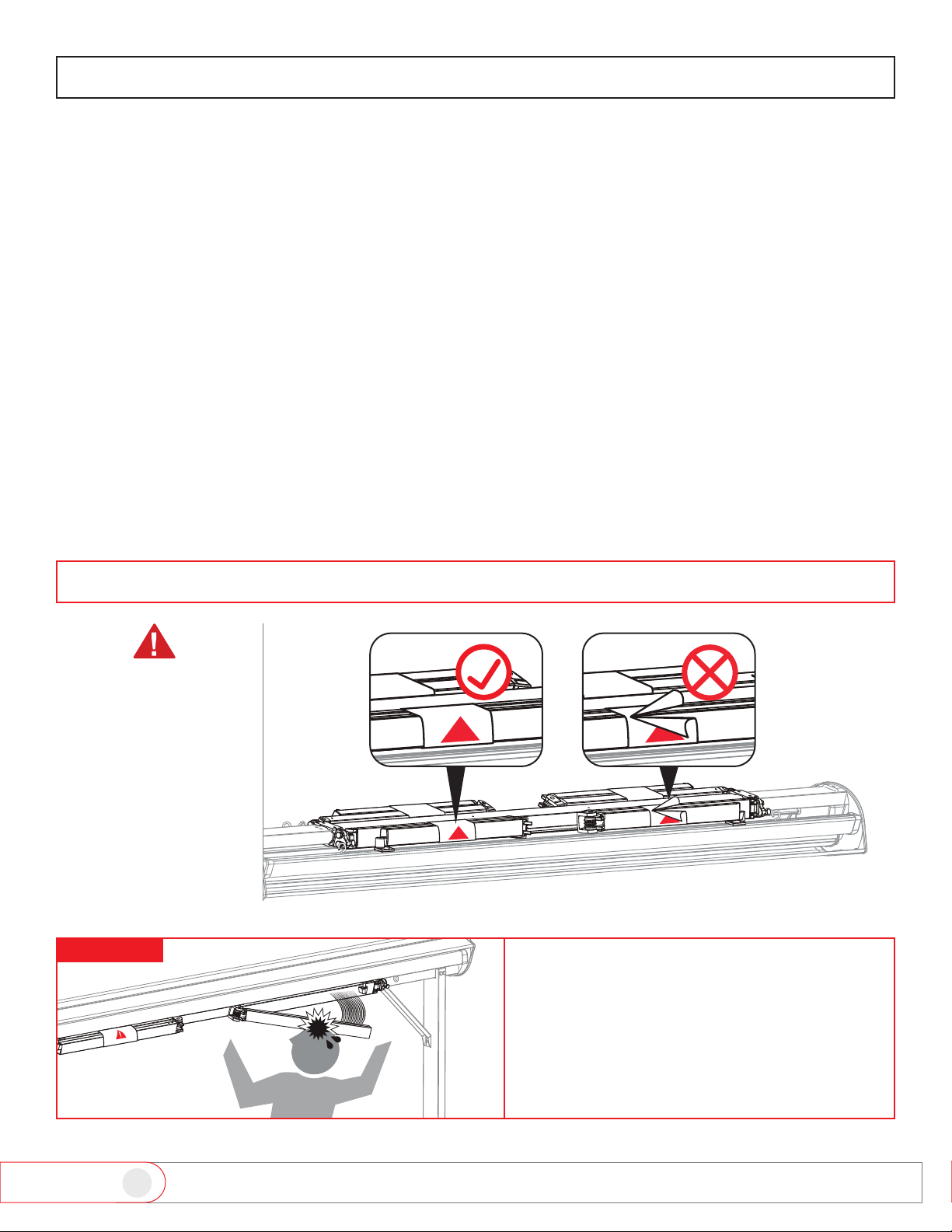

SAFETY INSTRUCTIONS AND WARNINGS
Fig.1
www.advaning.com
!
!
!
!

2
A B C
For your safety, we
strongly recommend the
following during assembly
and installation:
A. Minimum 2 people
B. Work gloves
C. Safety goggles
Installation
• Pay close attention throughout the assembly and installation process to ensure that the Advaning awning is
assembled and installed properly and according to the safety guidelines outlined herein.
• Do not attempt assembly or installation while under the inuence of alcohol or drug substances.
• Do not remove the safety restraints from the awning’s lateral arms until instructed to do so. The arms con-
tain tensioned springs and may release very quickly. Always ensure no persons or objects are directly in arm
projection path at all times.
• Do not proceed with an assembly or installation if you feel that you cannot properly and safely complete,
please seek assistance.
• Always wear protective gear and gloves when handling sharp metal parts.
• Only perform assembly/installation/maintenance/cleaning in dry and optimal weather conditions.
• 2 or more persons are recommended for assembly and installation. Assembly will require to lift the assem-
bled awning module onto the legs. Ensure help is available to help lift and secure in place.
Usage
• Only perform assembly/installation/maintenance/cleaning in dry and optimal weather conditions.
• Do not place any heat source or open ame under or near the awning.
• Do not place or stand objects or persons on the awning itself. Doing so can damage the awning or cause
severe personal injury and in extreme cases death.
• Do not carry out any maintenance other than what is shown in this manual. For any issues that are not cov-
ered in this manual, please seek support from Advaning Customer Service. Email: [email protected]
• The product should only be operated by an adult that understands all the functions and operations. Please
keep unsupervised children away from playing with the awning or its parts.
• The product should be used only as described in this Advaning Owner’s manual.
SAFETY FIRST, PLEASE READ THE FOLLOWING POINTS TO REDUCE THE RISK OF
PERSONAL INJURY.
SAFETY INSTRUCTIONS AND WARNINGS
DO NOT Keep awning
open during:
D. RAIN
E. SNOW
F. STRONG WINDS
G. UNSUPERVISED
PERIODS
D E F G Fig.3
Fig.2
www.advaning.com

3

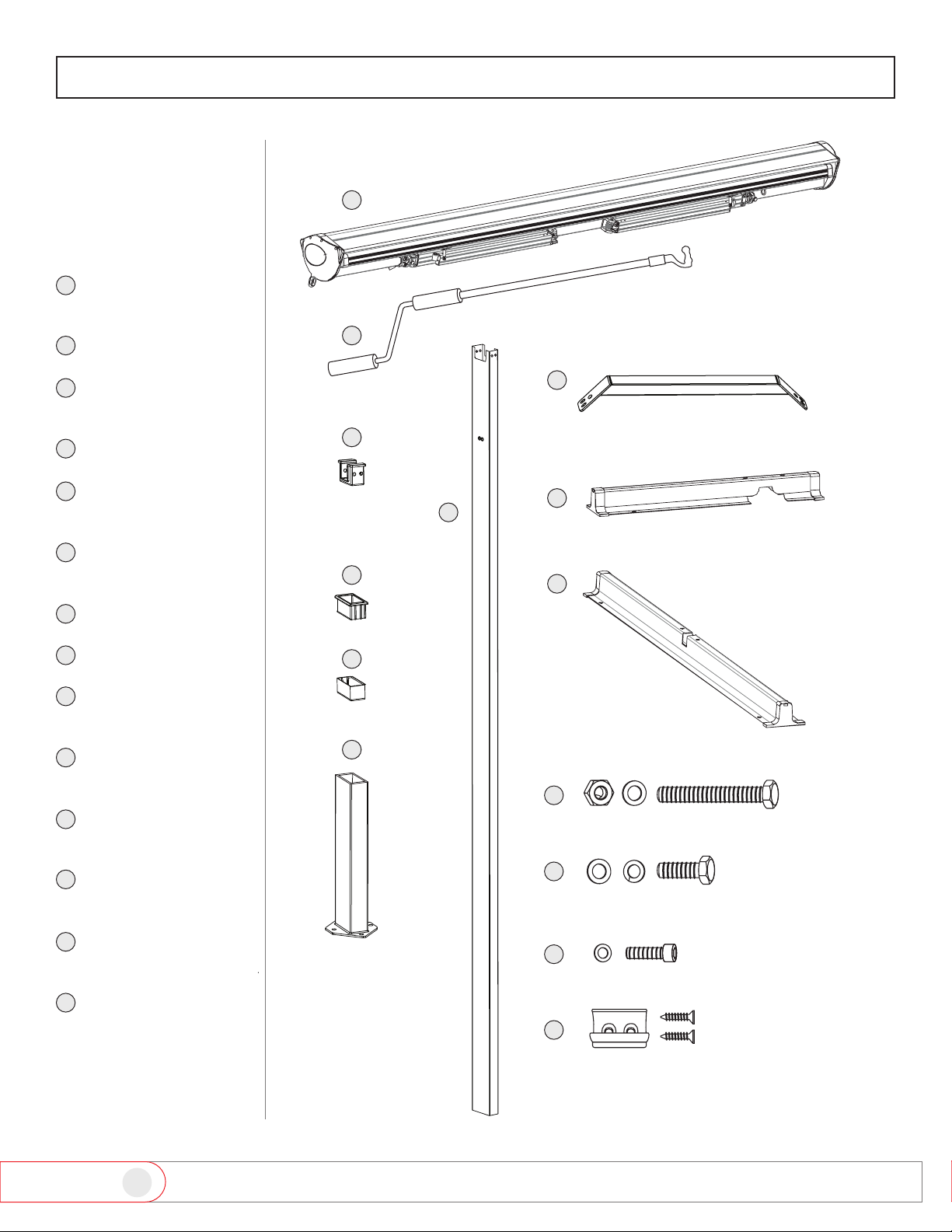

PACKAGE CONTENTS AND PARTS
Before attempting your
assembly, please ensure
that the package contains
all parts and qty’s as
listed on this page.
Fig.4
www.advaning.com
[Qty: 1] Awning
Module
[Qty: 1] Hand Crank
[Qty: 2] Upright Leg
Cover
[Qty: 2] Upright Leg
[Qty: 2] Lower Leg
Cover
[Qty: 2] Lower Leg
Coupling Insert
[Qty: 2] Lower Leg
[Qty: 2] Support Brace
[Qty: 2] Short Foot/
Base
[Qty: 2] Long Foot/
Base
[Qty: 4] Upright Leg
Bolt Set
[Qty: 8] Lower Leg
Bolt Set
[Qty: 8] Support Brace
Bolt Set
[Qty: 2] Hand Crank
Clip Set
M
N
L
K
J
A
I
C
D
E
F
G
B
H
A
E
F
C
G
B
D
J
K
L
M
N
H
I

4

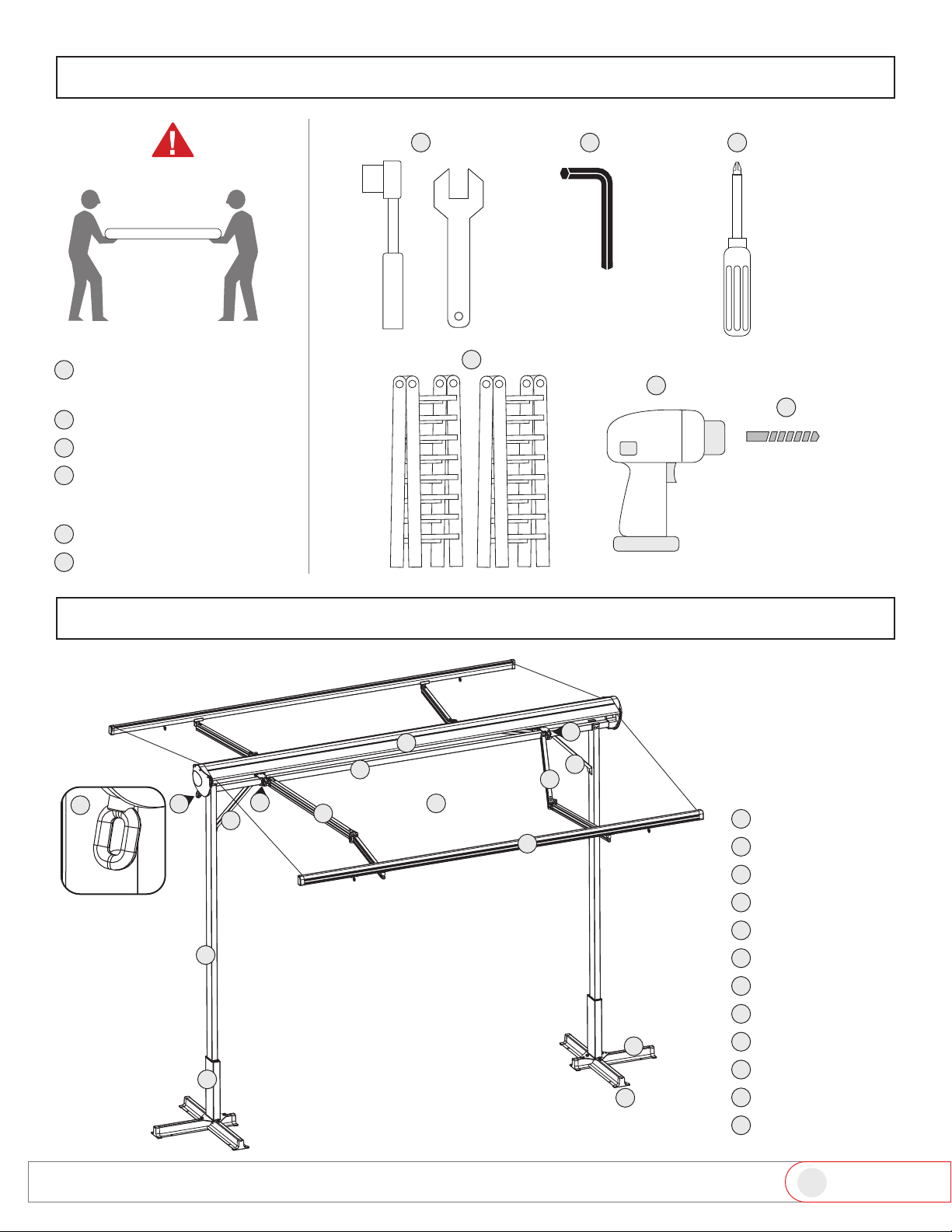

TOOL REQUIREMENTS
AWNING TERMINOLOGY AND LOCATION
Fig.6
Fig.5
Awning Module
Arm Shoulder
Awning’s Torsion Bar
Crank Loop
Awnings Fabric
Front Bar
Retractable Arm
Supporting Brace
Upright Leg
Lower Leg
Short Foot/Base
Long Foot/Base
REQUIRED TOOL LIST
OTHER SUGGESTED TOOLS
½” Socket Wrench /
Wrenches
5 mm Allen Wrench
Phillips Head Screwdriver
Ladders (2)
Power Drill
Metal Drill Bits/Screws
Minimum 2 people to install
www.advaning.com
1
4
3
5
3
1
2
6
5
7
7
6
11
12
11
10 10
12
1
3
6
7
8
8
8
9
9
2
4
5
1
4
5
2
3
6
2
2
4
4

5
ASSEMBLED DIMENSIONS
SIZE: 11FT X 10FT
SIZE: 14FT X 10FT
Fig 8
Fig 7
www.advaning.com
132”
175”
124”
167”
57”
57”
99”
99”
120”
120”

6
NOTE: Make sure the
screw holes on the
upright leg are facing
the short segment of the
assembled cross base.
FOOT/BASE AND LEG ASSEMBLY
Fig 11 Fig 12
Fig 9
Fig 10
ASSEMBLING
THE AWNING’S
SUPPORT
STRUCTURE
Join the Short over
the Long Foot/Base
by aligning the cross
slots, creating a cross
base.
Align the Lower Leg
to the cross base pre-
drilled holes, insert
the Lower Leg Bolt
Sets (Part L = Bolt,
Lock Washer, Washer)
and with a ½” wrench
securely tighten in
place.
Ensure the Upright
Leg Cover is inserted
to top of Upright Let
Ensure the Lower
Leg Coupling Insert
is inserted and at the
base of the Lower Leg
and insert the Lower
Leg Cover onto Low-
er Leg.
Insert the Upright Leg
into the Lower Leg.
Repeat steps for ad-
ditional leg support.
www.advaning.com
*NOTE: For best stability
ensure the long section
of cross base is facing
outward and short sec-
tion is aligned with the
Upright Leg’s horizontal
pre-drilled brace holes.
Reference Fig.12.
1
2
2
5
4
3
1
3
4
5
6

7

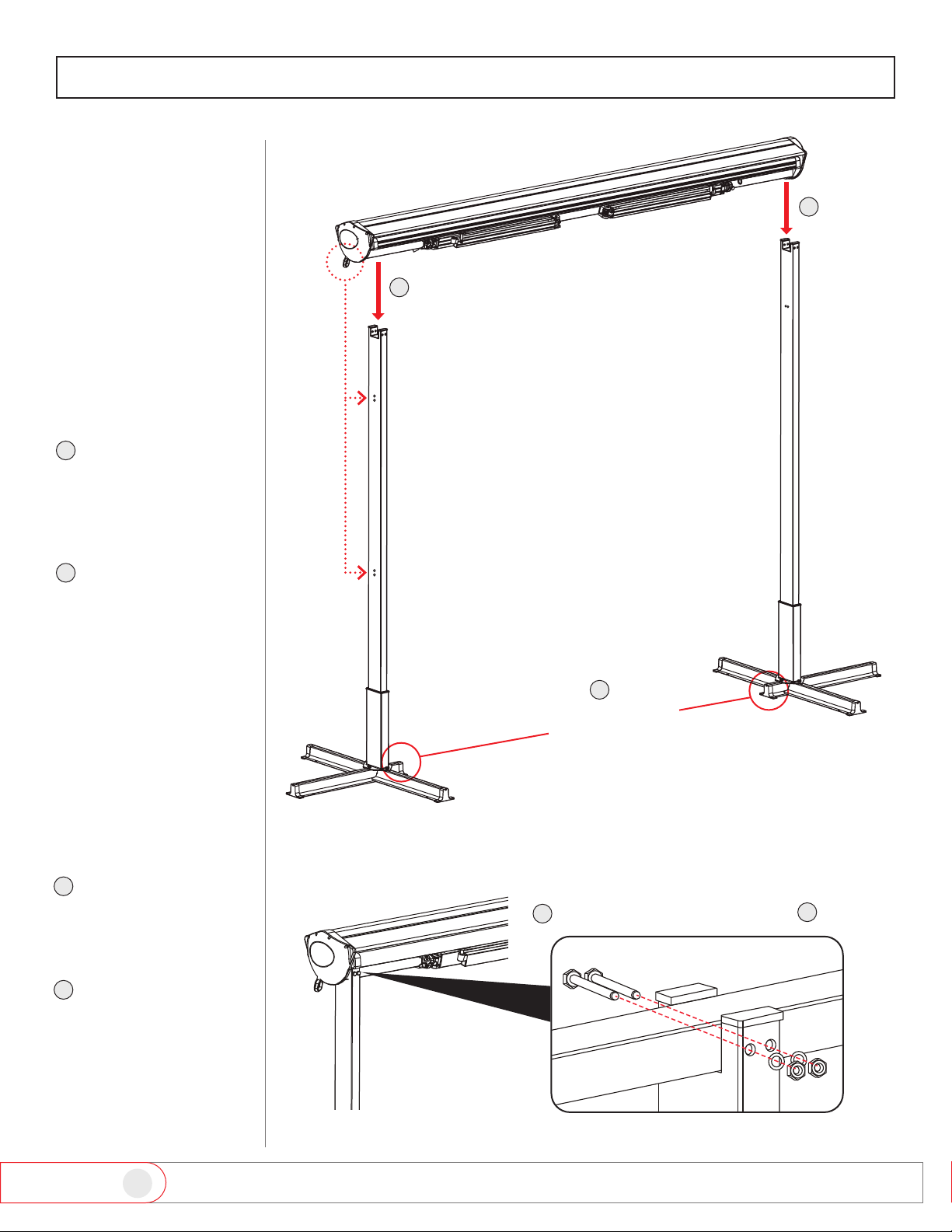

SECURING AWNING MODULE
Fig 13
Fig 14
JOINING THE
AWNING TO THE
SUPPORT LEG
STRUCTURE
Prepare the legs by
placing them upright
with short section
of cross base facing
each other.
With ladders and
helper/s, carefully lift
the assembled Aw-
ning Module, placing
the torsion bar direct-
ly onto the Upright
Leg slot.
Align the pre-drilled
screw holes of Aw-
ning Module’s torsion
bar and Upright Leg.
Insert the Upright
Leg Bolt Set (Part K
= Bolt, Washer, Nut)
and securely tighten
with a ½” Socket
Wrench or Wrench.
SAFETY NOTICE: Ensure
the awning is placed on a
secure and level ground
or deck. Installing and us-
ing the awning on an un-
even ground/deck may
cause the awning to tilt
and fall.
www.advaning.com
NOTE: Notice the up-
right leg with 2 sets of
vertical pre-drilled holes,
this leg should be con-
nected under the aw-
nings crank loop.
7
7
8
8
8
9
910
short segments
face each other
10

8
Fig 15
Fig 16

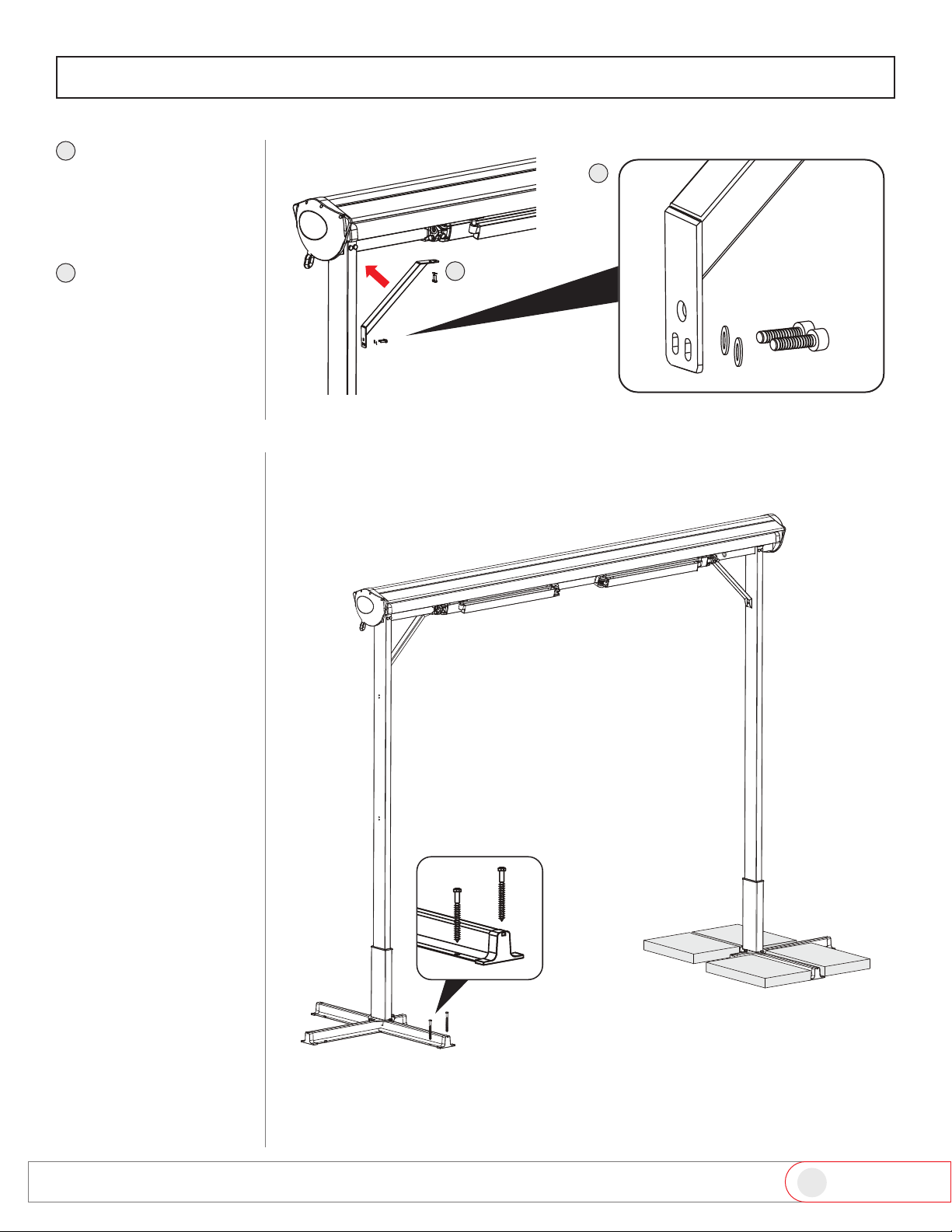

BRACING THE AWNING
Place and align the
Support Brace to pre-
drilled holes of Aw-
ning Model’s torsion
bar and Upright Leg.
With a 5mm Allen
Wrench secure the
Support Brace with
4 Support Brace Bolt
Sets (Part# M = Bolt
and Washer) per side.
Option A
With a drill and metal drill
bit, drill holes directly
through each lip section
of the cross base (we
recommend a minimum
of two per section). Use
a *quality outdoor rated
screw, bolt or stake to se-
cure to ground/deck.
Option B
Use a *2” thick concrete
or stone paver, by di-
rectly laying onto each lip
section of the cross base.
*NOT INCLUDED, Please
consult with your hard-
ware store specialist to
determine the best size/
depth for your specic
ground/deck type.
BRACING THE
AWNING’S FOOT/
BASE TO GROUND
Securing the awning’s
foot/base will add stabil-
ity and prevent the aw-
ning from tilting or mov-
ing during windy weather.
www.advaning.com
12
11
12
11
Option A
Option B

9

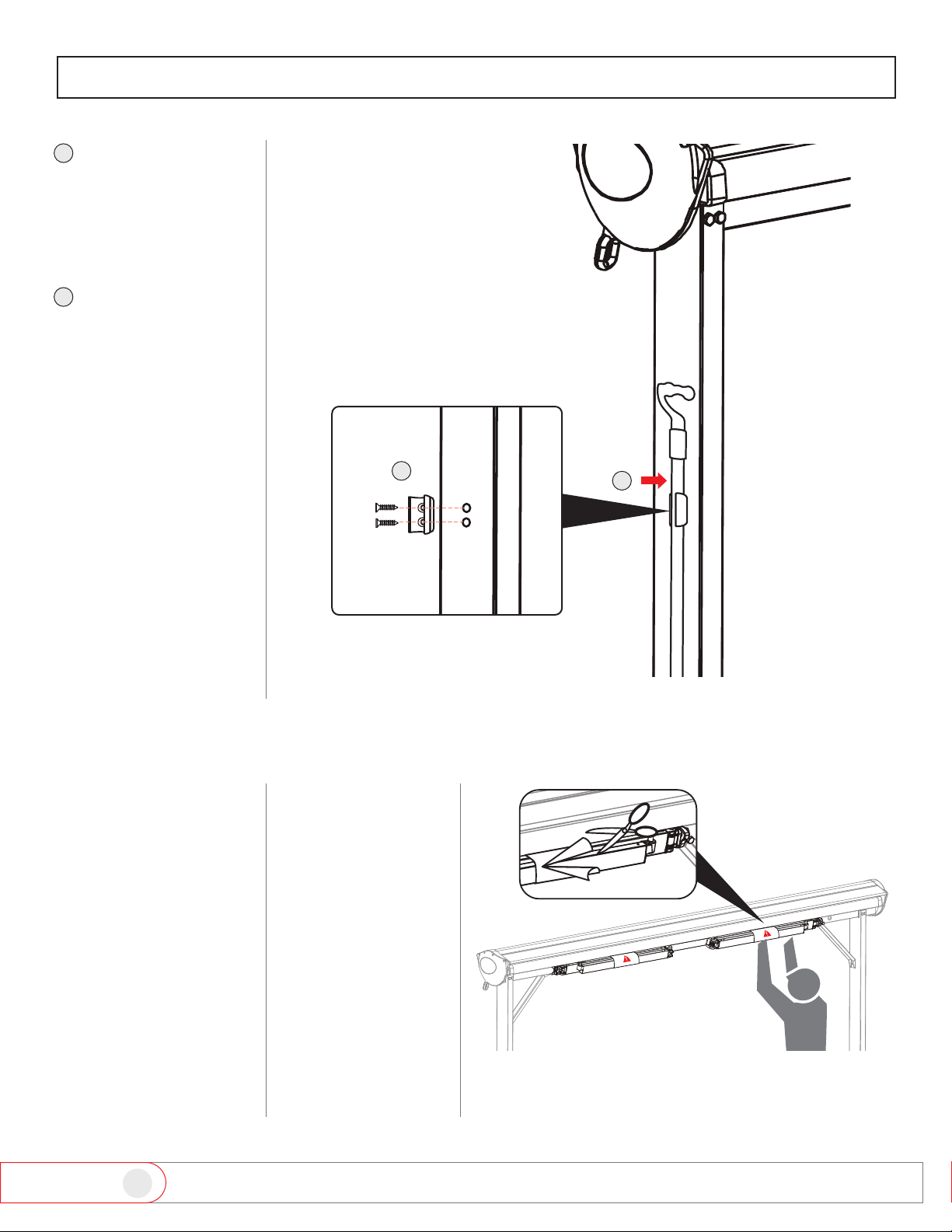

READY THE AWNING
Fig 18
www.advaning.com
Align the plastic Hand
Crank Clip (Part N) to
Upright Legs vertical
Pre-drilled and with a
Phillips Head Screw-
driver secure in place.
Clip the Hand Crank
in place (when not in
use)
Fig 17
Position yourself under
the awning and carefully
cut the safety restraints
from the retractable arms
with scissors.
Avoid damaging the aw-
ning – Do Not Use a Knife
or Blade to cut restraints.
SAFETY WARNING:
Before removing
the safety restraints
make sure that no
persons or objects
are directly in arm
projection path.
The arms contain
tensioned springs
and may release very
quickly.
READY THE
AWNING
14
13
13 14

30˚
5˚
30˚
5˚
10
Insert the Hand Crank
hook into the gear loop
and turn to open the
awning entirely.
Switch Hand Crank
turning direction to close
the awning.
NOTE: Continuing to
turn the Hand Crank in
the same direction to
open the awning will
eventually begin to close
the awning.
TIP: To keep a taught
canopy, stop turning
before the aluminum
roller tube becomes
visible.
OPERATING AND ADJUSTMENTS
The FS Series awning al-
lows for pitch tilt adjust-
ments to the canopy.
For detailed instructions
please visit www.advan-
ing.com FS Series down-
loads.
OPERATE THE
AWNING
ADJUSTING THE
AWNING
Fig 19
Fig 20
www.advaning.com

11
ACCESSORIES
www.advaning.com
The FS Series awning in-
cludes adjustable hooks
on both front bars.
These hooks allow for 3rd
Party Accessories to be
hung.
• Shade/Privacy Screen
• Lights
• Party Streamers/ban-
ners
Before hanging any ac-
cessory from the hooks
ensure it does not ex-
ceed the 10 lbs. weight
limit.
CAUTION: Hanging any-
thing over 10 lbs. may
cause irreparable dam-
age not covered under
warranty.
ACCESSORIES
Fig 20

12
MAINTENANCE
Always retract and keep your awning fully closed whenever inclement weather is
in the forecast to prevent damage from accumulated water, snow or from strong
gusts of wind. Advaning recommends protecting the awning with a soft cover
during prolonged periods of non-use.
Note: Strong winds can cause the fabric canopy to shift if left open. In the case
of shifting fabric or should the fabric become free from either the front bar or
aluminum roller tube, promptly close the awning, secure the arms with ties/straps
and contact Advaning’s customer service department for assistance. Rain, snow,
and/or hail can directly damage the fabric canopy and cause pooling, which may
then lead to arm malfunction or collapse. Always close the awning whenever
rain, snow, and/or hail is in the forecast.
Should your fabric canopy get soaked by rain or hose, it is recommended to allow
the fabric to fully dry before closing/retracting. Soaked fabric can provide an
environment where mold and mildew can grow. If the awning must be retracted
while soaked, make sure to open it as soon as the weather permits to allow for
full drying.
To clean your awning fabric, lower the pitch (see page 10) and open the awning to
access the top of the fabric and for proper drainage. Use a mild soap and water
mix (1 part soap to 2 parts water) and a standard garden hose to gently remove
any accumulated dust, dirt, or debris. Raise the pitch to its regular setting and
allow the awning to fully dry before retracting/closing. To dust the awning, a
damp cloth, chamois, or soft bristle brush is recommended.
The FS Series awning is made of powder-coated steel and aluminum and, with
care, can last for many years. It is important to regularly (seasonally) inspect the
fasteners and connections and the condition of the metal components.
PROTECTING THE
FRAME
PREPARING
YOUR AWNING
FOR INCLEMENT
WEATHER
PROTECTING THE
FABRIC FROM
MILDEW
CLEANING THE
FABRIC
www.advaning.com

13 www.advaning.com
WARRANY AND CUSTOMER SERVICE
ADVANING 3-YEAR LIMITED MANUFACTURER’S WARRANTY FOR FREE STANDING (FS) SERIES
RETRACTABLE AWNING
Advaning’s warranty provides coverage for all of its original Advaning FS Series awnings that are sold and
installed within the United States of America and Canada to be free of defects of materials and workmanship.
This warranty only applies to the original owner/purchaser of the product and is only effective on a basis of
thirty six (36) months or three (3) years from the date of purchase. Any defects or issues presented to Advaning
within the warranty period will be promptly handled by Advaning customer service and resolved within a
reasonable timeframe.
Entire awning framework, including extruded & die cast component parts, springs & cables are covered.
Should the purchaser/original owner submit a warranty claim within the warranty period Advaning will provide
a resolution option that may include; new replacement parts or instructions for repair or both. Powder coated
and painted nishes are excluded and are NOT covered under this limited warranty.
During the warranty period, owners in Canada, Hawaii, Alaska and Puerto Rico are covered for parts/
replacements at no charge, however, the owner would assume all shipping/handling and applicable duties and
taxes. Advaning’s Warranty does not cover any return shipping or prepaid return labels. Should the purchaser/
owner notify Advaning within the warranty period from the date of the original purchase and after deemed
defective by Advaning, will the warranty claim be resolved by either of the following: A. Defective component
replacement (shipping charges may apply), B. Detailed instructions for correcting the issue, Or a combination
of both A and B.
WARRANTY LIMITATION AND EXCLUSION
The warranty will be in effect once the awning is fully paid for.
Advaning is not responsible for damages due to faulty modications, installation, or re-installation.
Advaning assumes no liability for damage to the structure to which the awning is attached, or to the property
located underneath the awning. This limited warranty does not cover damage from ice, snow, hail, high winds,
vandalism, neglect, improper use, or any natural disasters. This limited warranty does not cover degradation
due to salt corrosion, oxidation, and chipping or peeling of the paint.
Problems and Warranty Claims
If you experience a problem with your Advaning product, please contact Advaning Customer Service at
[email protected].
• Prior to contacting Advaning via phone or email for warranty claims, please have your model name/
number, serial/lot number, original proof of purchase*, and a description of difculty experience ready
for our Customer Service team. Most issues can be resolved over the telephone by our trained Customer
Service representatives. If any issues arise that cannot be solved over the phone or email, Advaning will
issue a Return Merchandise Authorization (“RMA”) number, and arrange replacement parts for you.
*Proof of Purchase: A valid sales/purchase receipt is required with authorized reseller/retailer name, the
purchase date and the model number of the item purchased.
• Submitting a claim will not extend or alter the warranty coverage period. Any work done by a 3rd party
or non-authorized person/Advaning agent will void the warranty.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED. NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

14
WARRANY AND CUSTOMER SERVICE
www.advaning.com
ARE GIVEN, ANY AND ALL LIABILITY FOR BREACH OF ANY IMPLIED WARRANTY OR WARRANTY CREATED
BY LAW IS DISCLAIMED.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you.
UNDER NO CIRCUMSTANCES SHALL ADVANING, INCLUDING ITS SUBSIDIARIES AND AFFILIATES BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ECONOMIC LOSS, INJURY,
DEATH OR PROPERTY DAMAGE, WHETHER AS A RESULT OF BREACH OF THIS WARRANTY, NEGLIGENCE
OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you in
whole or in part. This warranty gives you specic legal rights. You may also
have other rights that vary from state to state.
What is Not Covered by the Advaning Limited Warranty
This warranty is non-transferable and does not cover product purchases from the initial buyer to a third party.
This warranty does not cover incidental damages, such as loss of time, loss of use, or installation costs of
defective, repaired or replaced product. This warranty does not cover product that has been damaged or
rendered defective as a result of:
(a) Neglect, abuse or misuse.
(b) Modication of the original product.
(c) Improper use or installation using products not manufactured by Advaning.
(d) Service provided by anybody other than Advaning.
(e) Abnormal mechanical or environmental conditions.
(f) Unusual physical or electrical stress -including failure or uctuation of electrical power, lighting, static
electricity, re, tornadoes, or other natural disasters.
Shipping Damage Claim:
On the occasion of a damage claim caused by the shipper/shipping company, the owner must contact their
point of sale and the delivering freight carrier within 3 days of signing for the delivery in order to make a
claim. Failure to report freight damage and missing parts in a timely manner and in accordance to the carrier’s
guidelines may result in you incurring all costs. Likewise, there are 5 days from the time of delivery to report
missing parts to Advaning.
For more information, please contact the corporate ofce.
Advaning Customer Service Center
Email: [email protected]
LIMITED TIME OFFER – Free, 8 Months *Extra Warranty Coverage
Register your awning purchase within 60 days of purchase along with **installation photos to receive an *Extra
8 months of warranty coverage.
www.advaning.com/warranty-registration
*parts only, shipping not included. / **submitting photos grants Advaning permission to reproduce any portion
of the photo image for print, web, or any other marketing purpose including social media outlets.

CONTACT
INFORMATION
Product Questions?
Please contact Advaning via email at [email protected],
by phone at 714-622-2600, or by chat on our website;
www.advaning.com
Advaning Customer Service is available Monday through
Friday from 8:30 a.m. to 4:00 p.m. PST
www.advaning.com
FS.OM.V04.2209
