Advantech SmartStart Series Guide

Start Guide
SmartStart, SmartFlex, SmartMotion

Start Guide
Safety instructions
Please take care to following instructions:
•Use the router in compliance with national and international law and in compliance with
any special or additional restrictions regulating the use of the router in the various appli-
cations and environments.
•To avoid possible injury and/or damage to the device, observe the relevant provisions
and standards. Use only the original accessories as recommended. Unauthorized de-
vice or accessory modification, or using accessories that have not been approved can
result in router damage and/or violation of the regulations.
•Unauthorized device or accessory modification or using the accessories that have not
been approved can result in warranty termination.
•Do not open the router.
•Caution! The SIM card can be swallowed by small children.
•When connecting the device to a power supply do not exceed the defined voltage.
•Do not expose the router to extreme ambient conditions. Protect the router against dust,
moisture, and high temperature.
•Only routers with appropriate certification and labelling should be used in locations where
flammable and explosive materials are present, including gas stations, chemical plants,
or locations in which explosives are used. We remind users of the duty to observe the
restrictions concerning the utilization of radio devices at such places.
•While using the router close to personal medical devices, such as cardiac pacemakers
or hearing aids, proceed with heightened caution.
•Operating the router too close to TV sets, radio receivers, personal computers, or tele-
phones can cause interference.
•It is recommended that you create a copy or backup of the important settings stored in
the memory of the router.
QSG-0002-EN, January 24, 2020 1Released in the Czech Republic

Start Guide
Product Disposal Instructions
The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) direc-
tive was introduced to ensure that electrical/electronic products are recycled us-
ing the best available recovery techniques in order to minimize impact on the en-
vironment. This product contains high-quality materials and components which
can be recycled. At the end of it’s life this product MUST NOT be mixed with
other commercial waste for disposal. The device contains the battery. Remove
the battery from the device before disposal. The battery in the device needs to be disposed
apart accordingly. Check the terms and conditions of your supplier for disposal information.
Open Source Software License
The software in this device uses various pieces of open-source software governed by the
following licenses:
•GPL versions 2 and 3
•LGPL version 2
•BSD-style licences
•MIT-style licences
The list of components together with complete license texts can be found on the device
itself. See Licenses link at the bottom of the router’s main Web page (General Status) or point
your browser to this address (replace the DEVICE_IP string with real router’s IP address):
https://DEVICE_IP/licenses.cgi
This is a written offer valid for 3 years since the device purchase offering any third party
for a charge no more than the cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code on a flash drive medium. If you are
interested in obtaining the source, please contact us at:
[email protected]
Modifications and debugging of LGPL-linked executables:
The manufacturer of the device hereby grants the right to use debugging techniques (e.g.
decompilation) and making customer modifications of any executable linked with an LGPL
library for own purposes. Note these rights are limited to the customer’s own usage. No further
distribution of such modified executables and no transmission of the information obtained
during these actions may be done.
QSG-0002-EN, January 24, 2020 2Released in the Czech Republic

Start Guide
QSG-0002-EN, January 24, 2020 3Released in the Czech Republic

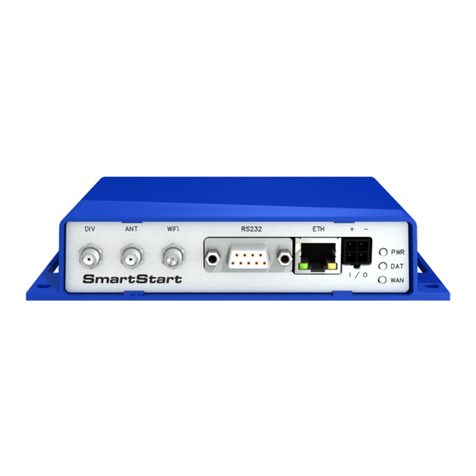

SmartStart
SmartStart Router
SL302, SL304, SL306
QSG-0002-EN, January 24, 2020 4Released in the Czech Republic

SmartStart
First Use
Before applying power to the router, connect the components that you required for your
applications. You cannot operate the router without a connected antenna, inserted SIM card,
nor a connected power supply.
If you do not have connected the main antenna during operation of the router, the router
can be damaged!
1. Antenna
Use an SMA connector to connect the antennas to the router. The main antenna is con-
nected to the router by screwing on the ANT connector (see the figure below). A second
diversity antenna can also be connected to the DIV connector to improve performance.
2. SIM card
The SIM card readers, for 3 V and 1.8 V SIM cards, are located on the rear panel of the
router. If you intend to use this device to communicate over a cellular network, please place
an activated data-provisioned SIM card with an unblocked PIN into the SIM card reader. Push
your SIM card into the SIM1 or SIM2 slot until it clicks in place.
QSG-0002-EN, January 24, 2020 5Released in the Czech Republic

SmartStart
Before handling the SIM card disconnect the router from the power supply!
3. Power
The router requires an external DC power supply. The DC voltage required is between
+9 to +36 V DC. The router has built-in protection against reverse polarity without signaling.
Connect the power supply cable to the PWR connector on the front panel of the router (see
the figure below).
QSG-0002-EN, January 24, 2020 6Released in the Czech Republic

SmartStart
4. Ethernet
An Ethernet cable may be connected to the ETH connector (designated as ETH0 in some
versions of this router) on the front panel (see the figure above). By default, the Ethernet port
is configured as follows:
Connector Purpose Default Setting
ETH LAN port (default)
Connect your laptop or PC to this port to
get a local web-server for device configu-
ration and diagnostics.
DHCP Server
IP Address: 192.168.1.1
NetMask: 255.255.255.0
Configuration
1. Configuring the Device Using the Web Browser
You can access the router for status monitoring, configuration, and administration after
entering the IP address of the router into the web interface. The default router IP address is
192.168.1.1 (netmask 255.255.255.0). Configuration access is allowed for the user "root". The
default password is printed on the router’s label.1Attention, it is necessary to use HTTPS
protocol for secure communication over a network! For a detailed description and exam-
ples of the router configurations, see the Configuration manual.
2. Configuration Settings via WebAccess/DMP
If your router has been pre-installed with the WebAccess/DMP client, you may configure it
from WebAccess/DMP. Navigate your browser to:
https://hub.bb-smartworx.com
If this is your first time, please register with the site. If not, please login with your username
and password. Once logged in, further assistance can be found here:
http://hub.bb-smartworx.com/Login/Help?HelpFile=hub.pdf
3. Restoring and Backing up the Router Configuration
After you reset the router, the current configuration is overwritten by the default settings.
We recommend that you back up the router configuration before resetting the device. Refer to
the Configuration manual for more information.
1If the router’s label does not contain a unique password, use the password "root".
QSG-0002-EN, January 24, 2020 7Released in the Czech Republic

SmartStart
When the PWR LED starts blinking, it is possible to restore the default configuration of the
router by pressing the RST button on the rear panel. After pressing this button, the default
configuration is restored and then the router reboots (green LED will be on).
Important Notes
After logging on to the device for the first time, we strongly recommend changing the
default password due to security reasons. Simultaneously, you will gain access to all
functions of the router.
For security reasons, it is highly recommended to update the firmware of the router to the
latest version regularly. Downgrading the firmware to an older version than the production
version or uploading a firmware intended for a different device may cause the malfunction
of the device.
Documentation
User’s Manual and Configuration Manual for the router can be found and downloaded on
this web site: www.advantech-bb.cz/download
Hereby, Advantech Czech s.r.o. declares that the radio equipment type SmartStart
SL304 is in compliance with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following internet address:
www.advantech-bb.cz/eudoc
QSG-0002-EN, January 24, 2020 8Released in the Czech Republic

SmartStart
QSG-0002-EN, January 24, 2020 9Released in the Czech Republic

SmartFlex
SmartFlex Router
SR300, SR303, SR304, SR305, SR306,
SR307, SR308, SR309
QSG-0002-EN, January 24, 2020 10 Released in the Czech Republic

SmartFlex
Hazardous Locations Installation Instructions
These instructions apply for SR300,SR303 and SR305 versions with appropriate labeling
only!
These devices are open-type devices that are to be installed in an enclosure suitable for the
environment and can only be accessed with the use of a tool or key.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, AND D OR non-
hazardous locations only.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS PO-
WER HAS BEEN REMOVED OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY IM-
PAIR SUITABILITY FOR CLASS I, DIVISION 2.
WARNING – EXPLOSION HAZARD – BATTERIES MUST ONLY BE CHANGED IN AN AREA
FREE OF IGNITIBLE CONCENTRATION.
All antennas, antenna cables and wiring have not been evaluated as external wiring.
Cet équipement est convenable en Classe 1, Division 2, Groupes A, B, C, et D endroits
dangereux OU endroits non dangereux seulement.
AVERTISSEMENT – RISQUE D’EXPLOSION – NE DÉCONNECTEZ PAS L’ÉQUIPEMENT,
SAUF SI L’ALIMENTATION A ÉTÉ COUPÉE OU SI L’ENVIRONMEMENT EST CLASSÉ NON
DANGEREUX.
AVERTISSEMENT – RISQUE D’EXPLOSION – SUBSTITUTION DE TOUTE COMPOSANTE
RISQUERAIT LA QUALITÉ POUR CLASSE 1, DIVISION 2.
AVERTISSEMENT – RISQUE D’EXPLOSION – LES BATTERIES DOIVENT ÊTRE REM-
PLACÉES DANS UN ENDROIT EXEMPT DE CONCENTRATIONS INFLAMMABLES.
First Use
Before applying power to the router, connect the components that you required for your
applications. You cannot operate the router without a connected antenna, inserted SIM card,
nor a connected power supply.
If you do not have connected the main antenna during operation of the router, the router
can be damaged!
SmartFlex SR300 routers are not equipped with a cellular module, which means that SIM
card readers and antenna connectors are not available on the router.
QSG-0002-EN, January 24, 2020 11 Released in the Czech Republic

SmartFlex
1. Antenna
Use an SMA connector to connect the antennas to the router. The main antenna is con-
nected to the router by screwing on the ANT connector (see the figure below). A second
diversity antenna can also be connected to the DIV connector to improve performance.
2. SIM card
The SIM card readers, for 3 V and 1.8 V SIM cards, are located on the rear panel of the
router. If you intend to use this device to communicate over a cellular network, please place
an activated data-provisioned SIM card with an unblocked PIN into the SIM card reader. Push
your SIM card into the SIM1 or SIM2 slot until it clicks in place.
Before handling the SIM card disconnect the router from the power supply!
QSG-0002-EN, January 24, 2020 12 Released in the Czech Republic

SmartFlex
3. Power
The router requires an external DC power supply. The DC voltage required is between
+10 to +60 V DC. The router has built-in protection against reverse polarity without signaling.
Connect the power supply cable to the PWR connector on the front panel of the router (see
the figure below).
4. Ethernet
An Ethernet cable may be connected to the ETH0 connector on the front panel (see the
figure above). By default, this Ethernet port is configured as follows:
Connector Purpose Default Setting
ETH0 LAN port (default)
Connect your laptop or PC to this port to
get a local web-server for device configu-
ration and diagnostics.
DHCP Server
IP Address: 192.168.1.1
NetMask: 255.255.255.0
Configuration
1. Configuring the Device Using the Web Browser
You can access the router for status monitoring, configuration, and administration after
entering the IP address of the router into the web interface. The default router IP address is
192.168.1.1 (netmask 255.255.255.0). Configuration access is allowed for the user "root". The
default password is printed on the router’s label.2Attention, it is necessary to use HTTPS
protocol for secure communication over a network! For a detailed description and exam-
ples of the router configurations, see the Configuration manual.
2If the router’s label does not contain a unique password, use the password "root".
QSG-0002-EN, January 24, 2020 13 Released in the Czech Republic

SmartFlex
2. Configuration Settings via WebAccess/DMP
If your router has been pre-installed with the WebAccess/DMP client, you may configure it
from WebAccess/DMP. Navigate your browser to:
https://hub.bb-smartworx.com
If this is your first time, please register with the site. If not, please login with your username
and password. Once logged in, further assistance can be found here:
http://hub.bb-smartworx.com/Login/Help?HelpFile=hub.pdf
3. Restoring and Backing up the Router Configuration
After you reset the router, the current configuration is overwritten by the default settings.
We recommend that you back up the router configuration before resetting the device. Refer to
the Configuration manual for more information.
When the PWR LED starts blinking, it is possible to restore the default configuration of the
router by pressing the RST button on the rear panel. After pressing this button, the default
configuration is restored and then the router reboots (green LED will be on).
Important Notes
After logging on to the device for the first time, we strongly recommend changing the
default password due to security reasons. Simultaneously, you will gain access to all
functions of the router.
For security reasons, it is highly recommended to update the firmware of the router to the
latest version regularly. Downgrading the firmware to an older version than the production
version or uploading a firmware intended for a different device may cause the malfunction
of the device.
Documentation
User’s Manual and Configuration Manual for the router can be found and downloaded on
this web site: www.advantech-bb.cz/download
Hereby, Advantech Czech s.r.o. declares that the radio equipment type SmartFlex
SR300 (versions with radio interface only), SR303,SR304,SR305,SR306 and SR307
is in compliance with Directive 2014/53/EU.
SmartFlex SR300 versions without radio interface are in compliance with the essential require-
ments and other relevant provisions of Directives 2014/30/EU and 2014/35/EU.
The full text of the EU Declaration of Conformity is available at the following internet address:
www.advantech-bb.cz/eudoc
QSG-0002-EN, January 24, 2020 14 Released in the Czech Republic

SmartFlex
QSG-0002-EN, January 24, 2020 15 Released in the Czech Republic

SmartMotion
SmartMotion Router
ST352, ST355
QSG-0002-EN, January 24, 2020 16 Released in the Czech Republic

SmartMotion
First Use
Before applying power to the router, connect the components that you required for your
applications. You cannot operate the router without a connected antenna, inserted SIM card,
nor a connected power supply.
If you do not have connected the main antenna during operation of the router, the router
can be damaged!
1. Antenna
Use an SMA connector to connect the antennas to the router. The main antenna is con-
nected to the router by screwing on the ANT connector (see the figure below). A second di-
versity antenna can also be connected to the DIV connector to improve performance. Three
antenna connectors on the right side of the front panel (ANT,DIV and GPS) are intended for
connecting the antennas to the first module. There are also two antenna connectors for the
second module on the left side (ANT and DIV ).
2. SIM card
The SIM card readers, for 3 V and 1.8 V SIM cards, are located on the rear panel of the
router. If you intend to use this device to communicate over a cellular network, please place
an activated data-provisioned SIM card with an unblocked PIN into the SIM card reader. Push
your SIM card into the SIM1,SIM2,SIM3 or SIM4 slot until it clicks in place.
QSG-0002-EN, January 24, 2020 17 Released in the Czech Republic

SmartMotion
Before handling the SIM card disconnect the router from the power supply!
3. Power
The router requires an external DC power supply. The DC voltage required is between
+10 to +60 V DC. The router has built-in protection against reverse polarity without signaling.
Connect the power supply cable to the PWR connector on the front panel of the router (see
the figure below).
4. Ethernet
An Ethernet cable may be connected to the ETH0 connector on the front panel (see the
figure above). By default, this Ethernet port is configured as follows:
Connector Purpose Default Setting
ETH0 LAN port (default)
Connect your laptop or PC to this port to
get a local web-server for device configu-
ration and diagnostics.
DHCP Server
IP Address: 192.168.1.1
NetMask: 255.255.255.0
QSG-0002-EN, January 24, 2020 18 Released in the Czech Republic

SmartMotion
Configuration
1. Configuring the Device Using the Web Browser
You can access the router for status monitoring, configuration, and administration after
entering the IP address of the router into the web interface. The default router IP address is
192.168.1.1 (netmask 255.255.255.0). Configuration access is allowed for the user "root". The
default password is printed on the router’s label.3Attention, it is necessary to use HTTPS
protocol for secure communication over a network! For a detailed description and exam-
ples of the router configurations, see the Configuration manual.
2. Restoring and Backing up the Router Configuration
After you reset the router, the current configuration is overwritten by the default settings.
We recommend that you back up the router configuration before resetting the device. Refer to
the Configuration manual for more information.
When the PWR LED starts blinking, it is possible to restore the default configuration of the
router by pressing the RST button on the rear panel. After pressing this button, the default
configuration is restored and then the router reboots (green LED will be on).
Important Notes
After logging on to the device for the first time, we strongly recommend changing the
default password due to security reasons. Simultaneously, you will gain access to all
functions of the router.
For security reasons, it is highly recommended to update the firmware of the router to the
latest version regularly. Downgrading the firmware to an older version than the production
version or uploading a firmware intended for a different device may cause the malfunction
of the device.
Documentation
User’s Manual and Configuration Manual for the router can be found and downloaded on
this web site: www.advantech-bb.cz/download
Hereby, Advantech Czech s.r.o. declares that the radio equipment type SmartMotion
ST352 and ST355 is in compliance with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following internet address:
www.advantech-bb.cz/eudoc
3If the router’s label does not contain a unique password, use the password "root".
QSG-0002-EN, January 24, 2020 19 Released in the Czech Republic
