AEG BL18DPS User manual

BL18DPS
Original instructions

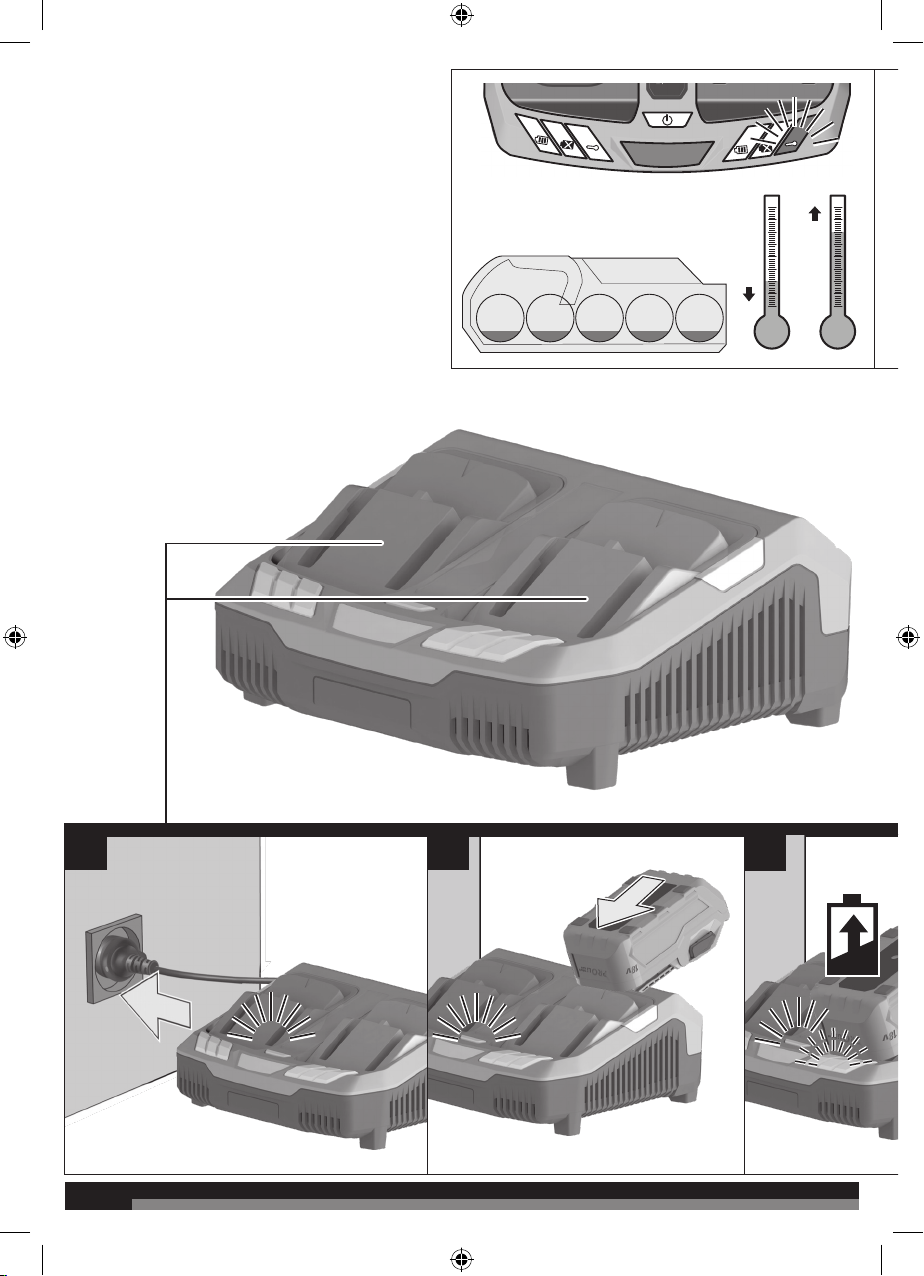

2
2
1
contact?
100 %
3
5
4
100%
Defective battery or improper contact. Contact service
agent for support.
Out side of charging temperature
Normal charging Charging complete
0°C
50°C
0°C
50°C
2

33
1
contact?
100 %
3
5
4
100%
Defective battery or improper contact. Contact service
agent for support.
Out side of charging temperature
Normal charging Charging complete
0°C
50°C
0°C
50°C
2

4
4
Important!
This appliance is not intended to be used or cleaned by persons
with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, unless they have been given instructions
concerning the safe use of the appliance by a person legally
responsible for their safety. They should be supervised whilst
using the appliance.
Children shall not use, clean or play with this appliance, which
when not in use should be secured out of their reach.
LED CHARGE INDICATOR
Green Green Red Red Green
No battery
Evaluation Flash On
On
Fast charging On
Fully charged
Maintenance
charging
On
Standby Full On
Too hot
Too cold OnOn
Defective OnOn
Off Off Off
Off Off Off
On
Off
Flash Off Off
On On Off Off
On Fade Off Off
On Off Off
On Off Off

55
WARNING! Read all safety warnings instructions, illustrations
and specifications provided with this power tool. Failure to follow
all instructions listed below may result in electric shock, fire and/
or serious injury. Save all warnings and instructions for future
reference.
CHARGER SAFETY WARNINGS
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors oer to retrieve old batteries to
protect our environment.
TECHNICAL DATA CHARGER BL18DPS
Input 220 - 240 V 50 Hz 150 W
Output 18V
Quick charge current Li-Ion 5A max
Weight - not including battery pack 1.0 kg
Recommended ambient charging temperature +5 to +40 °C
LED CHARGE INDICATOR
Green Green Red Red Green
No battery
Evaluation Flash On
On
Fast charging On
Fully charged
Maintenance
charging
On
Standby Full On
Too hot
Too cold OnOn
Defective OnOn
Off Off Off
Off Off Off
On
Off
Flash Off Off
On On Off Off
On Fade Off Off
On Off Off
On Off Off
COMPATIBLE BATTERY PACKS
Battery pack Voltage Battery capacity Number of cell for battery Cell type Approximate charge time
L1815R
18 V
≤ 1.5 Ah 5
Lithium-Ion
40 minutes
L1820R ≤ 2.0 Ah 5 50 mintues
L1825R ≤ 2.5 Ah 5 60 minutes
L1830R ≤ 3.0 Ah 5 x 2 70 minutes
L1840R ≤ 4.0 Ah 5 x 2 80 minutes
L1850R ≤ 5.0 Ah 5 x 2 95 minutes
L1860R ≤ 6.0 Ah 5 x 2 110 minutes
L1860R-X5 ≤ 6.0 Ah 5 x 2 95 minutes
L1860B ≤ 6.0 Ah 5 x 2 95 minutes
L1890R ≤ 9.0 Ah 5 x 3 135 minutes

6
6
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System AEG GBS chargers for charging System AEG GBS
battery packs. Do not use battery packs from other systems.
Do not try to charge non-rechargeable batteries with this charger.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Do not touch the tool with conducting objects.
Never charge a damaged battery pack. Replace by a new one.
Before use, check machine, cable, and plug for any damages or
material fatigue. Repairs should only be carried out by authorised
service agents.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool, battery pack
or charger in fluid or allow a fluid to flow inside them. Corrosive or
conductive fluids, such as seawater, certain industrial chemicals, and
bleach or bleach containing products, etc., can cause a short circuit.
SPECIFIED CONDITIONS OF USE
The quick charger is intended to charge AEG system slide 18V
batteries.
Do not use the product in any way other than those stated for
intended use.
MAINS CONNECTION
Connect only to single-phase A.C. current and only to the system
voltage indicated on the rating plate.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C and away
from moisture.
Store the battery packs in a 30% - 50% charged condition.
Every six months of storage, charge the pack as normal.
CHARACTERISTICS
After inserting the battery into the reception of the charger the
battery will be analysed within 10 seconds and then automatically be
charged.
When a hot or cold battery pack is inserted into the charger, charging
will begin automatically once the battery reaches the correct charging
temperature (0°C - 50°C).
Charging time varies depending on the battery temperature, charge
needed and the type of battery pack being charged.
As soon as charging is completed, the charger switches over to
”trickle” charge to maintain the full capacity.
If green and red lamp fade at the same time, either the battery has
not been completely mounted or there is a fault in the battery or the
charger. For safety reasons you must stop using the charger and
battery immediately and have them inspected by an AEG Customer
Service Centre.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legislation
requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
■The user can transport the batteries by road without further
requirements.
■Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
■Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
■Ensure that battery pack is secured against movement within
packaging.
■Do not transport batteries that are cracked or leaking.
Check with forwarding company for further advice.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise and the operator should pay special attention to
avoid the following:
■Use the product only for its intended use. Do not alter or modify
the product from the original design or function.
■Always be aware that misuse and improper handling of the
product can cause injury to yourself and others.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch o the machine automatically. To restart,
switch the machine o and then on again. If the machine does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
MAINTENANCE
If the supply cord of this appliance is damaged, it must only be
replaced by a repair shop appointed by the manufacturer, because
special purpose tools are required.
The ventilation slots of the machine must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should components
need to be replaced which have not been described, please contact
one of our AEG service agents (see our list of guarantee/service
addresses).

77
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797
New Zealand

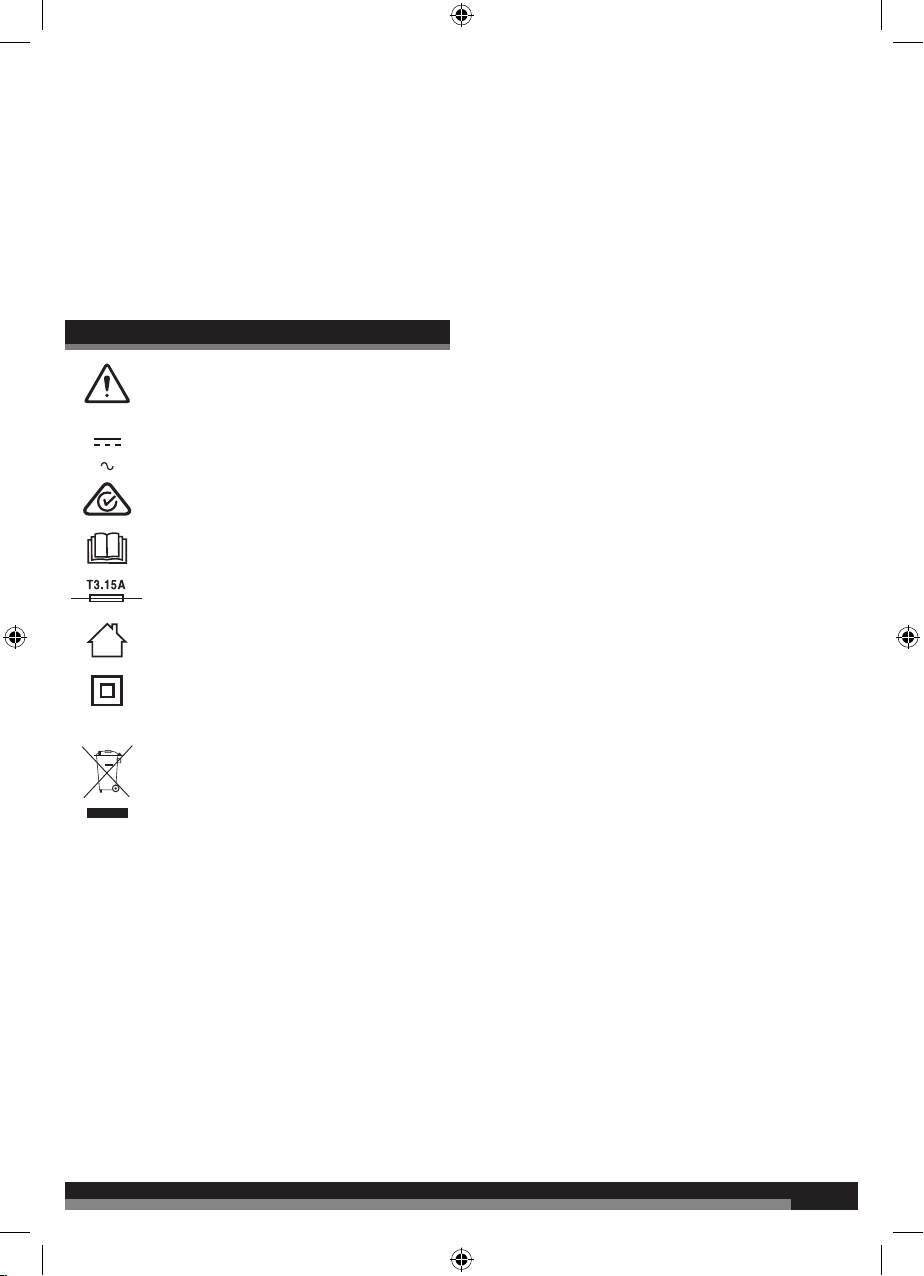

SYMBOLS
Safety alert
VVolts
Direct current
Alternating current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Please read the instructions carefully before starting
the machine.
Time-lag fuse 3.15A
For indoor use only.
Class II tool, double insulation
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the end of
their life must be collected separately and returned
to an environmentally compatible recycling facility.

Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere
Auckland, 2022, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
