AEG Style 5 User manual

CORDED
TELEPHONE
Style 5
QUICK START GUIDE
UK
V3

2
P1
P2
15
14-
1
2
3
4
5
6
12
13
7
9
8
10
11
123
5
8
7
6
9
4
0
M 1
18
15
16
17
19
P3
make sure the plugs
clickintoplace.
18
15
19

3
UK
1 BECAUSE WE CARE
Thank you for purchasing this product. This product has been designed and assembled with utmost
care for you and the environment. This is why we supply this product with a quick installation guide to
reduce the number of paper (pages) and therefor save trees to be cut for making this paper. Thank you
for supporting us to protect our environment.
2 UNPACKING YOUR PHONE
In the box you will find:
•Base Unit
•Handset
•Coiled Handset cord
•Telephone line cord for base unit
•User manual
Keep the packing materials in a safe place in case you later need to transport the unit.
3 INTENDED USE
This telephones is intended to be connected to a public analogue telephone network or to an
analogue extension of an approved compatible PBX system.
4 GETTING TO KNOW YOUR PHONE

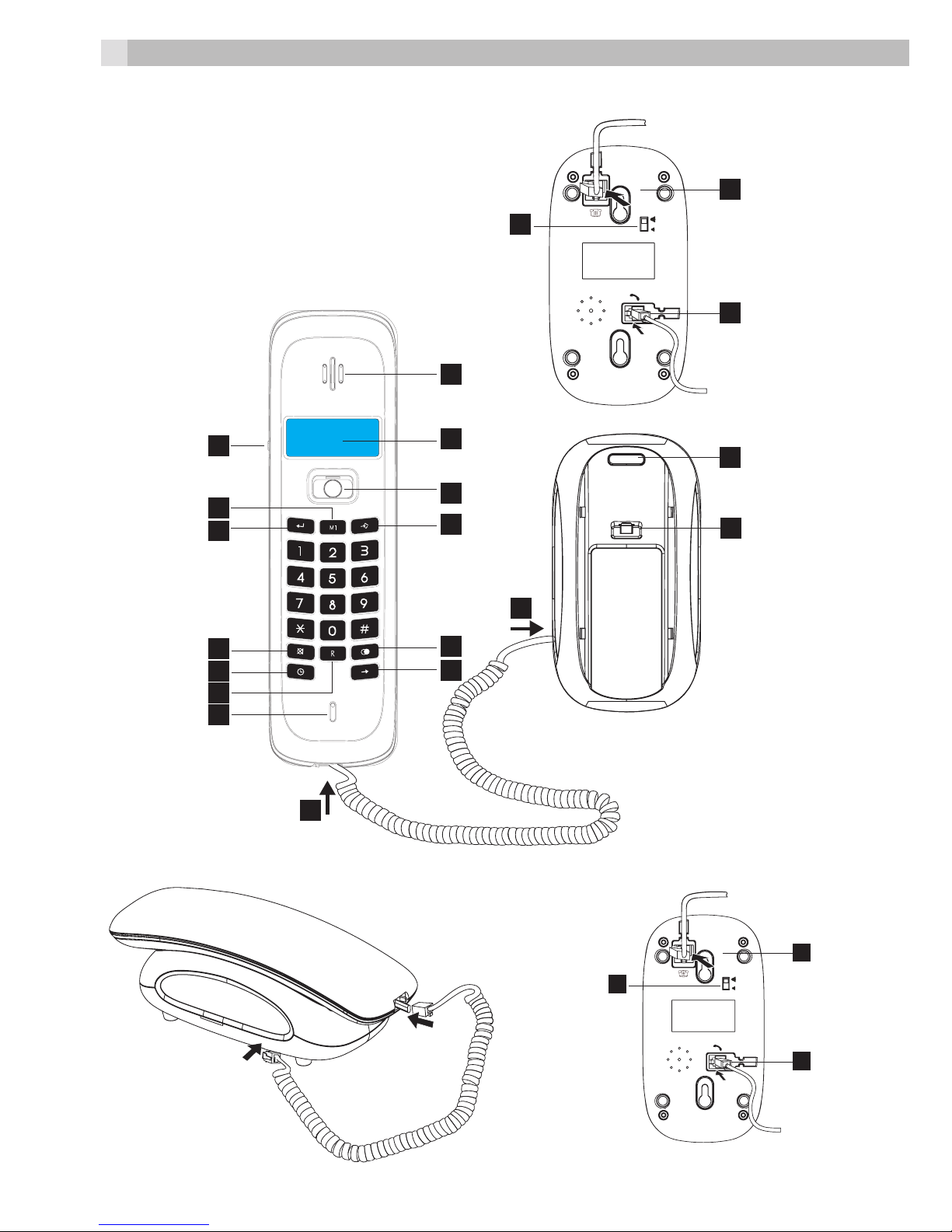

(See P1)
# Meaning
1Earpiece
2LCD Screen
- Displays the number and the duration of a call.
3 Parking Hook recess
4MEM(MEMORY) Button
- Press to store or dial out two-touch memories
5
Pause/Last Number Redial Button
- Press to redial the last number called.Press
to insert a pause.
6CHECK Button
- Press to check the number stored in a memory location.
7RECEIVING VOLUME
- VOL+ Switch
8M1(ONE TOUCH MEMORY) Button
- Press to store or dial the one -touch memory.
9STORE Button
- Press to store numbers in one-or two-touch memories.
10 MUTE Button
- Press and hold during a call to mute the microphone

4
11 TIMER Button
- Press to check the duration of the last call, or to restart the timer.
12 FLASH Button
- Press to send a Flash time for PBX.
13 Microphone
14 Handset cord socket on the handset
15 Handset cord socket on the base unit
16 Hook switch
17 Parking
18 Ringer high/low switch
19 Phone line socket on the base unit
5 INSTALLATION
1. Locating the base unit (See P2 and P3)
The base unit should be placed on a level surface, in a position where:
•the telephone line cable will reach your telephone line socket or extension socket.
•it is not close to a sink, bath or shower, or anywhere else where it might get wet.
•it is not close to other electrical equipment - fridges, washing machines, microwave ovens, TVs,
fluorescent lights, etc.
2. Plug the coiled handset cord into the handset
14
. Plug the other end into the socket on the
bottom of the base unit
15
.
3. Place the handset on the base unit.
4. Plug the telephone line cord into the phone line socket at the back of the base unit
19
and the
other end into your telephone line socket.
5. Lift the handset and check for dial tone in the earpiece.

5
UK

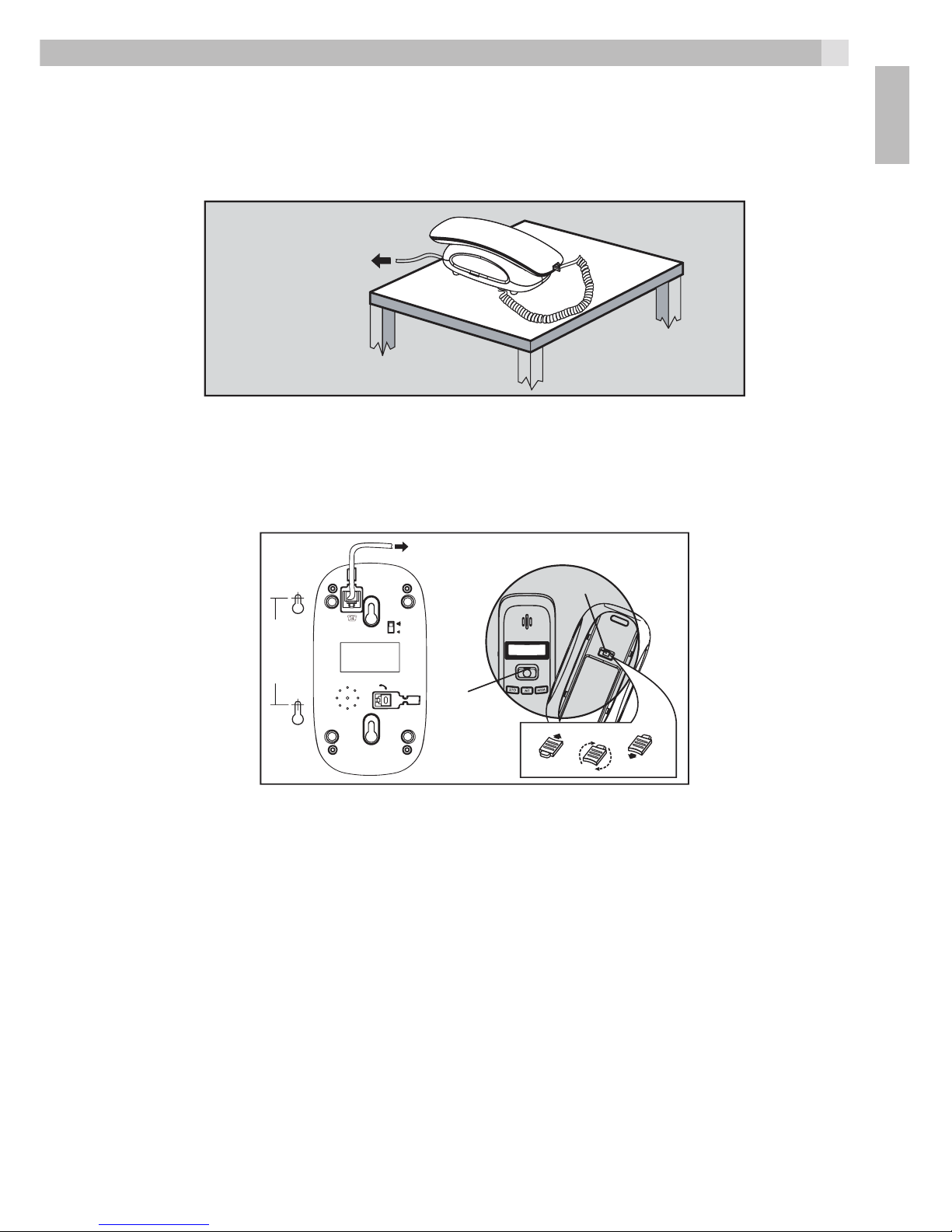

6 DESK/WALL MOUNT INSTALLATION
1. Desk mount
Place the Base unit on any flat surface in a suitable location.
to modular
wall jack
2. Wall mount
To place the Style 5 phone on a wall, mark two points on the wall that are 84mm apart for the screw
positions, as shown below.
m48 m
to modular
wall jack
parking
hook
parking
recess
Slide-out
Rotate
Slide-back in
BE CAREFUL to check that there are no pipes or electrical wires hidden in the wall.
Fix two screws (7mm head screws required, not supplied) at the marked locations, leaving approximately
7mm between the wall and the screw head.
Hang the telephone on the screws using the wall mount slots. You may need adjust the screws so that
the telephone is securely fixed and does not wobble.
Place the handset on the cradle with the parking hook on the cradle arranged to fit in the parking
recess under the earpiece on the handset.
