AEMC 1026 User manual

Digital/Analog
Megohmmeter
Model 1026
USER MANUAL

 
 Ω
 Ω
 Ω
 Ω
  
   

 
 Ω  
 Ω  
 Ω  

 Ω

www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Statement of Compliance
Chauvin Arnoux
®
, Inc. d.b.a. AEMC
®
Instruments
certifies that this instrument has been calibrated
using standards and instruments traceable to
international standards.
We guarantee that at the time of shipping your
instrument has met its published specifications.
An NIST traceable certificate may be
requested at the time of purchase, or obtained
by returning the instrument to our repair and
calibration facility, for a nominal charge.
The recommended calibration interval for this
instrument is 12 months and begins on the date of
receipt by the customer. For recalibration, please
use our calibration services. Refer to our repair and
calibration section at www.aemc.com.
Serial #:
Catalog #: 2117.72
Model #: 1026
Please fill in the appropriate date as indicated:
Date Received:
Date Calibration Due:
Chauvin Arnoux®, Inc.
d.b.a AEMC®Instruments
www.aemc.com
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Limited Warranty
The Megohmmeter, Model 1026, is warranted to the owner for a period of
1 year from the date of original purchase against defects in manufacture.
This limited warranty is given by AEMC®Instruments, not by the distributor
from whom it was purchased. This warranty is void if the unit has been
tampered with, abused or if the defect is related to service not performed
by AEMC®Instruments.
Full warranty coverage and product registration is available on our
website at www.aemc.com/warranty.html.
Please print the online Warranty Coverage Information for your
records.
What AEMC®Instruments will do:
If a malfunction occurs within the one-year period, you may return the
instrument to us for repair, provided we have your warranty registration
information on file or a proof of purchase. AEMC®Instruments will, at its
option, repair or replace the faulty material.
What You Must Do: First request a return authorization form by phone or
by fax from AEMC®Instruments, then return the instrument along with the
signed authorization repair form. Return material, postage pre-paid to:
Chauvin Arnoux®, Inc.,
d.b.a. AEMC®Instruments
Service Department
15 Faraday Drive
Dover, NH 03820 USA
Tel: [phone] (X520)
[phone] (X520)
Fax: [phone]
Caution: To protect against in-transit loss, we recommend you insure
your returned material.
NOTE: You must obtain a CSA# before returning any instrument.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Table of Contents
Warning ..............................................................................................3
International Electrical Symbols..........................................................4
Receiving Your Shipment....................................................................4
Packaging...........................................................................................4
Description..........................................................................................4
Specifications......................................................................................5
General........................................................................................5
Electrical......................................................................................6
Safety...........................................................................................6
Ordering Information....................................................................7
Display Features.................................................................................7
Model 1026 Features..........................................................................8
Functions ............................................................................................9
V
AC Function................................................................................9
V
DC Function................................................................................9
Low Ohm and Continuity Function...............................................9
Megohm Insulation Resistance Test Function...........................10
Manual Mode......................................................................10
Lock Mode..........................................................................10
Auto Power Off ..........................................................................11
Maintenance .....................................................................................11
Warning .....................................................................................11
Battery Replacement .................................................................11
Fuse Replacement.....................................................................11
Cleaning.....................................................................................11
Repair and Calibration ......................................................................12
Technical and Sales Assistance .......................................................12
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Digital Megohmmeter Model 1026
- 3 -
Warning
These safety warnings are provided to ensure the safety of
personnel and proper operation of the instrument.
Read the following safety information carefully before attempting
to operate or service the meter.
Safety is the responsibility of the operator!
Tests are to be carried out only on dead circuits! Check for live
circuits before making resistance measurements.
The megohmmeter is a source of high voltage, as is the sample
connected to them. All persons performing or assisting in the
tests must employ all safety precautions to prevent electrical
shock to themselves and to others.
AEMC®considers the use of rubber gloves to be an excellent
safety practice even if the equipment is properly operated and
correctly grounded.
When testing capacitive samples, make sure that they have
been properly discharged and that they are safe to touch.
Electrical equipment and cables may have sufficient capacitance
to store a dangerous charge from the instrument test current.
For proper discharge to occur the push-to-measure button must
be in the OFF position with the lock OFF and with the sample
connected between the EARTH (+) and LINE (-) terminals.
On prolonged tests, the TEST button may be locked ON. Care
should be taken in this mode that no damage is done if the
instrument is left unattended.
Megohmmeters should never be used in an explosive
environment.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Digital Megohmmeter Model 1026
4
International Electrical Symbols
This symbol signifies that the probes are protected by double or
reinforced insulation. Use only specified replacement parts when
servicing the instrument.
This symbol signifies CAUTION! and requests that the user refer to
the user manual before using the instrument.
Risk of electric shock. The voltage at the parts marked with this
symbol may be dangerous.
Receiving Your Shipment
Upon receiving your shipment, make sure that the contents are consistent
with the packing list. Notify your distributor of any missing items. If the
equipment appears to be damaged, file a claim immediately with the
carrier and notify your distributor at once, giving a detailed description of
any damage.
Packaging
Your Megohmmeter, Model 1026, consists of the following items:
Megohmmeter Model 1026
Set of 8 AA batteries
Set of leads with black and red alligator clips
Soft carrying case
User manual
Description
The AEMC®Model 1026 (Cat.# 2117.72) is a portable multi-range
megohmmeter capable of measuring insulation resistance from 1kto
4000M. It has 3 test voltages of 250, 500 and 1000V.
In addition, the Model 1026 has an ohmmeter range to measure from 0.1
to 4000with an audible tone for continuity measurement under 40. A
voltmeter (safety check) with a range from 0 to 600V AC or DC is available
when turned on.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Digital Megohmmeter Model 1026
- 5 -
General Specifications:
Display:
3" x 1.7" (76 x 42mm)
Big LCD panel with 40 segments analog bar indication.
Over Range Indication:
“ - O L - ” will be shown on the LCD Panel when out of range measurement
is made.
Low Battery Indication:
The will be shown when the batteries needs to be changed.
Sampling Rate:
2.5 times/sec digital display; 10 times/sec bar graph
Power Source:
(8) 1.5V AA size batteries
Battery Life:
1000V range @ 1 M>10H
500V range @ 1 M>20H
250V range @ 1 M>30H
Operating Temperature and Humidity:
0° to 40°C (32° to 104°F), below 80% RH
Storage Temperature:
-10° to 60°C (14° to 140°F)
Dimension:
7.72" (L) × 4.41" (W) × 2.52" (H)
196mm (L) × 112mm (W) × 64mm (H)
Weight:
Approx. 700g (1.5 lbs) with batteries
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Digital Megohmmeter Model 1026
6
Electrical Specifications:
AC Voltage
Range Resolution Accuracy
600V 0.1V ± (1.5% rdg + 5 dgts)
DC Voltage
Range Resolution Accuracy
600V 0.1V ± (1% rdg + 3 dgts)
Ohms (Autoranging)
Range Resolution Accuracy
4000.1± (1% rdg + 5 dgts)
40001
Continuity beeper
Range Active Protection
40600Vrms
M(Autoranging)
Range Resolution Accuracy
4/40/400/4000M(250V)
1k
± (3%rdg + 5dgts
< 2000M)
± (5%rdg + 5dgts
2000Mto 4000M)
4/40/400/4000M(500V)
4/40/400/4000M(1000V)
Voltage Output: -10% to +20% of selected range
Short Circuit Current: 250/500/100V: 2mA max
Safety Specifications:
IEC 1010, Cat. III, 600V, Pollution Degree 2
Altitude up to 2000 meters (6000 ft.)
Indoor use only
EN50081-1; EN50082-1
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Digital Megohmmeter Model 1026
- 7 -
Ordering Information:
Megohmmeter Model 1026............................................ Cat. #2117.72
Accessories:
Replacement Test Leads with alligator clips.................. Cat.# 2121.53
Soft Carrying Case.........................................................Cat.# 2117.73
Set of 5 fuses 0.5A 600V (fast blow) 1/2 x 3/8............... Cat.# 2117.74
Display Features:
&&&&
LOCK HOLD
KV
M Ω
Ω
∞
  "  $! &"
Low Battery
High Voltage Output Lock Enable
Data Hold
Continuity Beeper Enable
Analog Bargraph
AC Input
DC Input
Polarity Indication
Dangerous Voltage
LOCK
HOLD
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Digital Megohmmeter Model 1026
8

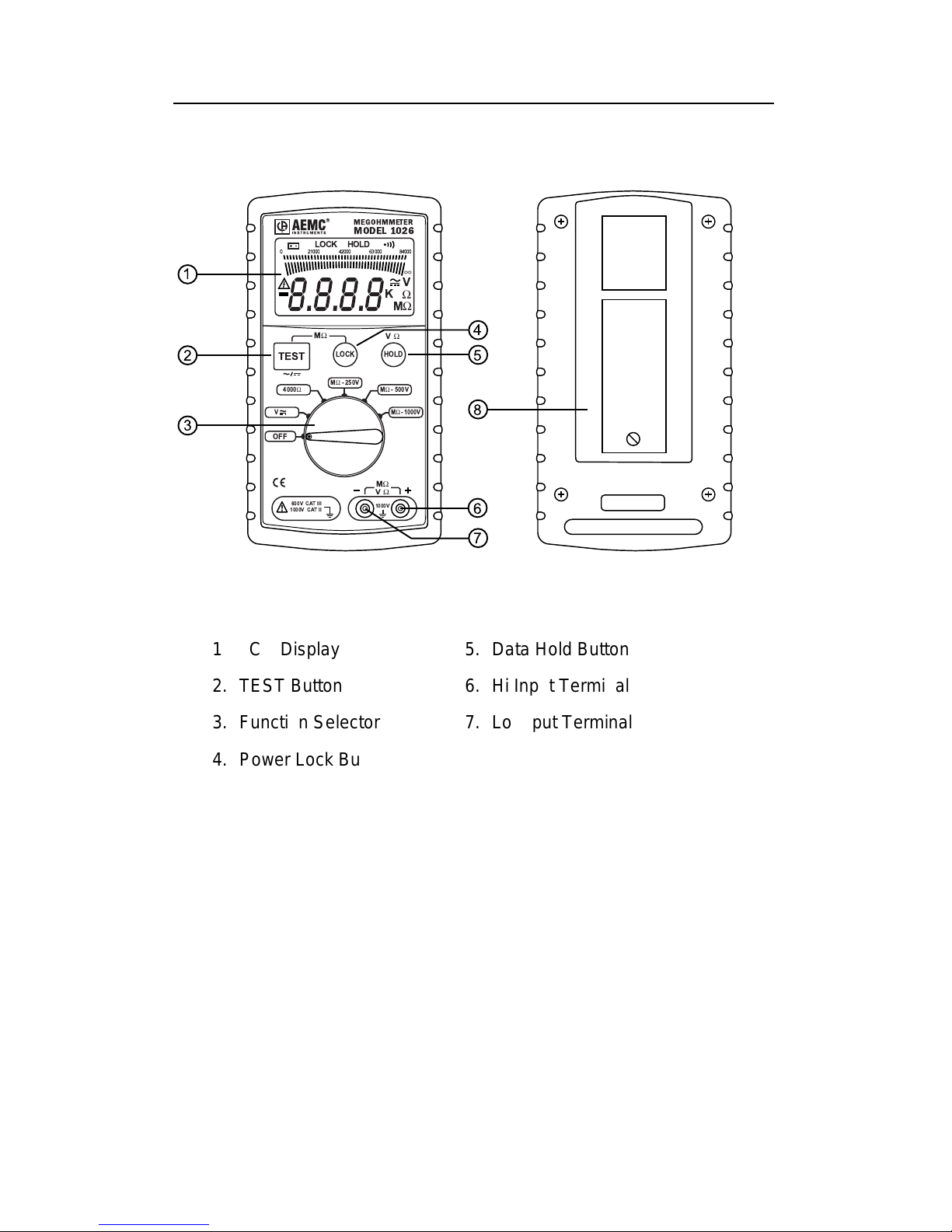

Model 1026 Features:

 
 Ω
 Ω
 Ω
 Ω
  
   

 
 Ω  
 Ω  
 Ω  

 Ω

&&&&
 

 Ω
Ω
∞
  "  $! &"

!
"
#
$
%
&
1. LCD Display 5. Data Hold Button
2. TEST Button 6. Hi Input Terminal
3. Function Selector 7. Lo Input Terminal
4. Power Lock Button 8. Battery Compartment Cover
