aerauliqa QR350MBP User manual

1
G
Read this manual carefully before using the product and keep it in a safe place for reference as
necessary.
This product was constructed up to standard and in compliance with regulations relating to
electrical equipment and must be installed by technically qualified personnel.
The manufacturer assumes no responsibility for damage to persons or property resulting from
failure to observe the instructions contained in this manual.
1 Index 1
2 Precautions 2
3 Product information 2
3.1 General 2
3.2 Dimensions and Weight 3
3.3 Connections 3
3.4 Space required 3
3.5 Rating label 4
4 Transport and Storage 4
5 Installation 4
5.1 Unpacking 4
5.2 Where/how to install 4
5.3 Installation 4
5.4 Electric Connections 6
6 Commissioning 8
6.1 Setting Fan speed 8
6.2 Before Starting the System 9
7 Operation 10
7.1 Single speed operation 10
7.2 Two speed operation 10
7.3 Variable speed operation with CTRL-M remote manual controller (accessory on request) 10
7.4 Variable speed operation through external domotic (BMS) system or ballast potentiometer 10
7.5 Three speed operation with CTRL-S remote controller (accessory on request) 10
7.6 Anti-frost functionality 10
7.7 Bypass functionality 10
8 Maintenance and service 11
8.1 Components list 11
8.2 Description of Components 11
8.3 Maintenance 12
8.4 Service 13
8.5 Trouble shooting 14
1 INDEX
Installation Manual (installer & user)
QR350MBP
Heat Recovery Ventilation Unit

2
2 PRECAUTIONS
WARNING
Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work!
WARNING
The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and
regulations.
TRANSPORT AND STORAGE
• Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
• Duct connections/duct ends must be covered during storage and installation
INSTALLATION
• After removing the product from its packaging, verify its conditions. Do not leave packaging within the reach of children or people with disabilities.
• Beware of sharp edges. Use protective gloves.
• The device should not be used as an activator for water heaters, stoves, etc., nor should it discharge into hot air/fume vent ducts deriving from any type of
combustion unit or tumble dryer. It must expel air outside via its own special duct.
• If the environment in which the product is installed also houses a fuel-operating device (water heater, methane stove etc., that is not a “sealed chamber”
type), it is essential to ensure adequate air intake, to ensure good combustion and proper equipment operation.
• The electrical system to which the device is connected must comply with local regulations.
• Before connecting the product to the power supply or the power outlet, ensure that:
- the data plate (voltage and frequency) correspond to those of the electrical mains
- the electrical power supply/socket is adequate for maximum device power
• For installation an omnipolar switch should be incorporated in the xed wiring, in accordance with the wiring rules, to provide a full disconnection under
overvoltage category III conditions (contact opening distance equal to or greater than 3mm).
USE
• The device should not be used for applications other than those specied in this manual.
• The device is not intended for use by persons (including children) with reduced physical, sensory or mental capacities or those with a lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the device from a person responsible for their safety. Children should
be supervised to ensure that they do not play with the device.
• Do not touch the appliance with wet or damp hands/feet.
• The device is designed to extract clean air only, i.e. without grease, soot, chemical or corrosive agents, or ammable or explosive mixtures.
• Do not use the product in the presence of inammable vapours, such as alcohol, insecticides, gasoline, etc.
• The system should operate continuously, and only be stopped for maintenance/service.
• Do not obstruct ducts or grilles to ensure optimum air passage.
• Do not immerse the device or its parts in water or other liquids.
• Operating temperature: 0°C up to +40 °C.
SERVICE
• Although the mains supply to the unit has been disconnected there is still risk for injury due to rotating parts that have not come to a complete standstill.
• Beware of sharp edges. Use protective gloves.
• Use original spare parts only for repairs.
3 PRODUCT INFORMATION
3.1 General
This is the Installation Manual of QR350MBP heat recovery ventilation unit.
This manual consists of basic information and recommendations concerning installation, commissioning, use and service operations to ensure a proper
fail-free operation of the unit.
The key to proper, safe and smooth operation of the unit is to read this manual thoroughly, use the unit according to given guidelines and follow all safety
requirements.
The package also includes 2 condensation elbows and 2 plugs for the water drainage.
WARNING
If any abnormality in operation is detected, disconnect the device from the mains supply and contact a qualified technician immediately.

3
A
BD
C
Weight Kg
23
3.2 Dimensions (mm) and Weight
3.3 Connections
Fig. 3.a Connections
Intake air from outside
Exhaust air to outside
Supply air to inside
Extract air from inside
Winter condensation drainage
Summer condensation drainage
A
B
D
C
F
E
E
F
A
B
C
D
3.4 Space required
Make sure that enough space is left around the unit to allow easy maintenance (access to filters, terminal box and removal of the side and front inspection panels).

4
3.5 Rating label
Fig.3.c Rating label
4 TRANSPORT AND STORAGE
The appliance is delivered in one carton box.
The appliance should be stored and transported in such a way that it is protected against physical damage that can harm spigots, casing etc.
It should be covered so that dust, rain and snow cannot enter and damage the unit and its components.
5 INSTALLATION
This section describes how to install the unit correctly.
The unit must be installed according to these instructions.
5.1 Unpacking
Verify that the unit (and eventual accessories) delivered is according to order before starting the installation. Any discrepancies from the ordered equipment
must be reported to the supplier.
5.2 Where/how to install
• All QR units are meant for indoor installation in a heated space.
• Mount the unit on flat surface (wall).
• The unit must always be installed vertically.
• It’s important that the unit is completely leveled before it is put into operation.
• Place the unit preferably in a separate room (e.g. storage, laundry room or similar).
• When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspection doors should be easily accessible.
• Leave free space for opening the removable panels and for removal of the main components (see 3.4).
• The outdoor air grilles if possible be put in the northern or eastern side of the building and away from other exhaust outlets like kitchen fan exhausts or
laundry room outlets.
5.3 Installation
The unit must be installed in the following position.
It is important that the unit is vertical in order for the condensation drainage to work properly.
WARNING
Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!
WARNING
Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!
Fig. 5.a
517 mm
Fig. 5.b

5
Fig. 5.c Fig. 5.d
Fig. 5.f
Fig. 5.e
SPIRIT LEVEL
H=min. 60mm
Fig. 5.g
Fig. 5.h Fig. 5.i
Ø125mm Ø125mm
5.a Prepare the surface where the unit is to be mounted. Make sure that the surface is at, leveled and that it supports the weight of the unit. Perform the
installation in accordance with local rules and regulations.
5.b Drill the holes in the wall
5.d.e Hang the unit to the wall by means of the fixing brackets and screw safely (screws and wall plugs not supplied)
5.f Make sure that the unit is at spirit level.

6
5.4 Electric Connections
The unit must be earthed.
The QR350MBP is wired internally from factory.
Figures below show the wiring diagram.
WARNING
Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work!
WARNING
The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and
regulations.
5.j Single speed operation 5.k Two speed operation
5.m Variable speed operation with CTRL-M remote manual controller
5.n Variable speed operation through external domotic
(BMS) system or ballast potentiometer
5.o Three speed operation with CTRL-S controller
5.l Two speed operation
S1 S2 S3 GND 1 2 3 4
N L
V2
V1
GND POT +10
SWITCH FOR BYPASS
ACTIVATION
1 2 3 4
S1 S2 S3 GND
TWO POSITION
SWITCH OR
REMOTE SENSOR
N L
V1
V2
GND POT +10
SWITCH FOR BYPASS
ACTIVATION
1 2 3 4
N L
V1
V2
GND POT +10
CTRL-M
S1 S2 S3 GND
SWITCH FOR BYPASS
ACTIVATION
S1 S2 S3 GND
SWITCH FOR BYPASS
ACTIVATION
1 2 3 4
GND POT +10
N L
V1
V2
1-10V
BALLAST
+
-
1 2 3 4
S1 S2 S3 GND
N L
V1
V2
CTRL-S
GND POT +10
S1 S2 S3
II
I
L
L
L
1
1
1
1 2 3 4
S1 S2 S3 GND
SWITCH FOR SPEED
2 SELECTION
N L
V1
V2
GND POT +10
SWITCH FOR BYPASS
ACTIVATION
+
U
-
5.g Connect the supplied condensation elbow(s) to the drainage hole(s) in the opening at the bottom of the unit: in case close and seal the non-used hole
with the 2 supplied plugs (one each side of the hole). Make sure of water and air tightness of all connections. It is necessary to use a U-bend (or similar)
in the condensation drainage pipe. The water drainage connections can be made either through the holes at the bottom side of the casing or through the
opening at the rear side of the casing.
5.h Connect the unit to the duct system. Make sure that all necessary accessories are used to create a functional ventilation solution.
5.i Connect the unit electrically according to point 5.4. Check that it starts up correctly.

7
5.k Two speed operation

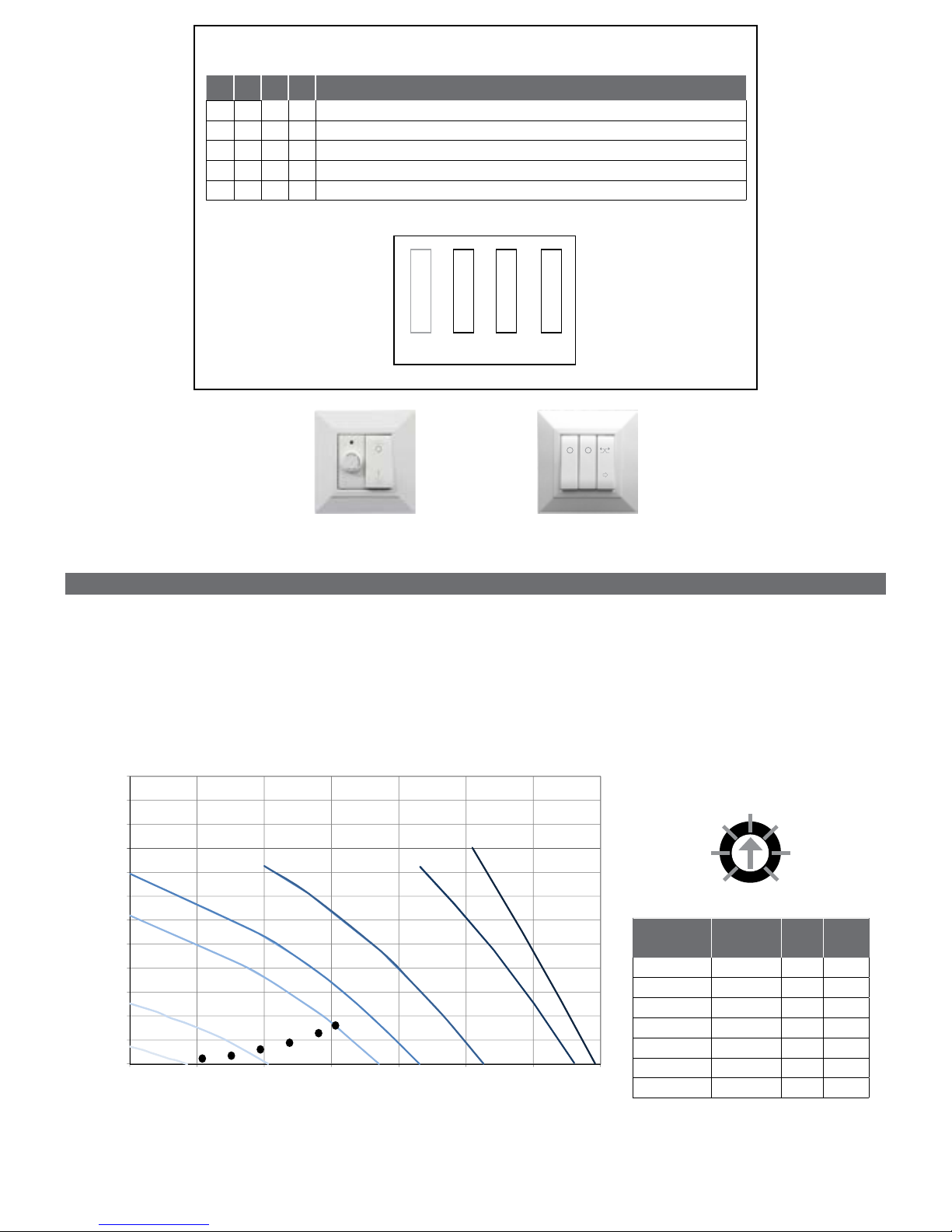

Fig. 5.q CTRL-M
(accessory on request)
Fig. 5.r CTRL-S
(accessory on request)
III
X : Dip 1 switch is for factory setting only and it does not have to be changed.
5.p
1 2 3 4 Operation
X 0 0 0 Single speed
X 1 0 0 Two speed
X 0 1 0 Variable speed with CTRL-M remote manual controller
X 0 1 1 Variable speed throught external domotic (BMS) system or ballast potentiometer
X 1 1 0 Three speed with CTRL-S
Dip switch
12 3 4
1
0
6 COMMISSIONING
6.1 Setting Fan speed
The speed of the unit can be adjusted during installation according to required ventilation rate.
Figure 6.a below shows performance curves (for supply air and extract air) at different settings of the 0-10V signal to the motors. Airow and consumption
refer to one single motor.
Table 6.b indicates the efficiency of the heat exchanger and of the condensation produced in different climatic conditions, to help the installer or the designer
of the ventilation system to decide if to connect one or both condensation drainages.
High production of condensation is the direct consequence of a high efficiency level as well as of the humidity rate.
Table 6.c indicates the sound level at the different speed.
Static Pressure - Pa
Air-ow - m3/h
A
B
C
D
E
F
G
TRIMMER V1- V2
0
50
100
150
200
250
300
350
400
450
500
550
600
0 50 100 150 200 250 300 350
I
III IV VVI
II
A
B
C
D
E
F
G
Fig. 6.a Intake curve according to Reg. 1253/2014
Curve Speed
%
W
max
m3/h
max
A (min) 20 8 43
B 35 24 103
C 50 70 185
D 60 98 215
E 67 155 263
F 85 275 330
G (max) 100 325 346

8
T R. H. T R. H. ᶯH2OᶯH2OᶯH2OᶯH2OᶯH2OᶯH2O
°C % °C % % kg/h % kg/h % kg/h % kg/h % kg/h % kg/h
-18 60 20 30 95,3 0,16 92,2 0,29 89,0 0,41 85,0 0,51 81,5 0,58 78,3 0,63
-18 70 20 40 96,0 0,22 92,6 0,42 90,0 0,61 86,8 0,78 83,3 0,88 80,1 0,96
-18 80 20 50 96,8 0,28 94,0 0,55 90,6 0,79 88,0 1,02 84,5 1,16 81,3 1,26
-10 60 20 30 95,1 0,10 91,3 0,18 87,6 0,24 83,6 0,29 80,1 0,32 76,9 0,35
-10 70 20 40 96,1 0,16 92,5 0,30 89,6 0,42 87,1 0,53 83,6 0,60 80,4 0,65
-10 80 20 50 96,8 0,21 93,6 0,41 91,2 0,59 88,1 0,76 84,6 0,86 81,4 0,94
0 50 20 30 94,6 0,01 88,8 0 84,6 0 80,1 0 76,6 0 73,4 0
0 60 20 40 95,3 0,06 90,4 0,10 86,6 0,13 83,4 0,13 79,9 0,15 76,7 0,16
0 70 20 50 95,8 0,11 92,8 0,20 89,5 0,28 86,7 0,34 83,2 0,38 80,0 0,42
10 50 20 40 94,0 0 88,8 0 84,3 0 80,3 0 76,8 0 73,6 0
10 60 20 50 93,9 0 88,9 0 84,4 0 81,2 0 77,7 0 74,5 0
10 70 20 60 94,8 0,02 90,3 0,03 85,1 0,03 80,9 0,01 77,4 0,01 74,2 0,01
35 60 26 50 94,4 0 88,8 0 84,4 0 82,0 0 78,5 0 75,3 0
35 70 26 55 95,7 0,04 92,2 0,08 88,9 0,10 85,4 0,11 81,9 0,12 78,7 0,13
35 80 26 60 97,4 0,09 95,0 0,18 93,1 0,26 91,6 0,33 88,1 0,37 84,9 0,41
40 60 26 50 96,4 0,08 92,6 0,15 89,9 0,19 85,7 0,23 82,2 0,26 79,0 0,28
40 70 26 55 97,5 0,14 94,9 0,27 92,6 0,39 91,0 0,50 87,5 0,56 84,3 0,61
40 80 26 60 98,5 0,20 97,2 0,38 95,4 0,57 93,3 0,73 89,8 0,83 86,6 0,90
300 m³/h250 m³/hESTERNO INTERNO 50 m³/h 100 m³/h 150 m³/h 200 m³/h
EXTERNAL INTERNAL
Table 6.b Thermal efficiency of the heat exchanger and average production of condensation water.
100%
Lw dB - SOUND POWER OCTAVE BAND Lp dB(A)
63 125 250 500 1 K 2 K 4 K 8K Tot @3m
Intake 83 65 70 73 62 58 53 47 84 51
Supply 81 65 65 66 57 51 42 33 81 45
Extract 80 63 66 68 60 54 45 34 78 47
Exhaust 78 65 70 71 62 59 53 45 80 50
Breakout 81 69 67 69 62 56 48 36 82 48
80%
Lw dB - SOUND POWER OCTAVE BAND Lp dB(A)
63 125 250 500 1 K 2 K 4 K 8K Tot @3m
Intake 73 61 67 69 59 56 50 43 75 47
Supply 72 61 63 65 56 50 41 31 74 43
Extract 73 60 63 65 57 51 42 31 74 44
Exhaust 73 61 66 67 58 55 49 41 75 46
Breakout 71 64 62 67 59 53 45 33 74 45
60%
Lw dB - SOUND POWER OCTAVE BAND Lp dB(A)
63 125 250 500 1 K 2 K 4 K 8K Tot @3m
Intake 65 61 68 67 58 56 49 41 72 46
Supply 63 59 63 64 55 49 40 29 69 42
Extract 64 59 63 63 56 51 41 30 69 42
Exhaust 64 60 66 67 57 54 48 41 71 45
Breakout 59 64 63 65 57 51 43 31 70 44
Working point W m3/h SPI (W/m3/h) ɳt %(1)
I 13,7 54 0,2535 89
II 20,1 76 0,2664 89
III 28,9 97 0,2973 88
IV 42,2 119 0,3550 87
V 58,9 140 0,4196 86
VI 68,3 153 0,4464 86
(1)
Termal efficiency of the unit
Table 6.c Sound level

9
dBA figures are average spherical free-field, for comparitive use only.
6.2 Before Starting the System
When the installation is nished , check that:
• Filters are mounted correctly
• The unit is installed in accordance with the instructions
• The unit is correctly wired
• Eventual outdoor and exhaust air dampers and silencers are installed and that the duct system is correctly connected to the unit
• All ducts are sufciently insulated and installed according to local rules and regulations
• Outdoor air intake is positioned with sufcient distance to pollution sources (kitchen ventilator exhaust, central vacuum system exhaust or similar)
• The unit is correctly set and commissioned.
40%
Lw dB - SOUND POWER OCTAVE BAND Lp dB(A)
63 125 250 500 1 K 2 K 4 K 8K Tot @3m
Intake 55 55 67 55 49 47 40 31 68 39
Supply 53 53 62 52 47 41 32 22 63 35
Extract 58 52 60 51 47 42 32 22 63 34
Exhaust 55 54 66 55 49 47 40 31 67 39
Breakout 54 53 59 52 48 43 33 23 62 34
7.1 Single speed operation
The unit runs at the speed set by turning the integral trimmer “V1” in the terminal box.
This is the default factory setting.
Wiring diagram: Fig. 5.j – Dip switch conguration: X000 (Fig. 5.p)
7.2 Two speed operation
The unit runs continuously at the speed set by turning the integral trimmer “V1” in the terminal box and can be boosted at high speed, which is set by turning
the integral trimmer “V2” in the terminal box. Boost is activated, when needed, by means of a remote two-position switch (not supplied) or by means of remote
sensors (SEN-HY, SEN-CO2 or SEN-PIR), which are accessories on request.
Wiring diagram: Fig. 5.k – Fig. 5.l – Dip switch conguration: X100 (Fig. 5.p)
7.3 Variable speed operation with CTRL-M remote manual controller (accessory on request)
The unit runs at the speed set by turning the knob of the CTRL-M remote manual control panel (accessory, Fig.5.q).
Wiring diagram: Fig.5.m – Dip switch conguration: X010 (Fig. 5.m)
7.4 Variable speed operation through external domotic (BMS) system or ballast potentiometer
The unit runs at the speed set by turning the knob of an external 1-10V ballast potentiometer or set by an external 1-10V signal from a domotic (BMS) system.
Wiring diagram: Fig.5.k – Dip switch conguration: X011 (Fig. 5.p)
7.5 Three speed operation with CTRL-S controller (accessory on request)
The unit runs at the speed selected by activating the two-position switches “S1”, “S2” and “S3” of the CTRL-S (accessory Fig. 5.r)
Speed 1 is set by turning the integral trimmer “V1” in the terminal box.
Speed 2 is set by turning the integral trimmer “V2” in the terminal box.
Speed 3 is the maximum speed achievable by the unit.
S3 switch allows to activate the bypass, so to mitigate the heat exchange when necessary - see 7.7.
Wiring diagram: Fig.5.o– Dip switch conguration: X110 (Fig. 5.p)
7 OPERATION
WARNING
Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!
“S1” “S2” Operation
O O OFF
I O Speed 1
O II Speed 2
I II Speed 3
S1 S2 S3
II
I
“S3” Operation
Heat recovery
Bypass

10
Maintenance can be carried out by the user.
Service must be performed only by an authorized installer and in accordance with local rules and regulations .
Questions regarding installation, use, maintenance and service of the unit should be answered by your installer or place of purchase!
8 MAINTENANCE AND SERVICE
WARNING
Make sure that specic warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!
8.1 Components list
Fig. 8.a Internal components
1
2
3
4
5
6
7
8
G4 FILTER
HEAT EXCHANGER
CONDENSATION DRAINS
THERMISTOR
FAN, INTAKE AIR
FAN, EXHAUST AIR
ELECTRICAL CONNECTION CARD
CABLE ENTRY
3
8
2
5
4
6
1
7
8.2 Description of Components
Fans
The fans have external rotor motors of EC type which can be steplessly controlled individually between 10–100%. The motor bearings are life time lubricated
and maintenance free. It is possible to easily disconnect and replace the fans if necessary.
Filters
The filters are of filter quality G4 for both the supply air and extract air filter. The filters need to be cleaned regularly (and replaced when polluted) during
maintenance. New sets of filters can be acquired from your installer or wholesaler.
Heat exchanger
The unit is equipped with a highly efcient, counter-ow plate heat exchanger. Supply air temperature is therefore normally maintained without adding
additional heat. The heat exchanger is removable for cleaning and maintenance during service.
Condensation drainage
Depending on the relative humidity in the extract air, condensation may occur on the cold surfaces of the heat exchanger, on one side in winter time, on the
7.6 Anti-frost functionality
The unit is equipped with a thermostat which, when necessary, reduces the speed of the intake fan to prevent the freezing of the heat exchanger, which could
get damaged irreparably.
7.7 Bypass functionality
The QR350MBP is equipped with a physical bypass which allows to mitigate the heat exchange when the indoor and outdoor temperature combinates are
such that the heat exchange is not recommended.
Bypass can be activated through a dedicated switch (see Fig. 5.j to 5.n), or via the relevant switch integrated into the CTRL-S (Fig.5.o)

11
other side in summer time (table 6.b).
The condensate water is led out through drainage pipe.
Thermistors
Temperature probes to implement temperature dependent functions.
8.3 Maintenance
• Keep the unit surface free from dust.
• Clean the filters every three months with a vacuum cleaner and replace the filters every year. This may differ per situation depending on internal and
external environmental conditions (fig.8 b-c-d-e-f-g).
WARNING
Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work!
Fig. 8.e
Fig. 8.d
Fig. 8.c
Fig. 8.b
Fig. 8.g
Fig. 8.f

12

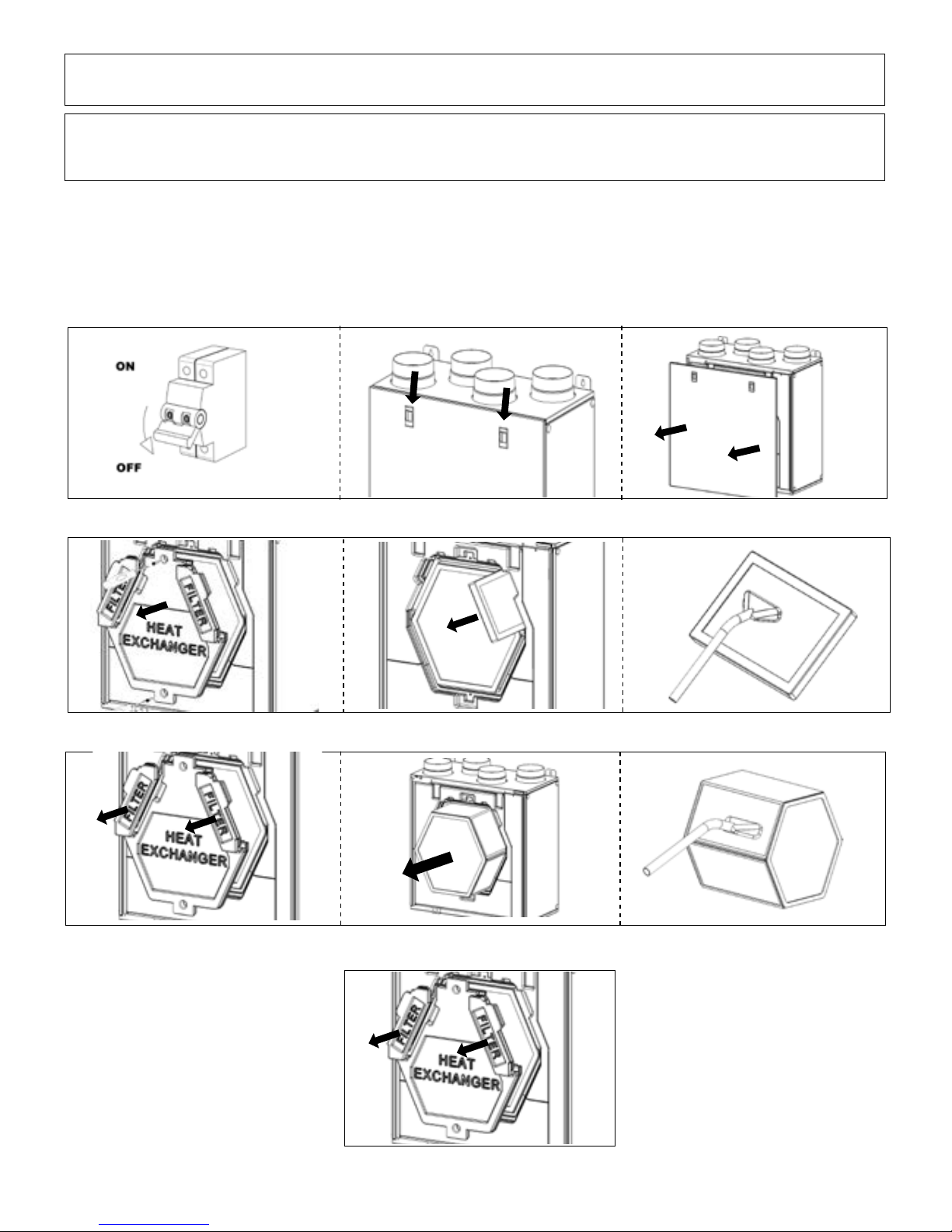

• Keep the unit surface free from dust.
• Clean the filters every three months with a vacuum cleaner and replace the filters every year. This may differ per situation depending on internal and external
environmental conditions (fig.8 h-i-j-k-l-m).
• Clean the heat exchanger every year with a vacuum cleaner. This may differ per situation depending on internal and external environmental conditions and
on frequency of filter cleaning (fig.8 h-i-j-n-o-p).
• Clean the fans every year with a vacuum cleaner. This may differ per situation depending on internal and external environmental conditions and on frequency
of filter cleaning. Do not move the balance clips (fig.8 h-i-j-q-r-s-t).
8.4 Service
WARNING
Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work!
WARNING
The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and
regulations.
Fig. 8.mFig. 8.k
Fig. 8.i
Fig. 8.h
Fig. 8.n Fig. 8.o
Fig. 8.l
Fig. 8.j
Fig. 8.p
Fig. 8.q

13
8.5 Trouble shooting
Fans do not start
1. Check that main supply gets to the unit.
2. Check that all connections are working (all connections in terminal box and fast couplings of intake and exhaust air fans).
3. If only the supply fan is switched off and if the external temperature is below zero, maybe the no-frost thermostat is activated: wait until the thermostat is
deactivated.
Reduced airow
1. Check setting of fan speed on the CTRL-DSP (controller supplied)
2. Check filters. Change of filters required?
3. Check diffusers. Re-setting or cleaning of grilles and diffusers required?
4. Check fans and heat exchange block. Cleaning required?
5. Check if air intake and exhaust have been clogged.
6. Check ducting system for damage and/or dirt accumulation.
Fan noise/vibrations
1. Clean fan impellers. Cleaning required?
2. Check that the fans are firmly in place within the unit.
Excessive air noise
1. Check setting of fan speed on the CTRL-DSP (controller supplied)
2. Check grilles and diffusers. Re-setting or cleaning of grilles and diffusers required?
Gurgling noise
1. Drainage parts have not been installed correctly.
2. Drain connection below the unit has a too low water level, fill it up with water.
Unpleasant smell
1. Drainage parts have not been installed correctly.
2. Drain connection below the unit has a too low water level, fill it up with water.
3. Check filters . Change of filters required?
4. Check ducting system and grilles and diffusers. Cleaning required?
Water leakage near the unit
1. Drain connections and elbows/plugs have not been installed correctly. Sealing necessary?
2. Drain connections and elbows/plugs are dirty. Cleaning necessary?
Fig. 8.r Fig. 8.s Fig. 8.t

14
ErP Directive - Regulations 1253/2014 - 1254/2014
a) Mark -AERAULIQA
b) Model -QR350MBP
c) SEC class -A B C
c1) SEC warm climates kWh/m2.a -13 -7,3 -2,1
c2) SEC average climates kWh/m2.a -36,9 -30,5 -24,7
c3) SEC cold climates kWh/m2.a -74,1 -66,3 -59,6
Energy label -Yes
d) Unit typology -Residenal - bidireconal
e) Type of drive -Variable speed drive
f) Type of Heat Recovery System -Heat recovery
g) Thermal eciency of heat recovery %78
h) Maximum ow rate m3/h 327
i) Electric power input at maximum ow rate W325
j) Sound power level (LWA)dBA 58
k) Reference ow rate m3/h 229
l) Reference pressure dierence Pa 50
m) Specic power input (SPI) W/m3/h 0,541
n1) Control factor -0,65 0,85 1
n2) Control typology -Local
demand control
Central
demand control
Manual
control (no DCV)
o1) Maximum internal leakage rate %1,5
o2) Maximum external leakage rate %1,5
p1) Internal mixing rate %N/A
p2) External mixing rate %N/A
q) Visual lter warning -absent
r) Instrucons to install regulated grilles -N/A
s) Internet address for pre/disassembly instrucons -www.aerauliqa.com
t) Airow sensivity to pressure variaons %N/A
u) Indoor/outdoor air ghtness m3/h N/A
v1) AEC - Annual electricity consumpon - warm climates kWh 2,9 4,9 6,8
v2) AEC - Annual electricity consumpon - average climates kWh 3,3 5,4 7,2
v3) AEC - Annual electricity consumpon - cold climates kWh 8,7 10,7 12,6
w1) AHS - Annual heang saved - warm climates kWh 20,1 19,5 19
w2) AHS - Annual heang saved - average climates kWh 44,5 43,2 42,1
w3) AHS - Annual heang saved - cold climates kWh 87,1 84,4 82,4

15
NOTE

001242 - 02 - 0717
Sede operativa/Warehouse-Oces: via Mario Calderara 39/41, 25018 Montichiari (Bs) - Sede legale/Registered oce: via Corsica 10, 25125 Brescia
C.F. e P.IVA/VAT 03369930981 - REA BS-528635 - Tel: [phone] - Fax: [phone] - www.aerauliqa.com - [e-mail]
AERAULIQA SRL reserves the right to modify/make improvements to products and/or this instruction manual at any time and without prior notice.
