Instructionmanual
_____________________________________
Dehumidifier AD740/ 750/ 770/ 790
_____________________________________
valid:02-2008

Page
2
of
15
Index
1 Generaladvice 3
2 Modeoffunctioning3-4
3 Safety 4
4 Installation and transport 5
5 Operation
5.1 Electricalconnection5
5.2 Puttingintooperation 6
5.3 OperationpanelAD740/7506
5.4 OperationpanelAD770/7907
5.5 Descriptionof operationpanel7
5.6 Hygrostat control 7-8
5.7 CondensateoutletAD740 / 750 9
5.8 CondensateoutletAD770 / 790 9
5.9 Condensatepump(option) 9
5.10 Automaticdefrosting9
6 Operatingconditions10
7 Technicaldata 10 -11
8 Serviceandmaintenance 11 -12
9 Troubleshooting 12 -13
10 Disposal 13

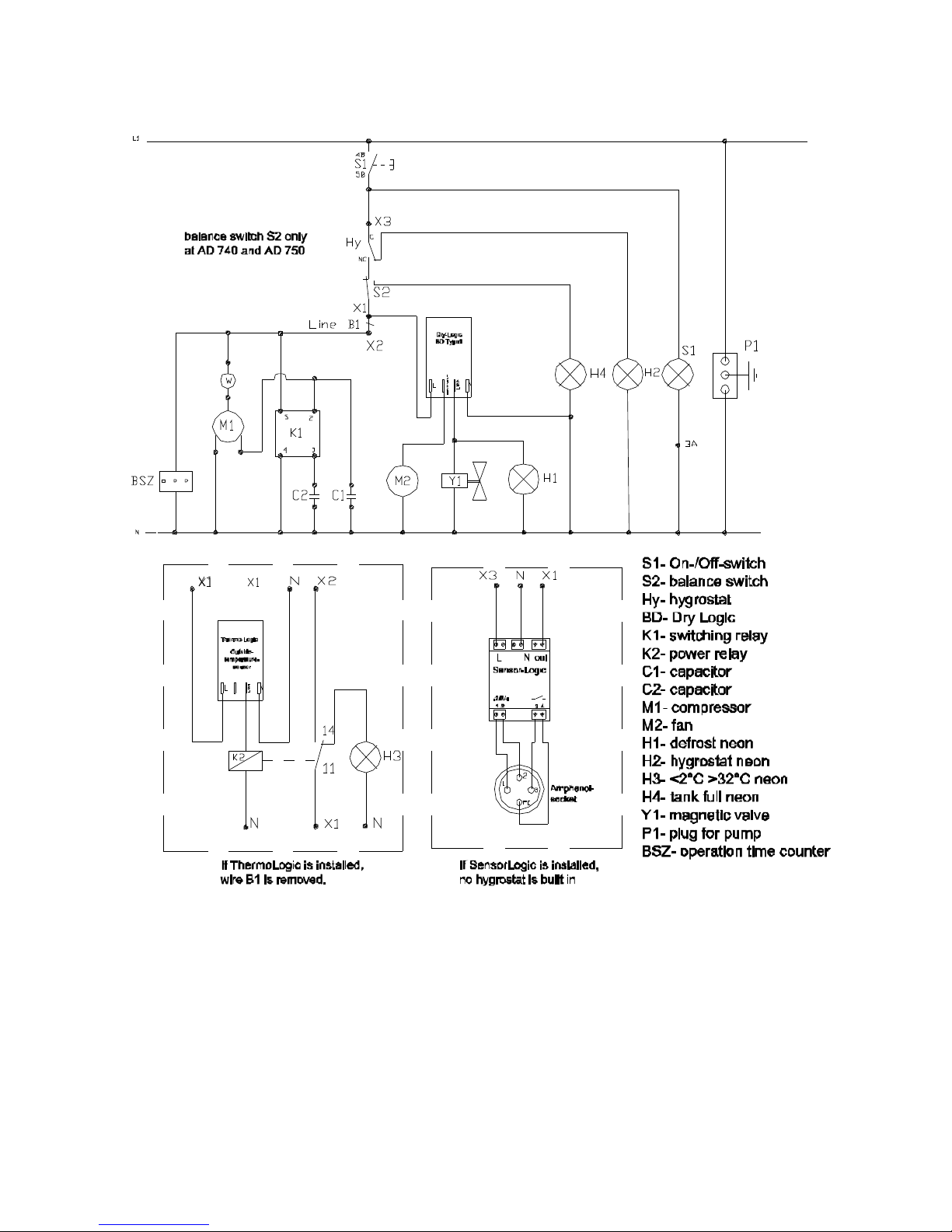

11 Circuitdiagram 14
12 Manufacturer´sdeclaration 15

Page
3
of
15
1.Generaladvice
You haveboughtanairdryermadebyAERIALthusdecidingforaprovenquality
product"MadeinGermany". Iff thereareanyquestions,you will findsomeadvice
inthismanualhowtoeliminatesuchdifficultiesasquicklyaspossible.
ATTENTION:
Immediatelyafterreceipt,youshouldcheckyourairdryerfortransportdamage!In
thecaseof damage, youshouldinformtheforwarding agent, parcelservice, post
officeetc. accordinglyuponreceipt,andmakeanoteofit ontheforwarding
documents!
Ifatransport damageshouldbenoticedafterunpackingtheequipment,please
contactimmediatelyyourrespectivesellerorspecializeddealer.
Beforeputtingyourairdryerintooperationfortheveryfirsttime, theseinstructions
foroperationshouldbestudiedverythoroughly.Thus,you canmakesurethatthis
appliancewill operateperfectlyforalongperiod oftimesavingyourselves
unnecessaryrepairsandexpenses.
Inthecaseofmalfunction disconnectyourapplianceand ensurethatitisnot
connectedagainbytakingthemainsplugout ofthesocket.
Please, keepthedevicewrappinginordertobeabletosend thedevicesafefor
guarantee repair. Inordertosavespaceyouopensimplytheadhesivetapewitha
knifeand youfoldthecarton.
2.Modeoffunctioning
TheAD-airdryerisconstructedexclusivelyforairdrying inclosedrooms. That
dehumidifiercan preventtheformationofcondensation, eliminatetoohighair
humidityandholdaspecificairhumidityconstant. Thetimewhichthedryerrequires
inordertoachieveaspecifichumiditydependsessentiallyontheenvironmental
conditions. Theattainablehumidityvalueisequallydependent ontheenvironmental
conditions.
TheAD-dehumidifierworks according tothecondensationprinciplewithheat
recovery. Thefan(shownindicativelybelow)suck themoistairthroughacool
register(evaporator).Theairbecomessofarchilledunderthe pointof
condensationhere, thatthemoist aircondenseaswaterandflowsintothewater-
collecting tank.Thechilledanddriedairiswarmed upatthecondenseragain.
Throughtheheat pumpeffect,theoutletairissomedegreeswarmerthanthe
suckedroomair. Usefulenergycanconductedup to3-foldof theelectricalpower
consumption.Theabsolutemoistureofairisloweredcontinuouslybythe
continuouscirculationoftheroomairthrough thedevice.Thesurplusmoistureis
removedsafelyand efficiently.

Page
4
of
15

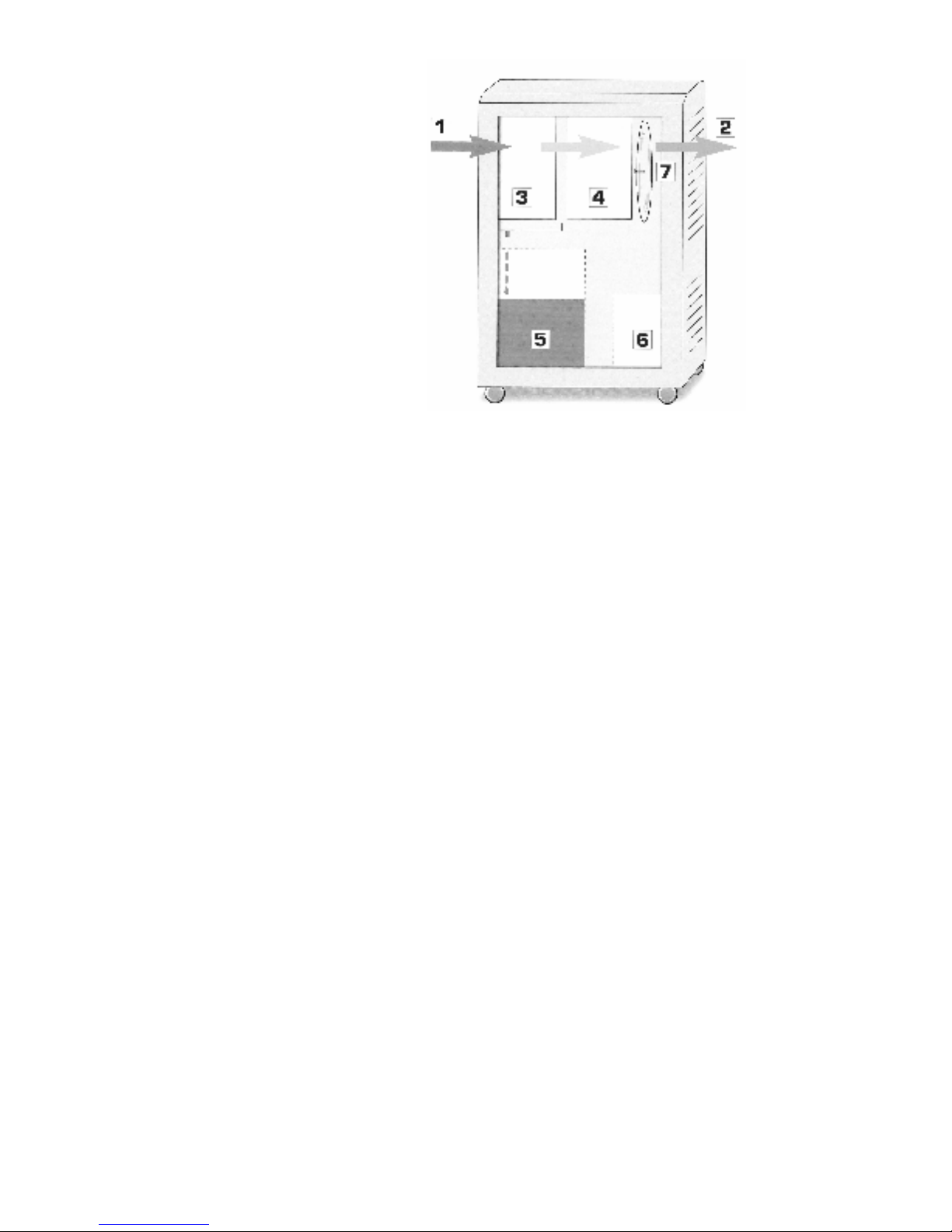

1–wetroomair
2–dryair
3–evaporator
4–condenser
5–watertank
6–compressor
7–fan
3. Safety
Thecondensation dryersAD7arefurnishedwithprotectivedevices. Thedevices
weresubjectedtoasafetyexamination.Dangersthreateninthecaseofoperating
errororabuse
-fortheuser.
-forthemachineand otherrealvalues.
-fortheefficientworkofthemachine.
Allpersonswhohavetodo withtheinstallation,serviceandmaintenanceofthe
devicesmustbequalifiedcorrespondinglyand considerthisoperatingmanual
precisely.
Using asdirected
Thecondensation dryersareintendedforthedryingof airwithatmospheric
pressure.
Riskbyaccessory
Hosesforcondensateremovalandairfiltersmust befitexpertlyandmustnottake
theprotectivedevicesofthecondensation dryersout ofoperation.Thecontrol
elementsmustalwaysremainfreelyamenable.
Authorizedusers
TheserviceofthecondensationdryersAD7mayonlybecarriedoutbypersons,
who wereinstructedfromtheoperator.Theuserisresponsibleinthefieldofaction
thirdpartiescomparedto.
Responsibilitiesfordifferent activitiesonthedevicemustofcoursebedetermined
and kept. Unclearcompetencesareasafetyhazard.
Theoperatormustmaketheoperatinginstructionavailablefortheuserandmake
surethattheuserdidunderstand themanual.

Page
5
of
15
4.Installationand transport
TheAD7..isplannedforthemobileeffort. During thesettingup andtransportation
ofthedehumidifier,thefollowingitemsaretobeconsidered:
ØThatdehumidifiermust beinstalledsothattheaircancirculatewithout
obstructionthroughhim.Theairfilterandalsotheoutlet grilleofthefrontwall
must notbecovered.Theopenspacebeforetheoutletgrilleand theairfilter
must atleastconduct 1meter.
ØBeforeeverylocalalternationofthedevice,switchoffthedeviceat theon/off-
switch,pullthepowerplugfromthesocket andemptythewatertank!
ØTheairdryermustbemovedonlyusingtheprovidedwheelsand handhold!
ØTheairdryermustbeinstalledonaplanebaseonly,asotherwiseitmustbe
securedagainstrolling off!
ØThatdehumidifiercanbetransporteduprightorlaidflat! Theupright
transportation istobepreferredif possible.
ØTheappliancemustbeusedexclusivelyforairdrying.
ATTENTION:
Doneverpullormovethe deviceatthe powercable
5.Operation
5.1electricalconnection
Beforeconnecting theairdryer,thefollowingitemsmustbechecked:
ØDoesthemainsvoltagecoincidewiththevoltageoftheappliance?
ØAdequatefusingofsocket andsupplysystem?
ØHastherequiredresidual-current-operatedcircuitbreaker(r.c.c.b)beeninstalled
incaseof swimmingbaths?
ØIfacabledrumisused:hasitbeenunwound completely?
ØIstheapplianceconnectorsuitableforthebuildingsocket?
ØIsthesocket providedwithaearthconnection?
ATTENTION:
Beforeputtingtheairdryerintooperation,thetechnicaldataoftheappliance
shouldbecomparedtotheconditionsprevailing intheroomofinstallation!

Page
6
of
15
5.2Puttingintooperation
ATTENTION:
Beforeputtingtheairdryerintooperation,theinstructionmanualshouldbestudied
carefully.Thus,damagesbyafalseorinappropriateoperationaswellasby
inadequateenvironmentalconditionscanbeavoided.
Forusing theairdryer,pleaseproceedasfollows:
ØAfterhaving beentransported,theairdryershouldrestforabout15 min. During
thisperiodoftime,theoilinsidetherefrigerating system,that wasfoamed
during transportwillreturnintothecompressor.Werecommend thisprocedure
sinceitextendstheservicelifeofthecompressor.
ØPuttheplug intothesocket.
ØCheck whetherthebucketisplacedintheunit(AD730/740standard)ora
drainhosehasbeenfastenedandlaidappropriately(AD770/ 790standard,
AD730/ 750option).
ØSwitchontheunitbyactuatingtheON-OFF-switch.
ØSet therequiredhumidityvalueat thehygrostat(pleasereferinthisrespectto
'HygrostatControl').
ØIftheexistinghumidityishigherthantheset value,theairdryerwillstartto
operate.
Iftheexistinghumidityislowerthanthesetvalue,theairdryerwill notstartto
operate
5.3OperationpanelAD 740/ AD750
1 234567
891011 12

Page
7
of
15
5.4OperationpanelAD 770/ AD790
1 34567
891011 12
5.5DescriptionOperation panel
1– Operationtimecounter
2-redneon (at AD740/ 750)=tankisfull,unithasswitchedoff.
3- redneon (option)=ThermoLogic(opt. extra)hasswitchedoff.The
“ThermoLogic”switchestheunit offif theambienttemperatureishigher/lowerthan
theallowedworking range.(>+32°C/<+3°C). Assoon asthe allowedtemperature
hasreached, theunitswitchesonagainautomatically.
4– greenneon (standard)=Unitisindefrostmode.Thecompressorruns,thefan
doesnotrun.(hot-gas-defrosting)
5- orange neon (standard)=Theunithasswitchedoff becausethehumidityin
thetroomisok/hasachievedtherequestedvalue.
6- Hygrostat (see 5.6Hygrostatcontrol)
7- On-/ Off-Switch
8-Makesureafree spaceinfrontofairinlet/outlet!
9-Don´tswitchontheunitinhorizontalposition
10 -Makesurethatthecondensatecandrainoffreliableintoasumporbucket.
11 -Closedoorsandwindowswhileusing thedryer
12 -Check and clean airfilterregularly!
5.6Hygrostatcontrol
TheairdryersoftheAD-seriesdisposeofahygrostatforsetting therequired
humidityvalue.Thishygrostatislocatedintheoperationpanel.It makesthat theair
dryercutsinassoonastheambient humidityexceedsthepreset value.If the
humidityvaluefallsbelowthesetvalue,thehygrostatwillswitchofftheunit.

Page
8
of
15

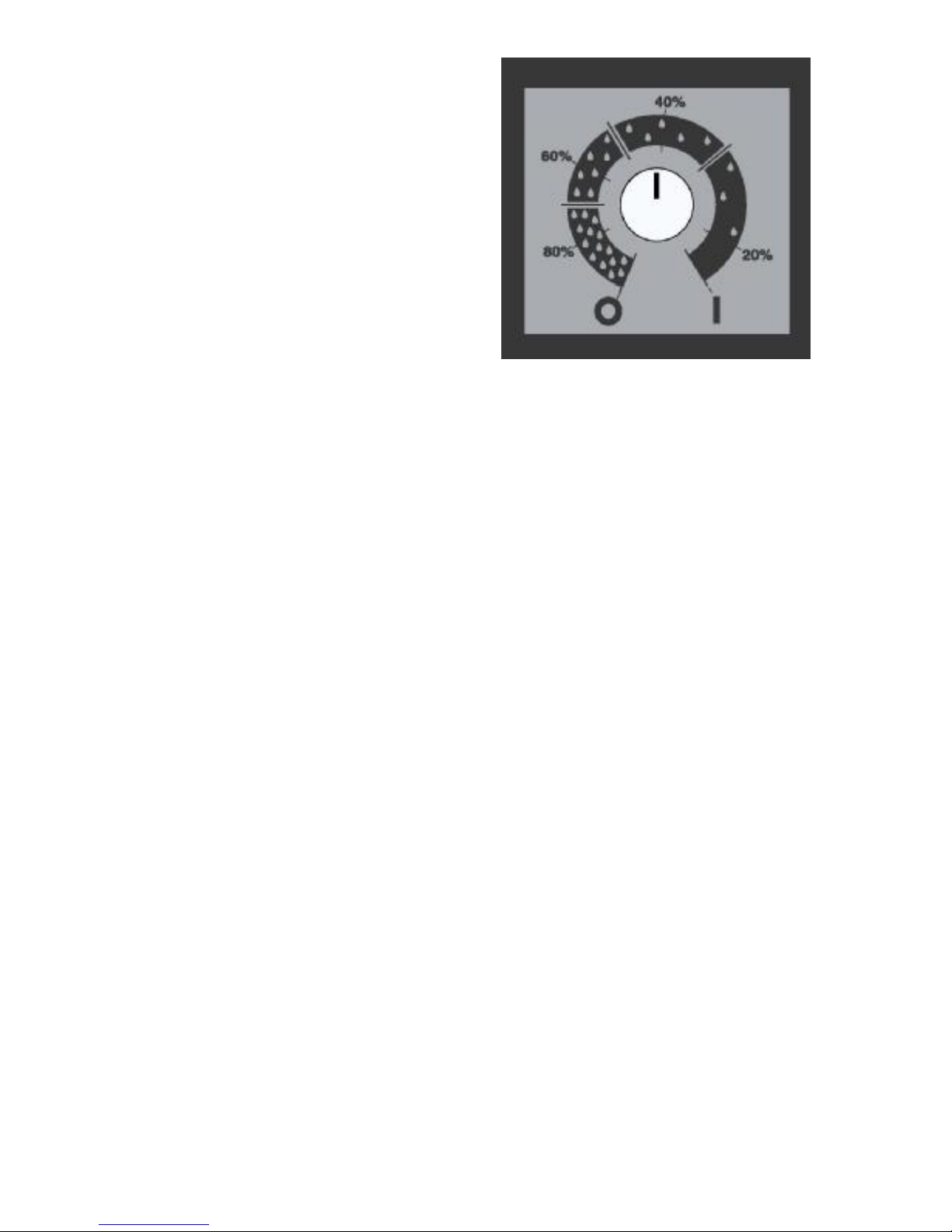

Pos.0=Unit isswitchedoff
Pos.1=Continuesoperation
80%=Thedehumidifierswitchesoffwhen
ahumidityofapprox.80%r.h.has
achieved. Andswitchesonagain
whenhumidityishigherthan 80%.
60%=Thedehumidifierswitchesoffwhen
ahumidityofapprox.60%r.h.has
achieved. Andswitchesonagain
whenhumidityishigherthan 60%.
40%=Thedehumidifierswitchesoffwhen
ahumidityofapprox.40%r.h.hasachieved. Andswitchesonagainwhen
humidityishigherthan 40%.
20%=Thedehumidifierswitchesoffwhenahumidityofapprox. 20%r.h. has
achieved. Andswitchesonagainwhenhumidityishigherthan20%.
Thesmoothsettingoptionofthehygrostatmakesaveryconvenient humidity
controlpossibleforyou.Ifveryprecisevaluesarerequested,you shouldmatchthe
hygrostat withtheinformationonaprecisehygrometer.
Pleaseconsider:
Humidityvaluesof aminimumof40%-45%r.h.canbeachievedwitha
condensationdryer. Anadsorption dryeristobeemployediflowervaluesare
required.
Forthispurpose, ask yourtechnicalconsultant.
Optimalclimate:
Forliving rooms, environmentalconditionsof20°-25°Cand 50-60%r.h.are
recommended.
Forbuildingdrying,thehygrostatbecomesturnedatcontinuesrunning (POS.I).
Inthecaseofthedrying roomswithwoodequipment(e.g.floors)orpaintings,
antiquesandsimilarthingsshouldnot befallenbelowahumidityof55%.
Ask yourtechnicalconsultant inthecaseofspecialapplications.
Externalhumiditycontrol
WealsodeliverAD7optionallywithconnectionoption foranexternalOn-/off-switch,
e.g.through adewpointcontrolorexternalhygrostat.
Inthatcase,thedeviceisequippedwithourSensorLogicwhichsuppliesafloating
contactandamainsvoltageof24V.
AnAmphenol-socketisthenintheoperatingtableau instead ofthehygrostat. With
an Amphenol-plug (accessory),yourexternalcontrolcanbeconnectedverysimply.

Page
9
of
15
5.7CondensateoutletAD 740 / AD 750
ThedehumidifiersAD740 / AD750 areprovidedwithawatercollecting bucket(12 l)
and aconnectionforhose15mm.
Thewaterbucketisinthedeviceon abalance. Thebalanceisactivatedbythe
weight ofthefull bucketandthedeviceisswitchedoff. Switchofftheunitatthe
on/off-switchandemptythebucket.Afterthebucketisplaced inthedeviceagain,
turnonthedeviceattheon-/off-switch.
Aconnectionoutlet15mm isplacedabovethebucket.Removethebucket
providedthatyouwouldliketoguidethecondensatedirectlyintoadrain.Attacha
hosetothedrain15mmand securethiswithahoseclamp. Proceedcautiouslyin
ordernottoburst thedrainfromthecondensatetub.
Guidethehosewithslopeofthedeviceintothedrainaway(atleast5cmper
metersslope).
5.8CondensateoutletAD 770 / AD 790
TheairdryerAD770/790areseriallyequippedwithfittingfor15mmhoses. Asan
accessory,awatertank(25ltr., optionalextra)isavailablewhichisputunderthe
deviceattheback.Apieceofhosewhichisledintothisbucket isalreadymounted.
ATTENTION:
Makesurethatthecondensatecanalwaysbehandledsafely.
ThewatertankatAD770 / 790(optionalextra)doesNOTdisconnectthedevicein
thecaseoffullstate.Duringunattendedusing, AD770/790withbuilt-inpumpis
advisable.
5.9Condensatepump(optional)
Optionalthedevicesareavailablewithbuilt-incondensatepump. Inthatcase,a
connectionpieceisfound atthebackwall ofthedeviceforhose12 mm.
Aredpushbuttonisalsofoundatthebackwall.Inthisway,thepumpcanbe
emptiedmanually,forexamplebeforetransportationofthedevice.
Werecommendthemanualpumpingout beforetransportationsinceotherwise
waterfromthepumpcanrun ontothegroundwhiletilting thedevice.
5.10Automaticdefrosting
Duringairdrying,icemayformattheevaporator.Thevolumeof icedependson the
ambient conditionsprevailingintheroomtobedried. Theairdryerisequippedwith
an automatichot-gasdefroster.It ensuresthat, dependingontheextent ofice
formation,theappliancewillbedefrostedautomaticallyaccordingtothefollowing
principle:
ØAtemperaturesensormeasurestheconditionexisting inacriticalareaofthe
evaporator.
ØIttransmitsthesignalfordefrostingtotheDryLogic-electronic. TheDryLogic
findsout ifdefrostingisnecessary,and it willstartdefrost-modeon itsown.
ØDuringdefrostingthecompressorworksandthefandoesnotwork.
When theiceisdefrosted,thedehumidifierwillstartagainwithdehumidifying.

Page
10
of
15
6.Operating conditions
AD-condensationdryersaresuitablefortheefforton constructionsites,in
residentialbuildings, inswimminghalls,ingaragesandstorerooms. AD-
condensationdryersworkproblem-free at thetemperaturerangeof +3to+32°C
and inthecaseofrelativehumidityfrom40%to95%r.h..
OptionaltheunitisdeliverablewithincludedThermoLogic(opt.extra). Inthisway,
thedeviceturnsoffatinadmissibletemperaturesandonagainat morepermissibly
temperaturesautomatically.
Theuseinroomswithhighertemperaturesleadstodisadvantagesatthe
compressor. Theuseinroomswithlowertemperaturesisineffectiveand can lead
toicing.
Alsothestorageof thedehumidifierat inadmissibletemperatureconditionscan lead
todamages/problemswhileimmediateswitch-on.Therefore, makepossibleshort
timeforadaptationforthedevicebeforeswitch-on.
ATTENTION:
The appliancemustnotbeusedunderthefollowing conditions:
Øinroomsof potentiallyexplosiveatmosphere
Øinroomsof aggressiveatmospheres,forexampleammoniaand woodacid
ØInroomswithwaterwhichshowsapH-value outside of7,0to7,4. Remark: In
The caseoflowerpH-value, corrosion occursatallmetalsand damagesoccurs
at mortarcontaining materials. InthecaseofhigherpH-value, it comestoirritation
ofskinand eyemucousmembraneandextremelimedeposits.
ØInroomswithsalt orsaltyliquids. Salt content >1%(alsosolebaths).
ØInroomsofairtreatedwithozone
Øinroomsfeaturing ahigh concentration ofsolvents
Øinroomsof anextremelyhigh ratioofdust.
Inthecaseofdoubtfuloperatingconditionsitisrecommendedtocontactthe
TechnicalDepartmentof Messrs. AERIALoraspecializeddealer.
Using anAD-airdryerunderinadequateoperatingconditionswill entailthat
thewarrantybecomesnull andvoid.
7.Technicaldata
Amongotherthings, manydifferent componentswhichareinstalledinthe
condensationdryerdecideonthecapacityofthedevice.Sincethesecomponents
can neverbecompletelyidentical,inaccordancetoDINEN810 thecapacitymay
deviateupto5%ofspecifiedcapacity.
General:
Operationalrange: +3°Cupto+32°C/40%r.h.upto95%r.h.
Protectionclass:IP44
Voltage: 230 V/50Hz

Page
11
of
15
Type
AD 740 AD 750 AD 770 AD 790
Airvolume cbm/h 710 710 900 1400
Power
consumption
Max.
Watt 800 900 1015 1700
Noiselevel dB(A) 53 53 53 65
Refrigerant(chargesee
typeplate) R407c R407c R134a R407c
Capacity/powerconsumption at
30°C/80% l/24h
Watt
42,0
800
55,0
900
70,8
1015
90,0
1700
27°C/60% l/24h
Watt
26,8
700
34,1
780
44
840
58,3
1400
20°C/60% l/24h
Watt
19,2
600
24,5
660
28,6
710
41,0
1150
10°C/70% l/24h
Watt
11,0
500
14,0
560
17,5
558
20,0
950
dimensions mm 880 x520x495 1000 x640x580
weight kg 40 42 55 61
8.Service &maintenance
ATTENTION
When performinganyrepairormaintenance,thegeneralsafetyrulesand
provisionsmust beadheredto!
Inordertoguarantee atroublefree functionof thedryerthedeviceshouldbe
cleanedregularly.Thefollowing procedureisrecommended:
ØSwitchOFFtheairdryer
ØDisconnectmainscable
ØRemovefilterholder
ØRemovefilterforcleaning ordisposal
ØDismountfrontpanel
ØBlowoutdevicecautiouslywithcompressedair.(wearprotectivegoggles!)In
thiscase,it mightensurethatallcomponentsarecleaned. (Compressor,
evaporator,condenser, ect.)
ØCheck hoseconnectorandconnectedhose
ØMountfrontpanel
ØClean casewithmoistcloth.DonotuseaggressiveDetergent
ØInsertneworcleanedfilter,Insertfilterholder
ØPutmainplug intothesocket
ØSwitchondehumidifier.

Page
12
of
15
Thiscleaningiswithoutfailregularlyrequired!
Duringconstruction siteeffort,aftereveryeffortoronce aweek!
Noothermaintenanceworkisrequiredfortheairdryer.
9.Troubleshooting
Assignthat dehumidifieraputativedefect on, please, first check thefollowing points.
Ifthisshouldprovidenorelief, pleasecontactyourtechnicalconsultant.
1)Thedehumidifiershowsabadornodryingcapacity
-Thehumidityislowerthan40%r.h.orthetemperatureinthatroomislowerthan
+3°C. Theusingofthedryerisuneconomicalinthecaseoftheseconditions.It is
recommendedtodisconnectthedryer. Tipp:Putthebuilt-inhygrostatonan
attainablevalue(e.g. approx.50%r.F.), withitthedryerpunctuallymayswitchoff.
-Theairfilterissoiled.Thedryerdoesnotreceiveairsufficiently.Clean thefilter
and/orinstallanewone. Asoiledairfiltercaninthelongrunlead to
disadvantagesatthedryer. Tipp: Controlthefilterregularly.
2) Thefanof the dehumdifierdoesnot work.
-Theunitisindefrost mode.Inthiscasethecompressorstillrunsandthefandoes
notrun.Theredneon intheoperationpanellightsup. Aftersomeminutes,the
unit will start withregularworking.
3) Thecompletedryerisoutof operation. Fanandcompressordoesnotrun.
-Isthedryerswitchedon?TheOn-/Off-switchmust beinposition `I´andmustlight
up.
-Istheunitsuppliedwithvoltage?TheOn/Off-switchmustlight upinPos. `I´.
Check themaincable,an additionalcable,thesocketandthemainfuse.
-Thehumidityvalueadjustedat thehygrostat isachieved. Thedryerwillstartagain
afterexceeding theadjustedhumidity.
- Onlyatunitswithoptionalextra„ThermoLogic“ >>Thermostatswitchoff“<<
(=redneon intheoperation panel):
Theambienttemperatureinthat roomislowerthan +3°Corhigherthan+32°C.
Theredneon lightsup (see 5.3/ 5.4/5.5„operationpanel“). Theunit will start
againwhenthetemperatureinthatroomhasachievednormalconditionsbetween
+3°Cand+32°C.
- OnlyatAD740/ AD750 >>watercollectingbucketisfull<< Theredneon lights
up (see 5.3/5.4/5.5„operationpanel“).Emptythewaterbucket andputit back
intotheunit.(see 5.7„condensateoutlet“)
4) Strong icing up at the evaporator.
-Putthedryerintoaroomwithmin.+10°Croomtemperatureand waituntil
completeiceisdefrosted. Switchon theunitagain(inthatroomwithmin.+10°C)
and let workforapprox3hours.If thereisicingupagain,pleasecontactyour
dealer.Otherwisemakesurethattheunitsisonlybeenusedinroomswithmore
than+3°C.Alsothestorageofthedehumidifierat inadmissibletemperature
conditionscanlead todamages/problemswhileimmediateswitch-on.

Page
13
of
15
5) Thehumidityadjustedatthehygrostat doesnotbecomeachieved and/orthe
devicedoesnotswitchoff automatic.:
-Isthehygrostat adjustedonavaluelowerthan 40–45%r.h.?Humidityvalues
withaminimumof40 %-45%r.h. can beachievedwithacondensationdryer.
Adjustthehygrostattoareachablevalue.
-Istheunitwithenough capacityforyourapplication? Theairchanging,numberof
thepersonsintheroomandopenwatersurfacesdecideonthehumidityburden
intheroom.Let calculatethenecessarycapacityfromyourdealer
-Istherealot ofwaterinthewallsorthefloor?Inthatcasethedryerneedssome
timetoremovethatwaterandtoachievean acceptablehumidityinthatroom.
ATTENTION
The appliancemustbe repaired bytrained andexpertpersonnelonly. Inthecase
of interventionsbyunauthorized people, anyandallwarrantyclaimsshallbecome
nulland void!
If youhaveanyquestionsregarding defectsand malfunctionsofAERIAL-airdryers
werecommend getintouchwithyoursupplier.
TheproducerAERIALGmbHyoureachunder0049-40-526879-0or www.aerial.de
10. Disposal
Pleasedo not disposethisunitwiththedomesticwasteand
pleasedo notdisposethisunitintheenvironment.
Wedisposethisunit foryou–free of chargeand
environment-friendly. Pleasecontact us!
Alternativeyourlocalwastemanagemententerprisetakes
thisunitforenvironment-friendlydisposal.

Page
14
of
15
11.Circuitdiagram

Page
15
of
15
12.Manufacturer´sdeclaration
(EU-directive98/37/EG)
(EU-directive2004/108/EG)
(EU-directive73/23/EWG)
manufacturer: AERIALGmbH-SystemezurLuftbehandlung
Oststraße128,D-22844 Norderstedt
Productdescription: dehumidifiertypeAD740/AD750 /
AD770/AD790
capacity: 42 -90l/day
Theproductdescribedaboveisan ambientairdryerreadyforconnection.
Relatedstandards: ENISO12100 SafetyofMachinery
EN50081-1/92ElectromagneticCompatibility(EMC)
BasicSpecification"Emitted
Interference"
EN50082-1/97ElectromagneticCompatibility(EMC)
BasicSpecification"Emitted
Interference"
EN60335-2-40/98Safetyof electricappliancesfor
domesticuseandsimilarpurposes
Inthecaseofchangingsattheunit thismanufacturer´sdeclarationbecomesvoid.
Norderstedt, 02.01.2008 sign/stamp
KarstenMeier–GeneralManager
AERIALGmbH
Oststrasse128
22844 Norderstedt
DEUTSCHLAND
NiederlassungSchweiz:
AERIALGmbH
Täfernstrasse20
5405 Baden-Dättwill
SCHWEIZ
