Aeroflex 3900 Series User manual

3900 Series
Digital Radio Test Set
Issue-9
P25 Option Manual
EXPORT CONTROL WARNING: This document contains controlled technology
or technical data under the jurisdiction of the Export Administration
Regulations (EAR), 15 CFR 730-774. It cannot be transferred to any foreign
third party without the specific prior approval of the U.S. Department of
Commerce Bureau of Industry and Security (BIS). Violations of these
regulations are punishable by fine, imprisonment, or both.

Subject to Export Control, see Cover Page for details.
3900 Series
Digital Radio Test Set
P25 Option Manual
PUBLISHED BY
Aeroflex
COPYRIGHT ©Aeroflex 2009
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise
without the prior permission of the publisher.
Original Printing Feb 2006
Issue-2 May 2006
Issue-3 Jul 2006
Issue-4 Jan 2007
Issue-5 Jun 2007
Issue-6 Aug 2007
Issue-7 Feb 2008
Issue-8 Aug 2008
Issue-9 Feb 2009
10200 West York Street/ Wichita, Kansas 67215 U.S.A. / [phone] / FAX [phone]

Subject to Export Control, see Cover Page for details.
i
Preface
Scope
This manual contains information on how to use 3900 P25 Options. This manual is provided as an
addition to the 3900 Series Operation Manual. Refer to the 3900 Series Operation Manual for
information regarding functions and basic operation of the 3900 Radio Test Set.
Nomenclature Statement
The 3901, 3902 and 3920 Digital Radio Test Set is the official nomenclature for the test sets
currently included in the 3900 Digital Radio Test Set Series. In this manual, 3900, unit or Test Set,
refers to the 3901, 3902 and 3920 Digital Radio Test Sets unless otherwise indicated.
Intended Audience
This manual is intended for users familiar with P25 Systems and with the operation of the 3900.
Test Set Requirements
Refer to the 3900 Series Operation Manual for information on the following:
Safety Precautions
Power Requirements
Platform Performance Data Specifications
Repacking/Shipping Test Set

Preface
Subject to Export Control, see Cover Page for details.
ii
THIS PAGE INTENTIONALLY LEFT BLANK.

Subject to Export Control, see Cover Page for details.
iii
Contents
Preface
Chapter 1 Introduction to P25 Options
Lists the capabilities of 3900 P25 Options.
Chapter 2 P25 Base Option
Contains functional descriptions of the 3900 Base P25 Option.
Chapter 3 P25 Trunking Option
Contains functional description of the 3900 P25 Trunking Option.
Chapter 4 Miscellaneous P25 Options
Contains functional description of additional 3900 P25 Options.

Contents
Subject to Export Control, see Cover Page for details.
iv
THIS PAGE INTENTIONALLY LEFT BLANK.

Subject to Export Control, see Cover Page for details.
v
Table of Contents
Chapter 1
Introduction to P25 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Functions and Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
P25 Option 390XOPT200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
P25 Trunking Option 390XOPT201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
P25 LSM Option 390XOPT204 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
P25 Channel Logger Option 390XOPT206. . . . . . . . . . . . . . . . . . . . . . . . . 1-2
SmartNet™/SmartZone™ Option 390XOPT207 . . . . . . . . . . . . . . . . . . . . . 1-2
KVL Loader Option 390XOPT209 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
P25 Explicit Mode UHF/VHF Option 390XOPT212 . . . . . . . . . . . . . . . . . . . 1-2
P25 AutoTest II Option 390XOPT218 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
P25 Power Over Time 390XOPT231 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
P25 Remote Symbol I/O Option 390XOPT237 . . . . . . . . . . . . . . . . . . . . . . 1-2
P25 Remote Data I/O Option 390XOPT238 . . . . . . . . . . . . . . . . . . . . . . . . 1-2
P25 Remote Protocol I/O Option 390XOPT239 . . . . . . . . . . . . . . . . . . . . . 1-2
P25 AES Encryption Option 390XOPT240 . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
P25 Occupied Power Meter Option 390XOPT250 . . . . . . . . . . . . . . . . . . . . 1-3
P25 Carrier Feedthrough Meter Option 390XOPT254 . . . . . . . . . . . . . . . . . 1-3
SmartNet™/SmartZone™ Logging Option 390XOPT258 . . . . . . . . . . . . . . . 1-3
X2-TDMA® Testing Suite (R2122A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Verifying P25 Option Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Installing P25 Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Selecting P25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Table of Contents
Subject to Export Control, see Cover Page for details.
vi
Chapter 2
P25 Base Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
P25 System Tile Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
RF Control Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Audio Configuration Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Offsets Configuration Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Ports Configuration Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
UUT Measurements Limits Configuration Tile. . . . . . . . . . . . . . . . . . . . . . . . 2-10
Encryption Keys Configuration Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
UUT Measurements Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Constellation Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Eye Diagram Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Distribution Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Data Link Measurement Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Simulator Tile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Chapter 3
P25 Trunking Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Two Channel Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
RF Control Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Trunking Control Tile - Base Station Simulator . . . . . . . . . . . . . . . . . . . . . . . 3-5
Trunking Control Tile - Mobile Simulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
System Plan Configuration Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Table of Contents
Subject to Export Control, see Cover Page for details.
vii
Chapter 4
Miscellaneous P25 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
P25 LSM Option 390XOPT204 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
P25 Channel Logger Option 390XOPT206 . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
P25 SmartNet™/SmartZone™ Option 390XOPT207 . . . . . . . . . . . . . . . . . . . . 4-8
KVL Loader Option (390XOPT209) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
P25 Explicit Mode VHF/UHF 390XOPT212 . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
P25 AutoTest II 390XOPT218 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Power Over Time Tile 390XOPT231 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
P25 AES Encryption 390XOPT240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
P25 Occupied Bandwidth Meter 390XOPT250 . . . . . . . . . . . . . . . . . . . . . . . 4-21
Motorola ASTRO® 25 X2-TDMA® Test Options . . . . . . . . . . . . . . . . . . . . . . 4-22
Trunking Control Tile - Mobile Simulator . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
SmartNet™/SmartZone™ Logging Option 390XOPT258. . . . . . . . . . . . . . . . . 4-28
Appendix A
Measurement Meter Dependencies . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B
Motorola Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Table of Contents
Subject to Export Control, see Cover Page for details.
viii
THIS PAGE INTENTIONALLY LEFT BLANK.

Subject to Export Control, see Cover Page for details.
1-1
Chapter 1
Introduction to P25 Options
Functions and Capabilities
The 3900 Series P25 Options provide various features for testing P25 radios systems. The 3900
Series currently supports the following P25 test capabilities:
P25 Option 390XOPT200
P25 Option provides the following test features:
●P25 Base Radio simulation;
●Ability to lock/unlock paired generator and receiver frequencies;
●Ability to configure independent generator and receiver protocol;
●Internal AF Generators for audio modulation;
●Data Link Tile displays data from inbound voice packets;
●Ability to transmit P25 C4FM modulation waveforms;
●Ability to receive, demodulate and analyze P25 modulated signals;
●Ability to select Phase 1 or Analog Protocols;
●Ability to perform RF and modulation parametric tests on the Unit Under Test (UUT).
●Provides features for use of DES encryption on Trunked P25 Voice Channels.
P25 Trunking Option 390XOPT201
The 3900 Series P25 Trunking Option provides all of the features found in option 390XOPT200 plus
the following:
●P25 Trunked Base Radio simulation;
●System Plan configuration for defining system information and Channel Plan data;
●Two Channel selection capability;
●P25 700 MHz, 800 MHz, UHF and VHF frequency band support.
P25 LSM Option 390XOPT204
The 3900 Series P25 LSM Option provides all of the features found in option 390XOPT200 plus the
following:
●Ability to transmit Motorola® LSM waveforms;
●Enables the EVM Meter and related remote commands;
●Enables CQPSK Transmit Modulation;
●Enables the Trajectory Tile;
●Enables Frequency and IQ Constellation Tile selection.

Introduction to P25 Options
Subject to Export Control, see Cover Page for details.
1-2
P25 Channel Logger Option 390XOPT206
The 3900 Series P25 XML Logger Option provides all of the features found in option 390XOPT200
plus the following:
●Allows XML formatted information to be relayed to and from a remote PC location and a
Test Set.
SmartNet™/SmartZone™Option 390XOPT207
The 3900 Series SmartNetTM/SmartZoneTM Option provides all of the features found in option
390XOPT200 plus the following:
●Ability to emulate a repeater station operation (not locked to a specific ‘test sequence’ for
the radio);
●Ability to ‘find’ and monitor a SmartNet™/SmartZone™ control channel and then ‘follow’ the
channel, the group or the individual unit;
●Full analog (FM) parametric tests and digital P25 mode tests;
●Various 800 and 900 MHz frequency band and VHF/UHF frequency band selection;
●Channel designation and frequency settings for 800 and 900 MHz band.
KVL Loader Option 390XOPT209
The KVL Keyloader Option adds the ability to enter encryption keys into the 3900 for DES and AES.
Encryption keys may be loaded manually using either the front panel, external keypad, or the P25
Key Fill Device (KFD) interface protocol.
P25 Explicit Mode UHF/VHF Option 390XOPT212
The 3900 Series P25 Explicit Mode UHF/VHF Option provides all of the features found in option
390XOPT200 plus the following:
●Enables all bands for P25 Explicit Mode of operation.
P25 AutoTest II Option 390XOPT218
The 3900 Series P25 AutoTest II Option provides an interface to the Test Set’s Autotest System
and remote command functionality.
P25 Power Over Time 390XOPT231
The 3900 Series P25 Power Over Time Option provides all of the features found in option
390XOPT200 plus the following:
●Displays the power measurement of the received signal over a specified period of time.
P25 Remote Symbol I/O Option 390XOPT237
The 3900 Series P25 Remote Symbol I/O Option provides all of the features found in option
390XOPT200 and 390XOPT206 plus the following:
●Ability to log Symbol Layer XML data.
P25 Remote Data I/O Option 390XOPT238
The 3900 Series P25 Remote Data I/O Option provides all of the features found in option
390XOPT200 and 390XOPT206 plus the following:
●Ability to log Raw XML data.
P25 Remote Protocol I/O Option 390XOPT239
The 3900 Series P25 Remote Protocol I/O Option provides all of the features found in option
390XOPT200 and 390XOPT206 plus the following:
●Ability to log Protocol Layer XML data.

Introduction to P25 Options
Subject to Export Control, see Cover Page for details.
1-3
P25 AES Encryption Option 390XOPT240
The P25 AES Encryption Option supports encoding and decoding of Advanced Encryption Standard
data exchanged between P25 radios.
P25 Occupied Power Meter Option 390XOPT250
The 3900 Series P25 Occupied Bandwidth Power Meter Option provides all of the features found in
option 390XOPT200 plus the following:
●Enables the Occupied Bandwidth Power Meter and relevant RCI commands.
P25 Carrier Feedthrough Meter Option 390XOPT254
The 3900 Series P25 Carrier Feedthrough Meter Option provides all of the features found in option
390XOPT200 plus the following:
●Enables Carrier Feedthrough Meter and relevant remote commands.
SmartNet™/SmartZone™ Logging Option 390XOPT258
The 3900 Series SmartNet™/SmartZone™ Logging Option provides all of the features found in
option 390XOPT200 and 390XOPT207 plus the following:
●Allows XML formatted information to be relayed to and from a remote PC location and a
Test Set.
X2-TDMA® Testing Suite (R2122A)
The X2-TDMA® Testing Suite includes both the X2-TDMA® Mobile Emulation Option and the X2-
TDMA® Base Station and Parametric Option. The X2-TDMA® Testing Suite is the recommended
X2-TDMA® Test Option for evaluating Motorola ASTRO® 25 X2-TDMA® Radio Systems.
X2-TDMA® Mobile Emulation (R2123A)
The X2-TDMA® Mobile Emulation Option includes all of the features found in option R2124A plus
the following:
●Enables functionality used to test X2-TDMA® Base Station operational parameters and for
testing mobile-to-mobile functionality.
X2-TDMA® Base Station and Parametric (R2124A)
The X2-TDMA® Base Station and Parametric Option:
●Enables X2-TDMA® Base Station simulation which is used to test the performance of X2-
TDMA® Mobile Subscriber Units;
●Enables the Adjacent Channel Power Meters and relevant RCI commands;
●Enables the Carrier Feedthrough Meter and relevant RCI commands;
●Enables the Occupied Bandwidth Power Meter and relevant RCI commands.

Introduction to P25 Options
Subject to Export Control, see Cover Page for details.
1-4
Verifying P25 Option Installation
To check the status of installed options while operating in Test Mode:
1. Push the UTILS Key twice to open Utility Menu.
2. Select Software Settings, License from the Utility menu.
3. The License Tile lists installed options, including the version and version date of each option
(refer to example below).
The option list varies according to the features installed on the Test Set. P25 System is Option 200.
If the option is not installed in the Test Set, refer to the 3900 Series Operation Manual for detailed
information on installing a license file and performing software upgrades.
Fig. 1-1 3900 License Tile
Installing P25 Option
Refer to the 3900 Series Operation Manual for instructions on installing options in the 3900.
Selecting P25
Refer to the 3900 Series Operation Manual for instructions on selecting test systems.

Subject to Export Control, see Cover Page for details.
2-1
Chapter 2
P25 Base Option
Introduction
The 3900 Series P25 Options provide users with the ability to test the operational capabilities of P25
Conventional and P25 Trunked radio systems. P25 Option 390XOPT200 is the basis from which all
other P25 Test Options are developed and is referred to in this manual as the P25 Base Option. This
option is required to operate all other P25 options.
This chapter provides an operational description of the P25 Base Option. Refer to Chapter 3, P25
Trunking Option and Chapter 4, Miscellaneous P25 Options for information on other P25 options.
Optional Fields
P25 display tiles contain some fields that are only available when specific P25 options are installed
in the Test Set. Optional fields and parameters are noted as *option enabled.
Fig. 2-1 P25 Display Layout
P25 System Tile Layout
The P25 User Screens can be configured for customized test requirements. Each section of the
display is configured using the drop-down menu on the title bar of each tile.
●Section A of the P25 User Screen displays the RF Control Tile.
●Sections B through E of the P25 User Screen are configured using the drop-down menu on
each tile.
●P25 includes access to the Channel Analyzer, Spectrum Analyzer and Oscilloscope. Use of
the Channel Analyzer, Spectrum Analyzer and Oscilloscope are described in the 3900 Series
Operation Manual.
Section A
Section B
Section C
Section D Section E
Soft
Key
Area

P25 Base Option
Subject to Export Control, see Cover Page for details.
2-2
RF Control Tile
The RF Control Tile configures the Test Set for evaluating P25 mobile radios operating in
Conventional Mode and for testing the physical layer of P25 radio systems. RF Control Tile fields
must be configured according to the operating parameters of the Unit Under Test (UUT) to obtain
valid test data.
Fig. 2-2 P25 RF Control Tile - Phase 1 Protocol Selected
Transmit Field Definitions
1/2 Channel Toggle Buttons
The 1 / 2 Channel Toggle Buttons enable/disable a Channel to be used for the transmit or receive
path. Channel 1 and 2 can be enabled at the same time, however, the secondary channel
frequency must be within +/- 2.5 MHz of the primary channel frequency. Channel 2 is *option
enabled when the P25 Trunking Option is installed in the Test Set.
Pri (Primary Channel)
Selects the channel as the primary frequency.
S0/S1 (Slot 0/Slot 1) Toggle Buttons
The S0 and S1 toggle buttons are *option enabled when the X2-TDMA® Base Station and
Parametric Option is installed in the Test Set.
When X2-TDMA®Protocol is selected, the Test Set allows the user to select the pattern
transmitted on Slot 0 and Slot 1. The S0 and S1 buttons enable/disable these Slots. S0 and/or
S1 must be enabled to generate an X2-TDMA signal.
Freq (Frequency)
Defines carrier frequency of signal generated by the Test Set.
Level
Defines the output power level of Transmit signal.
Units (Level)
The Units drop-downmenu selects the unit of measurement for the Power Level.

P25 Base Option
Subject to Export Control, see Cover Page for details.
2-3
Protocol
Selects the P25 Protocol of the signal generated by the Test Set. The P25 Base Option currently
supports P25 Phase 1 (non-trunked) and Analog Protocols. Other protocols are *option enabled
(i.e., SNSZ).
Modulation
This drop-down menu selects the Modulation type of the signal generated by the Test Set. Plot/
graph traces vary based on the selected Modulation type. The Modulation types available depend
on the Protocol type selected and the options installed in the Test Set.
Pattern
The Pattern drop-down menu selects the data or voice pattern to be generated by the Test Set.
P25 patterns are derived from TIA-102.CAAA Specification. Pattern types include standard and
non-standard P25 patterns, stored speech files and voice modulation. Available pattern types are
dependent on the type of Protocol selected and the options installed in the Test Set.
Fig. 2-3 RF Control Tile - Analog Protocol Selected
Receive Field Definitions
1/2 Channel Toggle Buttons
The 1 / 2 Channel Toggle Buttons enable/disable a Channel to be used for the transmit or receive
path. Channel 1 and 2 can be enabled at the same time, however, the secondary channel
frequency must be within +/- 2.5 MHz of the primary channel frequency. Channel 2 is *option
enabled when the P25 Trunking Option is installed in the Test Set.
Pri (Primary Channel)
Selects the channel as the primary frequency.Selects the channel as the primary frequency.
Spk (Speaker)
Selects the channel that routes incoming audio signal to Test Set demodulators.
Freq (Frequency)
This field defines the receiver frequency. For accurate readings, this frequency should be set to
the UUT transmit frequency.

P25 Base Option
Subject to Export Control, see Cover Page for details.
2-4
Offset
The Offset field displays or defines the offset between the Transmit and Receiver frequencies.
When set to LOCK, changing the Receive or Transmit Frequency offsets the other frequency by
the value specified in the Offset field. For example, setting the Receiver frequency to 150 MHz,
with an offset of 2.5 MHz, results in the Transmit frequency updating to 152.5 MHz. Or, if the
Transmit frequency is set to 150.0 MHz, with an Offset of 2.5 MHz, the Receive frequency
updates to 147.5 MHz.
When set to UNLOCK, a value can be entered independently for either the Transmit Frequency or
the Receiver Frequency.
Protocol
Selects the expected P25 Protocol of the received signal.
Modulation
The 3900 Receiver Modulation type in the P25 Base Option is system defined as C4FM and can
not be changed by the user.
IF Bandwidth
The BW drop-down menu selects the receiver bandwidth. 12.5 kHz is the typical bandwidth used
on P25 systems. 25 kHz bandwidth is useful when a mobile radio is transmitting off frequency.

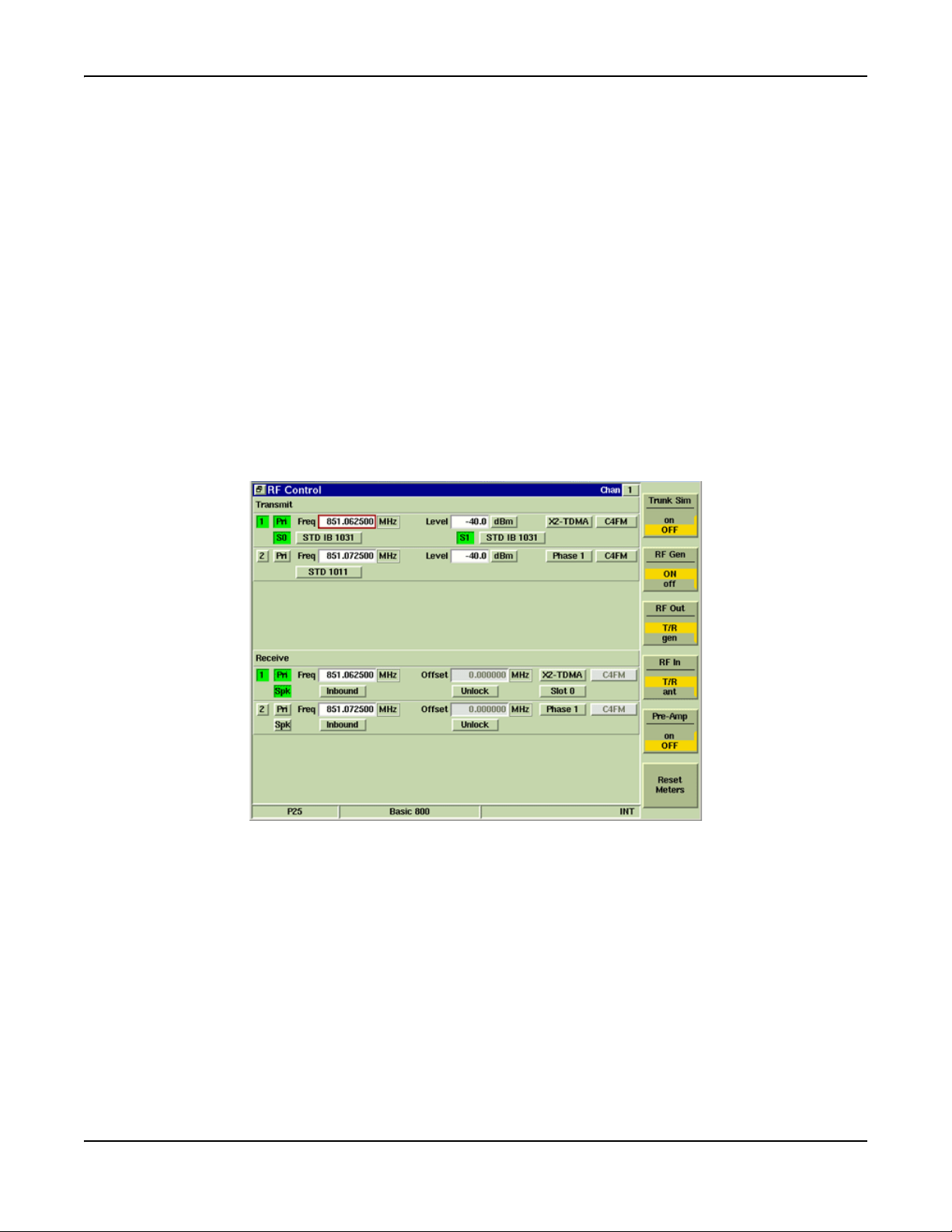

Fig. 2-4 RF Control Tile - X2-TDMA Protocol Selected (*option enabled)
Slot 0/1 (Receive)
The Slot 0/1 toggle button is *option enabled when the X2-TDMA® Base Station and Parametric
Option is installed in the Test Set.
Selecting X2TDMA Protocol enables the Receiver Slot which routes the Audio for the selected
Slot (0 or 1) to the speaker.
Audio Filter
Selects a measurement filter to include in the measurement path. The Audio Filter applies to
Analog Protocol only.

P25 Base Option
Subject to Export Control, see Cover Page for details.
2-5
Inbound/Outbound Message
The Inbound/Outbound menu defines how the system processes signal data. When set to
Inbound, the Test Set processes the signal as a mobile originated signal. When set to Outbound,
the Test Set processes the signal as a mobile terminated signal. This parameter affects Trunking
Simulation and XML data log.
Lock/Unlock
Locks / Unlocks frequency offset in relation to the Transmit and Receive frequencies.
Soft Key Definitions
RF Gen Soft Key
Selects and indicates the On/Off state of the RF Generator output from the Test Set. When the
generator is disabled, an RF OFF indicator is shown on the Tile.
RF Out Soft Key
The RF Out Soft Key controls the RF Output signal routing. Select either the GEN (Generator)
Connector or T/R Connector as RF Output port.
RF In Soft Key
The RF In Soft Key controls the RF Input signal routing. Select either the T/R Connector or ANT
(Antenna) Connector as the RF Input port.
Reset Meters Soft Key
The Reset Meters Soft Key clears and resets the meter readings.

P25 Base Option
Subject to Export Control, see Cover Page for details.
2-6
Audio Configuration Tile
The Audio Configuration Tile defines Audio modulator and AF generator parameters for use in
testing Analog radio systems. Parameters can be defined separately for each modulator and AF
generator. The Test Set is configured so that the user can simultaneously enable up to 3 modulators
and 3 generators.
Fig. 2-5 P25 Audio Configuration Tile
Field Definitions
Modulation Generator Field Definitions
M1, M2, M3 Buttons
The Modulator buttons enable/disable each modulator. Modulators can be enabled in
combination or individually.
Frequency
Sets the frequency for each Modulation generator.
Deviation
Defines the Deviation for each generator when FM modulation is selected. When this value is
defined, the Modulation Index value updates to display the value as a percent.
Mod (Modulation) Index
The Mod Index field defines the modulation level as a percent of the maximum deviation setting
(150 kHz). When a Mod Index value is entered, the Deviation value updates to display the value
in kHz. For example, when the Mod Index value is set to 100%, the Deviation value updates to
150 kHz, the maximum Deviation setting.
Waveform
Selects Waveform for each modulator.
EXT Toggle Button
The EXT Toggle Button enables/disables an external modulation source.
Source
Selects the Audio input source.
