Afikim Afiscooter-C User manual

Ascooter SE
User Manual
Ascooter-C
P/N PRC4001

``
2
WARNING
Read the User Manual carefully before operating AFISCOOTER C.
If you do not fully understand any part of this manual, please contact your dealer or
any of our Service Centres.
Read this manual step by step, as injury or damage may occur from misuse!
WARNING
Electromagnetic Interference (“EMI”) can cause powered vehicles to behave
erratically, which could be dangerous to the user.
For your safety and protection, it is IMPERATIVE that you take time to read
Chapter 10 (“EMI WARNING”) before operating AFISCOOTER C.
Serial Number and Manufacturer’s data are fixed at the front, on the plastic mud
guard cover on the metal label of AFISCOOTER C.
WARRANTY
AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their
quality and reliability, in constant effort to ensure its customers’ satisfaction as well
as its place in the market.
Warranty for AFISCOOTER C is subject to your local distributor's warranty.
CE CERTIFICATION
The Afikim Electric Vehicles Ref. Registration Number with the Competent
Authority (UK) Is: CA000292.
Our Authorized Representative with the Competent Authorities is:
MEDES LTD., POB 231
Stanmore, Middlesex, HA7 4YA, England
TEL/FAX: [phone]
Date: September 2014 (ECO-14-27)
Edition: 02
Revision 01
Products: AFISCOOTER C, 4-Wheel and 3-Wheel
P/N of the user manual: PRC4001

``
3
CONTENTS
CHAPTER 1 –OVERVIEW OF AFISCOOTER C (MAIN FEATURES) 4
CHAPTER 2 –SAFETY SYMBOLS FOR AFISCOOTER C 5
CHAPTER 3 –SAFETY INSTRUCTIONS FOR AFISCOOTER C 10
CHAPTER 4 –GENERAL DESCRIPTION OF AFISCOOTER C 19
CHAPTER 5 –ADJUSTMENT INSTRUCTIONS 21
CHAPTER 6 –OPERATING INSTRUCTIONS 22
CHAPTER 7 –CHARGING AFISCOOTER C BATTERIES 26
CHAPTER 8 –MAINTENANCE 27
CHAPTER 9 –TROUBLESHOOTING AND REPAIR 29
CHAPTER 10 –EMI WARNING 30
Appendix A –Specification Sheet 31

``
4
CHAPTER 1 –OVERVIEW OF AFISCOOTER C (MAIN FEATURES)
Congratulations on choosing AFISCOOTER C as your electrically powered scooter.
AFISCOOTER C is a scooter for elderly and disabled persons, and for fun and sport.
Scooter classification: Class B in accordance with EN12184.
AFISCOOTER C is designed for a maximum occupant mass of up to 135kg
(300 lbs, 3W) / 150kg (330 lbs, 4W). (See details in page 12).
AFISCOOTER C is an indoor/outdoor scooter designed to work in normal environmental
conditions from very cold temperatures (-30ºC/-22ºF) to very hot temperatures
(+45ºC/+113ºF).
AFISCOOTER C will operate in light rain showers, but extended use is not recommended in
heavy rain or snow.
AFISCOOTER C is easy to operate. The relatively large wheels allow the user drive on
unpaved roads, over moderately rough terrain and over obstacles as high as 4” (10 cm).
Refer to Appendix A: Specification Sheet (Page 30) for the required tire pressure.
AFISCOOTER C can climb slopes with angles and loads as detailed in Figure A: Maximum
Recommended Incline Angles (Page 11).
The AFISCOOTER C maximum safe slope is: 9º (16%). (See page 12)
The braking system stops AFISCOOTER C smoothly and within a short distance after the
throttle control lever is released.
A standard handbrake is also provided for backup. (Option)
AFISCOOTER C is equipped with both front and rear shock absorbers to give the user a
comfortable and smooth drive, even when using the vehicle on moderately rough roads.
The seat is spacious and comfortable, and can be rotated for easy access (standard
seats). It can be adjusted forward and backward, and up and down by a technician.
All controls are conveniently mounted on the tiller and are simple to operate.
Under normal conditions, AFISCOOTER C can travel approximately 40 km (27 miles) before
the batteries require recharging.
After reading through this entire manual and before using AFISCOOTER C, do a visual check
of all the parts of the vehicle, to make sure that there is no visible damage. If you have any
questions or concerns, contact your dealer.
AFISCOOTER C was developed to use maintenance-free sealed batteries only.
A Maintenance Manual is available for trained technicians.

``
5
CHAPTER 2 –SAFETY SYMBOLS FOR AFISCOOTER C
WARNING! An authorized supplier or qualified technician must
perform the initial setup of this scooter, and must perform all of the
procedures in this manual.
The symbols below are used throughout this user’s manual and on the scooter to
identify warnings and important information. It is very important for you to read
them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation.
Failure to follow designated procedures can cause either personal
injury, component damage, or malfunction.
On the scooter, this is a triangular black symbol.
MANDATORY! These actions must be performed as specified. Failure
to perform mandatory actions can cause personal injury and/or
equipment damage. On the scooter, this is a white symbol on a dark
background.
PROHIBITED! These actions are prohibited. These actions must not be
performed at any time or under any circumstances. Performing a
prohibited action can cause personal injury and/or equipment damage.
On the scooter, this is a black symbol with a circle and slash.
Please note and strictly adhere to the following Safety Instructions.
Additional Warnings and Notices are printed in this user manual; it is
imperative that you read carefully all chapters of this manual before
operating AFISCOOTER C.It is also advisable to refresh your memory by re-
reading this manual periodically.
Get acquainted with AFISCOOTER C and its operational features before
driving it.
Drive slowly (speed limit dial set to MIN) until you get used to AFISCOOTER C,
its various functions, safety features, and to its braking capabilities and
limitations.
Watch carefully for pedestrians and drive your AFISCOOTER C accordingly.
In crowded areas, always drive with the speed limit dial set to MIN.
Drive only where permitted according to all applicable local laws and
ordinances. AFISCOOTER C is 66 cm (26") wide. Take great care not to hit
persons or any objects around the vehicle.
Never remove any of the AFISCOOTER C safety parts such as fenders,
plastic covers or emergency brake lever.
Never remove any of the Warning labels. If any of the Warning labels is
removed, gets worn off or painted over, etc. ask your dealer to supply you
with a new label.

``
6
Never put your hands, fingers, or legs into any moving parts or under any
protective cover, since moving parts and hot surfaces are under those
covers.
When making adjustments (folding the seat back, adjusting the armrest,
moving the seat forward or backward, adjusting the tiller distance), as well
as when squeezing the throttle control lever or handbrake, always take care
that your hands and fingers are not trapped between any of the moving
parts.
When moving the tiller forward or backward, be careful not to trap your
fingers in the mechanism.
Never load AFISCOOTER C with more than 135kg (300 lbs, 3W) or 150kg
(330 lbs, 4W) (see details in page 12) total load (user weight and all other
loads combined, including baskets).
The load in the rear basket must not exceed 8 kg (17.6 lbs).
The load in the front basket must not exceed 5 kg (11 lbs).
AFISCOOTER C is designed to carry ONE person only on the Single Seat
model. Never operate it with an additional person on board, including a child.
Never inflate the AFISCOOTER C tires more than the manufacturer’s
recommended pressure, shown on the tires.
Never use AFISCOOTER C on stairs.
Never try to go over an obstacle that is more than the maximum
recommended slope angle and obstacle height given in the specification
sheet. When driving over an obstacle, always drive so that the front of
AFISCOOTER C is facing the obstacle.
If for any reason AFISCOOTER C does not stop when you release the throttle
control lever, or takes longer to stop than it should (3 meters on a level
surface), immediately use the handbrake to stop AFISCOOTER C, turn the
main key switch to OFF, and contact your dealer.
Do not use AFISCOOTER C in heavy rain or extreme humidity, or at
temperatures below -30ºC (-22ºF) or above +45ºC (+113ºF).
The seat weighs 21 kg (46 lbs). Each battery weighs a minimum of 14 kg
(31 lbs). Be careful when lifting the seat and the batteries.
See instruction for lifting the seat and the batteries in Chapter 8:
Maintenance, and Chapter 9: Troubleshooting and Repair. Always lift using
your knees and legs, not your back.
If AFISCOOTER C is involved in any kind of an accident in which parts are
damaged, you must get a qualified technician to examine it before
continuing to use it.

``
7
Batteries contain lead and acid, which is very corrosive. Batteries must be
disposed of in accordance with proper procedures.
When driving, always make sure that the backrest is in its fully upright
position.
Use lead acid maintenance-free sealed batteries only.
WARNING!!! Special care must be taken to prevent children from operating
AFISCOOTER C.
Do not allow unsupervised children to play near AFISCOOTER C scooter while
the batteries are charging.
Always drive carefully. Adjust your speed according to road conditions.

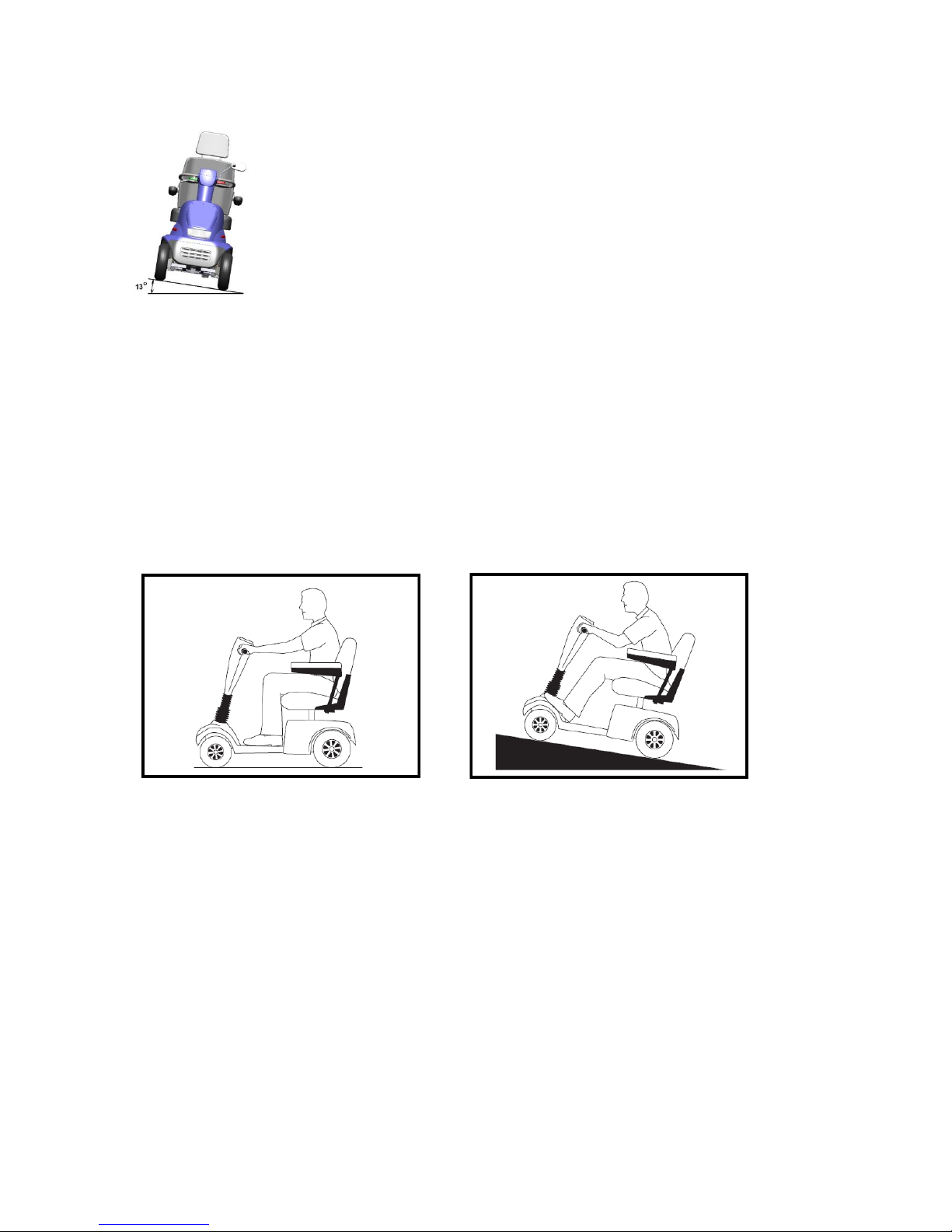

When turning at high speed, AFISCOOTER C can become unstable. Before
making sharp turns, reduce speed to minimum to prevent roll-over.
AFISCOOTER C is able to go up slopes higher than the recommended safe
slope. However, do not drive on slopes whose incline you do not know.
Always drive very slowly and do not drive on the side of such slopes.
Before starting to drive, make sure your emergency brake operates properly.
Do not release either the manual or the manual release lever of the
electromagnetic brake (EMB) when AFISCOOTER C is on a slope.
When on any sort of an incline, never place AFISCOOTER C in freewheel
mode while seated on it or standing next to it.
The lights of AFISCOOTER C should be on when visibility is reduced,
day or night.
Since your seat upholstery is fire resistant, do not cover it or replace
with any upholstery other than upholstery of the same kind.
When removing the battery cover, watch out for hot parts. The motor, axle,
EMB, electronic cards and electronic controller might be hot, Do not touch
them until you have checked their temperature.

``
8

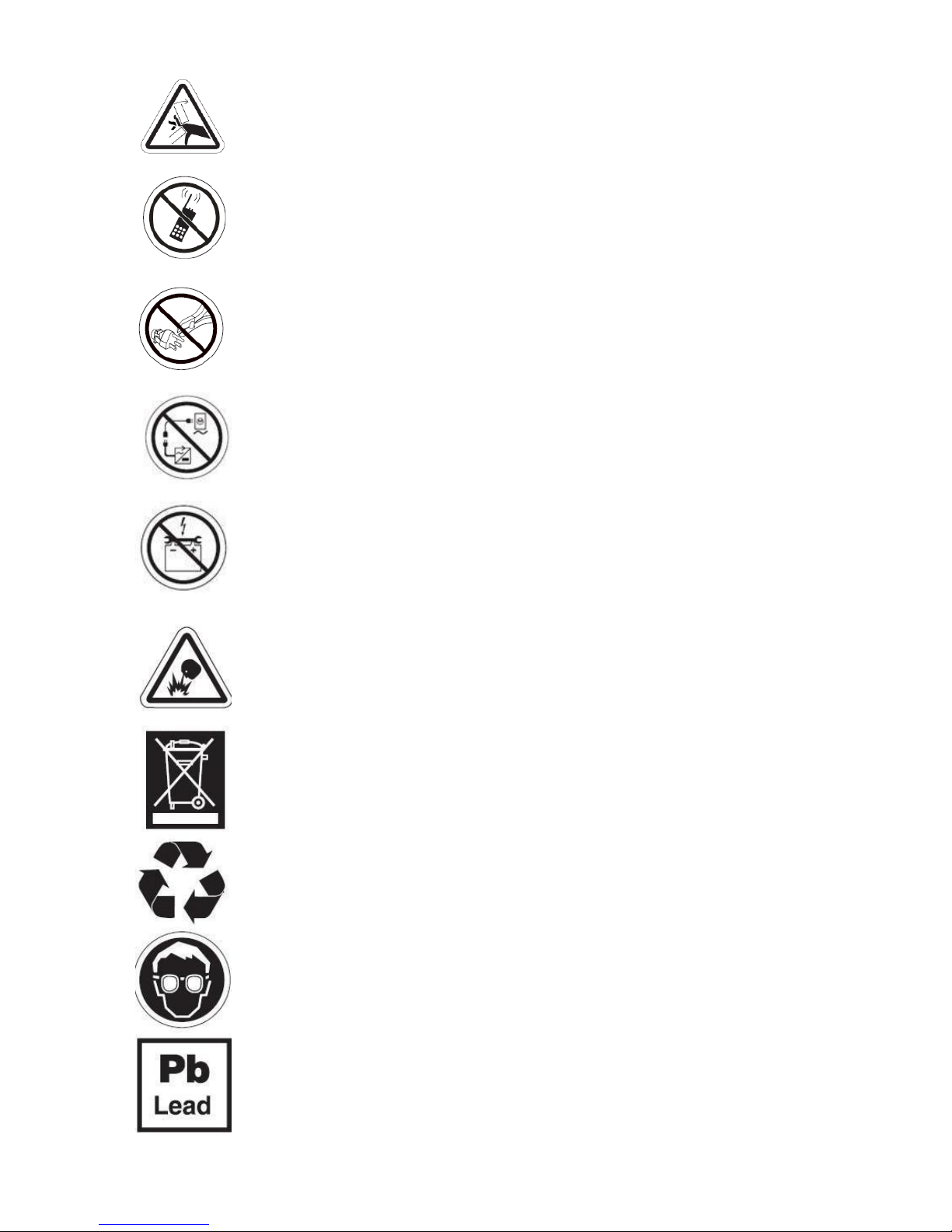

Make sure your fingers are not squeezed between the levers and the
rubber grip.
Do not use a cell phone, walkie-talkie, laptop, or other radio transmitter while
operating AFISCOOTER C.
Removal of the grounding prong can create electrical hazard. If it is
necessary to use a 2-pronged electrical outlet, properly install an approved
3-pronged adapter.
Do not connect an extension cord to the AC/DC converter or to the
battery charger.
Keep tools and other metal objects away from the battery terminals.
Contact with tools can cause electrical shock.
Do not sit on AFISCOOTER C when it is on any type of lift/elevation
product.
Explosive conditions exist
Disposal and recycling: Contact your authorized dealer for information on
proper disposal of your AFISCOOTER C and its packaging.
Wear safety glasses.
Contains lead.

``
9

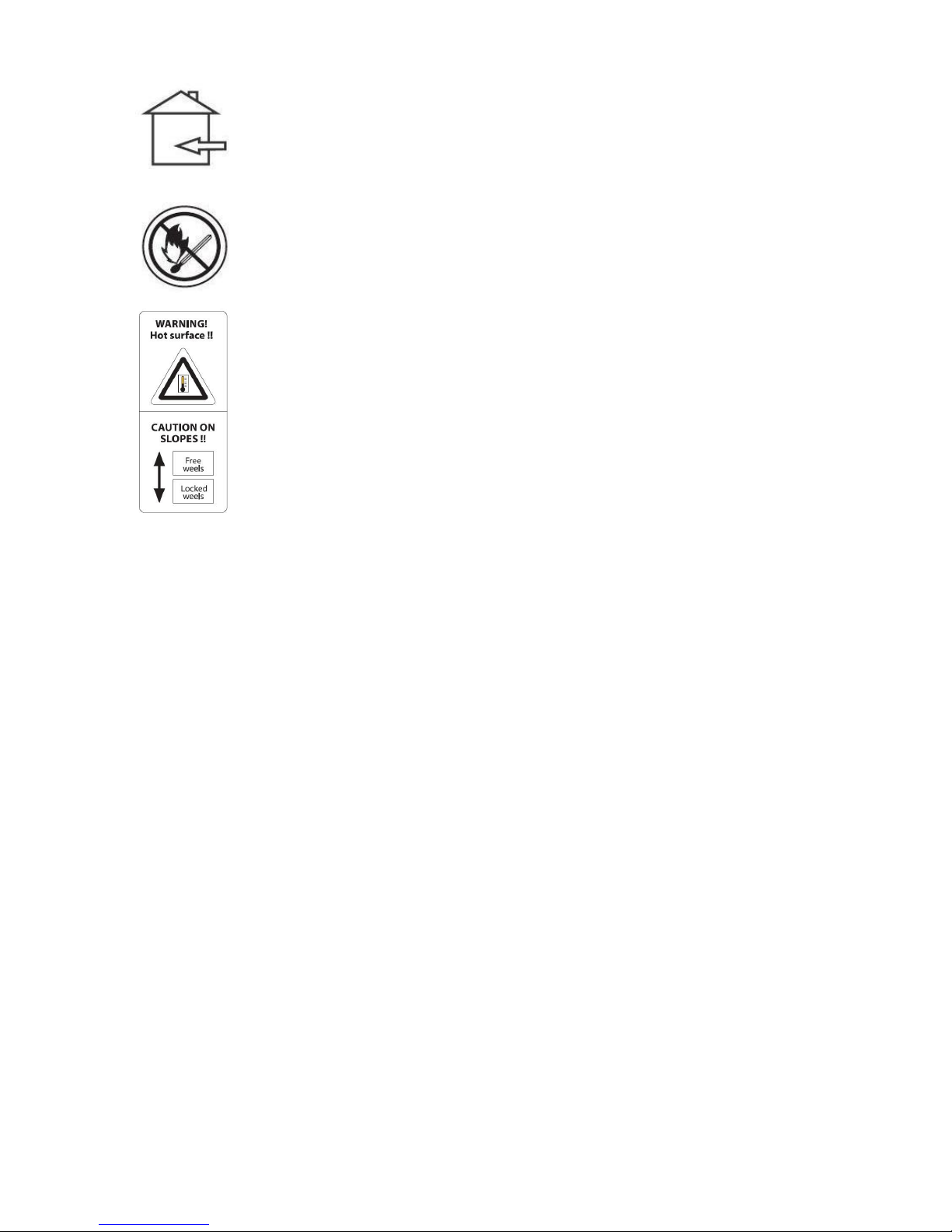

The battery charger is for indoor use only.
Flammable material. Do not expose to open flame.
At the rear of AFISCOOTER C is the manual release lever of the EMB. When
using this lever, be careful not to touch the internal surface of the motor, as
it could be very hot and cause injury. See the warning label at the rear of the
scooter near the lever.

``
10

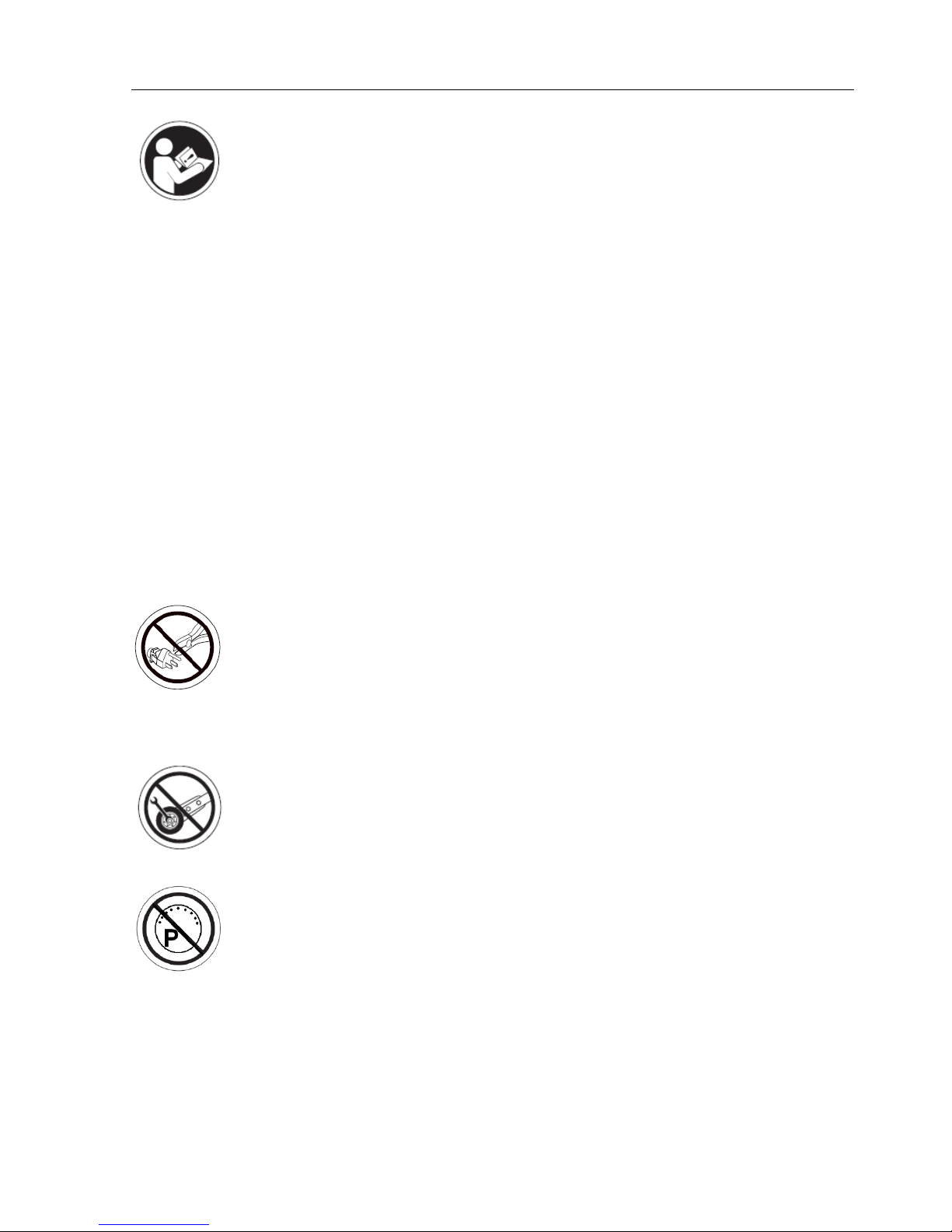

CHAPTER 3 –SAFETY INSTRUCTIONS for AFISCOOTER C
GENERAL MANDATORY! Do not operate your new AFISCOOTER C scooter for the first
time without reading and understanding this user manual completely.
Your AFISCOOTER C is a state-of-the-art life-enhancement device designed to
increase mobility. We provide an extensive range of products to best fit the
individual needs of the user. Please be aware that the final selection and
purchasing decision regarding the type of AFISCOOTER C scooter to be used is the
responsibility of a user who is capable of making such a decision and of his or her
healthcare professional (i.e., medical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has
properly fitted the AFISCOOTER C scooter to the user and has assisted the prescribing
healthcare professional and/or the authorized dealer to give instructions for the use of the
product.
There are certain situations, including some medical conditions, where the user will need
to practice operating AFISCOOTER C scooter in the presence of a trained attendant. A
trained attendant can be defined as a family member or care professional specially trained
in assisting a user in various daily living activities.
As you begin using your AFISCOOTER C scooter during daily activities, you will probably
encounter situations in which you will need some practice. Simply take your time and you
will soon be in full and confident control as you manoeuvre through doorways, on and off
elevators, up and down ramps, and over moderately rough terrain.
Below are some precautions, tips, and other safety considerations that will help you
operate AFISCOOTER C scooter safely.
MODIFICATIONS
We have designed and engineered your AFISCOOTER C to provide maximum
mobility and utility. Under no circumstances should you modify, add, remove,
or disable any feature, part, or function of your AFISCOOTER C.
WARNING! Do not modify your AFISCOOTER C in any way not authorized by
the manufacturer. Do not use accessories if they have not been tested or
approved by the manufacturer.
REMOVABLE PARTS
WARNING! Do not attempt to lift or move your AFISCOOTER C by any of its
removable parts, including the armrests, seat, or shroud.
PRE-RIDE SAFETY CHECK
Get to know the feel of your AFISCOOTER C and its capabilities. We
recommend that you perform a safety check before each use to make sure
your AFISCOOTER C operates smoothly and safely.
Perform the following inspections prior to using your scooter:
Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air
pressure rating indicated on each tire.
Check all electrical connections. Make sure they are secure and not corroded.
Check all harness connections. Make sure they are secured properly.
Check the brakes.
Check the battery charge.
If you discover a problem, contact your authorized AFISCOOTER C dealer for
assistance.
