INSTALLATION MANUAL
POLARIS RZR PRO R
4 SEATER
ROOF RACK
CAN035
[email protected]
THIS PRODUCT IS FOR OFF ROAD USE ONLY

AFX Motorsports products are designed to best fit user’s ATV/UTV under stock conditions. Adding, modifying, or fabricating any factory
or aftermarket parts will void any warranty provided by AFX Motorsports and is not recommended. AFX Motorsports products could
interfere with other aftermarket accessories. If user has aftermarket products on machine, contact AFX Motorsports to verify that they
will work together. Although AFX Motorsports has thousands of satisfied customers, user should be aware that installing bumpers, rock
sliders, spare tire carriers, etc. will change the ride of machine and may increase maintenance and part wear. Operating any off-road
machine while, or after, consuming alcohol and/or drugs increases risk of bodily harm or death. No warranty or representation is made
as to this product’s ability to protect user from severe injury or death. AFX Motorsports urges operators and occupants to wear a helmet
and appropriate riding gear at all times. By purchasing and installing AFX Motorsports products, user agrees that should damages
occur, AFX Motorsports will not be held responsible for loss of time, use, labor fees, replacement parts, or freight charges. AFX
Motorsports, nor any 3rd party, will not be held responsible for any direct, indirect, incidental, special, or consequential damages that
result from any product purchased from AFX Motorsports. The total liability of seller to user for all damages, losses, and causes of
action, if any, shall not exceed the total purchase price paid for the product that gave rise to the claim. AFX Motorsports will warranty
only parts provided by AFX Motorsports. Any damage or problems with OEM housings, bearings, seals, or other manufacturers’
products will not be covered by AFX Motorsports. AFX Motorsports parts and products are not warrantied if item was not installed
properly, misused, or modified.
Liability Statement
5/32” Allen Key
7/16” or 14 mm Combination Wrench
Tools Needed (Not Included)
HOW TO INSTALL
FOR PURCHASING AT AFX MOTORSPORTS

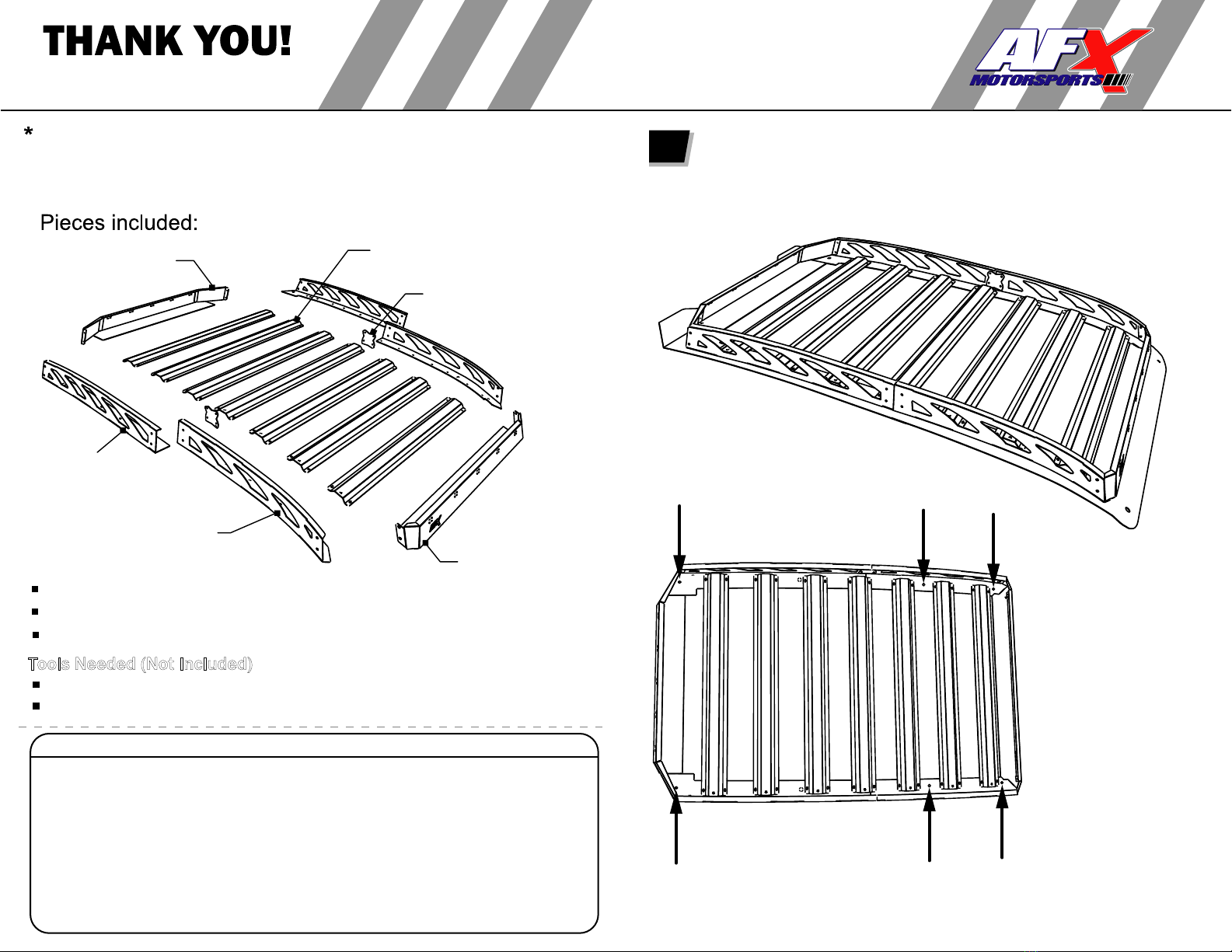

9With the Help of another person, place the complete rack over
the Original Roof and aligning the perforations. Use the six
screws you removed from the roof, tighten all the screws
* For safety tighten all the screws *
(44x) 1/4” Lock nut
Rear Roof
Rack Bracket
Central bar
Front Roof
Rack
Front
Laterals
Rear
Lateral
(36x) 1/4” x 1/2” Screw
(8x) 1/4” x 3/4” Screw
THE ROOF RACK CAN036 CAN ONLY BE INSTALLED OVER THE
ORIGINAL ROOF

1Assemble the Front of the roof rack with the Front laterals
(as it is shown in the image). Use four 1/4 x 3/4” screws
with nuts. (Do not tighten yet)
6Align the last central bar with the perforations (as it is shown
in the image). Use four 1/4" x 1/2” screws with nut,
inserting them bottom-up
7Remove the six screws of the roof and keep them with you
2Align 3 central bars with the perforations. Use twelve
1/4” x 1/2” screws with nut, inserting them bottom-up.
(Do no tighten yet)
1/4” x 3/4”
Screw
1/4” x 1/2”
Screw
1/4” Lock nut
1/4” Lock nut
Central bar
Front
Laterals
Front Roof
Rack

3Assemble the Rear of the roof rack with the lateral (as it is shown
in the image). Use four 1/4 x 3/4” screws with nut.
(Do not tighten yet)
5Join the rear rack to the front rack, aligning the Brackets
with the perforations (as it is shown in the image),
using eight 1/4 x 1/2” screws with nut.
(Do not tighten yet).
The figure on the
Bracket should
be placed down
and to the front
4Align 3 central bars with the perforations. Use twelve
1/4” x 1/2” screws with nut, inserting them bottom-up.
(Do no tighten yet)
1/4” x 3/4”
Screw
1/4” Lock nut
Laterals
Rear Roof
Rack
1/4” Lock nut
1/4” x 1/2”
Screw
Central bar
Rear Rack
Front Rack
Bracket
