AGA ALEGS44-DFSS User manual

Legacy
Love Good Food Love Warmth Love One For A Lifetime
Legacy

36” Electric Legacy in Black
For classic looks with modern features, look no
further than the Aga Legacy. Unique gleaming spiral
handles set off the curvaceous doors to satisfy the
design conscious. A versatile cooktop and flexible
electric ovens indulge those with the highest
culinary standards. With this bold appearance and
contemporary features, it’s easy to see why this
Aga out looks and out cooks other pro-style ranges.
Legacy

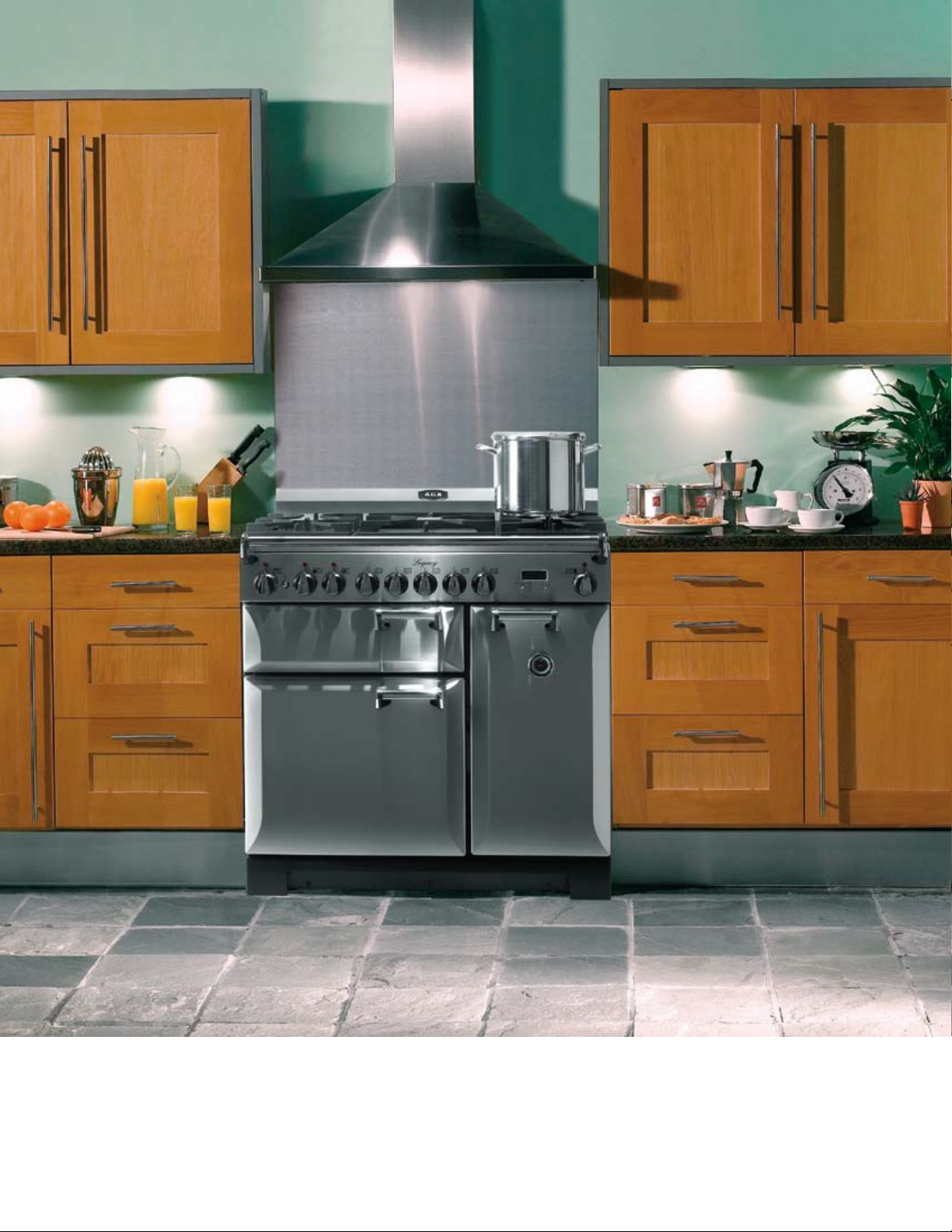

36” Dual Fuel Legacy in
Stainless Steel

Stainless Steel
Redefined
This Legacy redefines the stainless steel
range. It fuses a commercial style finish
with the elegant contoured Aga design
to produce a range like no other. The
high grade stainless exterior provides a
durable, attractive and easy to maintain
finish. And the interior is equipped with
the Legacy amenities you have come to
expect from Aga.
The stainless steel Legacy model is
available in 36” and 44” sizes and both
dual fuel and electric.

36” Model
Electric Legacy
Control Knobs
Large, chrome accented
knobs with childproof,
push-to-turn safety feature.

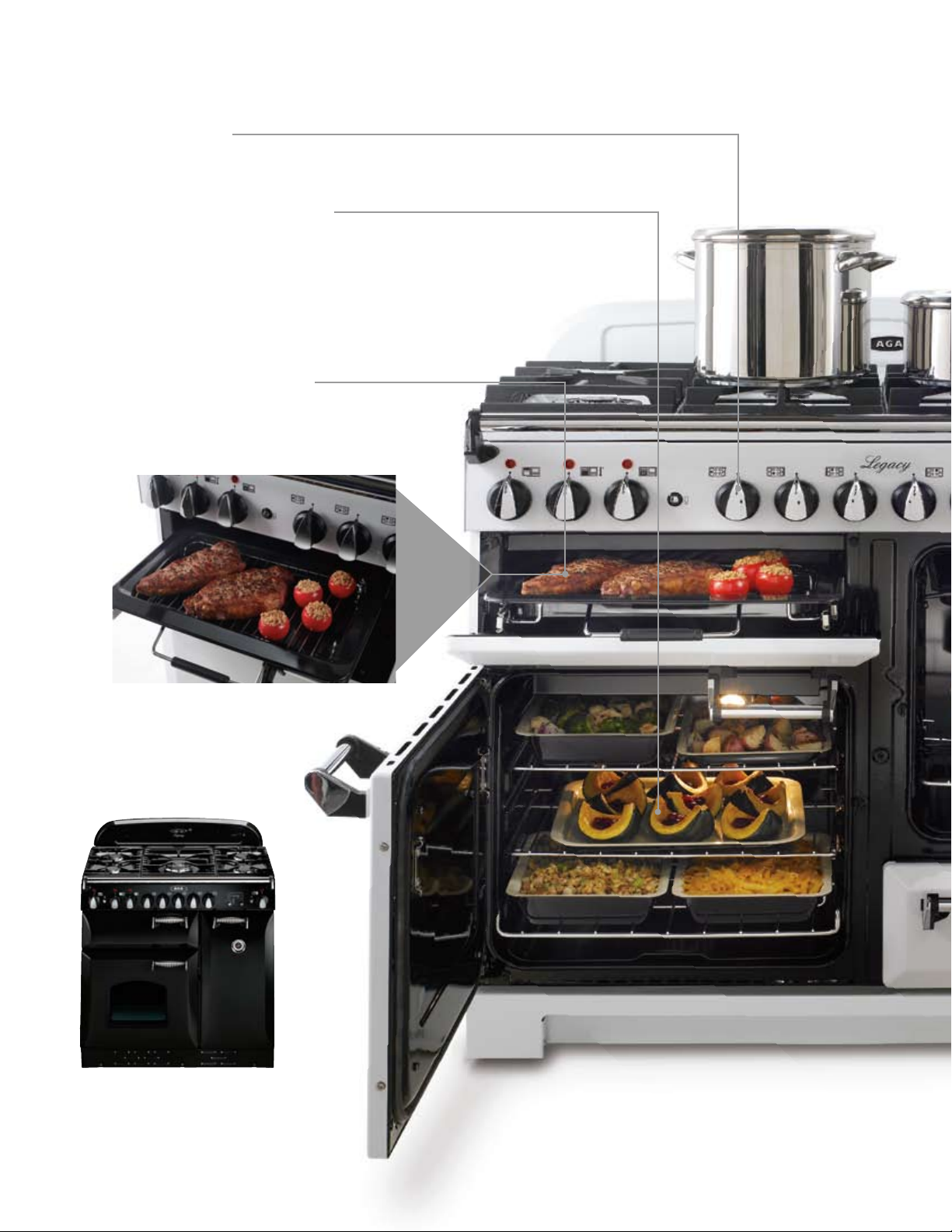

Broiling Oven
This oven may look unassuming, but it
features a powerful 8-pass, 2300 watt
broiler that’s heated and ready to cook
in just 5 minutes! The Full Broil mode
provides complete coverage using the
full eight passes. The Half Broil mode
uses the four right-hand passes and is
perfect when cooking for one.
7-Mode Multifunction™ Oven
Offers the ultimate flexibility with 7
different cooking modes: Convection
defrost - fan forced air without heat;
Convection bake - rear convection
element with fan forced air; Convection
broil - top element with fan forced air;
Fan assist bake - top and base element
with fan forced air; Conventional bake -
top and base element heat; Top brown
- top element heat only; Base heat -
bottom element heat only.
HandyRack™
A signature Legacy feature. No more
pulling out hot, heavy racks to check
foods. The HandyRack is a removable
shelf located in the door. Fitted in
one of its two positions, this rack
provides safety and convenience
allowing you to place dishes where
they are easiest to access.

44” Model with optional
cathedral windows
Electric Cooktop
This sleek ceramic cooktop is equipped with rapid
response ribbon elements that heat in seconds.
Hot surface indicator lights alert you when the
cooktop is in use or warm to the touch for extra
safety, even after it has been turned off.
Minute Minder
This integral clock has a timer with a delayed
baking feature, allowing you to program
when the oven turns on and off. Plus, the key
lock prevents little hands from accidentally
starting ovens.
Vertical Convection Oven
This programmable oven uses true convection,
a cooking method that continuously circulates
hot air through the cavity, for faster more even
cooking. With 1.8 cu ft of capacity in the 36”
model and 2.4 cu ft in the 44”, this oven is
large enough to prepare a whole meal, but small
enough to heat up quickly and efficiently. The
36” model features four heavy duty oven racks
and a removable plate warmer while the 44”
includes three oven racks and a roasting tin.
Plate Warming Rack
No other pro-style range has this much to offer

Control Knobs
Large, chrome accented knobs with
childproof, push-to-turn safety feature.
Glide-Out™ Broiler System
The smooth action Glide-Out™ broiler system
uses a sliding runner to move the broiler pan
in and out of the oven safely and easily.
7-Mode Multifunction™ Oven
This incredibly versatile programmable oven
provides so much flexibility. Turn the convection
off, leave it on or go somewhere in between
- you tailor the oven’s performance to your
needs by selecting from the convection bake,
convection broil, fan assist bake, conventional
bake, top brown or base heat modes.
36” Model with optional
cathedral window
44” Model in All White

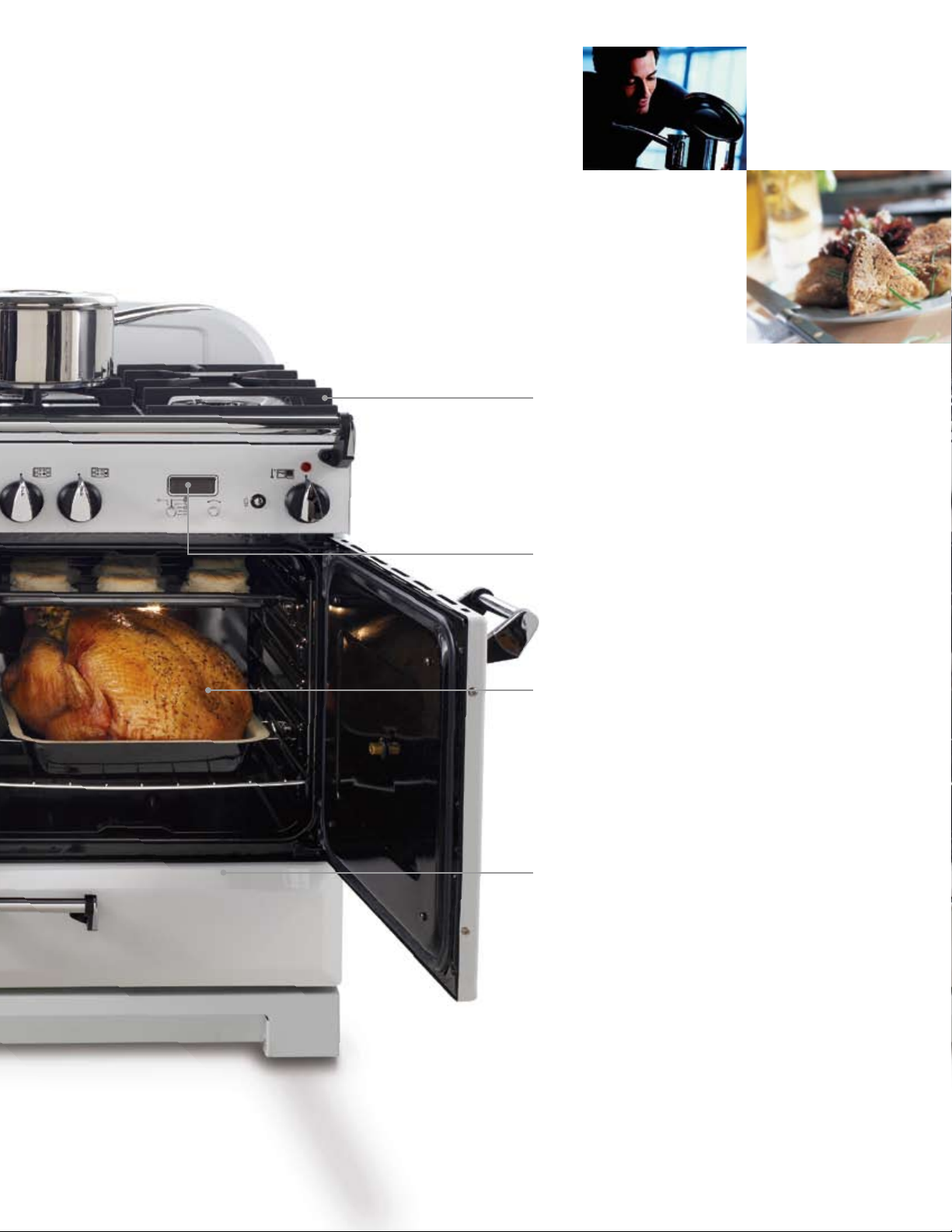

Gas Cooktop
This versatile cooktop is equipped with
sealed gas burners, featuring an integral
wok burner. Available in both Natural
Gas and Liquid Propane fuel types. Note:
Grates are matte porcelain enamel finish
on All White and Stainless Steel and
gloss on all other color options.
Minute Minder
This integral clock has a timer with a
delayed baking feature, allowing you to
program when the oven turns on and off.
Plus, the key lock prevents little hands
from accidentally starting ovens.
Convection Oven
This programmable oven features an
impressive 2.4 cu ft of cooking capacity
in the 44” model and 1.9 cu ft in the
36”. The 44” model is accompanied
by three heavy duty oven racks and
roasting tin while the 36” includes four
racks and a removable plate warmer.
Storage Drawer
The 44” model features a convenient
storage drawer which is the perfect
place to store baking trays, saucepans
or kitchen towels so they are always
close by.
Dual Fuel Legacy

The Legacy Suite - featuring the 44” Legacy in all white, and the
Aga Dishwasher, 36” Refrigerator and 48” Vent Hood in white.

Simple Style
For over eighty years Aga has hand
crafted ranges of superior performance
and classic design. Now, we proudly
offer a collection of coordinating
products so you can create the kitchen of
your dreams.

This 36-inch wide, ENERGY STAR ®
rated Refrigerator fuses classic Aga
design with state of the art features
like electronic touch temperature
controls, and thoughtful amenities
like the internal water dispenser and
smart storage solutions.
Style choices are usually limited with
your dishwasher. Pick a standard color,
or integrate it with a cabinet panel.
Our new Dishwasher is the perfect
blend of function and style with our
trademark contour design. Engineered
to fit beautifully into your Aga kitchen,
our quiet and Energy Star® rated
Dishwasher is available in every Legacy
color.

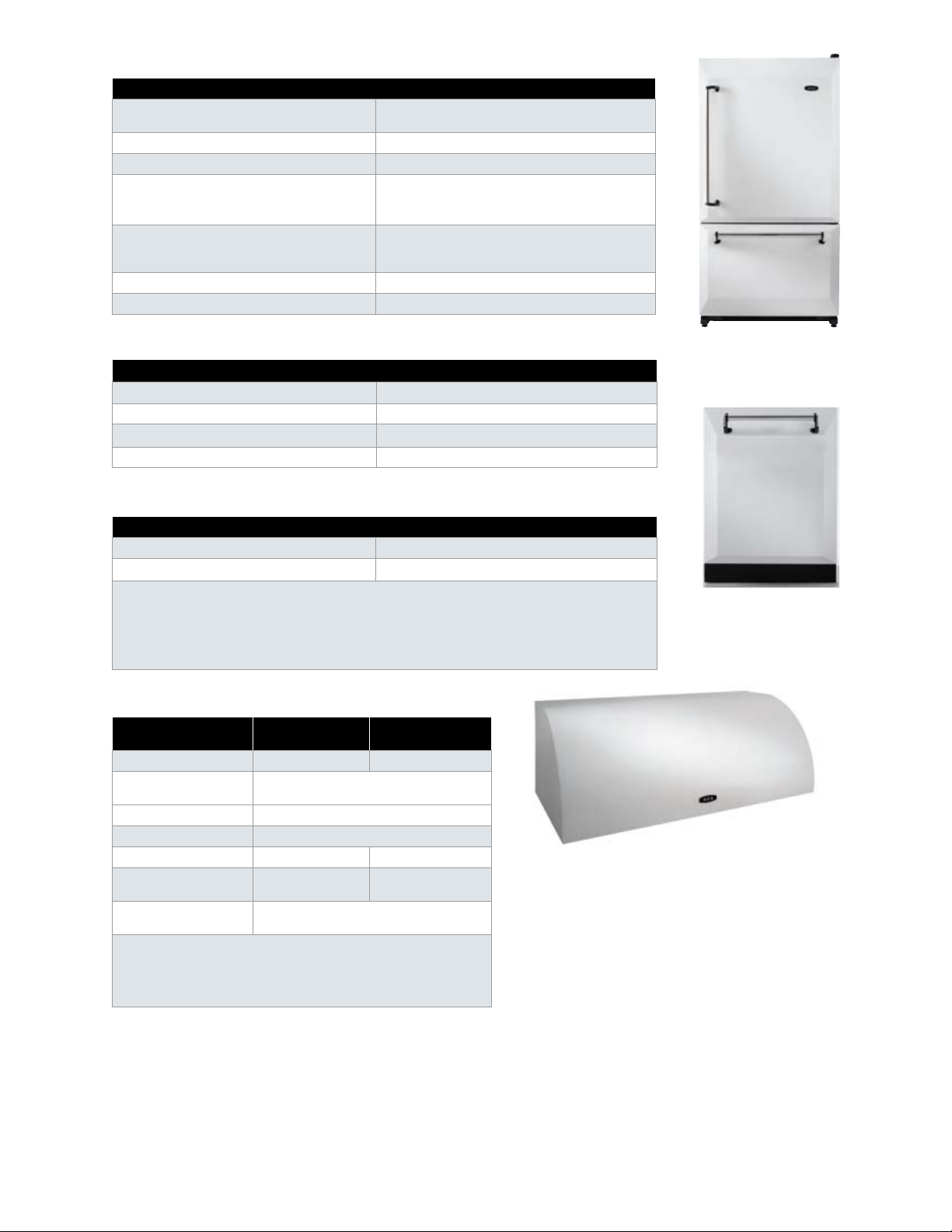

Bottom Mount Refrigerator (AFHR-36)
• 20 cu. ft: Fresh food capacity 14.4 cu. ft.;
Freezer capacity 5.5 cu. ft.
• Factory-installed ice maker
• Internal filtered water dispenser for fresh
chilled water
• Water filter easy to access and change
• Adjustable Spillsaver™ glass shelves
• Gallon door storage with temperature
control
• Temperature controlled pantry drawer with
an easy close rolling drawer track system
• Humidity-controlled crisper drawers keep
fruits and veggies market fresh
• Adjustable door buckets keep your
condiments in clear sight
• Beverage storage rack
• Electronic, easy-to-use touch temperature
controls
• ENERGY STAR® compliant
Dishwasher Panel (ADWP-24)
• Durable enameled steel construction
• Easy installation
• Fits most integrated dishwashers
Range Hood (ARHD-36/ARHD-48)
• Two size options: 36” and 48”
• 3 speed fan
• 2 50-watt halogen bulbs
• High heat sensor
• Stainless steel baffle filters
• Enclosed stainless steel liner
• Top or rear discharge included with a
10 inch square to round transition for
venting
• 36” Model - 600 CFM
• 48” Model - 1200 CFM
You can’t have a range without
a hood. Our new hood inspired
by the classic Aga design,
coordinates perfectly with any
Aga range or cooker.
Fully Integrated Dishwasher (ADW-24)
• Durable stainless steel tall tub
• Culinary tool rack for hard to place items
• Super sound insulation technology, rated
to 50 dBA
• 4 blade food disposer eliminates the need
for pre-rinsing
• 12 place settings for maximum flexibility
when loading
• Optimum wash sensor adjusts the wash
cycle for specific water conditions
• ENERGY STAR® compliant

BLACK CREAM COBALT
BRICK WHITE STAINLESS STEEL
ALL WHITE**
Colors
The Aga Legacy is available in 7
stunning colors to compliment any
decor*. Our signature enameling
process creates a rich finish,
providing the appearance you want
and the quality you deserve.
*Please note side panels on all Legacy ranges are black
with the exception of the stainless steel and all white
models. Due to limitations of the printing process colors
may vary from those shown.
**The All White model is only available in Dual Fuel.
Options
Replace the solid door with a beveled door and arched
window. Includes a window door on the Multifunction™
oven of the Legacy 36” and a window door on both the
Multifunction™ and the Convection ovens of the Legacy 44”.
LEGACY 44
ELECTRIC COOKTOP
CATHEDRAL DOORS
LEGACY 36
ELECTRIC COOKTOP
CATHEDRAL DOOR
CLASSIC HANDLE
(STANDARD ON ALL WHITE AND
STAINLESS STEEL MODELS)
SPIRAL HANDLE
(STANDARD ON BLACK, BRICK,
COBALT, CREAM & WHITE
MODELS)
Cathedral Doors Handles
CATHEDRAL DOORS NOT AVAILABLE ON STAINLESS STEEL

LEGACY RANGE PRODUCT SPECIFICATIONS
ALEG-36 ALEG-44
Overall Width 35 1/2” 43 1/4”
Overall Depth 25 5/8”** 25 5/8”*
Overall Height 35 3/8” 35 3/8”
Electrical Requirements-
Dual Fuel 7.4kw @240 Volts 7.4kw @240 Volts
Electrical Requirements-
Electric Models 15.5kw @240 Volts†16.7kw @240 Volts†
Gas Requirements-
Dual Fuel only
Shipped natural gas standard: field convert to LP with included kit; accepts standard residential 1/2” (1.3 CM)
ID gas service line. Natural gas 4 W.C. (10 Millibar) or liquid gas 10 W.C. (25 Millibar)
Approximate Shipping Weight 300 lbs. 341 lbs.
COOKTOP SPECIFICATIONS
Dual Fuel Models
(in BTU’s)
Left & Right Rear 9,200 NG/8,000 LP; Left Front 5,000 NG/ 4,200
LP; Center (Wok) 15,000 NG & LP, Right Front 12,000
NG & LP
Left and Right (Wok) 15,000 NG & LP; Left and Right
Center 9,200 NG/8,000 LP; Left Front 5,000 NG/ 4,200
LP; Right Front 12,000 NG & LP
Electric Models
(in watts)
Left Rear 1800w; Left Front & Right Rear 1200w; Front Right
1700w; Far Right 2200w. 1 Hot Surface Indicator Light
Left 1200w with 230w warming area; Left Rear
1700w; Left Front & Right Rear 1200w; Front Right
1800w; Right 2200w. 2 Hot Surface Indicator Lights
OVEN SPECIFICATIONS
Total Cubic Capacity 4.5 cu. ft. 5.1 cu. ft.
Oven Lights 1 2
Storage Drawer No Yes
Backguard Included Yes
MULTIFUNCTION OVEN
Dimensions 17”w x 15 1/4”d x 14 3/4”h
Capacity 2.2 cu. ft.
Convection Rating 2500 watts
Bake Rating 2200 watts (top & bottom elements)
Brown Rating inner-1150 watts outer-1200 watts
Base Heat 1000 watts
Shelf Positions 5
Oven Racks 3, plus HandyRack™ and roasting tin in door
CONVECTION OVEN
Dimensions 9 1/2”w x 15 1/4”d x 22 1/4”h 17”w x 15 1/4”d x 16”h
Capacity 1.8 cu. ft. 2.4 cu. ft.
Convection Rating 2500 watts
Shelf Positions 9 5
Oven Racks 4, plus removable plate warming rack 3
B R O I L I N G O V E N
Dimensions 15 3/4”w x 13”d x 4 1/2”h
Capacity .5 cu. ft.
Broiler Rating 8 pass, 2300 watts
Shelf Positions 2
Oven Racks 1 broiling tray
IMPORTANT: Do not prepare your kitchen design from brochure information. Please consult the installation instructions for important clearance and installation information. The information
presented herein is based on the best data available and is believed to be correct. However, nothing stated herein is to be taken as warranty, expressed or implied, regarding the accuracy of
the information or the use of our product or products. Specifications are subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased products.
*Excluding handles but including rear extension. Excluding handles AND rear extension the depth is 23 3/8”
**Excluding handles (rear extension MUST be fitted to Legacy 36)
†Electrician must consult local codes to determine actual electrical requirements.

BOTTOM MOUNT REFRIGERATOR SPECIFICATIONS
Model AFHR-36
Dimensions 36”w x 69.5”h x 23.5”d
(depth including handle: 29 5/8”)
Electrical Requirements 115 volts, 60hz, 10 amps (on separate circuit)
Plumbing Requirements 1/4” O.D. copper tubing
Capacity
Total: 20 cu ft
Refrigerator: 14.4 cu ft
Freezer: 5.5 cu ft
Shelves
4 adjustable glass shelves
5 adjustable door shelves
2 wire baskets (freezer)
Accessories Can Rack
Approximate Shipping Weight 365 lbs
HOOD SPECIFICATIONS
Model ARHD - 36
ARHD - 48 36” Model 48” Model
Dimensions 36”w x 24”d x 18”h 48”w x 24”d x 18”h
Electrical Requirements 115 volts, 60hz, 3.8 amps (600 CFM)
8.0 amps (1200 CFM)
Lights 2, 50 watt halogen (Type R20)
Filters Stainless Steel Baffle
CFM 600 CFM 1200 CFM
Recommended
Duct Size (round) 10” 10”
Approximate
Shipping Weight 190 lbs
Optional duct covers are available in heights of 12, 18, and 24
inches for all of our Legacy ranges. Covers are sized to your
kitchen. Please provide height requirements when ordering.
Warranty
At Aga, we have over
eighty years of experience
manufacturing the highest
quality ranges, so every one
of our products is backed by
a warranty. Please see your
local authorized Aga retailer for
warranty details.
Dimensions 23 7/8”w x 29 7/8”h x 3/4”d
Approximate Shipping Weight 14 lbs
Intended for use on fully integrated dishwashers. Reference the dishwasher manufacturers
specifications to ensure compatibility. Mounting hardware is not supplied with this panel. It is
supplied by the dishwasher manufacturer and can be located in the installation materials supplied
with your dishwasher.
DISHWASHER SPECIFICATIONS
Model ADW-24
Dimensions
Electrical Requirements
Plumbing Requirements
Approximate Shipping Weight
23 3/4” w x 33 7/8” h x 24 7/8” d
120 volts, 60 hz, 15 amps
3/8” O.D. copper tubing
128 lbs
DISHWASHER PANEL SPECIFICATIONS
Model ADWP-24

Form and function working together
Form: Our signature cooktop
design makes the range seem
to arc toward you.
Function: The continuous
porcelainized cast-iron burner
grates provide commercial
style ease for moving pans
from burner to burner.
Form: The black ceramic
cooktop provides a sleek,
clean look.
Function: The cooktop
houses ribbon elements which
heat within seconds.
Electric Cooktop
Dual Fuel Cooktop
LEGACY 36”
LEGACY 36”
LEGACY 44”
LEGACY 44”

1050 Fountain Street North
Cambridge, ON N3H 4R7
Canada
For additional product information or to
locate a dealer call 1-877-650-5775 or
visit www.aga-ranges.com.
10/09 AG-A4200
