Agrimate Am-666-neo 2s series User manual

User Manual

BEFORE OPERATING THIS MACHINE,

PLEASE READ THESE INSTRUCTIONS CAREFULLY

DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE

SUBJECT TO CHANGE WITHOUT NOTICE

Knapsack Power Sprayer

AM-909-NEO 2S

AM-708-NEO 2S

AM-666-NEO 2S

CAUTION

Refuel

Use the mixture of the gasoline and the two stroke engine oil, the volume ratio is 25-30:1 (Fig-1)

Check and clean the air ﬁlter

The air ﬁlter must be often cleaned, or the polluted air ﬁlter will lower the output power of the

engine. If the core is blocked by dust, use gasoline to clean the core and the inside of the air ﬁlter,

then dip in the oil, wring oil out and put the core back (Fig 2)

PREPARTION

1. Stop running the gasoline engine before the tank is refueled, and ensure that the gasoline

engine is far from the ﬁre. Against the position, discharge the exhaust gas from the rooms,

channels using gasoline engine or any other closed places.

2. Forbid to touch the mufﬂer and the body when the gasoline engine runs and just stops.

3. Don’t touch the ignition plug cap and wires, to avoid the electrical shock

4. Forbid children and persons unconcerned to touch the gasoline engine.

5. Ensure the cooling of the mufﬂer and the body, cover the gasoline engine after daily work.

6. Against the problem, the damage or the misﬁre of gasoline engine, check and maintain the

gasoline regularly and clean the deposit carbon in the mufﬂer and in the cylinder exhaust.

7. Forbid to use pure gasoline (without two-stroke engine oil) as fuel.

8. Against the damage of gasoline engine and the instruments, forbid to accelerate abruptly, to

run speedily and stop abruptly.

9. Forbid the drunk, the dizzy and the pregnant to use the gasoline engine.

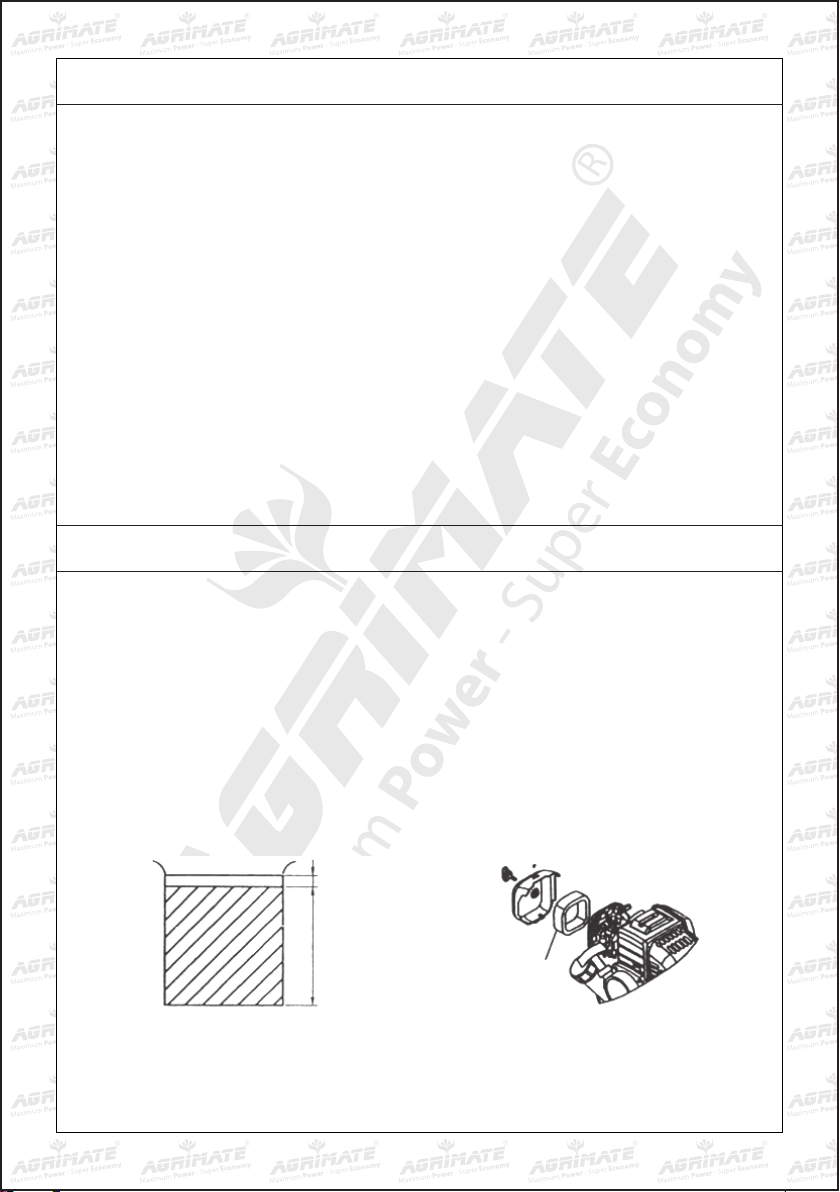

1. The FC Two-stroke engine oil

25. The Gasoline The Core

Fig 1 Fig 2

START UP

1. After the engine starts, run 3-5 minutes at a low speed

2. When the engine is heated enough, adjust the throttle handle to the corresponding speed.

3. Note: don’t accelerate abruptly due to bad lubrication of the engine at the beginning of startup.

4. Avoid the speedy idle motion and over speed motion. If the throttle is totally opened, the

engine will run over speed, which not only shortens the service life of the engine but also

causes more problems in the engine.

1. Reduce the gasoline engine to the slowest speed and run 3-5 mins

2. Press the stop switch to stop the engine.

RUNNING

STOPPING

1. Turn on the gasoline switch until the gasoline ﬂows out the clear plastic pipe. (Fig 3)

2. Close the choke totally (Fig 4)

If the engine is heated, the choke must be totally opened.

3. Open half the throttle.

4. Draw the starter several times slowly, and then draw quickly.

Note: if the excessive gasoline causes the difﬁcult start, take down the ignition plug and the

input pipe, open the choke and the throttle totally, draw the starter several times then install

the input pipe and start the engine. After the startup, open the choke totally.

Fig 3

Fig 4

Open

The Choke Handle

MAINTENANCE

1. Daily check

 •Checkallscrewsandnuts

 •Checkoilleakageorairleakage

2. Check after running 20 hours

 •Cleanthecoreoftheaircleaner

 •Cleanthegasolinelter

3. Check after running 50 hours

 •Refastenthenutsofthecylinder

 •Clean the accumulated carbon both in the combustion chamber and in the exhaust

of the cylinder

 •Cleantheaccumulatedcarbonintheignitionplug,adjusttheclearanceto0.6mm(Fig5)

 •Cleantheaccumulatedcarbonbothintheintakeandintheexhaustofthemufer(Fig6,7)

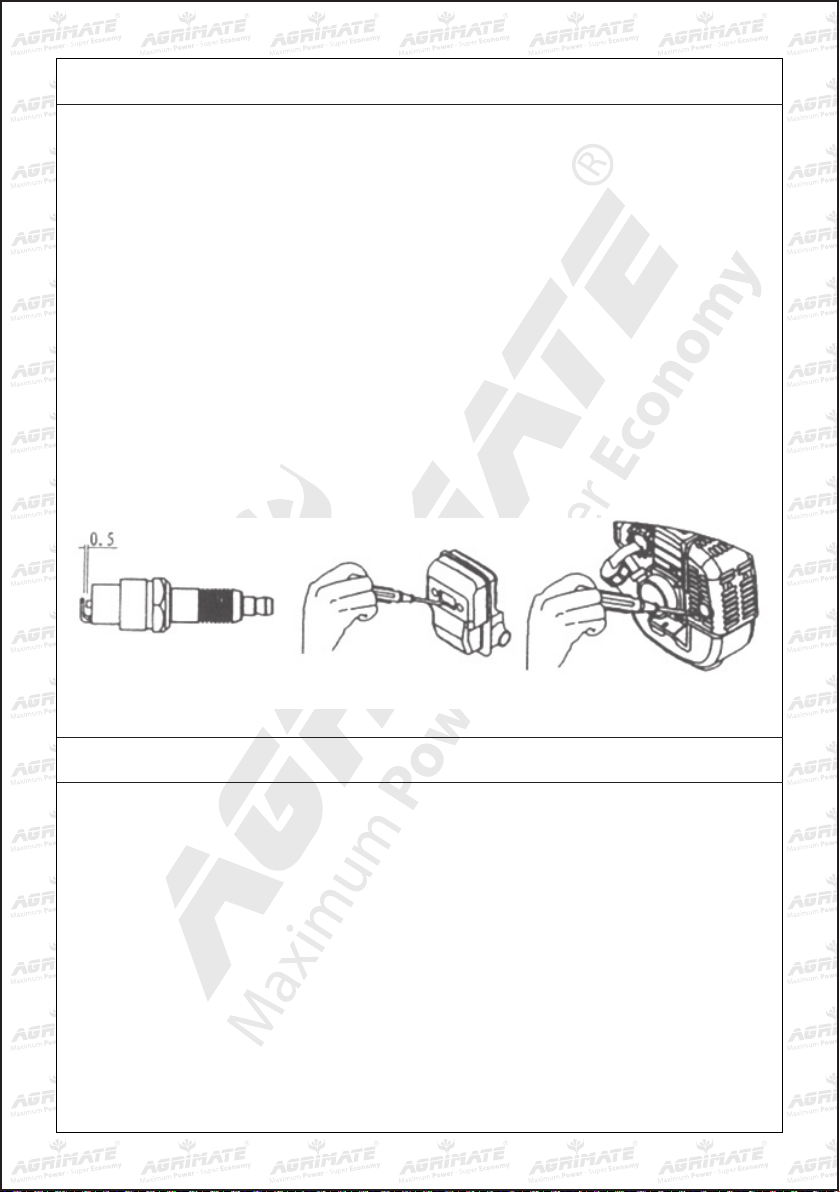

Fig 5 Fig 6 Fig 7

If the gasoline engine isn’t used for a long time, it must be maintained as follows:

1. Remove the fuel in the tank and in the carburetor, close the choke totally, draw the starter

3-5 times.

2. Take down the spark plug, add certain engine oil from the spark plug hole into the cylinder, and

draw the starter 2-3 times to move the piston to the top dead center, then install the spark plug.

3. Use the soft cloth with engine oil to clean the surface of the engine, stor the engine in a dry

and windy place for the next use.

STORAGE

TROUBLE SHOOTING

1. Fail to start

 •Oilswitchisnotturnedon

 •Gasolineismixedwithwater,replaceit

 •Theignitionplughasaccumulatedcarbonorhasbeenbroken

 •Poorcontactofthehighvoltagewirewiththesparkplug

2. The engine can start, but can’t run fast

 •Thechokeiseitheropenorclosedfully

 •Theratioofengineoilandthegasolineisnormalornot

 •Maybethereiswateringasoline

3. The gasoline engine can run, but has not enough power

 •Maybethecoreoftheairlterisblockedbydust

 •Maybethecylinderexhaustandthemuferareblockedbyaccumulatedcarbon

 •Thepiston,thepistonringsandcylinderhavebeenbadlywornout

 •Maybethegasolinelterisblockedbydust

 •Thebodyorthetopoftheshafthasoilleakageandairleakage

4. The gasoline engine stops suddenly when running

 •Runoutofthegasoline

 •Thehighvoltagewiredrops

 •Theignitionplughasaccumulatedcarbonorhasbeenbroken

 •Thegasolinelterisblockedbydust

 •Maybethereiswaterinthegasoline

 •Theairholeofthetanklidisblockedbydust

ENGINE SPARE PARTS DIAGRAM OF KNAPSACK POWER SPRAYER

AM-666-NEO 2S | AM-708-NEO 2S | AM-909-NEO 2S

PART NO. PART NAME

AM-666-NEO 2S-E01 Screw

AM-666-NEO 2S-E02 Cleaner Outside Cover

AM-666-NEO 2S-E03 Filter Element

AM-666-NEO 2S-E04 Screw Assy

AM-666-NEO 2S-E05 Cleaner Inside Cover

AM-666-NEO 2S-E06 Screw

AM-666-NEO 2S-E07 Choke

AM-666-NEO 2S-E08 Choke Handle

AM-666-NEO 2S-E09 Carburetor

AM-666-NEO 2S-E10 Gasket, Carburetor Side

AM-666-NEO 2S-E11 Screw Assy

AM-666-NEO 2S-E12 Inlet Mainfold

AM-666-NEO 2S-E13 Washer, Cylinder Side

AM-666-NEO 2S-E14 Pin

AM-666-NEO 2S-E15 Screw Assy

AM-666-NEO 2S-E16 Fan Cover

AM-666-NEO 2S-E17 Clutch Step Screw

AM-666-NEO 2S-E18 Washer

AM-666-NEO 2S-E19-21 Clutch Assy

AM-666-NEO 2S-E20 Washer

AM-666-NEO 2S-E21 Spring

AM-666-NEO 2S-E22 Nut

AM-666-NEO 2S-E23 Washer

AM-666-NEO 2S-E24 Stop Cord Comp.

AM-666-NEO 2S-E25 Primary Cord Grommet

AM-666-NEO 2S-E26 Magneto Stator

AM-666-NEO 2S-E26 Magneto Rotor

AM-666-NEO 2S-E27 Screw

AM-666-NEO 2S-E28 Front Half Crankcase

PART NO. PART NAME

AM-666-NEO 2S-E29 Guide Plate

AM-666-NEO 2S-E30 Gasket, Crankcase

AM-666-NEO 2S-E31 Oil Seal

AM-666-NEO 2S-E32 Ball-Bearing

AM-666-NEO 2S-E33 Key

AM-666-NEO 2S-E34 Crankshaft Comp.

AM-666-NEO 2S-E35 Rear Half Crankcase

AM-666-NEO 2S-E36 Starter Case AM 708 Only

AM-666-NEO 2S-E36+37+38 Starter Pawl & Spring Assy AM 708

AM-666-NEO 2S-E36+37+38 Starter Pawl & Spring Assy AMP 768

AM-666-NEO 2S-E37 Starter Pawl Spring

AM-666-NEO 2S-E38 Starter Pawl

AM-666-NEO 2S-E39 Screw

AM-666-NEO 2S-E40 Recoil Spring

AM-666-NEO 2S-E41 Starter Pulley

AM-666-NEO 2S-E42 Recoil Starter Body

AM-666-NEO 2S-E43 Rope Guide

AM-666-NEO 2S-E44 Rope

AM-666-NEO 2S-E45 Starter Handle

AM-666-NEO 2S-E46 Gasket

AM-666-NEO 2S-E47 Screw Assy

AM-666-NEO 2S-E48 Cover

AM-666-NEO 2S-E49 Cover

AM-666-NEO 2S-E50 Screw Assy

AM-666-NEO 2S-E50 Gasket Mufﬂer

AM-666-NEO 2S-E51 Plug Cap

AM-666-NEO 2S-E52 Screw

AM-666-NEO 2S-E53 Plug Cover

AM-666-NEO 2S-E54 Plug

PART NO. PART NAME

AM-666-NEO 2S-E55 Screw

AM-666-NEO 2S-E56 Washer

AM-666-NEO 2S-E57 Washer

AM-666-NEO 2S-E58 Sealing Washer

AM-666-NEO 2S-E59 Mufﬂer

AM-666-NEO 2S-E60 Bolt

AM-666-NEO 2S-E61 Washer

AM-666-NEO 2S-E62 Nut

AM-666-NEO 2S-E63 Cylinder

AM-666-NEO 2S-E64 Gasket, Cylinder

AM-666-NEO 2S-E65 Ring, Piston

AM-666-NEO 2S-E66 Piston

AM-666-NEO 2S-E66 Gasket, Fuel Tank Cap

AM-666-NEO 2S-E67 Stop Ring

AM-666-NEO 2S-E68 Pin, Piston

AM-666-NEO 2S-E69 Needle, Bearing

AM-666-NEO 2S-E70 Piston Pin Circlet

AM-666-NEO 2S-E71 Fuel Tank Cap

AM-666-NEO 2S-E72 Air Inlet Mouth

AM-666-NEO 2S-E73 Frame

AM-666-NEO 2S-E74 Sealing Washer

AM-666-NEO 2S-E75 Outlet Fuel Pipe

AM-666-NEO 2S-E76 Inlet Fuel Pipe

AM-666-NEO 2S-E77 Primary Cord Grommet

AM-666-NEO 2S-E78 Cleaner

AM-666-NEO 2S-E79 Fuel Tank - AM 708

AM-666-NEO 2S-E80 Screw

AM-666-NEO 2S-E81 Screw

AM-666-NEO 2S-E82 Starter Pulley Assy

TANK & PUMP PARTS DIAGRAM OF KNAPSACK POWER SPRAYER

AM-666-NEO 2S | AM-708-NEO 2S | AM-909-NEO 2S

PART NO. PART NAME

AM-666-NEO 2S-P01 Chemical Container

AM-666-NEO 2S-P02 Filter

AM-666-NEO 2S-P03 Gasket

AM-666-NEO 2S-P04 Container Cover

AM-666-NEO 2S-P05 Chain Holder

AM-666-NEO 2S-P06 Strap

AM-666-NEO 2S-P07 Gasket

AM-666-NEO 2S-P08 Screw

AM-666-NEO 2S-P09 Spring Washer

AM-666-NEO 2S-P10 Screw

AM-666-NEO 2S-P11 Washer

AM-666-NEO 2S-P12 Screw

AM-666-NEO 2S-P13 Drain Cup

AM-666-NEO 2S-P19 Frame

AM-666-NEO 2S-P20 Pad

AM-666-NEO 2S-P23 Right Stand

AM-666-NEO 2S-P24 Left Stand

AM-666-NEO 2S-P26 Fixed Plate

AM-666-NEO 2S-P28 Stop Switch

AM-666-NEO 2S-P32 Cord Comp

AM-666-NEO 2S-P34 Throttle Wire

AM-666-NEO 2S-P34-1 Throttle Lever

AM-666-NEO 2S-P39 Engine Stand

AM-666-NEO 2S-P46 Joint S

AM-666-NEO 2S-P46-1 Joint-L

AM-666-NEO 2S-P47 Crank Case

AM-666-NEO 2S-P48 Bearing

AM-666-NEO 2S-P50 Shaft

PART NO. PART NAME

AM-666-NEO 2S-P51 Bearing

AM-666-NEO 2S-P52 O-Ring

AM-666-NEO 2S-P53 Steel Pipe

AM-666-NEO 2S-P54 Gasket

AM-666-NEO 2S-P55 Drum Case

AM-666-NEO 2S-P56 Drum Clutch

AM-666-NEO 2S-P57 Bearing

AM-666-NEO 2S-P58 Bearing

AM-666-NEO 2S-P60 Gear Shaft and Gear

AM-666-NEO 2S-P61 Bearing

AM-666-NEO 2S-P62 O-Ring

AM-666-NEO 2S-P63 Oil Inlet Cup

AM-666-NEO 2S-P64 Crankcase Cover

AM-666-NEO 2S-P64-1 O-Ring

AM-666-NEO 2S-P66 O-Ring

AM-666-NEO 2S-P67 Oil Glass

AM-666-NEO 2S-P68 O-Ring

AM-666-NEO 2S-P69 Drain Plug

AM-666-NEO 2S-P70 Oil Seal

AM-666-NEO 2S-P70-1 Oil Seal

AM-666-NEO 2S-P71 O-Ring

AM-666-NEO 2S-P72 Adjusting Ring

AM-666-NEO 2S-P73 Grease Ring

AM-666-NEO 2S-P74 V-Packing Upper Seal

AM-666-NEO 2S-P75 V-Packing

AM-666-NEO 2S-P77 Packing Seat

AM-666-NEO 2S-P78 Cylinder

AM-666-NEO 2S-P79+80 Grease Cup

PART NO. PART NAME

AM-666-NEO 2S-P81 Valve Assy

AM-666-NEO 2S-P82 Suction Chamber

AM-666-NEO 2S-P83 Clip-L

AM-666-NEO 2S-P83-1 Clip-S

AM-666-NEO 2S-P84 Suction Hose

AM-666-NEO 2S-P85 Outlet Chamber

AM-666-NEO 2S-P86 Valve Seat

AM-666-NEO 2S-P88 Pressure Valve

AM-666-NEO 2S-P89 Pressure Valve Rod

AM-666-NEO 2S-P90 Spring

AM-666-NEO 2S-P93 Relief Valve Assy

AM-666-NEO 2S-P94 Nut

AM-666-NEO 2S-P95 Pressure Valve Screw

AM-666-NEO 2S-P96 Pressure Adjusting

AM-666-NEO 2S-P97 Overﬂow Hose

AM-666-NEO 2S-P99 Plunger

AM-666-NEO 2S-P100 High Pressure Hose

AM-666-NEO 2S-P101 Cylinder

AM-666-NEO 2S-P102 Suction Chamber

AM-666-NEO 2S-P103 Outlet Chamber

AM-666-NEO 2S-P104 Suction Hose

AM-666-NEO 2S-P105 High Pressure Hose

AM-666-NEO 2S-P107 Hose Pipe Handle

AM-666-NEO 2S-P108 Roller

AM-666-NEO 2S-P109 Ball Cock

AM-666-NEO 2S-P111 Spray Rod (SG101-C)

AM-666-NEO 2S-P123 Fixed Plate

For safety use, make sure the machine is cleaned every three-months. Before working, make sure

to inspect the ﬁlter and the nozzle,and ensure there is no impurity. After working, make sure there

is no water in the pump and the hose.

If the machine needs to be repaired in the guarantee period, please return the machine to the

shop. You need to provide the certiﬁcate of purchase in order to repair or get the substitute.

Before Packing, the machine should be cleaned, then use closed packaging, packaging should be

ﬁrm. Store the machine in dry place.

For transportation safety. The machine should comply with ISTA.

Meaning of crossed - out wheeled dustbin:

Do not dispose of electrical machines as unsorted municipal waste, use separate collection

facilities.

If electrical machines are disposed of in landﬁlls or dumps, hazardous substances can leak into

the groundwater and get into the food chain, damaging your health and well-being.

When replacing old machines with new ones, the retailer is legally obligated to take back your

old machine for disposals at least free of charge.

INSPECTION & MAINTENANCE



Purchaser’s Name & Address

Product Name

Product Serial No.

Invoice / DN No.

Date of Delivery

Dealer’s Ofﬁce Seal

Dealer Sign

Customer Sign.

I/We accept the terms and conditions of Warranty

as in the Warranty Card.

CUSTOMER COPY

Warranty Card

Purchaser’s Name & Address

Product Serial No.

Invoice / DN No.

Date of Delivery

Dealer’s Ofﬁce Seal

Dealer Sign

Customer Sign.

I/We accept the terms and conditions of Warranty

as in the Warranty Card.

DEALER’S COPY

Warranty Card

Purchaser’s Name & Address

Product Serial No.

Invoice / DN No.

Date of Delivery

Dealer’s Ofﬁce Seal

Dealer Sign

Customer Sign.

I/We accept the terms and conditions of Warranty

as in the Warranty Card.

COMPANY COPY

Warranty Card

Knapsack Power Sprayer

AM-666-NEO 2S AM-708-NEO 2S AM-909-NEO 2S

1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED

WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective

material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under

warranty will be accepted on submission of Warranty Card duly ﬁlled and stamped by authorized dealer together with the original purchase

document. : b. Shipping / transportation / Incidental charges incurred in replacing defective parts under warranty shall be borne by the purchaser.

WARRANTY null & void if

(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any

ﬂammable materials, (v) Non-usage of ﬁlter water / clear water / soft water & using water above 40°C temperature, (vi) While using the pressure

washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized

service people, (viii) Those parts subject to wear & tear due to normal operations and plastic parts, rubber items etc, (ix) Loose connections,

faulty electrical ﬁxtures & ﬂuctuations in power supply.

4. Should any failure occur during or after the warranty period, customer does not have the right to interrupt payment / price discount.

5. Incidental or consequential damages like inconvenience commercial loss, loss of tie, mental agony etc.

6. Loss of any nature due to operation or non-operation is not covered under warranty.

7. All free service are at Dealer’s service point only.

8. Warranty ceases if service is not done periodically.

9. The attached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registration immediately after sale / delivery.

10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.

11. The decision of Ratnagiri Impex Pvt. Ltd., in settling the warranty is ﬁnal in all respects.

12. All disputes are subject to Bangalore Courts Jurisdiction
