Agrimate AM-708T User manual
User Manual
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AM-708T
Knapsack Motorised Sprayer
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
2
SAFETY PRECAUTIONS
Warning labels bearing the mark on the product and in this Manual refer to important safety
matters. Please familiarize your self with them and observe them well.
If a warning label on the product becomes soiled or detached, please order a replacement label
from your dealer and attach it in the requisite place
PRECAUTIONS
In this Operator's Manual, precautions that are considered to be particularly important are
indicated as follows
WARNING
Failure to observe the precaution may result in the risk of death or serious injury.
!IMPORTANT
Failure to observe the precaution may result in damage or mal function of the product.
NOTE
Other additional explanations that may be of use when operating the product.
(1) Primer
(2) Air cleaner cover
(3) Choke lever
(4) Fuel tank
(5) Starter knob
(6) Throttle lever
(7) Stop switch
(8) Spray rod
(9) Grip
(10) Pressure regulating dial
(11) Fluid drain cap
WARNINGS IN THE MANUAL
PARTS LOCATION
3
* When nozzle (supplied) is attached.
** Nozzle and back belt are not included.
Due to product improvements, these specifications are subject to change without notice.
SPECIFICATION
Model name & number AM-708T Knapsack Motorised Sprayer
Purpose
Spraying agricultural chemicals and cold
water for pest control, weeding, and
growth control
Dry weight * (kg) 9.8
External dimensions of main unit (length x
width x height)** (mm) 335x390x640
Capacity of chemical fluid tank (litres) 25
Capacity of fuel tank (litres) 0.9
Pump
Type Plunger type
Speed (rpm) 1739
Spray output Normal (MPa) 0.5 - 3.5
Maximum (MPa) 3.5
Maximum water absorption (litres/
min) 47.0
Motor transmission system Centrifugal clutch
Engine
Type Single-cylinder air-cooled 2-cycle gasoline
engine
Engine number AM262
Exhaust capacity (cc) 25.6
Fuel used Lubricating oil/gasoline mix
Lubricating oil used 2-cycle engine oil
Admixture ratio Gasoline 50 : Oil 1 (when using FC grade
genuine oil)
Carburetor Diaphragm
Ignition system CDI
Spark plugs CMR7H
Starter system Recoil starter type
Stopping system Primary cable short circuit
Air cleaner Dry type
4
SYMBOLS IN THE MANUAL
(1) Read owner’s manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Wear foot protection.
(4) Wear gloves.
(5) Warning / Attention
Never modify your machine. We won’t warrant the machine, if you use the remodeled
power sprayer or if you don’t observe the proper usage written in the manual
WARNING
Failure to observe the precaution may result in the risk of death or serious injury.
!IMPORTANT
Failure to observe the precaution may result in damage or mal function of the product.
NOTE
Other additional explanations that may be of use when operating the product.
For safe operation and maintenance, symbols are carved in relief on the machine. According to
these indications, please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: AIR CLEANER COVER
The direction to open the choke
Position: AIR CLEANER COVER
WARNINGS IN THE MANUAL
SYMBOLS ON THE MACHINE
5
FOR SAFE OPERATION
Before using this product, please read this Operator's Manual thoroughly to ensure correct
operation. The fol-lowing are precautions that should be observed in order to use the product
smoothly. Elsewhere in the Manual, the warning mark is used to bring your attention to
these precautions.
BEFORE USING THE PRODUCT
•Thisproducthasbeendesignedmainlyforthepurposeofsprayingpestcontrolchemicals
and weedkillers. Please do not use it for any other purpose, as this may cause unforeseen
accidents.
•Sincethisproductusesagriculturalchemicalsthatrequirecarefuloperation,misusecanbe
dangerous. Do not use this product when tired or otherwise in poor physical condition, or
when you may be unable to judge correctly or operate accurately, such as after taking cold
relief medicines or drinking alcohol. Also, children or persons who are unable to understand
the contents of this Manual should under no circum stances be permitted to use the product.
• The engine exhaust gas contains toxic carbon monoxide. Please do not use the product
indoors, in vinyl houses or tunnels, or in other poorly ventilated places.
•Donotusethisproductinthefollowingcases.
1. When the product could fall over or in other situations when it is difficult to hold or operate.
2. After sunset or at other times when eyesight is poor and the safety of the spraying area is
difficult to as certain.
3. In worsening weather (rain, fog, strong wind, lightning, etc.)
6
•Whenusingforthersttime,beforecommencingactualsprayingpleasereceiveguidance
in operating the product from a person with adequate experience.
•Fatiguereducespowersofconcentrationandincreasestheriskofaccidents.Whenplanning
work, please allow ample time, setting a limit of 30-40 minutes for single spraying sessions
and breaks of 10-20 minutes in between. Also, do not spray for more than 2 hours in any one day.
•PleasetakegoodcareofthisOperator'sManualandrefertoitforadditionalinformation
from time to time.
•Whensellingorlendingthisproduct,itshouldbeaccompaniedbythisOperator'sManual.
WARNING
•Checktoseeiftheshock-absorbingrubbermounthasbecomecrackedorotherwisedamaged.
Note that failing to replace this rubber mount when it has become cracked or damaged may
cause the engine to come loose from its frame during use, thus resulting in possible serious
bodily injury.
•Ifcracked,besuretoreplacewithoutdelay.
7
WARNING
1. If you don’t observe the working time, or working manner, Repetitive Stress Injury (RSI) could
occur. If you feel discomfort, redness and swelling of your fingers or any other part of your
body, see a doctor before getting worse.
2. To avoid noise complaints, in general, operate product between 8 am. & 5 pm. on weekdays
and 9 am. to 5 pm. on weekends.
!IMPORTANT
Check and follow the local regulations as to sound level and hours of operations for the product
PRECAUTIONS BEFORE SPRAYING
•Make sure you have the correct protective clothing, headgear, rubber gloves and boots, a
protective mask, goggles, a towel, protective cream, etc., to prevent chemicals from coming
into contact with your skin or entering your lungs. When spraying, please wear this protective
gear to prevent any risk of injury.
•Please store chemicals in a locked storage box, locker, or other safe place out of the
reach of children.
•Carefullyreadtheinstructionsforusingthechemicals,andfamiliarizeyourselfwiththelevel
of toxicity, method of use, etc.
•Pleasepayalldueconsiderationtotheareainwhichyouwillbespraying,toensurethatyou
do not pollute the water supply, rivers, lakes, ponds, etc., or cause any damage to residents,
passers-by, livestock, etc.
•Prepare yourself physically on the day before spraying, by for example cutting down on
alcoholic beverages or late-night work.
•Donotallowchildren,animals,etc.,toenterthechemicalsprayingarea.
FOR SAFE OPERATION
1. Protective headgear 2. Protective goggles
3. Protective mask 4. Rubber boots
5. Ear muffs 6. Neck covering
7. Protective clothing 8. Rubber gloves
9. Protective clothing
8
•Before spraying, please prepare fully by inspecting sprayer nozzles and checking for
abnormalities such as loose screws or spray hose connections, fuel leaks, defective or broken
fluid gaskets, or damage to the carrying band.
PRECAUTIONS WHEN TRANSPORTING CHEMICALS
•Whentransportingchemicals,pleasehandlewithcaretoensurethatthereisnospillageof
chemicals from torn bags, broken bottles, or loose stoppers.
•Donotcarrychemicalsinthesamecontainerasfood.
PRECAUTIONS WHEN TRANSPORTING THE SPRAYER
•Donottransportthesprayerwhileithaschemicalsorfuelinthetank,asthesecouldleakout
as a result of impact during transportation.
•Whentransportinginavehicle,pleaseusearopeorsimilartoxthesprayerrmlytothe
cargo trailer in an upright position. Please do not transport by bicycle or motorbike, as this is
dangerous.

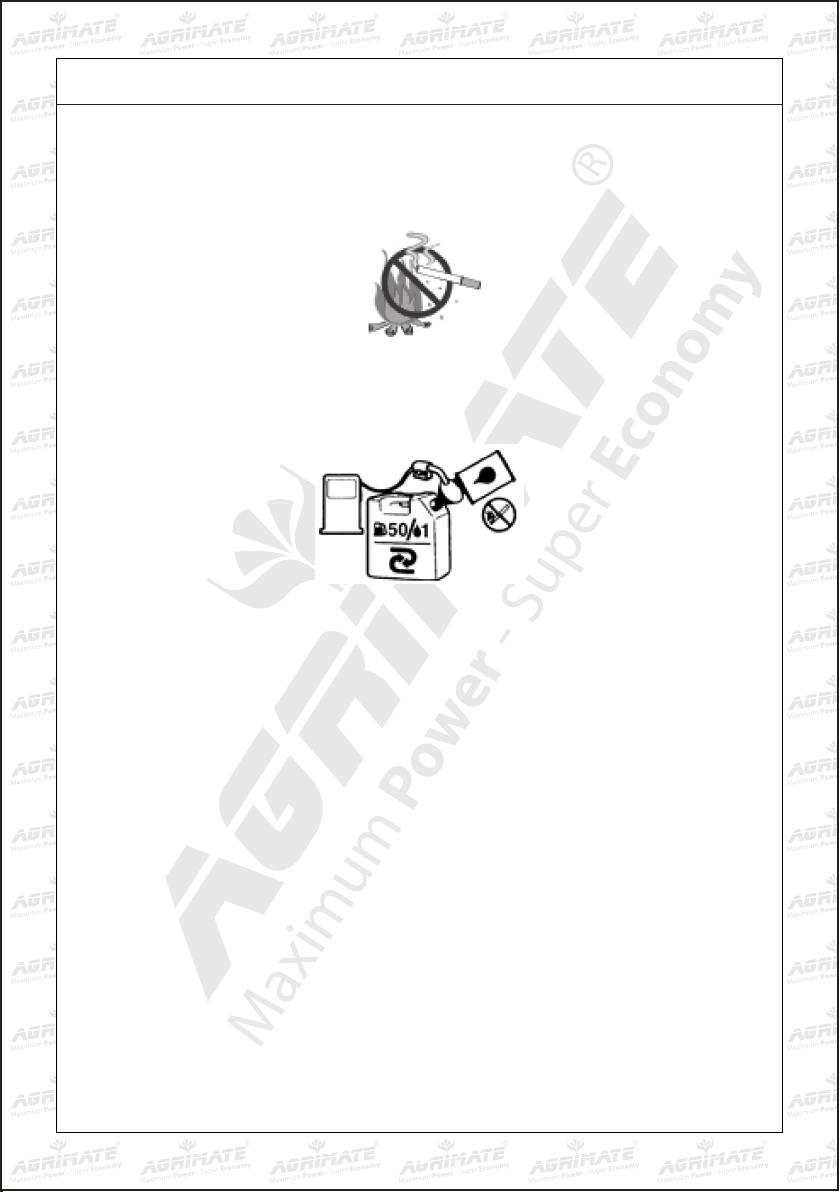

PRECAUTIONS CONCERNING FUEL
•Theengineofthisproductisfueledby"mixedgasoline"thatincludeshighlycombustiblefuel.
Do not re-fuel or store fuel containers where there is any risk of combustion from incinerators,
burners, bonfires, kitchen stoves, electric sparks, welding sparks, etc.
•Smokingwhilesprayingorrefuelingisdangerous.Pleaseavoidthisatallcosts.
•Whenrefuelingduringuse,alwaysstoptheengineandmakesuretherearenonakedames
in the vicinity before refilling.
•Any fuelspilt duringrefuelingshouldbewipedoffcompletelywitha ragor similarbefore
starting the engine.
•Afterrefueling,sealthefuelcontainer,tightlyclosethefueltankcap,andstarttheengineat
least 3 meters away.
9
PRECAUTIONS WHEN REFILLING CHEMICALS
•Beforellingthetankwithchemicals,pleasemakesurethatthesprayleveriscompletelyatrest.
•Afterchemicalrelling,rmlytightenthetankcap.Ifnotfullytightenedthecapmaybecome
loose during spraying, with the risk of physical exposure to the chemicals.
PRECAUTION WHEN STARTING THE ENGINE
•Pleasekeepchildren,animals,etc.wellawaywhenstartingtheengineandspraying.
PRECAUTIONS WHEN SPRAYING
•Sinceprotectiveclothinggenerallyofferspoorventilationandthusplacesstressonthebody,
there is a risk of contracting heatstroke or other illness when operating for long periods under
high temperatures. Please avoid spraying on hot days, aiming instead for early morning and
late afternoon times when temperatures are relatively cool and winds are low.
•Whenstartingwork,pleasepayalldueconsiderationtothesprayingtime,winddirection,etc.,
to ensure that no noise disturbance or chemical hazard is caused to nearby residents, passers-
by, farm crops, and so on.
•Whilesprayingpleaseholdthegriprmlyatalltimesandbecarefulnottopointthenozzlein
the direction of people or animals.
•Whilesprayingpleasebecarefulofthewinddirectionandalwaysstandontheupwindside,
to avoid spraying yourself with chemicals.
•Shouldyoubegintofeelevenslightlyunwellwhilespraying,consultadoctorimmediately.
When doing so, inform the doctor of the name of the chemical you were using, the conditions
of use, etc.
•Ifthesprayeristiltedthechemicalmayleakoutthroughtheairholesinthecap.Whenspraying
always make sure you have a firm footing and maintain your balance.
•Donottouchthesparkplugsorplugcordswhiletheengineisrunning,asyoumaygetan
electric shock.
•Donottouchthemufer,sparkplugs,orothermetalparts withyourbare handswhilethe
engine is running or immediately after stopping the engine, as there is the risk of burns due to
high temperatures.
10
PRECAUTIONS AFTER SPRAYING
•Pleasesealunusedchemicalsandstorethemoutofthereachofchildren.
•Donotsimplydiscardemptychemicalcontainers,butdisposeofthemsafelybyincinerating,
burying, or another similar method. In addition, please take every care that the water used to
clean spraying tools does not create any hazard.
• Fully inspect and maintain protective clothing, masks, gloves, and other protective gear in
preparation for the next session.
• After completing the work and tidying away chemicals and spraying tools, you should
immediately take a bath or wash your hands, feet, face, etc. thoroughly with soap, as well as
washing your mouth out.
•Youshouldchangeallclothesworn,includingunderwear,andwashthemthoroughly.Clothes
worn during spraying should not be worn again the following day.
•Afterspraying,pleaselimityouralcoholintakeandrestthoroughlybygoingtobedearly.Ifyou
feel even slightly unwell, please see a doctor as soon as possible.
OTHER PRECAUTIONS
•When engagedinsprayingworkoveraprotractedperiodof time,please haveyour health
checked regularly.
•Pleasecarryoutsprayinginaplannedfashion,keepingadailyrecordofthedateandtimeof
spraying, the chemicals used, the target pest, contents of the work, duration of the work, and
other details.
•Pleasekeepthefollowingpointsinmindwhenselectingorusingprotectivegear.
a) Protective clothing
Choose clothing that is cool to wear and offers good ventilation and waterproofing. In
addition, wear items that enable you to carry out spraying work in total comfort and safety.
b) Spraying hood
Use a hood with a brim that is waterproof and covers your neck and shoulders.
c) Gloves
Use gloves that are difficult for chemicals to penetrate and do not slip even if you
perspire while doing the work.
d) Rubber apron
When mixing chemicals, wear a long, thick, and wide apron that cannot be penetrated by
chemical splashes.
e) Protective goggles, mask, etc.
Select suitable protective goggles, mask, rubber boots, eye washer, and protective
cream, etc., paying attention to standards and the recommendations of farm work safety
promotion organizations.
11
MAINTENANCE PRECAUTIONS
•Inordertomaintainthefunctionsoftheproduct,regularlycarryoutthemaintenanceinspections
listed in this Manual. When maintenance or parts replacement not indicated in this Manual are
required, please consult your product supplier or nearest our product dealer.
•Neverkeeptheenginerunningwhilecarryingoutinspectionsormaintenance.
•Donotmodifythesprayerordismantletheengine.Thiscouldleadtobreakdownandserious
accidents during operation.
•Donottouchthemuferorsparkplugswithyourbarehandsimmediatelyafterstoppingthe
engine. There is the risk of burns due to high temperature.
•Forreplacementparts,pleaseuseoriginalpartsorbrandsdesignatedus
MAINTENANCE OF LABELS
1. Please keep warning labels clean and unmarked.
2. If warning labels become soiled or peel off, please order from your supplier and replace with
new ones.
3. When affixing new labels please wipe off all dirt and moisture.
• Connecting the spray hose and nozzle
SET UP
a. spray rod
b. cock
c. grip
d. joint
e. spray hose
f. connecting nut
g. spray outlet
h. rod
12
1. Connect the spray hose to the pump spray outlet and firmly tighten the connecting nut.
2. Tightly screw the joint onto the hose.
3. Tightly screw the grip onto the joint.
4. Tightly screw the cock onto the grip.
5. Tightly screw the rod onto the cock.
6. Tightly screw the spray rod onto the rod.
7. Connect the on-off switch and throttle lever to the body of the machine.

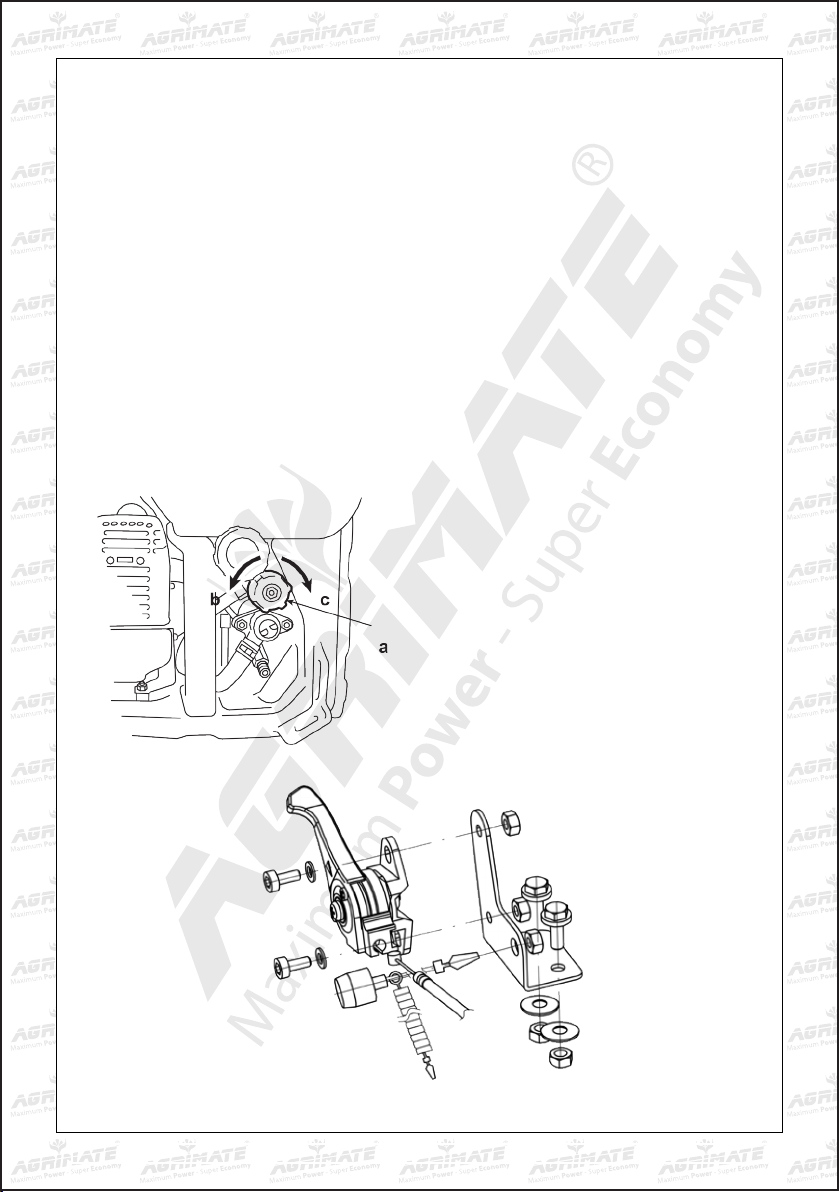

Adjusting spray pressure
•thisproducthasapressureregulatingdialtochangespraypressure.Setthepressureata
level appropriate to the spray conditions.
Set the pressure regulating dial as follows:
•Turninaclockwisedirectiontoincreasethepressure.
•Turninacounterclockwisedirectiontodecreasethepressure
a. Pressure regulating dial
b. Decreasing the pressure
c. Increasing the pressure
13
FUEL
WARNING
•Gasolineisveryammable.Avoidsmokingorbringinganyameorsparksnearfuel.Makesure
to stop the engine and allow it cool before refueling the unit. Select outdoor bare ground for
fueling and move at least 3 m (10 ft) away from the fueling point before starting the engine.
•Theenginesarelubricatedbyoilspeciallyformulatedforair-cooled2-cyclegasolineengine
use. Please use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine
use (JASO FC GRADE OIL or ISO EGC GRADE).
•DonotuseBIAorTCW(2-strokewater-coolingtype)mixedoil.
RECOMMENDED MIXING RATIO GASOLINE 50 : OIL 1 (when using genuine oil)
•Exhaustemissionarecontrolledbythefundamentalengineparametersandcomponents(eq.,
carburation, ignition timing and port timing) without addition of any major hardware or the
introduction of an inert material during combustion.
•Theseenginesarecertiedtooperateonunleadedgasoline.
•Makesuretousegasolinewithaminimumoctanenumberof89RON(USA/Canada:87AL).
•Ifyouuseagasolineofaloweroctanevaluethanprescribed,thereisadangerthattheengine
temperature may rise and an engine problem such as piston seizing may consequently occur.
•Unleadedgasolineisrecommendedtoreducethecontaminationoftheairforthesakeofyour
health and the environment.
•Poorqualitygasolinesoroilsmaydamagesealingrings,fuellinesorfueltankoftheengine.
HOW TO MIX FUEL
WARNING
•Payattentiontoagitation.
1. Measure out the quantities of gasoline and oil to be mixed.
2. Put some of the gasoline into a clean, approved fuel container.
3. Pour in all of the oil and agitate well.
14
4. Pour in the rest of gasoline and agitate again for at least one minute. As some oils may
be difficult to agitate depending on oil ingredients, sufficient agitation is necessary for the
engine to last long. Be careful that, if the agitation is insufficient, there is an increased
danger of early piston seizing due to abnormally lean mixture.
5. Put a clear indication on the outside of the container to avoid mixing up with gasoline or
other containers.
6. Indicate the contents on outside of container for easy identification.
FUELING THE UNIT
1. Untwist and remove the fuel cap. Rest the cap on a dustless place.
2. Put fuel into the fuel tank to 80% of the full capacity.
3. Fasten the fuel cap securely and wipe up any fuel spillage around the unit.
WARNING
1. Select bare ground for fueling.
2. Move at least 3 meters (10 feet ) away from the fueling point before starting the engine.
3. Stop the engine before refueling the unit. At that time, be sure to sufficiently agitate the
mixed gasoline in the container.
FOR YOUR ENGINE LIFE, AVOID:
1. FUEL WITH NO OIL (RAW GASOLINE) - It will cause severe damage to the internal engine
parts very quickly.
2. GASOHOL - It can cause deterioration of rubber and/or plastic parts and disruption of engine
lubrication.
3. OIL FOR 4-CYCLE ENGINE USE - It can cause spark plug fouling, exhaust port blocking, or
piston ring sticking.
4. Mixed fuels which have been left unused for a period of one month or more may clog the
carburetor and result in the engine failing to operate properly.
5. In the case of storing the product for a long period of time, clean the fuel tank after rendering
it empty. Next, activate the engine and empty the carburetor of the composite fuel.
6. In the case of scrapping the used mixed oil container, scrap it only at an authorized repository site.
NOTE
•Asfordetailsofqualityassurance,readthedescriptioninthesectionLimitedWarrantycarefully.
Moreover, normal wear and change in product with no functional influence are not covered by the
warranty. Also, be careful that, if the usage in the instruction manual is not observed as to the
mixed gasoline, etc. described therein, it may not be covered by the warranty.
15
CHEMICAL FILLING
WARNING
•Chemicalsubstancesshouldbehandledcorrectly,observingtheprecautionsmarkedonthe
container. Some chemicals are extremely hazardous to humans and animals, and handling
errors can cause serious poisoning or even fatal accidents.
• When not in use, chemical substance containers should be stored separately from other
containers out of the reach of children.
!IMPORTANT
•Donotllthechemicaltankwithundiluteduid.Thiscouldcausethegasketandvalvesto
lose their durability
PROCEDURE FOR FILLING
1. Use a bucket or other suitable container and dilute the chemical to the requisite strength.
2. Place the sprayer on an even and stable surface and remove the chemical tank cap.
3. Fill the tank by passing chemical through the strainer.
4. When filling is complete, firmly tighten the cap.
WARNING
•Highlycombustible.Whenrefueling,
switch the engine off and keep well
away from naked flames.
•Afterllingthetankwithfuel,
firmly tighten the cap.
a. strainer
Chemical tank capacity: 25 litres
OPERATION
16
CHEMICAL FILLING
WARNING
•Beforestartingtheengine,makesurethatthespraylever(sprayvalve)iscompletelyreturned.
Starting with the spray lever still pulled out is dangerous, as chemical fluid may spray out of
the nozzle as soon as the engine is started.
NOTE
•Thereisnoneedtooperatetheprimerwhenrestartingimmediatelyafterstoppingtheengine,
provided there is fuel left in the fuel tank.
2.Liftthechokeleverontherightoftheaircleaneruntilitisinthe"closed"position,thenopen
thethrottleleveronthemainunitsideabout1/3-1/2fromthe"slow"position.
•Tostarttheengine,placethesprayeronanevenandstablesurfaceorplatform.Ifthesprayer
is unstable, the reaction on starting etc. may cause it to fall.
!IMPORTANT
•Donotallowthechemicaluidorwaterinthetanktorunoutwhiletheengineisrunning.If
the engine runs empty it may cause breakage of the spray pump.
•Makesurethatthegearoilislleduntilthemiddleofthecheck-window.Ifitisnotenough,
loose the upper bolt and fill the gear oil. (SAE40CC)
1. Press the primer at the bottom of the carburetor a few times with your finger until the fuel
starts to flow through the transparent pipe.
(1) bolt
(2) window
(3) drain bolt
a. air cleaner
b. choke lever
c. close
d. open
e. transparent pipe
f. primer
17
NOTE
•Whenrestartingimmediatelyafterstoppingtheengine,setthechokeleverto"open"andthe
throttleleverto"slow".
3. Place the sprayer in a stable location, and pull the starter knob with the right hand while
holding the chemical tank down with the left hand. The starter knob should first be pulled out
lightly, then, when resistance is felt, pulled more swiftly and vigorously
g. throttle lever
h. fast
i. slow
!IMPORTANT
•Donotpulltheropeoutcompletelyorreleasetheknobsothattheropereturns,asthiscan
cause starter malfunction.
4. Once the engine has started, gradually open the choke, warm up at low speed for 1-2 minutes,
thenreturnthethrottlelevertothe"slow"position.
!IMPORTANT
•Iftheropeispulledcontinuouslywiththechokeclosed,thesparkplugsmaybecomeooded
and the engine may fail to start. If so, you should first remove the spark plugs and dry the
electrodes, then repeat the starting procedure.
• Stopping engine
WARNING
•Stoptheengineimmediatelyintheeventofanemergency.
1. Lower the throttle lever fully and cool the engine down for 1-2 minutes at low speed.
2. Hold down stop switch on the left side of the sprayer frame until the engine has come to a
complete stop .
18
a. Stop switch
a. Spray cock
b. Close
c. Open
!IMPORTANT
•Exceptforanemergency,avoidstoppingtheenginewhilepullingthethrottletrigger.
• Spraying
WARNING
•Pleaseusecorrectly,observingtheprecautionsinthisManual("ForSafeOperation",p5to7).
•Beforeliftingthesprayerontoyourback,checkthatthechemicaltankandfueltankcapsare
tightly closed.
•Whenspraying,donotpointthenozzleatyourface,oratotherpeople,animals,etc.
•Ifthesprayeristiltedtoomuch,chemicaluidorfuelmayleakoutthroughtheairholesinthe
cap. When using, always try to maintain an upright posture.
!IMPORTANT
•If the chemical tank becomes empty while spraying, reduce the engine to low speed
immediately. Empty running of the engine may cause the spray pump to break.
•Pleaseavoidusingmultiplenozzles,jetnozzles,orothernozzlesthatgivealargesprayvolume,
as spraying efficiency is sometimes impaired owing to insufficient pressure.
• Spraying procedure
1. Start the engine, and lift the sprayer onto your back.
2. Adjust the carrying band to a suitable length for carrying.
3. Increase the engine speed, and open the spray cock. Chemical fluid starts to spray out from the
nozzle in the form of mist.
4. When stopping work, close the spray cock fully and reduce the engine speed.
• Cleaning after completion of spraying
1. Loosen the fluid drain cap , transfer the chemical fluid left inside the tank into a suitable
container, and process appropriately with all due consideration to safety.
2. Pour about 5 litres of clean water into the chemical tank, spray through the nozzle for 2-3
minutes, and drain the water left inside the tank.
19
a. Fluid drain cap
• Disposal
When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations.
MAINTENANCE
System/
components Procedure Before
use
Every
25
hours
after
Every
50
hours
after
Every
100
hours
after
Note
Engine
fuel leaks, fuel
spillage
wipe out
fuel tank, air filter,
fuel filter
inspect/clean replace, if
necessary
idle speed adjuster see adjusting
idling speed
replace
carburetor if
necessary
spark plug clean and
readjust plug
gap
GAP: 0.6 to
0.7 mm (.025
in) replace, if
necessary
cylinder fins, intake
air cooling vent
clean
muffler, cylinder
exhaust port
clean
throttle lever, stop
switch
check
operation
screws/nuts/bolts tighten/
replace
except
adjusting
screws
Pump
gear oil replace
20
WARNING
•Make sure that the engine has stopped and is cool before performing any service to the
machine. Contact with hot muffler may result in a personal injury.
•Donotmodifythesprayerordismantletheengine.
•Whenreplacingpartspleaseuseouroriginalpartsordesignatedparts.
•Air cleaner
•Afterevery25hoursofoperation,pleaseremovetheaircleanercoverandinspecttheelement.
If it is too dirty, wash it carefully in warm water containing a neutral detergent, and return it to
its original position after drying it thoroughly.
•Iftheelementisdistortedordamaged,pleasereplaceitwithanewone.
a. Element
b. Air cleaner cover
a. Fuel filter
!IMPORTANT
•Iftheaircleanerelementisblocked,theefciencyoftheenginewillbereduced.Inaddition,
the engine interior will suffer abnormal wear if operated without the element or if continually
operated with a distorted or damaged element fitted.
•Fuel filter
After every 25 hours of operation, empty the fuel tank, detach the fuel filter from the tank, and
remove all dirt. If the filter is too clogged, please replace it with a new one.
!IMPORTANT
•Ifthefuellterisclogged,theenginespeedmaybelimitedorspeeductuationsmayoccur.
•Iftheengineisoperatedwithoutafuellter,dirtwillaccumulateinthecarburetorandcause
it to malfunction.
•Spark plug
WARNING
•Donottouchthesparkplugwithyourbarehandsimmediatelyafteroperation,asthereisthe
risk of burns due to high temperature.
Table of contents
Other Agrimate Paint Sprayer manuals
Agrimate
Agrimate AM22-NT User manual
Agrimate
Agrimate AM 22 AUTO User manual
Agrimate
Agrimate KNPASACK User manual
Agrimate
Agrimate AM-405E-ELITE User manual
Agrimate
Agrimate AM-708-PRO-2S-WC User manual
Agrimate
Agrimate AM-708 User manual
Agrimate
Agrimate AM-21K User manual
Agrimate
Agrimate AM ZOOM User manual
Agrimate
Agrimate AMP-769-HCP User manual
Agrimate
Agrimate AMP-768-PRO 4S Series User manual
