Air Techniques Mojave Mobile User manual

EN-
US
Mojave Mobile
Installation and Operating Instructions
ATH7100005L29
*ATH7100005L29* ATH7100005
2011V004

Contents
Important information
1About this document .. . . . . . . . . . . . . 3
1.1 Warnings and symbols .. . . . . . . 3
1.2 Copyright information .. . . . . . . . 4
2 Safety .. . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Intended use (FDA) .. . . . . . . . . . 4
2.2 General safety information .. . . . . 4
2.3 Specialist personnel .. . . . . . . . . 5
2.4 Notification requirement of seri-
ous incidents .. . . . . . . . . . . . . . . 5
2.5 Only use genuine parts .. . . . . . . 5
2.6 Protection from electric shock .. . 5
2.7 Essential performance charac-
teristics .. . . . . . . . . . . . . . . . . . . 6
2.8 Transport .. . . . . . . . . . . . . . . . . . 6
2.9 Disposal .. . . . . . . . . . . . . . . . . . 6
Product description
3Overview .. . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Scope of delivery .. . . . . . . . . . . . 8
3.2 Optional items .. . . . . . . . . . . . . . 8
3.3 Consumables .. . . . . . . . . . . . . . 8
3.4 REF/Order number .. . . . . . . . . . 8
4Technical data .. . . . . . . . . . . . . . . . . . . 10
4.1 Model identification plate .. . . . . . 13
4.2 Conformity assessment .. . . . . . . 13
4.3 Classification .. . . . . . . . . . . . . . . 13
4.4 Approvals .. . . . . . . . . . . . . . . . . 14
5 Function .. . . . . . . . . . . . . . . . . . . . . . . 14
Installation
6Requirements .. . . . . . . . . . . . . . . . . . . 16
6.1 Installation/setup room .. . . . . . . 16
7 Installation .. . . . . . . . . . . . . . . . . . . . . . 16
7.1 Setting up the unit .. . . . . . . . . . . 16
7.2 Remove the transport locks .. . . 16
7.3 Electrical safety when making
connections .. . . . . . . . . . . . . . . . 17
7.4 Connecting the unit to the mains
supply .. . . . . . . . . . . . . . . . . . . . 17
8 Electrical installation .. . . . . . . . . . . . . . 18
8.1 Overview of connection .. . . . . . . 18
8.2 Hose manifold .. . . . . . . . . . . . . . 18
8.3 VS 300 S .. . . . . . . . . . . . . . . . . 19
8.4 VSA 300 S .. . . . . . . . . . . . . . . . 19
9Description of the service program .. . 21
9.1 Service program ON/OFF .. . . . . 21
9.2 Display test .. . . . . . . . . . . . . . . . 21
9.3 Measurement of the sediment
filling level .. . . . . . . . . . . . . . . . . 21
9.4 Motor start - motor brake .. . . . . 21
9.5 Input and output signals .. . . . . . 21
10 Service program VSA 300 S .. . . . . . . . 22
11 Commissioning and first start-up .. . . 23
Usage
12 Operation .. . . . . . . . . . . . . . . . . . . . . . 24
12.1 Switching the unit on/off .. . . . . . 24
12.2 Tips on ease of operation .. . . . . 24
12.3 Suctioning of fluid .. . . . . . . . . . . 24
13 Display panel (for VSA 300 S) .. . . . . . 25
13.1 Ready for use .. . . . . . . . . . . . . . 25
13.2 Amalgam collecting container is
95% full .. . . . . . . . . . . . . . . . . . . 25
13.3 Amalgam collecting container is
100% full .. . . . . . . . . . . . . . . . . . 25
13.4 No amalgam collecting container
inserted .. . . . . . . . . . . . . . . . . . . 26
13.5 Motor fault .. . . . . . . . . . . . . . . . . 26
13.6 Brake monitoring .. . . . . . . . . . . . 26
14 Disinfection and cleaning .. . . . . . . . . . 27
14.1 Fluid container .. . . . . . . . . . . . . . 27
14.2 After each treatment .. . . . . . . . . 27
14.3 Daily after the end of treatment .. 27
Contents
ATH7100005L29 2011V004 1
EN-
US

14.4 Once or twice a week before the
midday break .. . . . . . . . . . . . . . 27
14.5 Weekly and before extended
treatment pauses .. . . . . . . . . . . 28
14.6 Surface of the unit .. . . . . . . . . . . 29
15 Processing of the suction handpiece .. 30
15.1 Risk analysis and classification .. 30
15.2 Reprocessing procedures .. . . . . 30
15.3 Preparation at the operating
location .. . . . . . . . . . . . . . . . . . . 31
15.4 Clean manually, perform a final
rinse, dry .. . . . . . . . . . . . . . . . . . 32
15.5 Automatic cleaning, intermediate
rinsing, disinfection, final rinse,
drying .. . . . . . . . . . . . . . . . . . . . 32
15.6 Check for function .. . . . . . . . . . . 33
15.7 Steam sterilization .. . . . . . . . . . . 33
15.8 Issue clearance for the parts for
sterilization .. . . . . . . . . . . . . . . . 33
15.9 Storage .. . . . . . . . . . . . . . . . . . . 33
16 Reprocessing of the cannula .. . . . . . . 34
16.1 Risk analysis and classification .. 34
16.2 Reprocessing procedures .. . . . . 34
16.3 Preparation at the operating
location .. . . . . . . . . . . . . . . . . . . 35
16.4 Clean manually, perform a final
rinse, dry .. . . . . . . . . . . . . . . . . . 36
16.5 Automatic cleaning, intermediate
rinsing, disinfection, final rinse,
drying .. . . . . . . . . . . . . . . . . . . . 36
16.6 Check for function .. . . . . . . . . . . 36
16.7 Steam sterilization .. . . . . . . . . . . 36
16.8 Storage .. . . . . . . . . . . . . . . . . . . 37
17 Replace the amalgam collecting con-
tainer .. . . . . . . . . . . . . . . . . . . . . . . . . . 37
17.1 Disposal of amalgam collecting
container .. . . . . . . . . . . . . . . . . . 38
18 Maintenance .. . . . . . . . . . . . . . . . . . . . 39
18.1 Mojave Mobile .. . . . . . . . . . . . . . 39
18.2 VS 300 S .. . . . . . . . . . . . . . . . . 39
18.3 VSA 300 S .. . . . . . . . . . . . . . . . 39
18.4 Grease the seal .. . . . . . . . . . . . . 41
18.5 Change the disposable filter .. . . 41
18.6 Changing the suction hose .. . . . 41
18.7 Lubricating the O-rings .. . . . . . . 42
18.8 Cleaning the protective strainer .. 42
18.9 Replacing the bacteria filter .. . . . 42
18.10 Tests .. . . . . . . . . . . . . . . . . . . . . 43
Troubleshooting
19 Tips for operators and service techni-
cians .. . . . . . . . . . . . . . . . . . . . . . . . . . 44
Appendix
20 Handover record .. . . . . . . . . . . . . . . . . 47
Contents
2 ATH7100005L29 2011V004
EN-
US

Important information
1 About this document
These installation and operating instructions are
an integral part of the unit.
Air Techniques shall not be held liable and
offers no guarantees of the safe and
smooth operation of this unit if you fail to
comply with notes and instructions con-
tained in these Installation and Operating
Instructions.
The German version of the installation and oper-
ating instructions is the original manual. All other
languages are translations of the original manual.
These installation and operating instructions
apply to:
Mojave Mobile
Order number:
– VMA1 (ATH7100100)
– VMA1-S (ATH7100200)
– VM1 (ATH7200100)
– VM1-S (ATH7200200)

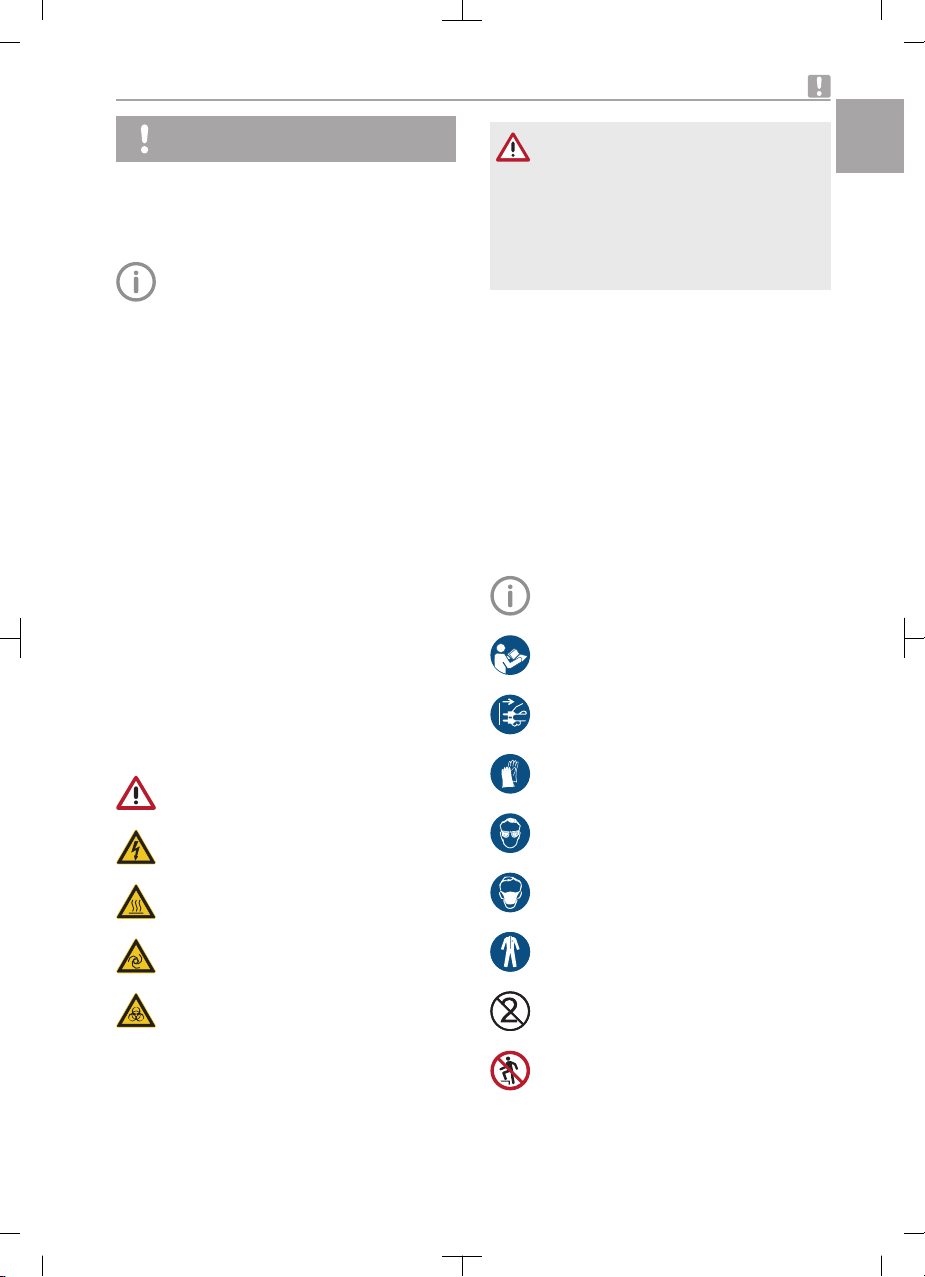

1.1 Warnings and symbols
Warnings
The warning notes in this document highlight
possible injury to persons or damage to machi-
nery.
They are marked with the following warning sym-
bols:
General warning symbol
Warning – risk of dangerous electric vol-
tages
Warning – hot surfaces
Warning - automatic start-up of the unit
Warning - biohazard
The warnings are structured as follows:
SIGNAL WORD
Description of type and source of
danger
Here you will find the possible conse-
quences of ignoring the warning
❯Follow these measures to avoid the
danger.
The signal word differentiates between different
levels of danger:
–DANGER
Direct danger of severe injury or death
–WARNING
Possible danger of severe injury or death
–CAUTION
Risk of minor injuries
–NOTICE
Risk of extensive material/property damage

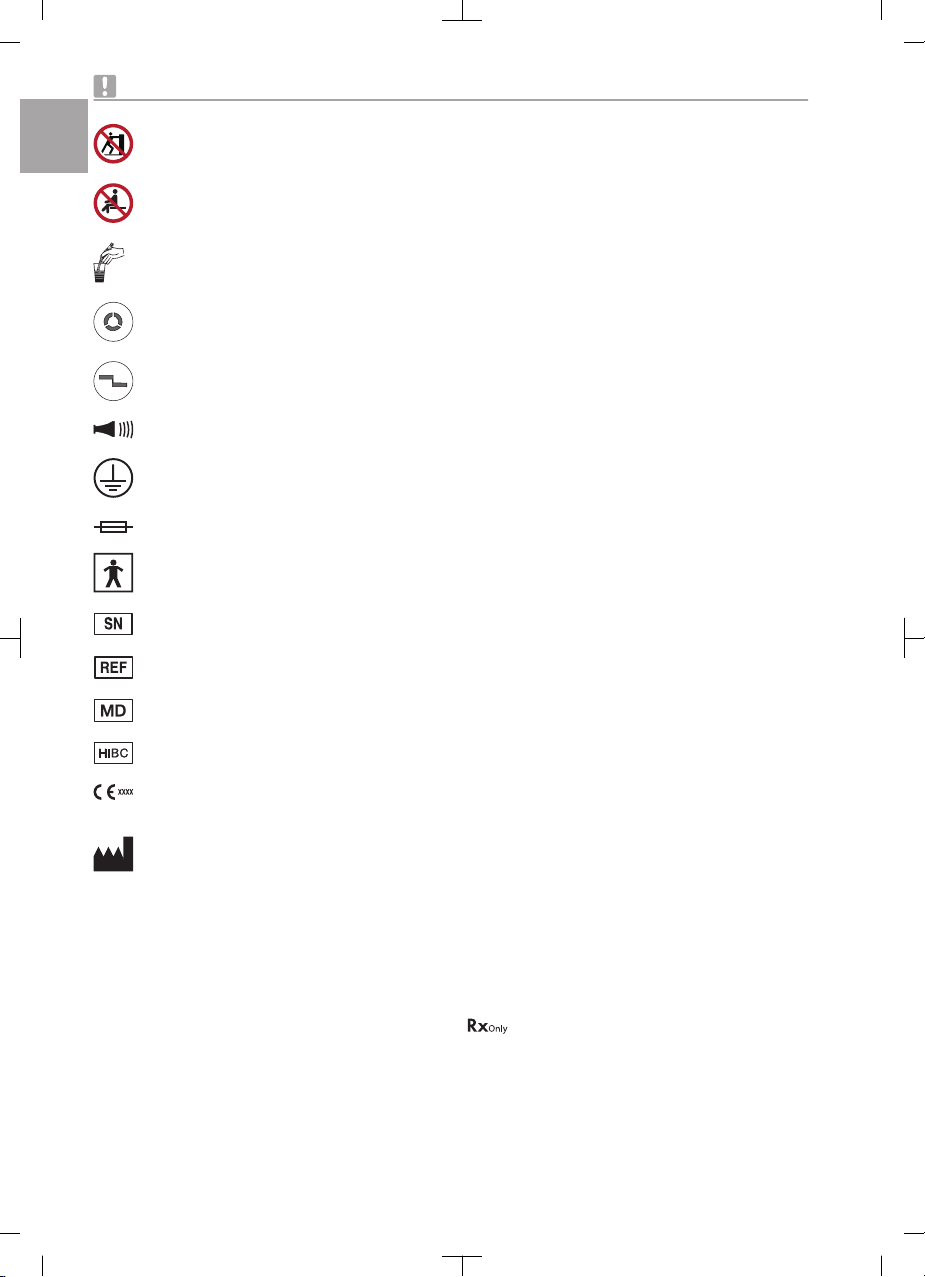

Miscellaneous symbols
These symbols are used in the document and on
or in the unit:
Note, e.g. specific instructions regarding
the efficient use of the unit.
Refer to Operating Instructions.
Disconnect all power from the unit.
Wear hand protection.
Wear eye protection.
Use a face mask.
Wear protective clothing.
Do not reuse
Do not climb onto the unit
Important information
ATH7100005L29 2011V004 3
EN-
US

Do not push or slide the unit.
Do not sit on the unit
Aspirate cold water
Device in operation
Operation of the unit is interrupted
Audible signal/melody is issued
Protective ground connection
Fuse
Type BF applied part
Serial number
Part number
Medical device
Health Industry Bar Code (HIBC)
CE labeling with the number of the noti-
fied body
Manufacturer
1.2 Copyright information
All electronic drawings, processes, names, soft-
ware, and appliances mentioned here are pro-
tected under copyright.
Printing or copying these Installation and Operat-
ing Instructions, including excerpts thereof, may
only be carried out with the written approval of
Air Techniques.
2 Safety
The unit has been developed and designed
appropriately such that hazards are largely
excluded if the unit is used in accordance with its
Normal Use.
Therefore, please note the following.
Despite this, the following residual risks can
remain:
– Personal injury due to incorrect use/misuse
– Personal injury due to mechanical effects
– Personal injury due to electric shock
– Personal injury due to radiation
– Personal injury due to fire
– Personal injury due to thermal effects on the
skin
– Personal injury due to lack of hygiene, e.g.
infection
2.1 Intended use (FDA)
Indications for use
The moveable spray mist suction unit generates
a vacuum and a volume flow for dental treat-
ment.
Improper use
Any other usage or usage beyond this scope is
deemed to be improper.
The manufacturer accepts no liability for dam-
ages resulting from this.
The operator/user bears all risks.
– Do not use this unit to aspirate flammable and
explosive mixtures.
– Do not use the unit as a vacuum cleaner.
– Do not use any chlorine-containing or foaming
chemicals.
– Operation of the unit in operating theaters or
explosion hazard areas is not permissible.
2.2 General safety information
The sale or prescription of this device by a medi-
cal practitioner is subject to the restrictions of the
applicable Federal Acts. The device may be used
only under permanent supervision by a dentist or
licensed medical practitioner.
Caution: Federal law restricts this device
to sale by or on the order of a Doctor.
❯Comply with the guidelines, laws, rules and
regulations applicable at the site of operation
when you use this unit.
Important information
4 ATH7100005L29 2011V004
EN-
US

❯Prior to each use, check the function and
proper condition of the device.
❯Do not convert or modify the unit.
❯Comply with the Installation and Operating
Instructions.
❯Make the Installation and Operating Instruc-
tions always available to the operator in the
vicinity of the device.
2.3 Specialist personnel
Operation
Persons operating the unit must ensure safe and
correct handling based on their training and
knowledge.
❯Instruct or have every user instructed in han-
dling the unit.
Installation and repairs
❯All installation, resetting, alteration, expansion,
and repair work must be carried out either by
Air Techniques personnel or by a suitably quali-
fied person approved by Air Techniques.
2.4 Notification requirement of
serious incidents
The operator/patient has to report any serious
incident related the product to the manufacturer
and the competent authority of the Member
State, in which the operator and/or patient is
established/resident.
2.5 Only use genuine parts
❯Only use accessories and optional items that
have been recommended or specifically
approved by Dürr Dental.
❯Only use original working parts and spare
parts.
2.6 Protection from electric
shock
❯Comply with all relevant electrical safety regula-
tions when you work with this unit.
❯Never touch the patient and unshielded plug
connections of the device at the same time.
❯Replace any damaged cables or plugs immedi-
ately.
Comply with the EMC rules concerning medi-
cal devices
The unit meets the requirements according to
IEC 60601-1-2:2014.
❯The unit is intended for use in professional
healthcare facilities (in accordance with IEC
60601-1-2). If the unit is operated in any other
environment, potential effects on the electro-
magnetic compatibility must be taken into
account.
❯Do not use the device near HF surgical devices
and MRI equipment.
❯Keep a minimum distance of 30 cm between
the device and other electronical devices.
❯Note that cable lengths and cable extensions
have effects on electromagnetic compatibility.
❯No maintenance measures are required to
maintain the basic EMC safety.
NOTICE
Negative effects on the EMC due to
non-authorized accessories
❯Only use accessories that have been
specified or approved by Dürr Dental.
❯The use of any other accessories may
result in increased electromagnetic
interference emissions or the unit hav-
ing reduced electromagnetic immunity,
leading to an faulty operation mode.
NOTICE
Erroneous operation mode due to use
immediately adjacent to other devices
or with other stacked devices
❯Do not stack the unit together with
other devices.
❯If this is unavoidable, the unit and other
devices should be monitored in order
to ensure that they are working cor-
rectly.
NOTICE
Reduced performance features due to
insufficient distance between unit and
mobile HF communication devices
❯Keep at least 30 cm distance between
the unit (including parts and cables of
the unit) and mobile HF communica-
tion devices (wireless units) (including
their accessories such as antenna
cables and external antennas).
Important information
ATH7100005L29 2011V004 5
EN-
US

2.7 Essential performance char-
acteristics
The unit does not have any essential perform-
ance characteristics as set out in IEC 60601-1
section 4.3.
2.8 Transport
Only the original packaging ensures optimum
protection for the unit during transport.
If necessary, the original packaging for this unit
can be ordered from Air Techniques.
Air Techniques cannot be held responsi-
ble for any damage resulting from trans-
port in unsuitable packaging, even during
the warranty period.
❯Only transport the unit in its original packaging.
❯Keep all packaging away from children.
2.9 Disposal
The unit may be contaminated. Instruct
the disposal company to take the relevant
safety precautions.
❯Decontaminate potentially contaminated parts
before disposal.
❯Uncontaminated parts (e.g. electronics, plastic
and metal parts, etc.) should be disposed of in
accordance with the local waste disposal regu-
lations.
❯If you have any questions about the correct
disposal of parts, please contact your dental
trade supplier.
An overview of the waste keys for Dürr
Dental products can be found in the
download area at www.duerrdental.com
(document no. P007100155).
Important information
6 ATH7100005L29 2011V004
EN-
US

Product description
3 Overview
1
2
1 Mojave Mobile
2 Line Cord
Product description
ATH7100005L29 2011V004 7
EN-
US

3.1 Scope of delivery
The following items are included in the scope of
delivery (possible variations due to country-spe-
cific requirements and/or import regulations):
Mojave Mobile .. . . . . . . . ATH7100100 (VMA1)
Mojave Mobile .. . . . . . ATH7100200 (VMA1-S)
Mojave Mobile .. . . . . . . . . ATH7200100 (VM1)
Mojave Mobile .. . . . . . . ATH7200200 (VM1-S)
– Monarch CleanStream Dispenser System
– Cannula set
– Prophylaxis cannula
– Disposable filter
– Rotary adaptor, grey
– Saliva ejector hose, grey
– Suction hose, grey
– Suction handpiece large, grey
– Suction handpiece small, grey
– Ball joint, grey
– Waste water hose
– Bacteria filter
– Disposable amalgam container (optional)
– Line Cord
– Spittoon (optional)
3.2 Optional items
The following optional items can be used with the
device:
Spittoon .. . . . . . . . . . . . . . . . . . . . 7068-003-05
Remote display (Display panel) .. . . ATH7100016
3.3 Consumables
The following materials are consumed during
operation of the device and must be re-ordered:
Monarch CleanStream Dispenser
System .. . . . . . . . . . . . . . . . . . . . . ATH7100030
Monarch CleanStream Evacuation Sys-
tem Cleaner .. . . . . . . . . . . . . . . . . . . . . . . 57850
Monarch Enzymatic Cleaner .. . . . . . . . . . H6201
Monarch Surface Disinfection Wipes .. . . . H6186
Disposable filter for suction sys-
tems (12 pieces) .. . . . . . . . . . . . . . 0725-041-00
Bacteria filter .. . . . . . . . . . . . . . . . . 7119100010
Prophylaxis Cannula
d=16 mm, grey (4 pieces) .. . . . . . . 0700-058-50
Universal Cannula Protect
d=16 mm, grey (5 pieces) .. . . . . . . 0700-059-50
Universal Cannula Protect
d=16 mm, grey (20 pieces) .. . . . . . 0700-059-00
Disposable amalgam container and
Recycling Kit .. . . . . . . . . . . . . . . . . . . . MMREC
Disposable amalgam container .. . . . . . . MMREP
Recycling Kit .. . . . . . . . . . . . . . . . . . . . . MMKIT
3.4 REF/Order number
Name REF Order num-
ber
Mojave Mobile ATH7100100 VMA1
Mojave Mobile ATH7100200 VMA1-S
Mojave Mobile ATH7200100 VM1
Mojave Mobile ATH7200200 VM1-S
Spittoon 7068-003-05 706800305
Remote dis-
play
ATH100016 ATH100016
Disposable fil-
ter for suction
systems (12
pieces)
0725-041-00 072504100
Bacteria filter 7119100010 711900010
Monarch
CleanStream
Dispenser
System
ATH7100030 57665
Monarch Sur-
face Disinfec-
tion Wipes
H6186 H6186
Monarch
Enzymatic
Cleaner
H6201 H6201
Monarch
CleanStream
Evacuation
System
Cleaner
57850
Universal Can-
nula Protect
d=16 mm,
grey (5 pieces)
0700-059-50 070005950
Universal Can-
nula Protect
d=16 mm,
grey (20
pieces)
0700-059-00 070005900
Product description
8 ATH7100005L29 2011V004
EN-
US

Name REF Order num-
ber
Prophylaxis
cannula d=16
mm, grey (4
pieces)
0700-058-50 070005850
Disposable
amalgam con-
tainer
7110-033-00 MMREP
Disposable
amalgam con-
tainer and
Recycling Kit
MMREC
Recycling Kit MMKIT
Product description
ATH7100005L29 2011V004 9
EN-
US

4 Technical data
Electrical data for the device ATH7100100
ATH7100200
ATH7200100
ATH7200200
Nominal voltage V AC 120
Nominal current A 7
Frequency Hz 60
Type of protection IP20
Protection class I
Duty Cycle % 100 (S1)
Main plug 1/N/PE
General technical data Mojave Mobile
Dimensions (H x W x D) mm 900 x 365 x 640
in 35.43 x 14.37 x 25.20
Weight kg max. 43
lb max. 95
Water temperature °C max. 35
°F max. 95
Noise levels dB(A) 52
Exhaust air connection DürrConnect
Waste water connection DürrConnect
Mesh size, sieve of the Combination Suc-
tion Unit
mm 3
in approx. 0.1
Noise level in accordance with ISO
3744
Ambient conditions during storage and transport
Temperature °C -10 to +60
°F +14 to +140
Relative humidity % max. 95
Ambient conditions during operation
Temperature °C +10 to +40
°F +50 to +104
Relative humidity % < 70
Electromagnetic compatibility (EMC)
Interference emission measurements
Interference voltage at the power supply connection
CISPR 11:2015/AMD1:2016
Group 1
Class B
Product description
10 ATH7100005L29 2011V004
EN-
US

Electromagnetic compatibility (EMC)
Interference emission measurements
Electromagnetic interference radiation
CISPR 11:2015/AMD1:2016
Group 1
Class B
Intermittent interference voltage at the power supply con-
nection
CISPR 14-1:2016
Group 1
Class B
Emission of harmonics
IEC 61000-3-2:2018
Compliant
Voltage changes, voltage fluctuations and flicker emis-
sions
IEC 61000-3-3:2013/AMD1:2017
Compliant
Electromagnetic compatibility (EMC)
Interference immunity measurements on cover
Immunity to interference by discharge of static electricity
IEC 61000-4-2:2008
±8 kV contact
± 2 kV, ± 4 kV, ± 8 kV, ± 15 kV air
Compliant
Immunity to interference by high-frequency electromag-
netic fields
IEC 61000-4-3:2006+A1:2007+A2:2010
3 V/m
80 MHz - 2.7 GHz
80% AM at 1 kHz
Compliant
Immunity to interference from power frequency magnetic
fields
IEC 61000-4-8:2009
30 A/m at 50 Hz
Compliant
Immunity to interference by near fields of wireless HF
communication devices
IEC 61000-4-3:2006+A1:2007+A2:2010
Compliant
Electromagnetic compatibility (EMC)
Interference immunity measurements on supply input
Immunity to interference by rapid transient bursts – AC
voltage grid
IEC 61000-4-4:2012
± 2 kV
100 kHz repetition frequency
Compliant
Immunity to interference, surges
IEC 61000-4-5:2014/AMD1:2017
± 0.5 kV, ± 1 kV, L - N
± 0.5 kV, ± 1 kV, ± 2kV, L/N - PE
Compliant
Product description
ATH7100005L29 2011V004 11
EN-
US

Electromagnetic compatibility (EMC)
Interference immunity measurements on supply input
Immunity to interference, line-conducted disturbances
induced by high-frequency fields – AC voltage grid
IEC 61000-4-6:2013
3 V
0.15 - 80 MHz
6 V
ISM frequency bands
6.765 - 6.795 MHz
13.553 - 13.567 MHz
26.957 - 27.283 MHz
40.66 - 40.70 MHz
80% AM at 1 kHz
Compliant
Immunity to interference due to voltage dips, short inter-
ruptions and voltage fluctuations
IEC 61000-4-11:2004/AMD1:2017
Compliant
Immunity levels with respect to near fields of wireless HF communication devices
Radio service Frequency band
MHz
Test Level
V/m
TETRA 400 380 - 390 27
GMRS 460
FRS 460 430 - 470 28
LTE band 13, 17 704 - 787 9
GSM 800/900
TETRA 800
iDEN 820
CDMA 850
LTE band 5
800 - 960 28
GSM 1800
CDMA 1900
GSM 1900
DECT
LTE bands 1, 3, 4, 25
UMTS
1700 - 1990 28
Bluetooth
WLAN 802.11 b/g/n
RFID 2450
LTE band 7
2400 - 2570 28
WLAN 802.11 a/n 5100 - 5800 9
Product description
12 ATH7100005L29 2011V004
EN-
US

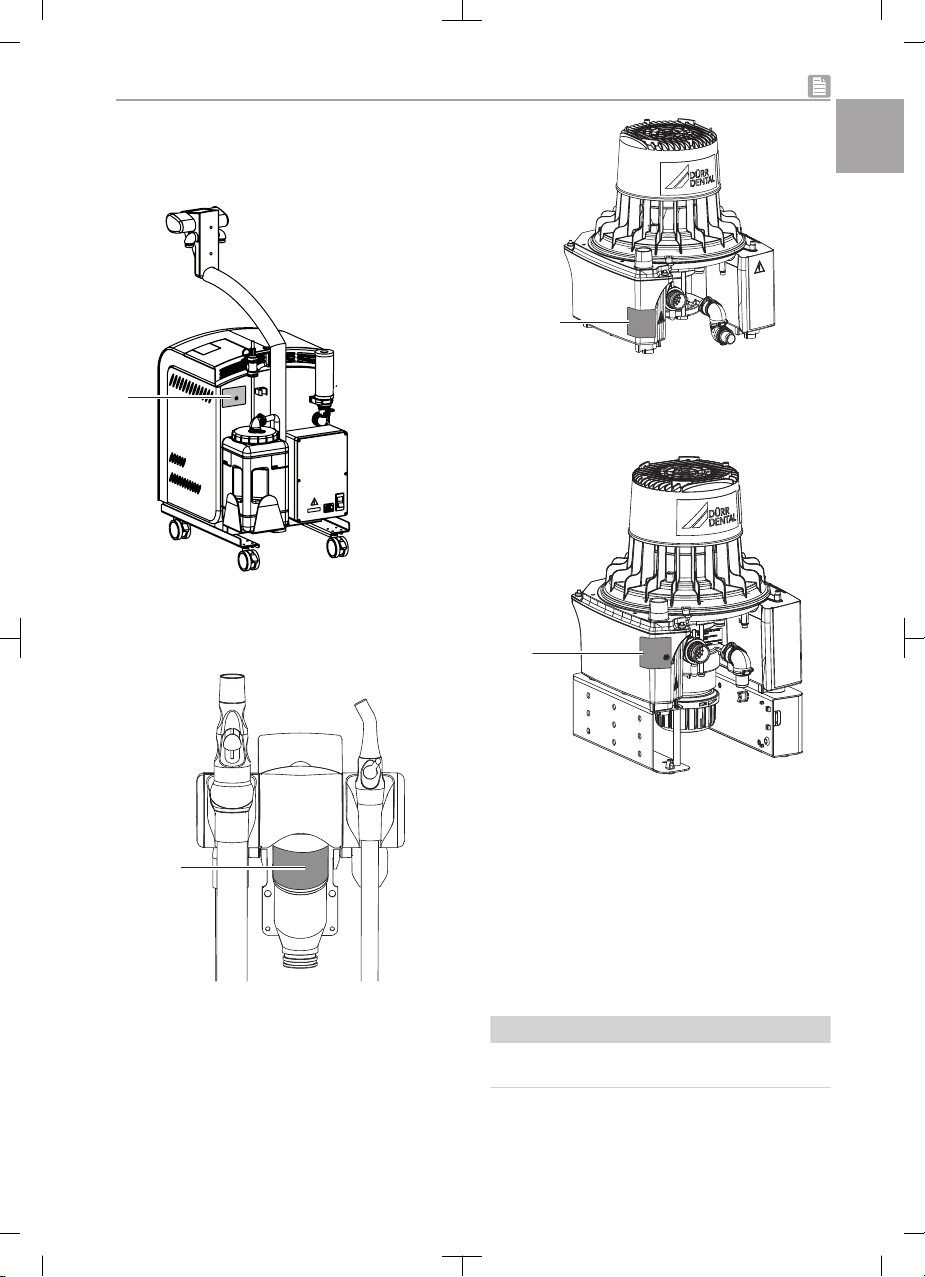

4.1 Model identification plate
Mojave Mobile
The type plate is located on the rear of the unit.
1
1 Type plate
Hose manifold
The type plate of the hose manifold is located
under the filter element cover.
1
1 Type plate
VS 300 S
The type plate is located on the noise reduction
hood.
1
1 Type plate
VSA 300 S
The type plate is located on the noise reduction
hood.
1
1 Type plate
4.2 Conformity assessment
This device has been subjected to conformity
acceptance testing in accordance with the cur-
rent relevant guidelines of the European Union.
This equipment conforms to all relevant require-
ments.
4.3 Classification
VS 300 S / VSA 300 S
Classification
Medical Device
(FDA) Class
I
Product description
ATH7100005L29 2011V004 13
EN-
US

Classification
Medical Device
Class
IIa
4.4 Approvals
VSA 300 S
Separation method compliant with
ISO 11143 stand-
ard Type 1
Centre of Competence in Civil Engineering,
Berlin
Test number Z-64.1-15

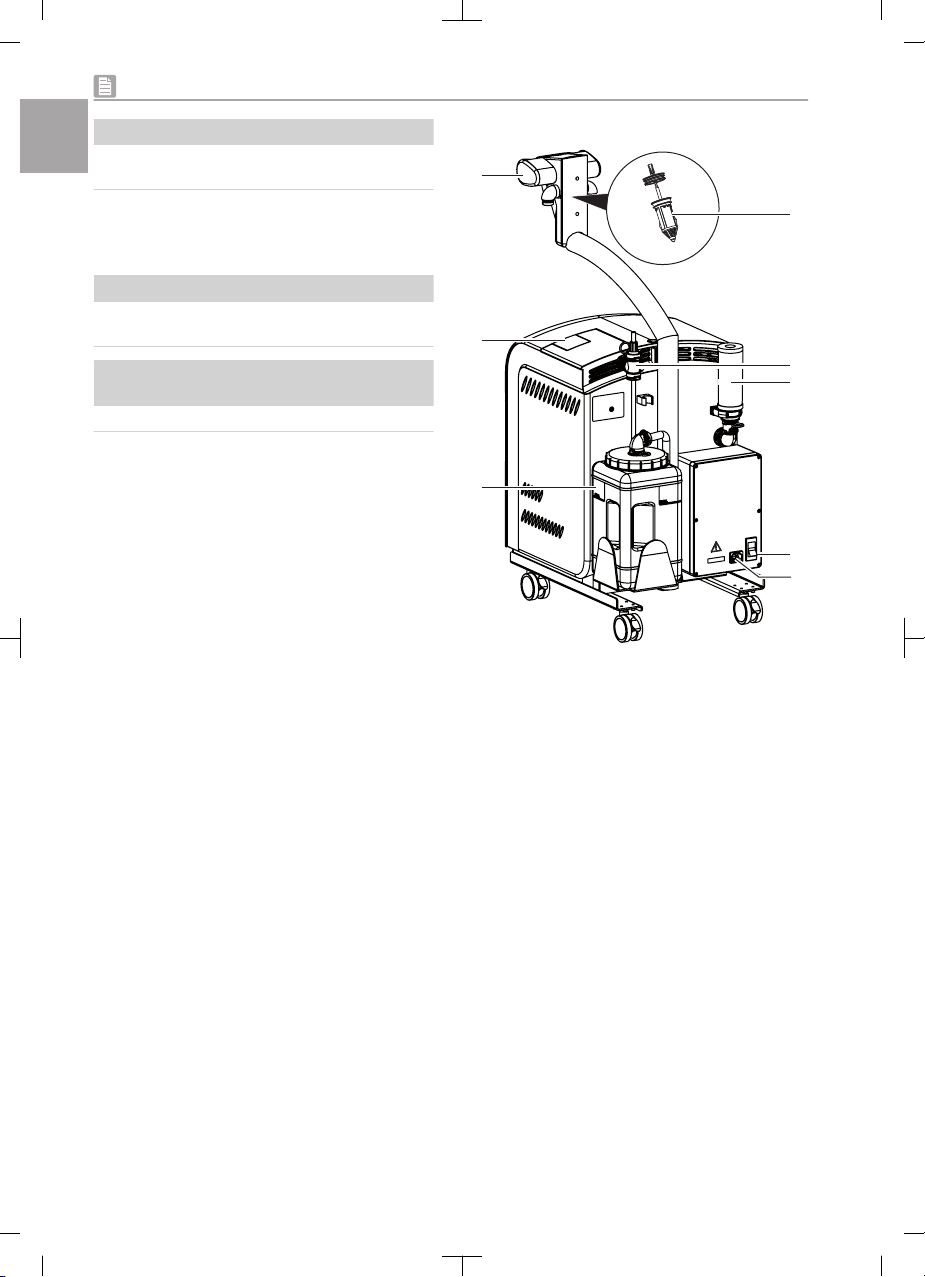

5 Function
1
2
3
5
7
8
6
4
1 Disposable filter
2 Rinsing tube
3 Bacteria filter
4 On/off switch
5 Mains AC power connection
6 Fluid container
7 Display panel (optional)
8 Hose manifold
The mobile treatment unit is used to aspirate
spray mist, fluids and particles
during dental treatment.
The unit is optionally available with amalgam sep-
aration. The fluid-air mixture flows through the
disposable filter in the hose manifold and is aspi-
rated to the combination suction unit. In the
combination suction unit, the fluid is separated
from the air and is then transported either to the
fluid container or directly through a waste water
hose into the waste water outlet. The exhaust air
is passed through the bacteria filter or, as an
option for a fixed system installation, via an
exhaust air hose. Once the maximum filling level
has been reached, the fluid container must be
emptied.
Product description
14 ATH7100005L29 2011V004
EN-
US

Units with amalgam separation have a display
panel displaying the filling level of the amalgam
collecting container integrated in the cover of the
mobile treatment unit.
Product description
ATH7100005L29 2011V004 15
EN-
US

Installation
6 Requirements
6.1 Installation/setup room
The room chosen for set up should fulfil the fol-
lowing requirements:
– Closed, dry room
– It should not be a room made for another pur-
pose (e.g. boiler room or wet cell)
– Ambient conditions correspond to "4 Techni-
cal data".
– Do not cover cooling slots or openings if you
install the unit in a housing and provide for suf-
ficient clearance to the openings to permit suf-
ficient cooling.
7 Installation
7.1 Setting up the unit
❯Where a waste water connection is available,
conduct the fluids directly via the waste water
hose into the waste water outlet.
❯Secure the unit against rolling away.

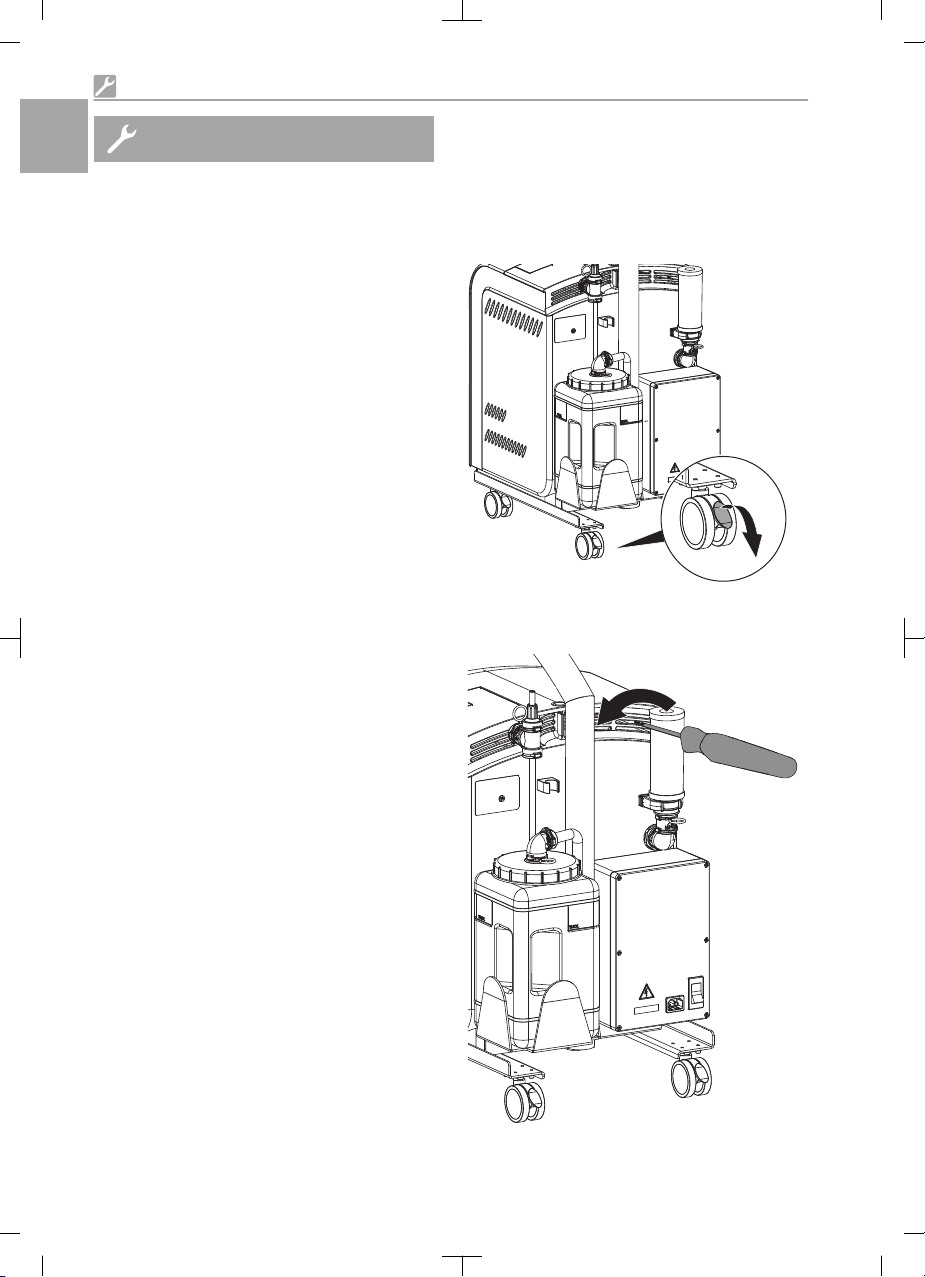

7.2 Remove the transport locks
❯Open the screw cap.
Installation
16 ATH7100005L29 2011V004
EN-
US

❯Remove the protective cover.
❯Removing the transport locks.
❯Fit the protective cover.
7.3 Electrical safety when making
connections
DANGER
Electric shock due to missing protec-
tive earth
❯Connect the unit to the protective
earth (PE) connection.
❯Connect the device to a correctly installed
power outlet only.
❯Do not place non-fixed multi-socket units on
the floor. Comply with the requirements in sec-
tion 16 of IEC 60601-1 (EN 60601-1).
❯Do not operate any other systems using the
same multiple socket.
❯Make sure that none of the electrical cables
leading to the unit are under any mechanical
tension.
❯Before initial start-up verify that the mains sup-
ply voltage and the voltage stated on the type
plate match (see also "4. Technical data").

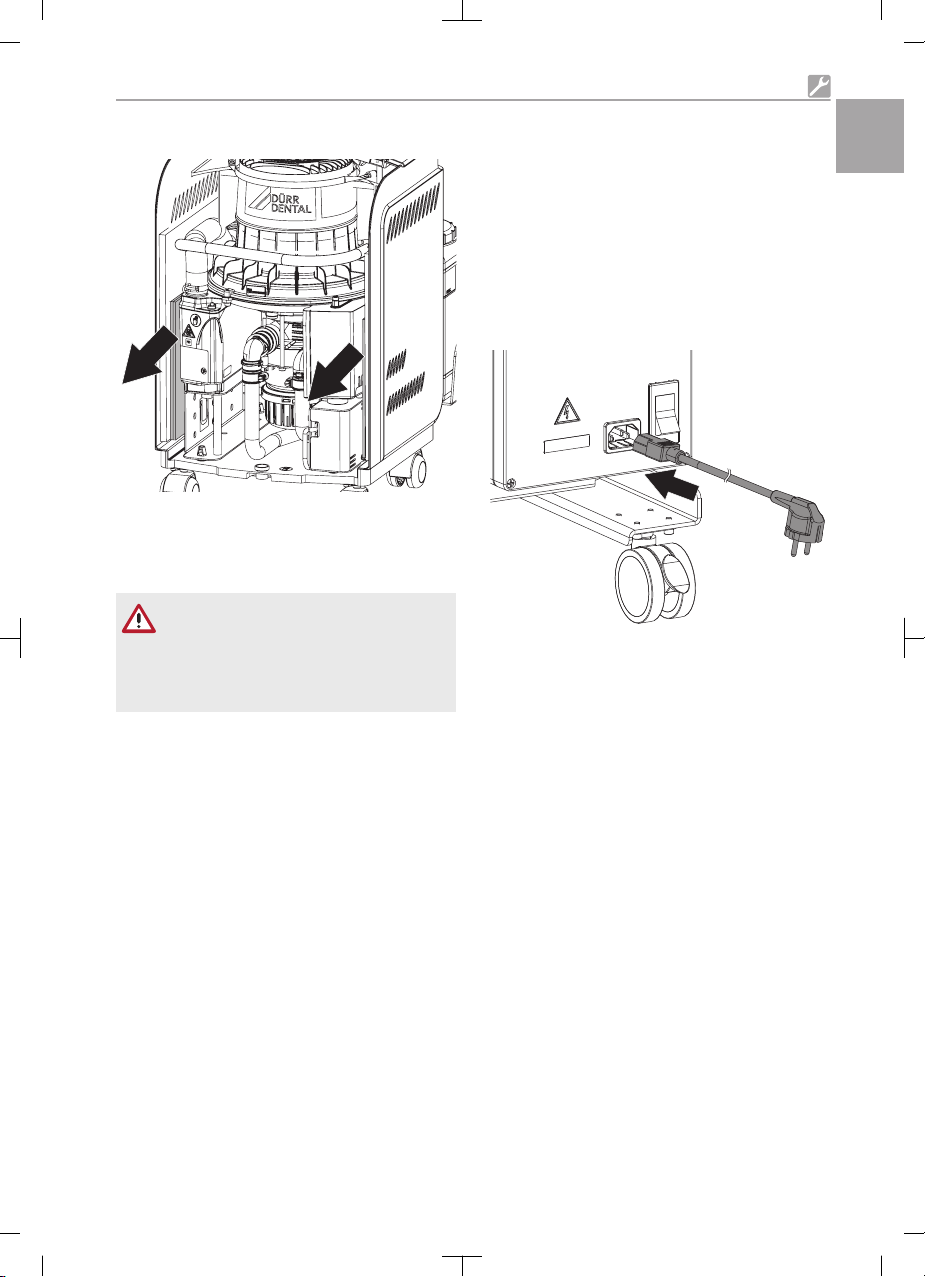

7.4 Connecting the unit to the
mains supply
Requirements:
üThere is a properly installed power outlet close
to the unit (max. length of power cord 2.5 m /
98.42 in).
üEasily accessible power outlet.
üMains voltage must match the information
shown on the type plate.
❯Plug the power cord connecting plug into the
socket connection of the unit.
❯Plug the mains plug into the power outlet.
Installation
ATH7100005L29 2011V004 17
EN-
US

8 Electrical installation
8.1 Overview of connection
543
2
1
1 Hose manifold
2 Display panel VSA 300 S
3 Suction unit
4 On / off switch
5 Mains power connection with fuses
8.2 Hose manifold
X Terminal strip
S Microswitch
Installation
18 ATH7100005L29 2011V004
EN-
US
