AirLive SNMP-GSF12M User manual

SNMP-GSF12M
Quick Setup Guide
Declaration of Conformity
We, Manufacturer/Importer
Declare that the product
Managed Multi Gigabit Fiber Switch
SNMP-GSF12M
is in conformity with
In accordance with 2014/30/EU and 2014/35/EU Directive
Clause
Manufacturer/Importer
Description
AirLive Technology Corporation
4F, No.132, Lane 235, Baoqian Rd., Xindian Dist.,
New Taipei City 23145, Taiwan
■
■CE marking
Name : A van Rossem Position/ Title : Product Manager
EN 55032:2015 Electromagnetic compatibility (EMC)
■EN 62368-1 Electromagnetic compatibility (LVD)
Date : December 2021Place : Republic of China (Taiwan)
/ po
ter
AirLive Technology Corporation declares that thisdevice
is in compliance with the essential requirements and
other relevantprovisionsofdirective 2014/30/EU.
Regulatory Approvals
CE Marking Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
CE Statement
This product complies with the 2014/30/EU and 2014/35/EU directives, including
the following safety and EMC standards:
EN 55032:2015/A11:2020
■
Electromagnetic compatibility (EMC)
EN IEC 61000-3-2:2019
■
Electromagnetic compatibility (EMC)
Managed Multi Gigabit Fiber Switch
EN 61000-3-3:2013/A1:2019
■
Electromagnetic compatibility (EMC)
EN 55024:2010+A1:2015
■
Electromagnetic compatibility (EMC)
EN 62368-1:2014+A11:2017
■
Electromagnetic compatibility (LVD) - Safety
SNMP-GSF12M

Installation Steps
Quick Setup Guide
Important Information
The default IP address: 192.168.0.1
The default username / password is admin
The content of user’s guide and associated software can be downloaded from the website
(www.airlive.com)
Installation Step:
1. Connect your device's PoE port to the switch's POE port
2. Your PoE device should get the power from the switch now. If you want to change settings
via web management. Please follow the instructions below.
3. Set your PC's IP address to 192.168.0.50.
4. Open your web browser and enter "192.168.0.1" to get into the switch's web management.
5. Enter "admin" for username, "admin" for password.
English
EN
Deutsch
DE
Wichtige Information
Die voreingestellte IP Adresse: 192.168.0.1
Das voreingestellte Passwort lautet admin
Das Benutzerhandbuch und die benötigte Software kann auf unserer Webseite
(www.airlive.com)
Installationsschritte:
1. Verbinden Sie den PoE Port ihres Gerätes mit dem PoE Port vom Switch.
2. Ihr PoE Gerät sollte jetzt den Strom vom Switch beziehen. Wenn Sie Einstellungen via
Webbrowser ändern möchten, dann folgen Sie bitte den unten angegebenen Schritten:
3. Stellen Sie die IP des PC’s auf 192.168.0.50.
4. Öffnen Sie ihren Browser und geben "192.168.0.1" ein. Die gelangen zur Web-Management
Oberfläche.
5. Geben Sie "admin" als Benutzernamen und "admin" als Passwort ein.
Español
ES
Información importante
Default IP: 192.168.0.1
Contraseña default: admin
El contenido de la Guía de Usuario y el software asociado puede descargarse desde el sitio
web (www.airlive.com)
Pasos de instalación:
1. Conecte el puerto PoE de su dispositivo al puerto PoE del switch .
2. En este momento su dispositivo PoE debe recibir energía desde el switch. Si usted desea
cambiar los parámetros vía web, por favor siga las siguientes instrucciones.
3. Configure la dirección IP de su PC en 192.168.0.50.
4. Abra su navegador web e ingrese "192.168.0.1" para acceder al administrador web del switch.
5. Ingrese "admin" como nombre de usuario, "admin" como contraseña
Português
PT
Informação Importante
O endereço IP padrão: 192.168.0.1
A palavra-chave padrão é admin
O conteúdo do guia do utilizador e software associado podem ser carregados através do
website (www.airlive.com)
Passos de Instalação:
1. Conecte a porta do seu dispositivo PoE à porta POE do switch
2. Seu dispositivo PoE deve obter agora a energia através do switch. Se desejar alterar as
configurações através do gestor web. Siga por favor as instruções em baixo.
3. Defina o endereço IP do seu PC para 192.168.0.50.
4. Abra o seu explorador web e digite "192.168.0.1" para entrar no gestor web do switch.
5. Digite "admin" para o username, "admin" para a password.
A.
B.
1. Connect the powercord to the back of the Switch and turn the power switch on.
C. Power Connection
SNMP-GSF12M
Managed Multi Gigabit Fiber Switch
Desktop installation
Wall-mounted installation

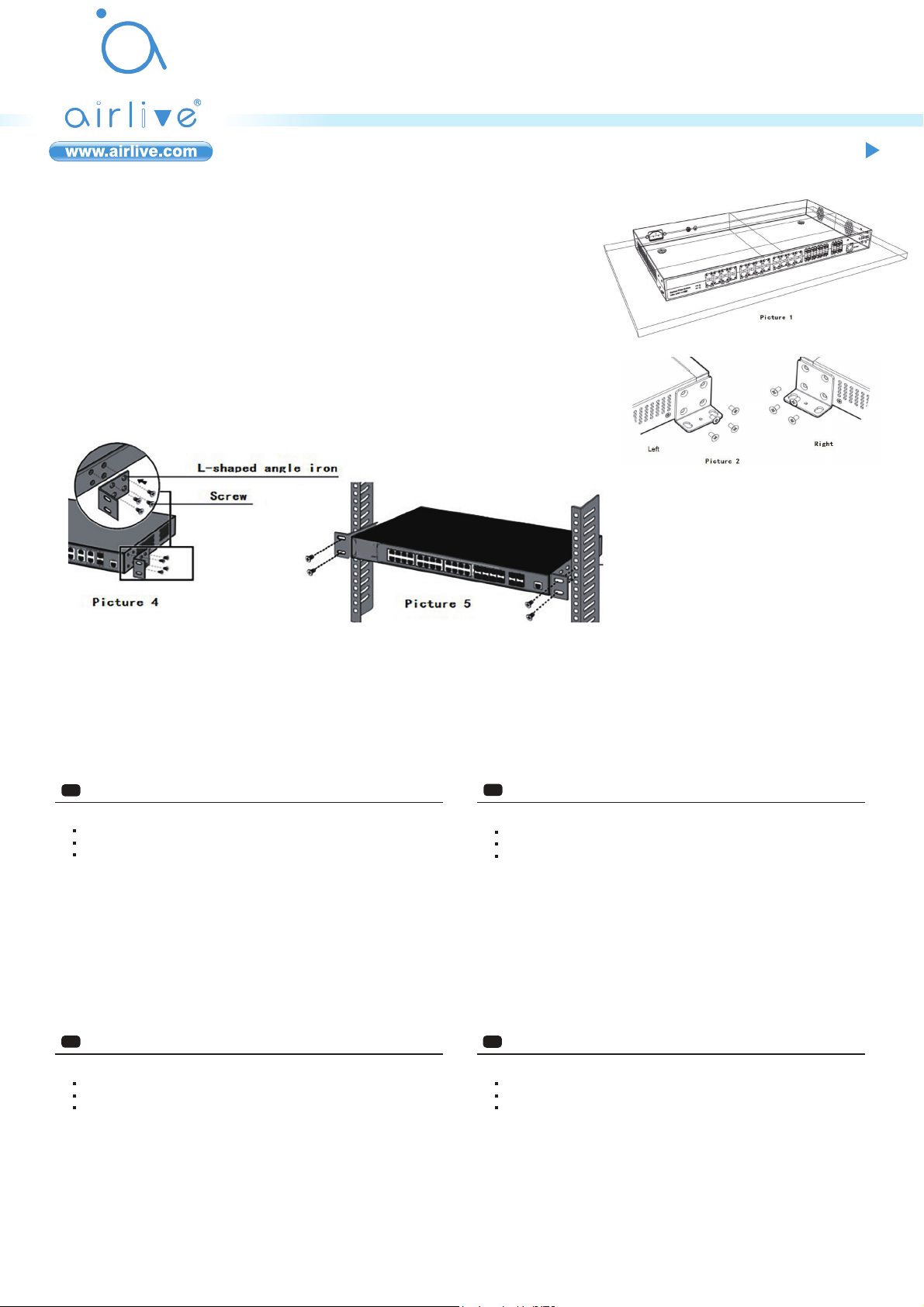

Step 1: As shown in picture 1, lay the switch flat on the desktop, and ensure that at least
10cm of space is reserved on both sides of the vent of the switch so that the switch can
be well ventilated and cooled.
Rack installation
Step 1: As shown in picture 2, find the mounting ears and screws from the accessory bag of
the machine, then place the switch upright, place the mounting ears to the installation position,
and see if the screw holes are aligned properly After confirming the match, use a screwdriver
to fix the hanging ears on both sides of the machine with screws.
Step 1: As shown in picture 4, first fix the brackets on both sides of the machine with the
screws. This is the same as with the Wall-mounted installation.
Step 2: As shown in picture 5, put the machine into a suitable position in a standard 19-inch
cabinet, and then fix it on the rack.
